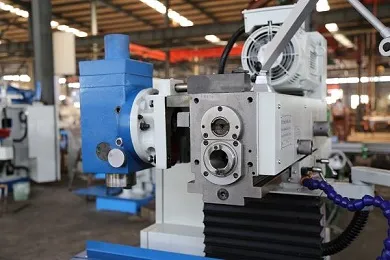

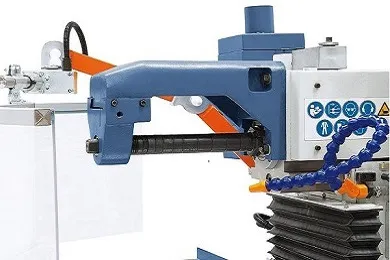

🔵 Spindle Features:

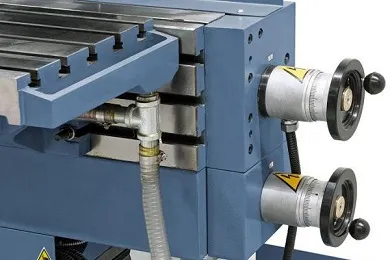

🔵 Working Feed & Table:
| Items | XL8132 | XL8140 | XL8145 |
|---|---|---|---|
| Working Area | |||
| Worktable size (L×W) | 750x320mm | 800x400mm | 850x450mm |
| Max. load of table | 160kg | 200kg | 300kg |
| Torque of feed motor (Z) | 10Nm | 10Nm | 15Nm |
| Travels | |||
| Longitudinal travel (X) | 405mm | 500mm | 600mm |
| Transverse travel (Y) | 305mm | 400mm | 450mm |
| Vertical travel (Z) | 400mm | 400mm | 450mm |
| Feeds of X Y Z axis | 10-1000mm/min | ||
| Spindle | |||
| Spindle speed (V&H) | 40-260rpm, 260-2000rpm (2 steps) | ||
| Main motor power | 3.7kW | 3.7kW | 5.5kW |

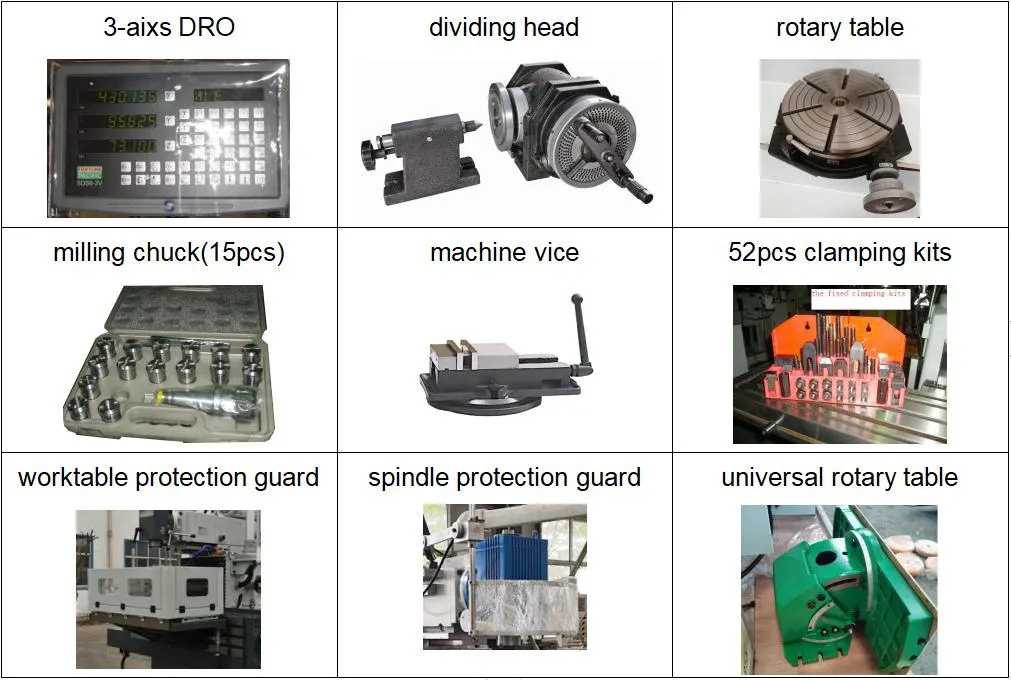

| No. | Item Description | Specification |
|---|---|---|

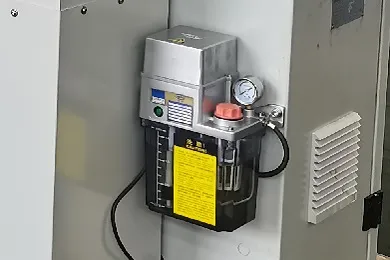

| 1 | Automatic centralized lubrication system | Standard |
| 2 | Water cooling system with spray nozzle | Standard |
| 3 | CE Schneider electrical components | Standard |
| 4 | LED work lamp | Standard |
| 5 | Supporting frame for horizontal milling | Standard |
| 6 | Horizontal milling arbor | Ø16, Ø22, Ø27, Ø32 |
| 7 | Milling chuck set | 2-12mm |
Delivery Time: Generally 3 months production time after order confirmation.

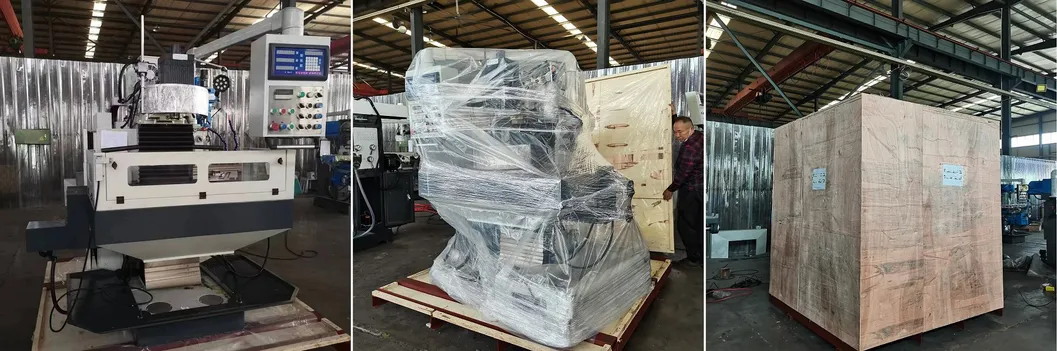

Packing Type: Machine is covered with damp-proof plastic film, then packed in a plywood case with a steel pallet.
Packing Size: 2100 x 1900 x 2250mm (L/W/H). Compatible with 20GP containers.

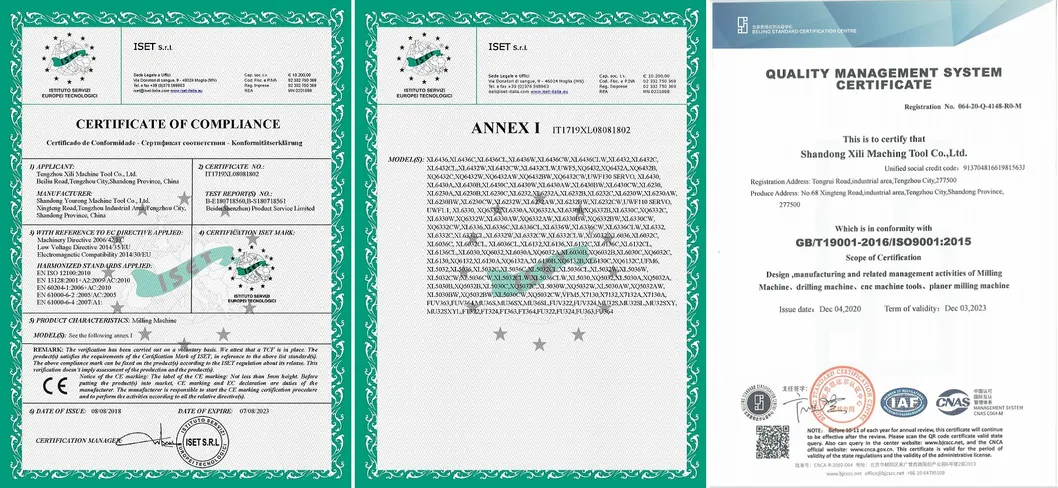

Products are strictly manufactured according to Europe standards with CE certificate.
