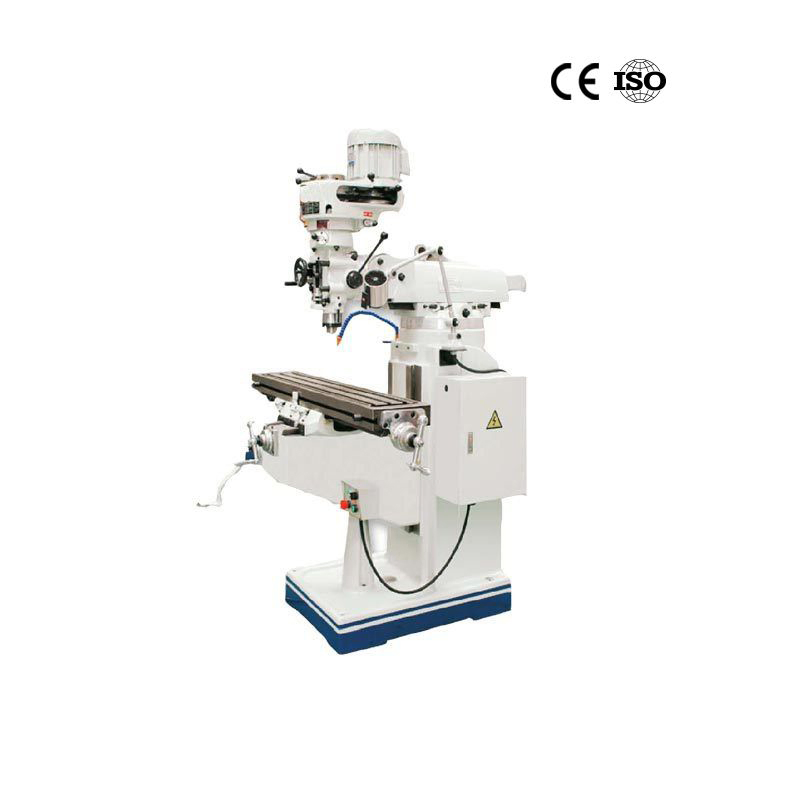

Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
1 / 5
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A
Senmo Vertical Universal Arm Type Turret Milling Machine X6323A

Senmo Vertical Universal Arm Type Turret Milling Machine X6323A

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Information

Model NO.
X6323A
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Artificial / Manual
Precision
Precision
Certification
CE
RAM Travel
315mm
Spindle Travel
127mm
Spindle Motor
2.25kw(3HP)
Origin
China
HS Code
84596990

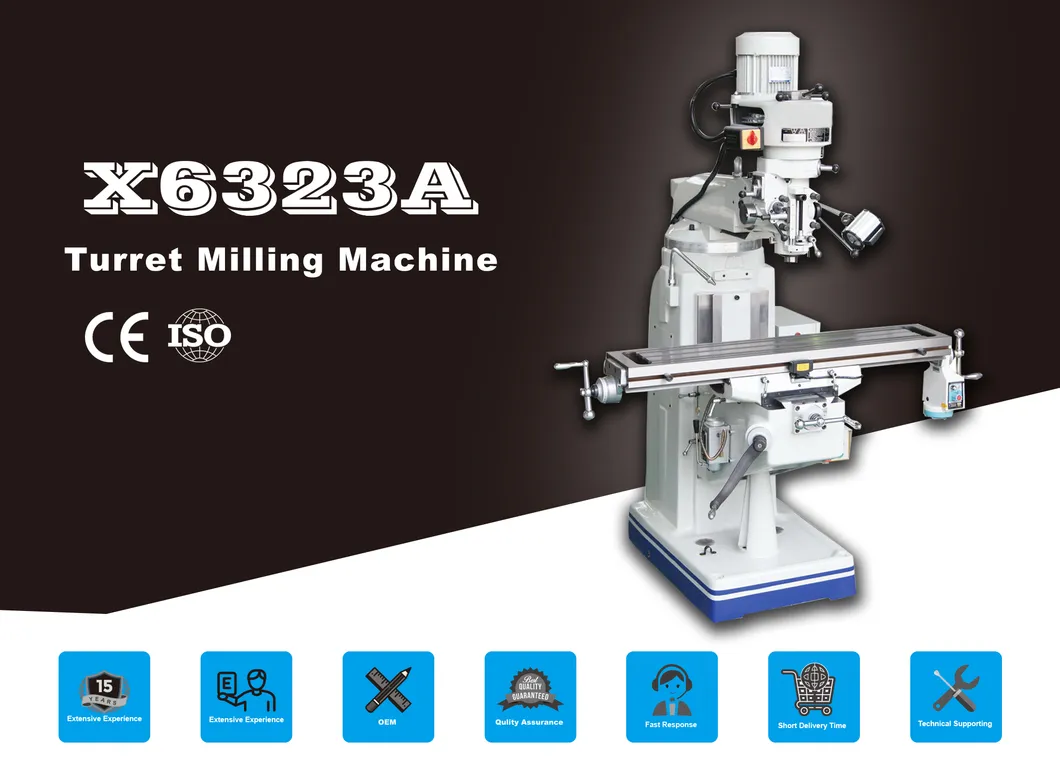

Turret Milling Machine X6323A
★

Key Features

Heavy, solid model made of high-grade casting
All axes with adjustable dovetail slideways

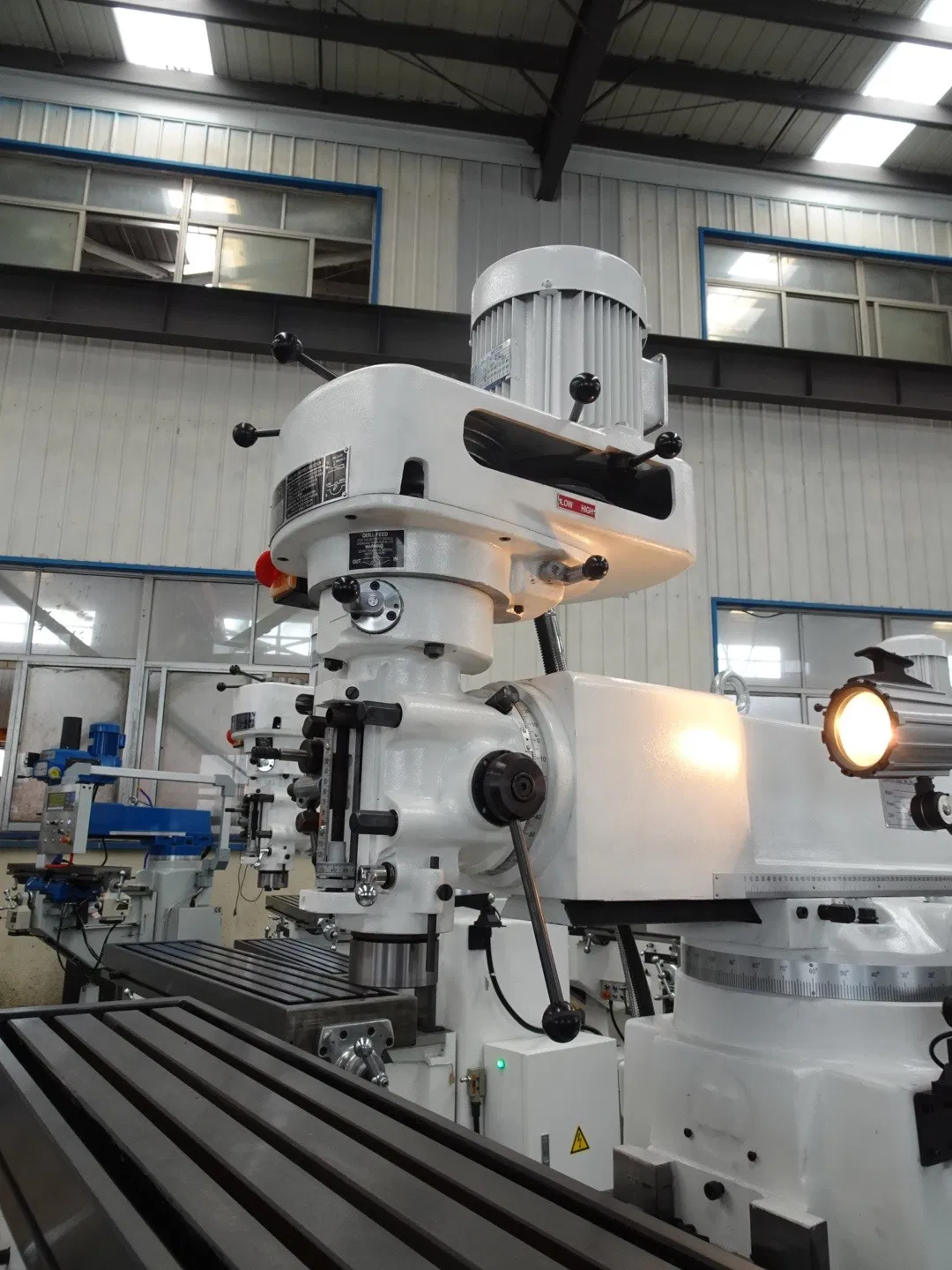

Mill head can be rotated and tilted
Adjustable gibes on table
Accurate position and good rigidity
Big cutting power with automatic spindle sleeve feed
⚙

Technical Specifications

Parameter X6323A X6323B
Table Size230x1067mm (9"x42") / 230x1246mm (9"x49")
Longitudinal Travel670/850mm610/790mm
Cross Travel310mm310mm
Vertical Travel390mm390mm
Spindle TaperStandard R8 (ISO30/ISO40 optional)
Spindle Speed (50Hz)16 steps, 65-4500rpm
Spindle Motor2.25KW (3HP)2.25KW (3HP)
Net Weight1000kg1060kg

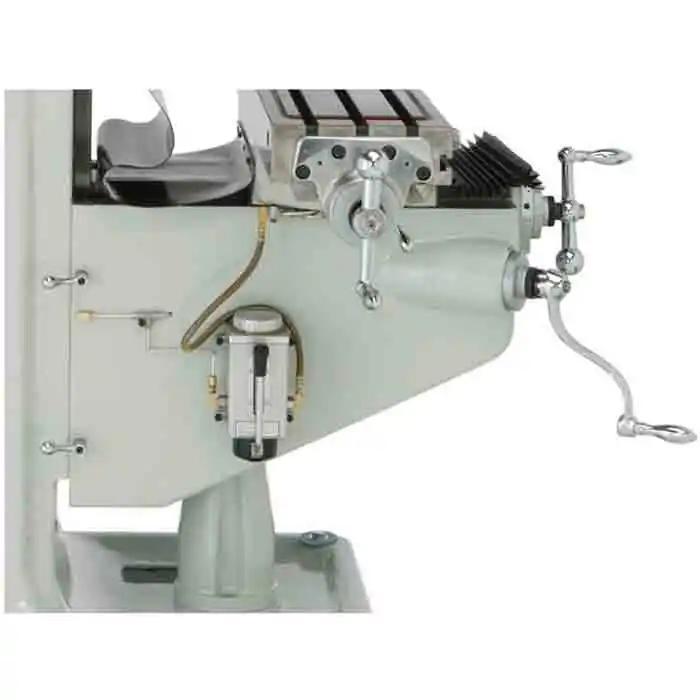

Details 1
Details 2
Details 3
✚

Accessories

Standard Accessories Optional Accessories
Draw bar, Tool box & tools, Working lamp, Electric box, Handle oil pump X/Y/Z axis power feed, Air drawbar system, Clamping kit, Mill chuck set, Coolant system, DRO, Vice

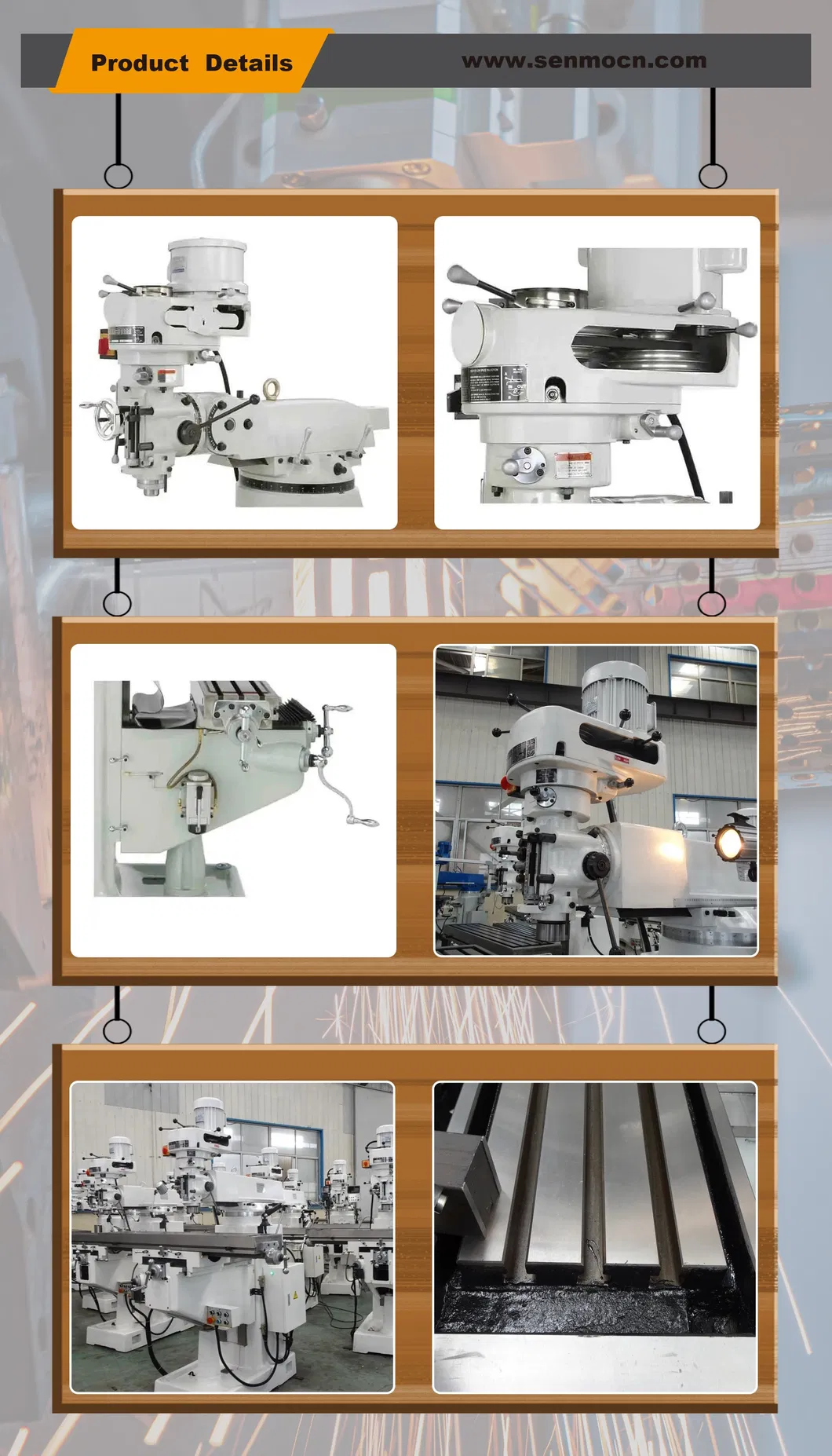

Full View
♥

Our Services

1. Experienced staff answer all your questions in time.

2. Customized design is available to meet specific industrial needs.

3. Exclusive and unique solutions provided by professional engineers.

✔

Recommended Products

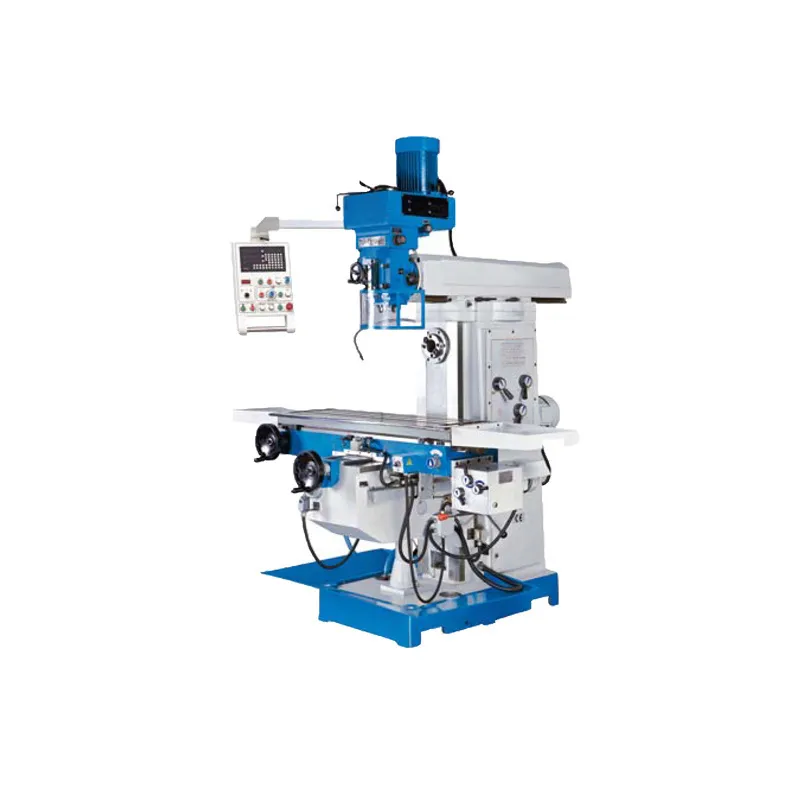

XL6336

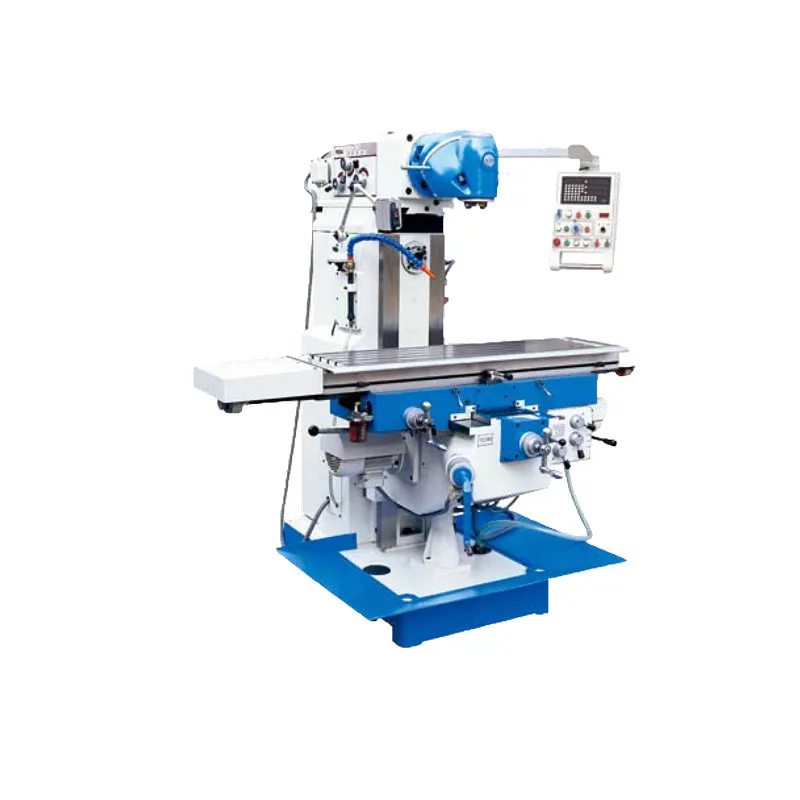

X6432

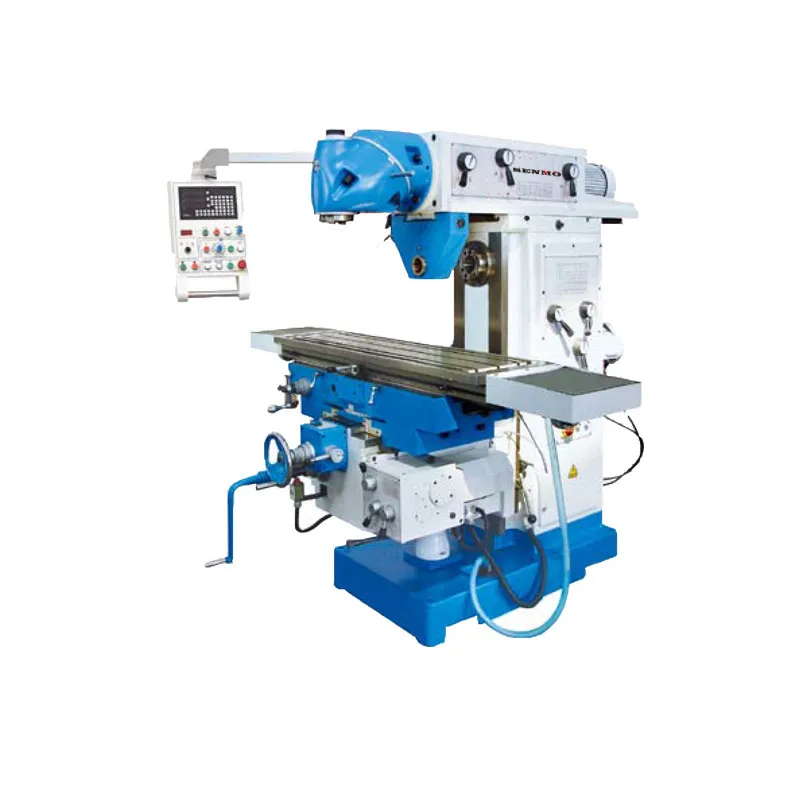

X6436
?

Frequently Asked Questions

What is the main material used for the machine body?
The X6323A is a heavy, solid model constructed from high-grade casting to ensure maximum stability and durability.
Can the milling head be adjusted for angled work?
Yes, the mill head can be rotated 90° from right to left and tilted 45° from front to back, allowing for versatile machining operations.
What are the spindle speed options available?
The machine offers 16 steps of spindle speed ranging from 65-4500rpm at 50Hz, with an optional variable speed of 60-4200rpm.
Does the machine support automatic feeding?
The X6323A features automatic spindle sleeve feed with three different rates: 0.04, 0.08, and 0.15mm per revolution.
What is the difference between the X6323A and X6323B models?
The primary differences lie in the table travel dimensions and the total net weight, with the B model being slightly heavier.
What spindle tapers are compatible with this machine?
The standard spindle taper is R8, but ISO30 and ISO40 options are available upon request.
