Product Description

Overview - Basic Info.
Model NO.:ZX50C
Type:Worktable Milling Machine
Object:Tool
Structure:Bed type
Milling Cutter Type:Vertical Milling Cutter
Controlling Mode:Artificial / Manual
Precision:High Precision
Certification:GS, CE, RoHS, ISO 9001
Max. Drilling Dia:50mm
Table Size:800*240mm
Spindle Speeds:(5 Step) 115-1750
Main Motor Power:0.85/1.5kw
Product Description

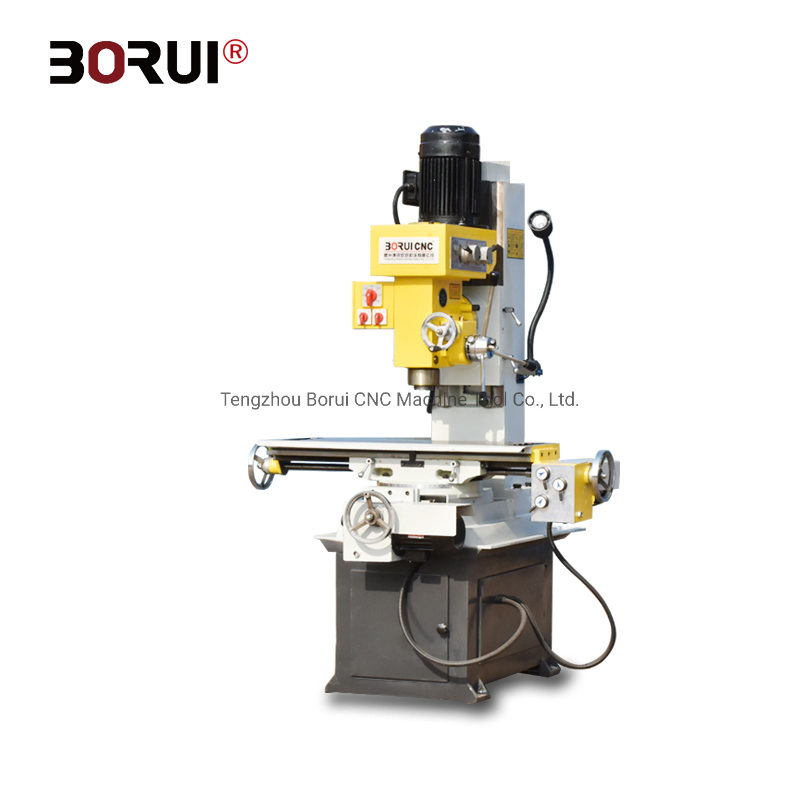

Vertical Mini Universal Worktable Drilling and Milling Machine ZX50C

Widely used in machinery manufacturing, instrument industries, building decoration, and repair departments.

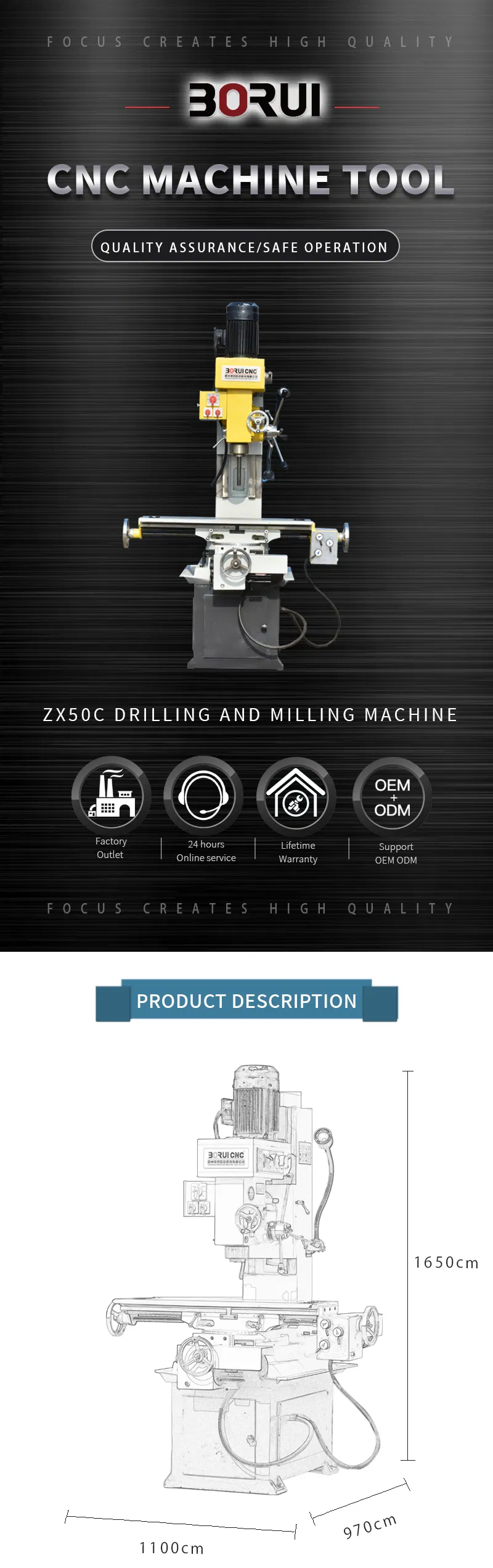

ZX50C Milling Machine Description
Specifications ZX50A ZX50C
Max. Drilling Dia. (mm)5050
Max. Horizontal Milling Dia.100100
Max. Vertical Milling Dia.3232
Max. Boring Dia.100100
Spindle TaperMT4, R8MT4, R8
Spindle Speeds Range(5 step) 270-2400(5 step) 115-1750
Spindle Travel120120
Table Size (mm)800*240800*240
Table Travel (mm)400*230*380400*230*380
Main Motor Power (KW)1.50.85/1.5
N.W./G.W.(Kg)460/540470/550
Main Performance Characteristics
  • 1Milling head with micro-feed functionality for precise drilling.
  • 2Integrated milling and tapping functions.
  • 3Equipped with gear transmission power feed for the worktable.
  • 4High-strength cast iron (HT200-250) worktable construction.
  • 5Guide ways hardened by supersonic frequency quenching (depth 2-4mm).
  • 6Gear drive milling head with ±45° swivel capability.
Details Display

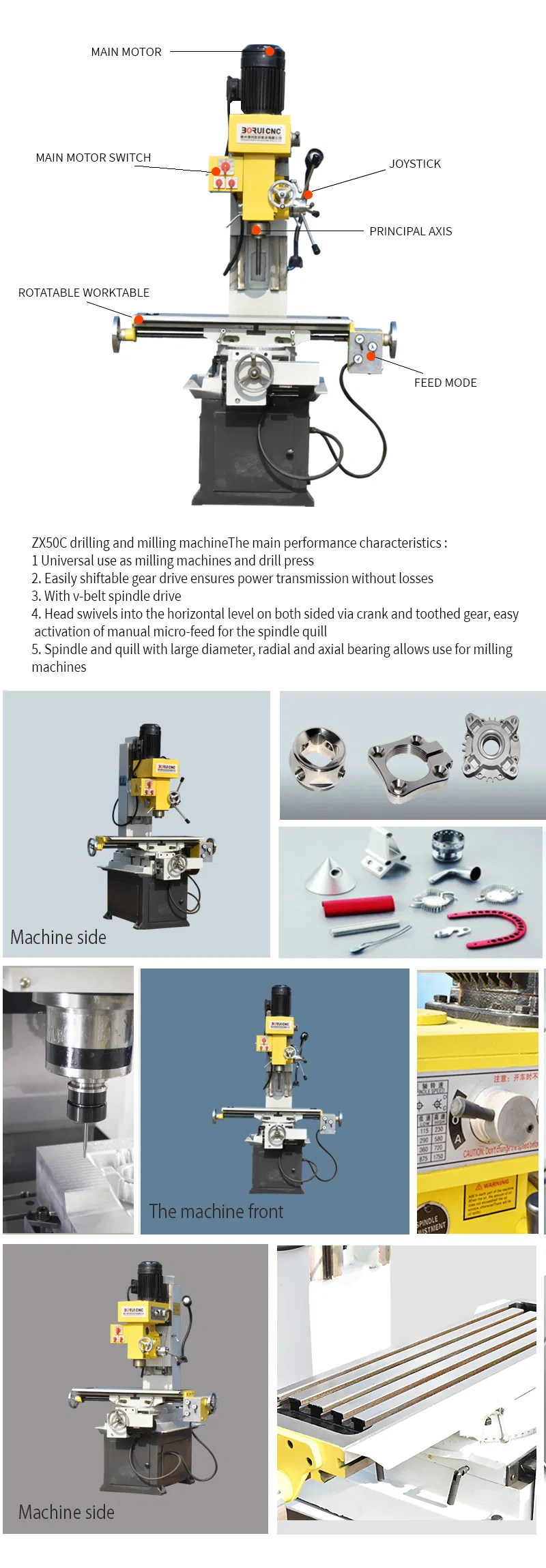

Detail 1
Detail 2

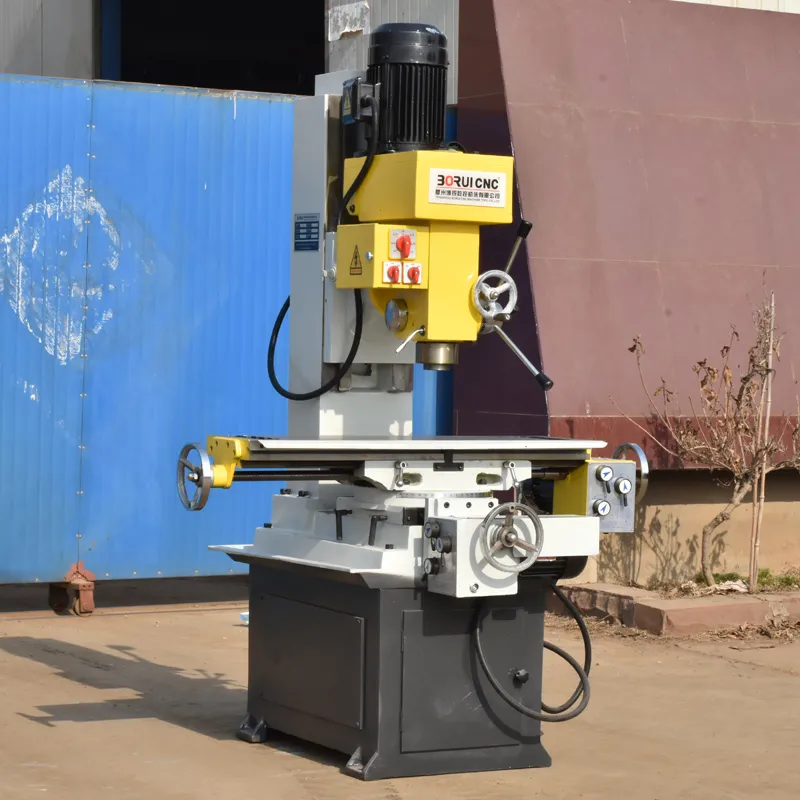

Detail 3

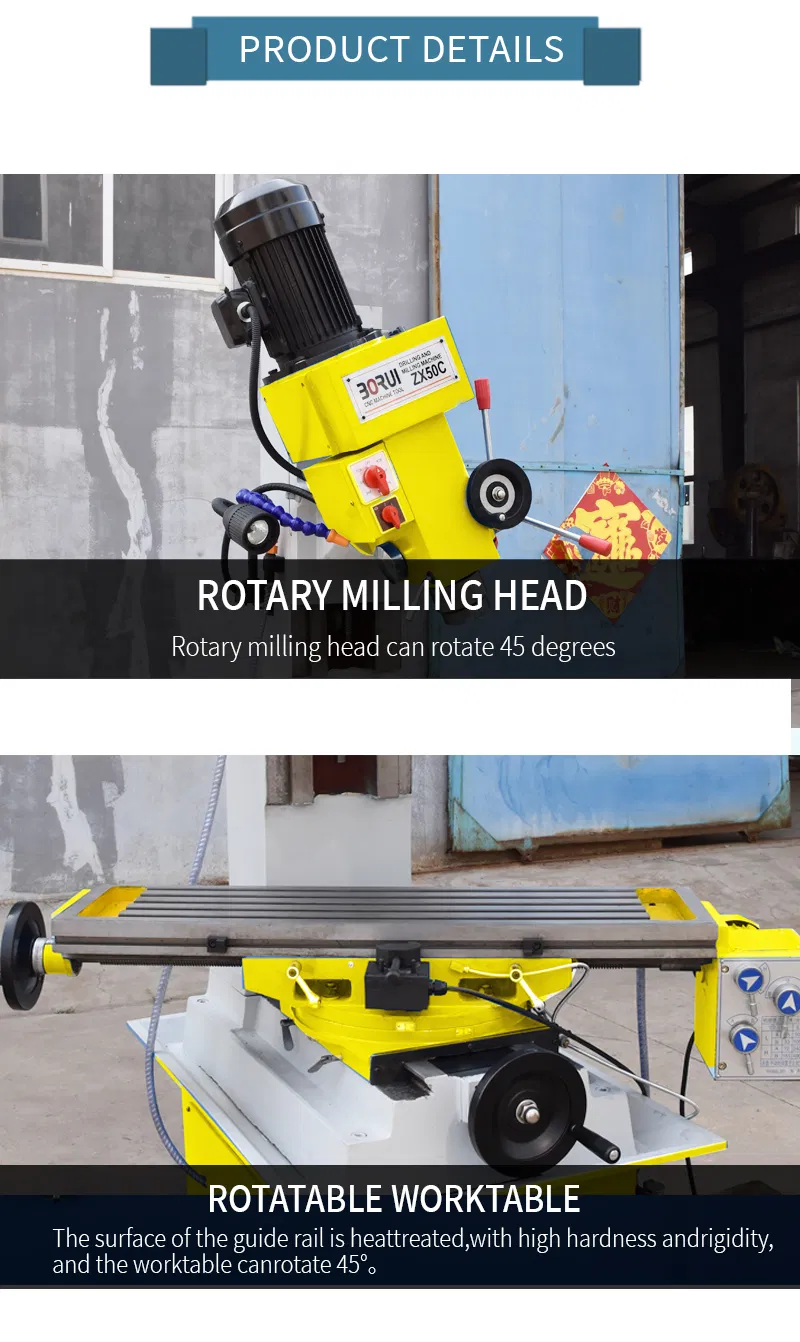

Detail 4

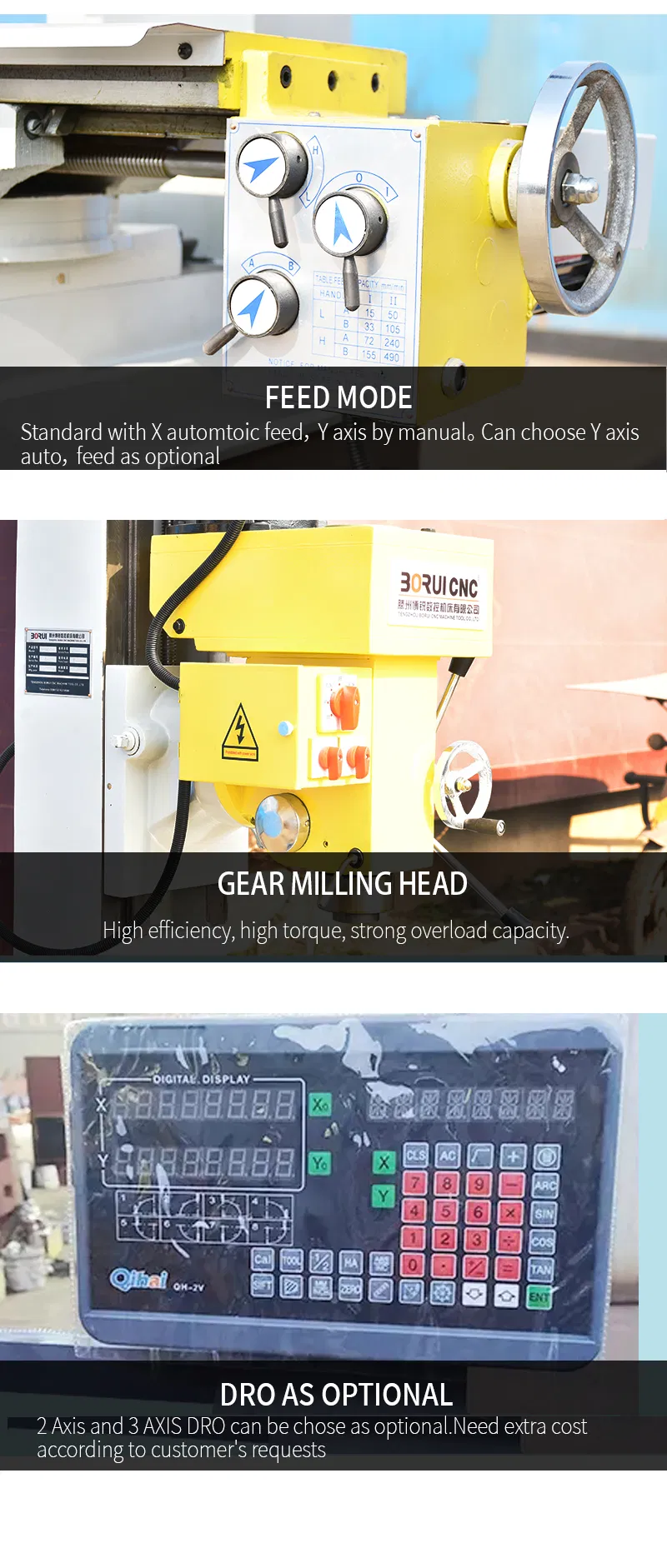

Detail 5
Service & Packaging
Standard Config: Drill chuck, Mill chuck, Wrench, Work light, Spindle arbor, Machine vice.
Optional Config: DRO on X/Y/Z-axis, Clamping kit, Universal dividing head, Rotary table.
Packaging and Factory
Frequently Asked Questions
1. How can I choose the most suitable machine for my needs? Please provide your required specifications or product drawings. Our technical team will evaluate your requirements and recommend the best model or specific configuration for your project.
2. What are the main machine categories you offer? We specialize in a wide range of machinery including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shapers.
3. What are the standard payment and trade terms? We accept FOB, CFR, and CIF terms. Payment typically involves a 30% initial deposit via T/T upon ordering, with the remaining 70% balance due before shipment. Irrevocable LC at sight is also acceptable.
4. What is the Minimum Order Quantity (MOQ)? The MOQ is generally 1 set. For certain low-cost auxiliary machines, the MOQ might be higher, but for main milling and drilling equipment, single unit orders are welcomed.
5. What kind of technical support do you provide after purchase? We provide comprehensive online technical support, detailed technical files, machine operation videos, and spare parts replacement services. All inquiries are typically replied to within 8 hours.
6. How is the machine packaged for international shipping? Machines are packed using free fumigation plywood packaging with a sturdy steel base to ensure protection during sea freight or international express delivery of documents.
