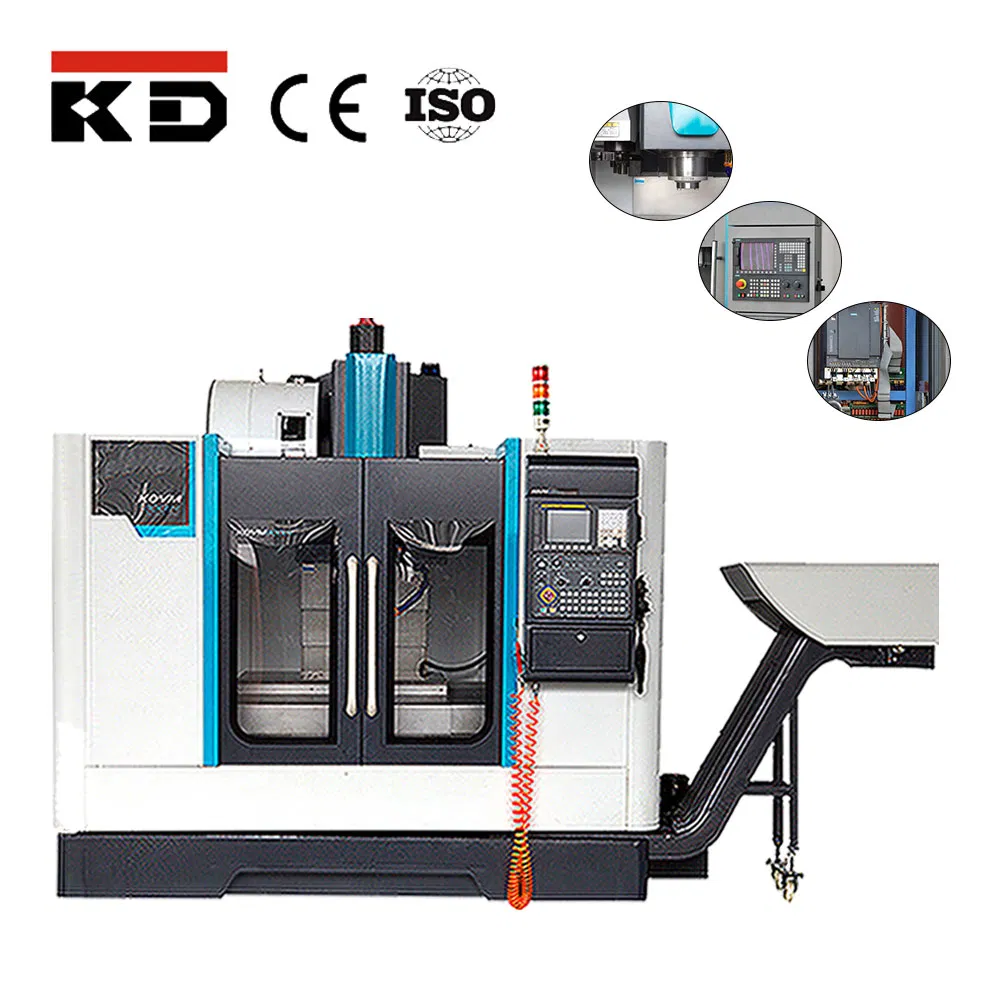

ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
1 / 5
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS
ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS

ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS

Customization: Available
Type: Worktable Milling Machine
Object: Tool
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
KDVM800LA
Structure
Bed type
Milling Cutter
Vertical / Indexable
Controlling Mode
CNC (Automatic)
Precision
High Precision
Certification
CE, ISO 9001
X/Y/Z Travel
800 / 530 / 530 mm
Table Size
930 X 510mm
Spindle Speed
8000rpm (BT40)
ATC Capacity
24 Tools
Travel Speed
24m/Min
HS Code
84571010
★

Product Description

ISO 9001 Approved 5 Axis CNC Milling Machine with CE, ISO9001, SGS

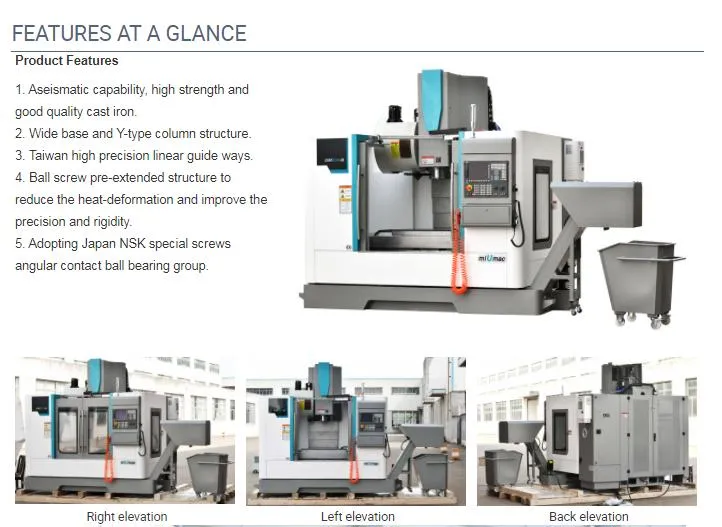

CNC Milling Machine Overview

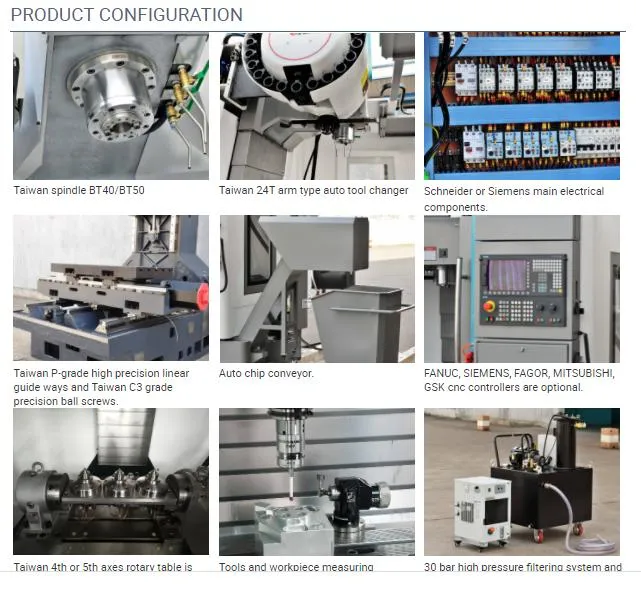

CNC Machine Detail
📋

Technical Comparison

MODELS DM852 DM1052
X axis Travel 800mm 1000mm
Y / Z axis Travel 520mm / 520mm
Table size 950×510mm 1130×510mm
Max. table loading 800kg
Spindle Power 11/15kw (FANUC)
Spindle Speed 8000rpm
X/Y/Z Fast Feed 30/ 30/ 30m/min
ATC Tool Number 24
Positioning Accuracy ≤0.006mm
Repeatability (ISO) ≤0.004mm
Net Weight 5150kg 5480kg

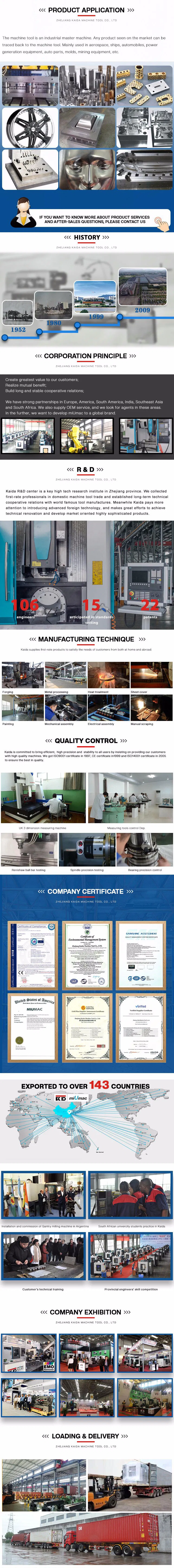

Full Product Specifications Infographic
?

Frequently Asked Questions

What is the positioning accuracy of these CNC machines?
The machines offer high precision with a positioning accuracy of ≤0.006mm and a repeatability of ≤0.004mm according to ISO standards.
How many tools can the Automatic Tool Changer (ATC) hold?
The ATC system comes with a 24-tool capacity, allowing for complex machining operations with a tool-to-tool change time of just 2 seconds.
What are the main differences between the DM852 and DM1052 models?
The primary differences lie in the X-axis travel (800mm for DM852 vs 1000mm for DM1052) and the table size (950mm length vs 1130mm length).

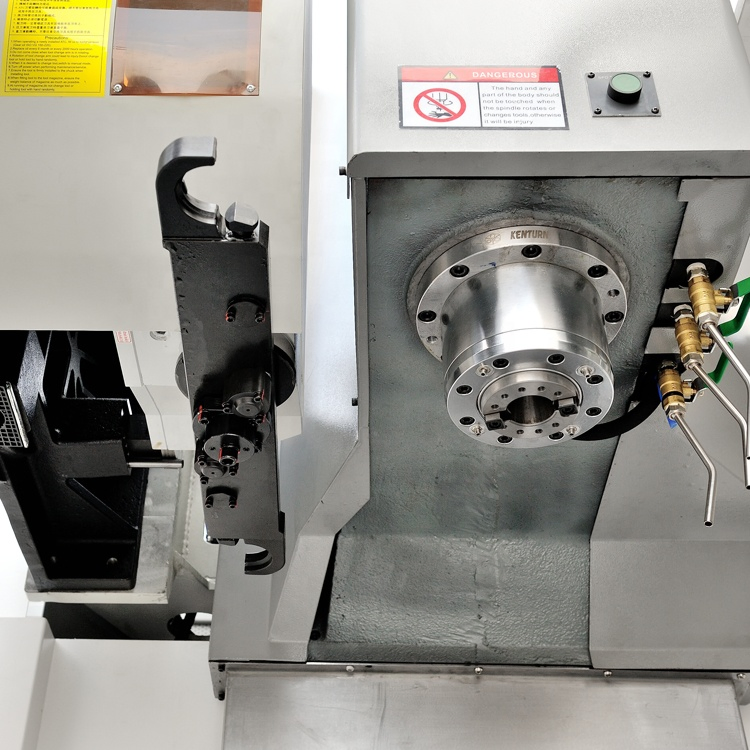

What type of spindle and speed does this machine feature?
Both models feature a BT40 taper spindle with a standard speed of 8000rpm, powered by an 11/15kw motor.
What is the maximum table load capacity?
The robust bed-type structure allows for a maximum table loading weight of up to 800kg.
Are these machines certified for international standards?
Yes, the machines are fully compliant with CE, ISO 9001, and SGS certifications, ensuring global quality and safety standards.
