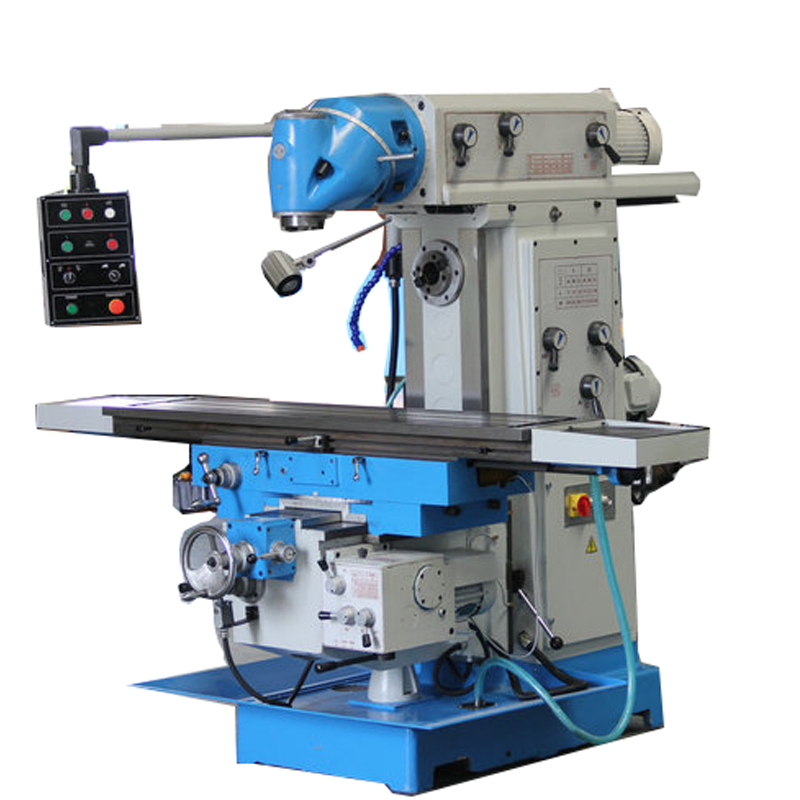

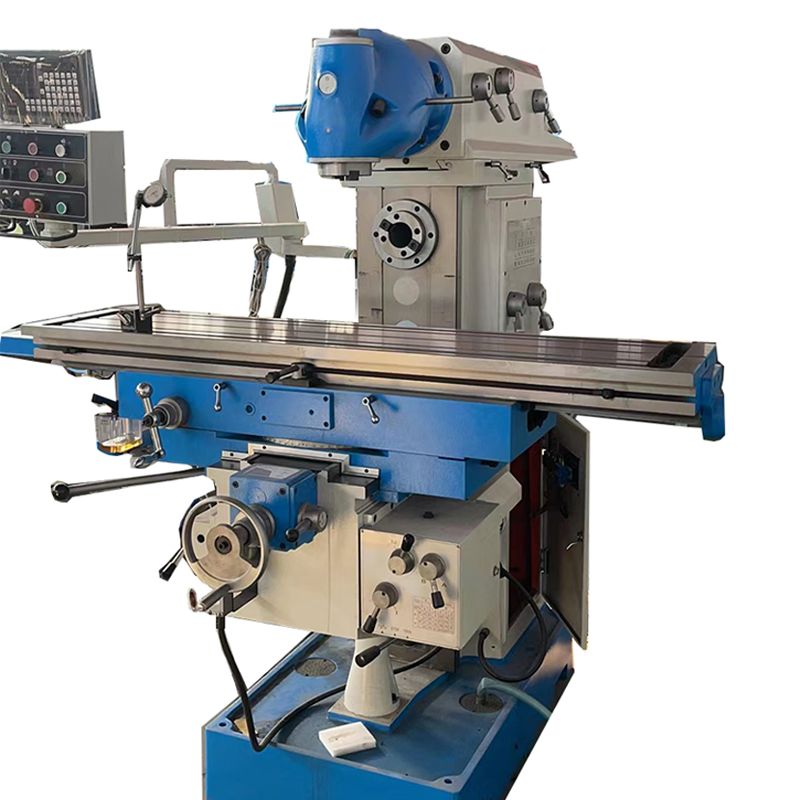

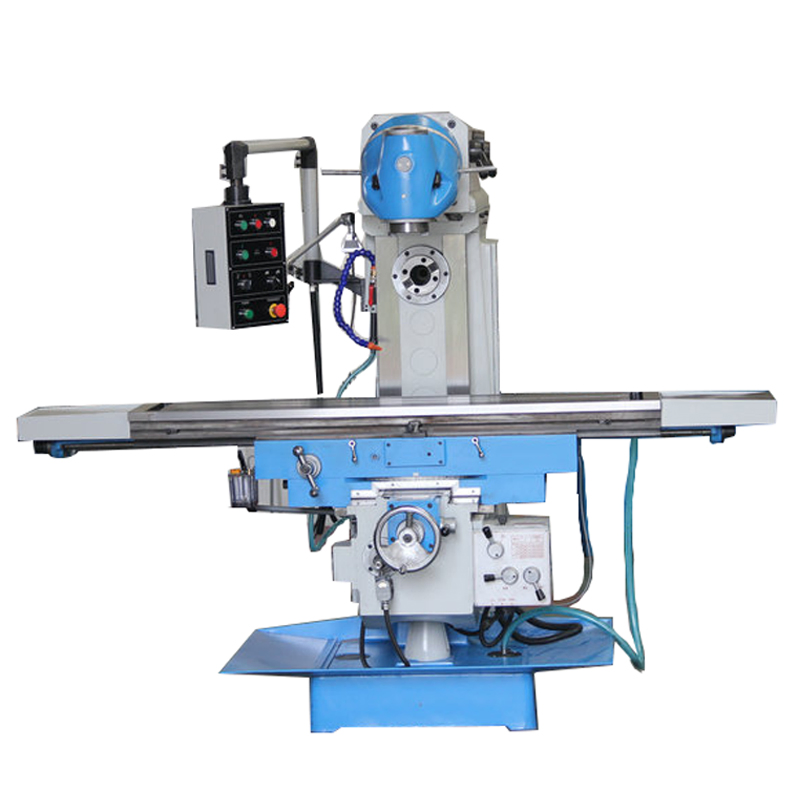

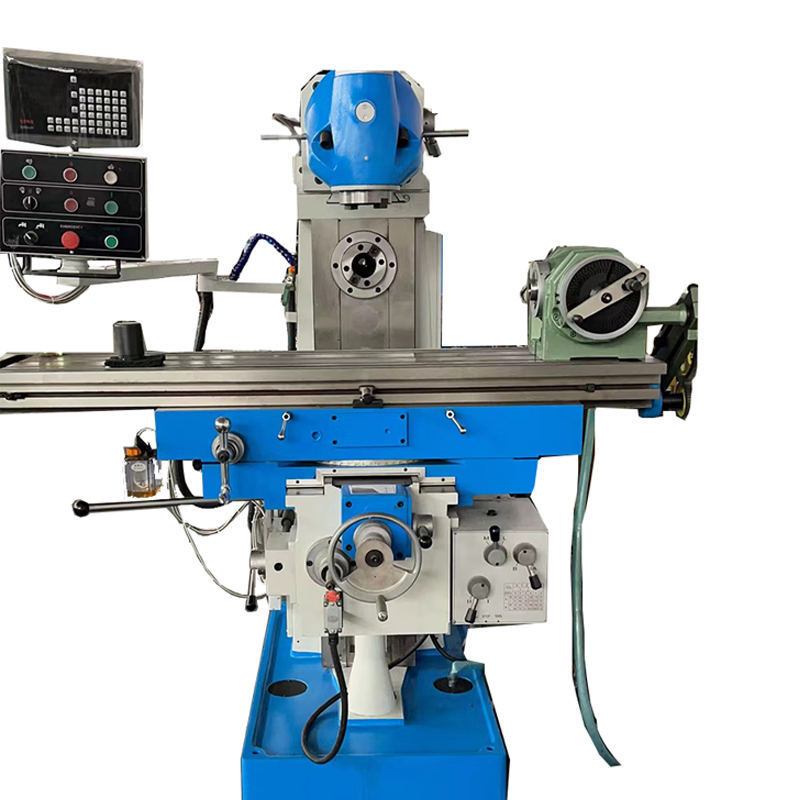

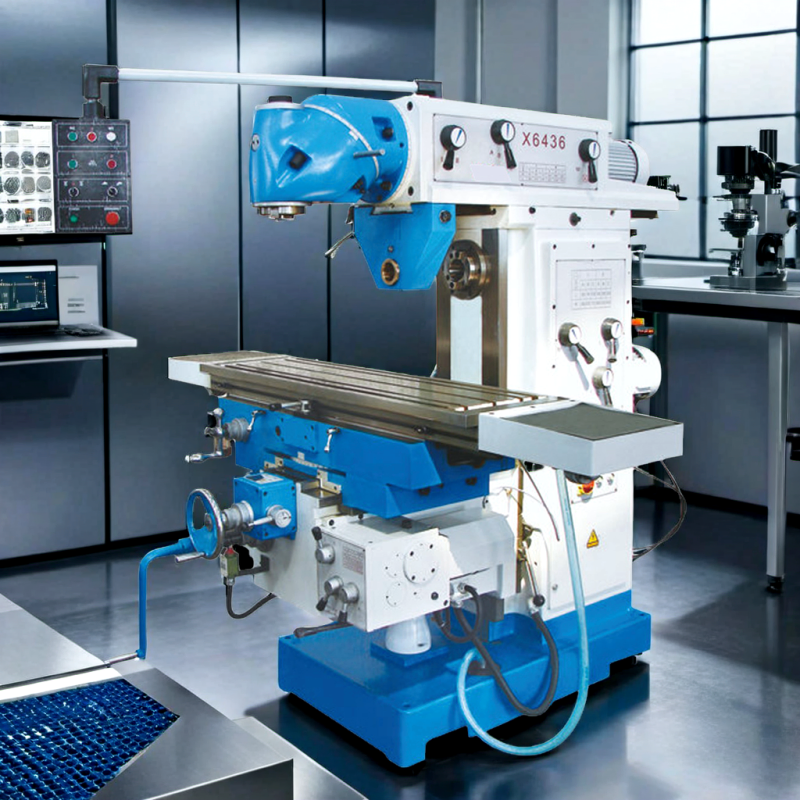

Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
1 / 5
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436
Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436

Universal Swivel Milling Head Mechanical Feed Horizontal and Vertical RAM Type Milling Machine X6436

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Universal Swivel Head Milling Machine X6436 Overview

Model NO.
X6436
Type
Knee-and-Column Milling Machine
Structure
Ram Type
Precision
High Precision
Table Size
1600X360mm
Spindle Taper
ISO50
Main Motor Power
4kw
Control Mode
Artificial / Semiautomatic
X/Y/Z Travel
1200 / 290 / 390 mm
Certification
GS, CE, RoHS, ISO 9001

Product Key Features

  • Universal Milling Head: Equipped with a universal swivel head capable of 360-degree rotation for versatile machining.
  • Swivel Table: The worktable can swivel 35 degrees to both the left and right sides.
  • Automatic 3-Axis Feed: Features automatic feeding on three axes, controlled efficiently through a single gear box.
  • Movable Ram: The ram structure allows for flexible forward and backward movement.
  • Extended Travel: The table can be extended to 1600mm, increasing the X travel to 1300mm simultaneously.
  • Ergonomic Operation: Equipped with a centralized operation panel for maximum operator convenience.

Technical Specifications

Specification Item Unit Parameters (X6436)
Table Sizemm1600 x 360
T-Slot (Number / Width / Distance)mm5 / 14 / 95
Max. Load of Tablekg400
Table Swivel Angledeg±45º
Longitudinal Travel (X)mm1300
Cross Travel (Y)mm290/280
Vertical Travel (Z)mm390
Spindle Taper-ISO50
Vertical Spindle Speed (12 steps)rpm58-1800
Horizontal Spindle Speed (12 steps)rpm60-1750
Swivel Angle of Headdeg360º
Ram Travelmm500
Main Motor Powerkw4
Overall Dimensioncm198 x 202 x 190
Gross Weightkg2400

Standard & Optional Accessories

Standard AccessoriesMilling chuck ISO50, Inner hexagon spanners, Wrenches, Draw bars (V/H), ISO50/MS4 middle-sleeve, Milling arbors, Shell end milling arbor, Operation manual.
Optional AccessoriesDigital Readout (DRO), Clamping kits, Machine vice, Dividing head, Additional milling chucks.

Detailed Product Gallery

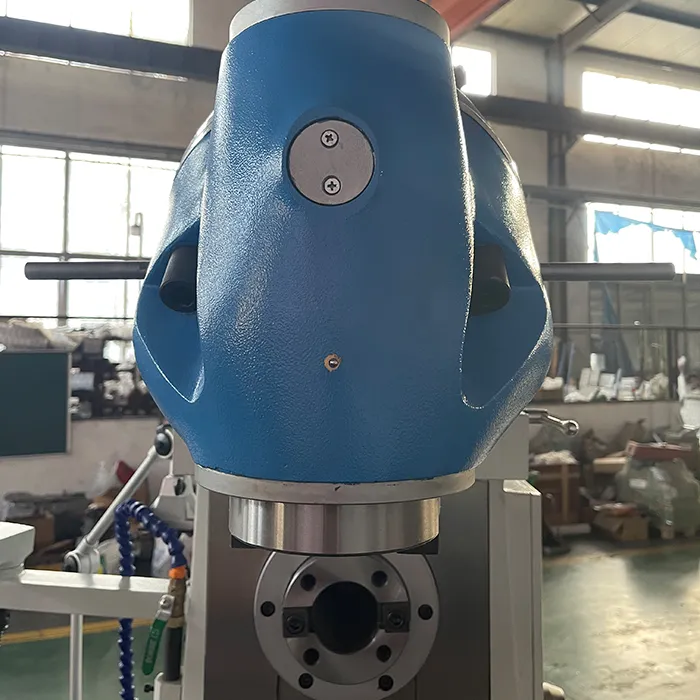

Milling Machine View 1

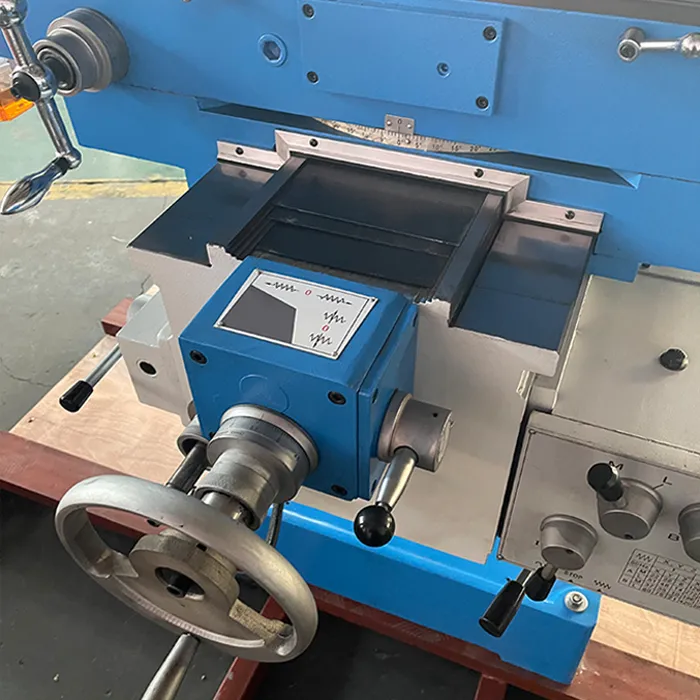

Milling Machine View 2

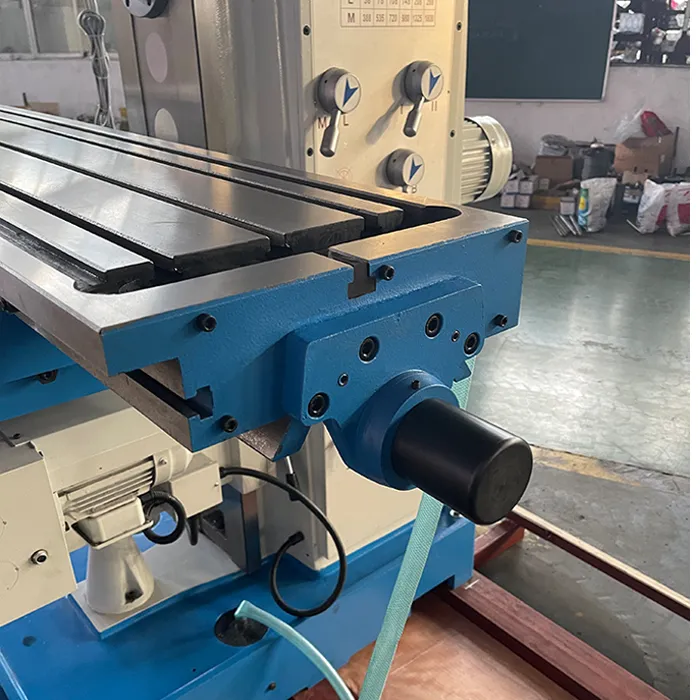

Milling Machine View 3

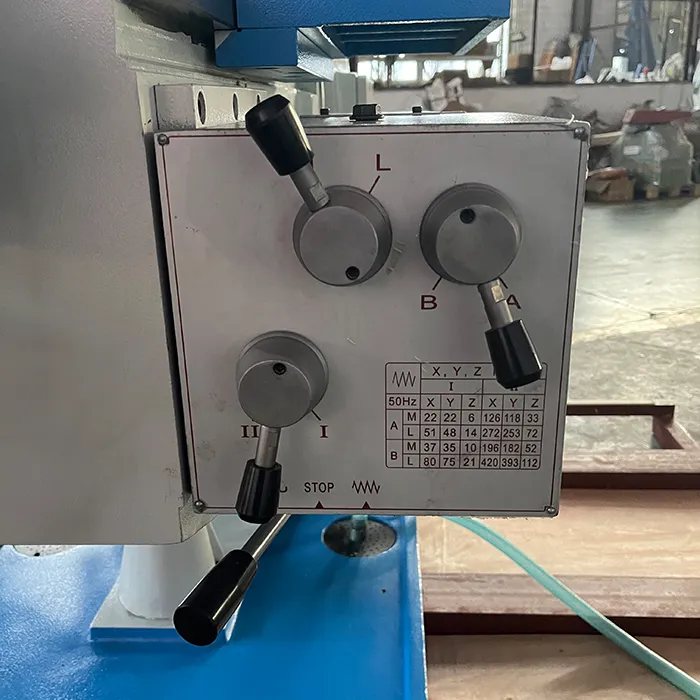

Milling Machine View 4

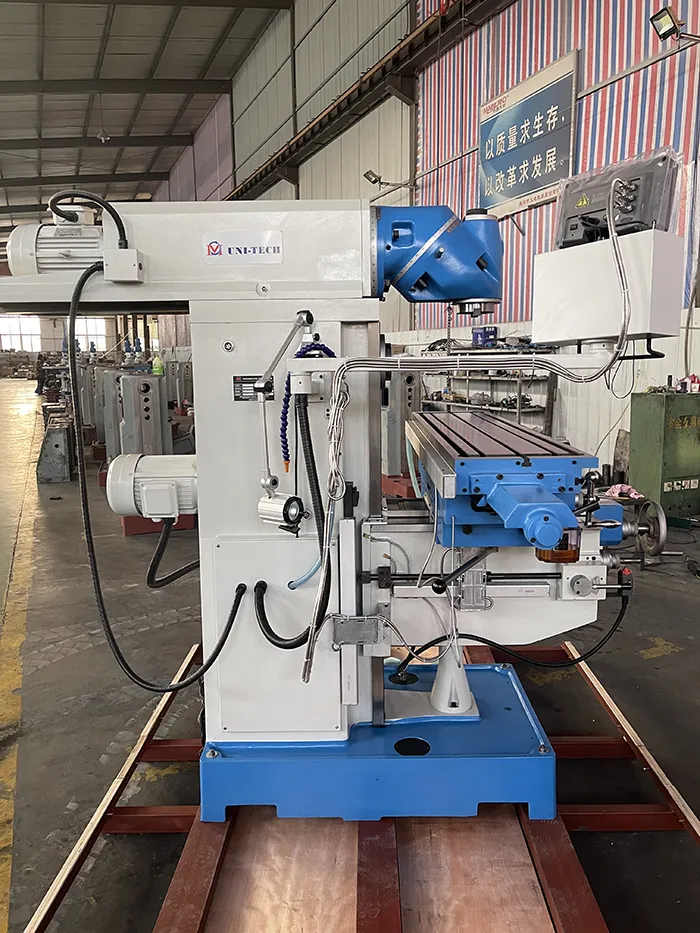

Milling Machine View 5

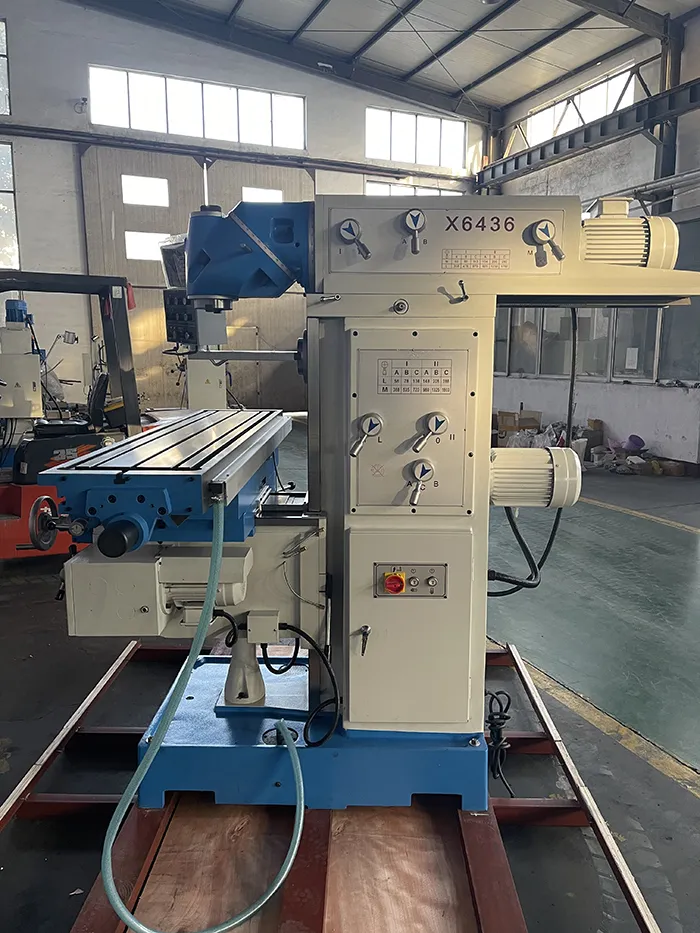

Milling Machine View 6

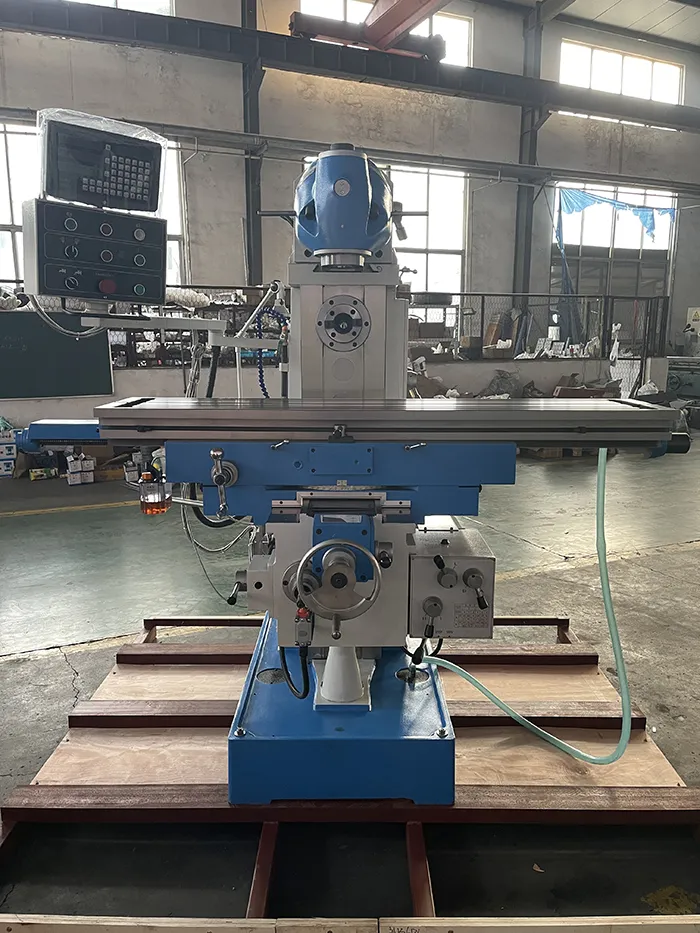

Milling Machine View 7

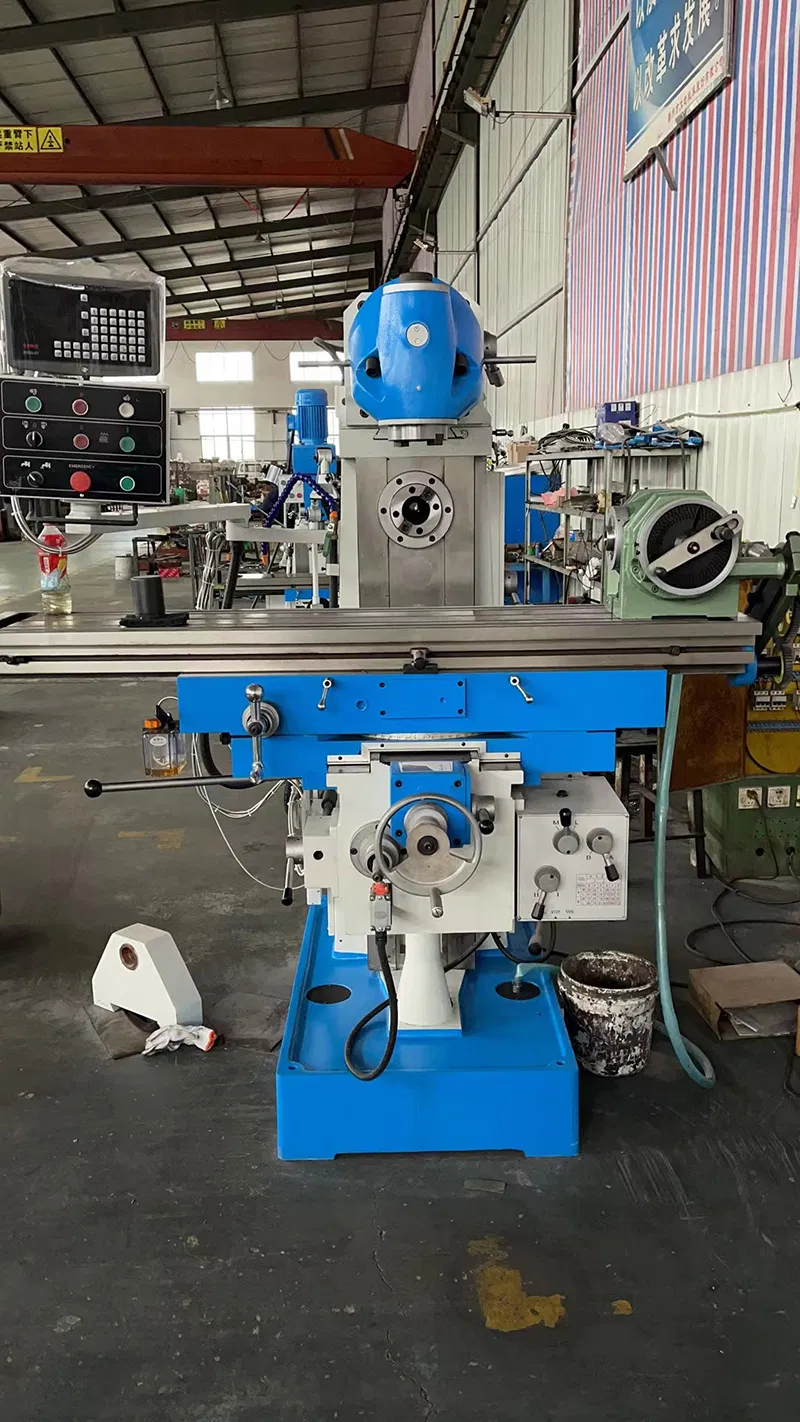

Milling Machine View 8

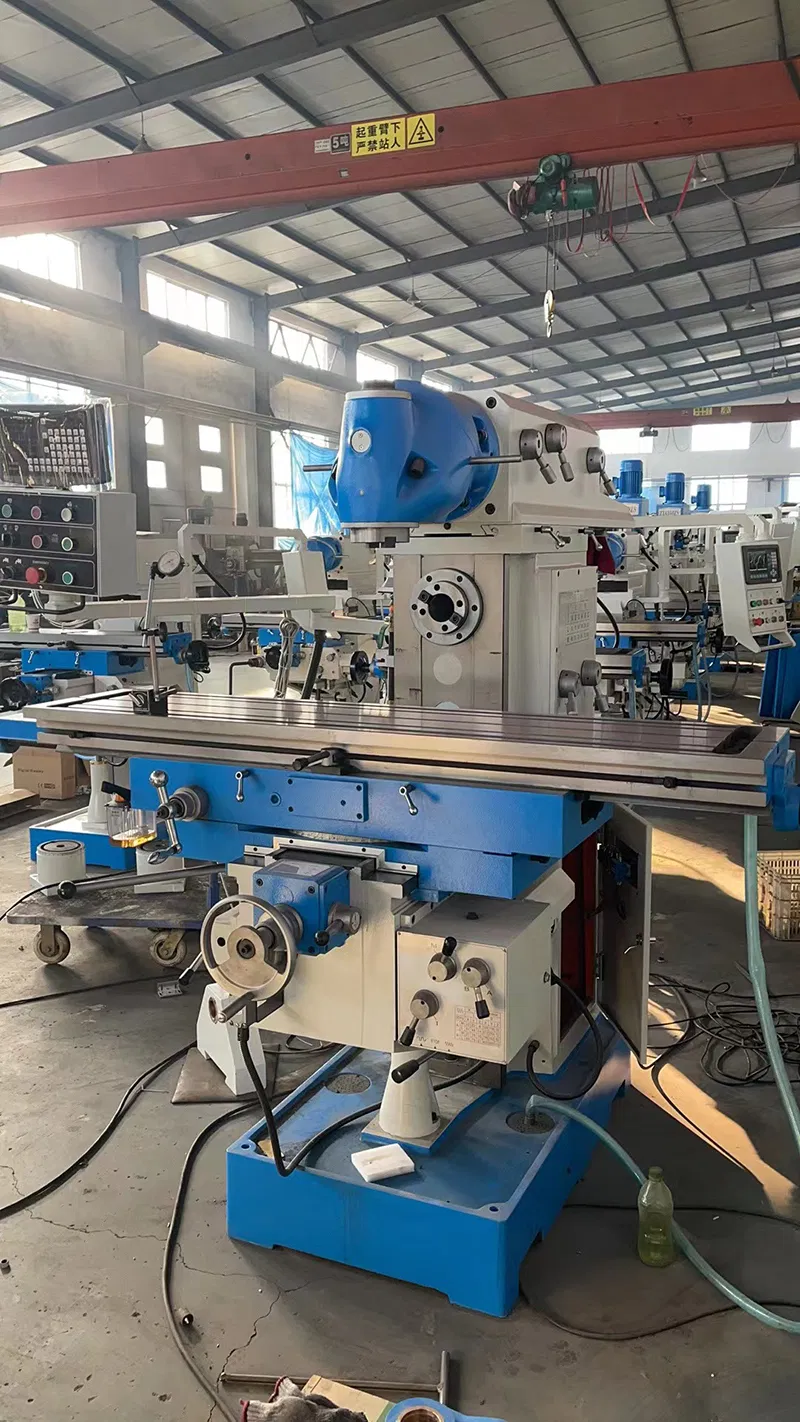

Milling Machine View 9

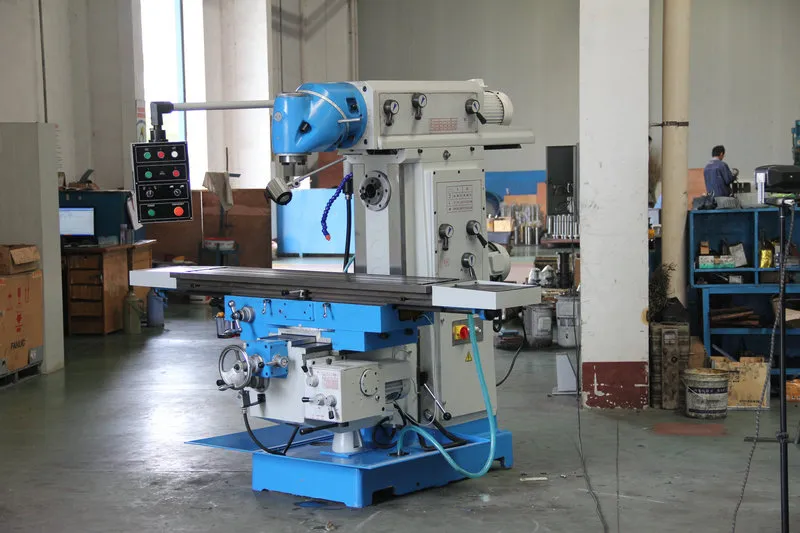

Milling Machine View 10

Frequently Asked Questions

What is the maximum table load for the X6436?
The maximum load capacity of the worktable is 400 kg.
Does the machine support both horizontal and vertical milling?
Yes, it is a ram-type milling machine that supports both horizontal and vertical operations with a universal swivel head.
What is the swivel range of the milling head?
The universal milling head can swivel a full 360 degrees.
How many speed steps does the spindle have?
Both the horizontal and vertical spindles feature 12 steps of speed adjustment.
What is the spindle taper size?
The machine uses a standard ISO50 spindle taper.
Are the feeds automated?
Yes, the machine provides automatic feeding on all three axes (X, Y, and Z) through a dedicated gearbox.
