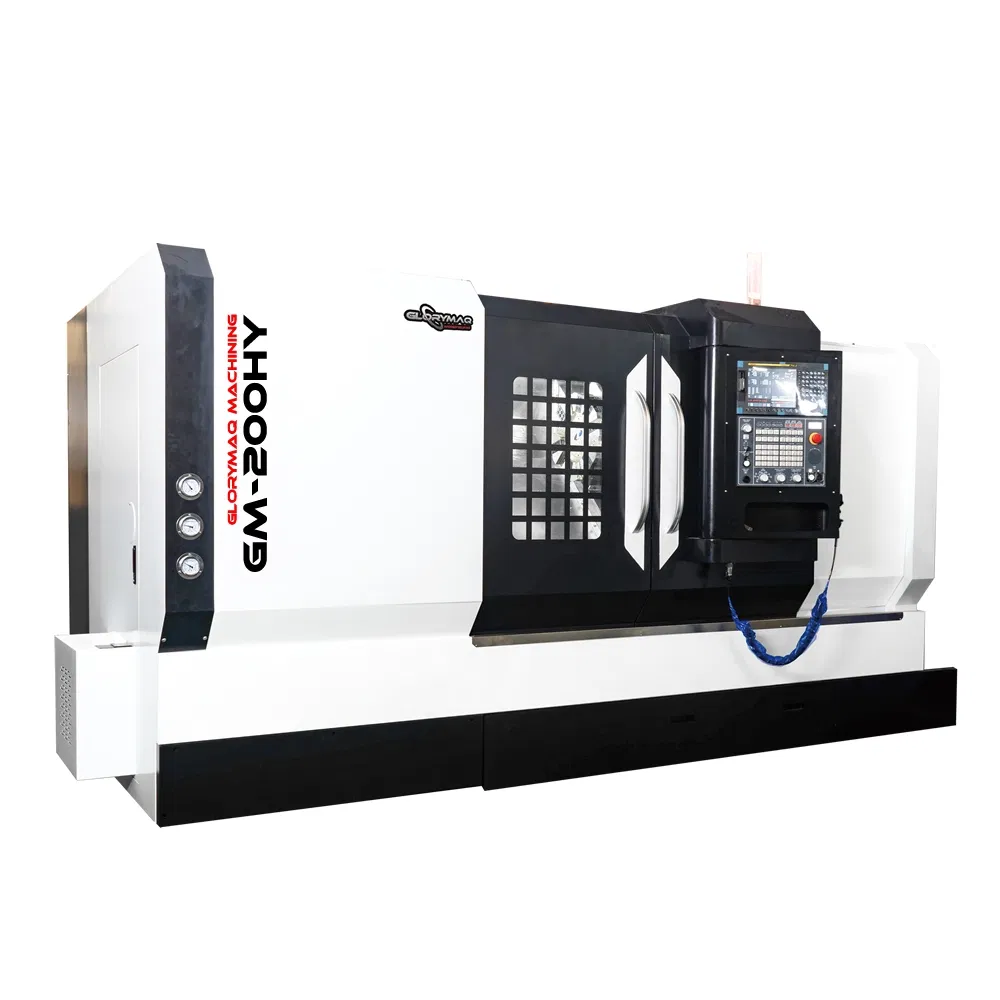

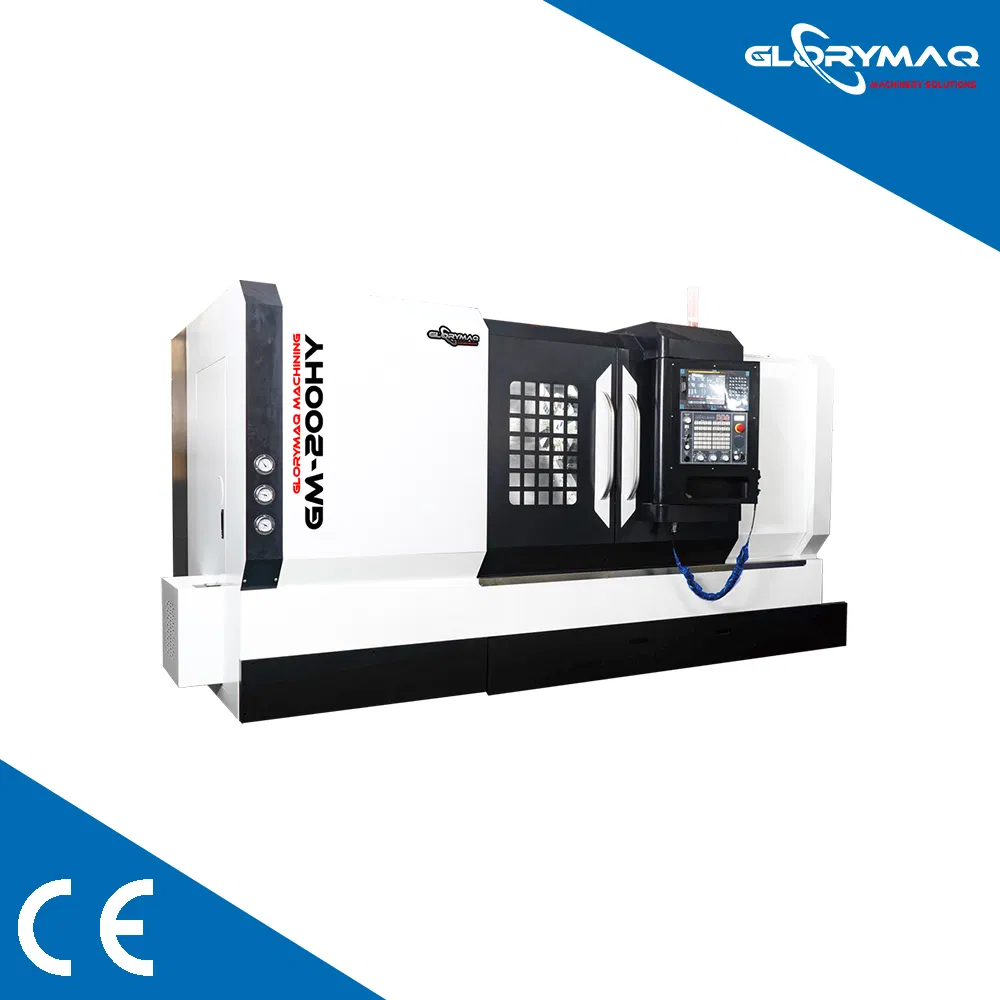

| Model NO. | GM-200hy |
| Type | Horizontal Lathe |
| Guide Rail | Inclined Guide Rail |
| Controlling Mode | CNC (Automatic) |
| Precision | High Precision |
| Spindle Hole Diameter | 87/105 mm |
| Maximum Speed | 2000 rpm |
| Max Swing Diameter | 650 mm |
| Max Turning Diameter | 630 mm |
| Max Machining Length | 2000 mm |
| X/Z/Y Axis Travel | 350 / 2120 / ±50 mm |
The equipment integrates advanced R&D and intelligent manufacturing technology to provide high-quality overall solutions. It is widely utilized in sectors such as 3C electronics, 5G communications, new energy vehicles, aerospace, precision molds, and medical equipment.
| Parameter | Unit | Specification (GM-200HY) |
|---|---|---|
| Spindle Head Shape | mm | A2-8/A2-11 |
| Maximum Bar Diameter | mm | 72/90 |

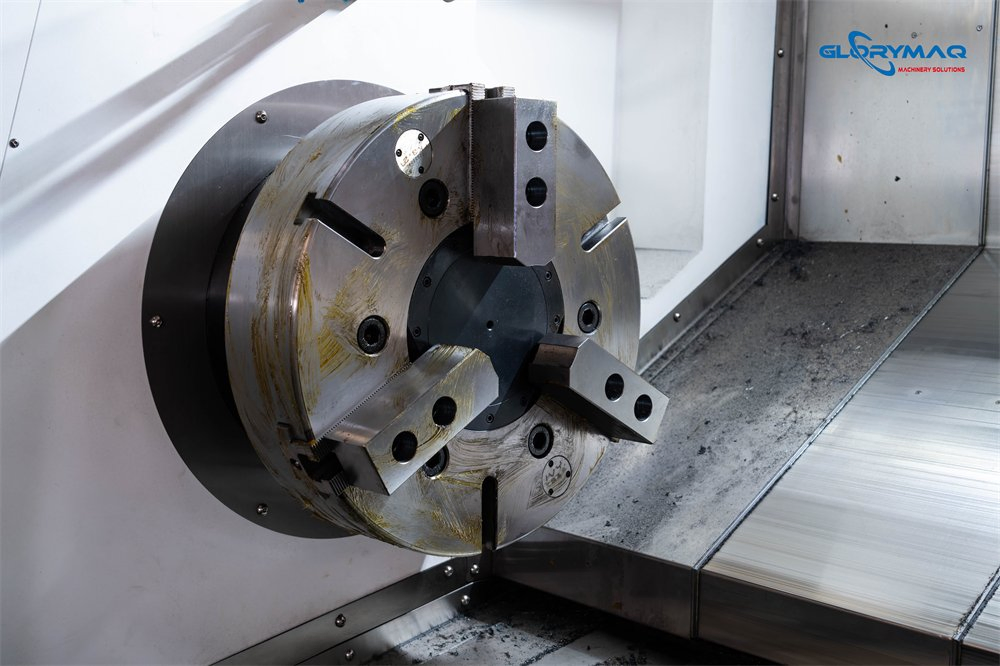

| Chuck Size | inch | 10/12/15 |
| Rapid Traverse (X/Z) | m/min | 10 / 15 |

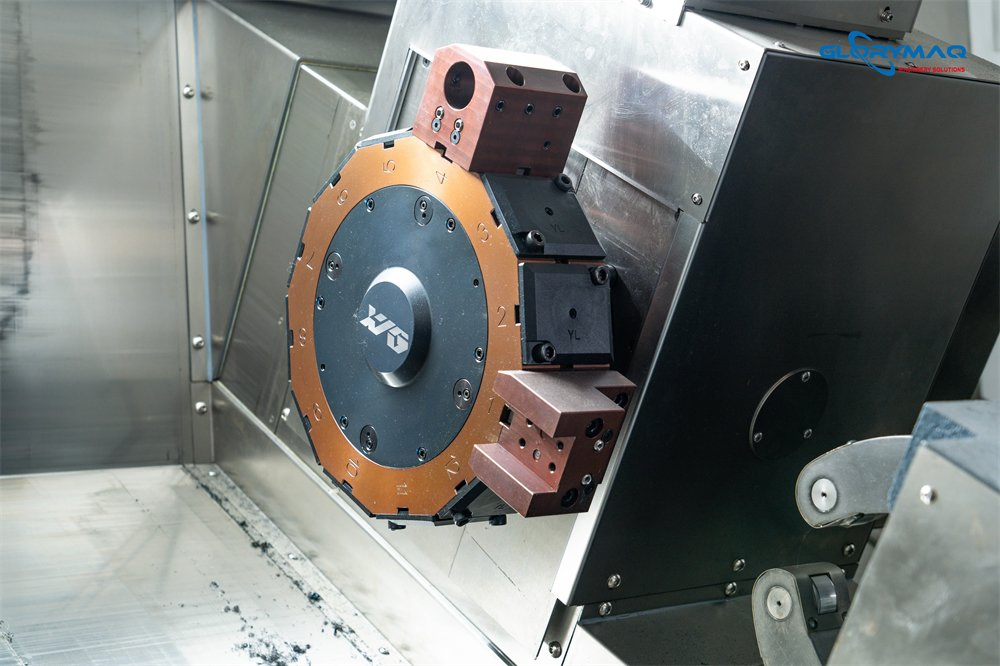

| Tool Holder Shape | - | Power Turret 12T |
| Power-head Power | kw | 4 |

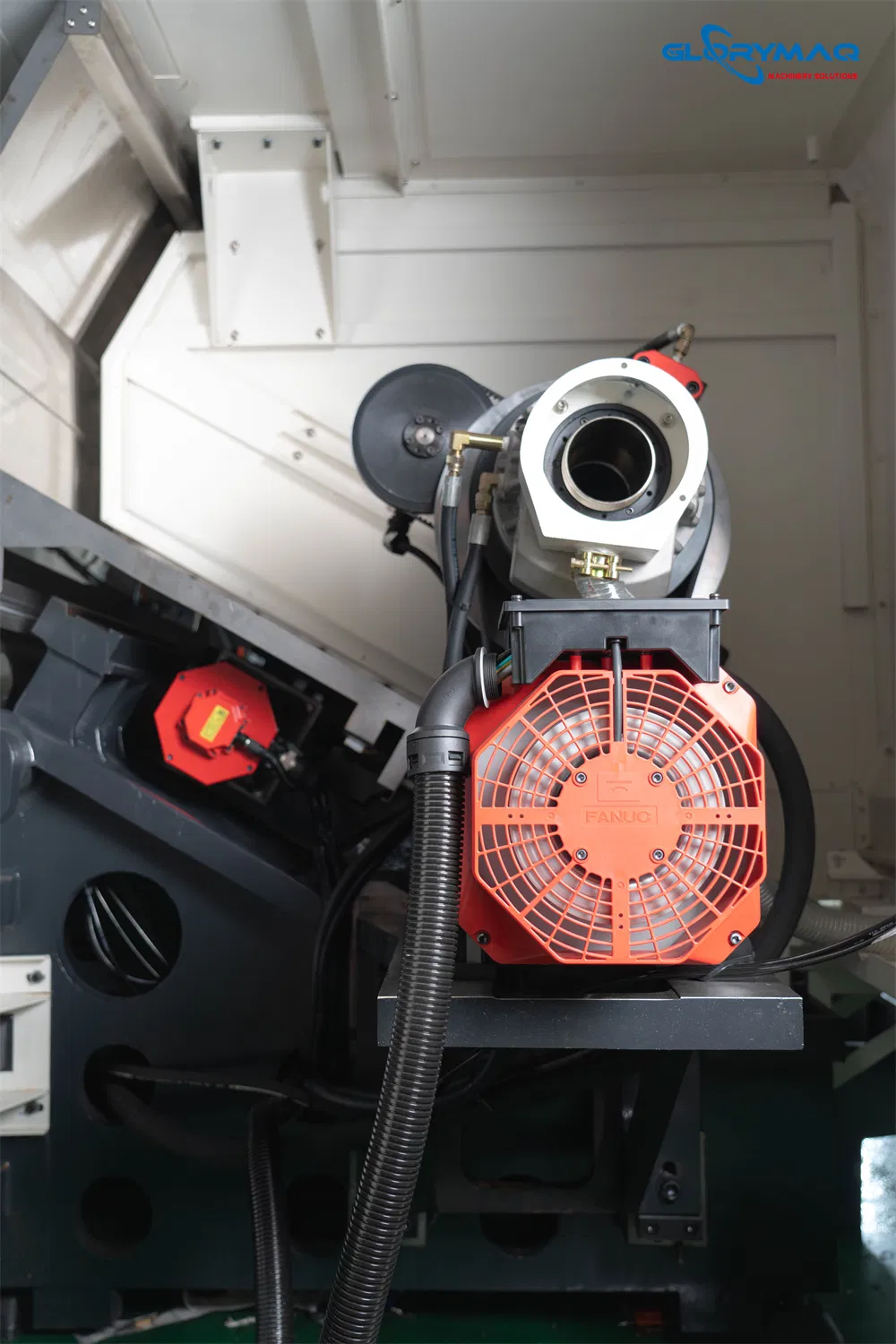

| Spindle Motor | kw | 18 |
| Positioning Accuracy | mm | ±0.008/300 |
| Repeatability Accuracy | mm | ±0.008/300 |
| Machine Weight | kg | 7200 |
| Machine Size | mm | 4900*2270*2560 |
