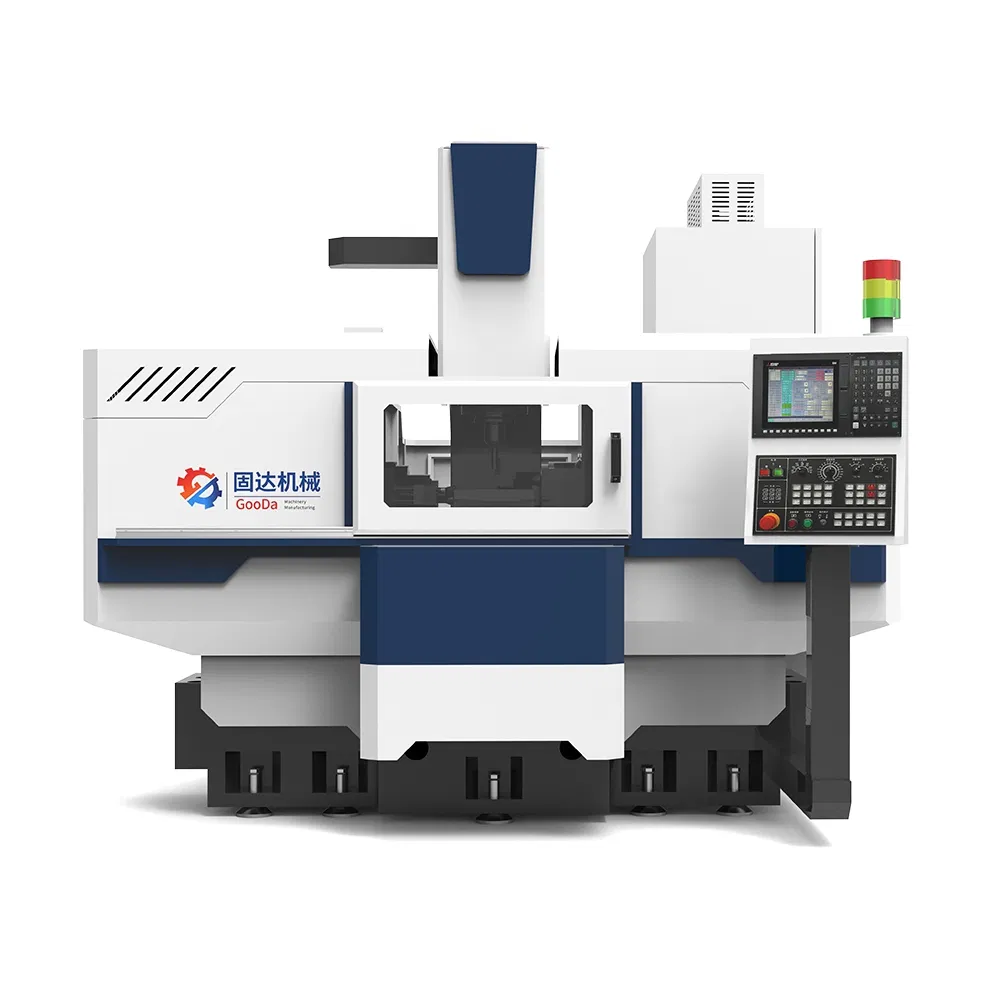

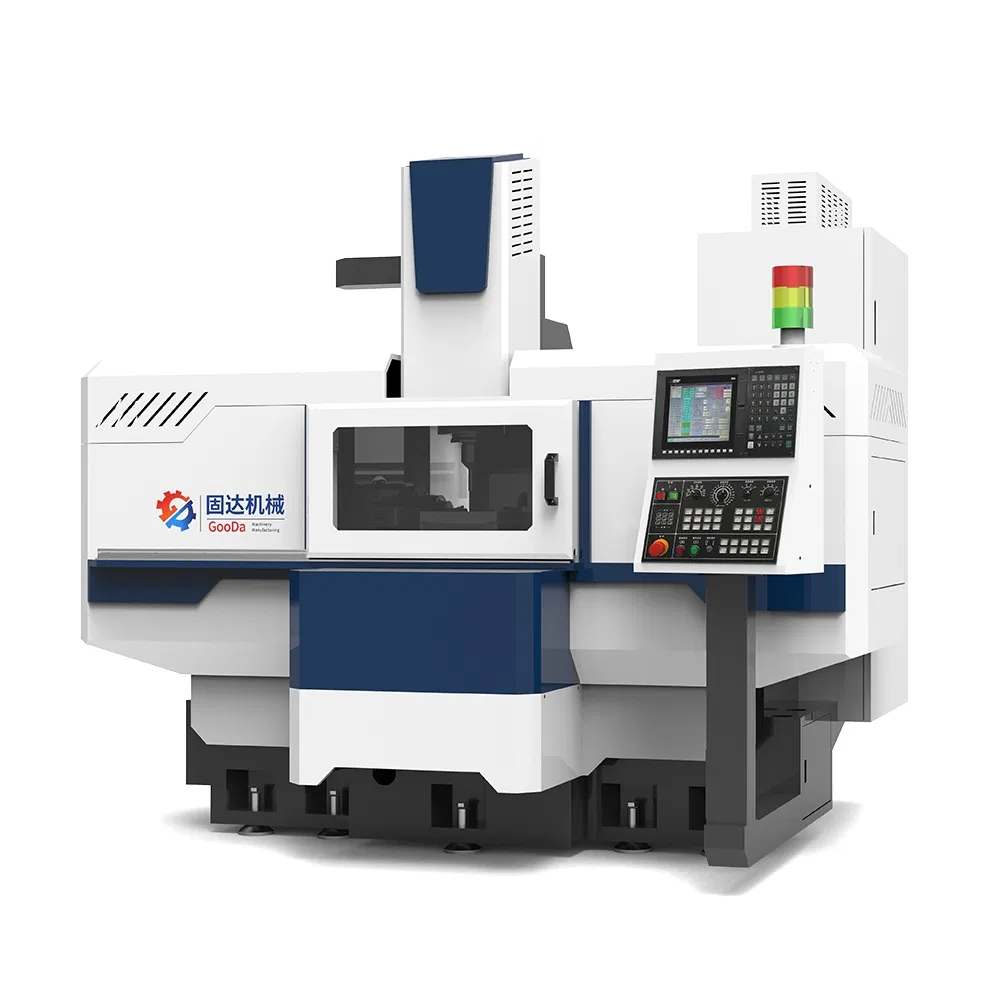

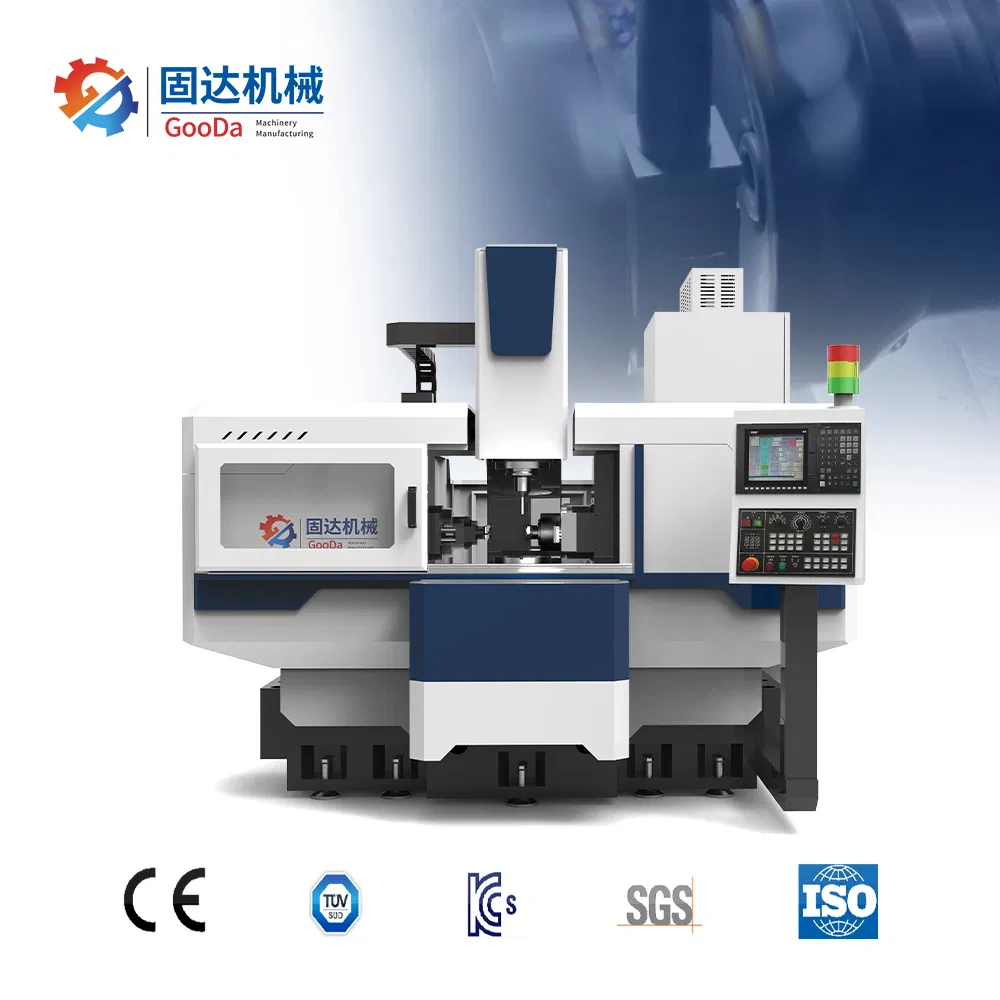

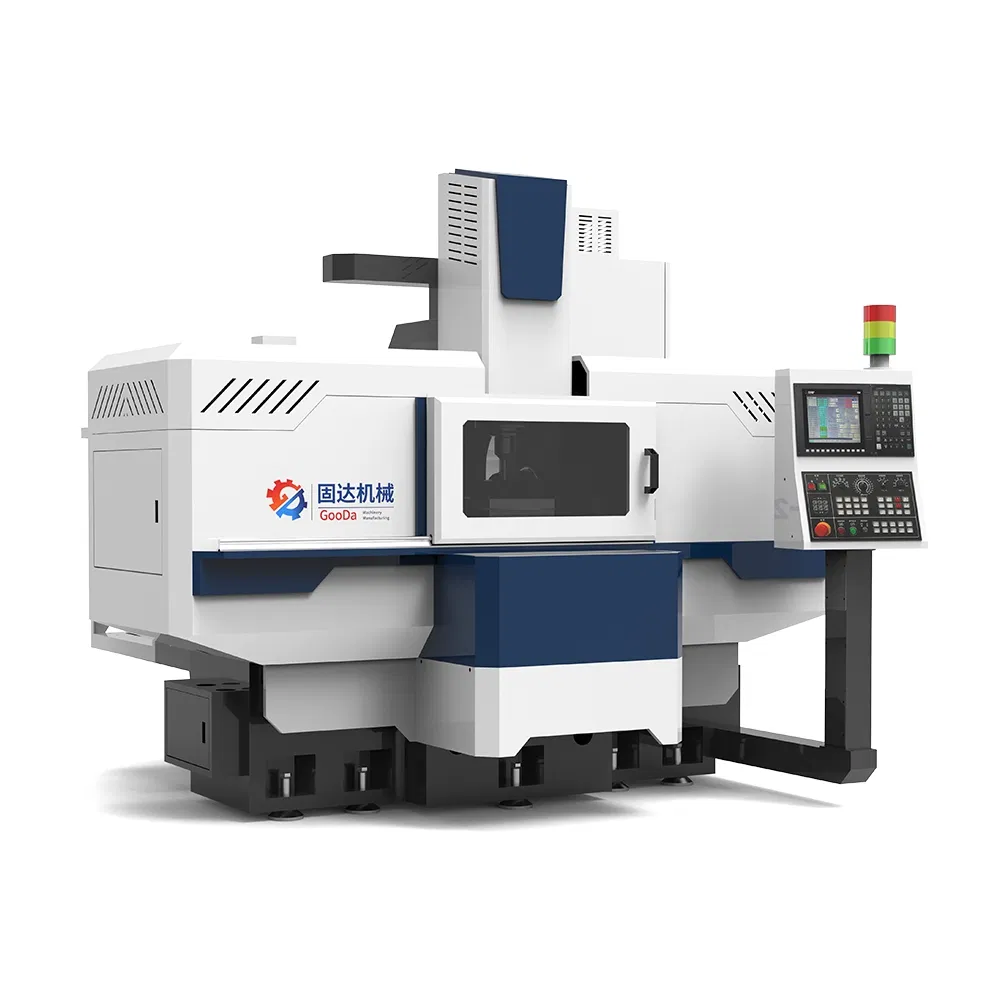

High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
1 / 5
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine
High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine

High-Efficiency Metal Processing CNC Machine Universal Milling Machine Horizontal CNC Milling Machine

Customization: Available
After-sales Service: Machine Whole Usage Period
Warranty: One Year Warranty
Send Inquiry

Product Description

Basic Information

Model NO.:TH-220NCG
Type:Planer type Milling Machine
Controlling Mode:CNC
Automatic Grade:Automatic
Precision:High Precision
Cutting Size:15-220 mm
Max. Load Capacity:200 Kg
Cutter Diameter:φ63 mm
Rapid Feed Rate:10000 mm/Min
Gross Weight:3600.00kg

Main Features

Automatic milling of all four surfaces in a single setup with Twin Spindle Milling Machine, minimizing setup time, enhancing efficiency, and reducing operating costs.

  • Two surfaces milled simultaneously with twin cutters
  • Index table automatically rotates 90° after milling
  • Remaining surfaces milled automatically
  • Chamfering completed as required while milling

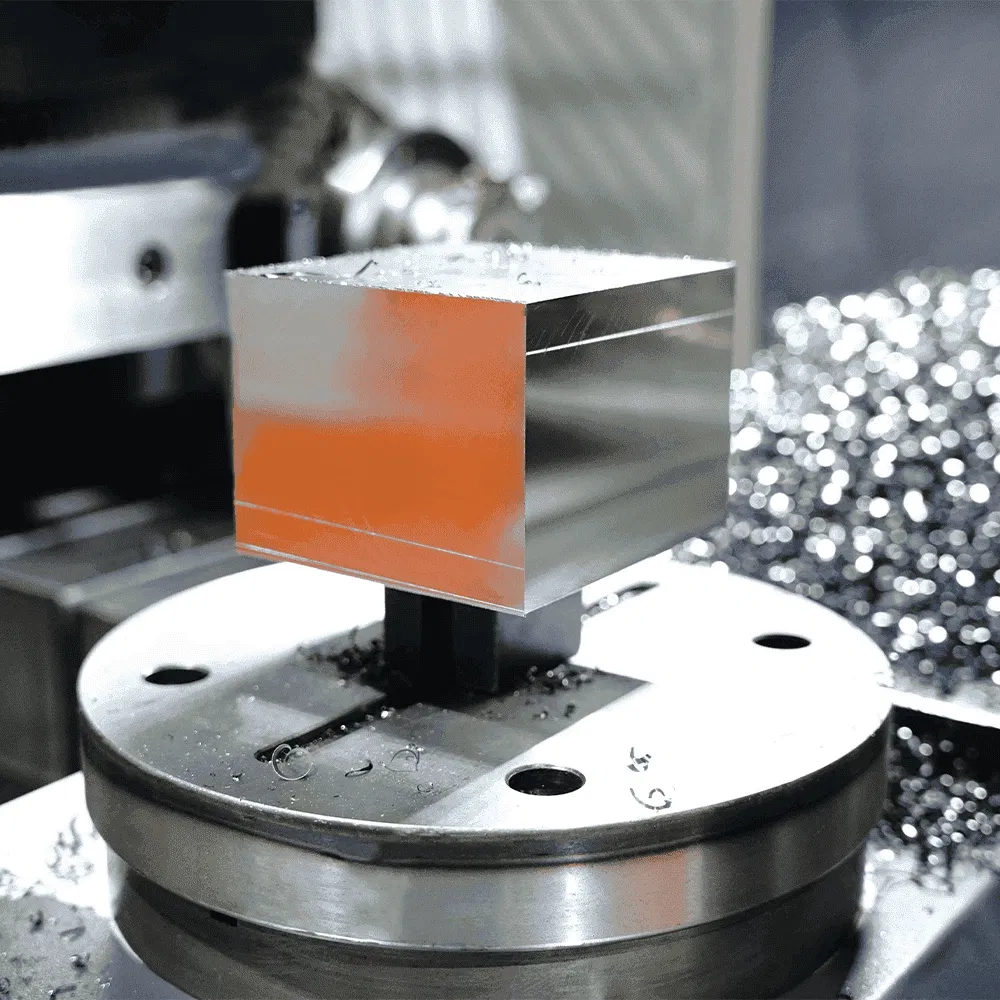

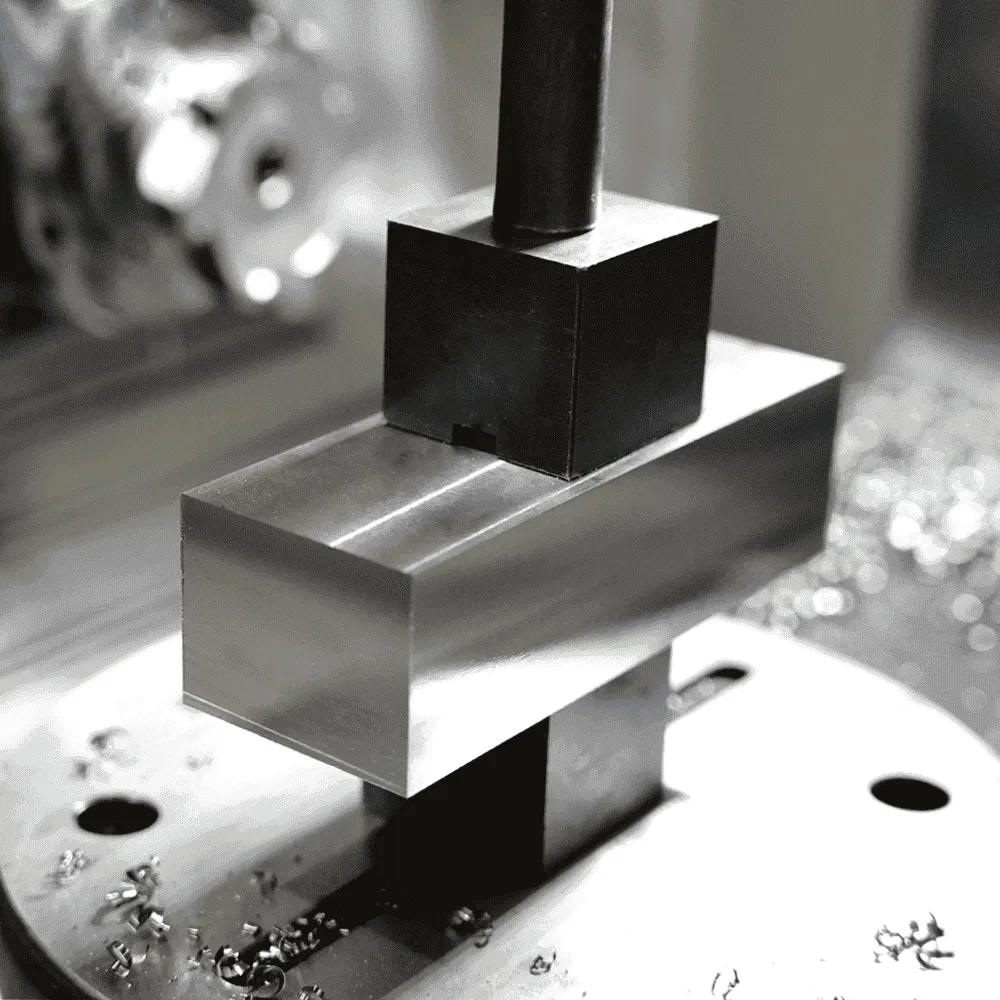

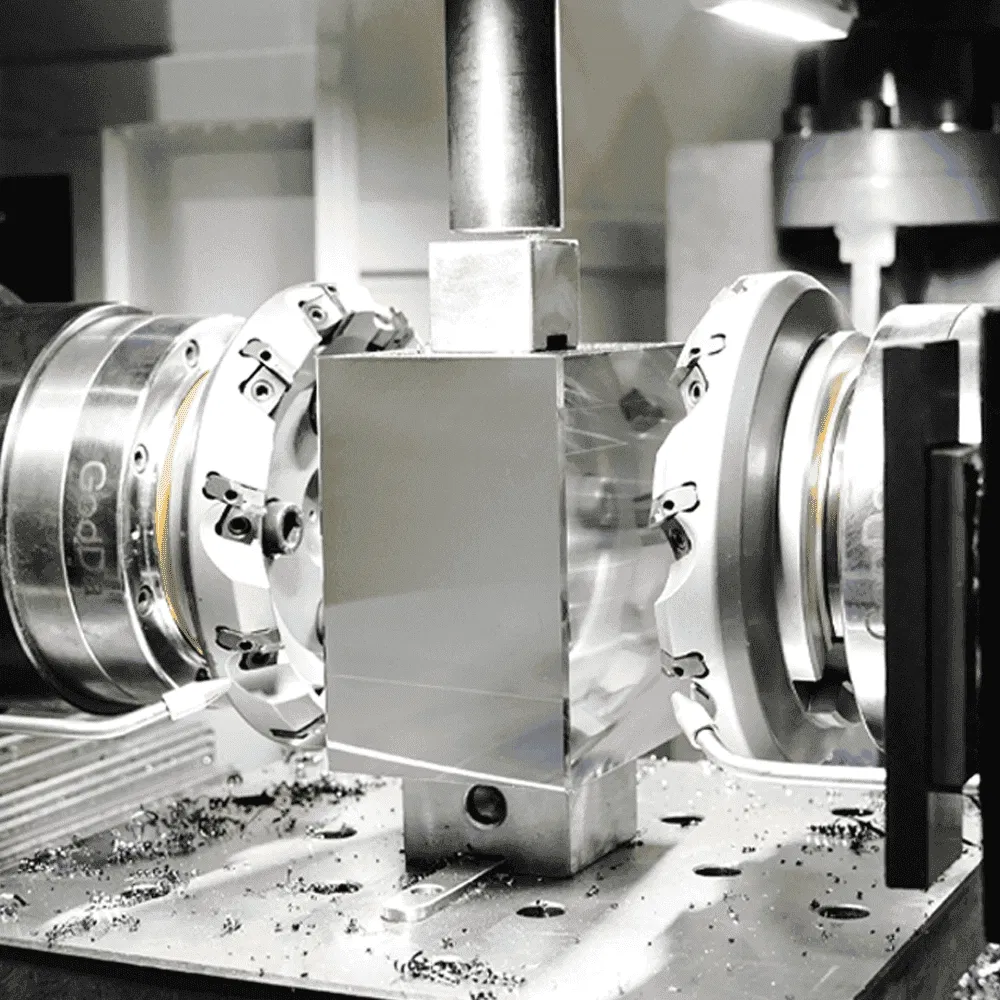

CNC Machine Processing CNC Milling Detail Horizontal Milling

Main Functions

  • 2-surfaces & 4-surfaces machining system
  • Clamping force adjustment function
  • Spindle: gear-driven/belt-driven
  • CNC System: Mitsubishi/FANUC
  • Hydraulic clamping system
  • Chamfering function
  • Servo-driven positioning plate
  • Gantry frame: auto open & close

Product Parameters

Machine Model TH-220NCG
Processing capacity Cutting size 15-220 mm
Worktable Worktable size 200*200 mm
Spindle Spindle speed 50-1500 rpm
Accuracy Squareness 0.02 mm/300mm
Size & Weight Machine size 2700*2360*2100 mm

Applications

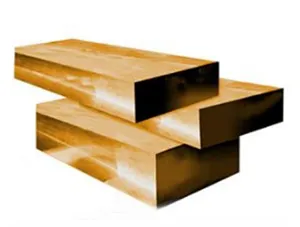

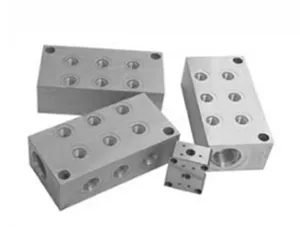

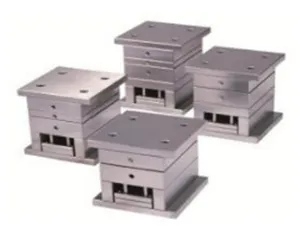

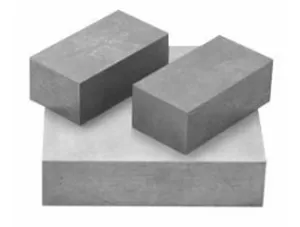

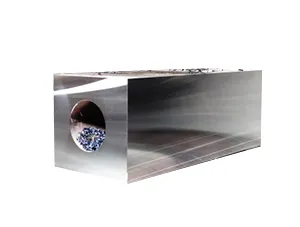

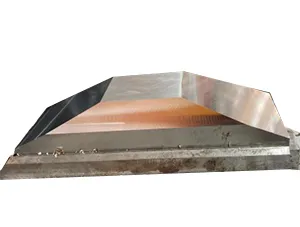

Application 1 Application 2 Application 3 Application 4 Application 5 Application 6

Factory Display & Certifications

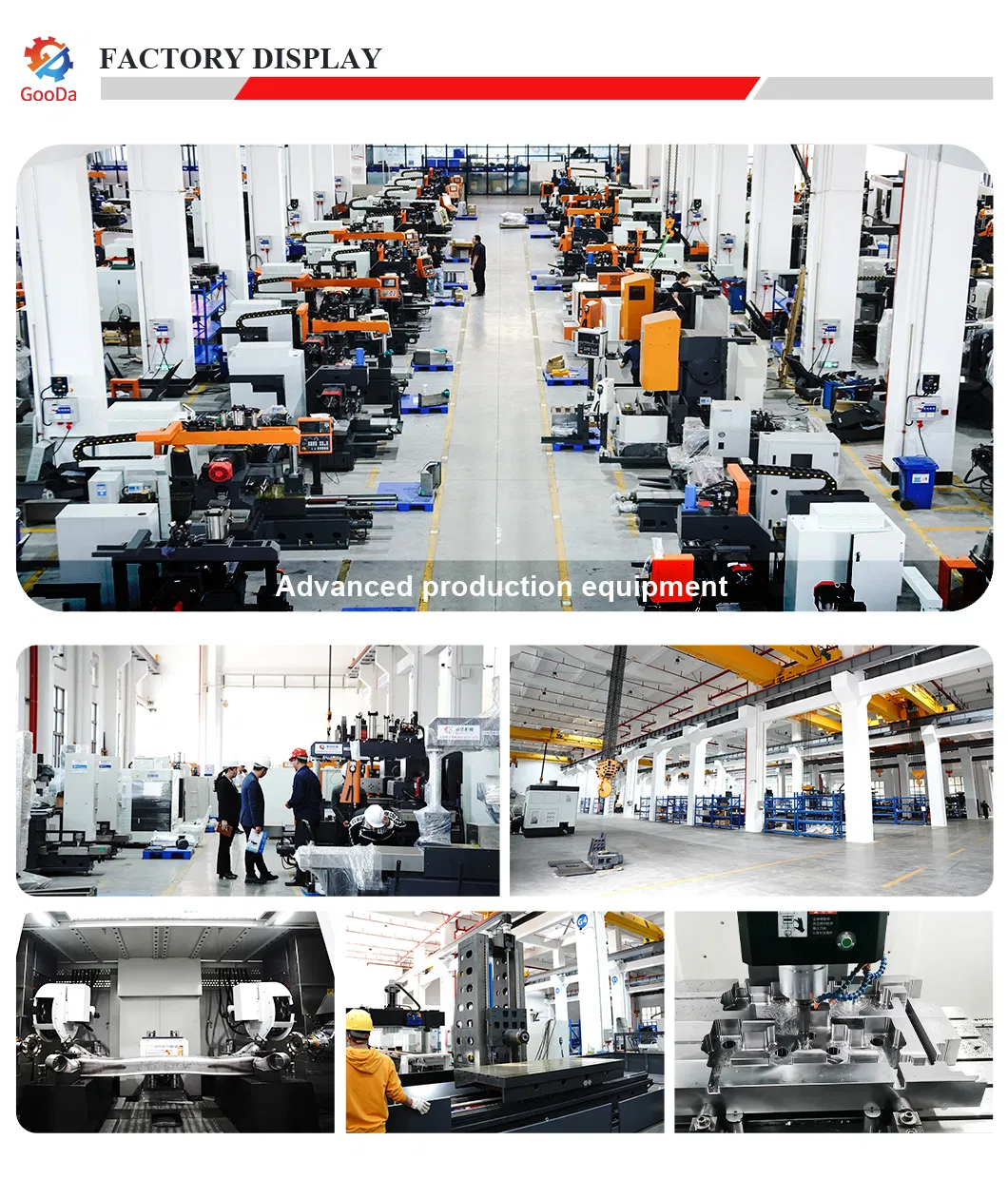

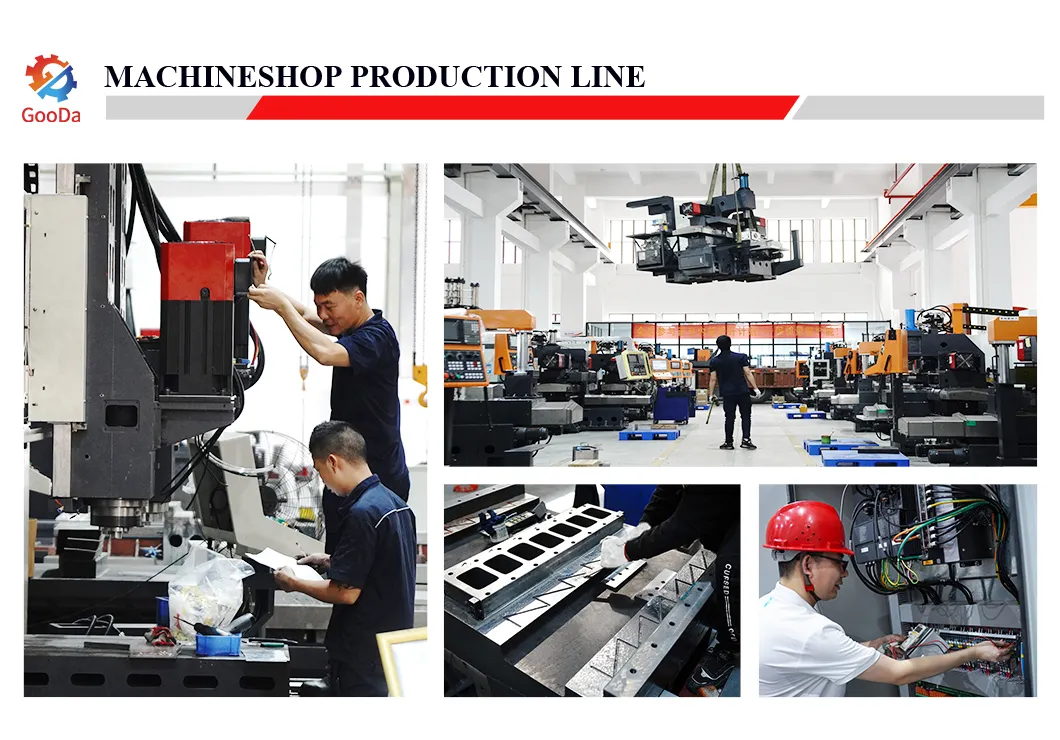

Factory 1 Factory 2 Factory 3
Certification 1 Certification 2

Frequently Asked Questions

Q1. What is the minimum order quantity and warranty period? The MOQ is one set, and all machines come with a 12-month standard warranty.
Q2. Which CNC control systems are available? We support major systems including FANUC, SIEMENS, and MITSUBISHI, depending on your specific requirements.
Q3. What is the typical delivery timeframe? Standard machines are delivered within 30-45 working days. For customized solutions, a specific timeline will be provided during consultation.
Q4. How are the machines secured for international shipping? Machines are protected with a PE bag cover, secured within a plywood box and reinforced with a steel beam frame.
Q5. Can I request OEM or customized machine configurations? Yes, we provide comprehensive OEM services and can customize machine plans based on your specific production drawings and needs.
Q6. What are the accepted payment terms? We generally accept T/T (30% deposit, 70% before shipment) or irrevocable L/C at sight.
