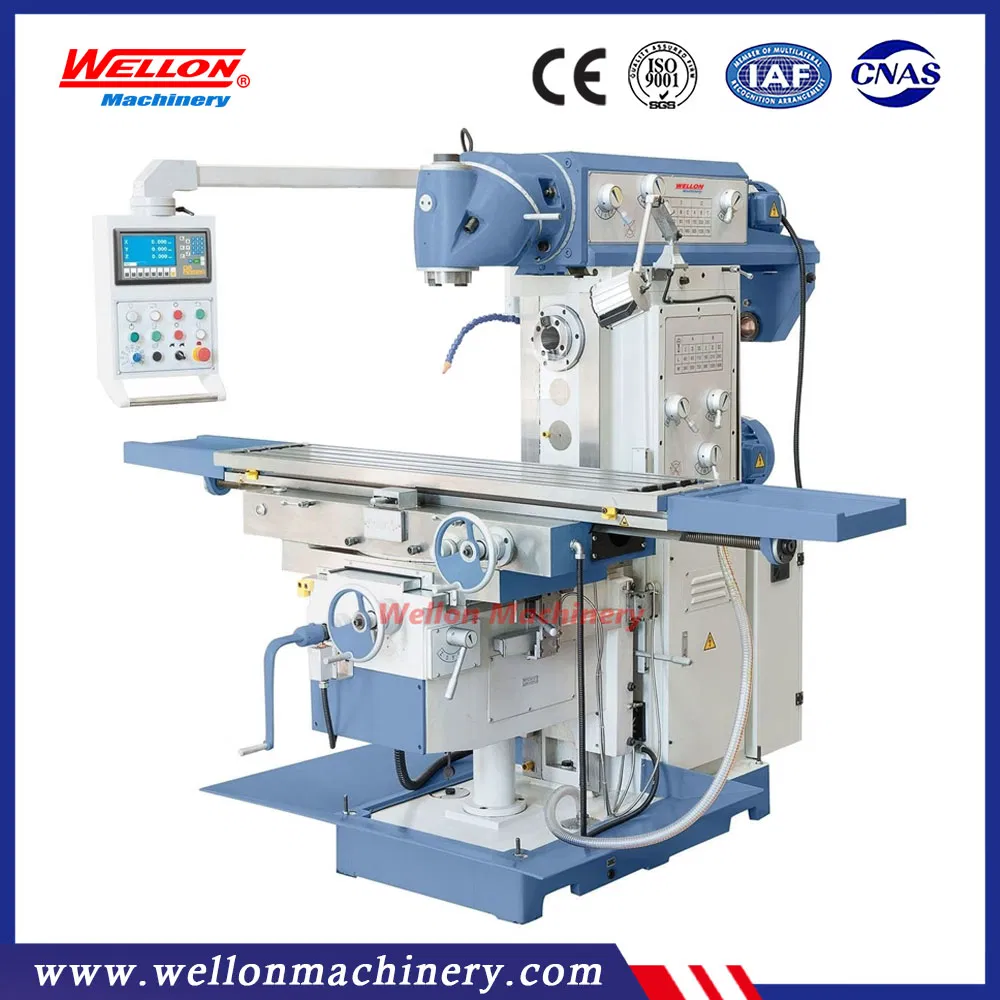

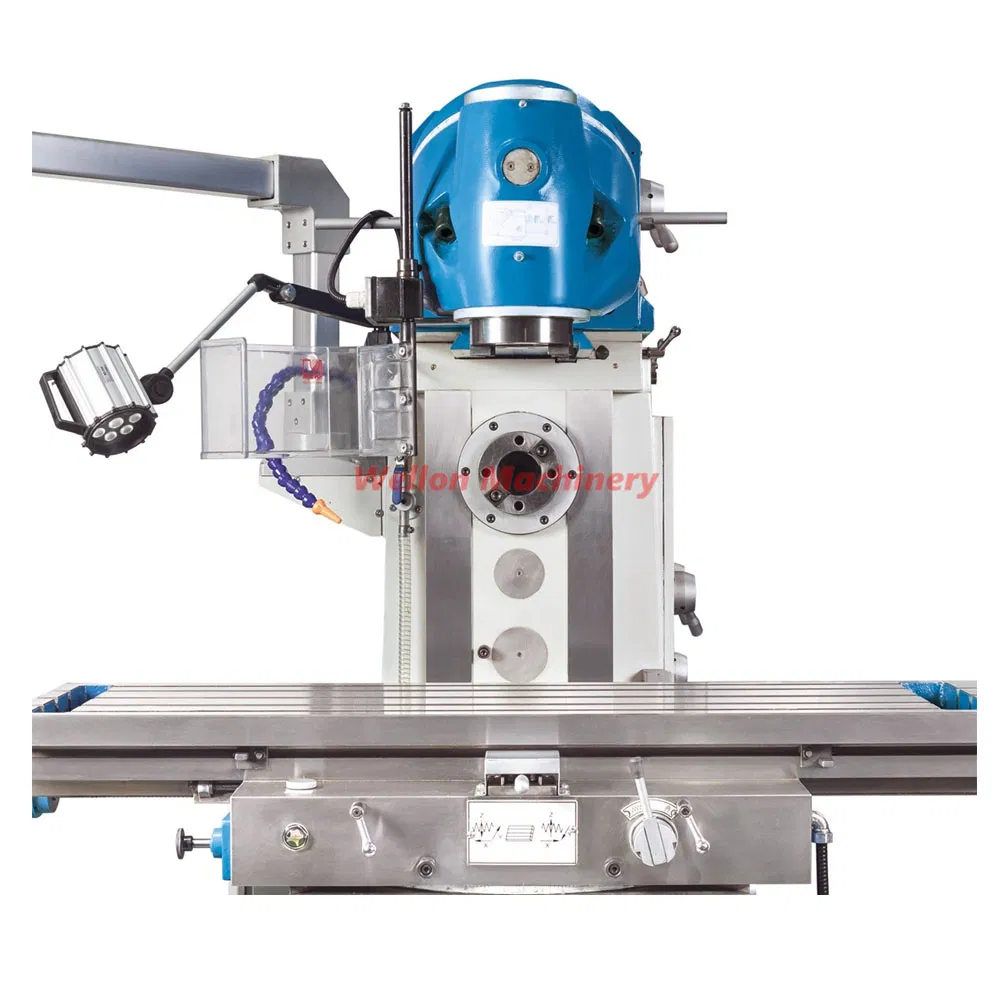

Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
1 / 5
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436
Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436

Swivel Head Universal Milling Machine/Vertical Milling Machine XL6436

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🟦 Basic Info.
Model NO.
XL6436
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1325X360 mm
Spindle Taper
ISO50
Arm Travel
550mm
Production Capacity
200 PC/Month
🟦 Product Description

Swivel Head Universal Milling XL6436 Knee type Vertical Milling

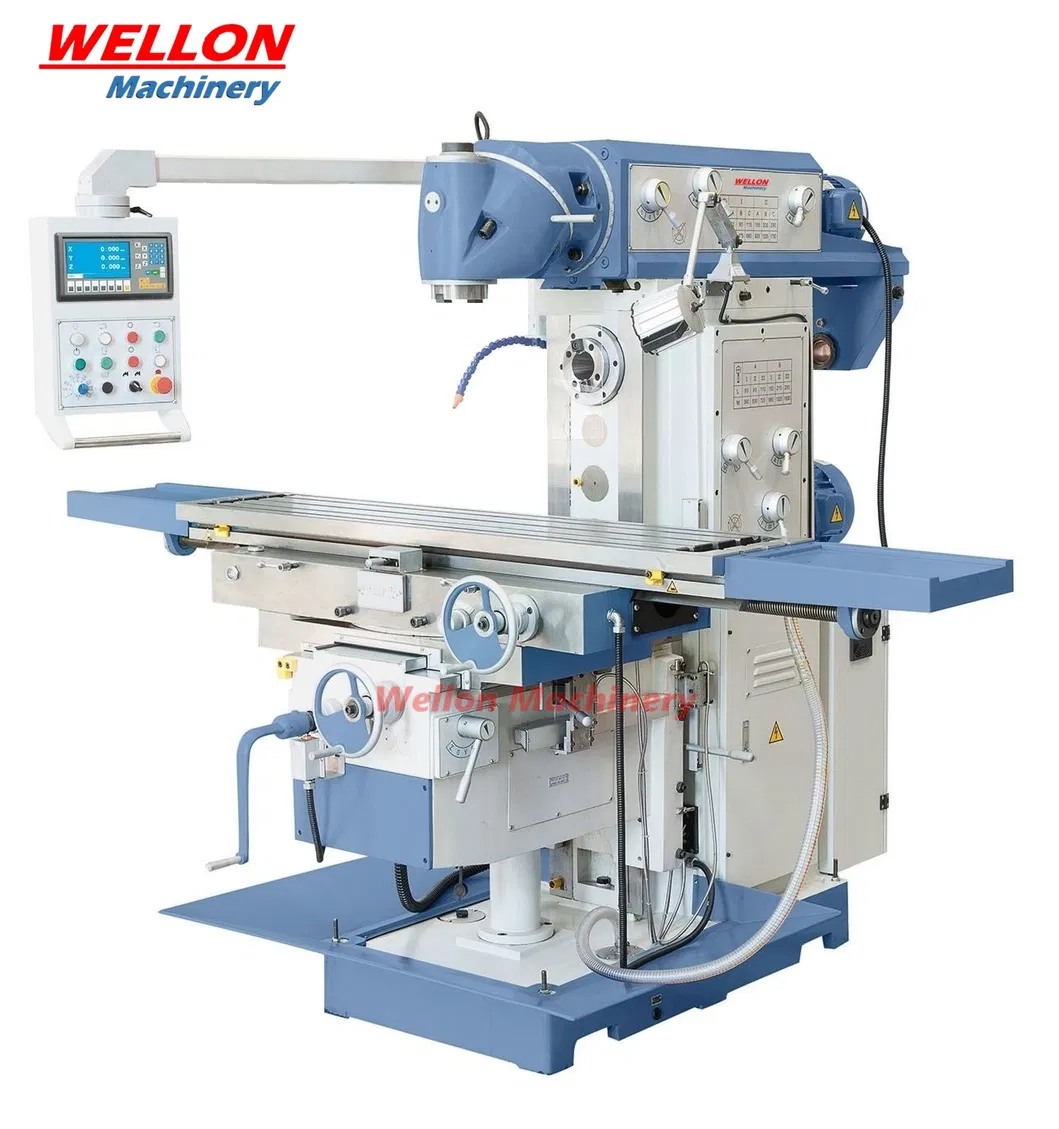

Universal Milling Machine XL6436
🟦 Detailed Photos

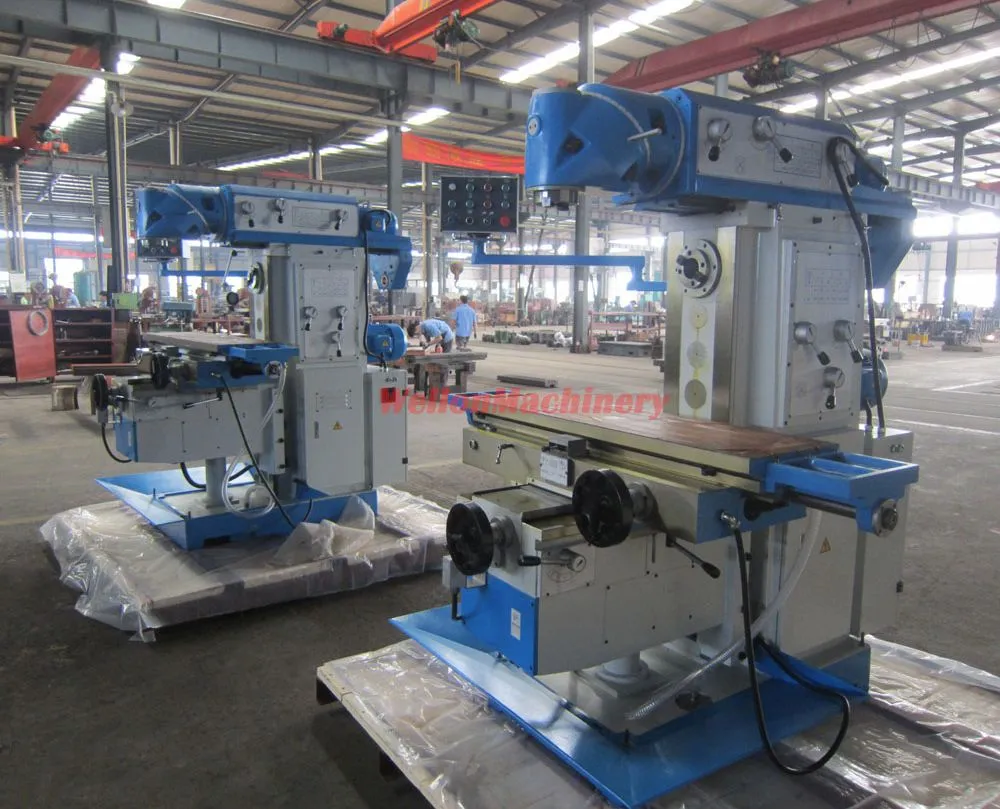

Detailed Photo 1

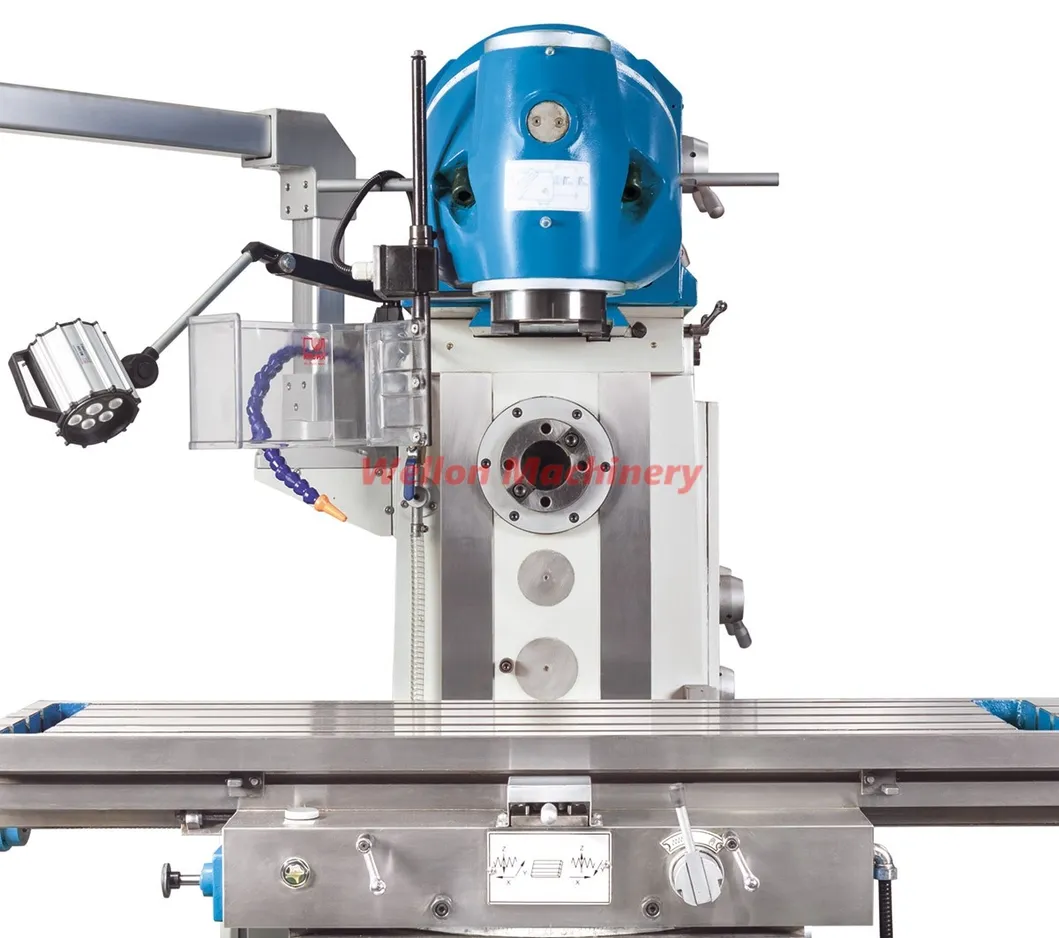

Detailed Photo 2

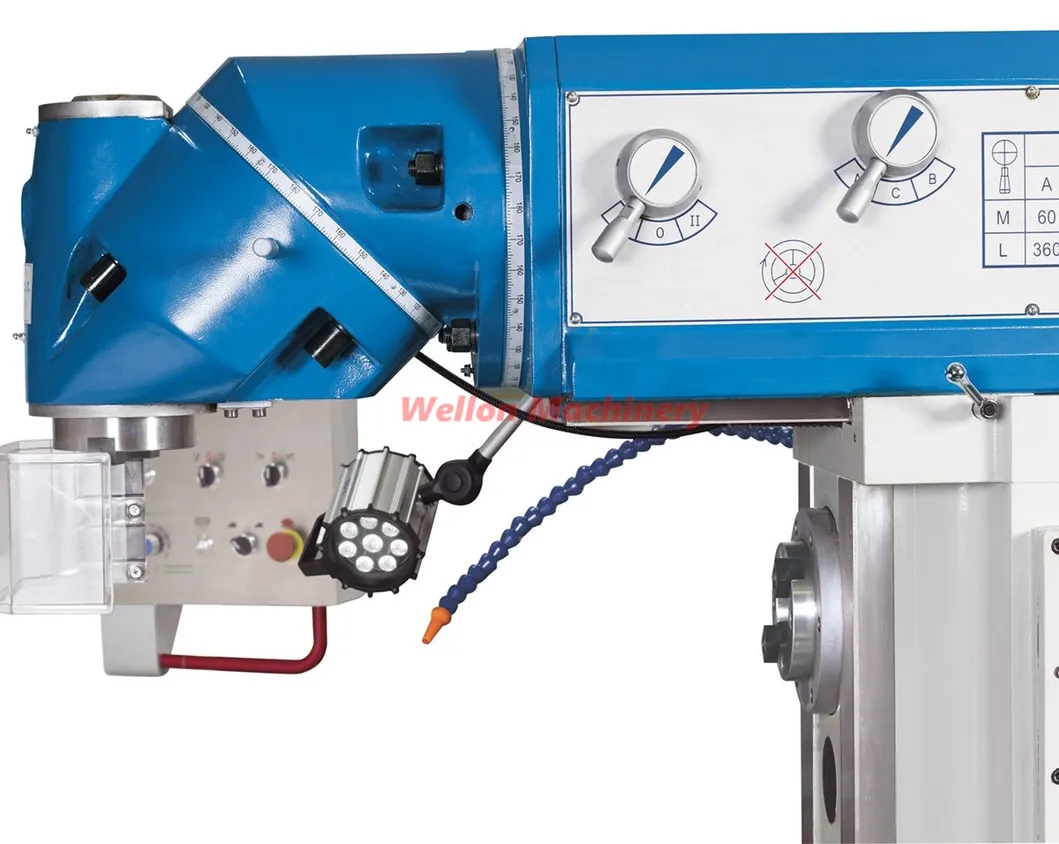

Detailed Photo 3
🟦 Product Parameters

Features:

  • Logical, clearly arranged gearshift for speed change
  • Hardened and polished guide ways guarantees top accuracy
  • Setting of the required feed speed by potentiometer on the control panel
  • Finely graduated feeds in all axis, driven by servo motor

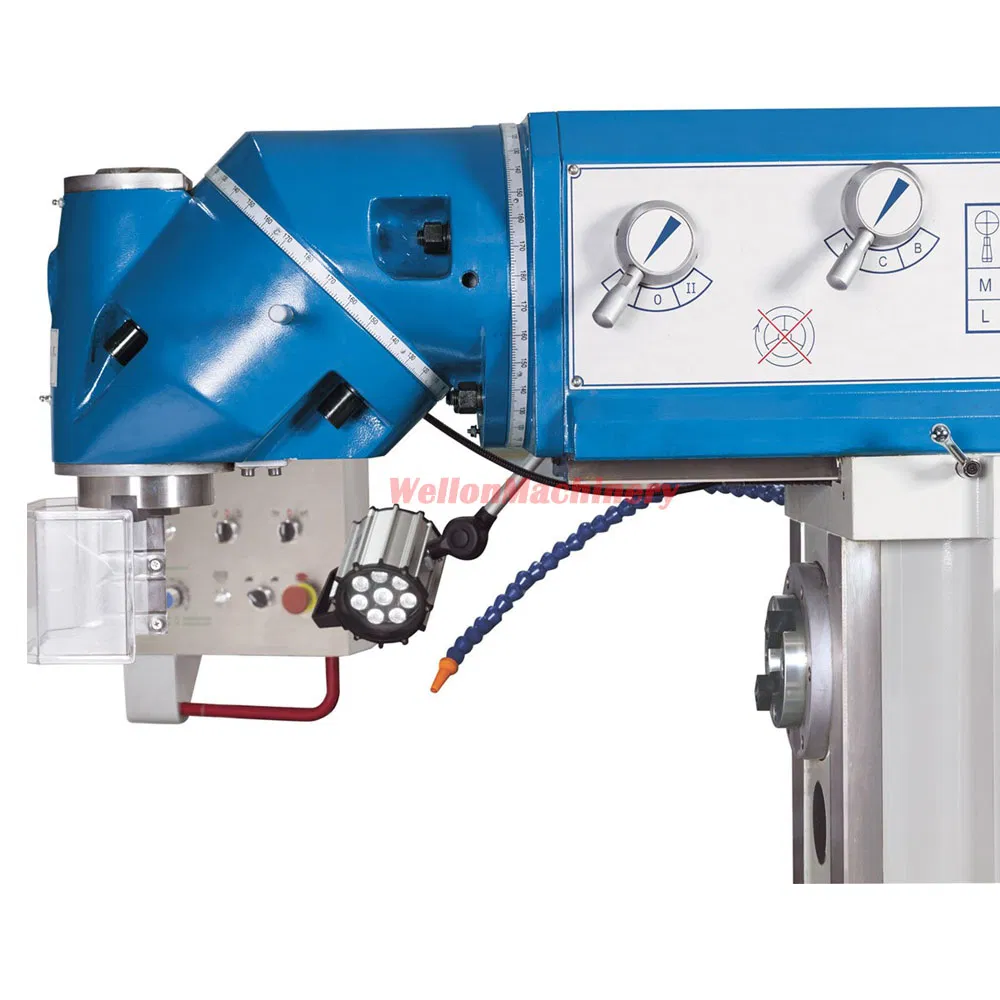

  • Universal mill head system 'Huron' adjusts to various angles
  • Complete with rapid feed in x-, y- and z-axis to reduce downtime
  • Optimal adjustments of spindle speed and feed allow for economic machining

Technical Parameter:

Specifications Unit XL6436 XL6436C XL6436CL
Table sizemm1325×3601325×3601600×360
Table travel (X/Y/Z)mm750/320/4601100/320/4501300/320/450
Table feed speed X/Y axismm/min30~750 / 20~50030~750 / 20~50030~750 / 20~500
Spindle taper-7:24 ISO507:24 ISO507:24 ISO50
Arm travelmm550550550
Distance spindle to tablemm196-656196-646196-646
Spindle speed ranger.p.m60-180060-180060-1800
Main motor powerKw5.5 (H) / 4 (V)5.5 (H) / 4 (V)5.5 (H) / 4 (V)
Net weightkg268527502800
Standard Accessories:
  • Draw bar & Coolant device
  • LED machine light
  • Universal mill head
  • Ball screws in all axis
  • Automatic central lubrication
  • Mill arbors & Tools
Optional Accessories:
  • 3-axis digital readout
  • Mill chuck set & Machine vice
  • Horizontal & vertical rotary table
  • Clamping kit set 58-pcs
  • Universal dividing head
🟦 Packaging & Shipping
Packaging and Delivery
Package Size
2300cm * 2100cm * 2000cm
Gross Weight
2700.00kg
🟦 FAQ
What are the main products available?
We specialize in a wide range of machinery, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shaper machines.
What kind of controls do you use on these machines?
We offer industry-standard controls such as Siemens, GSK, and Fanuc. You can choose the control system that best fits your operational requirements.
What are the standard trade terms?
We accept common international trade terms including FOB, CFR, and CIF.
How can I choose the most suitable machine for my needs?
Please provide the model or technical parameters you are interested in. You can also send us product pictures or drawings, and our experts will recommend the best price and quality machine for your application.
Do we receive updates during the manufacturing process?
Yes, absolutely. We provide regular updates on the manufacturing progress of your machine to keep you informed until completion.
What is the production capacity for this model?
The current production capacity for the XL6436 series is approximately 200 units per month.
