Basic Information
Type
Knee-and-Column Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Table Size
1600*360mm / 1325*360mm
Production Capacity
800 Sets Per Year
Product Description

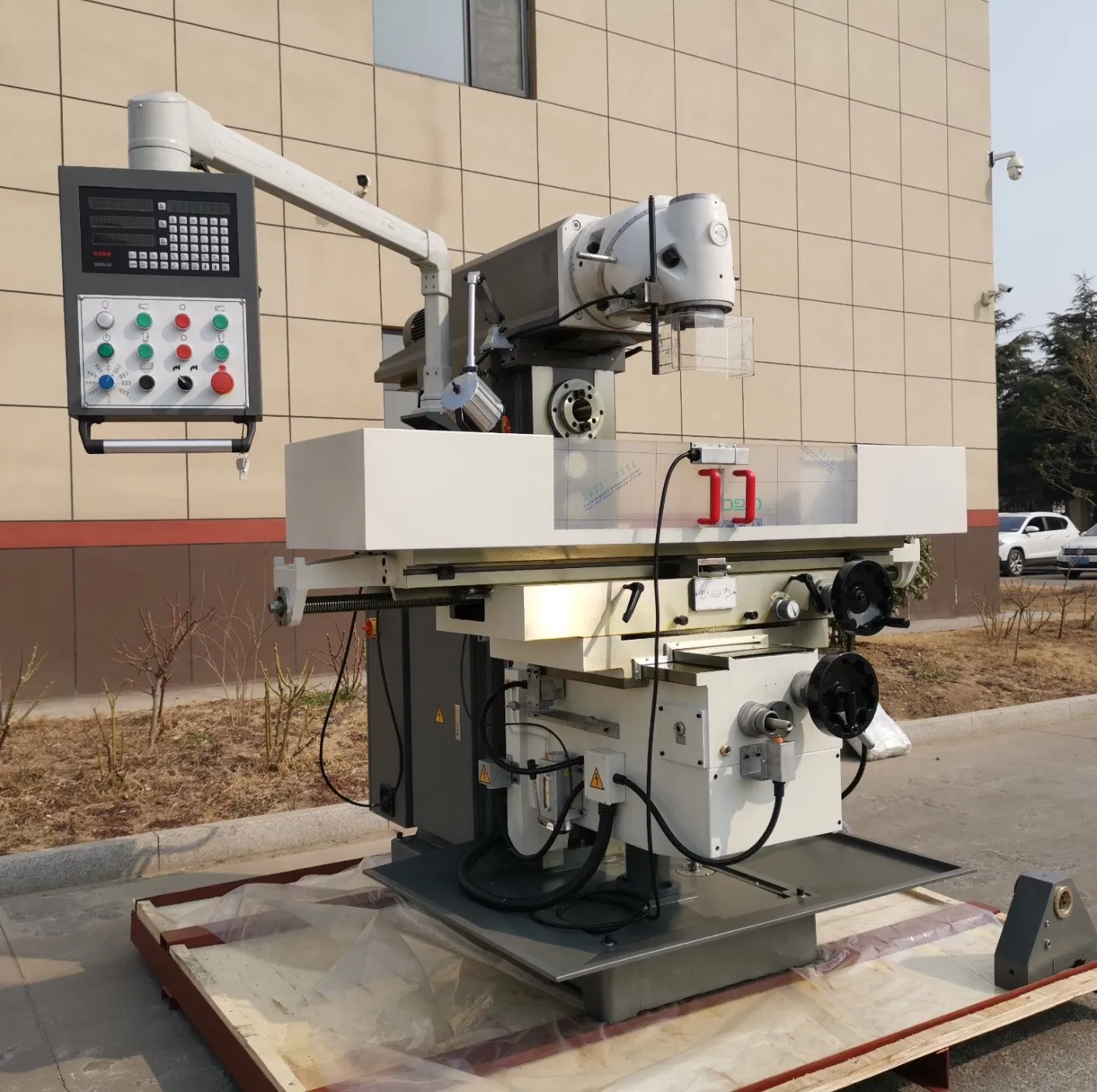

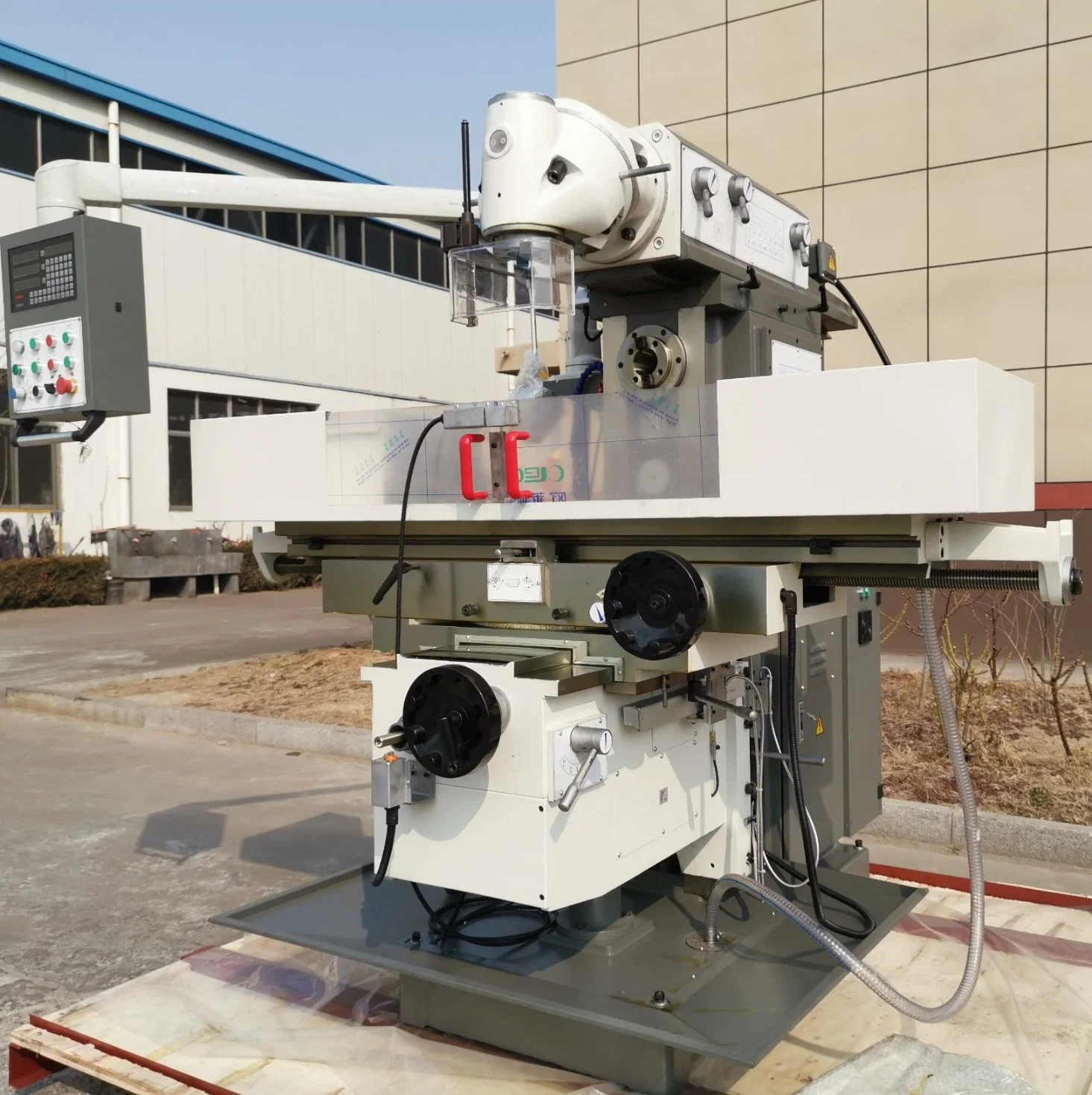

XL6436 XL6436C XL6436CL X6436 Conventional Vertical and Horizontal Swivel Head Automatic Feed Universal Milling Machine
- Finely graduated feeds in all axis, driven by servo motor (Patented product).
- Complete with rapid feed in x-, y- and z-axis to reduce downtime.
- Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance.
- Universal application for single-piece or small batch production in manufacturing and repair workshops.
Detailed Photos

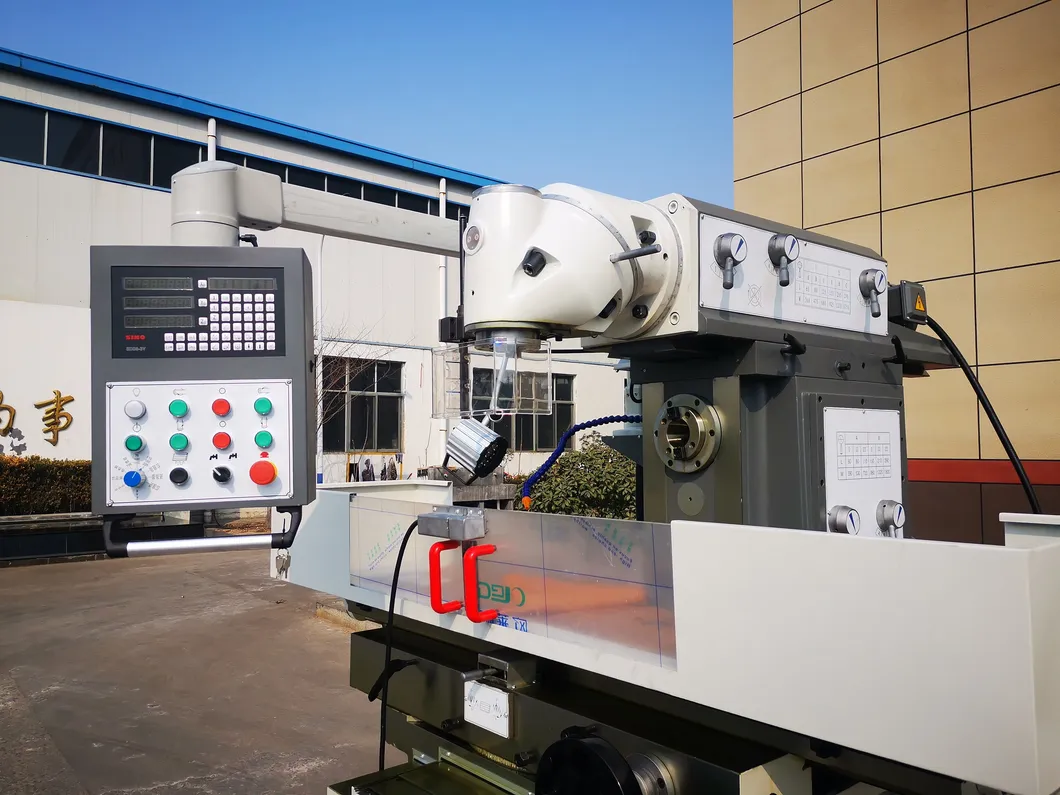

360 degree swivel head

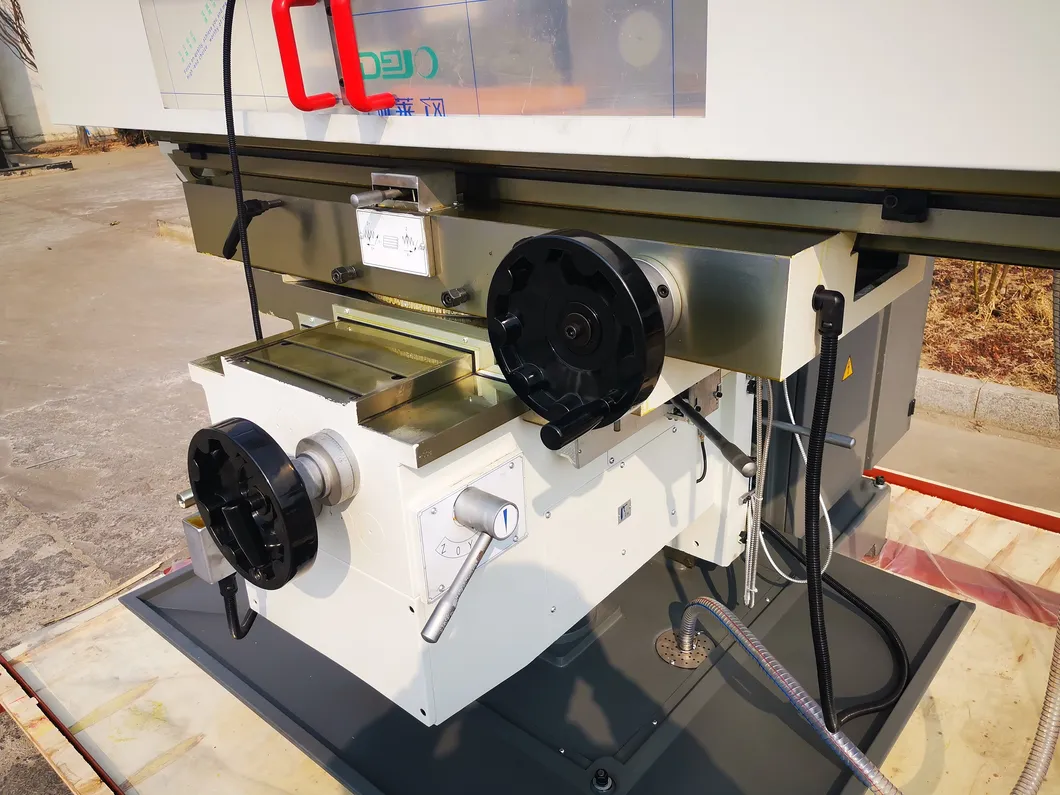

45 degree swivel table (XL6436CLW)

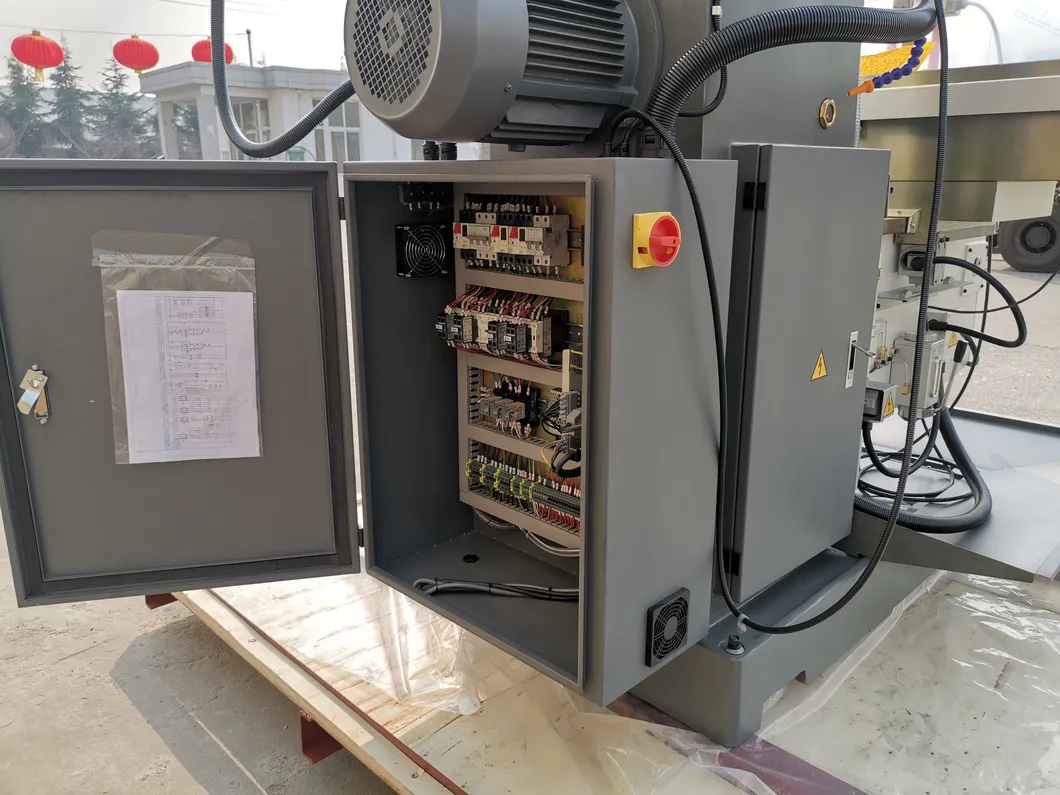

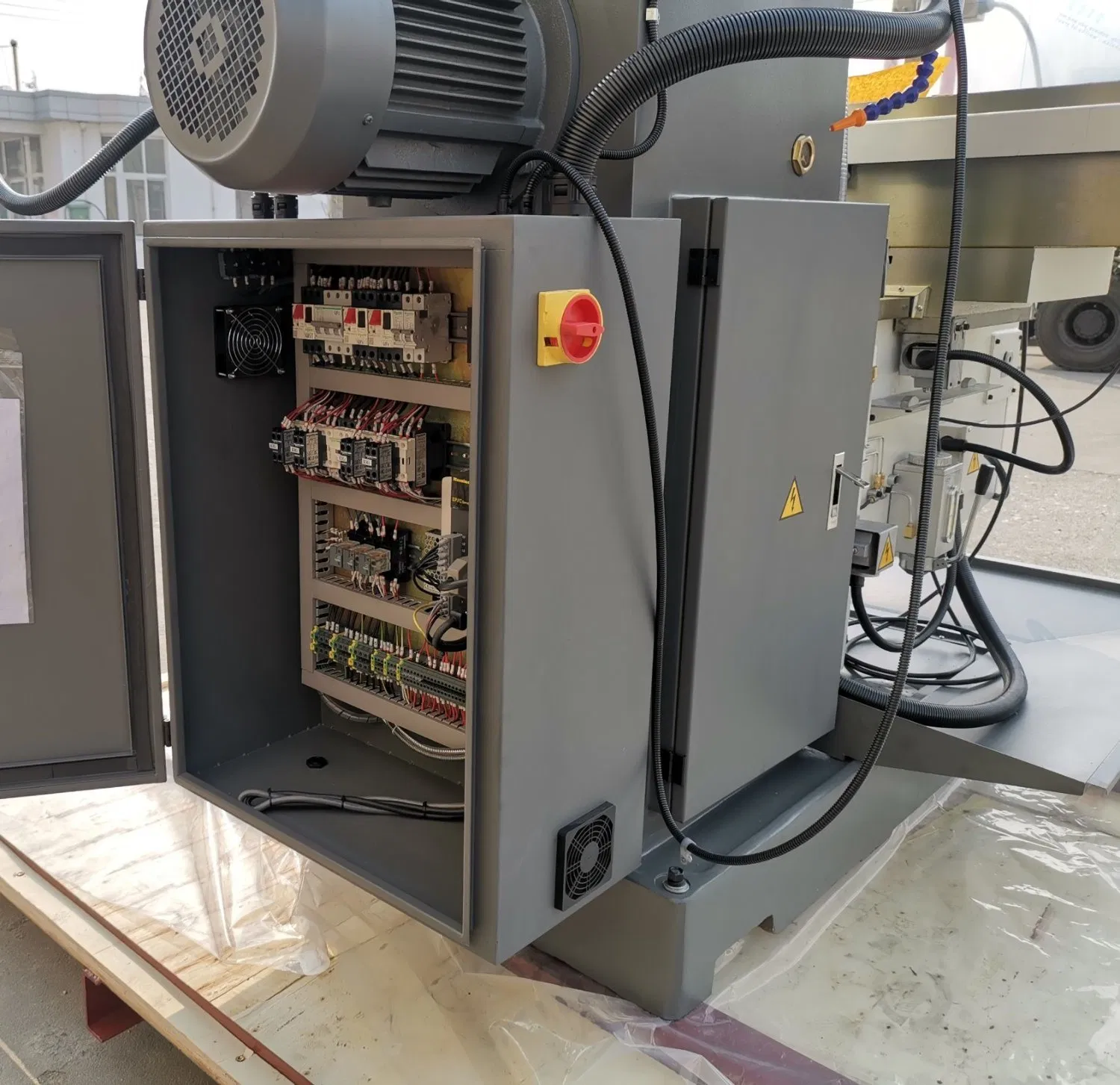

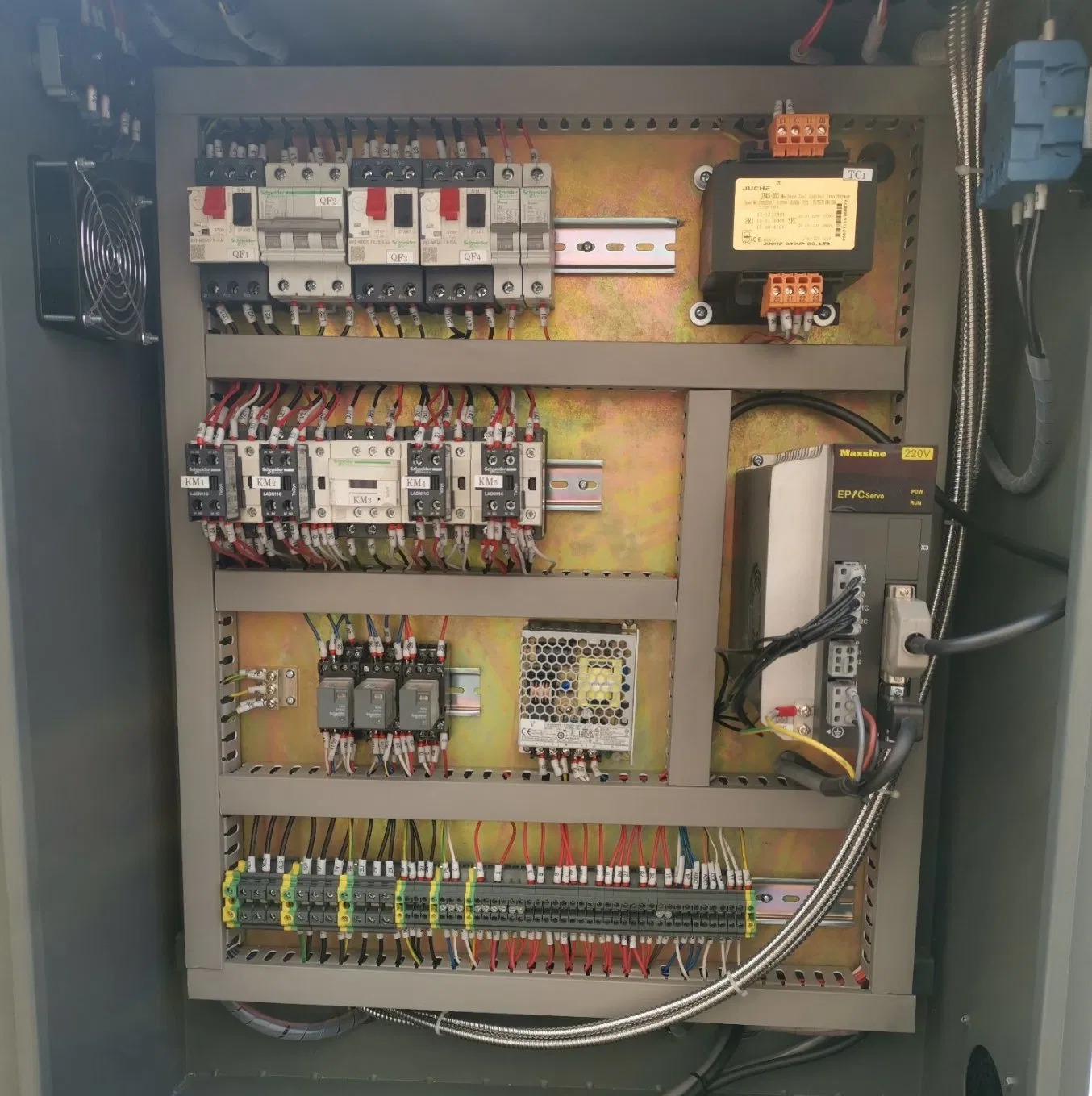

CE electric components
Product Parameters
| Specifications |
Unit |
X6436 |
X6436C |
X6436CL |
| Table size | mm | 1325×360 | 1325×360 | 1600×360 |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 |
| Spindle taper | - | ISO50 (H) / ISO50 (V) |
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) / 60-1800 (H) |
| Main motor power | Kw | 5.5 (H) / 4 (V) |
| Net weight | kg | 2685 | 2750 | 2800 |

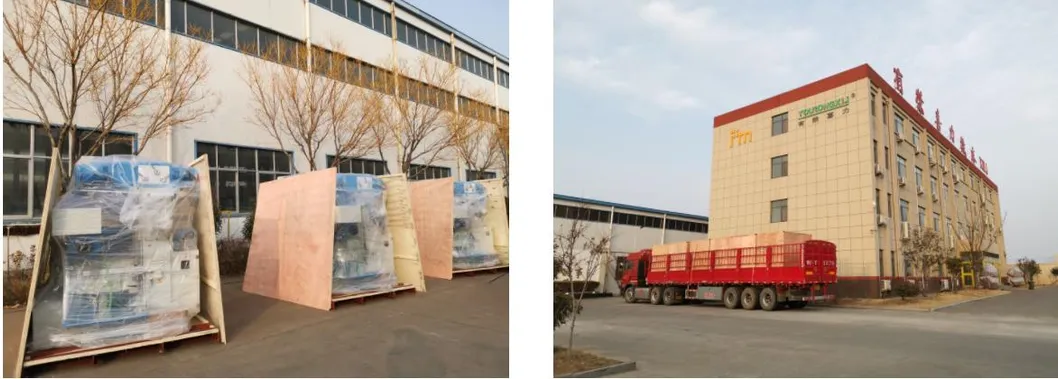

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Machine packed with plywood case and steel pallet.
Certifications
Passed the ISO9001 quality guarantee system certification in 2002.
Obtained the CE certificate in 2007.

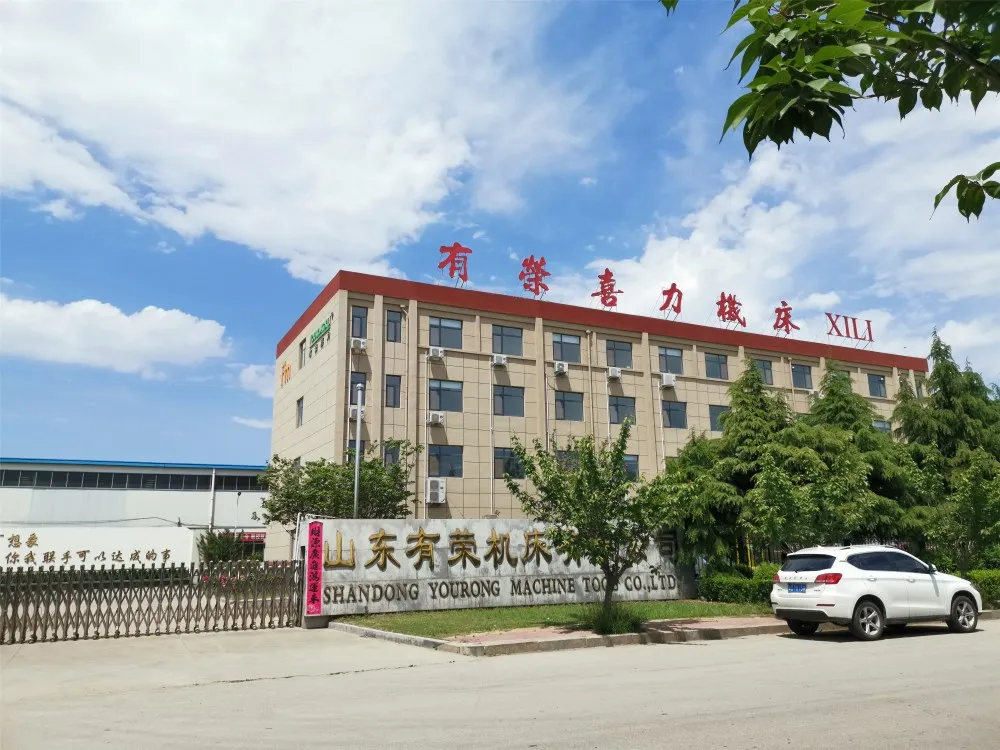

Factory Display
Frequently Asked Questions
1. What is the Minimum Order Quantity (MOQ)?
Our minimum order quantity is 1 set.
2. What are the payment terms?
We accept T/T (30% advance payment before production, 70% balance before delivery) or Irrevocable LC at sight.
3. What trade terms are acceptable?
FOB, CIF, CFR, and EX-Work are all acceptable terms.
4. How long is the product guarantee?
The guarantee period is 12 months after the machine is delivered from our factory.
5. What applications is this milling machine suitable for?
It is capable of diverse machining tasks, including drilling, reaming, milling, and boring for metal objects.
6. How is the machine protected during shipping?
The machine is securely packed using a plywood case and a steel pallet to ensure safety during transport.
