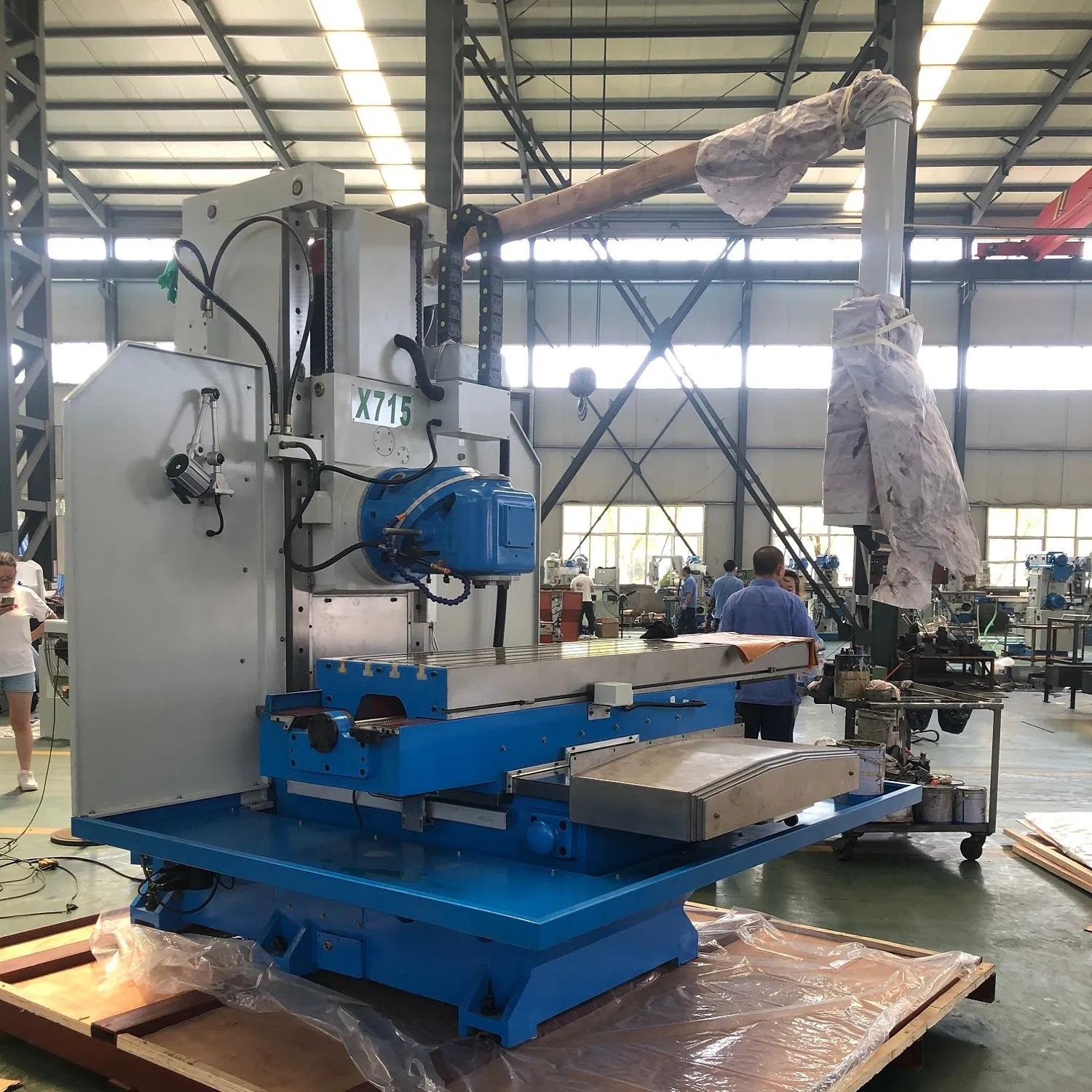

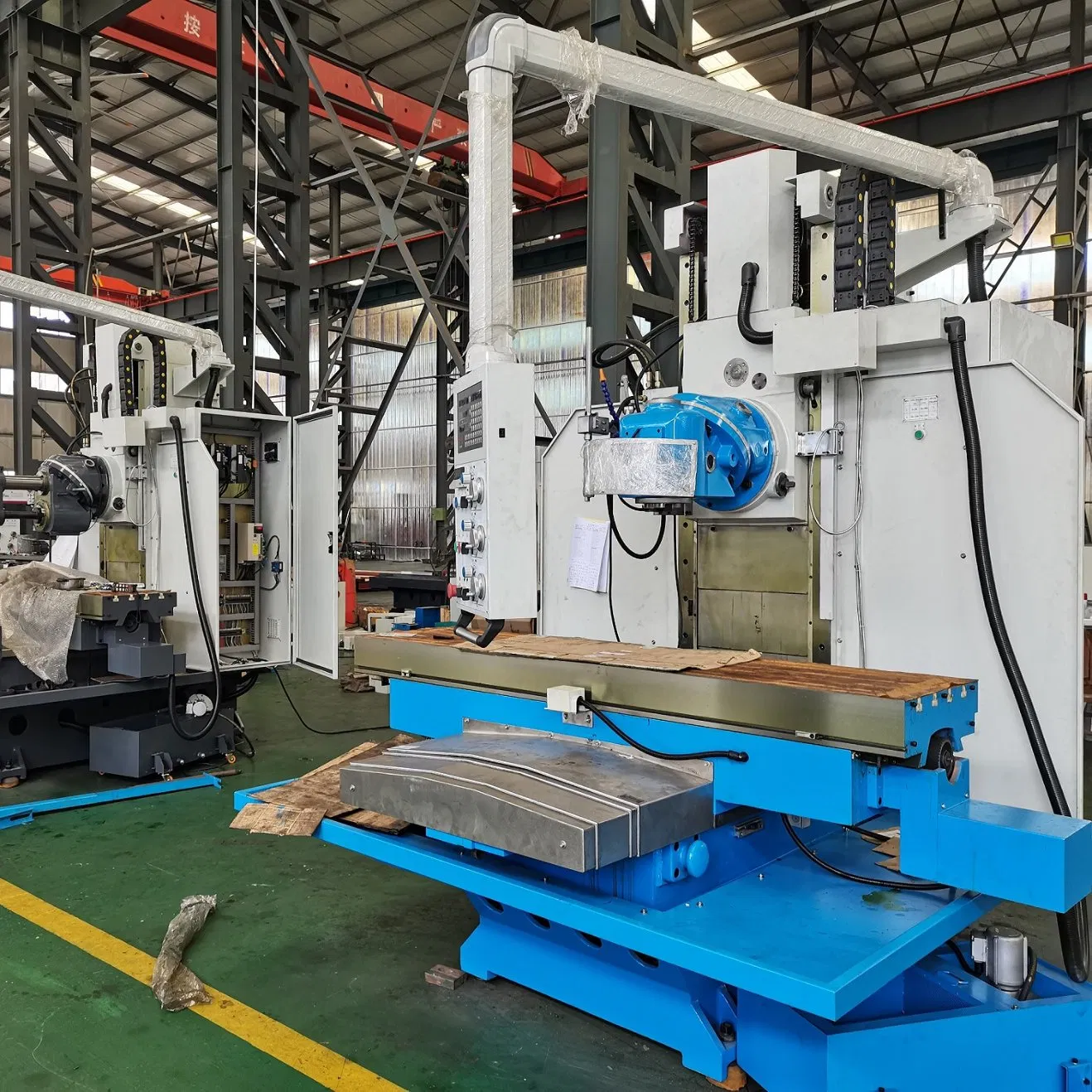

X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
1 / 5
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine

X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.X715 TypeWorktable Milling Machine
ObjectMetal StructureBed type
Milling CutterVarious Structure Controlling ModeArtificial / Manual
PrecisionHigh Precision CertificationCE, ISO 9001
Spindle TaperISO50 Spindle Speed6-300rpm & 30-1500rpm
Main Motor11kw Table Size2100X500mm
X/Y/Z Travel1500/650/650mm Max Load2000kg
Product Description
X715 Various Speed Ball Screw High Precision Bed Type Metalworking Milling Machine

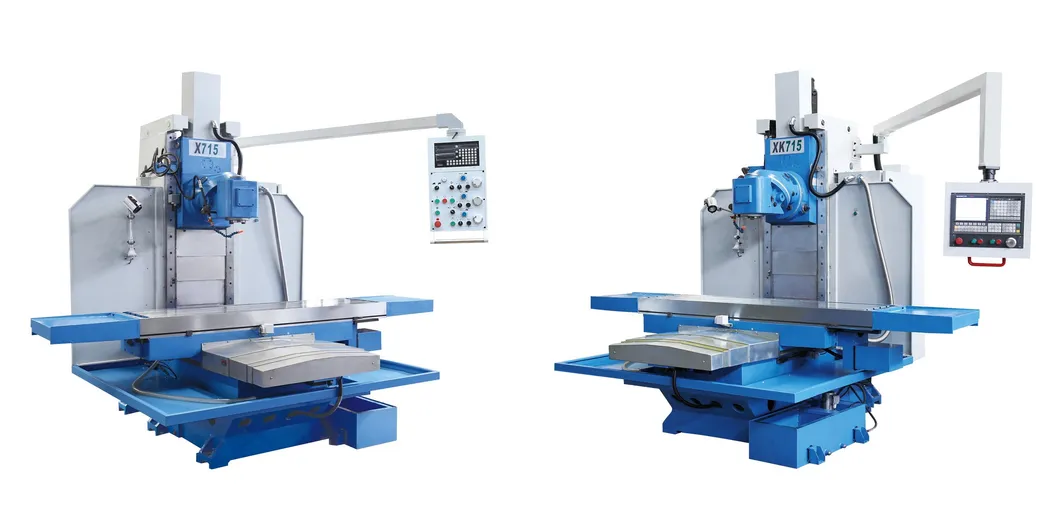

Milling Machine Overview
  • High rigidity machine structure designed for 2000kg heavy load capacity.

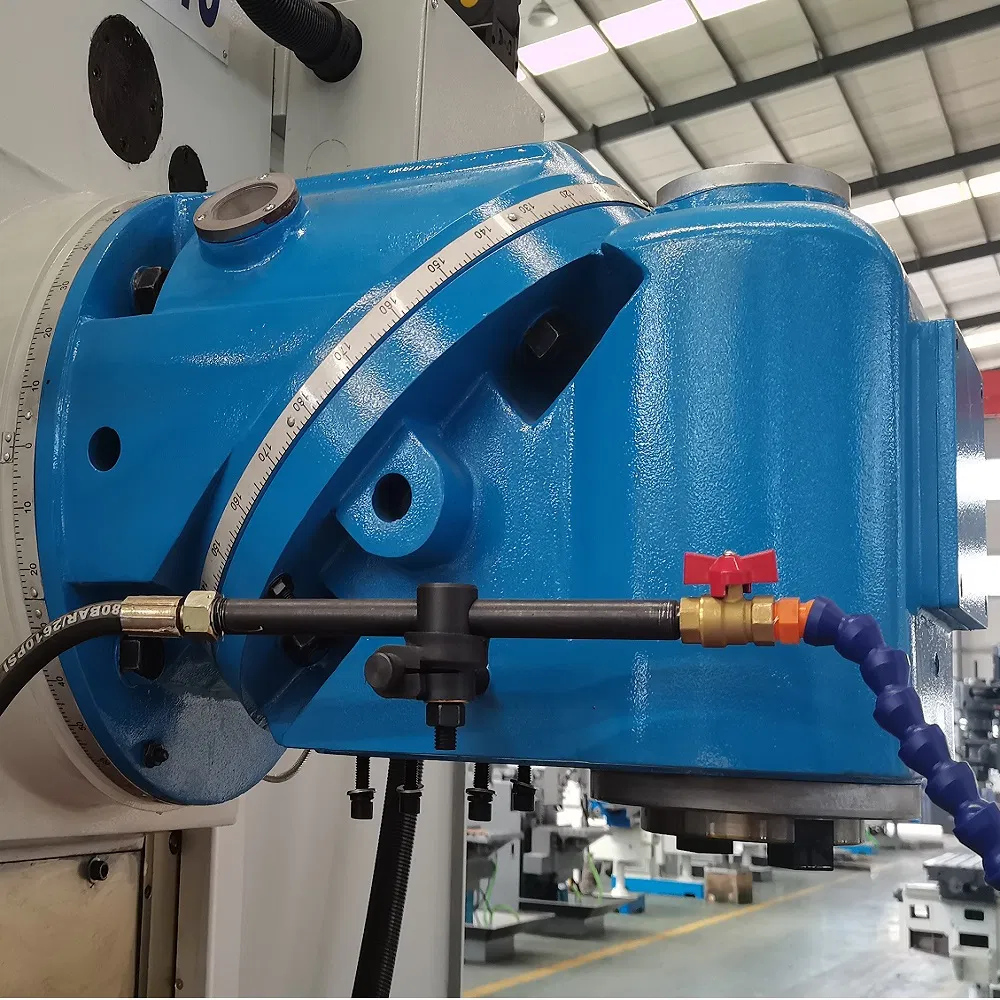

  • Universal mill head can swivel 360°, enabling both vertical and horizontal milling modes.
  • Stepless spindle speeds across high and low ranges for fine or powerful milling.
  • Simplified control panel design for easy and intuitive operation.
  • Equipped with E-handwheels for precise 3-axis manual feeding.
  • X/Y/Z 3-axis ball screws ensuring superior machining precision.
  • Independent servo motors for all 3 axes to achieve synchronous feeding.
  • Integrated electric cabinet within the machine body for space-saving and aesthetic appeal.

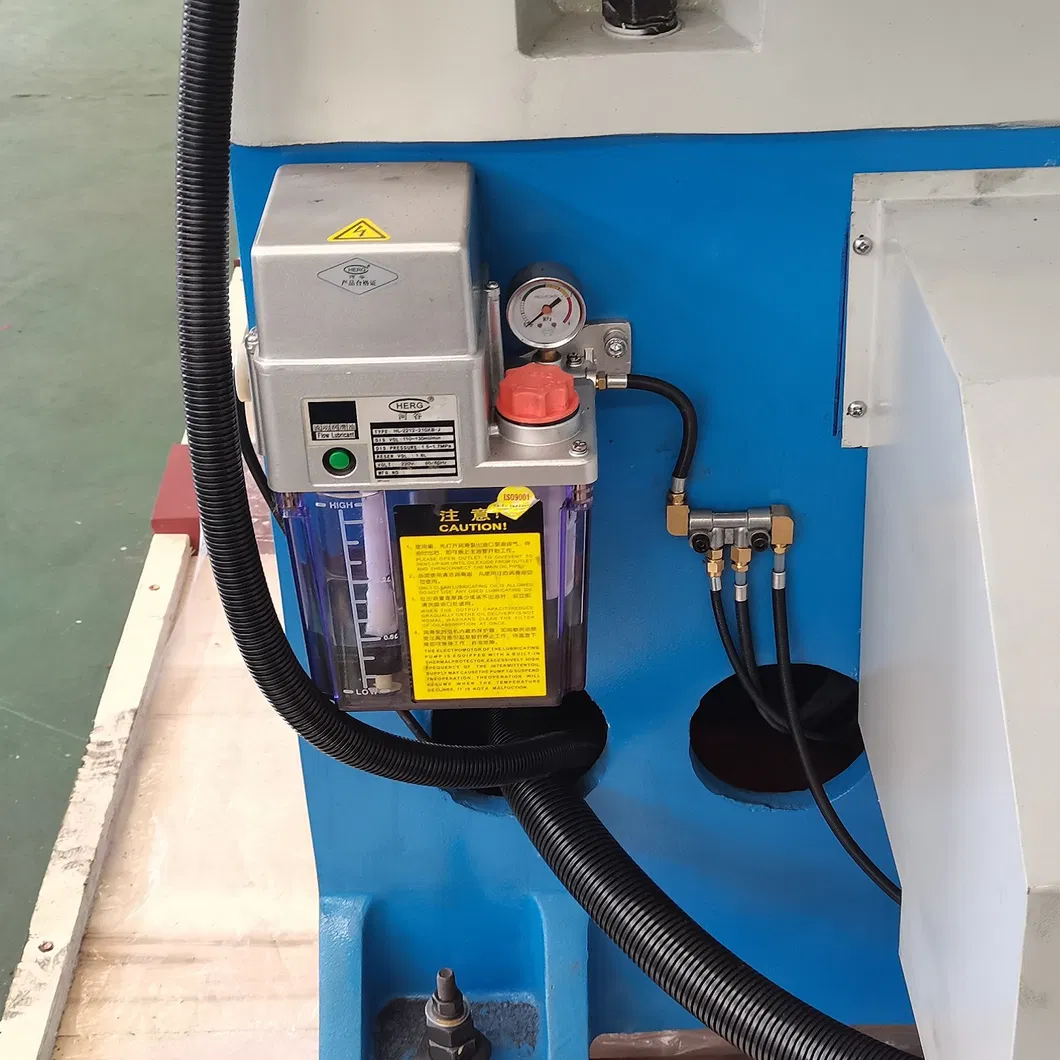

  • Automatic centralized lubrication and cooling systems included as standard.
Detail 1
Detail 2

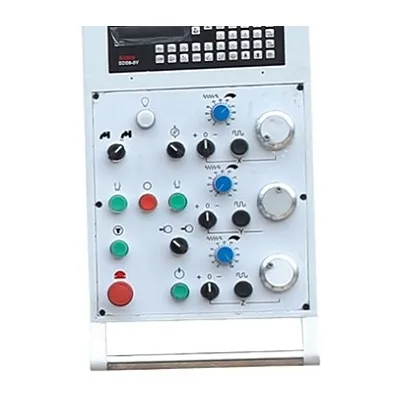

Detail 3

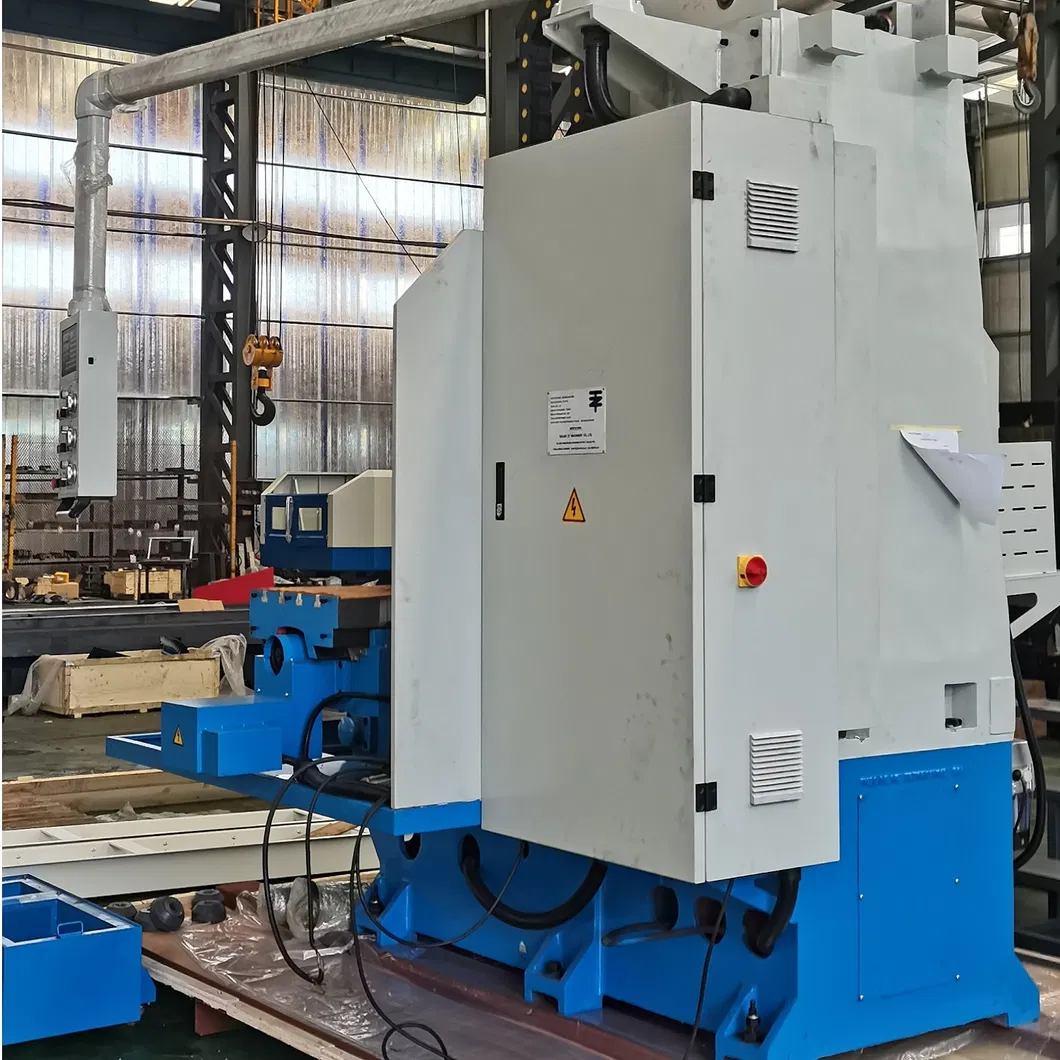

Detail 4
Detail 5
Detail 6
Product Parameters
ItemsX715X716
Working Area
Table size2100x500mm2500x600mm
T-slot (Width x No. x Pitch)20mmx4x100mm20mmx5x100mm
Max. load of table2000kg
Spindle nose to table surface0-650mm0-700mm
Travel & Spindle
Longitudinal travel (X)1500mm1800mm
Cross travel (Y)650mm700mm
Spindle taperISO50
Spindle speed6-300 / 30-1500 r/min
Main motor power11kW
Standard Configuration
No.ItemSpecification
1Lubrication systemAutomatic

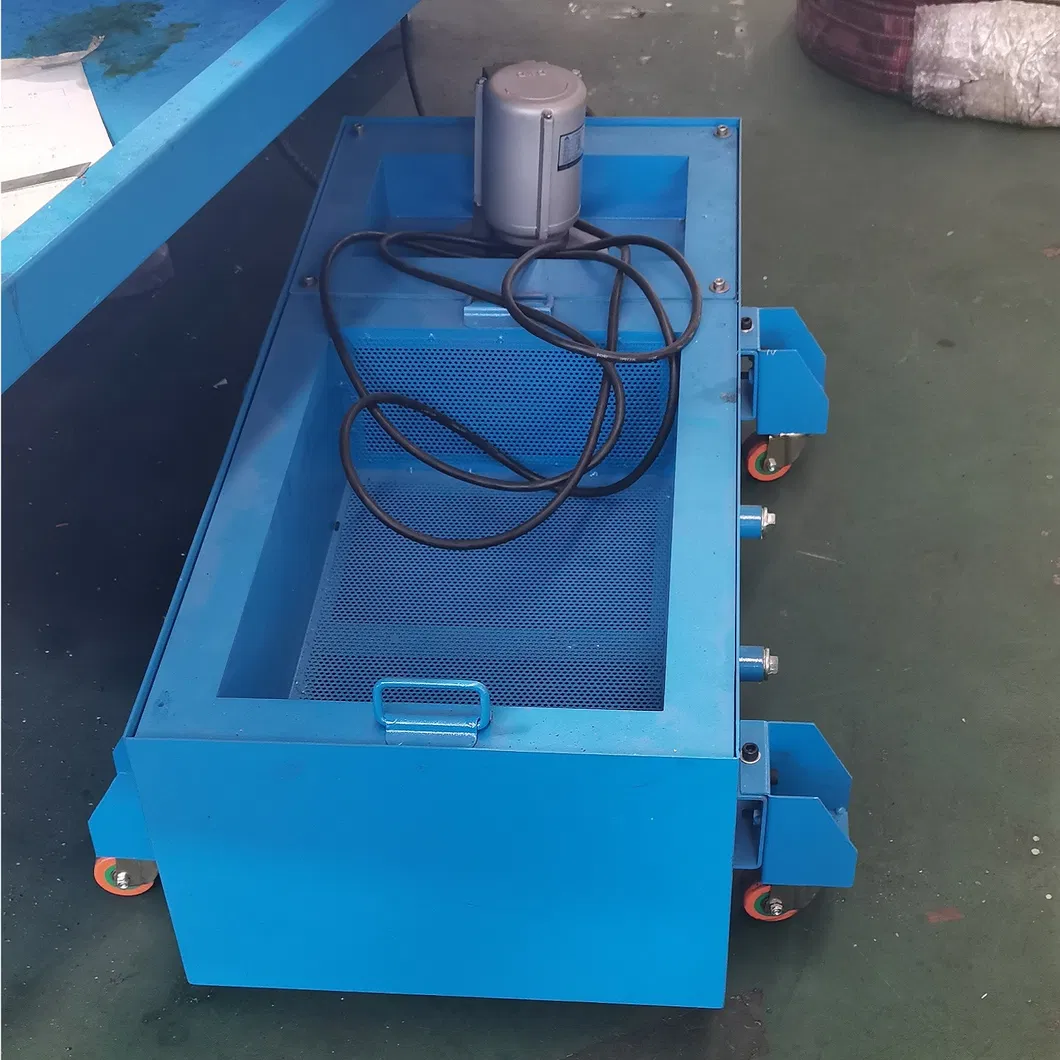

2Water cooling systemSpray nozzle included
3LED work lampStandard

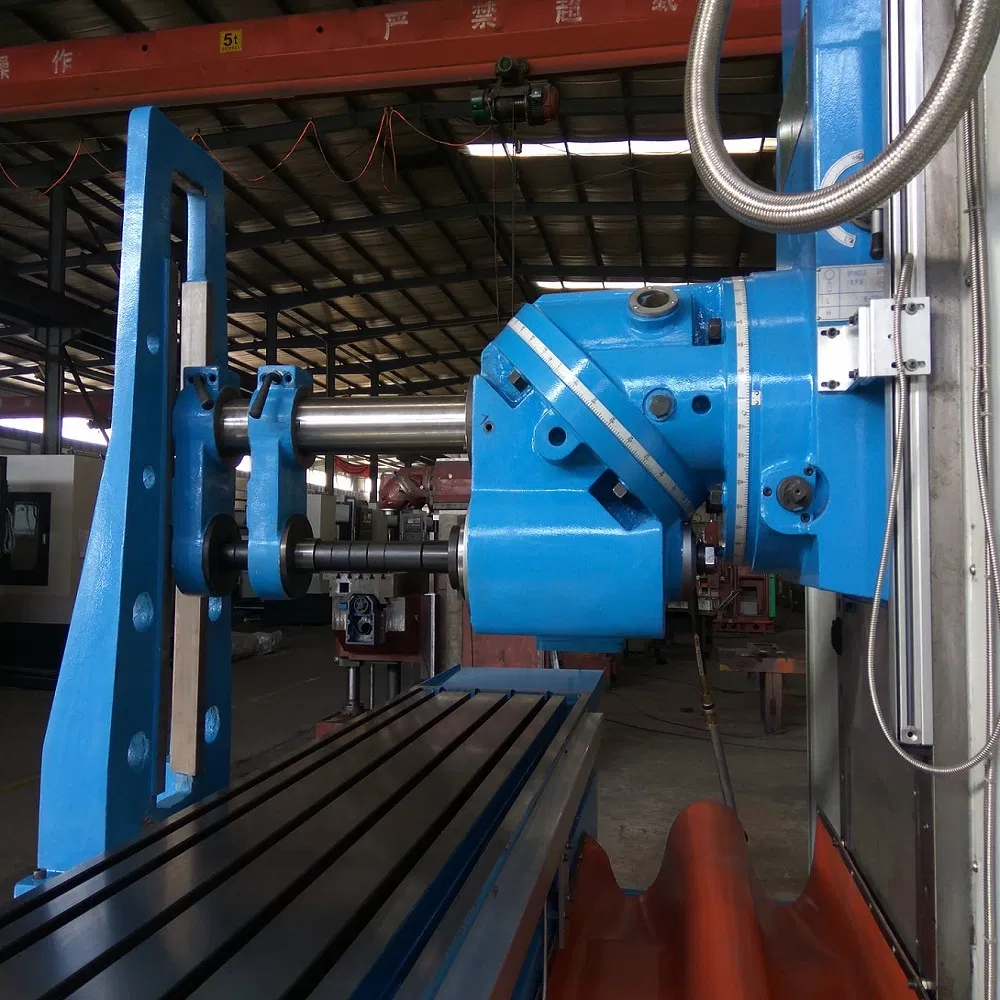

4Supporting frameFor horizontal milling
5Milling chuck setISO50: 2-12mm
6Reducer sleeveISO50/MS4
Optional Configuration

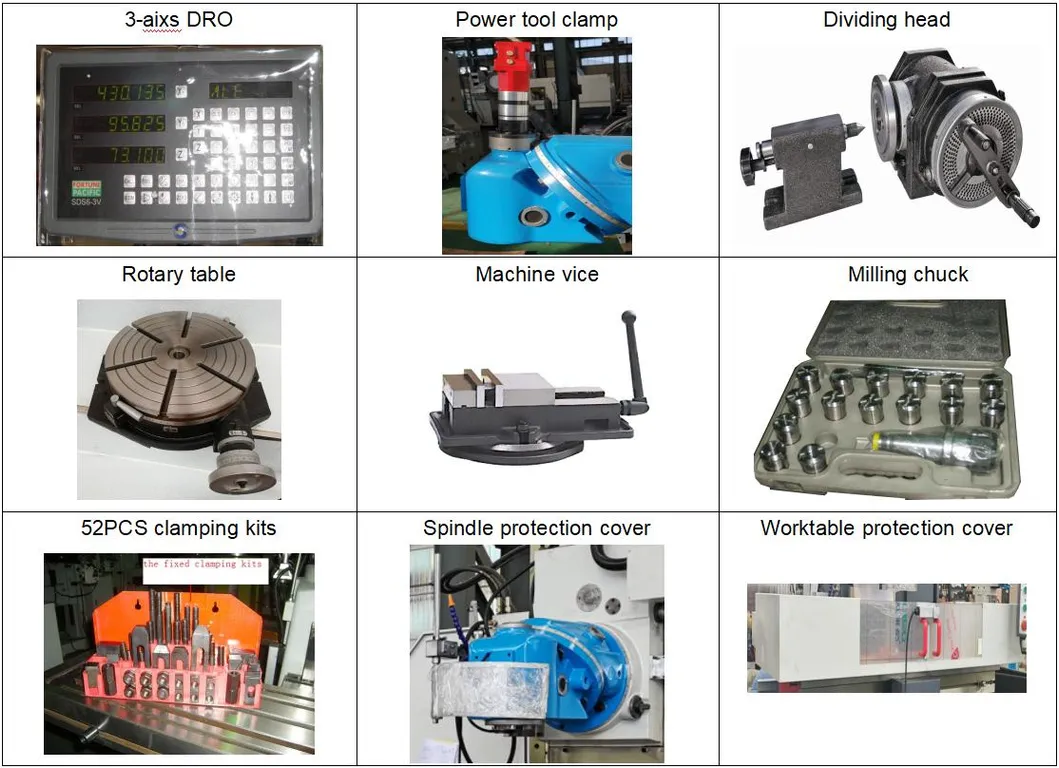

Optional accessories
Certifications & Shipping
Quality Assurance: All products are strictly manufactured according to European standards and hold CE certification.

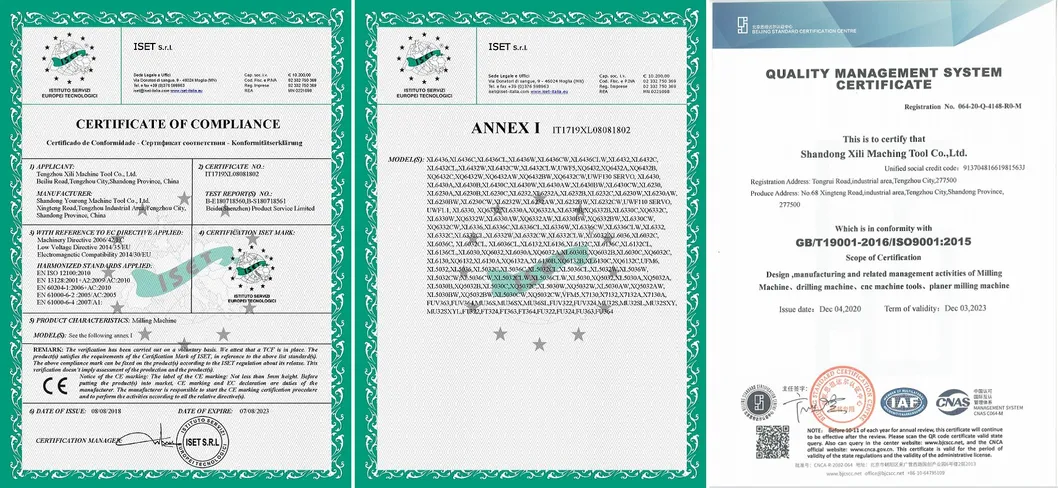

CE Certificates

Packing: Machine is protected with damp-proof plastic film and packed in a sturdy plywood case with a steel pallet for safe transit.

Delivery Time: Generally 60 days production time following order confirmation.

Related Products

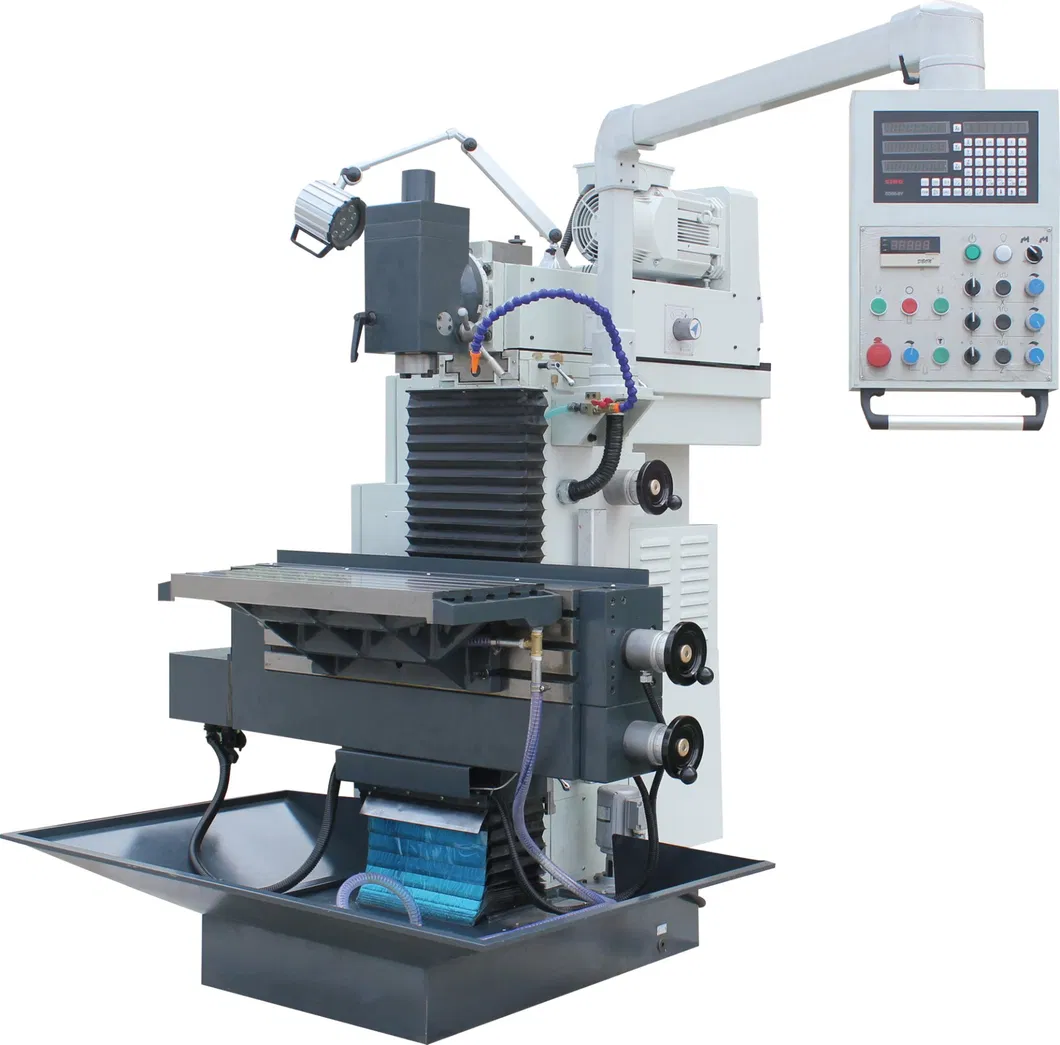

Vertical Milling Machine

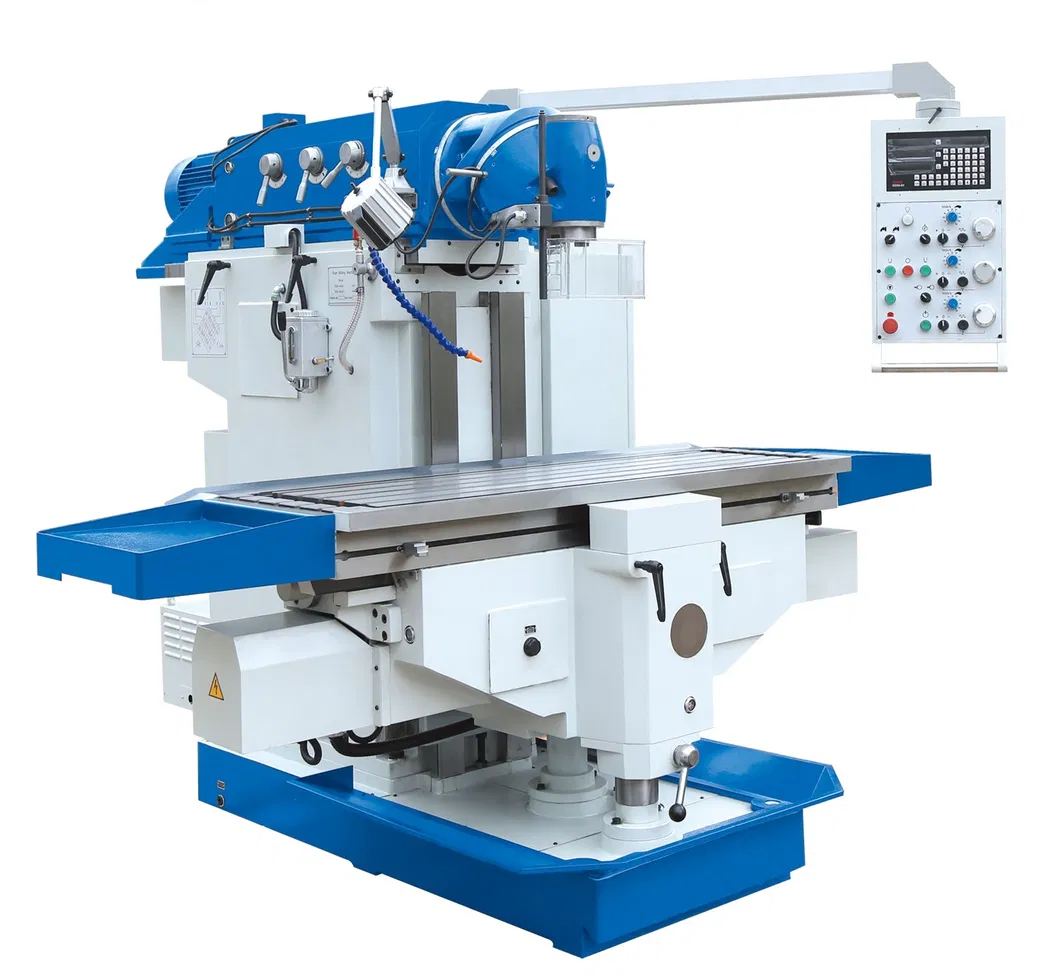

Heavy Duty Milling Machine

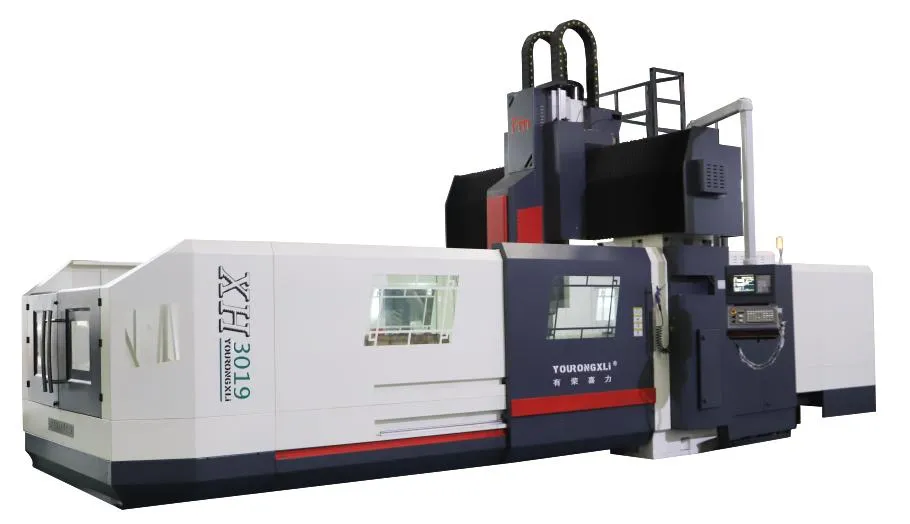

Gantry Type Machine
Frequently Asked Questions
1. What is the Minimum Order Quantity (MOQ)? The minimum order quantity for our milling machines is 1 set.
2. What are the standard payment terms? Typically, we require a 30% deposit via T/T, with the remaining 70% balance due once the machine is ready, verified by photos and videos before delivery.
3. Which trade terms do you support? We commonly operate under FOB terms, though CIF, CFR, and EXW are also available upon discussion.
4. How long is the machine warranty? We provide a 12-month guarantee starting from the date of delivery. During this period, spare parts and online technical support for installation and maintenance are provided free of charge.
5. What types of milling machines are available? Our range includes CNC Gantry Machining Centers, Vertical Machining Centers, and a wide variety of conventional manual machines (Vertical, Horizontal, Universal, and Bed Type).
6. Are the machines certified for international markets? Yes, all machines are manufactured under ISO9001 quality management systems and carry the CE certificate for compliance with international safety standards.
