Customization: Available
After-sales Service: Online Technical Services
Warranty: 1 Year
Send Inquiry

Product Description

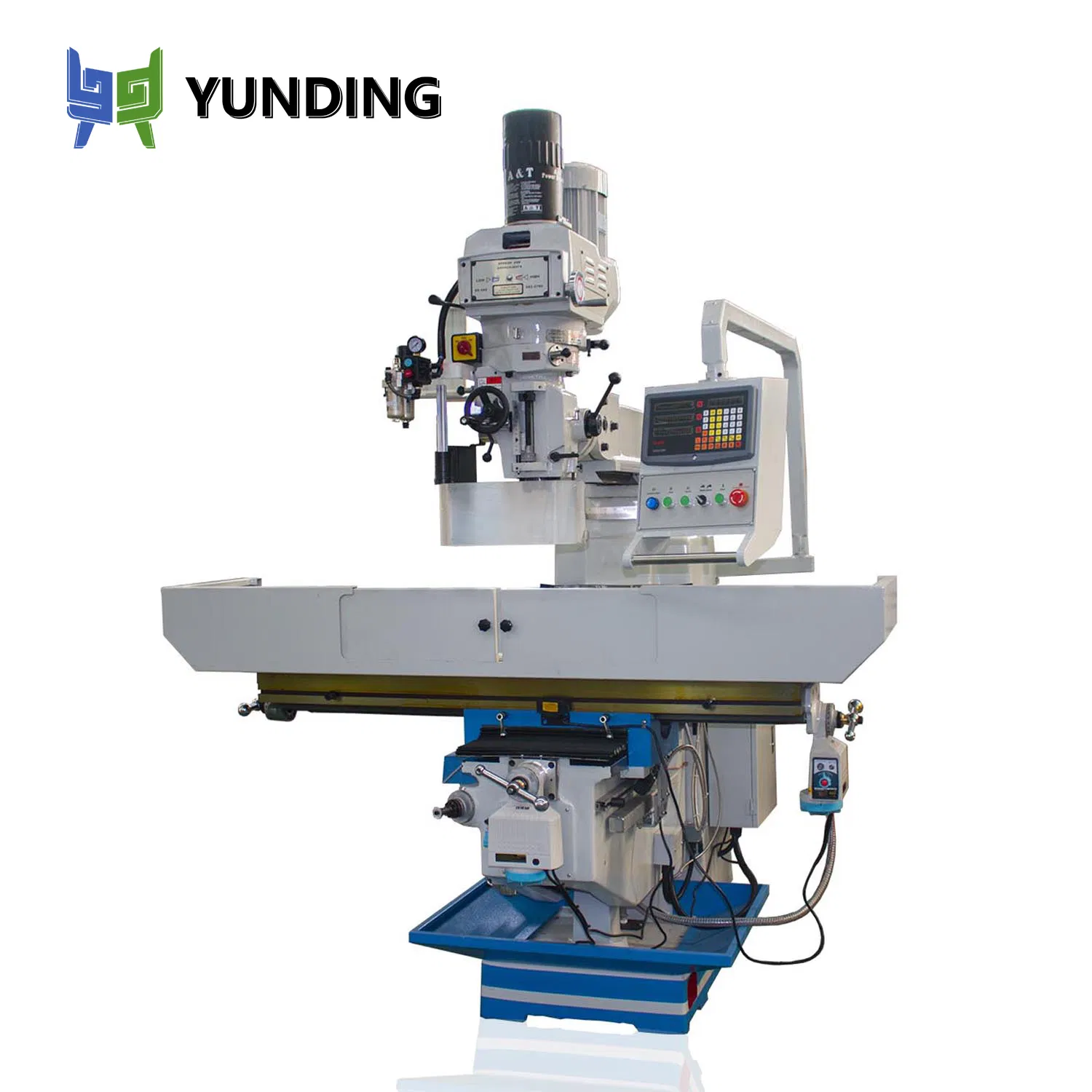

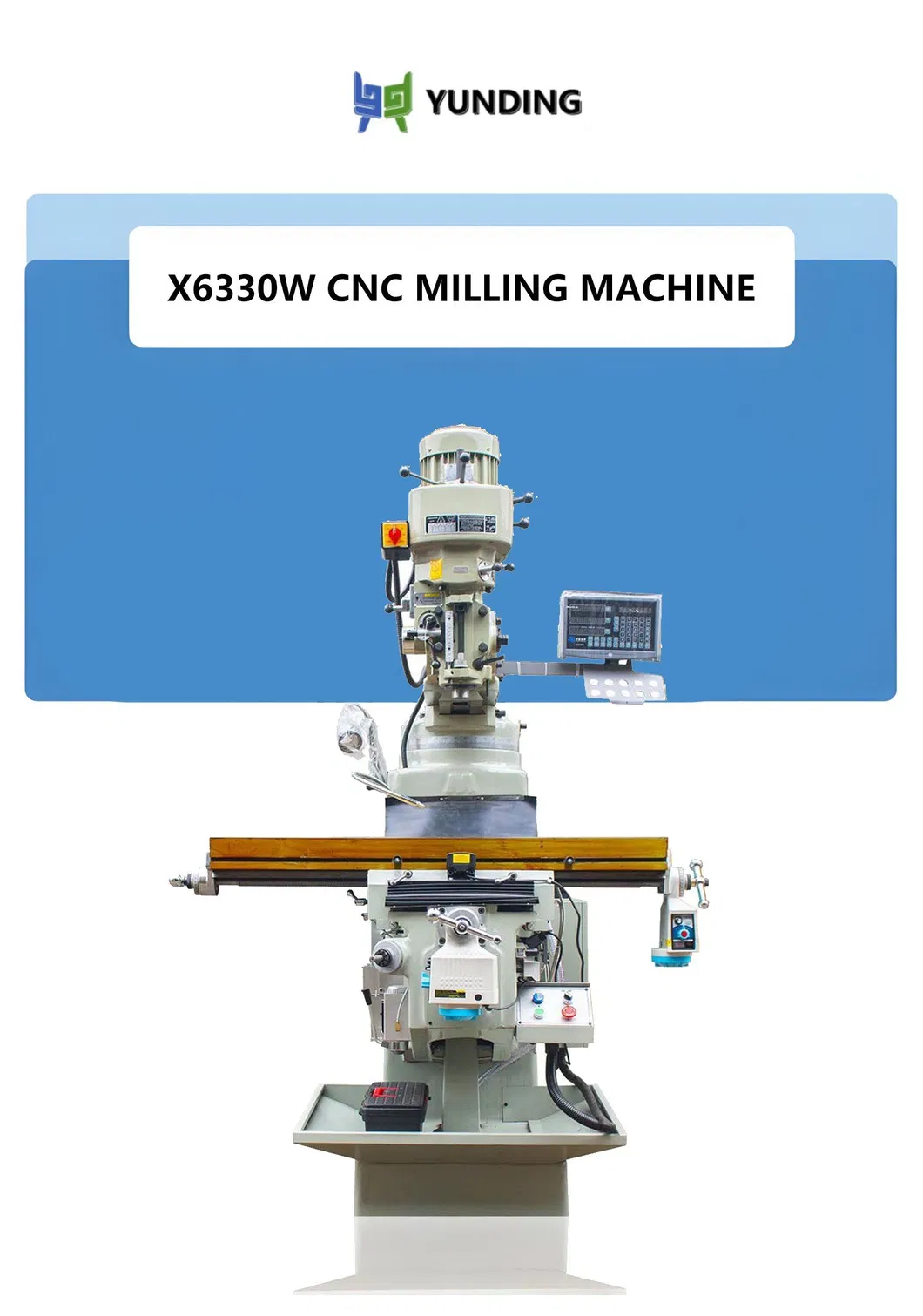

X6330W Vertical Horizontal Milling Machine

X6330W Horizontal Vertical Universal Milling Machine

Professional solution for horizontal and vertical milling applications.

Basic Specifications

Model NO.
X6330W
Type
Knee-and-Column Milling Machine
Object
Metal
Automatic Grade
Automatic
Precision
High Precision
Table Size
1370X305mm
Long Travel
900mm
Cross Travel
400mm
Vertical Travel
420mm
Spindle Travel
127mm
Head Swivel
90°
Package Size
168.00cm * 179.00cm * 223.50cm

Performance Characteristics

■
Rigid rectangular guide machine construction for enhanced stability.
■
Work table and guide rail processed through ultra audio spark quenching.
■
Work bench X, Y, Z axes feature gear drive automatic feed and manual operation.

Applications

This universal lifting platform milling machine is a versatile metal cutting tool suitable for:

✔ Processing planes, inclined planes, grooves, holes, and gears.
✔ Small parts manufacturing in mechanical mold and equipment industries.
✔ Ideal for instruments, automobiles, and motorcycle industries.

Technical Comparison

Specifications Units X6325W X6330W
Table sizemm1270X2541370X305
Long travelmm780900
Cross travelmm400400
Vertical travelmm370420
Spindle Taper-R8 (Opt: ISO30/40)R8 (Opt: ISO30/40)
Spindle SpeedRPM65-450065-4500
Spindle PowerKW2.2KW2.2KW

Product Gallery

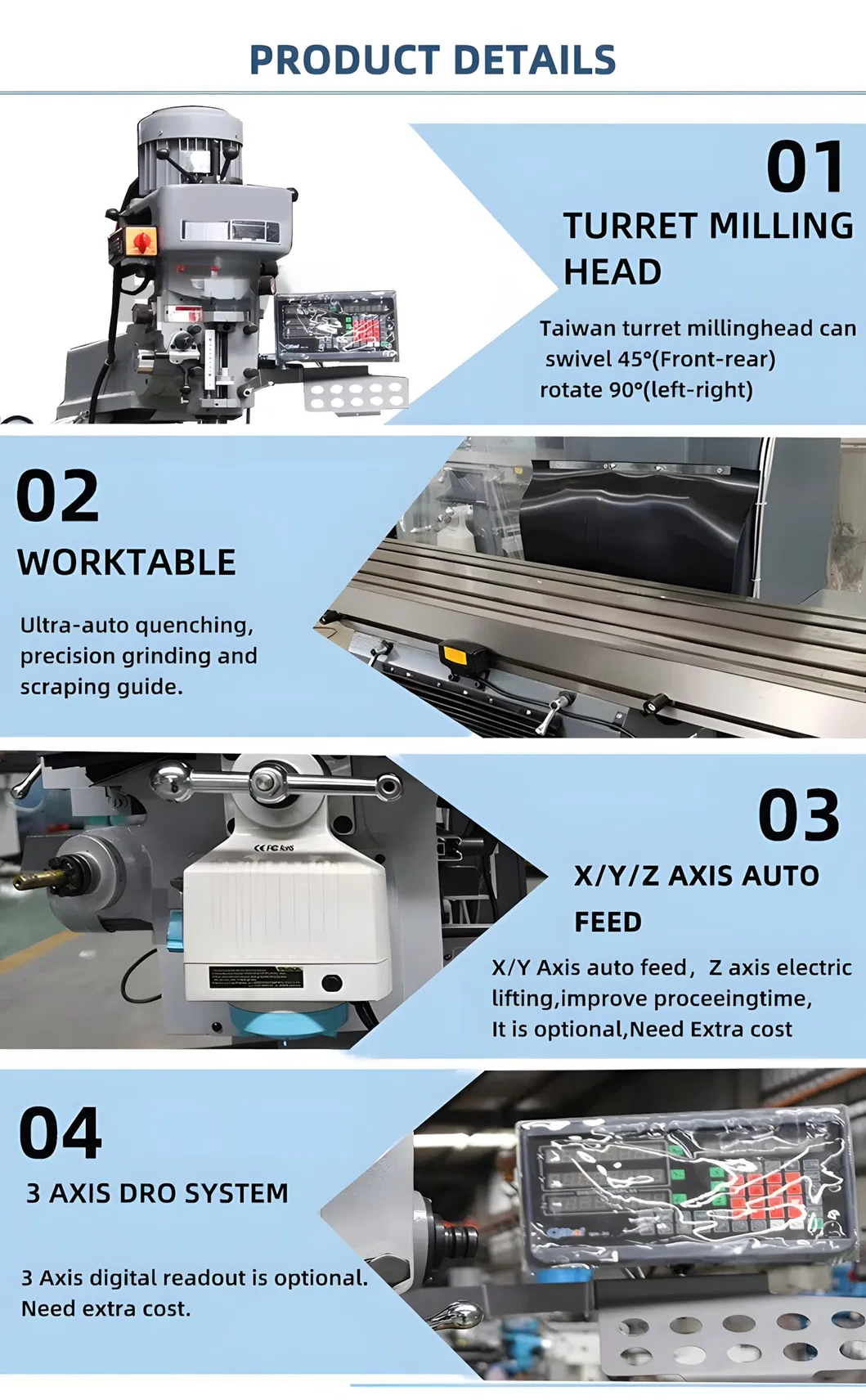

Detailed View 1

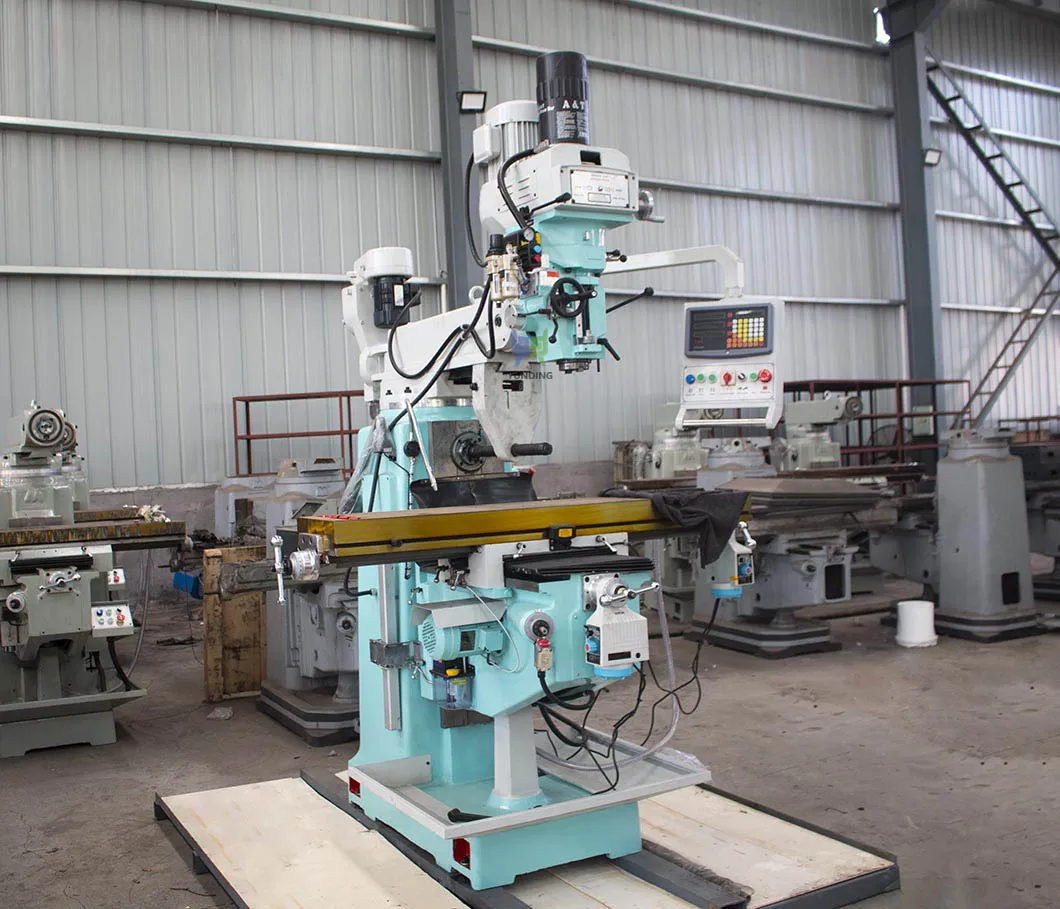

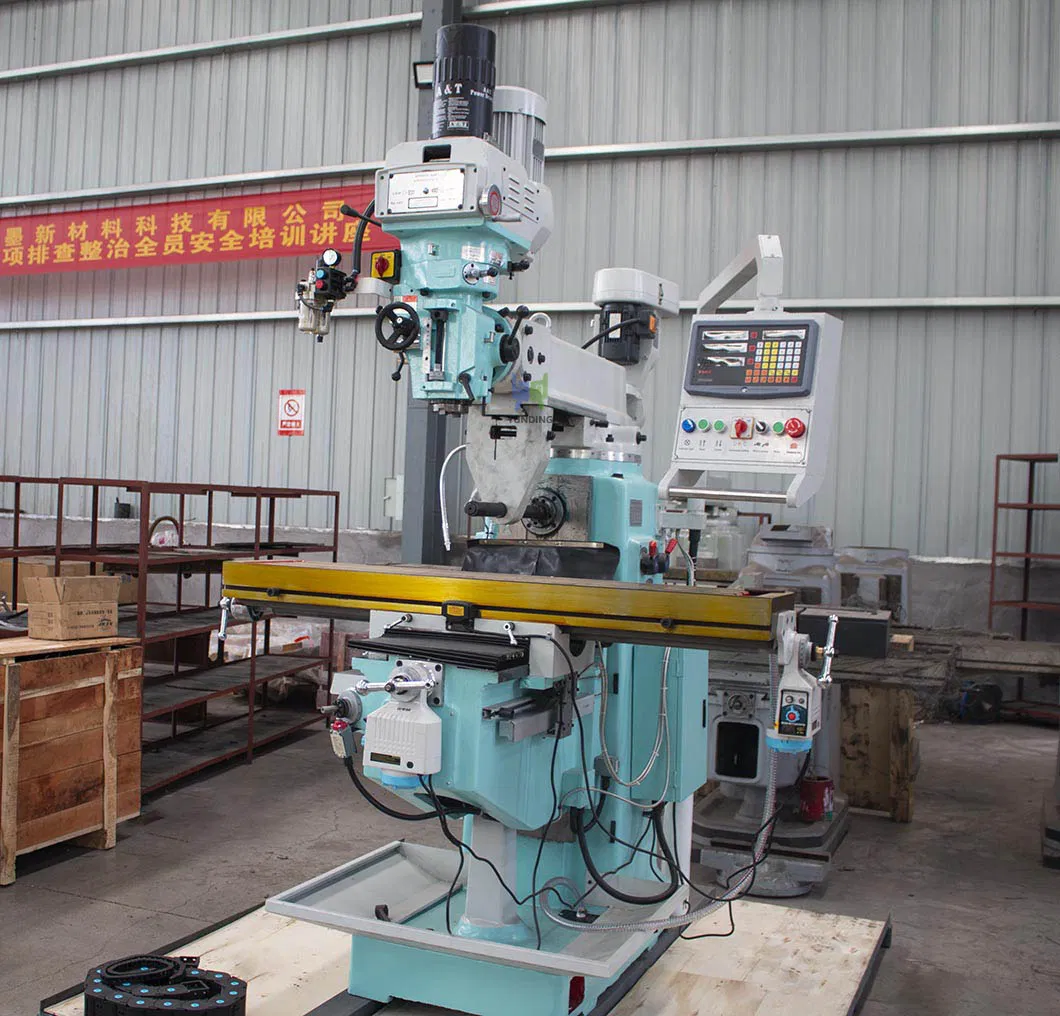

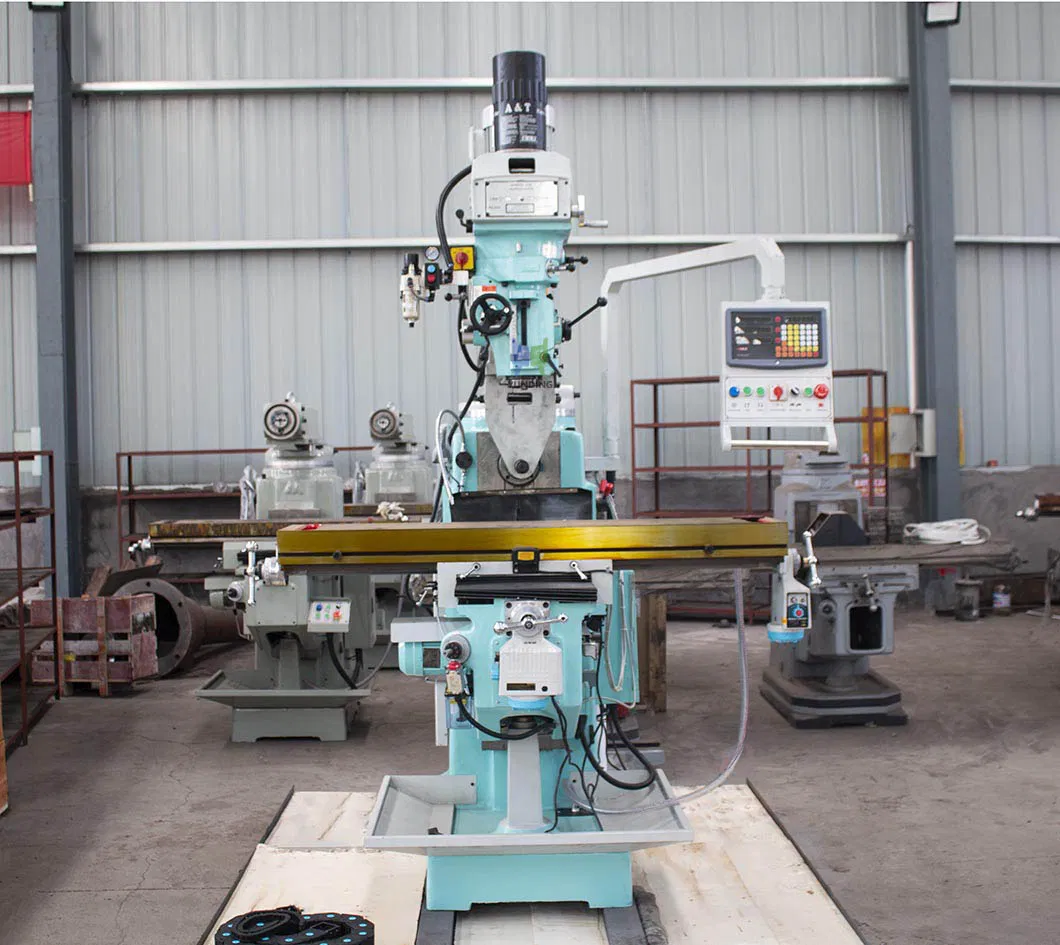

Machine Part 1 Machine Part 2 Machine Part 3

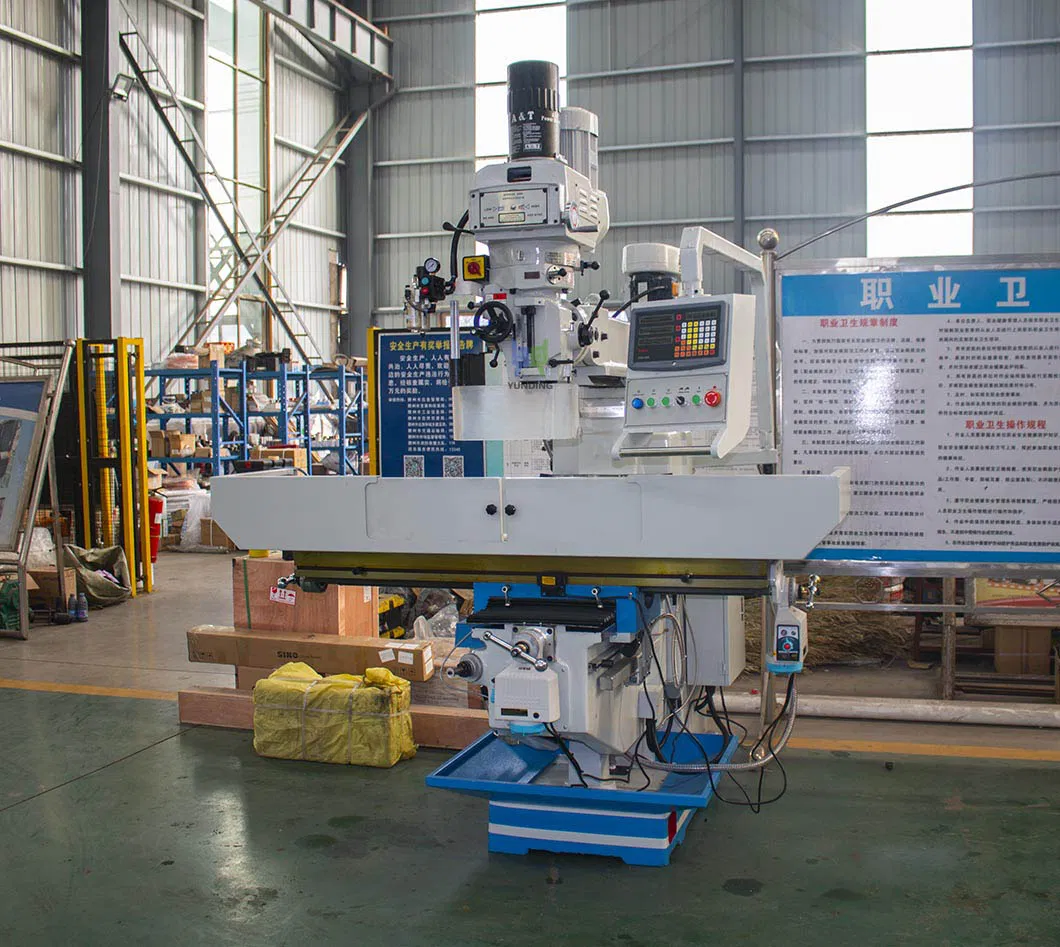

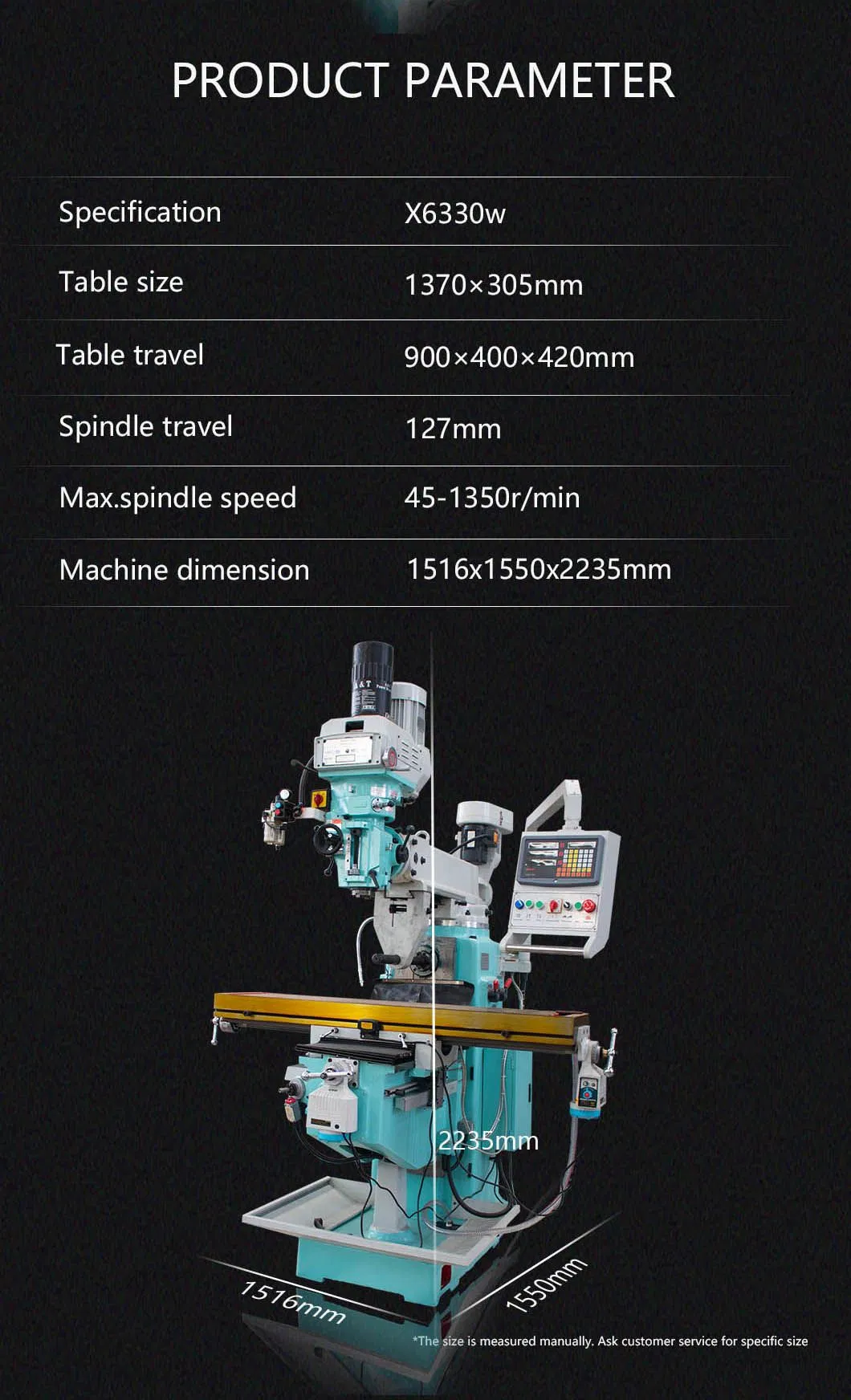

Operation View Technical Layout
Full Machine Specs

Frequently Asked Questions

1. How can I choose the most suitable machine?
Please provide your required specifications or product drawings. We will evaluate your needs and recommend the most suitable model for your specific production requirements.
2. What are your main product lines?
We specialize in a wide range of industrial machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Shaper machines.
3. What trade and payment terms do you offer?
We accept FOB, CFR, and CIF trade terms. Payment is typically handled via T/T (30% deposit, 70% balance before shipment) or Irrevocable LC at sight.
4. What is the Minimum Order Quantity (MOQ)?
The MOQ is generally 1 set. For some specific low-cost accessory machines, the MOQ might be higher.
5. What information is needed for an accurate evaluation?
We suggest providing your industrial voltage, the size and material of your workpieces, and destination port if you require CIF pricing.
