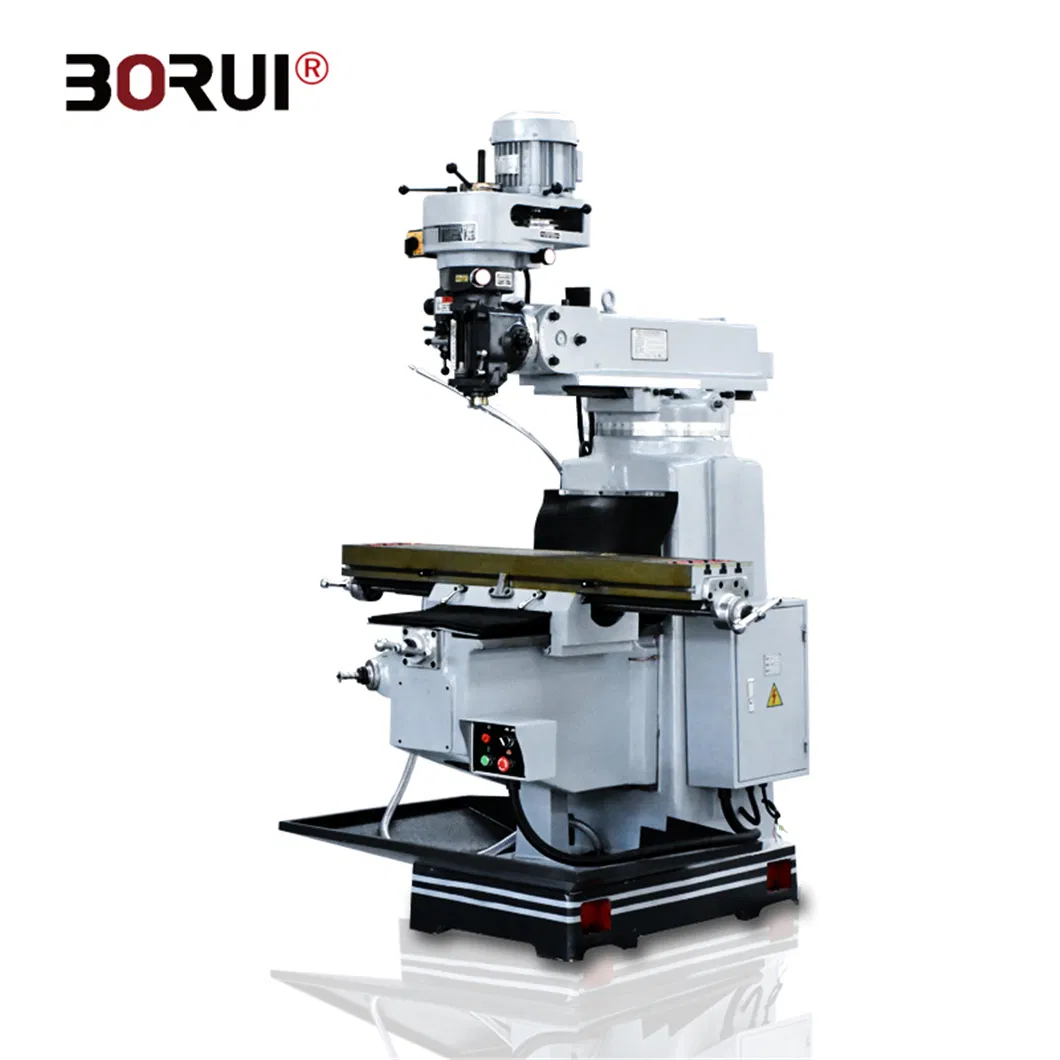

X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
1 / 5
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine

X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine

Customization: Available
Type: Worktable Milling Machine
Object: Hardware
Send Inquiry

Product Description

Basic Specifications
Model NO.
X6325
Structure
Rocker
Milling Cutter Type
Angle Milling Cutter
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Table Size
1270*254mm
X/Y/Z Travel
780 / 400 / 420 mm
Spindle Speed
66-4540 RPM (16-Steps)
Spindle Tool Holder
R8
Origin
Shandong, China
Product Description

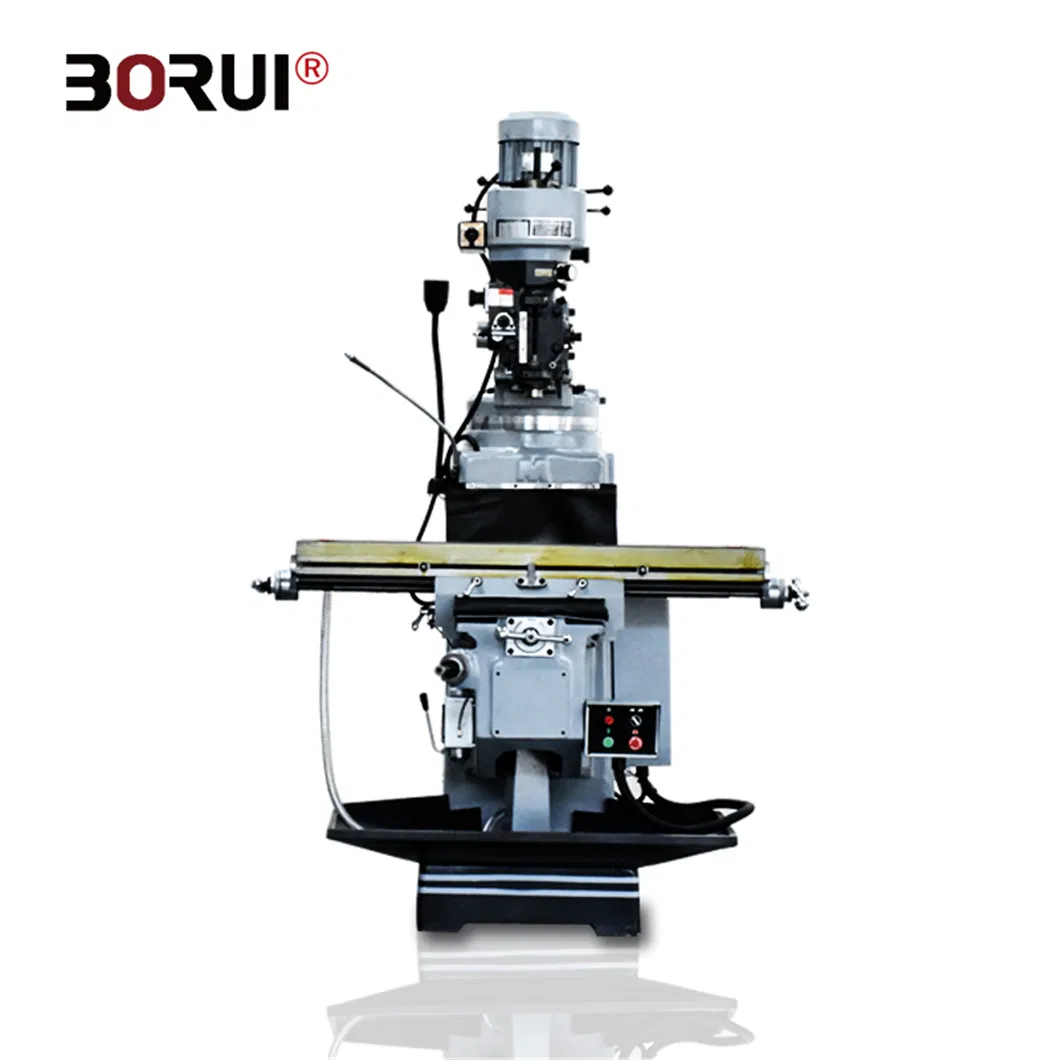

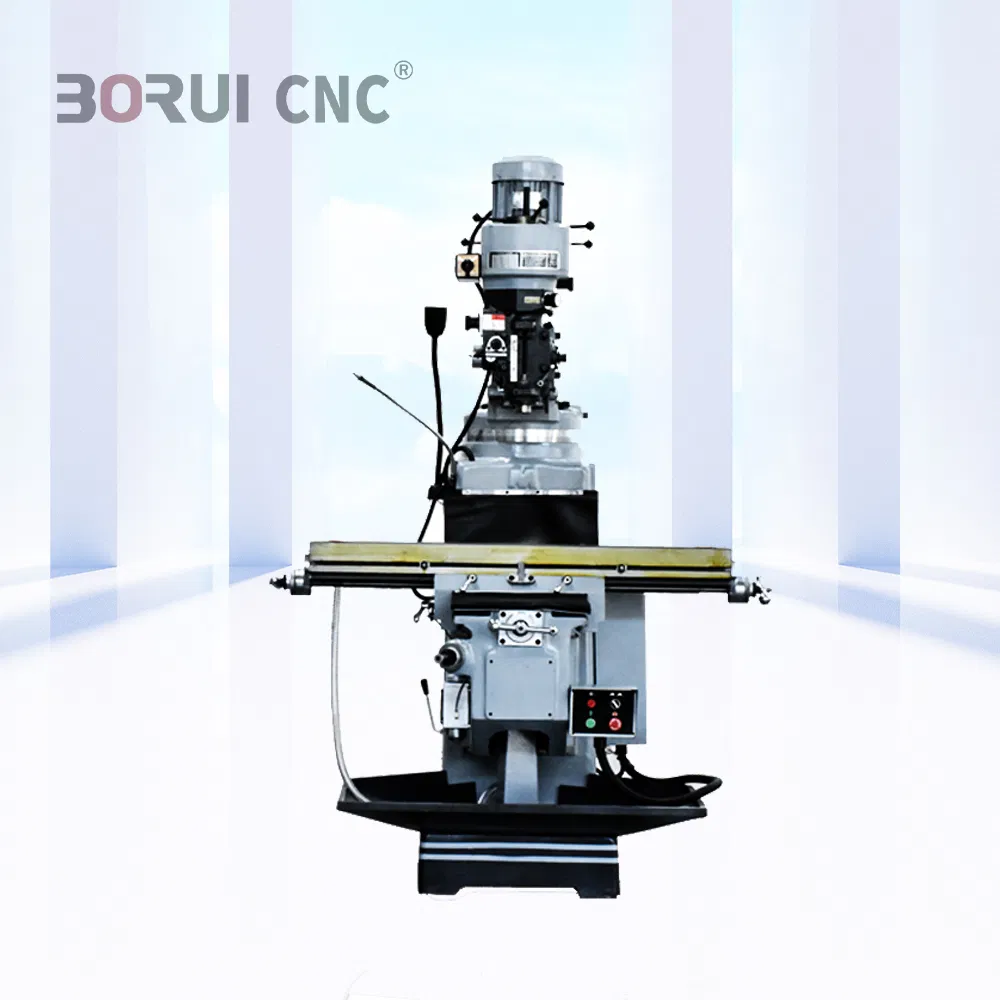

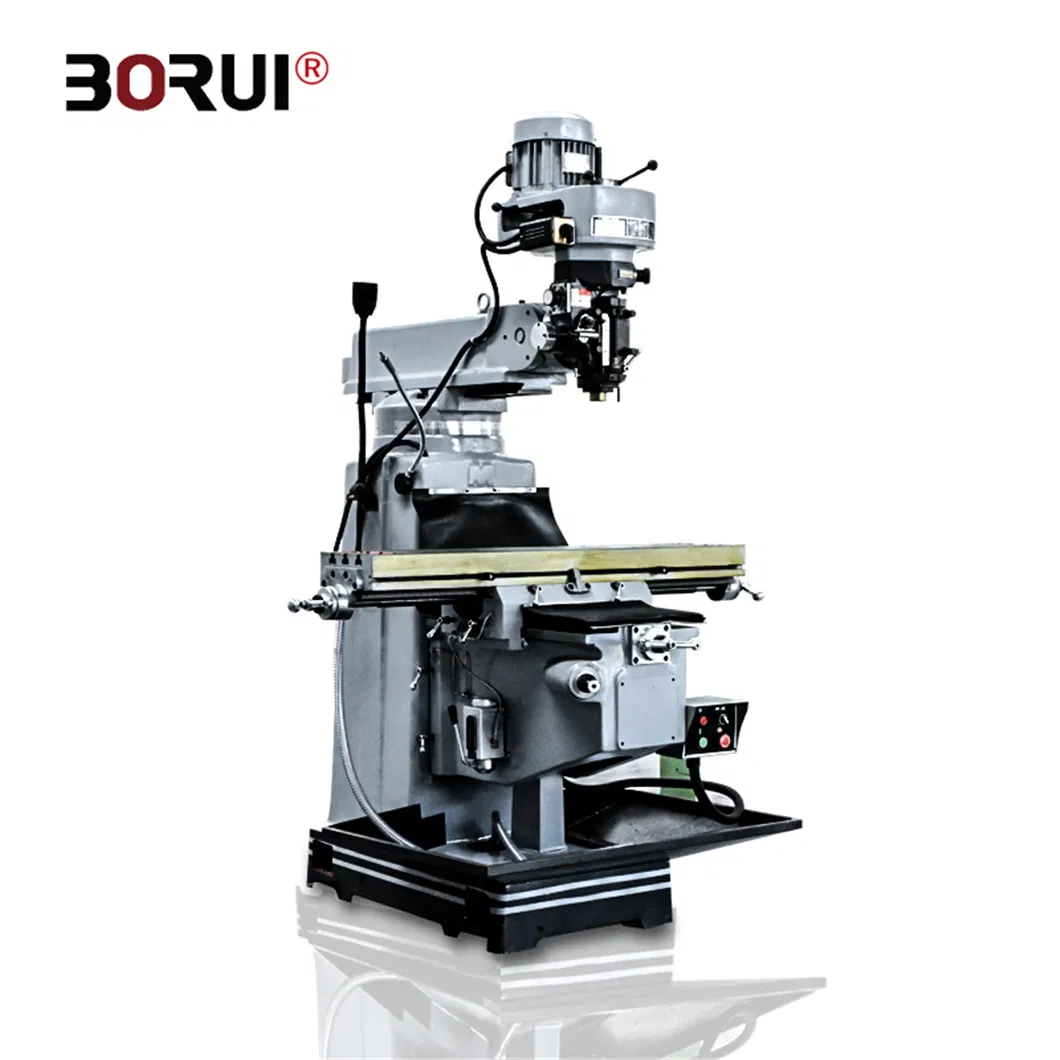

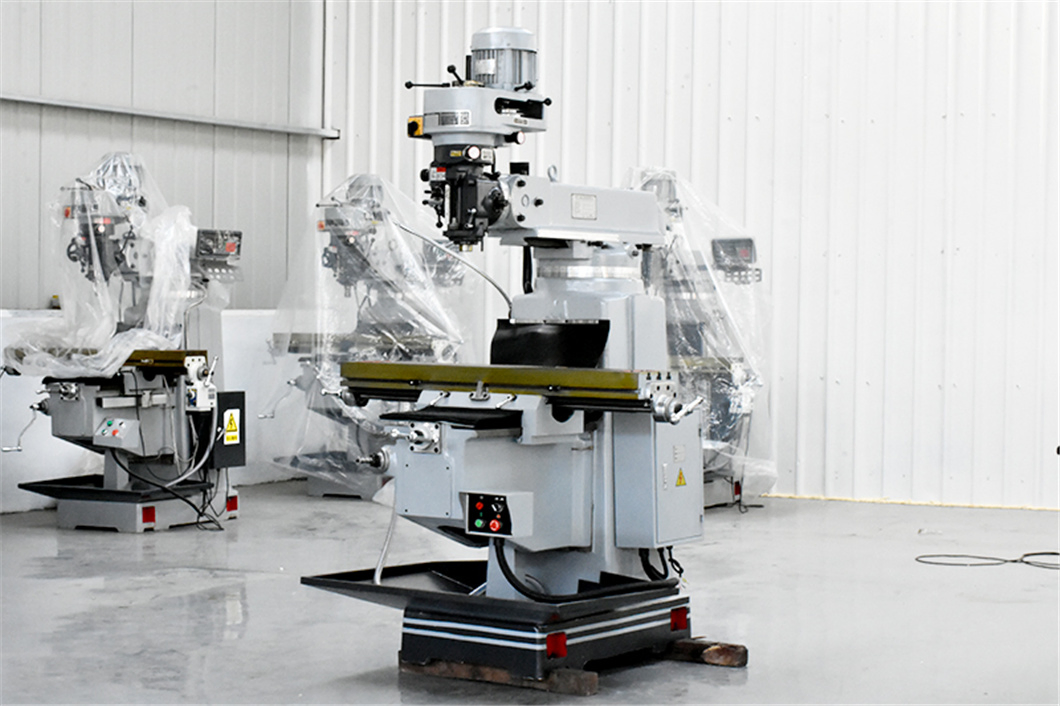

X6325 Vertical Turret Milling Machine

X6325 Vertical Turret Milling Machine

This machine is widely utilized for milling, boring, drilling, reaming, tapping, and various other machining processes. It offers exceptional versatility: the milling head can be installed on the arm to rotate in both vertical and horizontal directions. Furthermore, the arm can move forward/backward and rotate 360° on the machine bed, ensuring a processing range that exceeds the table size.

★Main Features
  • Robust construction and heavy-duty design for high stability.
  • Machine body crafted from premium Meehanite cast iron.
  • Precision milling head made of SCM-21 (Imported from Taiwan).
  • Milling head swings 90° left/right and 45° front/back.
  • The ram can swing 180° horizontally.
  • Heat-treated and precision-ground working table and guide rails.
  • Optional DRO and dividing head available for enhanced precision.
Technical Parameters
Specifications Units X6325 Details
Table sizemm1270x254 (10"x50")
Table travel (X/Y/Z)mm780 / 400 / 420
T slot (number-width-pitch)mm3-16-50
Spindle taper-Standard: R8 / Optional: ISO40
Spindle speed rangerpm16 steps (50HZ: 65-4500 / 60HZ: 80-5440)
Spindle travelmm127
Spindle feed rangemm0.04, 0.08, 0.15 (3 steps)
Spindle nose to table surfacemm90-510
Main motor powerkw2.2
Head rotation (L-R / F-R)°±90° / ±45°
Overall dimensionmm1550x1650x2250
Weightkg1400
⚙Standard Accessories
  • Milling chuck sets
  • Reducing sleeve (7:24 ISO50/MS4 and 40/MS4)
  • Hexagonal Spanners (5 and 10)
  • Stay wrench (S21-24 and S27-30)
  • Horizontal milling cutter arbors
  • Draw bar (M24 and M16)
  • Work lamp and Cooling system

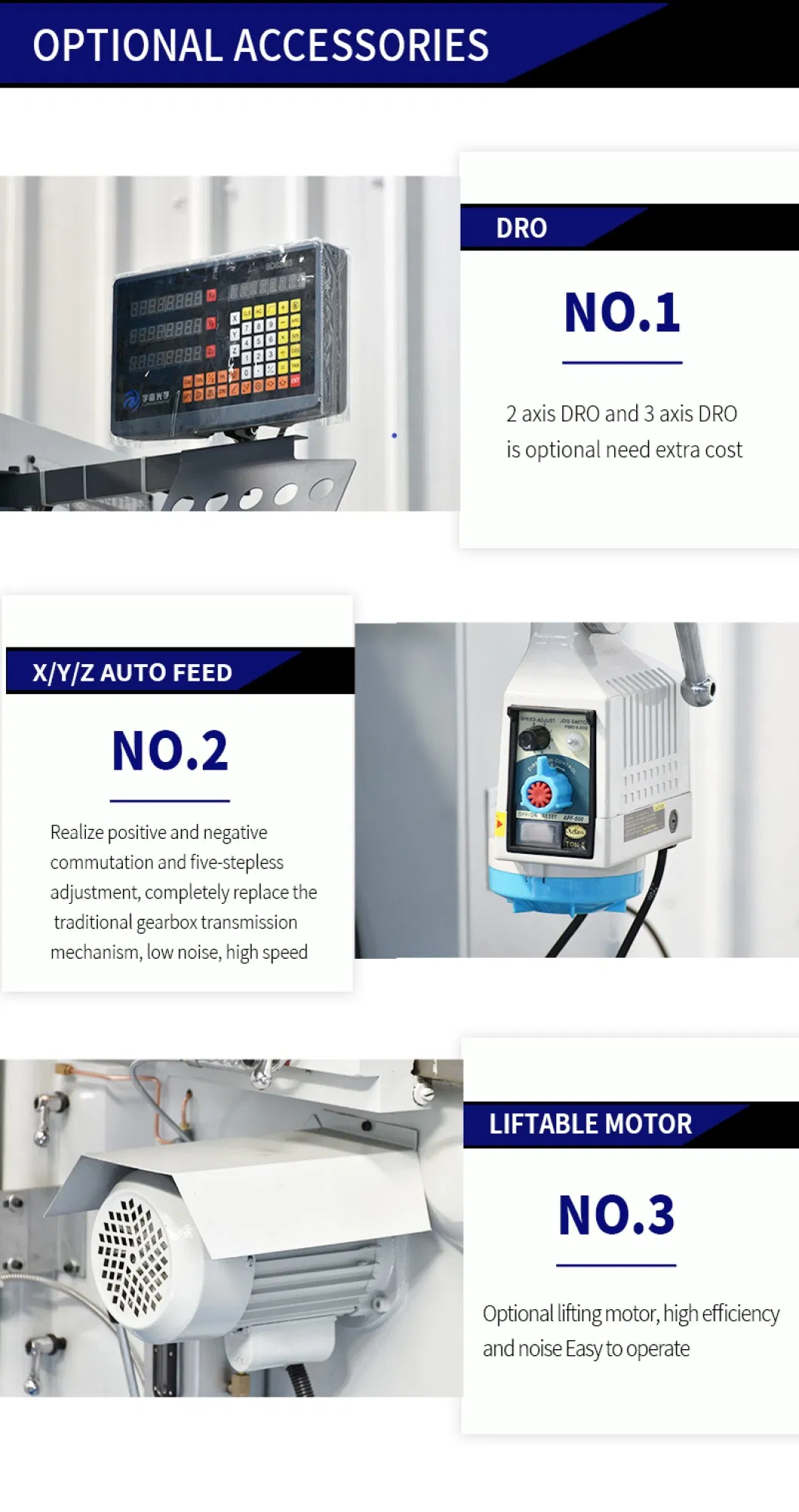

✚Optional Accessories
  • X/Y axis power feed
  • Z axis lifting motor
  • Three-axis SINO DRO
  • QH200 flat vice
Detailed Photos

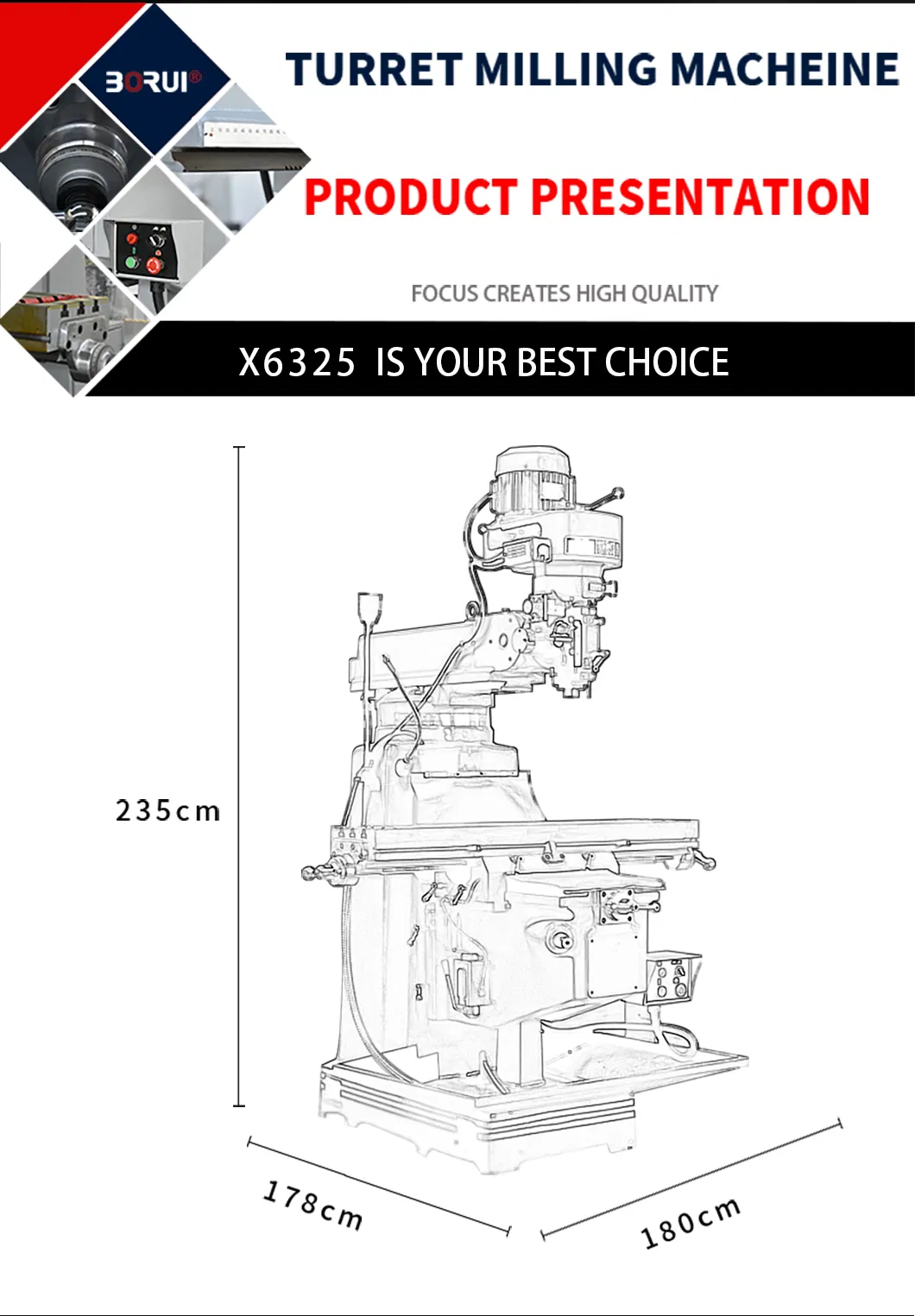

Machine Detail 1
Machine Detail 2

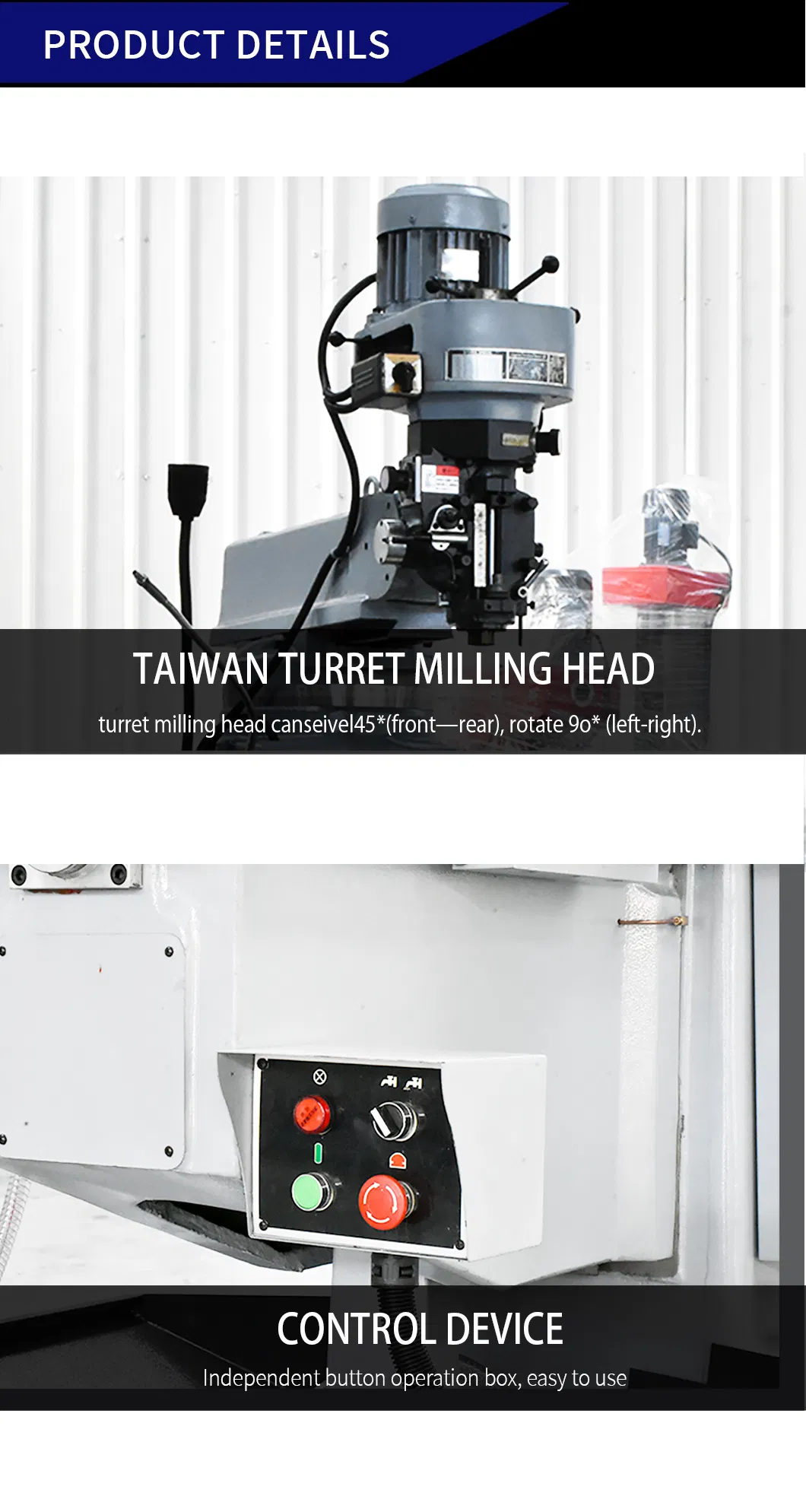

Machine Detail 3

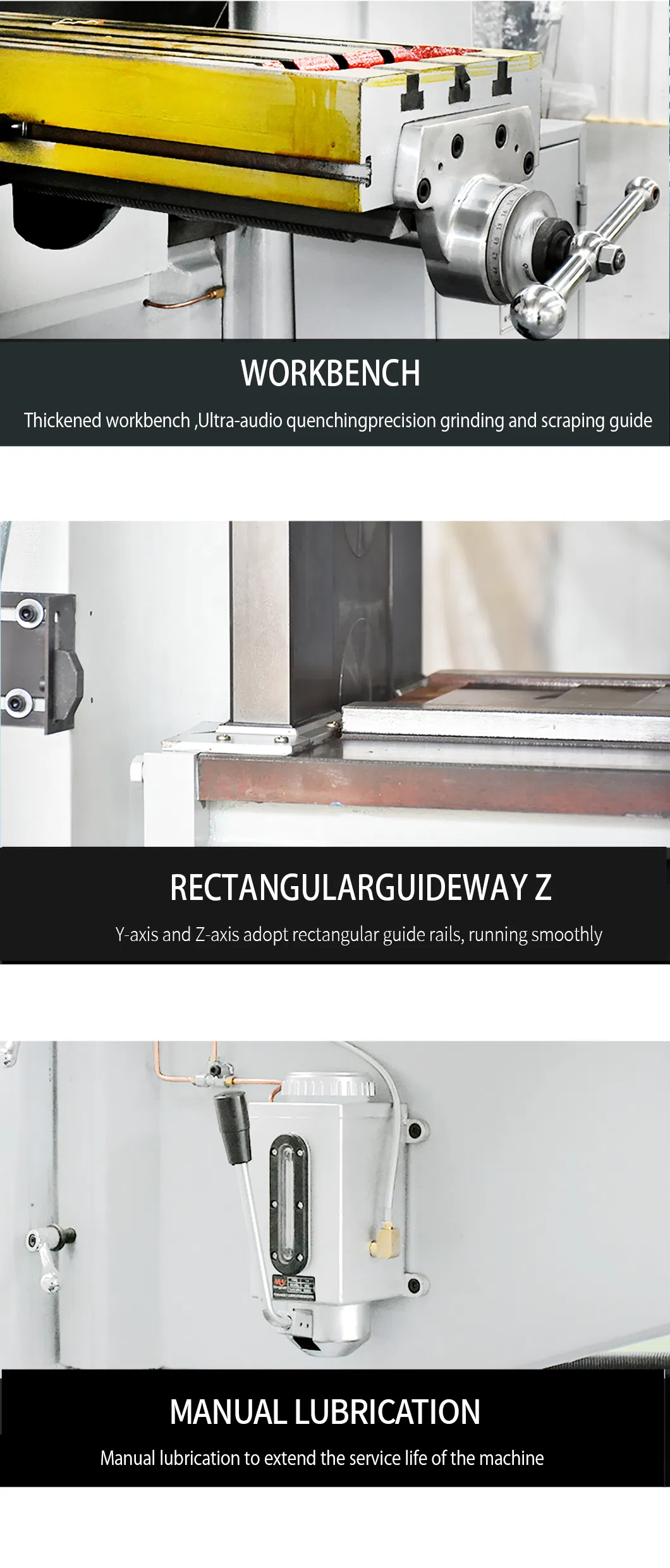

Machine Detail 4
Machine Detail 5
Machine Overview
Packaging & Services

Logistics: Usually by sea for machines; International express (DHL/TNT) for documentation.

Packing: Free fumigation plywood packaging with a sturdy steel base.

  • Online technical support and file provision.
  • Operation videos and on-site training.
  • Spare parts replacement and repair services.
  • Fast response: All inquiries replied within 8 hours.
Frequently Asked Questions
Which trade terms can I choose?
You can select from FOB, CIF, DDU, or other international terms. We can handle the shipping booking for you or work with your preferred agent.
How can I obtain a quotation?
Submit an inquiry online with your detailed requirements. We typically respond within 2 hours on workdays and within 24 hours during holidays.
How do I choose the right machine and ensure quality?
You can match specifications on our website or consult our specialists with your part details. Our equipment carries CE, ISO, and SGS certifications.
What are the available payment methods?
We accept T/T, Credit Cards, and L/C. Transactions can be completed via secure online platforms or direct corporate bank transfers.
How long is the delivery time?
Standard machines are ready within 15 days. Shipping to Europe or America takes approximately 30 days, while Asia and Australia are significantly faster.
What is the warranty policy?
We provide a one-year warranty along with lifetime technical service and support for all our machines.
