Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

📊 Basic Info & Overview
Model NO.
X6036
Type
Knee-and-Column Milling Machine
Structure
Desktop
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Voltage
220V, 380V, 400V, 415V
Worktable
360X1600
Weight
2300kg
Spindle Taper
7: 24 ISO50
Production Capacity
100sets/Month
⚙️ Product Description

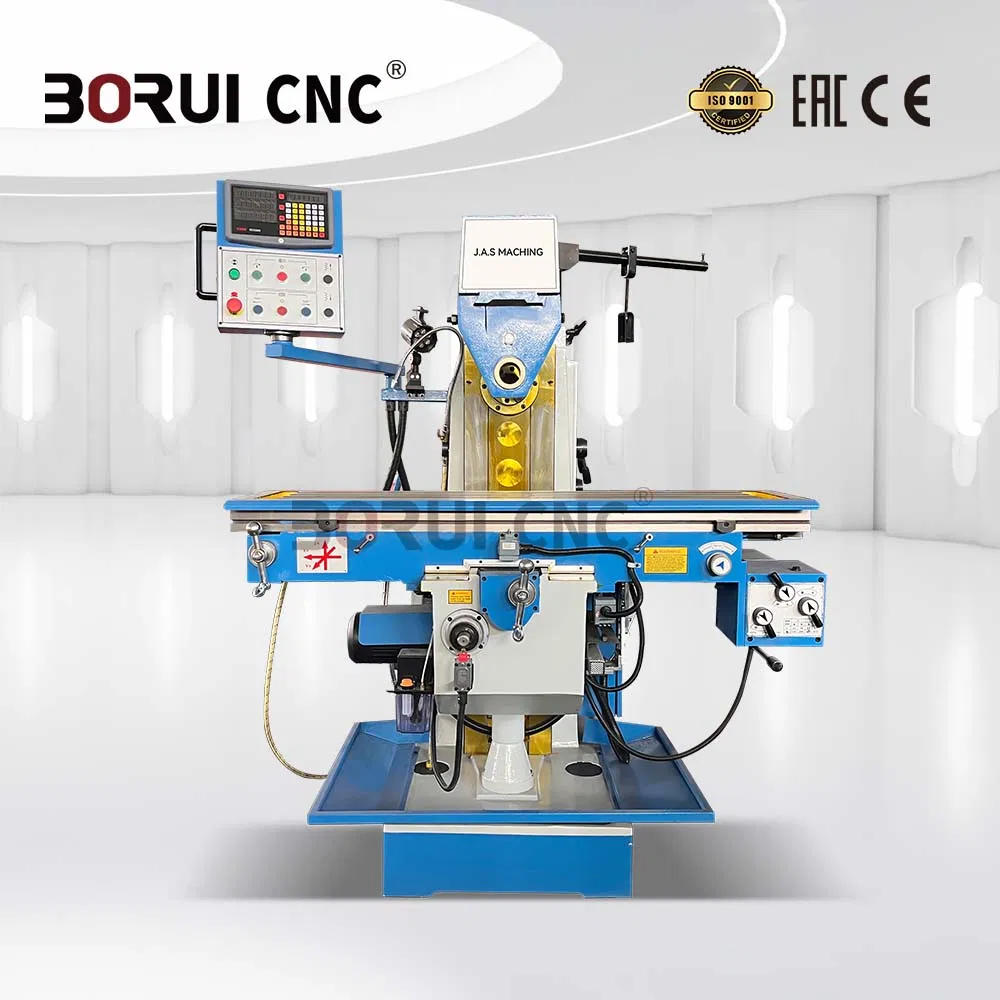

X6036 Universal Horizontal Knee Type Manual Milling Machine

X6036 Milling Machine

The X6036 horizontal knee-type milling machine is a versatile, general-purpose machine tool. Equipped with face, cylindrical, side, bevel, and formed milling cutters, it is perfectly suited for processing flat surfaces, inclined planes, slots, and gears on various workpieces. With optional accessories like a vertical milling head or dividing head, its processing capabilities expand even further, making it ideal for maintenance, instrument making, and mould machining.

  • Hardened and ground slide ways for superior accuracy.
  • High motor power and wide speed range for high-speed cutting.
  • Automatic and rapid feed worktable.
  • High rigidity for heavy-duty processing.
  • Complete integrated coolant and lubrication system.
  • Optional DRO (Digital Readout) equipment available.
📋 Technical Specifications
MODEL / SPECIFICATION UNIT X6036
Worktable sizemm360X1600
T slots (NxWxD)mm3X18 X80
Max. load bearing of worktablekg550
Longitudinal travel (Manual/Power) Xmm1020/1000
Cross travel (Manual/Power) Ymm300/280
Vertical travel (Manual/Power) Zmm410/400
Feed speed steps-18
Spindle speed ranger/min30-1500
Main motor powerKW7.5
Machine dimensionmm2327X2028X2096
Machine weightKg3270
🛠️ Accessories Configuration

Standard Accessories

  • Complete coolant system
  • 2 sets arbor support
  • Halogen machine lamp
  • Automatic central lubrication system
  • Cutter arbor φ32, φ50
  • Foundation bolts and nuts

Optional Accessories

  • 2/3 axis DRO
  • Machine Vice
  • Dividing head
  • Rotary table
  • Milling chuck
  • Slotting head
🔍 Details Display

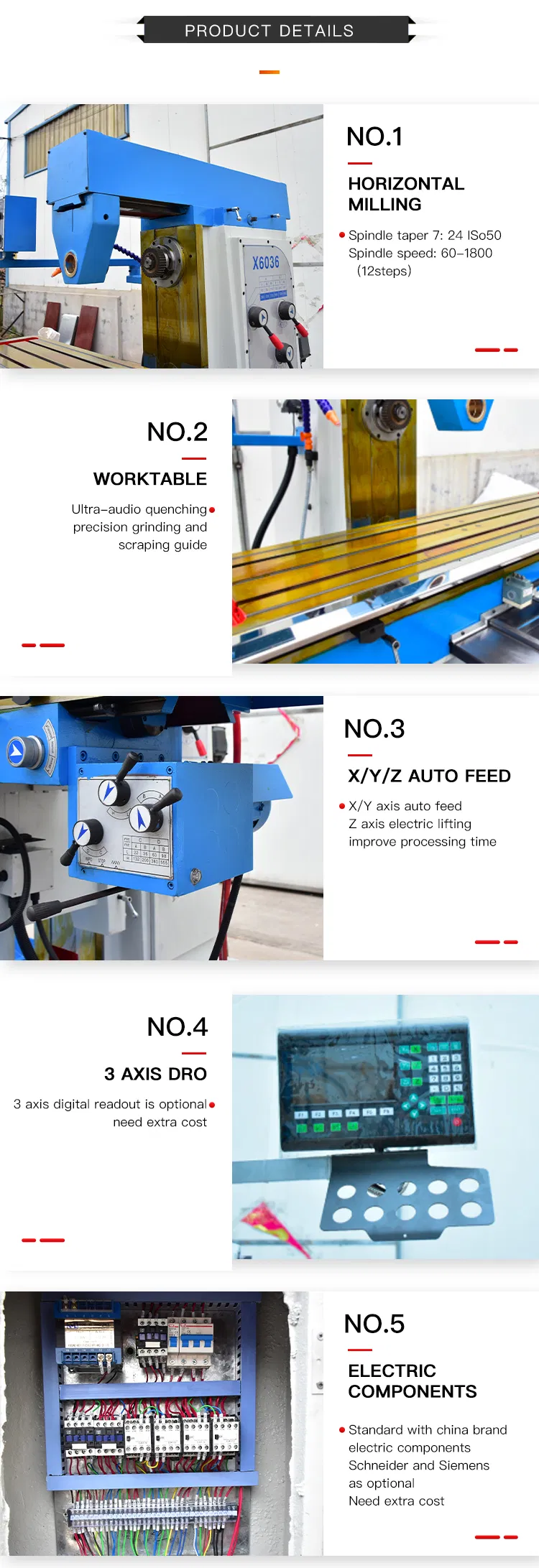

Detailed Display 1
📦 Packaging & Service

Shipping: Usually by sea for machines; International express (DHL/TNT/EMS) for documents.

Packing: Free fumigation plywood packaging with steel base for maximum protection.

  • Online technical support
  • Machine operation videos provided
  • Spare parts replacement service
  • Technical files service
  • On-site training available
  • Fast response within 8 hours
🏭 Manufacturing Capabilities
20+
Years of Manufacturing Experience
130+
Types of Products
48+
Countries Exported To
Production Base
