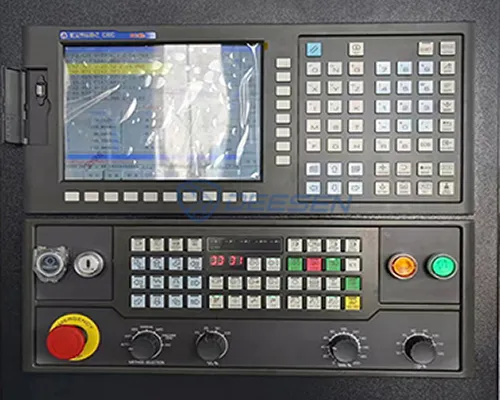

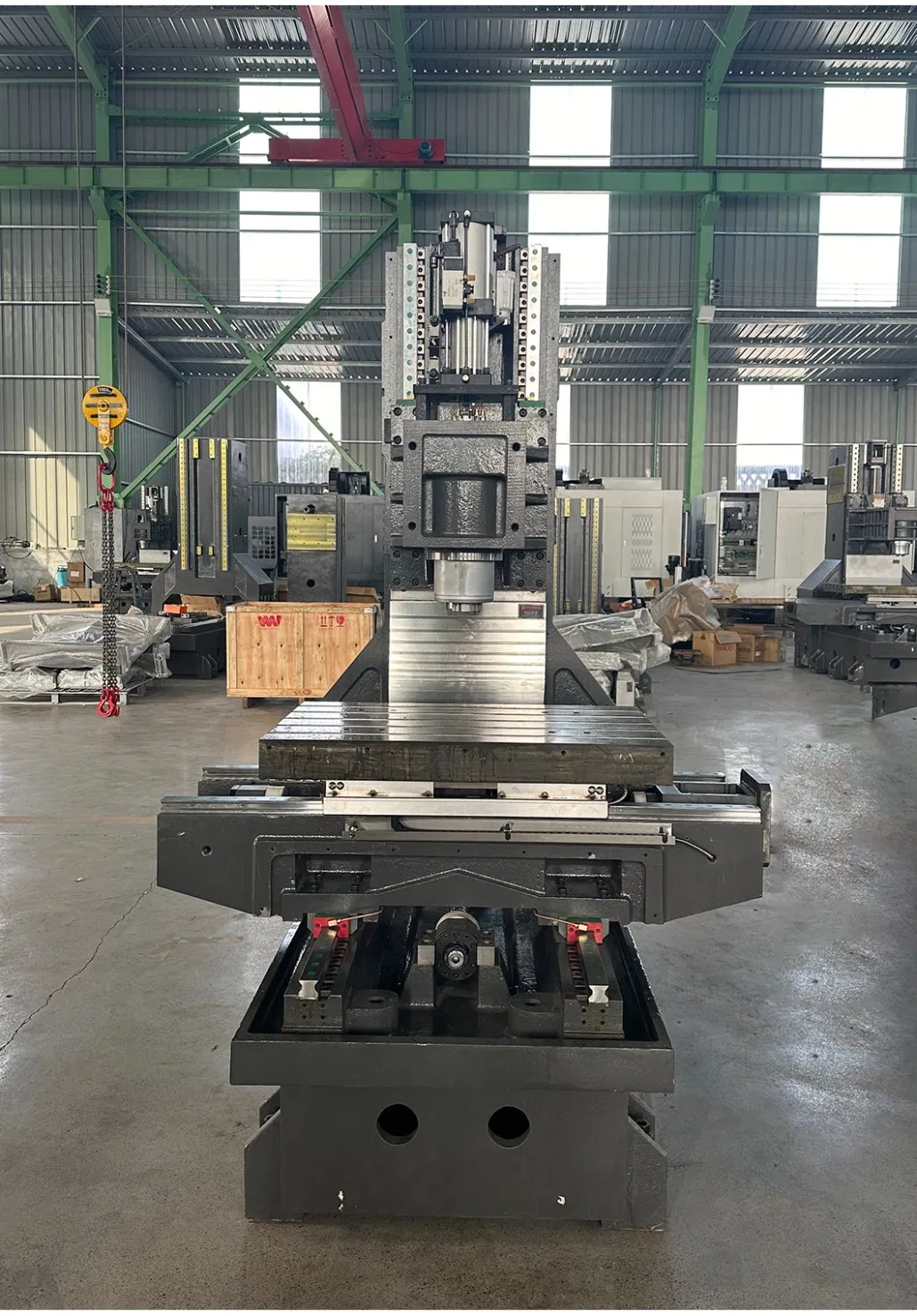

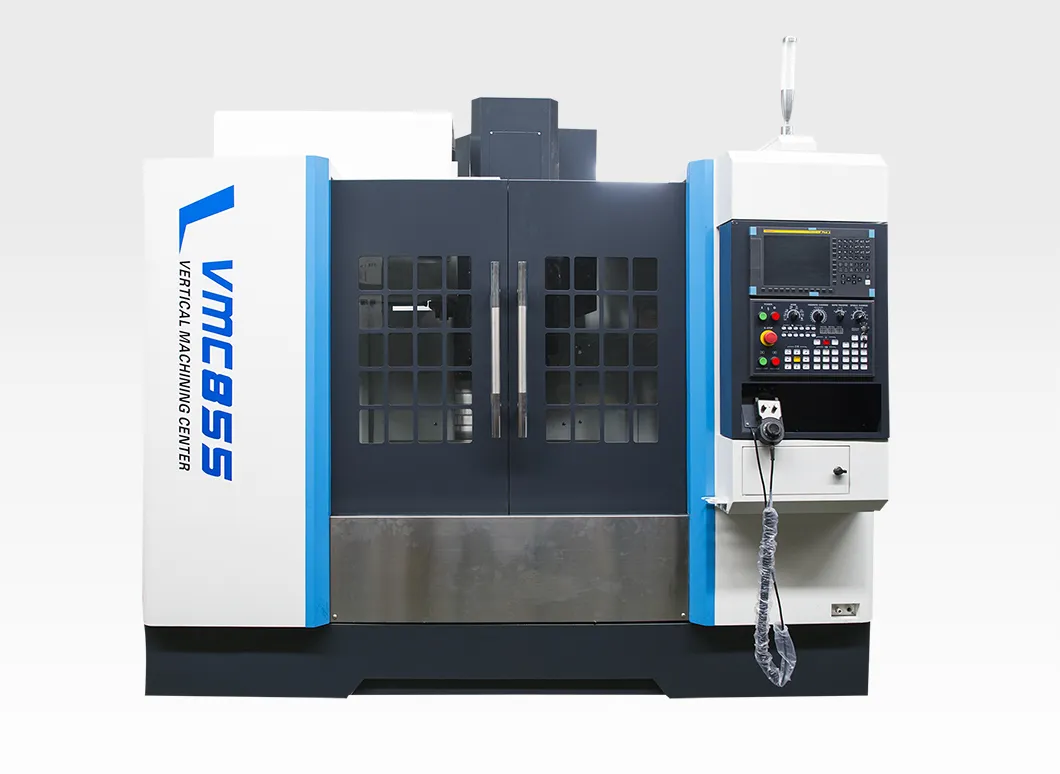

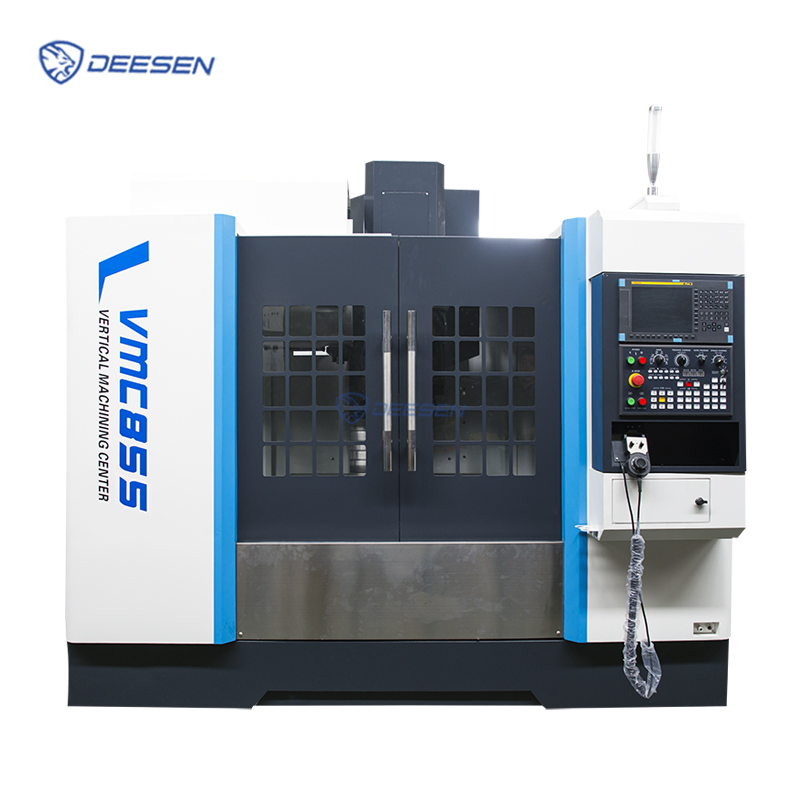

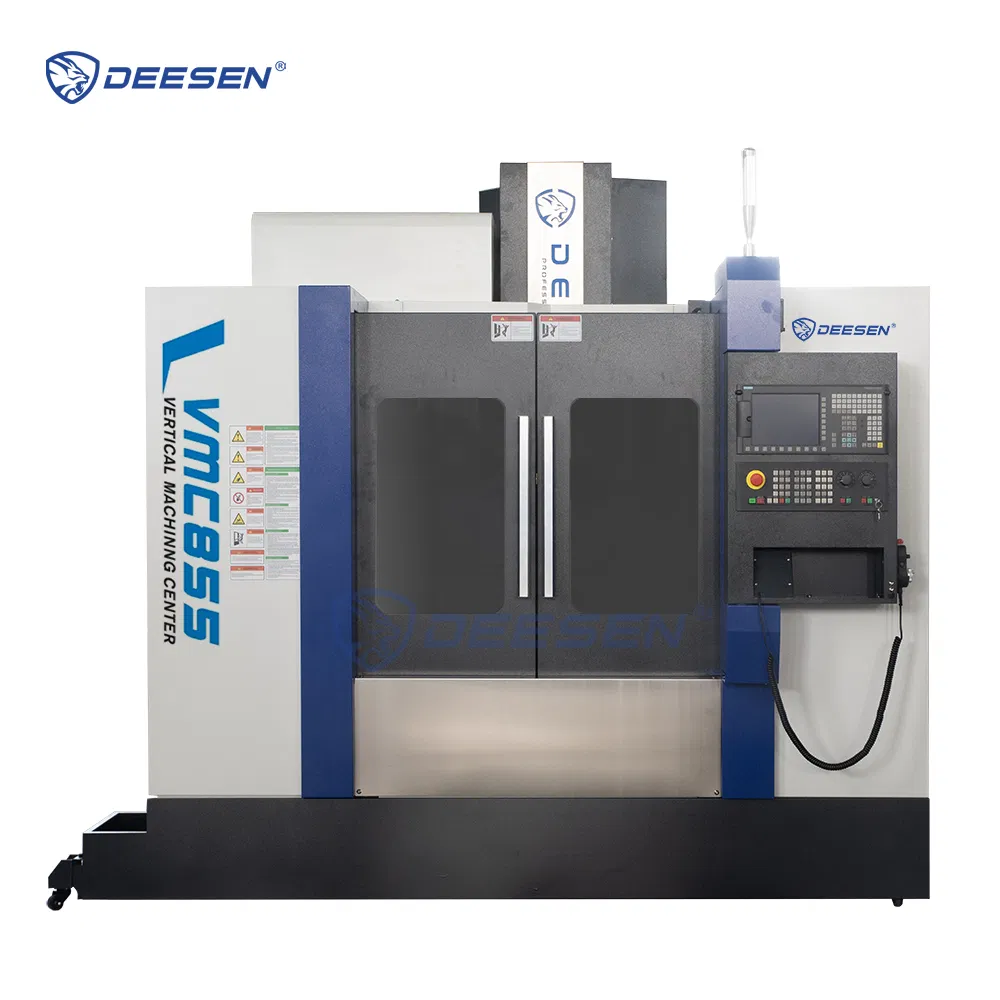

VMC850 VMC855 Small Universal Precision Metalworking Vertical Machining Center with Fanuc Siemens Mitsubishi GSK Controller CNC Machining Mini CNC Milling Machine
| Specifications | Units | VMC855 |
|---|---|---|
| Table size | mm | 1000*550 |
| X/Y/Z axis travel | mm | 850 / 550 / 550 |
| Max. worktable load | kg | 600 |
| Max. spindle speed | rpm | 8000 (Optional: 10000) |
| Spindle taper | — | BT40 |
| Main motor power | kw | 7.5 |
| Rapid traverse speed | m/min | 24/24/20 |
| Positioning accuracy | mm | ±0.0075 |
| Tool magazine | pcs | Arm 24 |
| Machine weight | kg | 5300 |

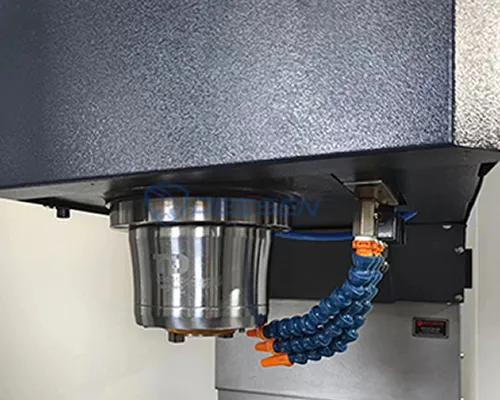

1. Spindle taper BT40;
2. Speed 8000rpm (upgradable to 10000rpm);
3. Dynamic balance ISO rating tested.

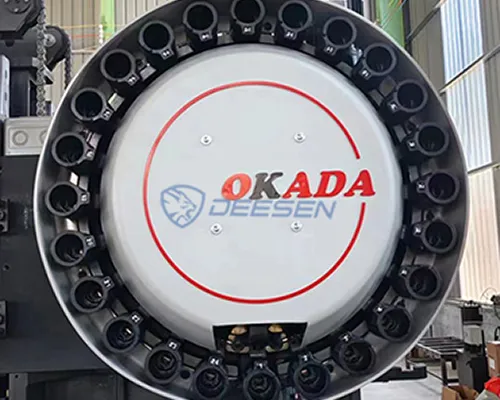

1. Standard 24 Arm tool magazine.
2. Rapid tool change time: 3 seconds.
3. Brand: OKADA.

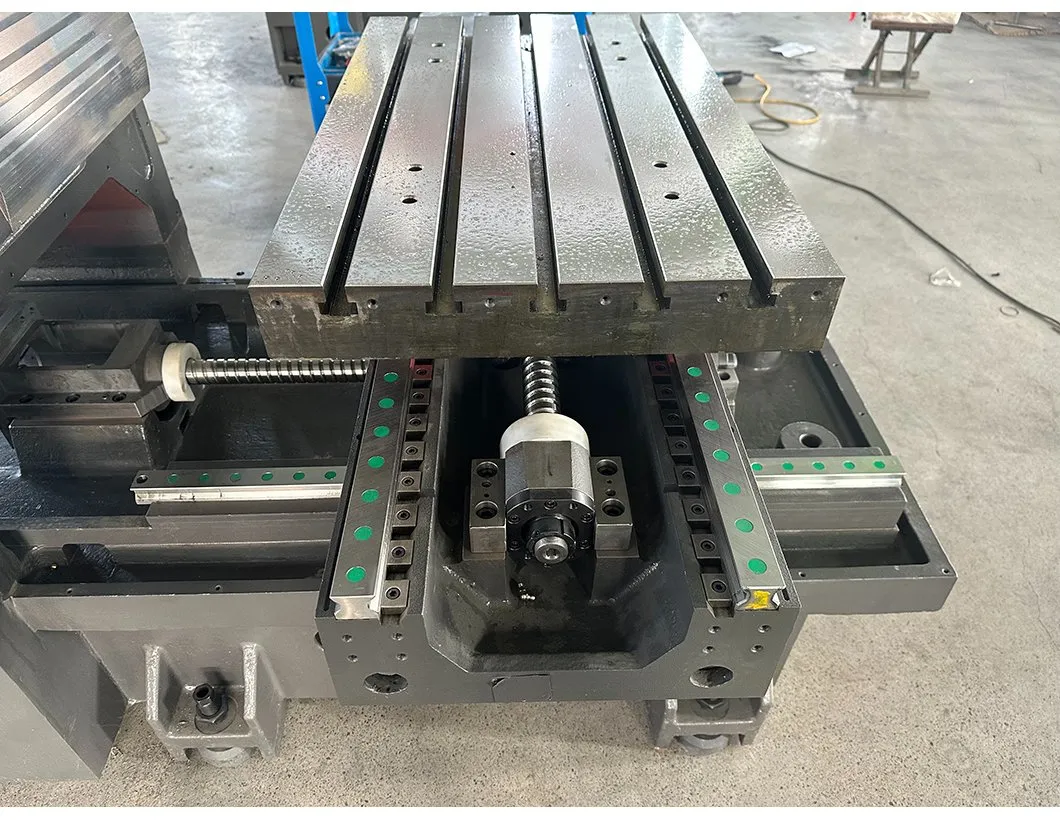

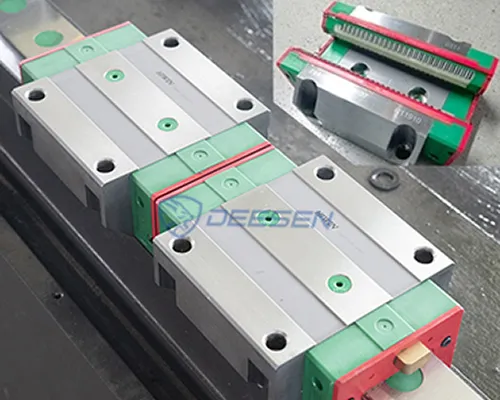

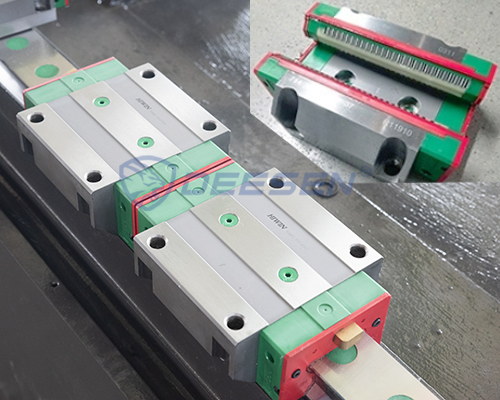

1. High-speed roller linear guide rails.
2. μm class positioning accuracy.
3. Brand: HIWIN or PMI.
With more than 20 years of experience as a professional lathe manufacturer, the company has deeply cultivated the machine tool industry and developed into a highly influential enterprise. Our professional R&D team includes mechanical engineering experts and automation elites who keep up with cutting-edge technology trends.
We adopt an advanced production management system with modern workshops and precision processing equipment. From raw material procurement to finished product assembly, each process undergoes strict quality inspection to ensure a product pass rate of over 99%. Our CNC machine tools are widely used in automobile manufacturing, aerospace, and precision mold processing.
