Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
1 / 5
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine
Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine

Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine

Customization: Available
Type: Worktable Milling Machine
Object: Hardware
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
X718
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Artificial / Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Table Size
2800X500mm
Table Travel (X,Y)
2500X1020mm
Max. Loading Weight
5000kgs
Spindle Speed Range
36-1340 Rpm
Main Motor Power
7.5kw
Spindle Taper
ISO50
Function
Heavy Duty Cutting, Milling, Grinding
DRO
Sino Brand
P

Product Description & Features

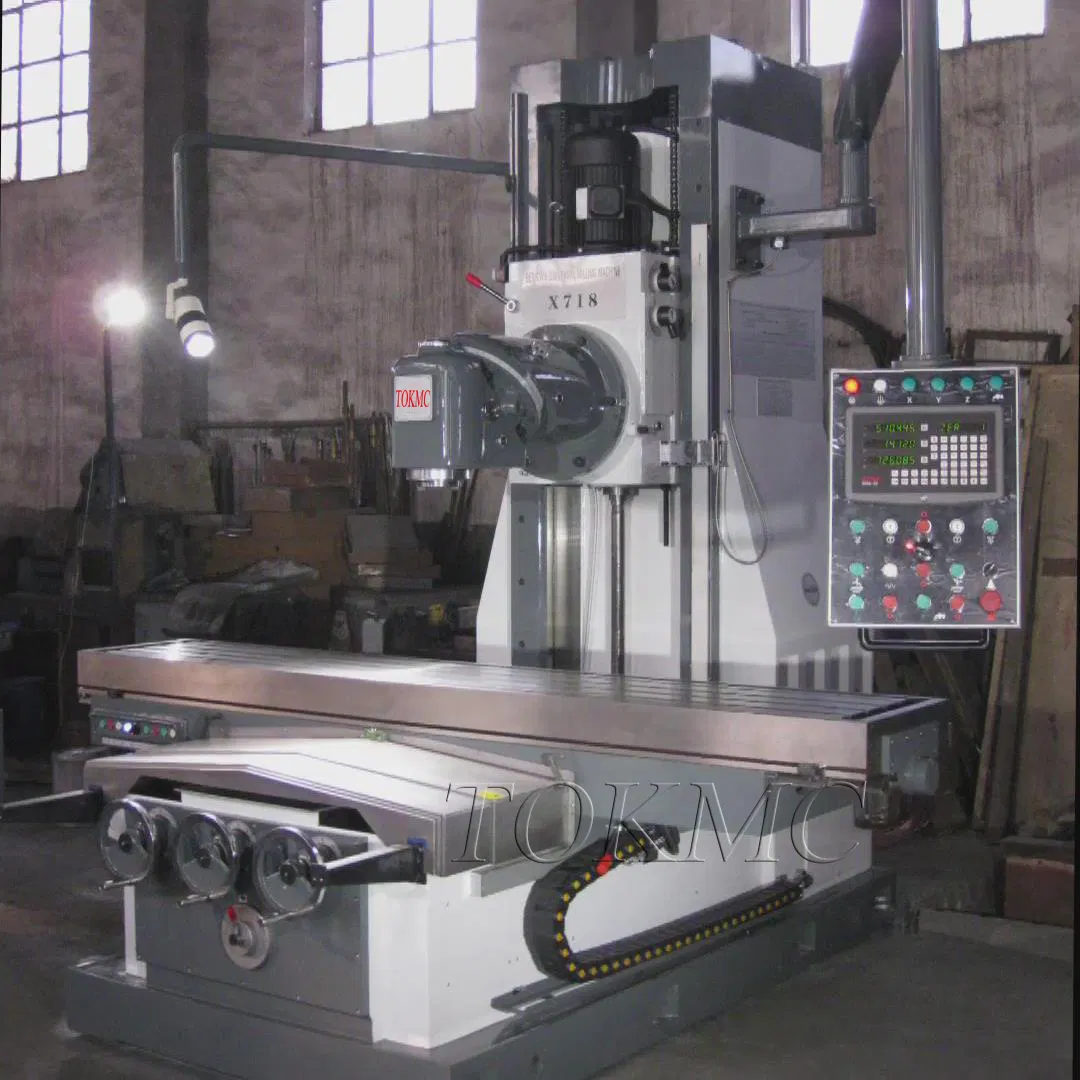

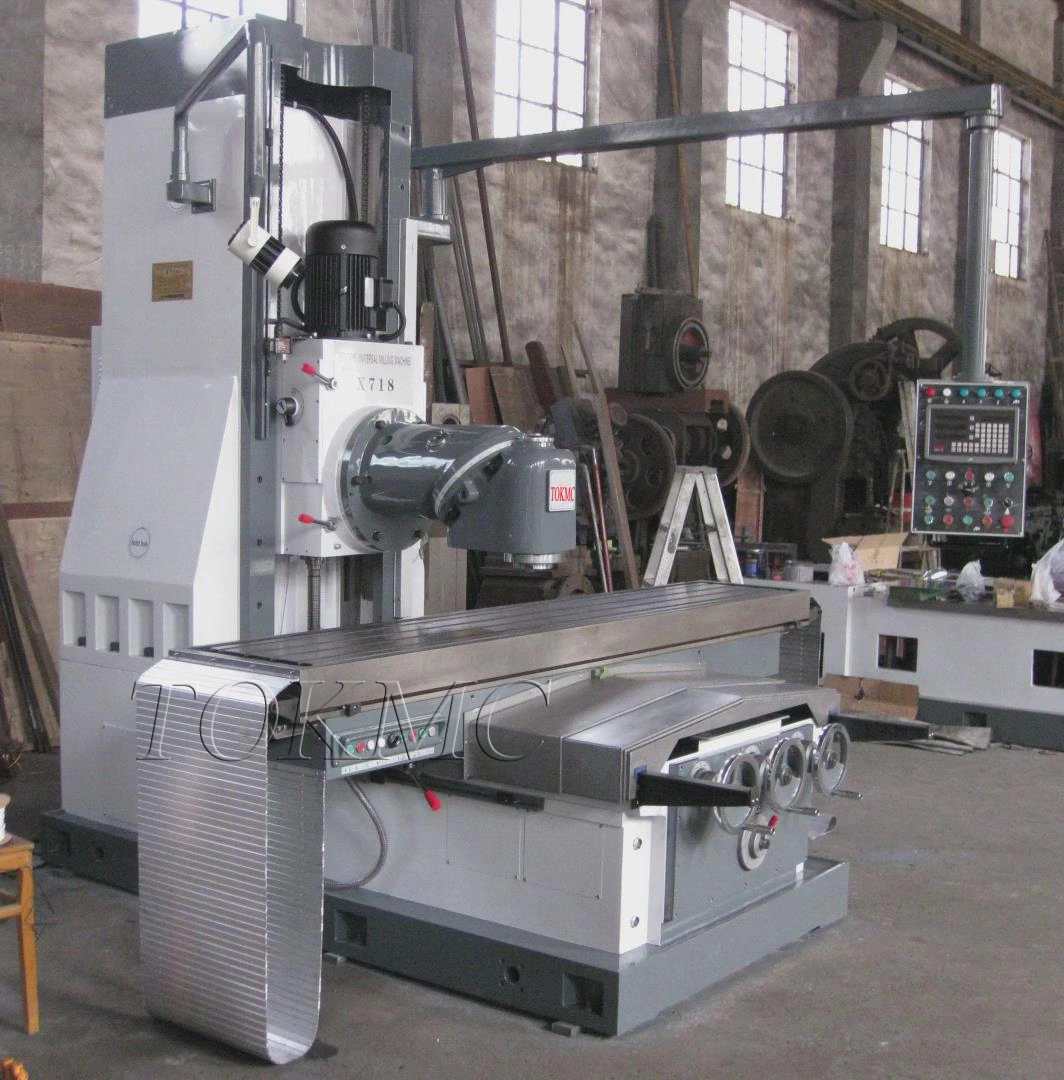

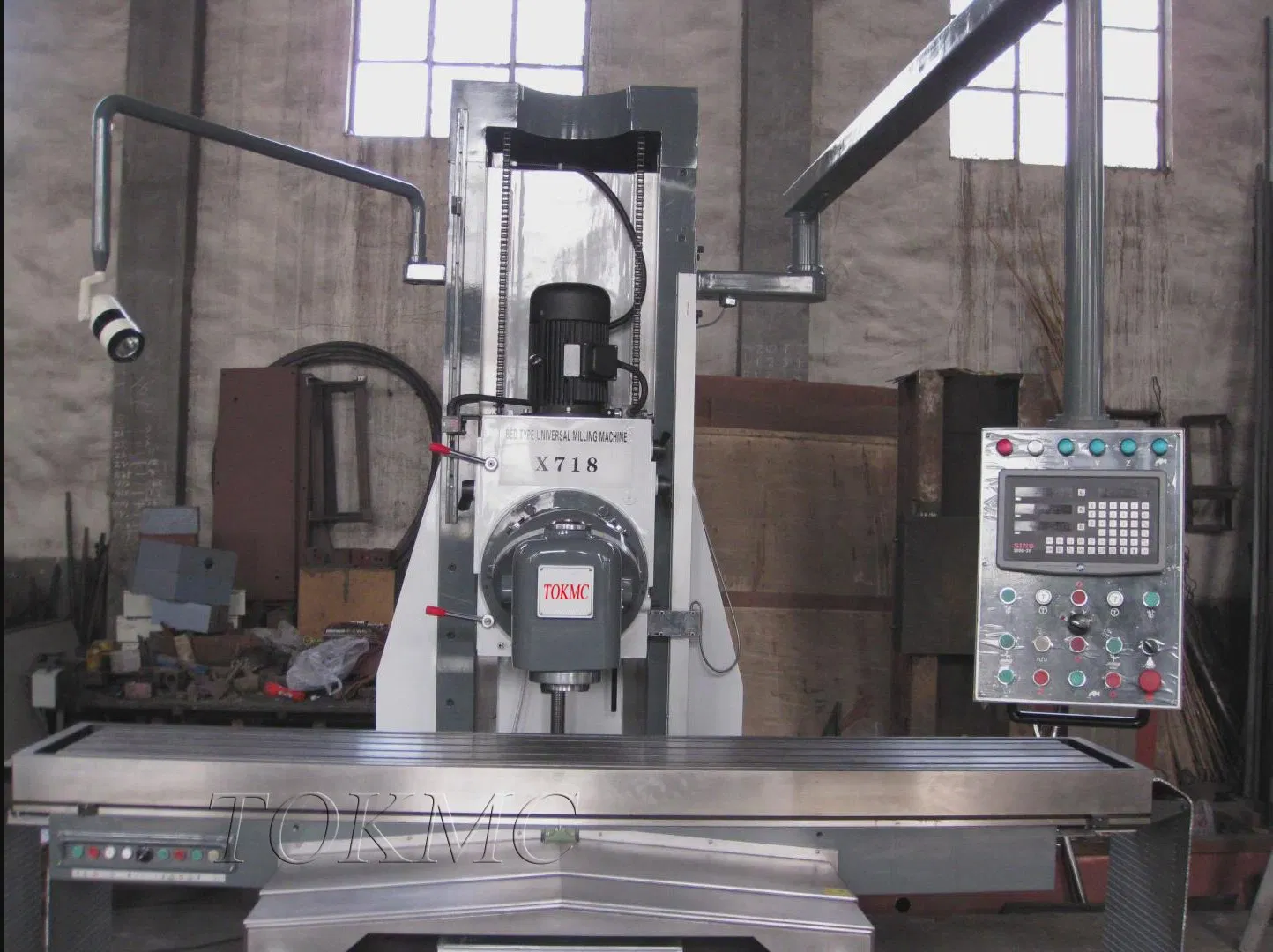

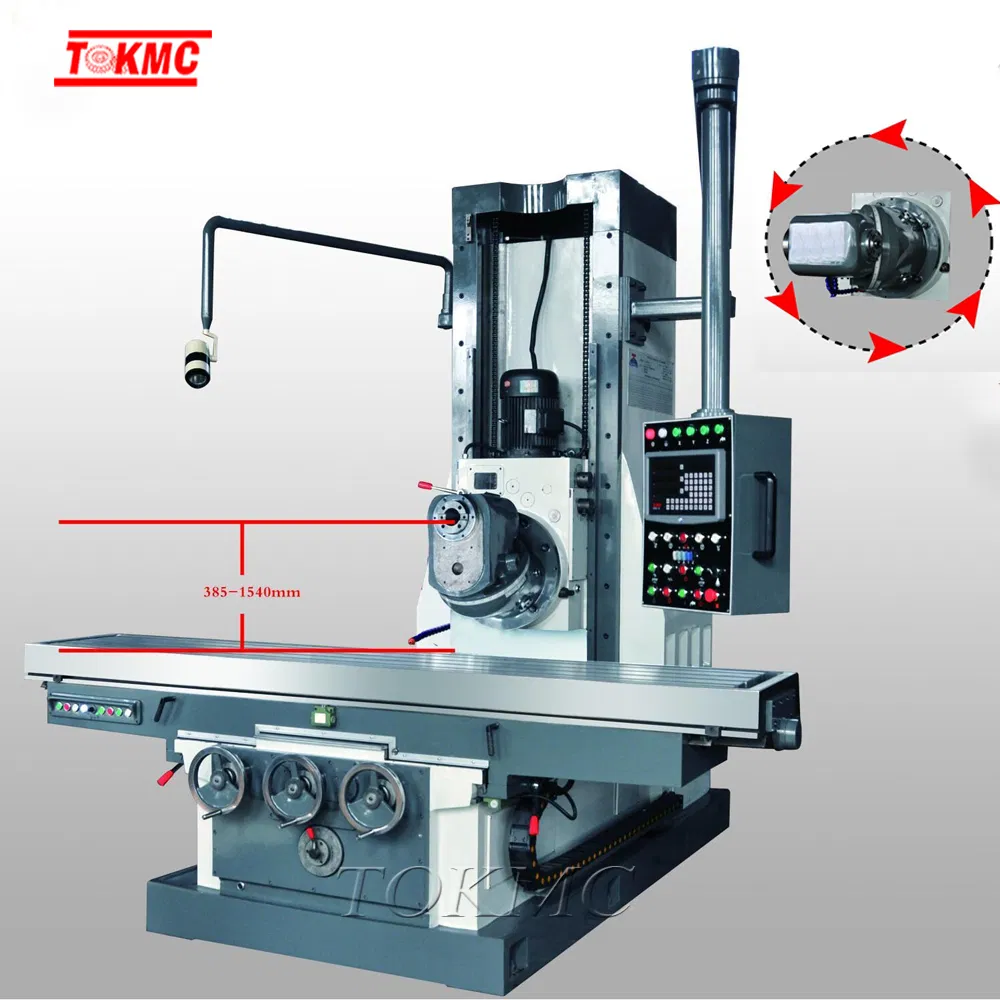

X718 Bed Type Milling Machine (2800x500mm)

  • Heavy Duty Performance: Specifically designed for heavy-duty cutting, capable of bearing up to 5 tons on the worktable.
  • Large Travel Range: X, Y, Z axis travel measures 2500mm x 1020mm x 1090mm respectively.

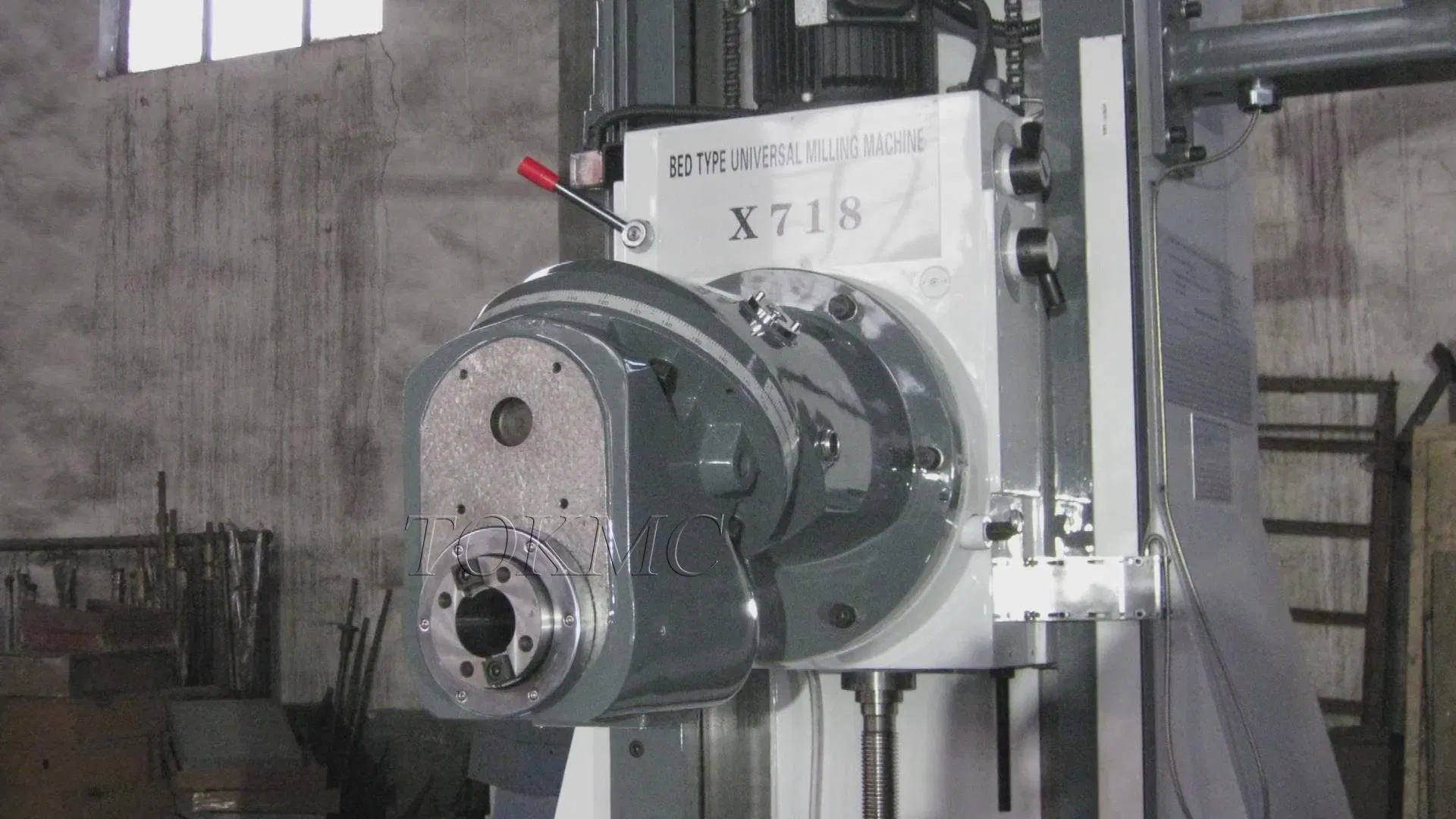

  • Universal Versatility: Features a universal swivel head (360 degrees) for multi-angle and multi-faceted workpiece processing.
  • Stability & Ease of Use: Engineered for high stability and user-friendly operation.

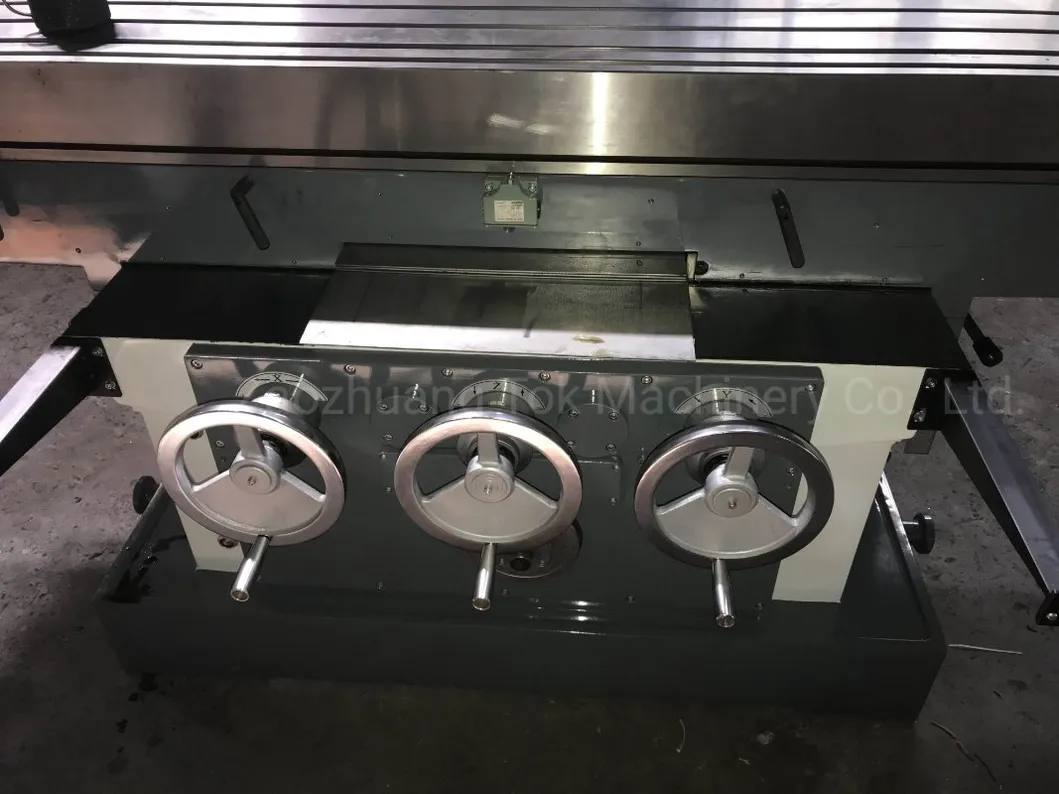

Vertical Universal Milling Machine - View 1

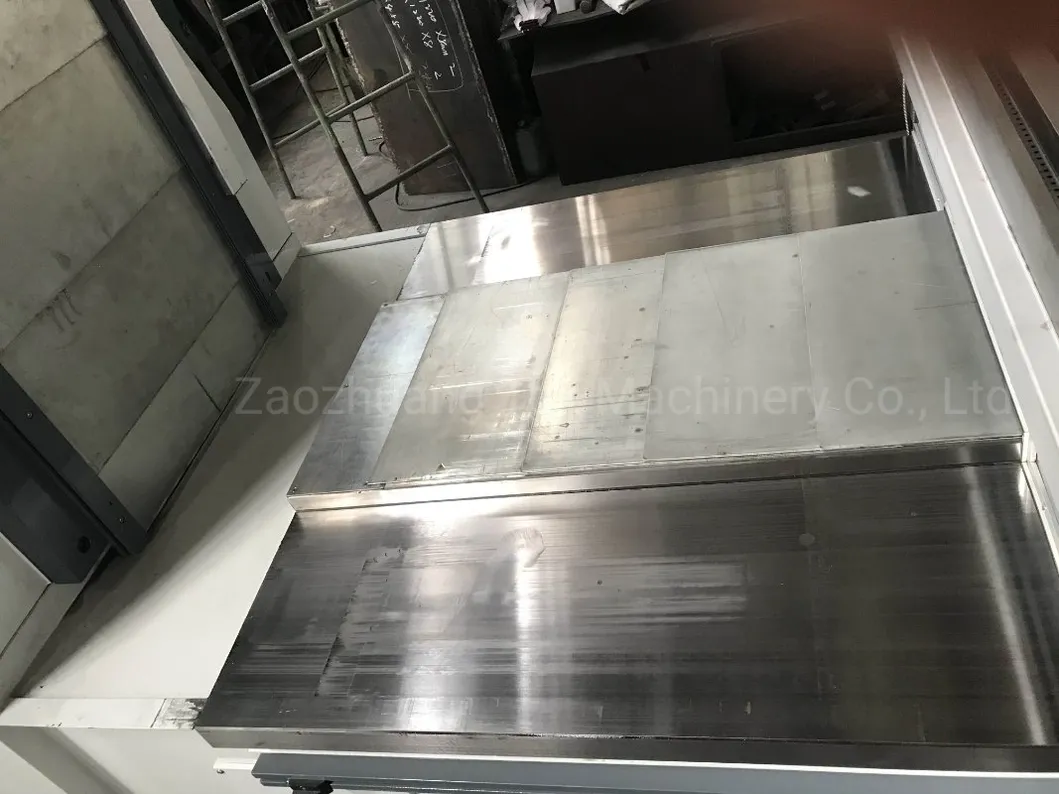

Vertical Universal Milling Machine - View 2

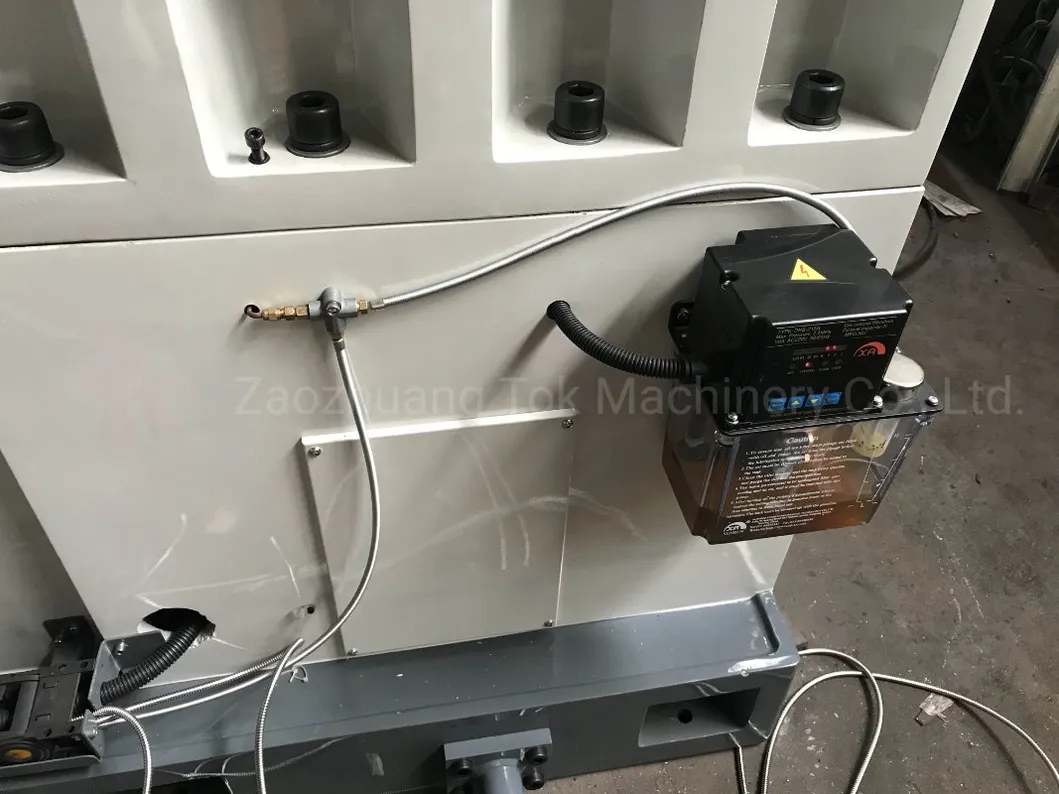

Vertical Universal Milling Machine - View 3

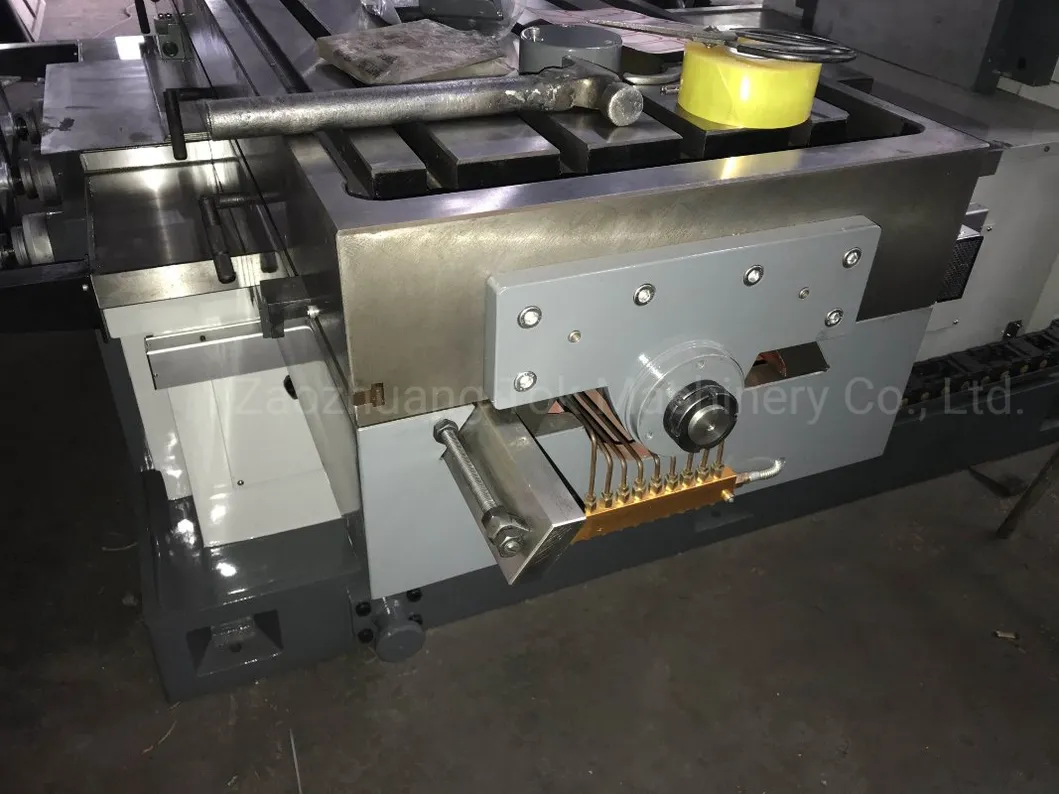

Vertical Universal Milling Machine - View 4
T

Technical Parameters

Specifications Units X718 Data
Table Sizemm2800 × 500
Table Travel (X, Y)mm2500 × 1020
Distance from Spindle to Table Surface (Height)mm385 - 1540
Distance from Spindle to Table Surface (Lower)mm0 - 1160
Distance from Spindle to Table Surface (Vertical Head)mm0 - 1090
T-Slot (Number/Width/Distance)mm4 - 20 - 100
Max. Load of Tablekg5000
Feed Speed Rangemm/min22.4 - 560
Rapid Feed Speedmm/min1650
Z Axis Feeding Speedmm/min11.2 - 280
Spindle Taper-7:24 ISO50
Spindle Speed Rangerpm36 - 1340 (12 steps)
Main Motor Powerkw7.5
Overall Dimensionsmm3020 × 3000 × 3000
Machine Weightkg9000
?

Frequently Asked Questions

Q1: What is the maximum loading capacity of the X718 worktable? A: The X718 bed type milling machine is designed for heavy-duty operations and can support a maximum load of 5,000kg (5 tons) on its worktable.
Q2: Can this machine perform multi-angle milling? A: Yes, it is equipped with a 360-degree universal swivel head, allowing for efficient multi-angle and multi-faceted workpiece processing.
Q3: What type of spindle taper does the X718 use? A: The machine utilizes a standard 7:24 ISO50 spindle taper, which is ideal for high-torque and heavy cutting tasks.
Q4: What are the dimensions of the worktable and its travel range? A: The worktable measures 2800x500mm. It provides a generous travel range of 2500mm on the X-axis and 1020mm on the Y-axis.
Q5: Is a Digital Readout (DRO) included with the machine? A: Yes, the machine comes equipped with a high-quality Sino Brand DRO for precise measurement and positioning.
Q6: What is the speed range of the spindle? A: The spindle speed ranges from 36 to 1340 RPM, adjustable through 12 different steps to suit various materials and cutting requirements.
