DSCUT CNC
1 / 5
| Model NO. | 4H |
|---|---|
| Type | Meter Milling Machine |
| Structure | Desktop |
| Milling Cutter Type | Vertical Milling Cutter |
| Controlling Mode | Program Control |
| Automatic Grade | Automatic |
| Precision | High Precision |
| Certification | GS, CE, RoHS, ISO 9001 |
| Table Size | 1270X254mm |
| X Y Z Working Table Stroke | 780*400*500mm |
| Spindle Motor Power | 2.25kw/5HP |
| Gross Weight | 1400kg |
| Specifications | Units | Value (4H) |
|---|---|---|
| Table travel | mm | 780/400/400 |
| T slot (number-width-pitch) | mm | 3-16-50 |
| Spindle taper | - | R8 (Optional: ISO40) |
| Spindle speed range | rpm | Standard: 16 steps 65-4500 (50Hz) |
| Spindle travel | mm | 127 |
| Spindle feed range | mm | 0.045, 0.086, 0.142 (3 steps) |

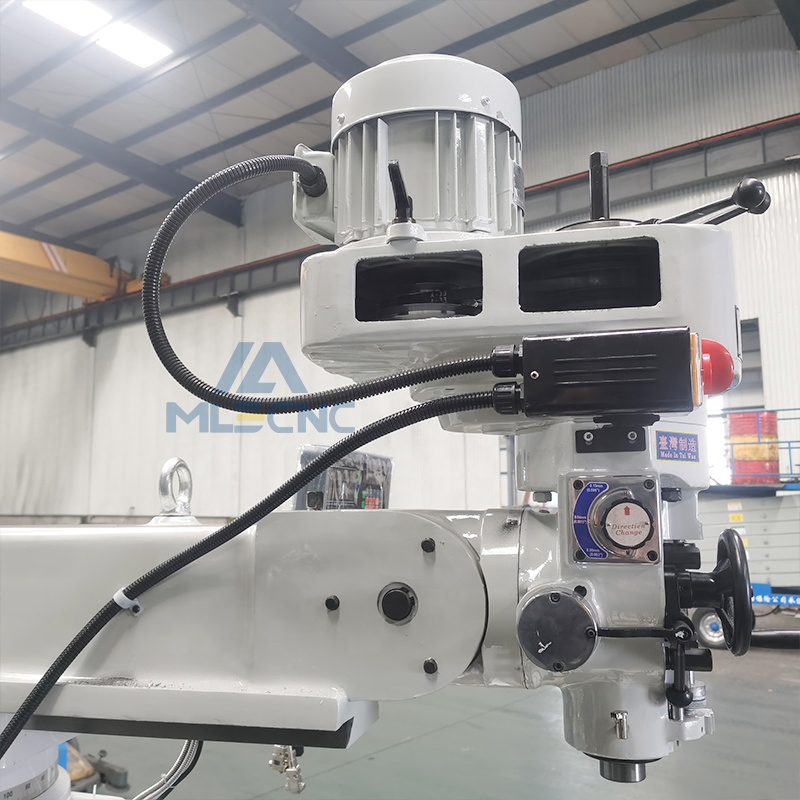

| Head rotation (L - R) | ° | ±90° |
| Head rotation (F - R) | ° | ±45° |
| Overall dimension | mm | 1550x1650x2250 |
With extensive experience in manufacturing and exporting, our equipment has been delivered to more than 80 countries and regions, including North America, Europe, South America, and Southeast Asia. We provide dedicated technical guidance and support to ensure optimal performance for our international clients.

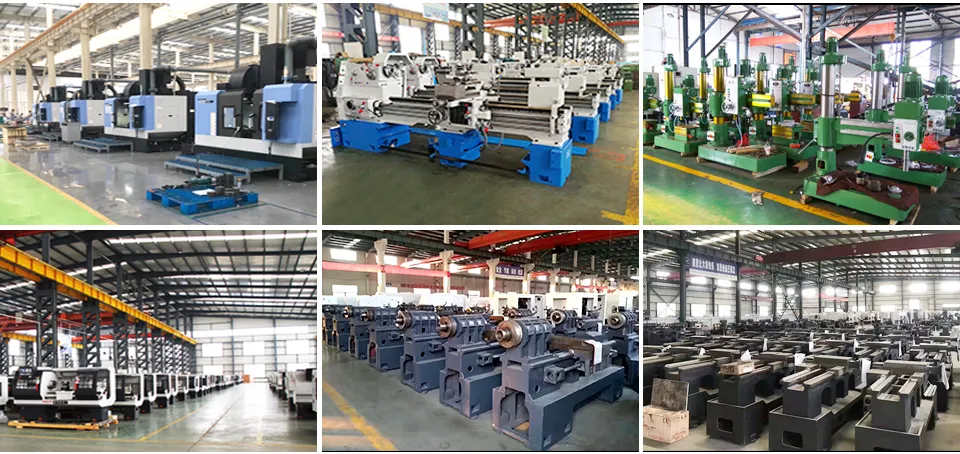

Our production follows strict quality control systems. We have obtained CE, ISO, SGS, and TUV standard certifications, ensuring every machine meets high-quality market demands.
All machines are packed in sea-worthy plywood cases to ensure safety during international transit.
