Type
Knee-and-Column Milling Machine
Milling Cutter
Vertical / Indexable Type

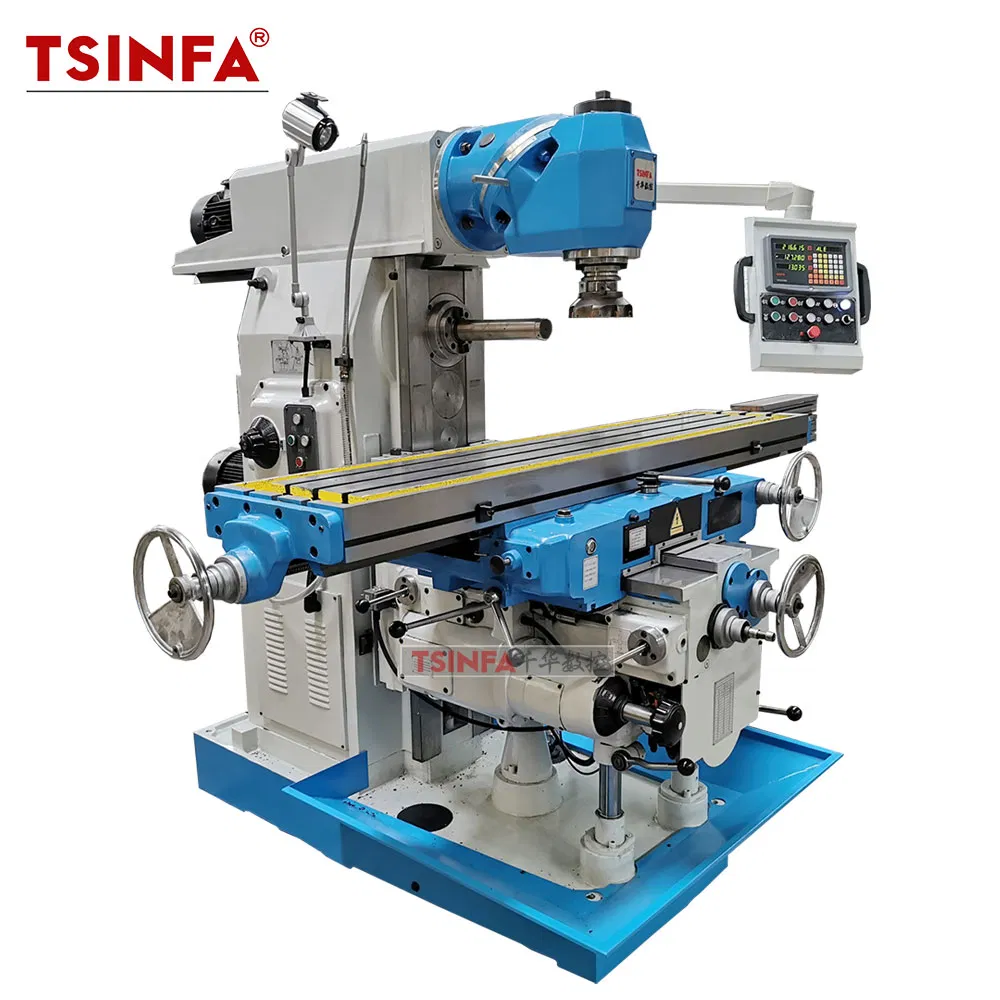

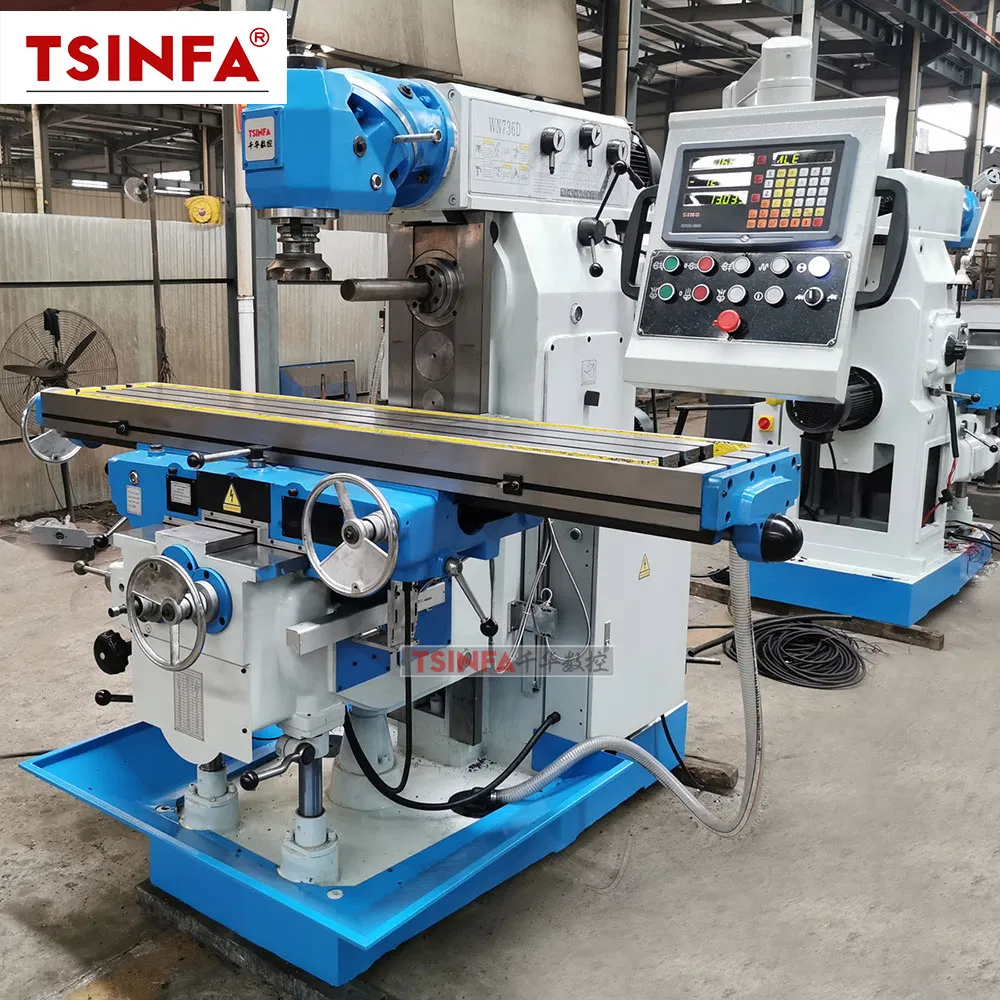

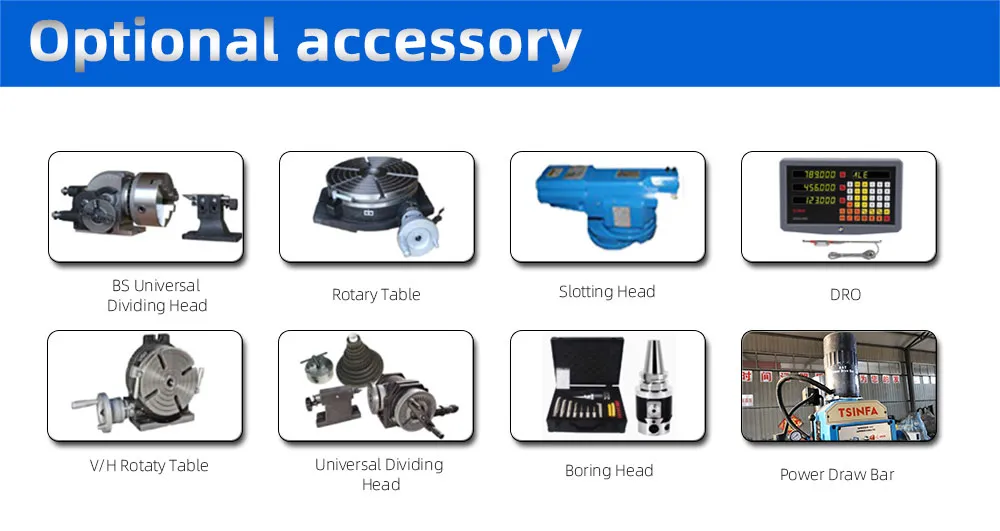

The universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery. When the workbench rotates a certain angle and the indexing head attachment is used, various spiral surfaces can be machined.
Main Performance Features:

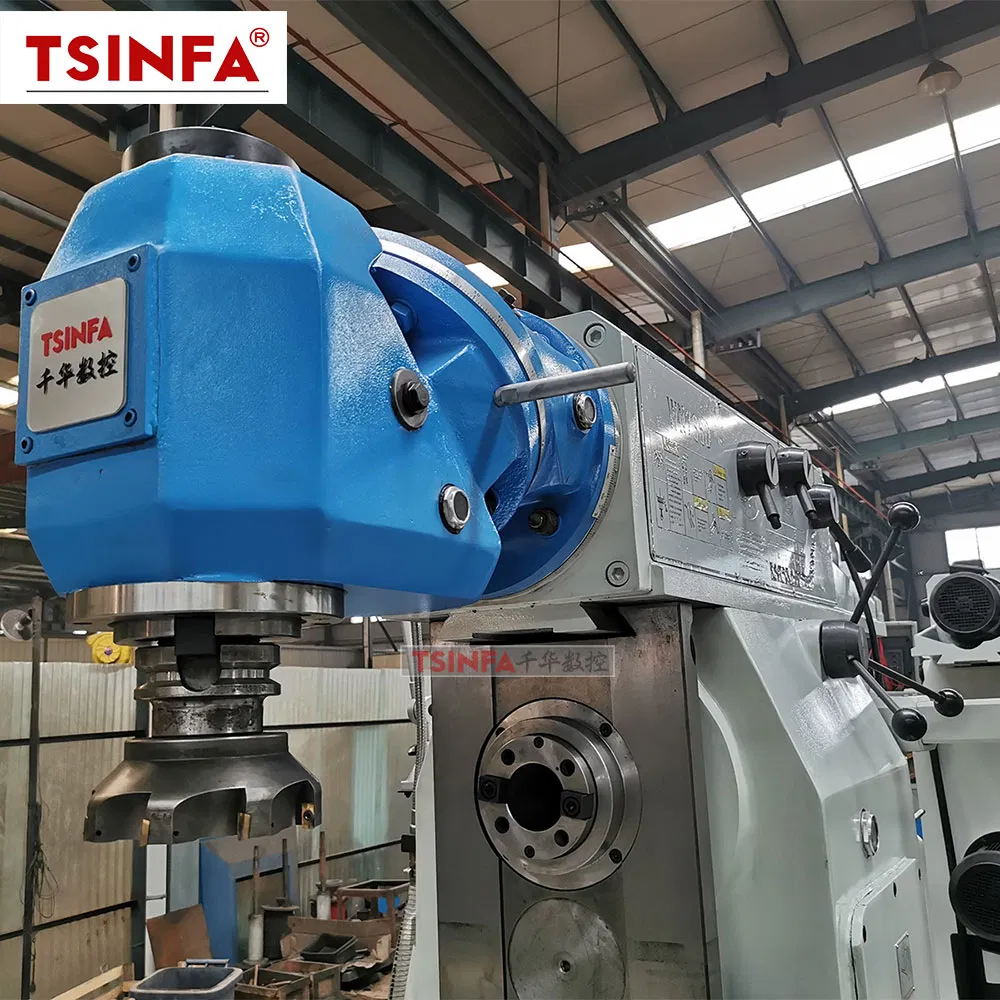

• Milling head can be rotated 360 degrees
• Worktable 45 degree rotation (optional for some models)
• XY axis automatic feed
• Worktable electric lift
| Specification |
Unit |
WN736 |
WN736A |
WN736C |

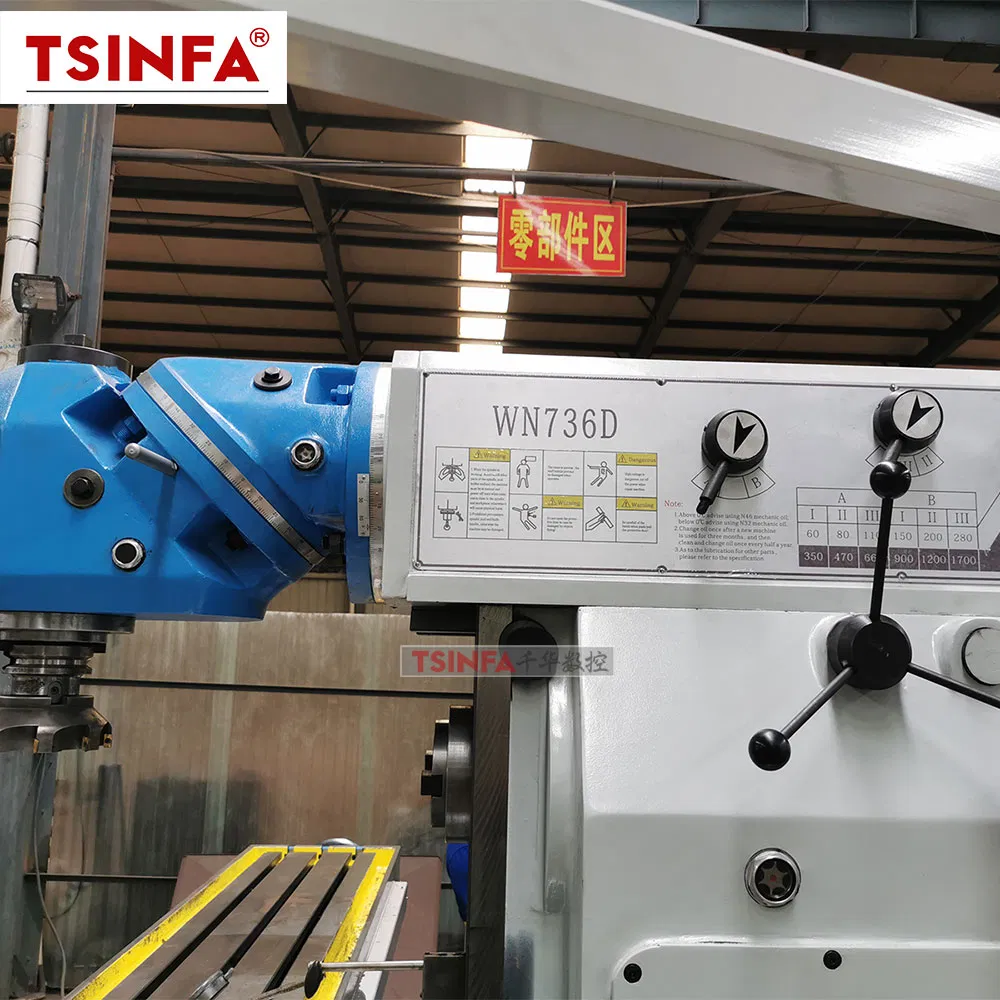

WN736D |
WN736B |
| Table size | mm | 1500*360 | 1600*360 | 1600*320 | 2000*400 | 1600*360 |
| Table travel (X/Y/Z) | mm | 900*320*450 | 900*300*400 | 800*300*400 | 1180*300*365 | 1200*300*400 |
| Travel of Arm | mm | 600 | 600 | 600 | 600 | 600 |
| Spindle taper | taper | ISO50/40 | ISO50/50 | ISO50/50 | ISO50/50 | ISO50/50 |
| Main motor power | kw | 4(H) 4(V) | 4(H) 4(V) | 7.5(H) 4(V) | 11(H) 4(V) | 5(H) 4(V) |
| Gross weight | kg | 2300 | 2800 | 3500 | 4500 | 2800 |
