Product Description

📋 Basic Specifications
Type
Tool Grinding Machine
Processing Object
Gear / End Mills
Abrasives
Grinding Wheel (CBN/SDC)
Precision
High Precision
Grinding Range
4-20mm
Power
600W
Speed
6000 RPM
Weight
26kg
📍 Product Description
End Mill Sharpener Banner
End Mill Grinder Detail 1 End Mill Grinder Detail 2

Portable End Mill Sharpener Key Features:

  • Versatile Grinding: Suitable for 2-flute, 3-flute, and 4-flute end mills.
  • User-Friendly: Accurate and rapid sharpening with no professional skills required.
  • Efficiency: Diamond grinding wheel allows completion of all procedures in one setup.
  • Durable: Equipped for precise angles and long service life.
  • Material Compatibility: Standard SDC wheel for carbide; optional CBN wheel for HSS.
Operation View Grinding Result Product Setup
📝 Technical Parameters

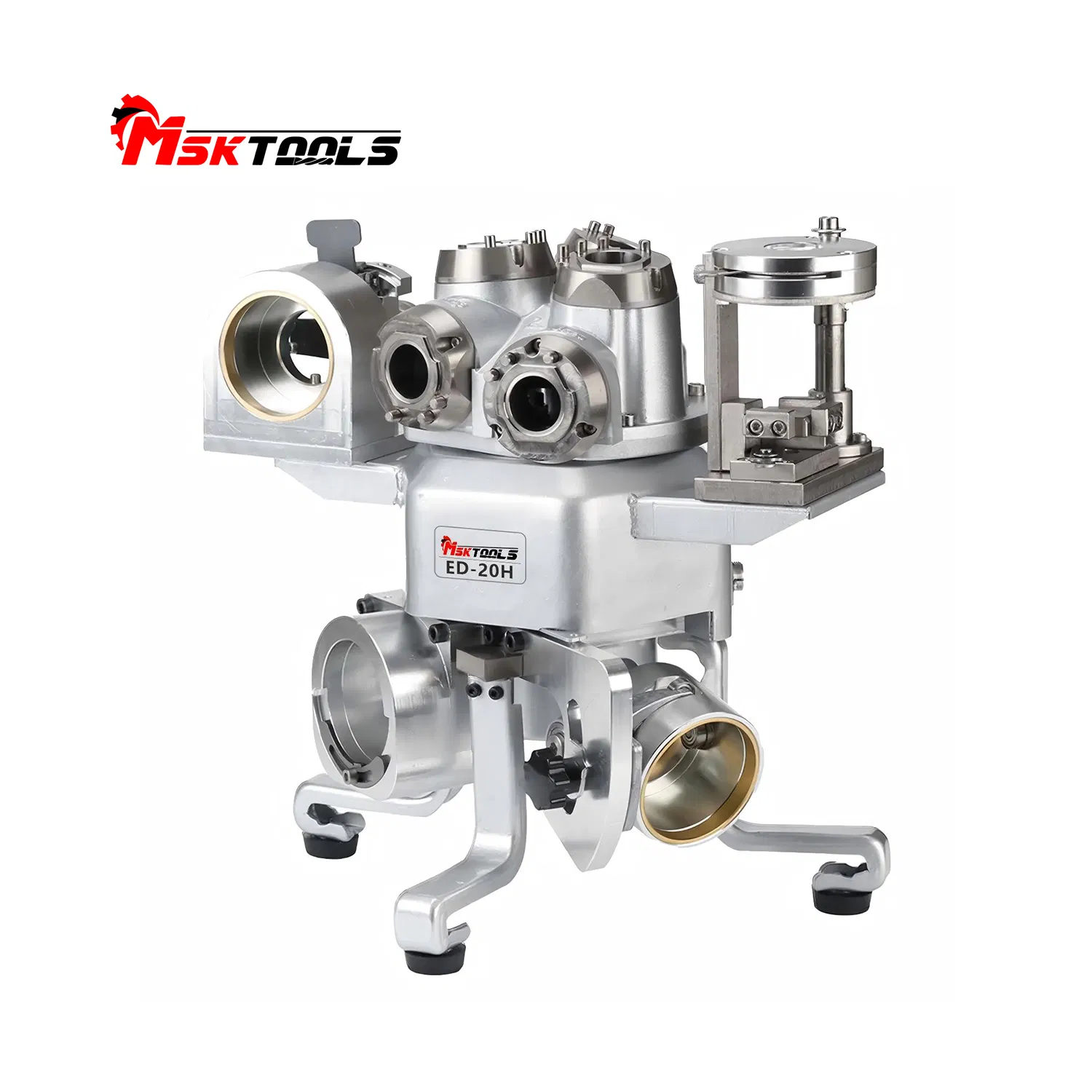

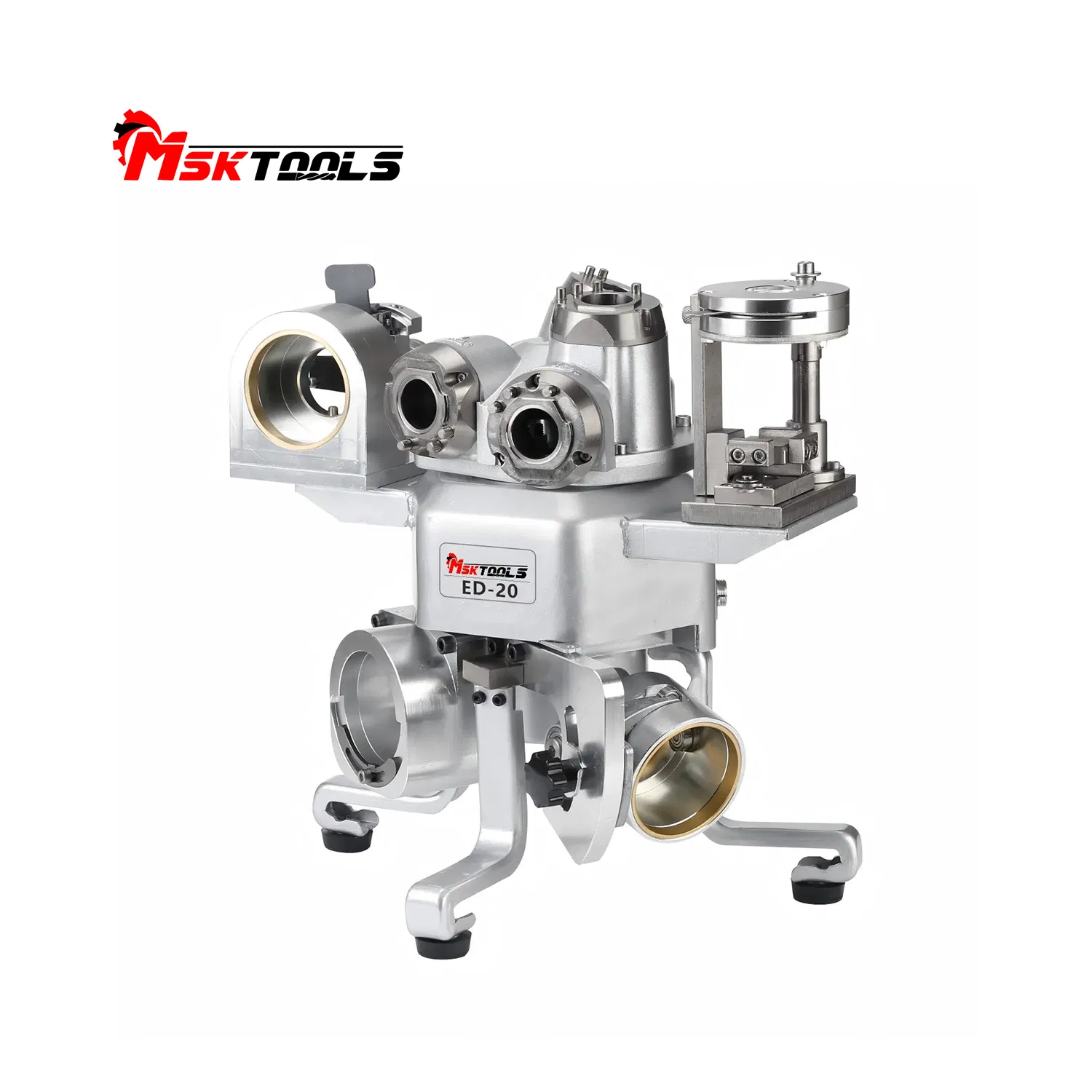

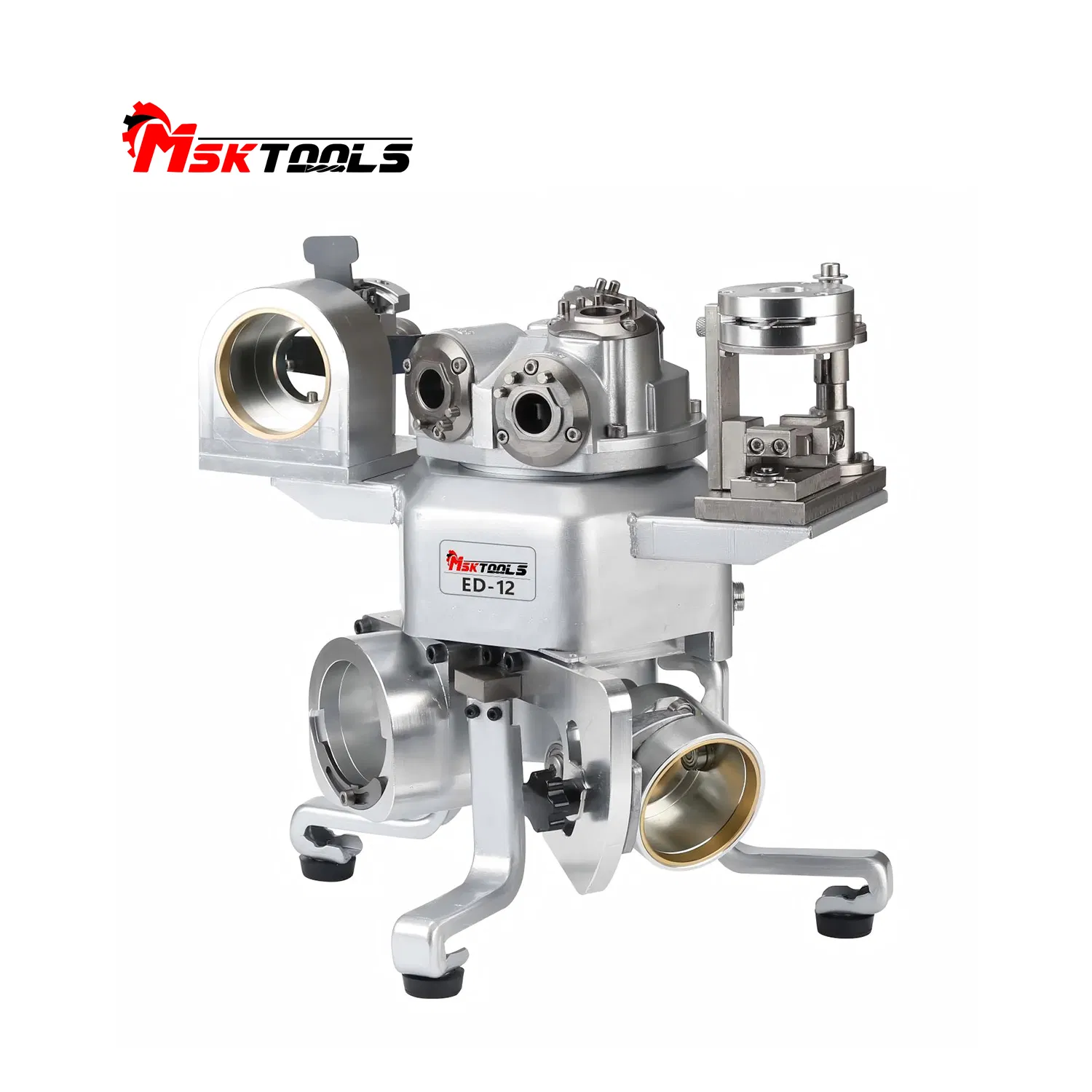

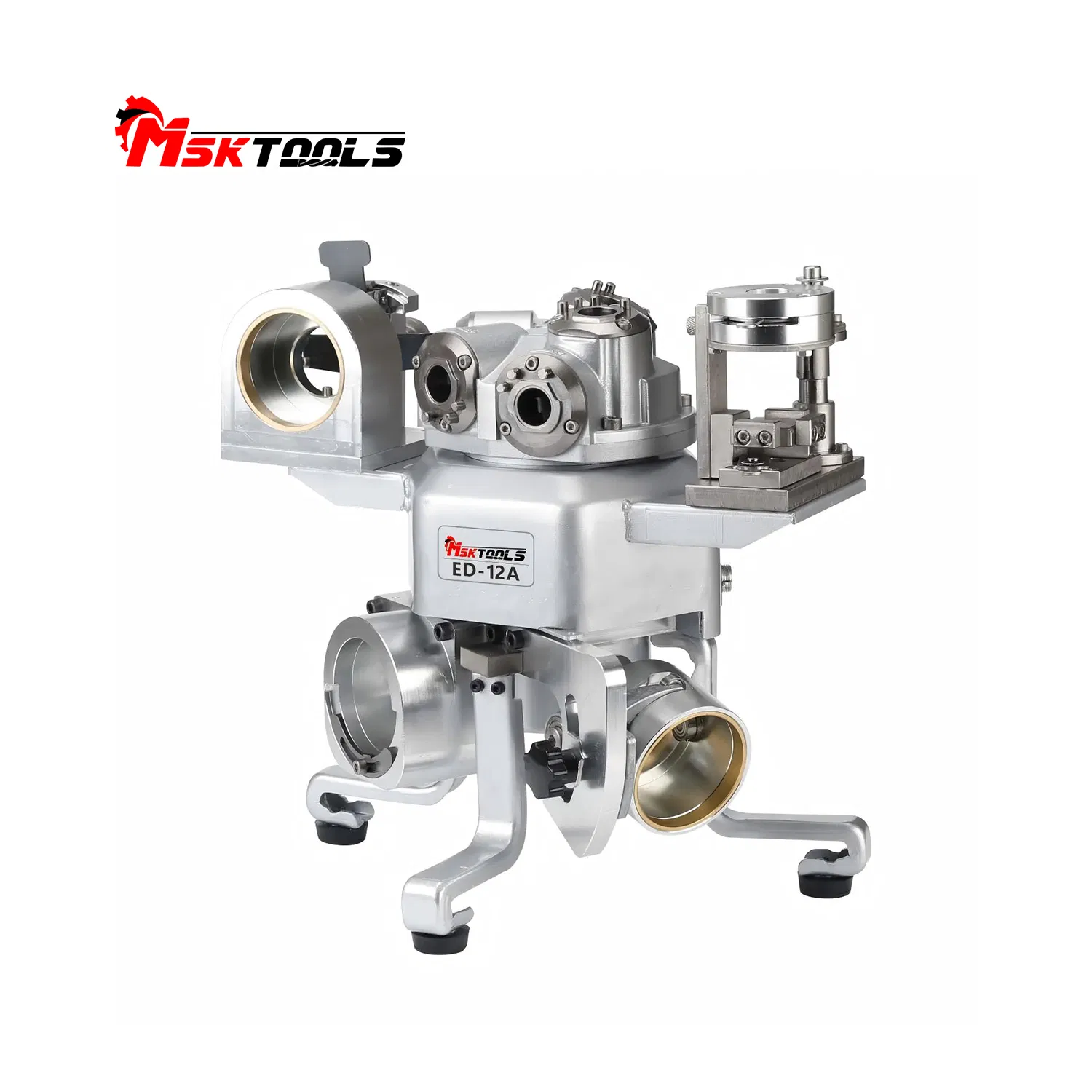

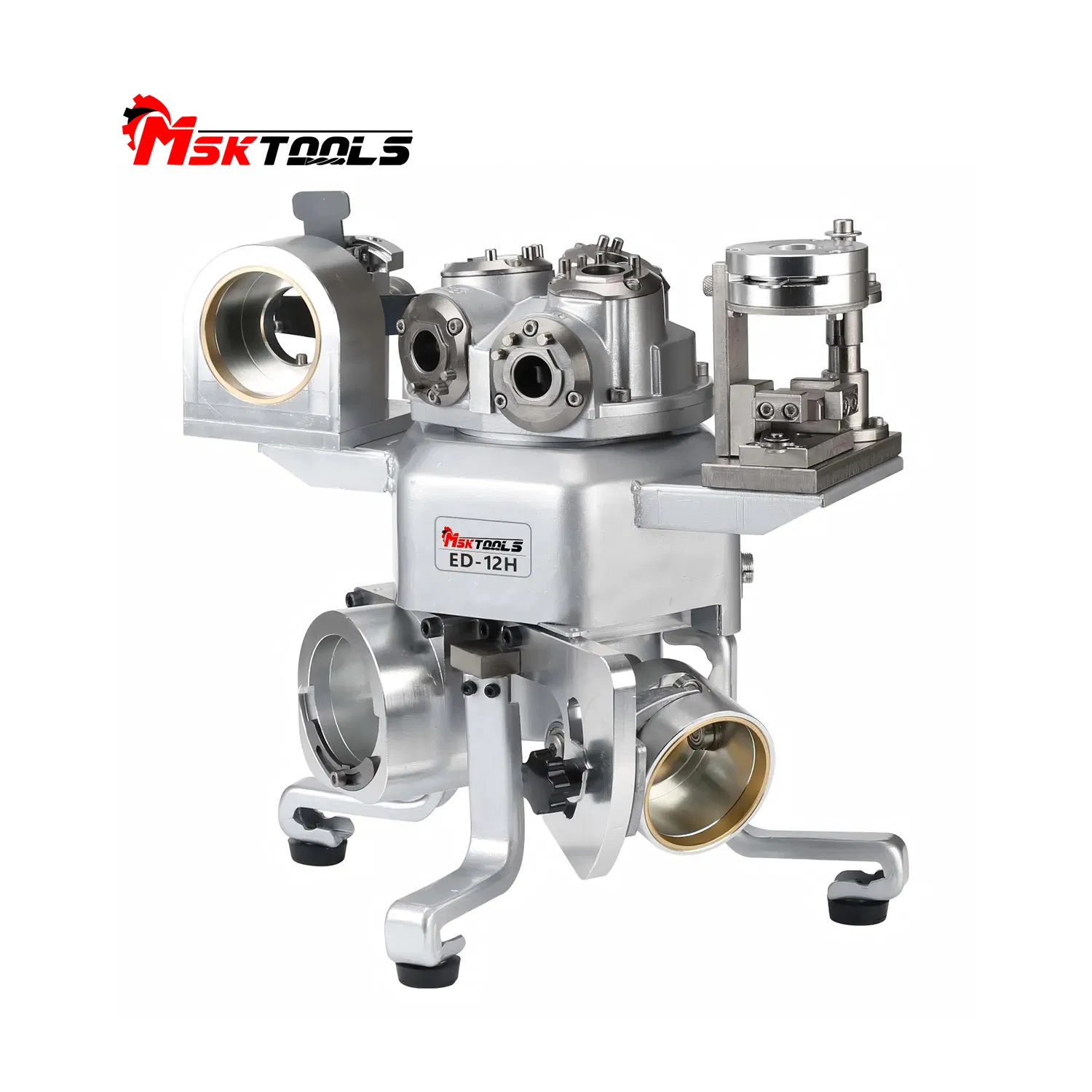

Model ED-12 / ED-12H ED-20 / ED-20H
Applicable Diameters End mill φ2-φ12mm / Drill φ3-20mm End mill φ4-φ20mm / Drill φ3-20mm
Applicable Flutes 2, 3, 4 flutes / Twist drills 2, 3, 4 flutes / Twist drills
Axial Angles Secondary 6°, Primary 20°, End gash 30° Secondary 6°, Primary 20°, End gash 30°
Rated Speed 6000rpm 6000rpm
Power Supply 220V±10% AC 220V±10% AC
Weight 18KG 26KG
💡 Related Products

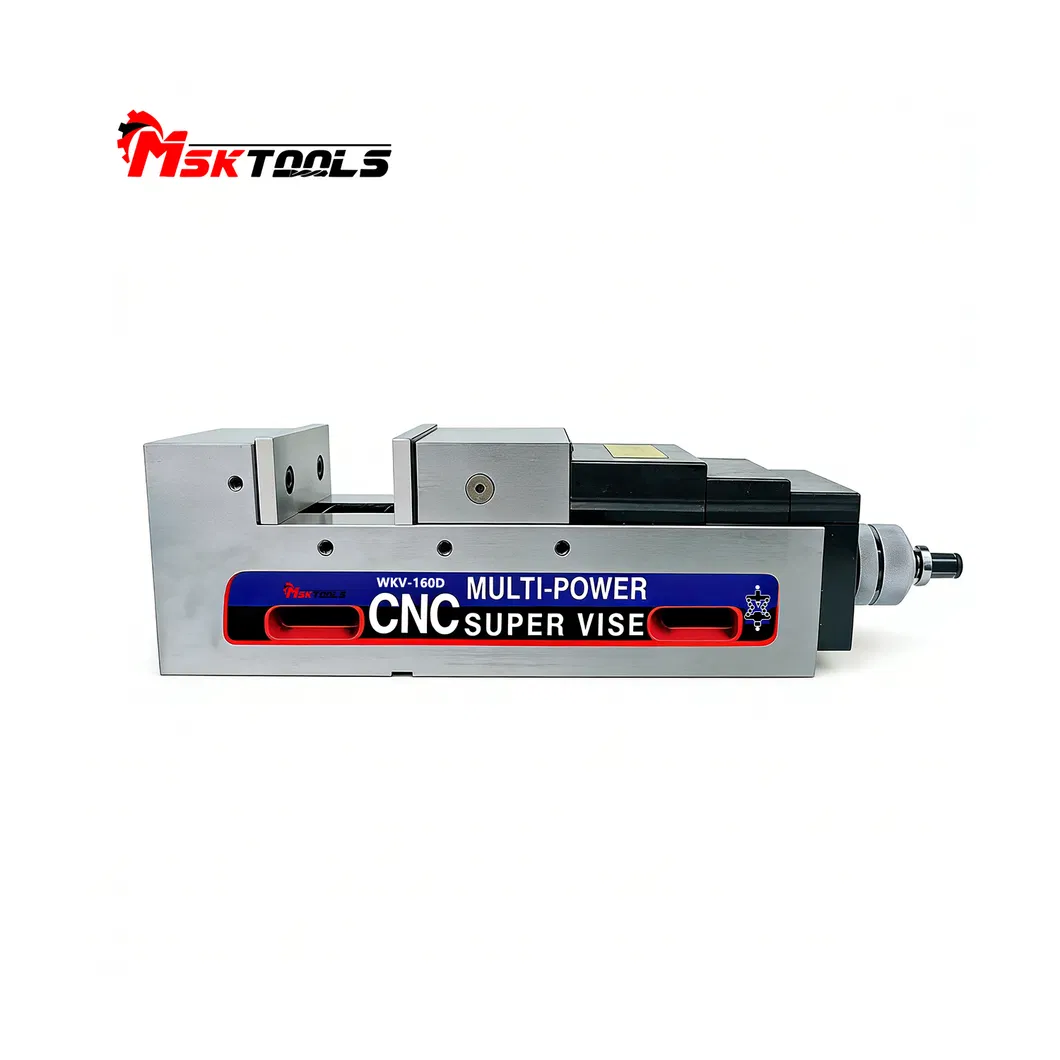

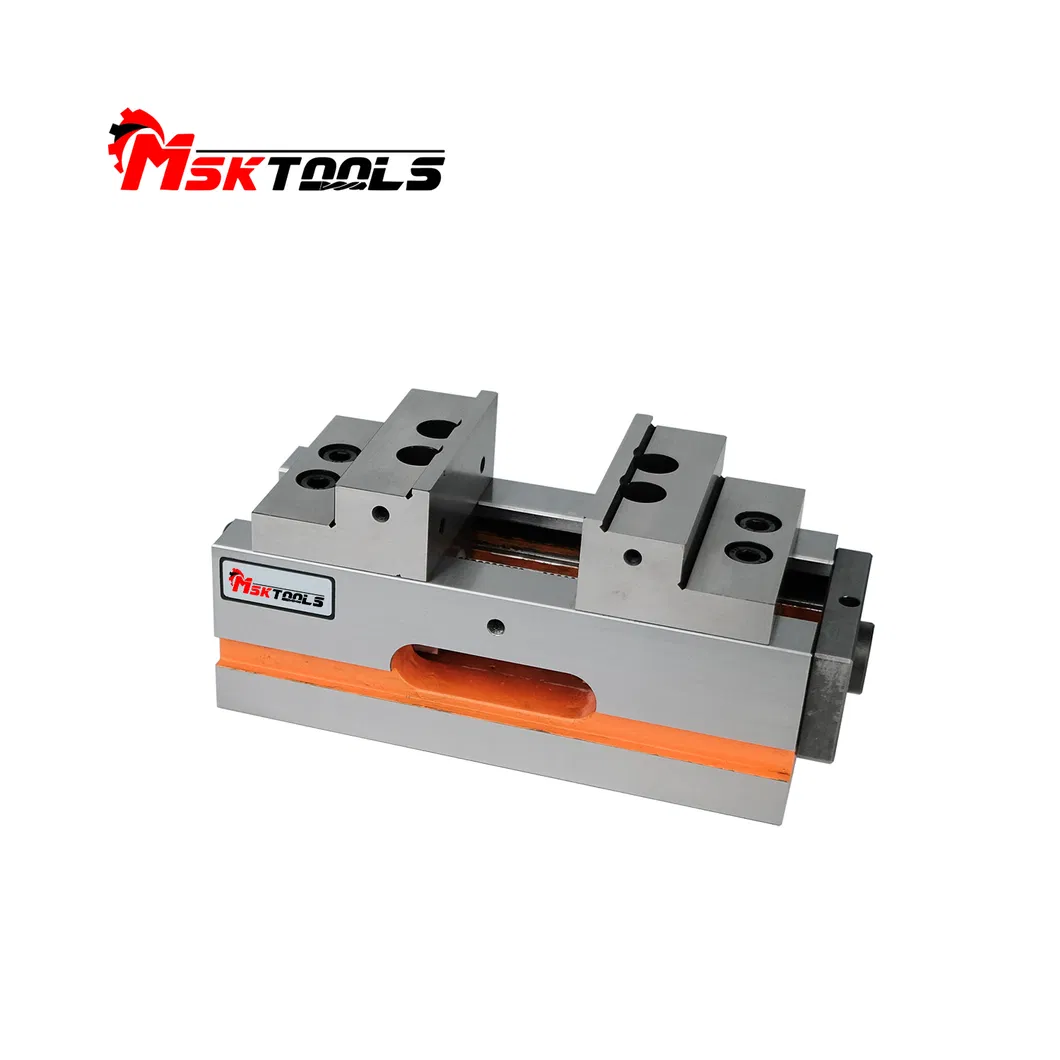

Precision Vise Hydraulic Vise Tungsten Sharpener

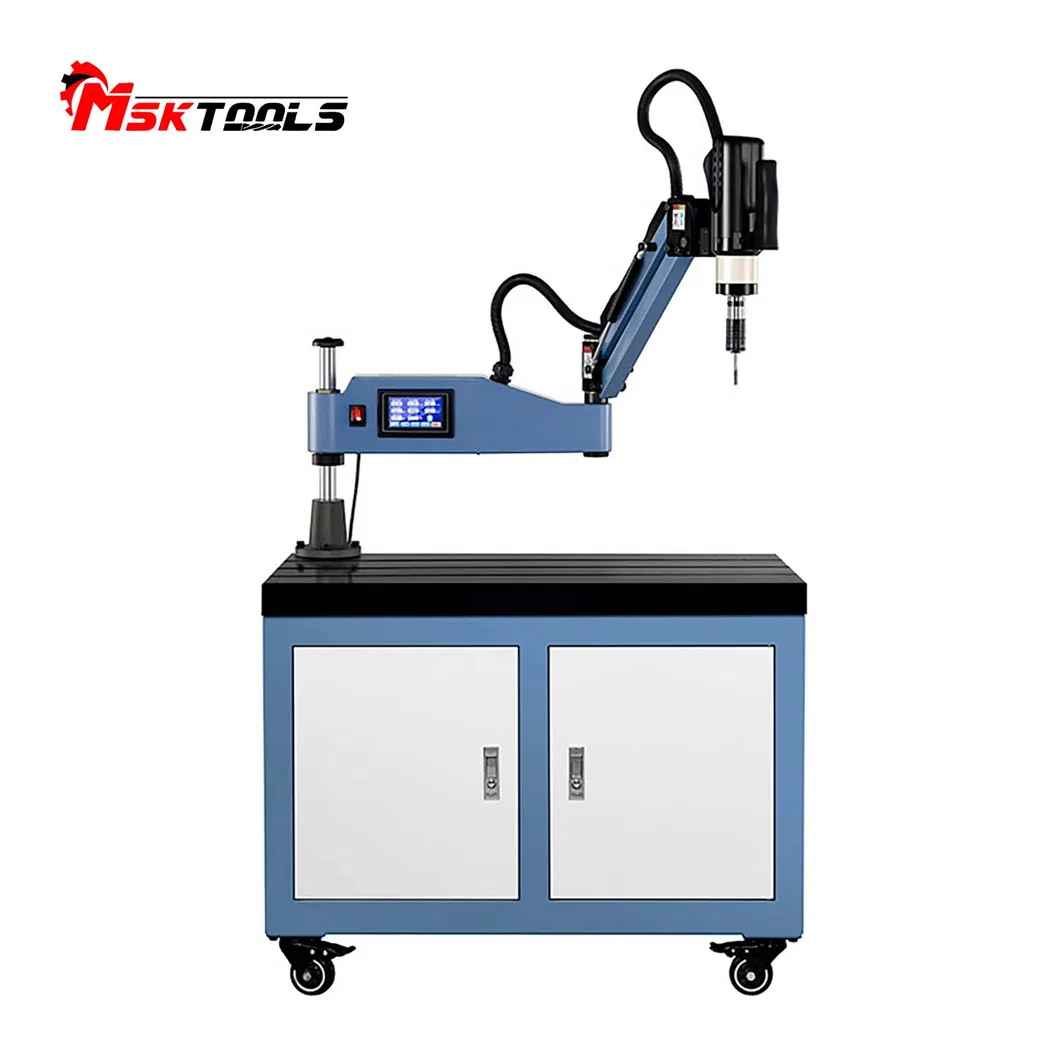

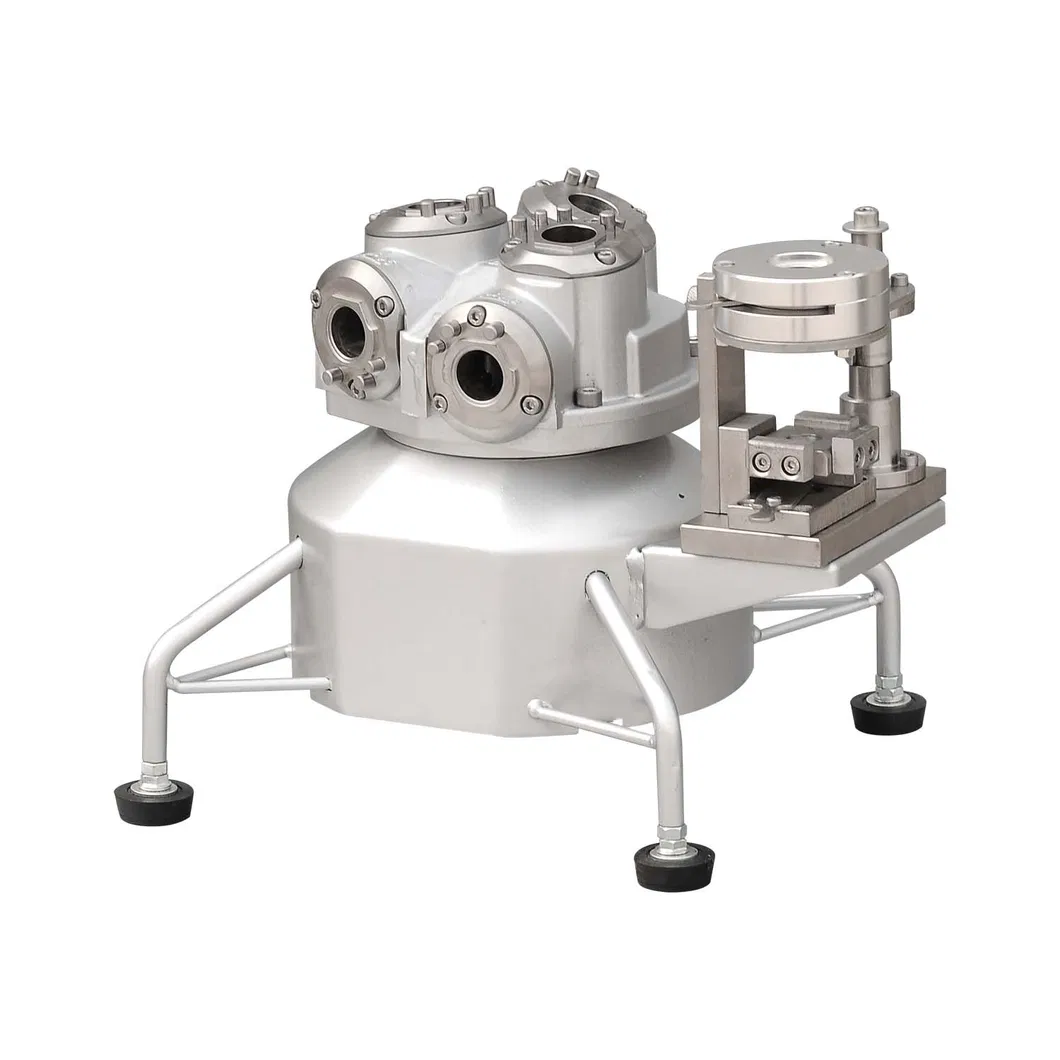

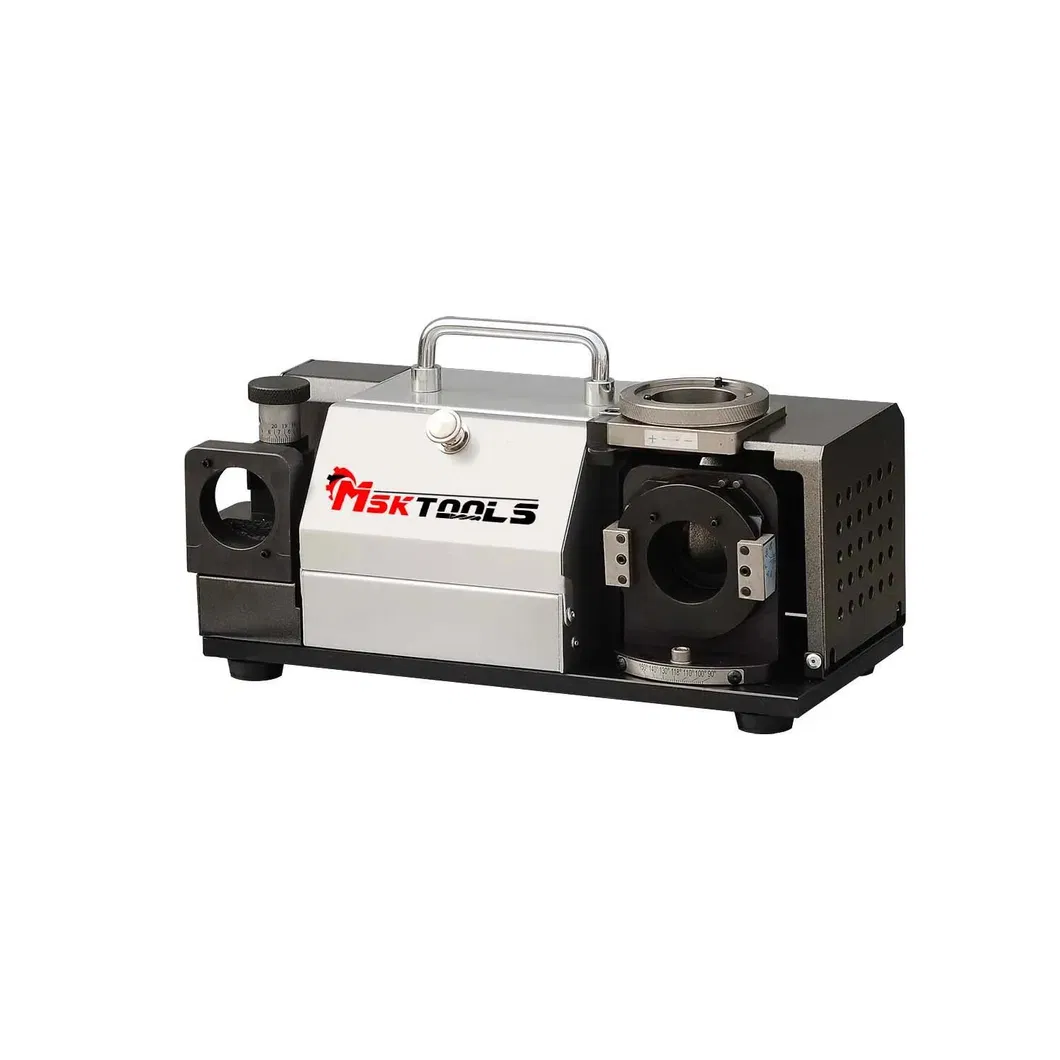

Multi-Flute Sharpener Drill Re-Sharpener CNC Tapping Machine
🏭 Manufacturing Excellence

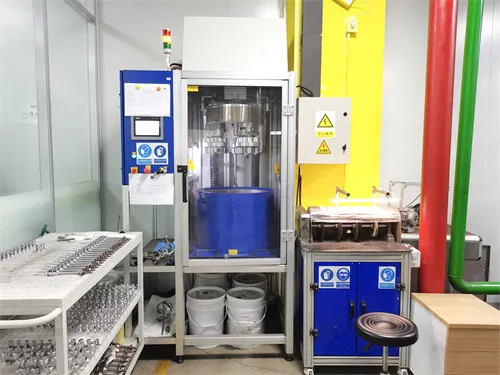

Factory Overview Production Line

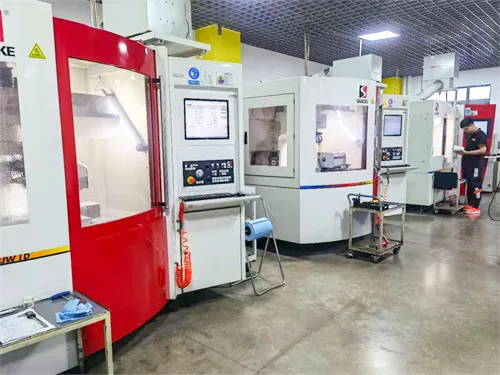

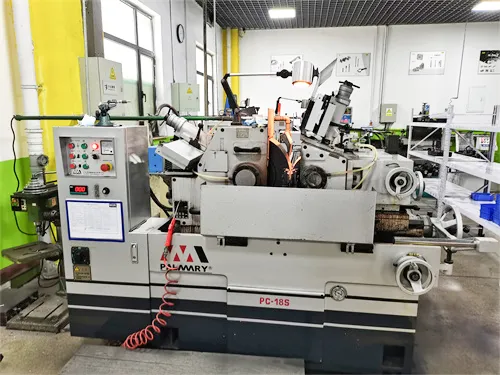

Machinery Inspection Center
❓ Frequently Asked Questions
What types of cutters can this machine sharpen?
The machine is designed to grind 2-flute, 3-flute, and 4-flute end mills, as well as twist drills depending on the specific model and holders used.
Do I need special training to operate this sharpener?
No, it is a portable "idiot-style" sharpener designed for easy operation. Accurate grinding can be achieved rapidly without advanced technical skills.
What grinding wheels are included?
Standard units come with an SDC diamond grinding wheel for carbide materials. Optional CBN wheels are available for sharpening HSS (High-Speed Steel) tools.
What is the typical delivery time for an order?
Standard production and delivery usually take approximately 7 days. We maintain a high production capacity to ensure timely fulfillment.
Does the machine support OEM or custom labeling?
Yes, we provide OEM services including customization of specifications and label printing services to meet client requirements.
What kind of after-sales support is provided?
We offer a 48-hour quick response for all inquiries, professional technical guidance, and full after-sales service to ensure product quality and customer satisfaction.
