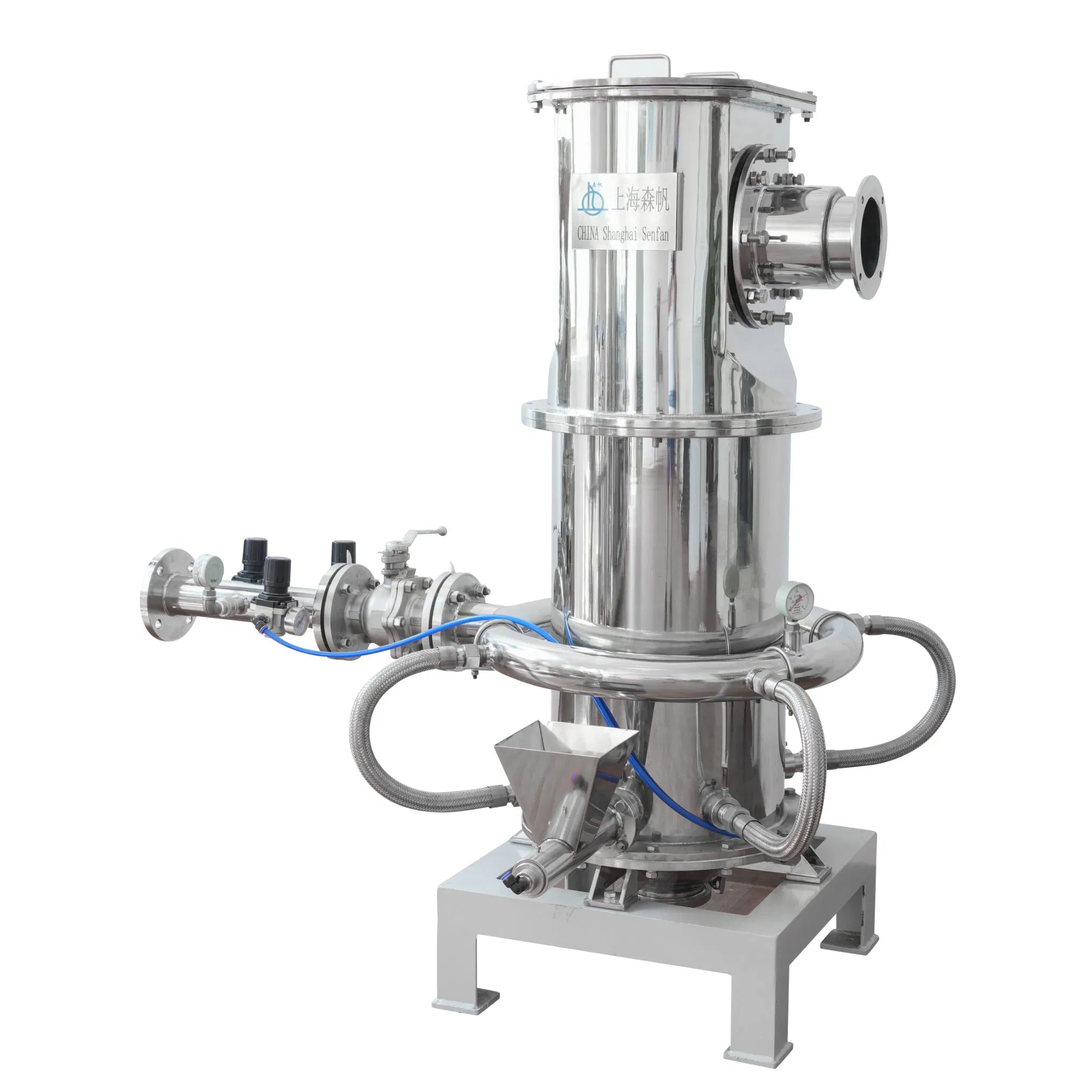

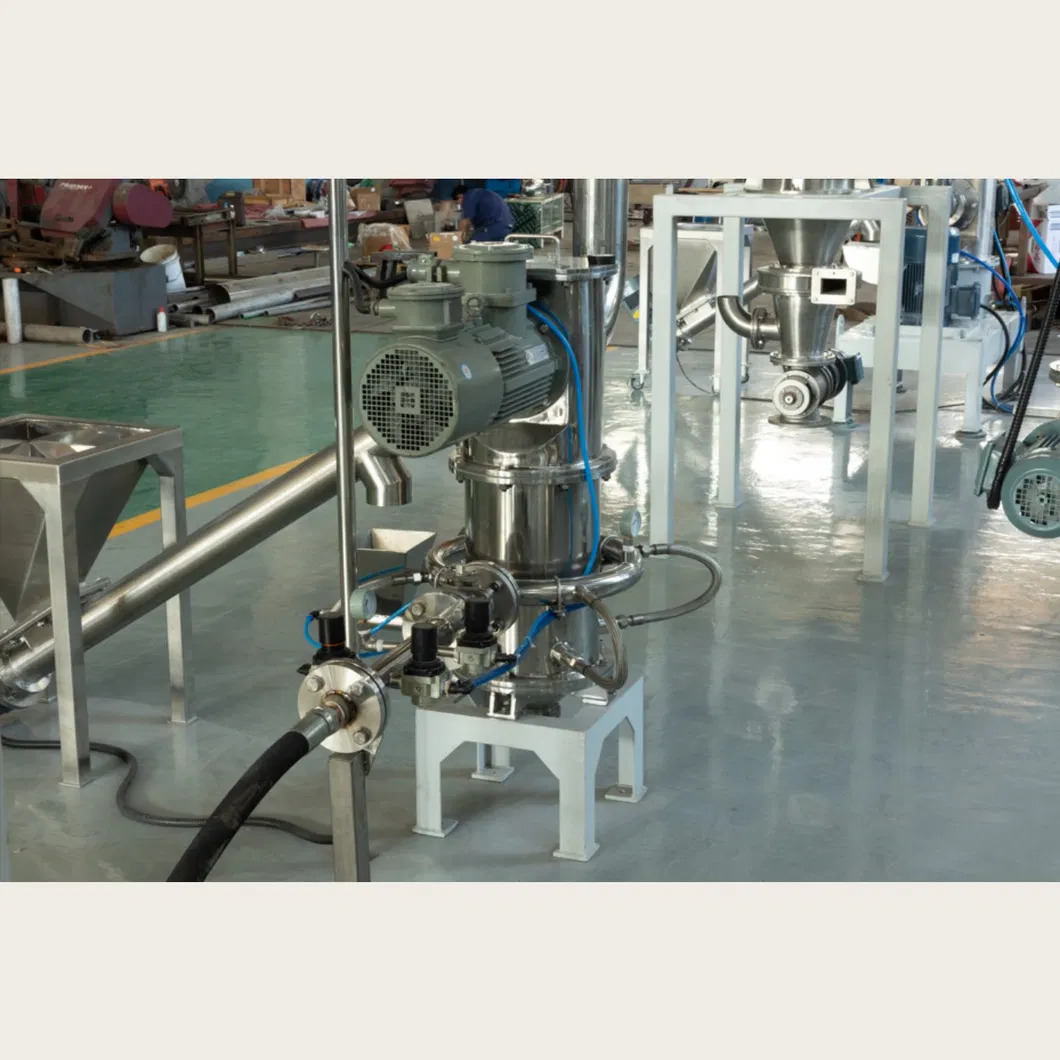

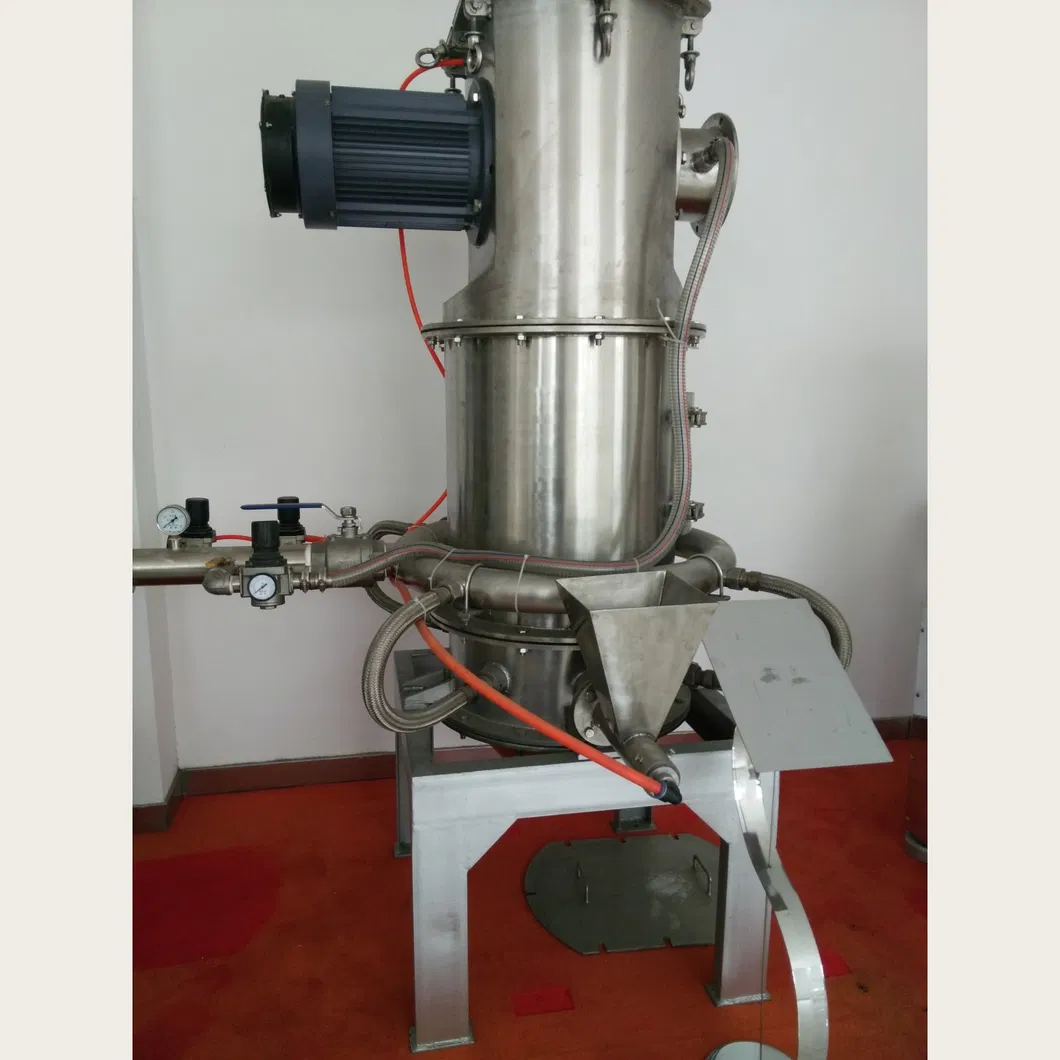

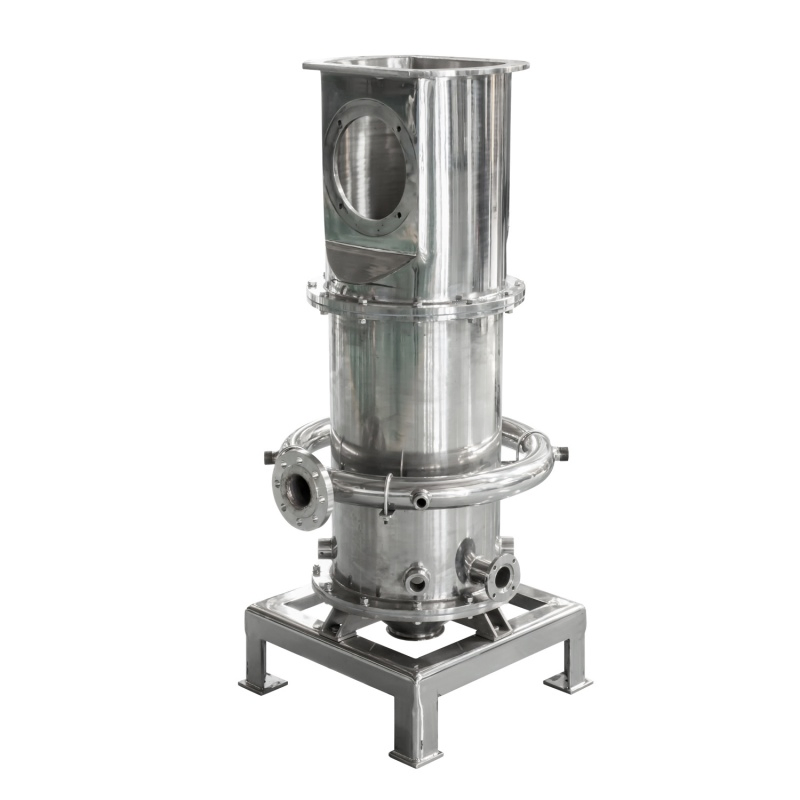

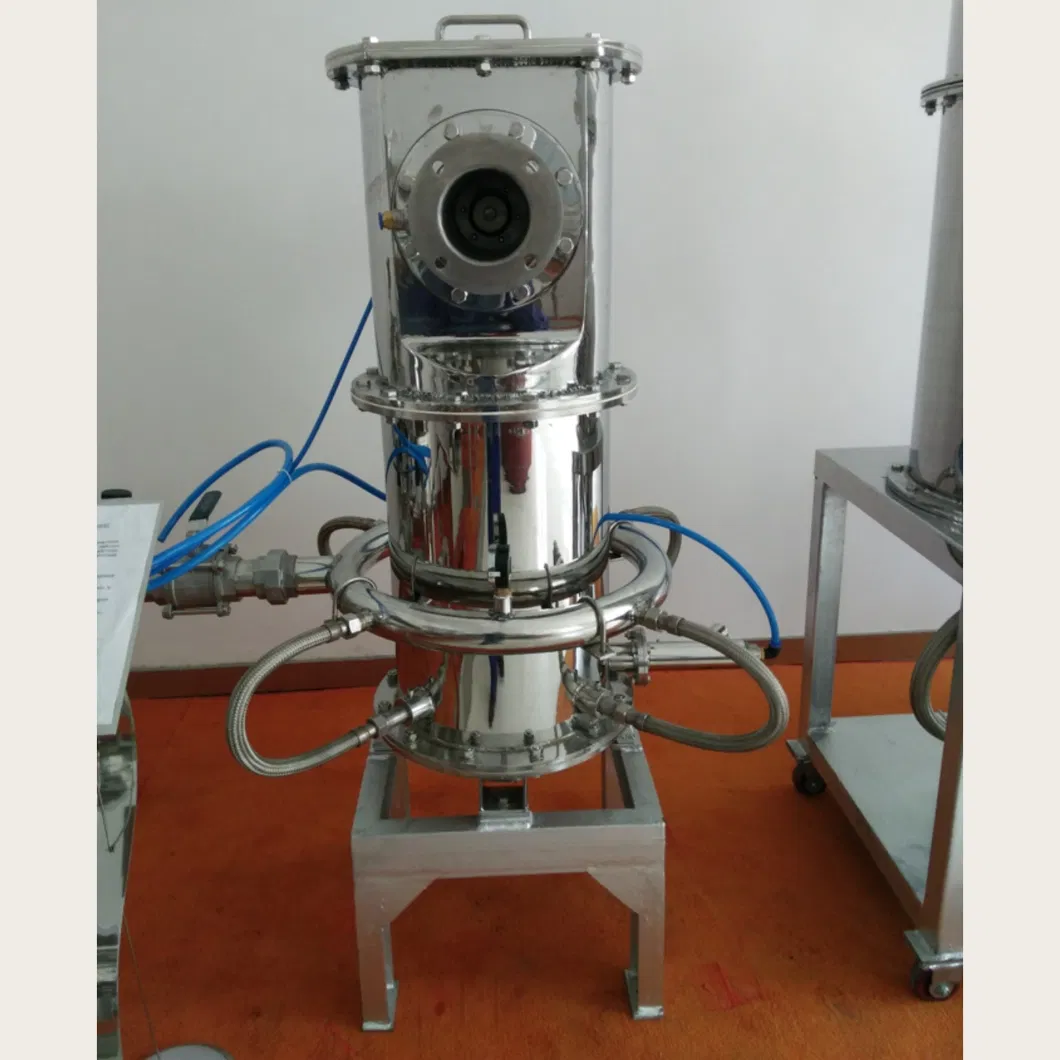

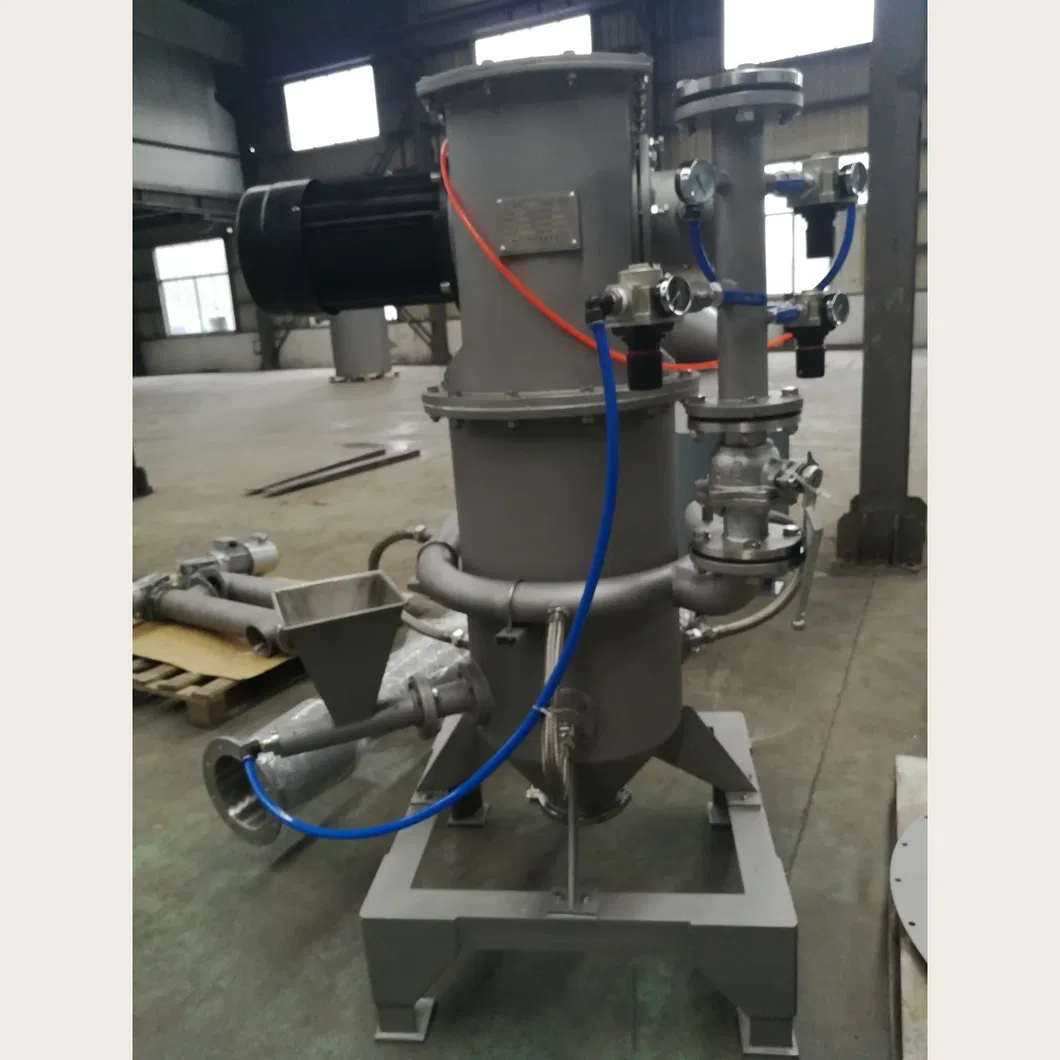

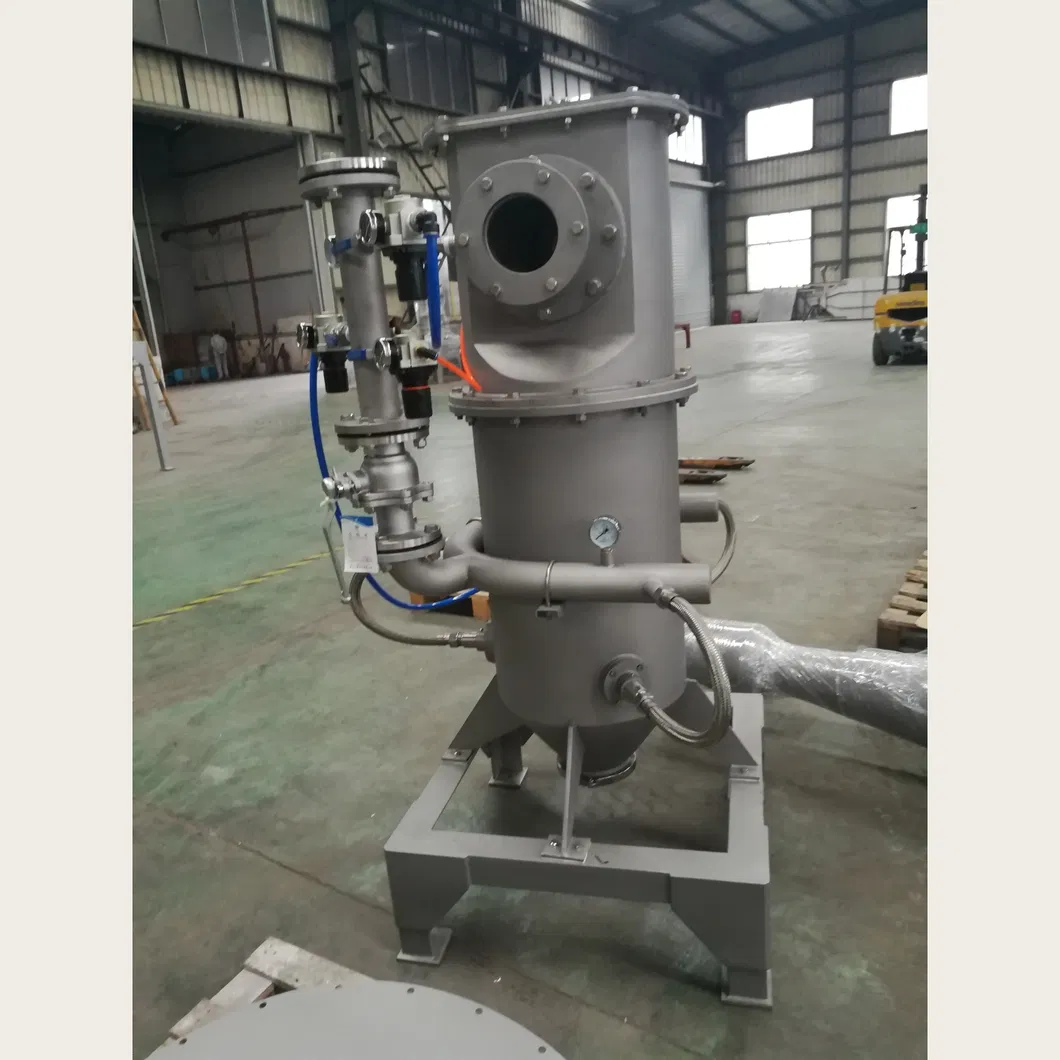

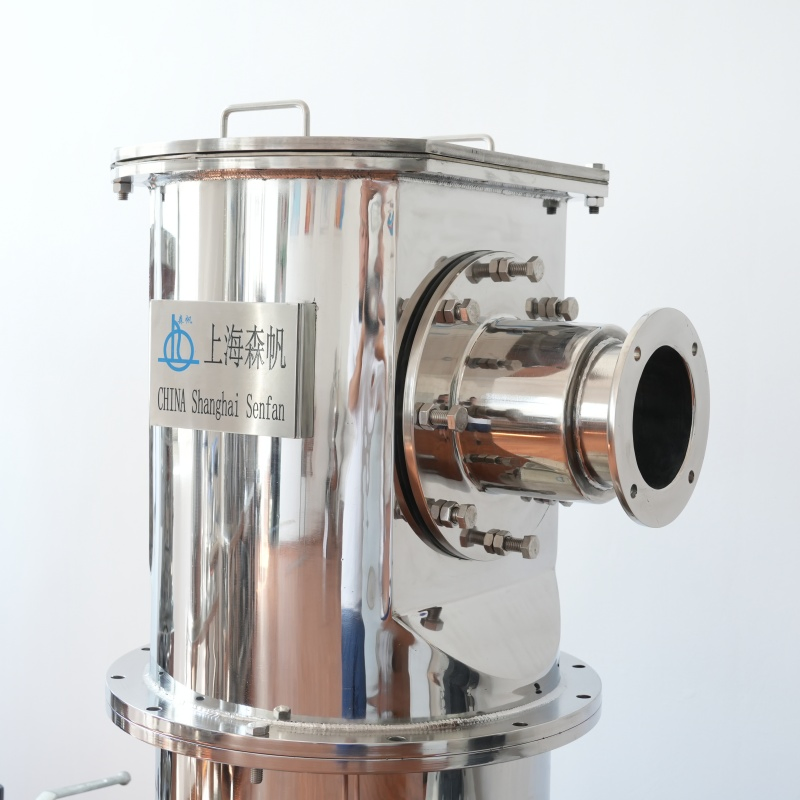

The LQF series fluidized bed jet crushers are a new generation of ultra-micro jet crushing equipment, integrating advanced international multi-nozzle technology, fluidized bed technology, and vertical classification technology. This achieves a diversified flow field, fluidized material layer, vertical classification, and electromechanical integration combination technology system, representing the development direction of jet mills.
This machine is widely utilized across various industries including: Chemical, metallurgy, mining, ink, lithium batteries, pharmaceuticals, pesticides, plastics, papermaking, pigments, coatings, dyes, abrasives, food, and cosmetics.
| Parameters\Model | LQF-100 | LQF-300 | LQF-400 | LQF-500 | LQF-600 | LQF-800 |
|---|---|---|---|---|---|---|

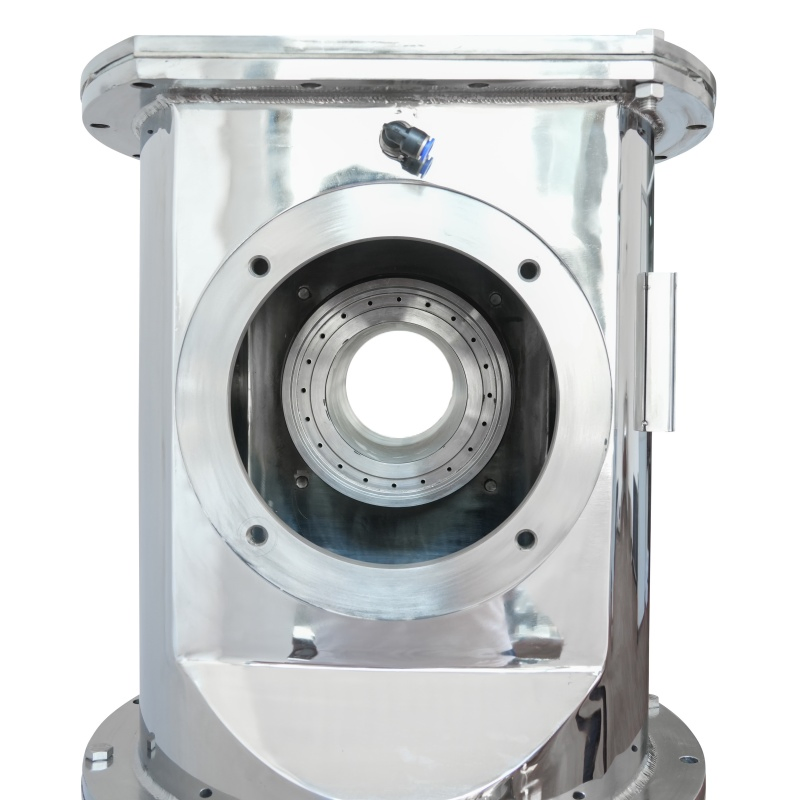

| Crushing Chamber (mm) | 100 | 300 | 400 | 500 | 600 | 800 |
| Air Consumption (m³/min) | 2.5 | 6 | 12 | 22 | 25 | 40 |
| Classify Motor (KW) | 1.1 | 4 | 4 | 7.5 | 7.5 | 15 |
| Handle Capacity (kg/h) | 2-20 | 10-100 | 50-300 | 50-500 | 100-600 | 100-1000 |
| Weight (kg) | 150 | 260 | 530 | 650 | 750 | 970 |
