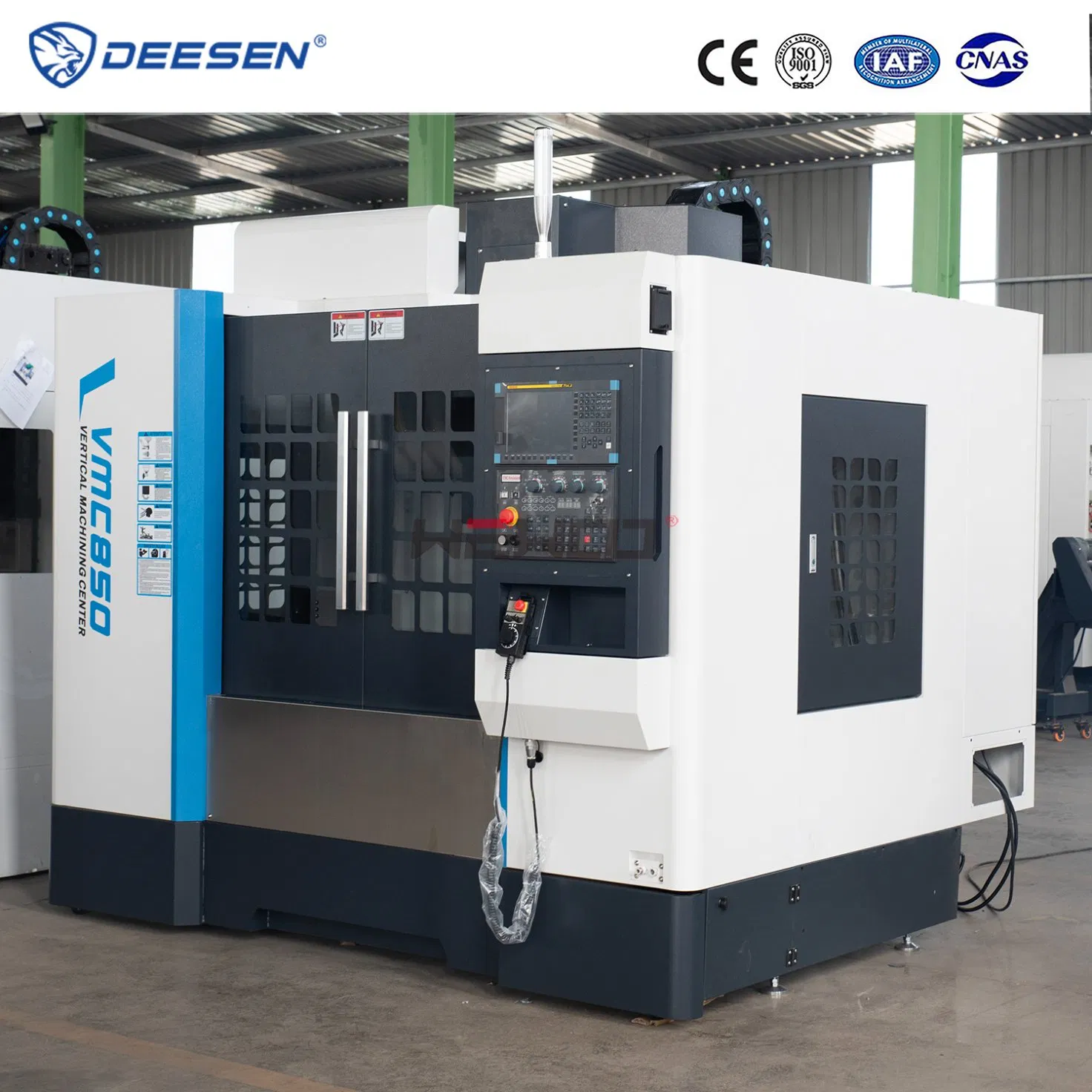

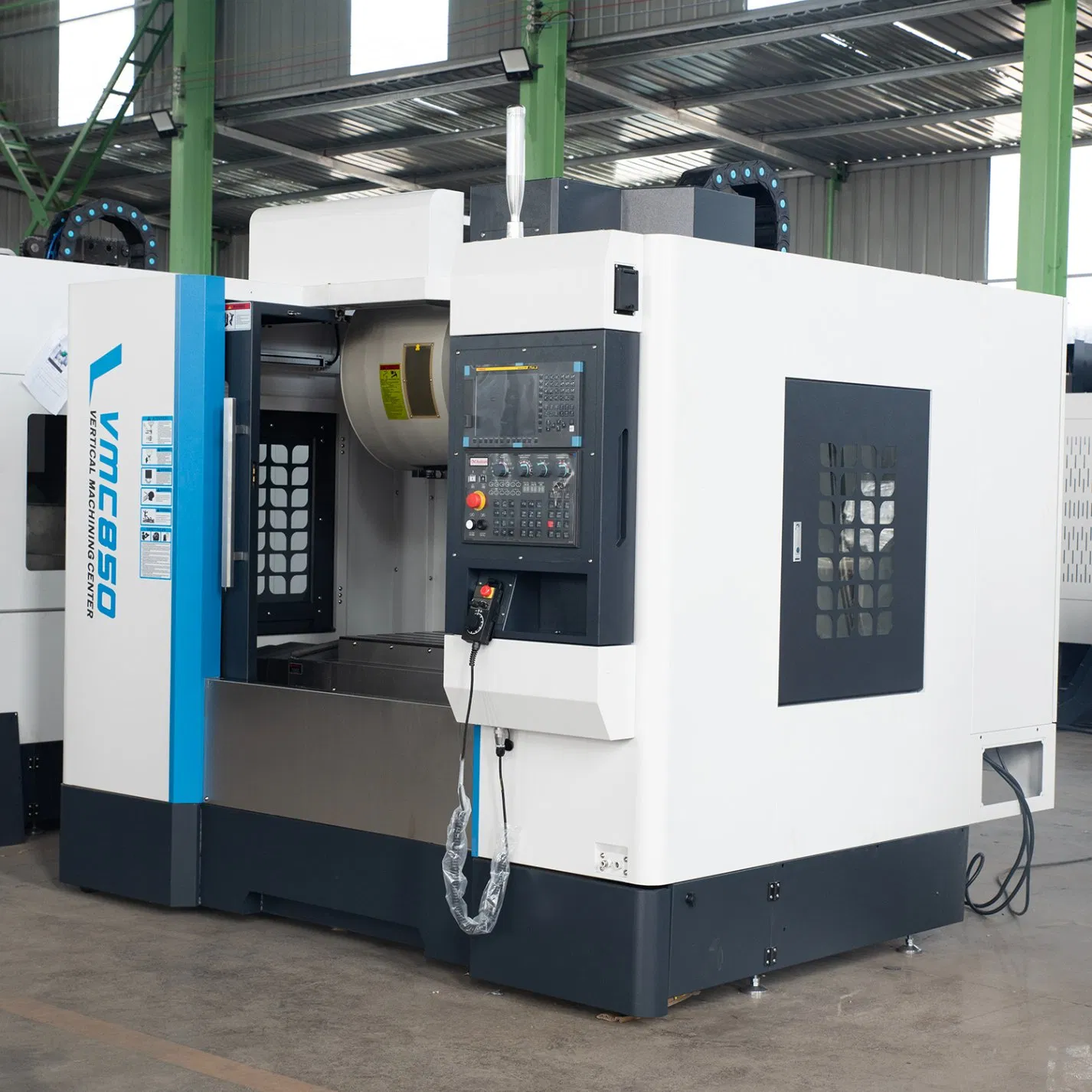

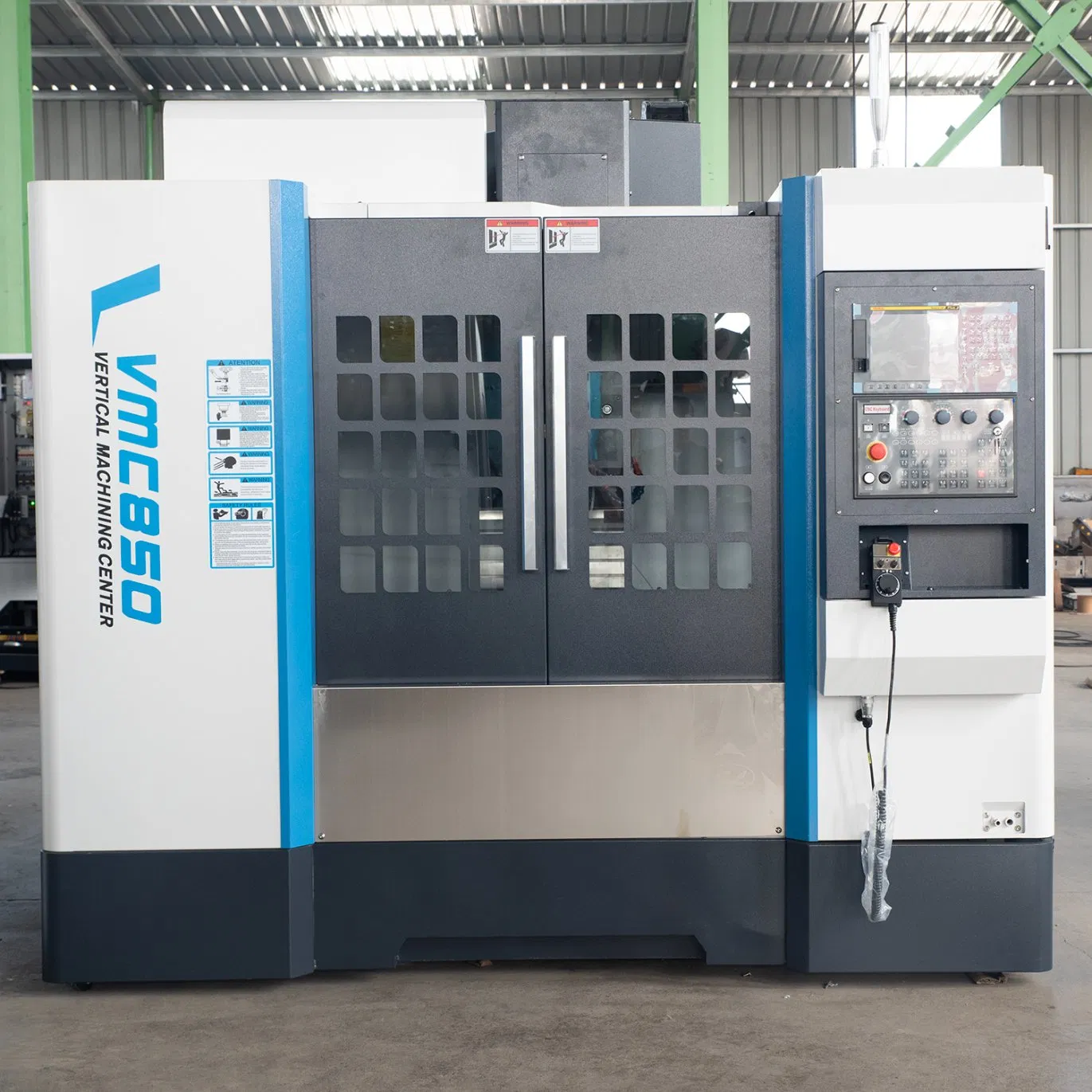

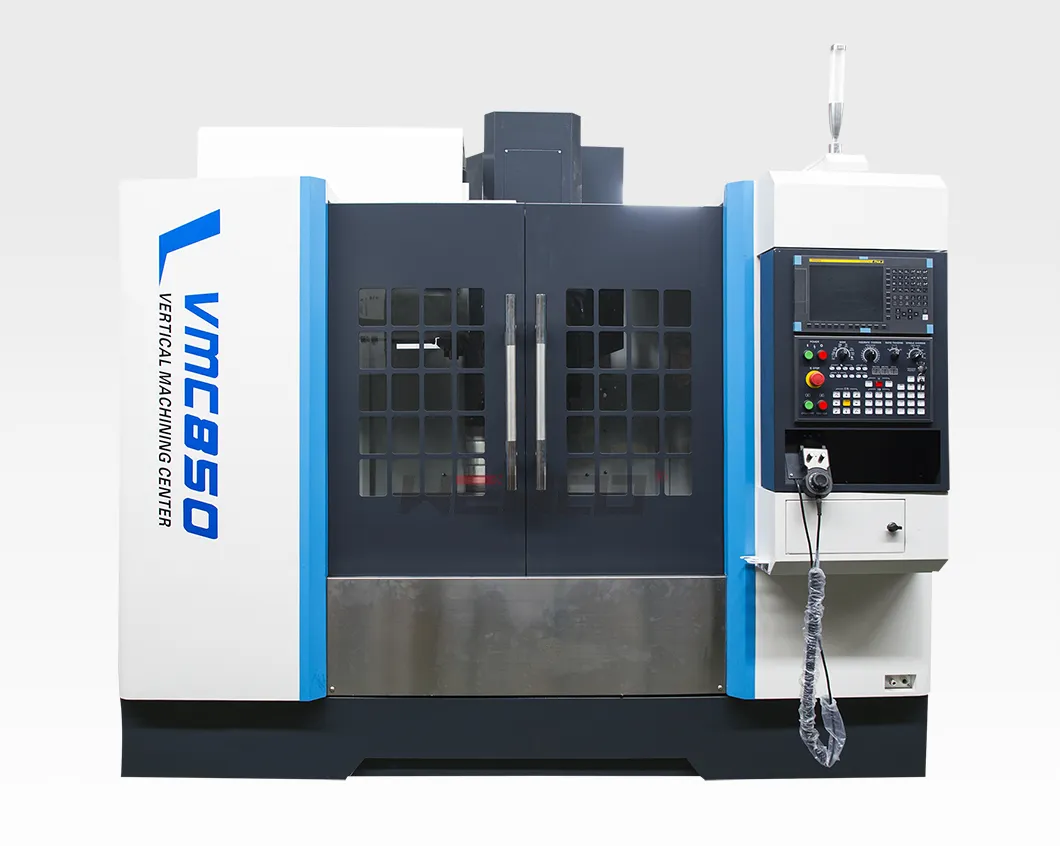

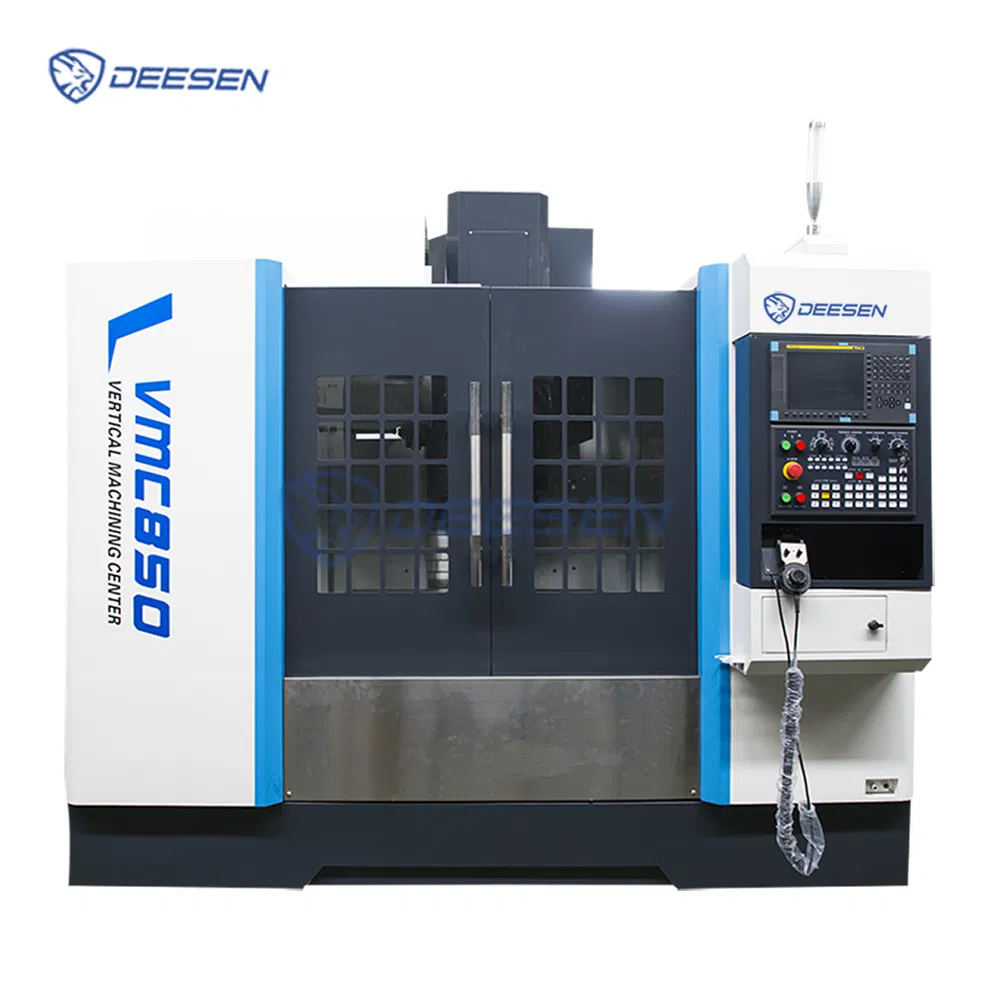

VMC850 Automatic 3 Axis Mini universal CNC Milling Machine Industrial Machine Tools Machinery VMC 5 Axis Milling CNC Vertical Machining Center for Metal Cutting
The excellent quality is our dignity. All our products are produced with high quality standards. Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Well trained quality control department is the first contact for adhering to quality on site. They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
| Specifications | Units | VMC850 | VMC855 |
|---|---|---|---|
| Table size | mm | 1000x500 | 1000x550 |
| X axis travel | mm | 800 | 800 |
| Y axis travel | mm | 500 | 550 |
| Z axis travel | mm | 500 | 550 |
| Max. worktable load | kg | 500 | 550 |
| Max. spindle speed | rpm | 8000(10000) | 8000(10000) |
| Main motor power | kw | 7.5/11 | 7.5/11 |
| Rapid traverse (X/Y/Z) | m/min | 24/24/20 | 24/24/20 |
| Positioning accuracy | mm | ±0.0075 | ±0.0075 |
| Machine weight | kg | 5000 | 6000 |

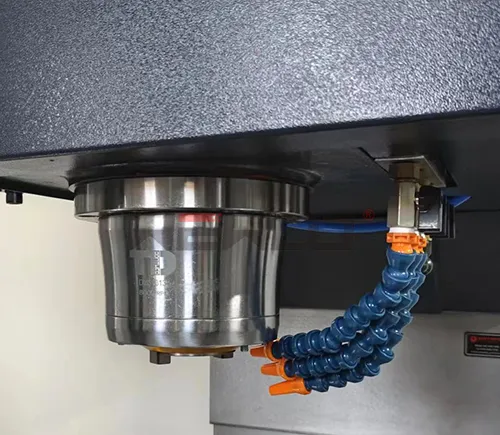

1. Spindle taper BT40
2. Speed 8000rpm (upgradeable to 10000rpm)
3. Passed dynamic balance ISO rating tests.

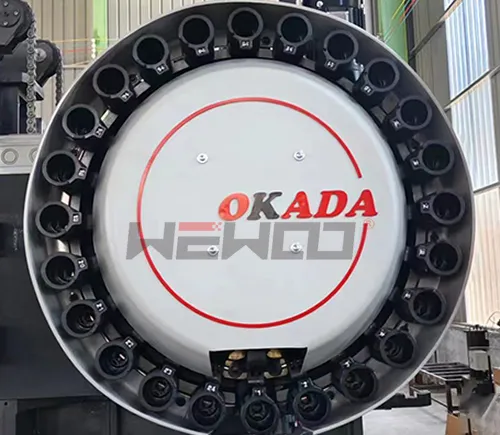

1. Standard 24 Arm tool magazine.
2. Tool change time: 3 seconds.
3. High reliability brand components.

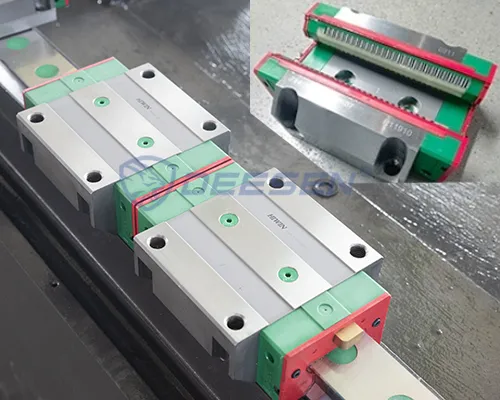

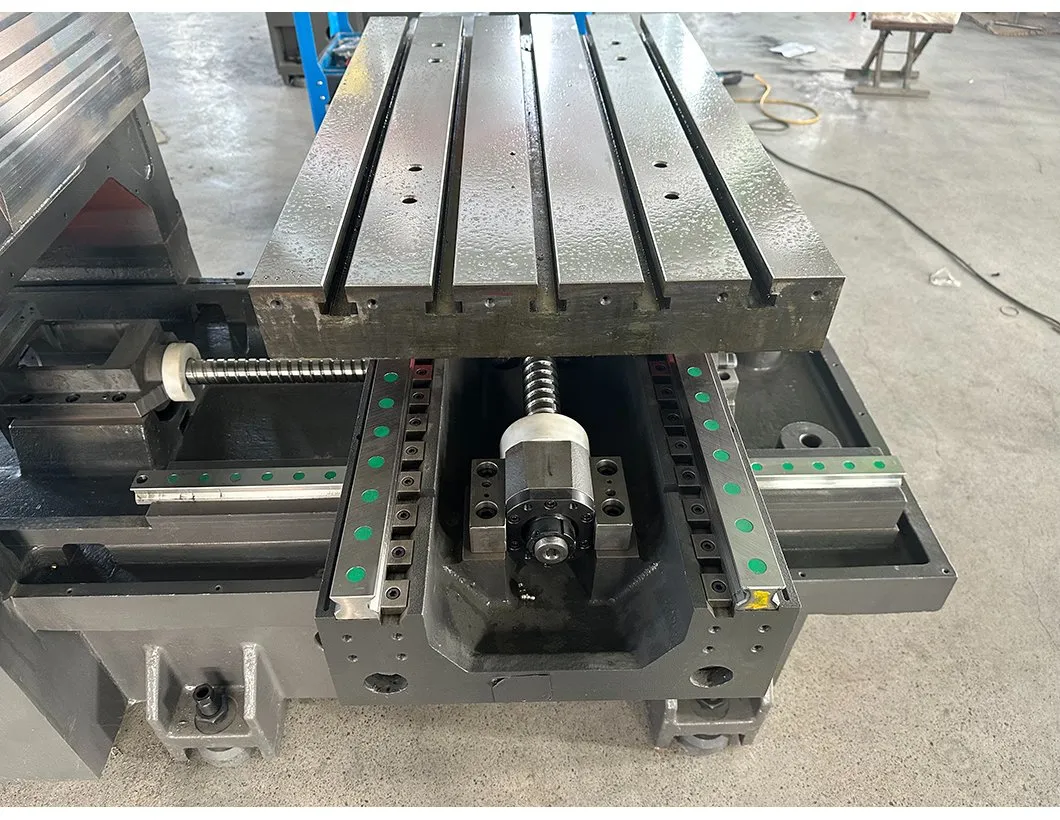

1. High speed roller linear guide rails.
2. Positioning accuracy reaching μm class.
3. Leading brands like HIWIN or PMI.

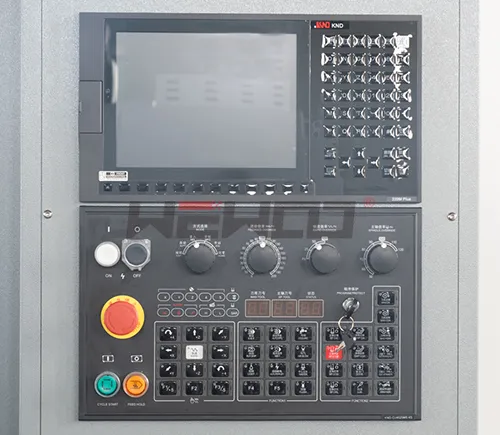

Standard GSK / KND control. Optional high-end systems including Siemens, FANUC, and Syntec for advanced processing needs.
With more than 20 years of experience as a professional manufacturer, we have been deeply cultivated in the machine tool industry, developing into a highly influential enterprise. Our R&D team includes mechanical engineering experts and automation elites keeping up with industry trends.

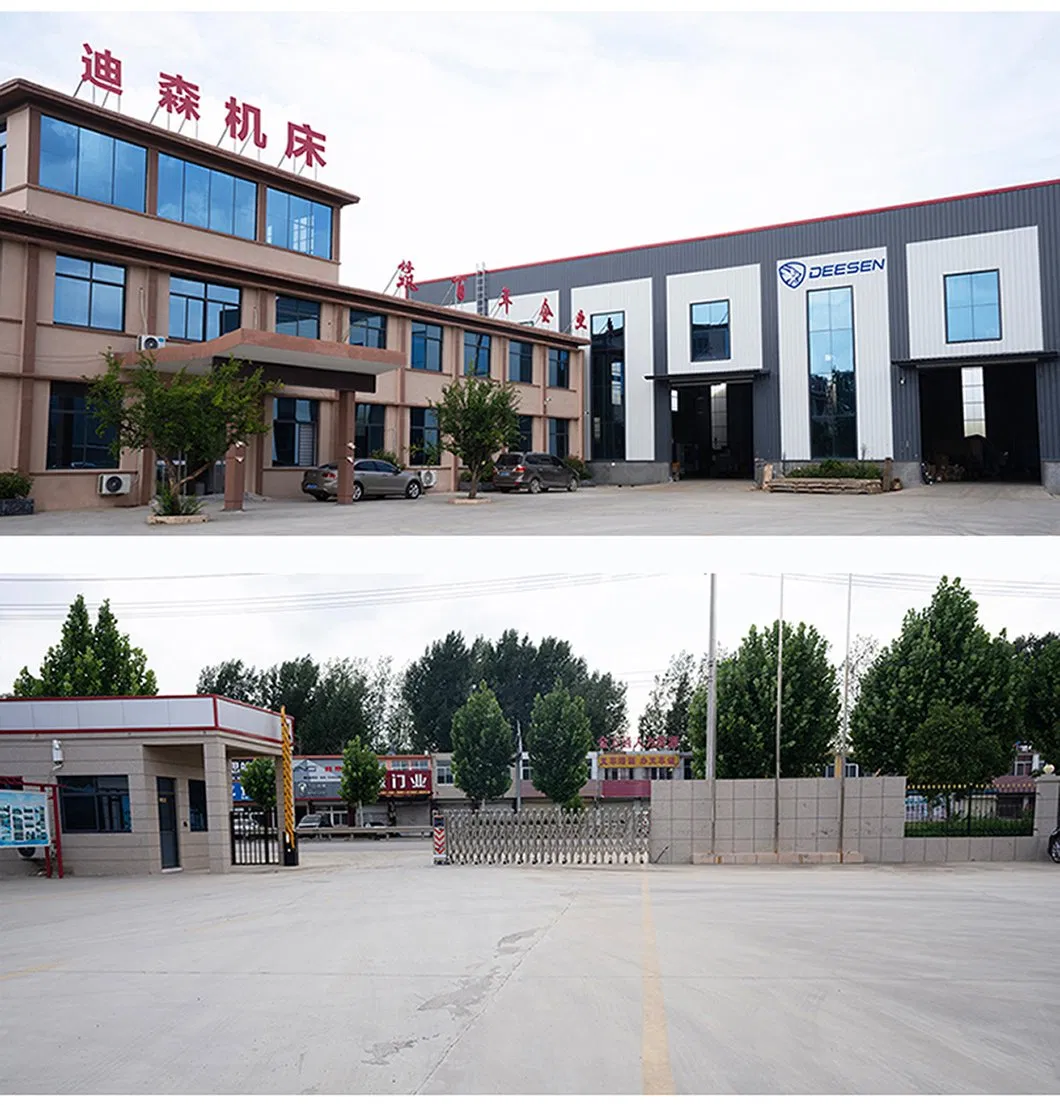

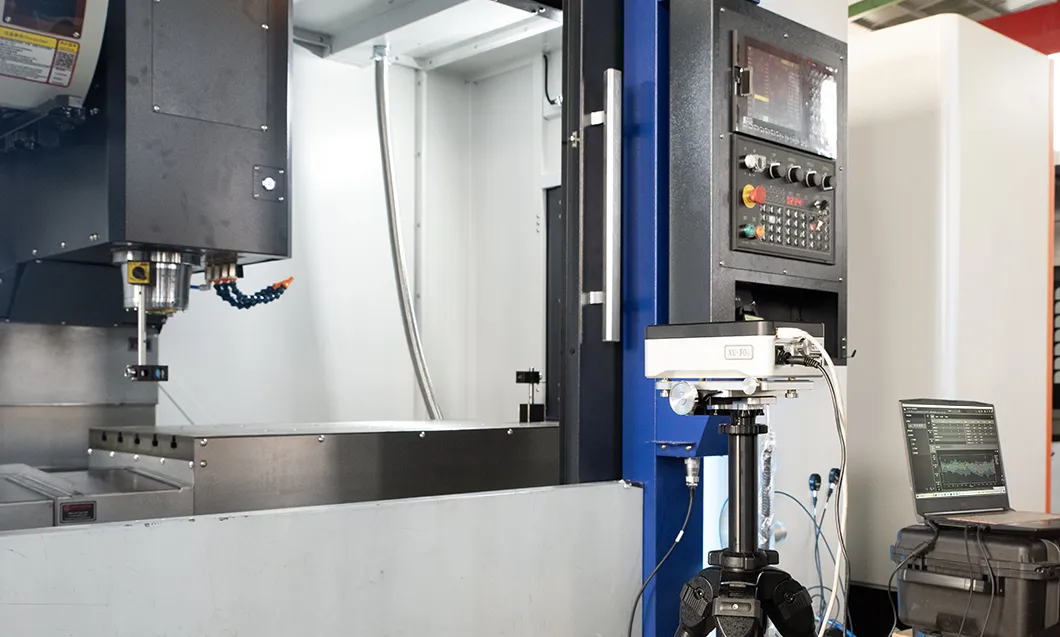

We utilize advanced production management systems and modern workshops. From casting and stamping to final machining, we follow strict precision principles. Our quality inspection process covers everything from raw material procurement to finished assembly, ensuring a high pass rate through internationally accepted testing methods.
