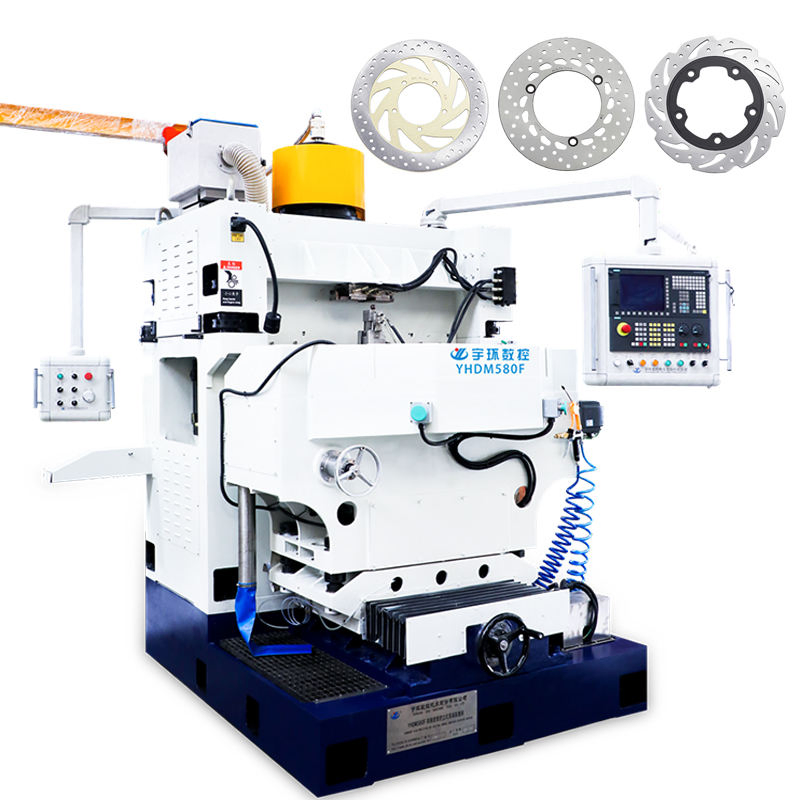

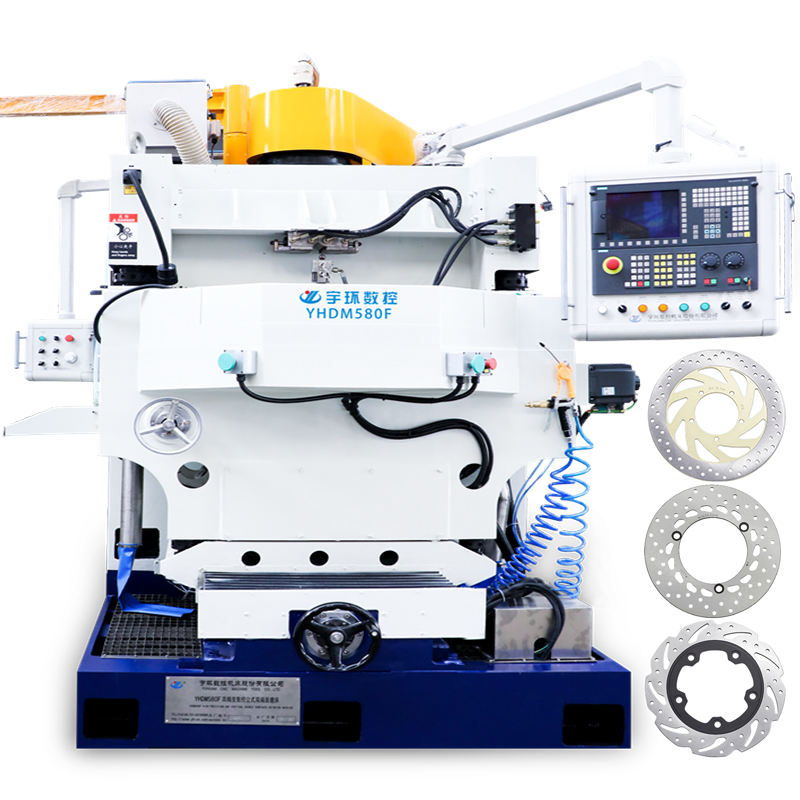

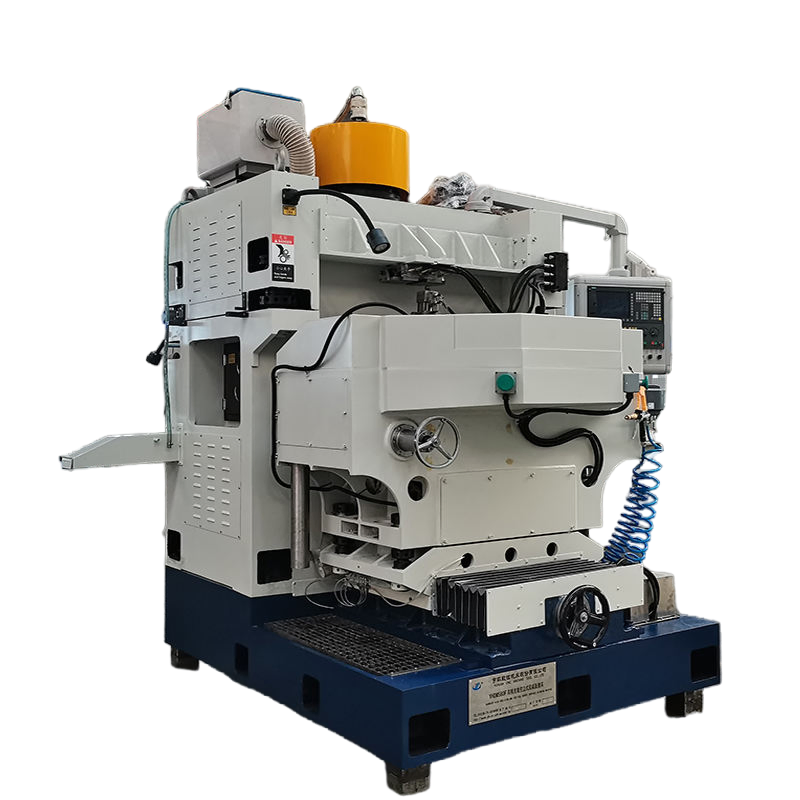

YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
1 / 5
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm
YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm

YHDM580F Double Disc Surface Grinding Machine for upper and lower parallel planes of thin ring-shaped parts motorcycle brake disc valve disc φ190~φ320mm

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
YHDM580F
Type
Surface Grinding Machine
Processing Object
Motorcycle Brake Disc, Valve Plate, etc.
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE
Diameter of Parts
190~320mm
Thickness of Parts
3.5-5mm
Max Motor Speed
1250 R/Min
Power
22kw X 2
Control System
Siemens 828
Product Overview
Double Disc Surface Grinding Machine
Machine Detail

Main Purpose

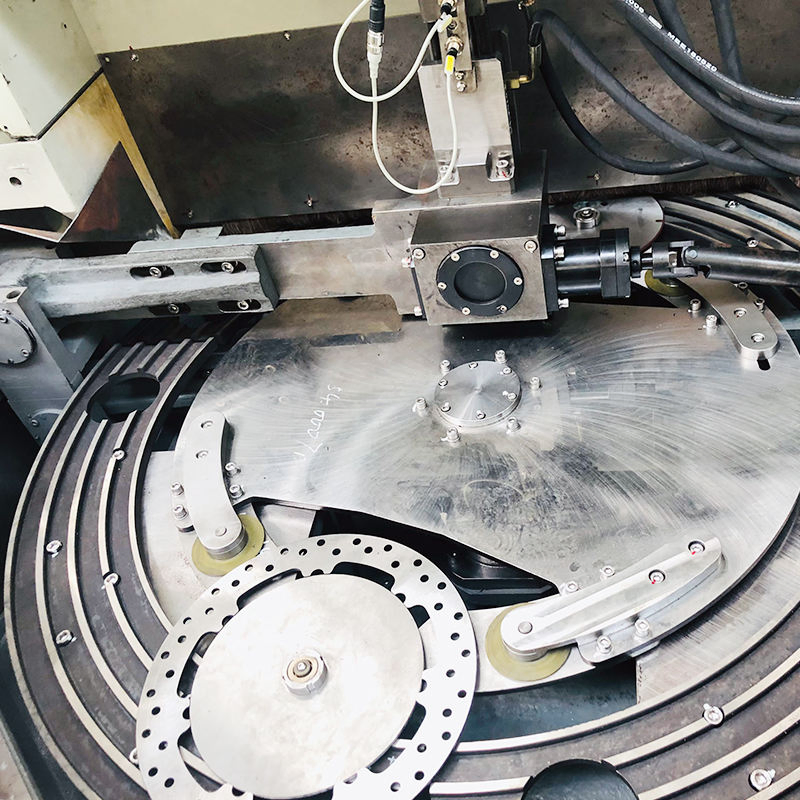

It is suitable for high-efficiency, high-precision and large-removement grinding of the upper and lower parallel planes of various thin ring-shaped parts such as valve discs and motorcycle brake discs (Workpiece Dia: φ190~φ320mm, Thickness 3.5-5mm).

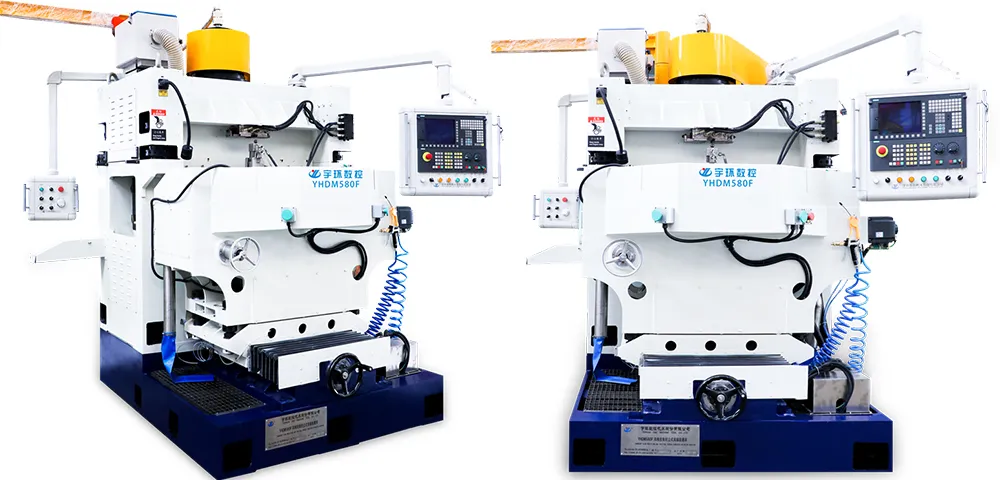

Technical Drawing 1

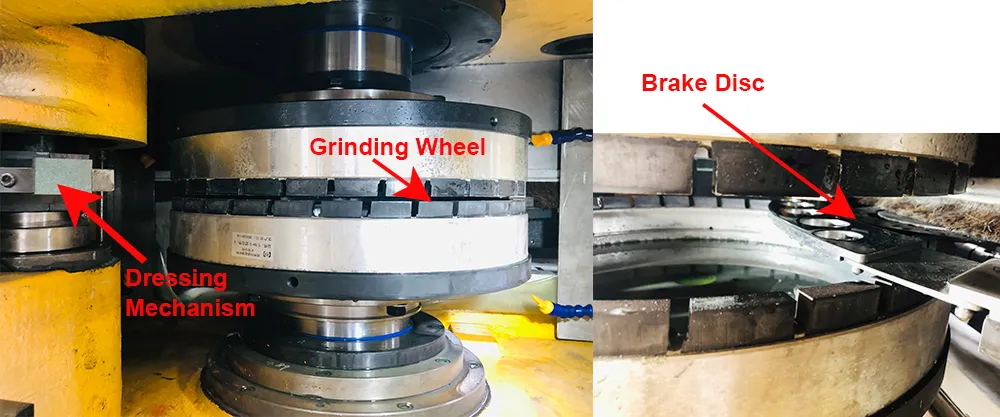

Technical Drawing 2

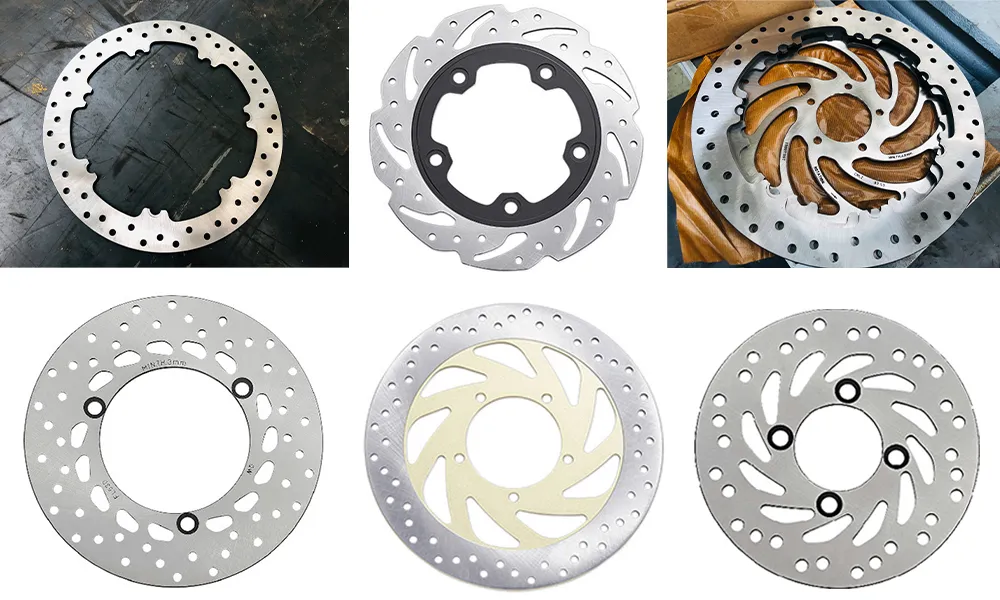

Technical Drawing 3

Technical Characters

  • High-Precision ProcessingPrecision Engineering: Equipped with precision guide ways and servo control systems, achieving a circumferential/radial thickness difference of ≤0.01mm and surface roughness within Ra 0.4μm, with flatness ≤0.05mm.
  • Efficient Double-Sided GrindingSimultaneous Operation: The double grinding wheels work simultaneously to complete double-sided processing at one time, improving production efficiency.
  • Intelligent ControlCNC System: Features a CNC numerical control system supporting parameterized programming for quick changes between different specifications.
  • Sturdy and Durable StructureHeavy-Duty Construction: Built with heavy cast iron for strong vibration resistance and long-term stability.
  • Safety and Environmental ConsiderationsFully enclosed protective cover with safety interlocks meets industrial safety standards.
Technical Parameters
Item/Product Model Unit YHDM580F
Workpiece diametermmΦ190-Φ320
Workpiece thicknessmm3.5-5
Wheel sizemmΦ570xΦ535
Grinding head motorkw22 x 2
Max grinding head speedrmp1250
Machine qualitykg8000
Machine Dimensions (L x W x H)mm1850x1950x2650
Product Application & Workshop

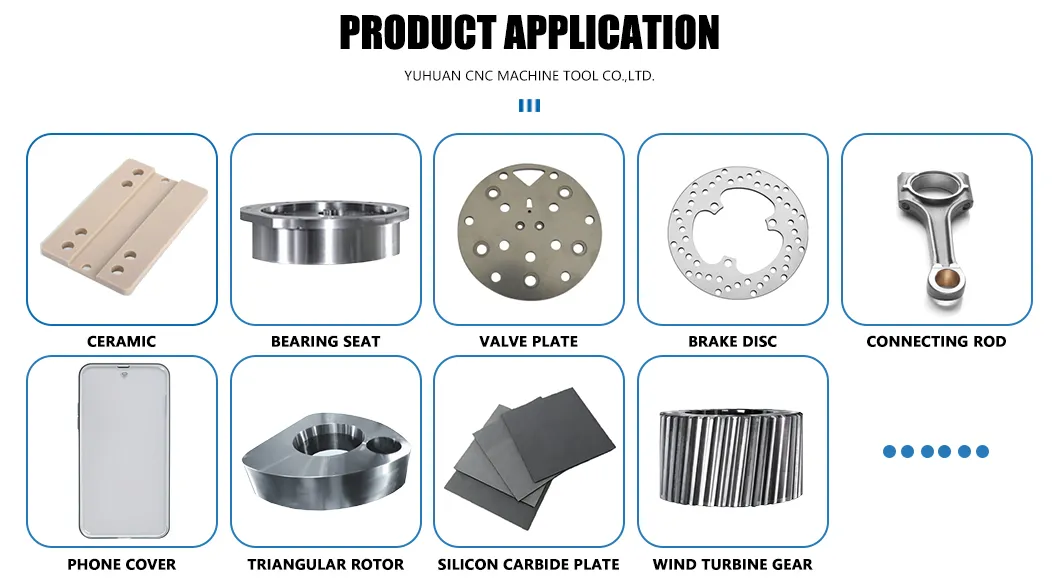

Product Application

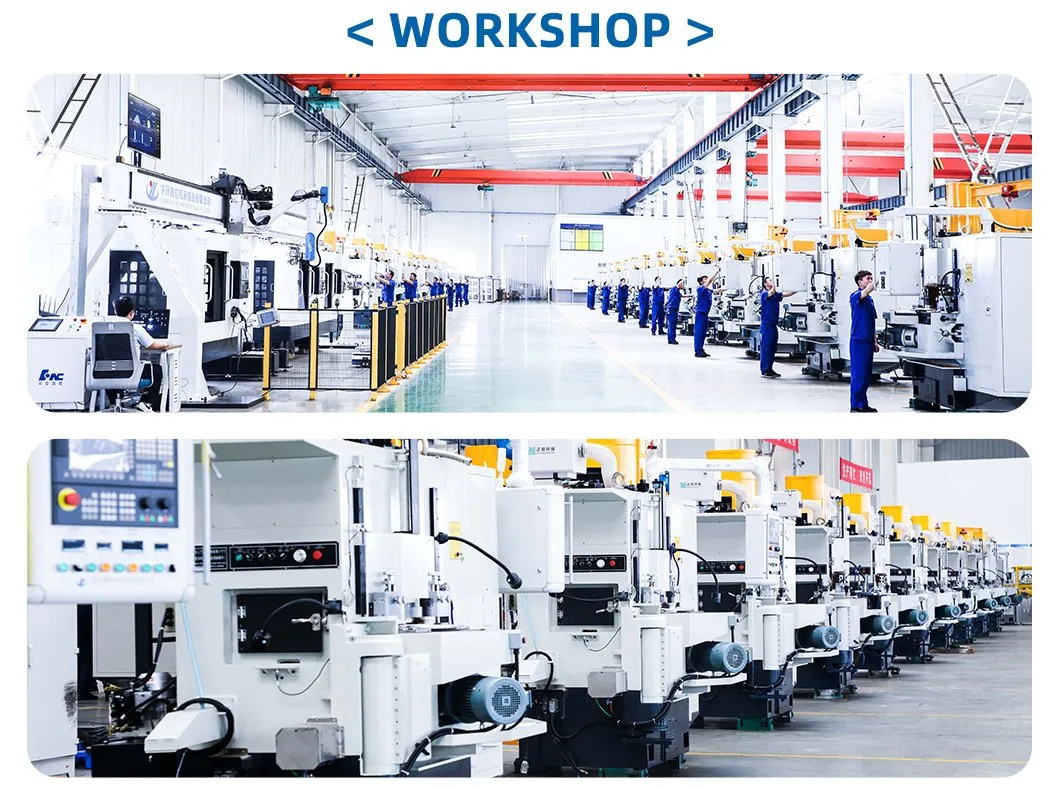

Workshop View 1
Workshop View 2
Exhibition & Certifications
Exhibition 1
Exhibition 2
Certifications
Packaging & Shipping
Packaging Detail
Frequently Asked Questions
What types of machine tools do you offer?
We specialize in CNC double-end grinding machines, vertical/horizontal polishing machines, CNC broaching machines, and fully automated grinding-polishing lines.
Can I request customized solutions based on my part drawings?
Yes, we provide one-stop custom solutions. Just share your workpiece drawings, materials, and tolerance requirements, and our R&D team will design a suitable plan.
What industries are your machines widely used in?
Our machines are widely used in the automotive, aerospace, hydraulic, bearings, semiconductors, and precision machinery industries.
What is the lead time for standard and customized machines?
Standard machines take approximately 30-45 working days, while customized machines require 60-90 working days depending on complexity.
How do you guarantee product quality before shipment?
We conduct full machine testing, geometric accuracy inspection, trial operation, and issue detailed inspection reports before every shipment.
What after-sales service do you provide to overseas clients?
We provide remote video technical support, online troubleshooting, overseas engineer dispatch, spare parts supply, and professional training services.
