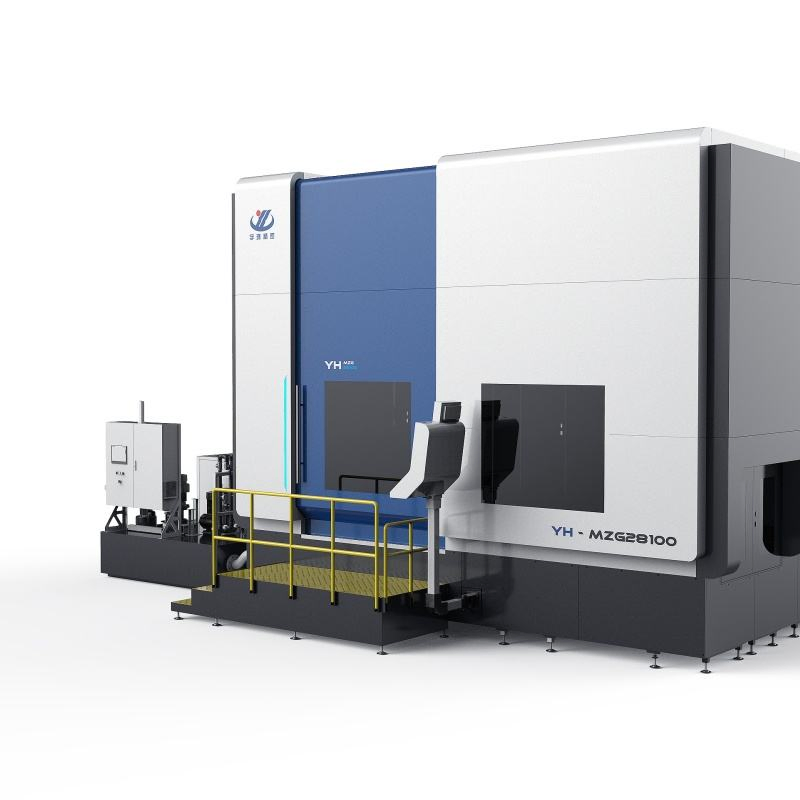

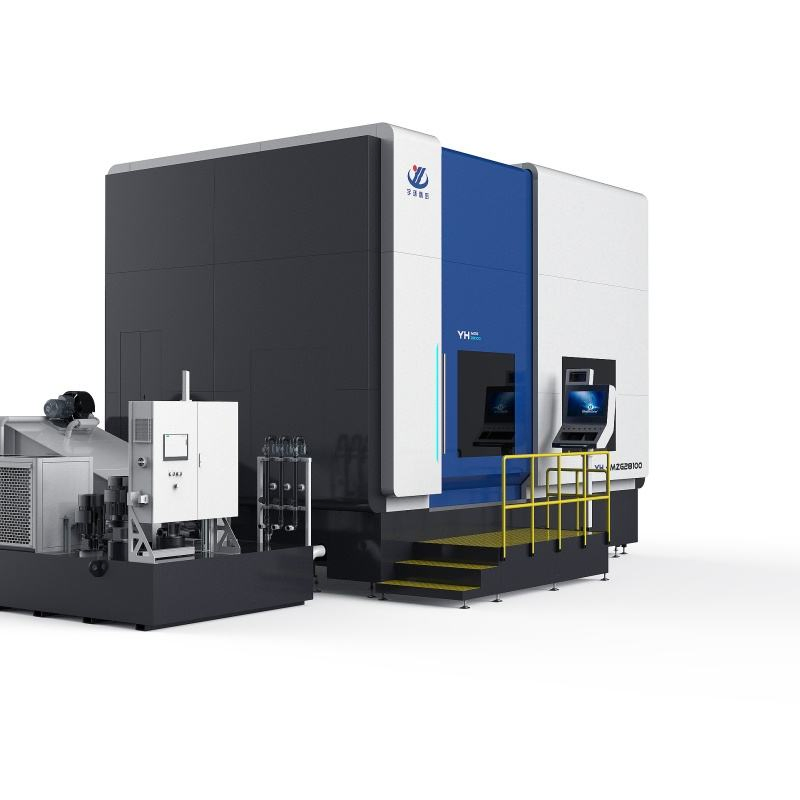

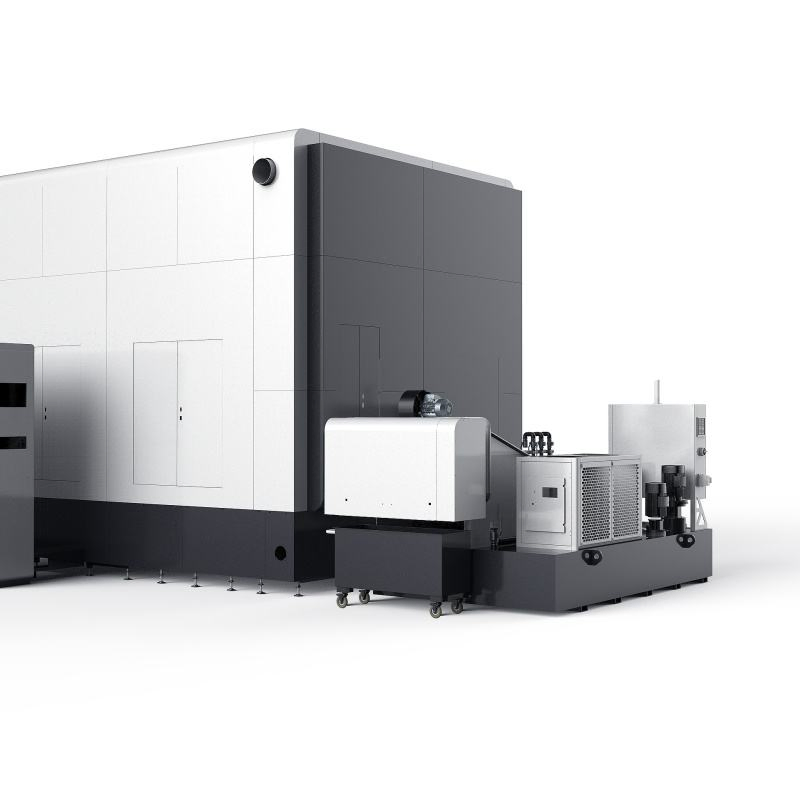

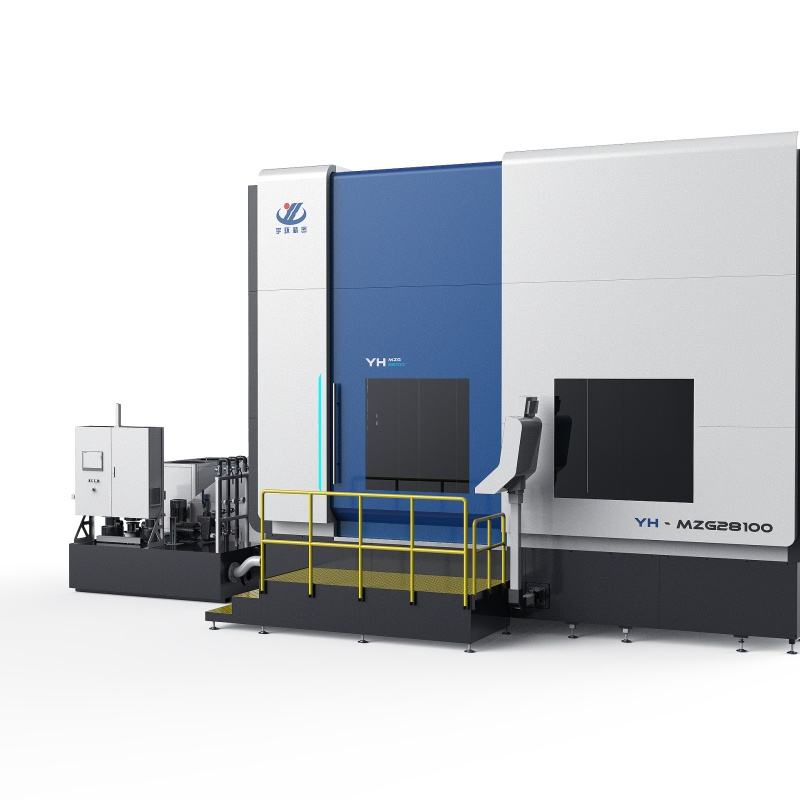

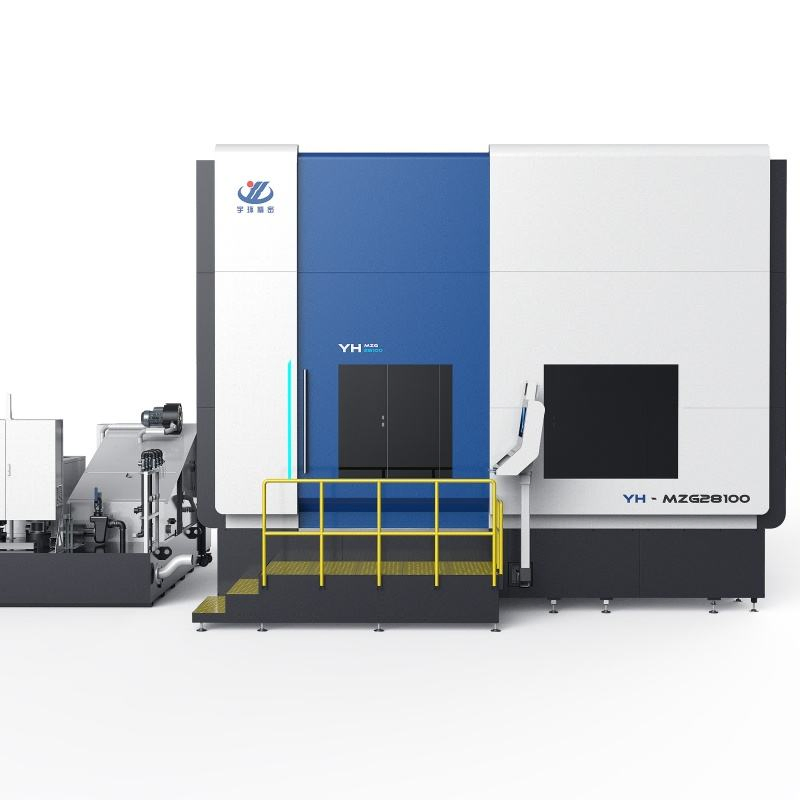

YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts

Customization:	Available
After-sales Service:	Provided
Type:	Vertical Grinding Machine

ℹ️

Basic Specifications

Model NO.

YH-MZG28100

Processing Object

Automotive/Seal Parts/Piston Ring/Ceramics Etcs

Abrasives

Grinding Wheel

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

ISO 9001

Condition

New

Turret diameter

φ1000 mm

Max swing diameter

φ1200 mm

Max workpiece height

650 mm

Max workpiece weight

2000 Kg

⚙️

Product Description

YH-MZG28100 High-Precision Vertical Grinding Solution is widely used in aerospace, rail transit, machine tool manufacturing, automotive parts, shipbuilding, semiconductor industry, and other fields. It meets the rigorous requirements for high precision and high surface quality in parts processing.

It achieves efficient grinding of internal holes, external circles, end faces, conical surfaces, straight teeth, arc end teeth, and non-circular contour surfaces. Accuracy standards: IT3~IT1 grade, surface roughness ≤Ra0.2.

Key Features

1. Multi-processMultiple processes completed in a single clamping for maximum efficiency.

2. Multi-functionCNC axis linkage functions allow for complex profile machining.

3. High RigidityLiquid hydrostatic technology ensures high load capacity and structural stability.

4. High Convenience3D simulation human-computer interaction and full-function CNC package.

5. High EfficiencyAutomatic transition between multi-head processes for surface and profile grinding.

6. High PrecisionDirect drive technology ensures extreme accuracy and long-term precision retention.

Item	Parameter	Item	Parameter
Table size	φ800mm	Workbench Beat (Radial/End)	≤ 0.001mm
Max grinding height	650mm	B-axis rotation angle	0~285°
Max load capacity	1500 Kg	X-axis movement speed	0.01 ~ 10m/min
Table speed (stepless)	0.01-100 rpm	Z-axis movement speed	0.01 ~ 8m/min
Spindle Max Speed	8000rpm (18000 optional)	Positioning Accuracy	±0.003mm

📊

Product Series Range

Model	Turret Diameter (mm)	Max Swing Dia (mm)	Max Workpiece Height (mm)	Max Weight (Kg)
YHJMKG2835	φ350	φ500	400	800
YHJMKG2860	φ600	φ750	500	1000
YHJMKG2880	φ800	φ1000	650	1500
YHJMKG28100	φ1000	φ1200	650	2000
YHJMKG28125	φ1250	φ1500	650	3000
YHJMKG28160	φ1600	φ1850	850	5000

🖼️

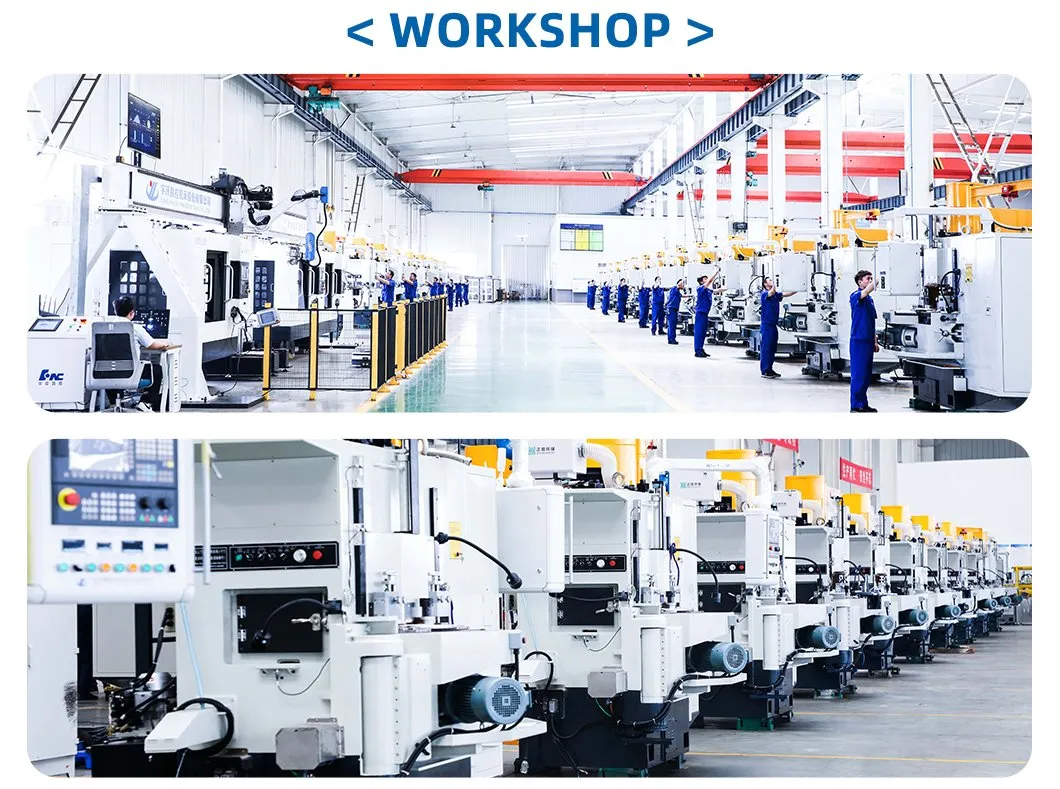

Applications & Workshop

❓
