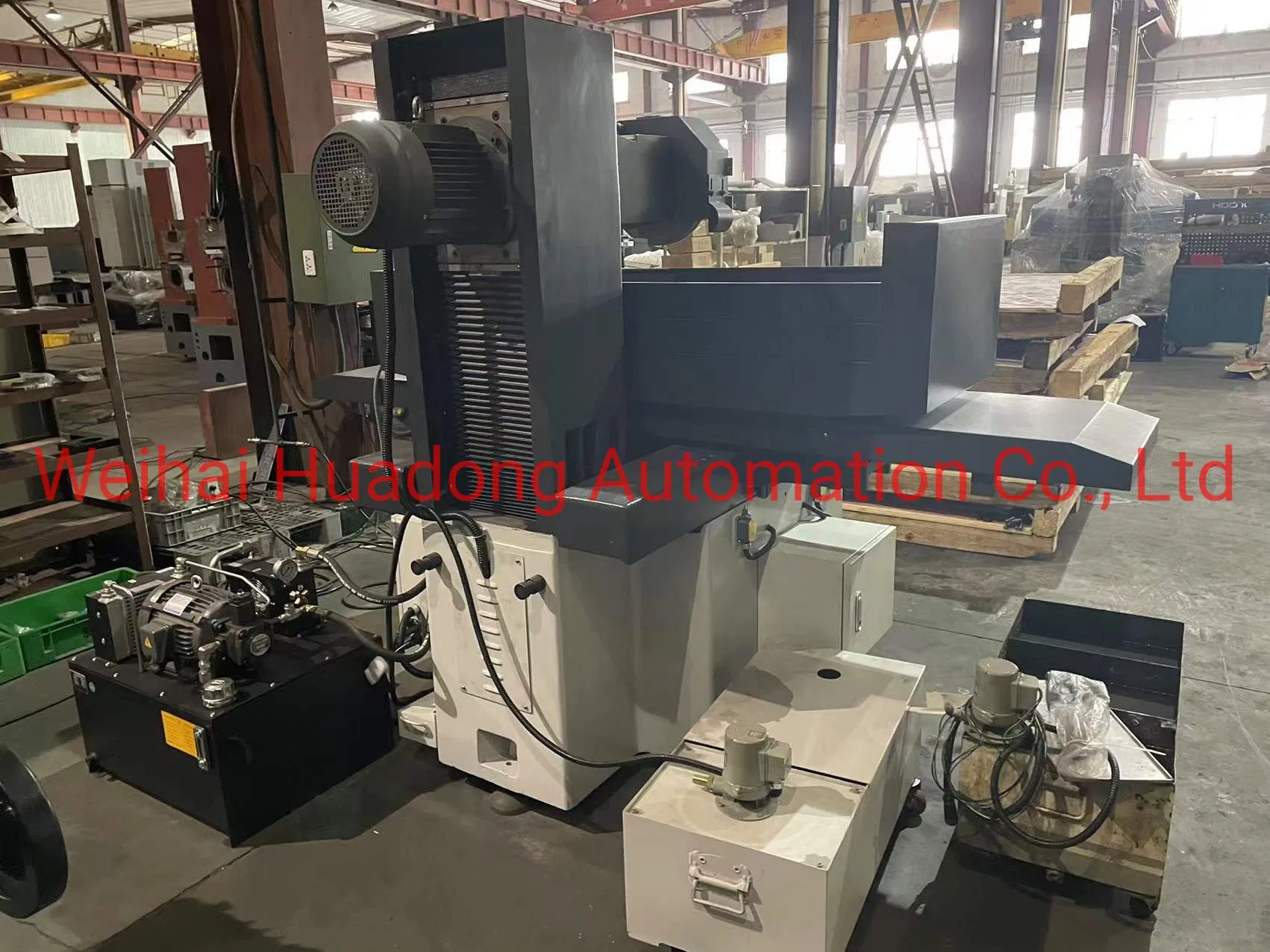

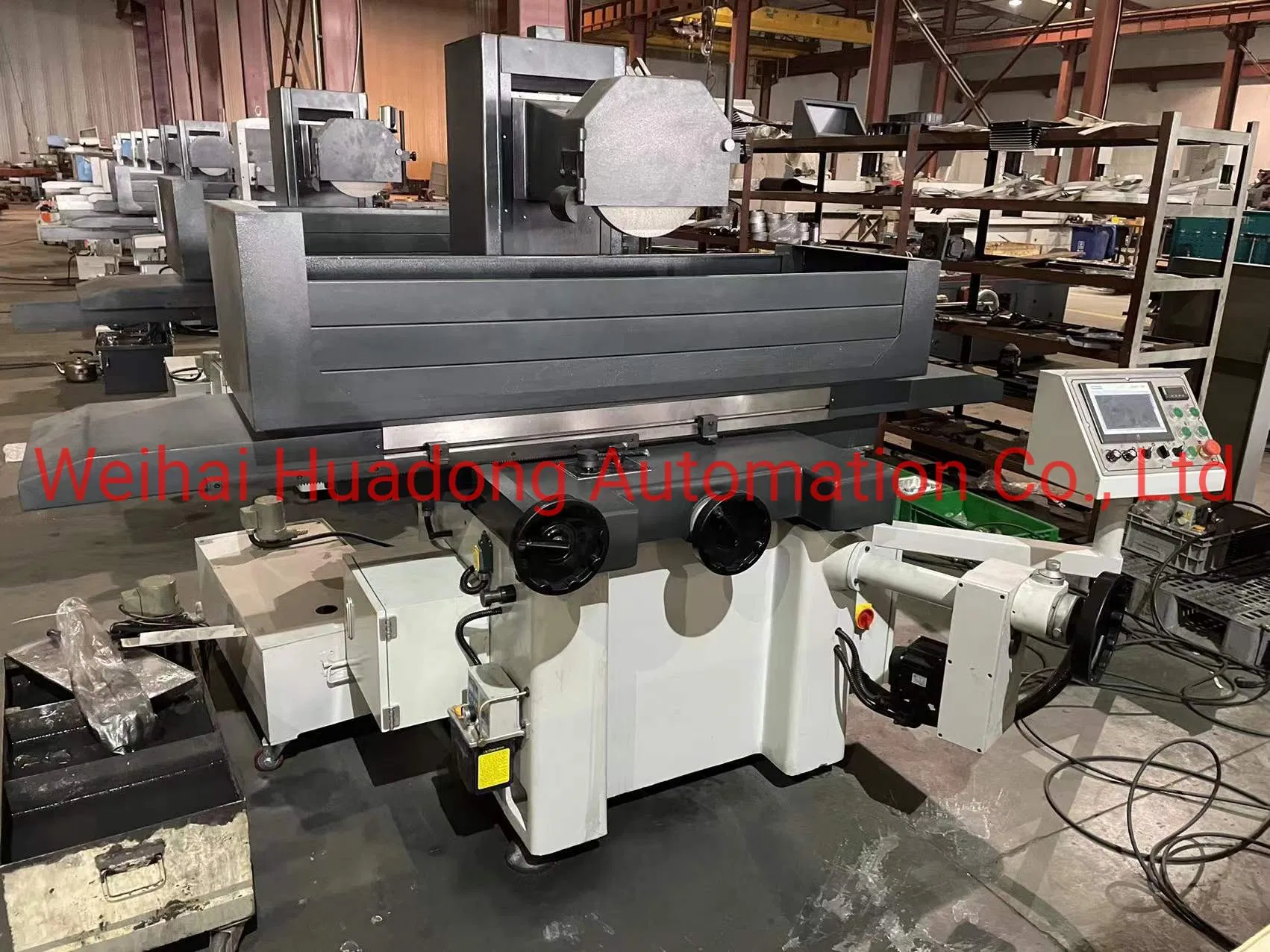

Factory Direct Sale Low Cost Cheap Price CE Good Quality Surface Grinder Manual Grinding Machine

1 / 5

Factory Direct Sale Low Cost Cheap Price CE Good Quality Surface Grinder Manual Grinding Machine

Customization:	Available
After-sales Service:	All Free Within Warranty
Warranty:	1 Year

Send Inquiry

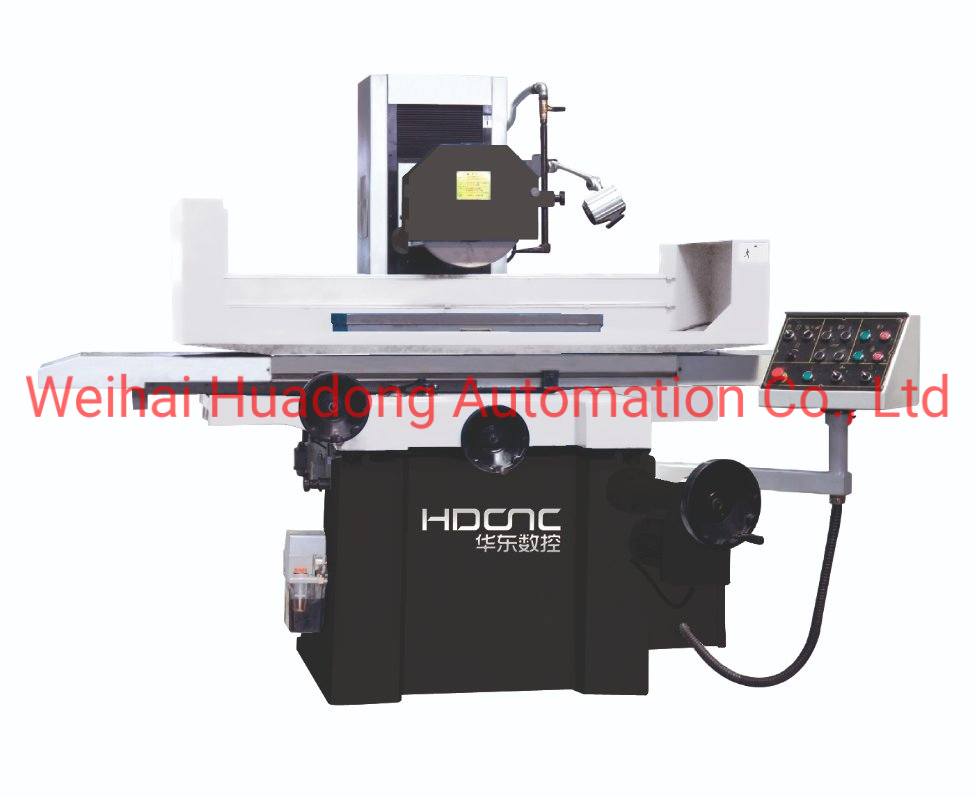

Product Description

Basic Specifications

Model NO.:SGA2550 3063 4080 30100 40100

Type:Surface Grinding Machine

Processing Object:Metal, Ceramic, etc

Abrasives:Grinding Wheel

Automatic Grade:Automatic

Precision:Normal Precision

Certification:CE, RoHS, ISO 9001

Spindle Bearing:NSK P4 Grade

Electrical Elements:CE Standard

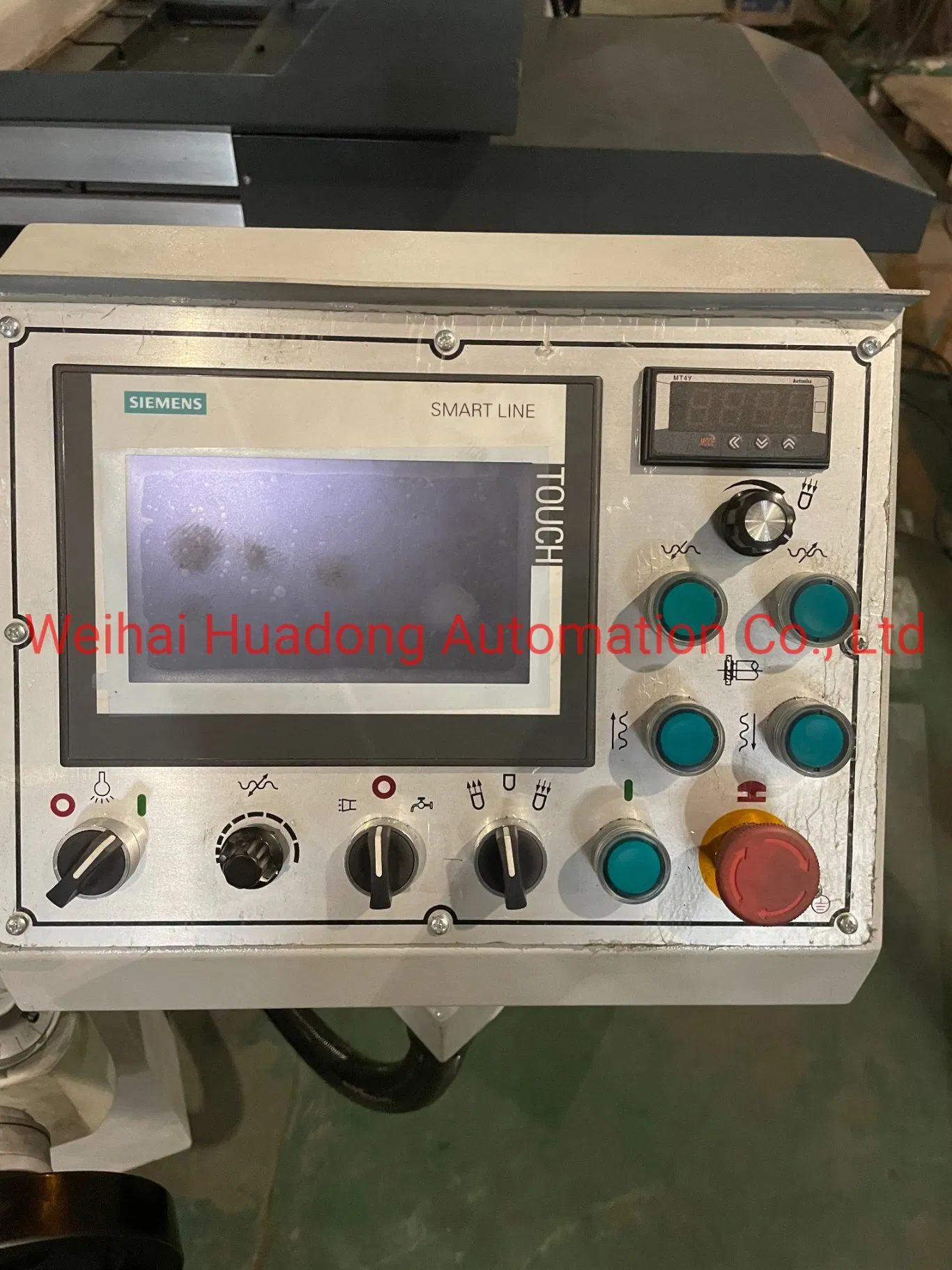

PLC:Siemens

Auto Downfeed:0.005mm

Transport Package:Wooden Pallet or Wooden Case

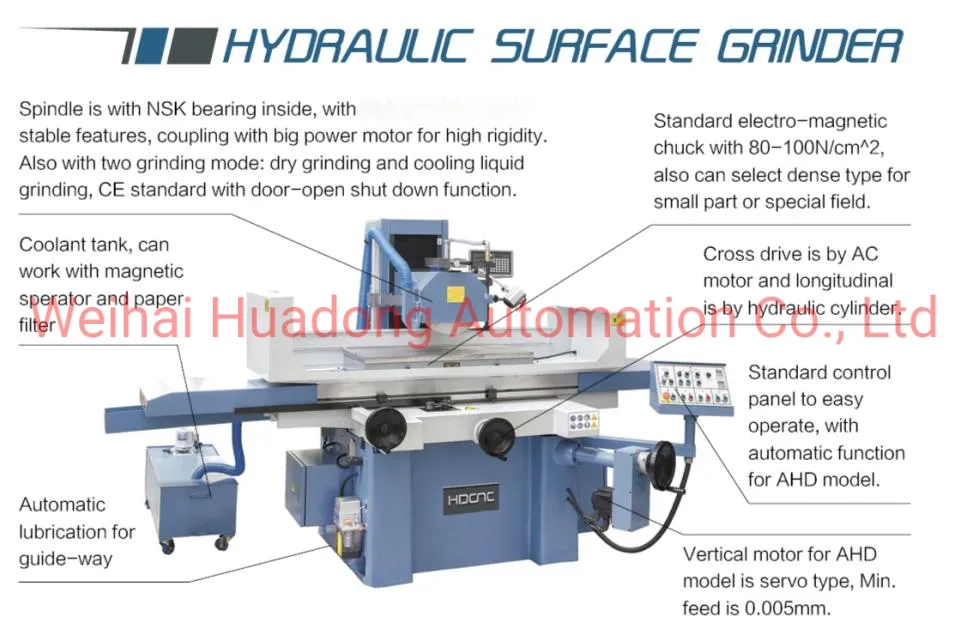

Machine Features

Detailed Parameters

Specifications		SG2050 Series	SGA2550 Series	SGA3063 Series	SGA4080 Series	SGA30100 Series	SGA40100 Series
Table Size (W*L)	mm	200*460	250*500	305*635	406*813	305*1020	406*1020
Max. Longitudinal Travel	mm	510	560	765	910	1130	1130
Max. Transverse Travel	mm	238	275	340	450	340	450
Magnetic Chuck Size	mm	200*460	250*500	300*600	400*800	300*1000	400*1000
Wheel Speed	Rpm	2850	2850	1450	1450	1450	1450
Spindle Motor	Kw	1.5	2.2	5.5	5.5	5.5	5.5
Gross Weight	Kg	1600	1800	2600	3300	3200	3800

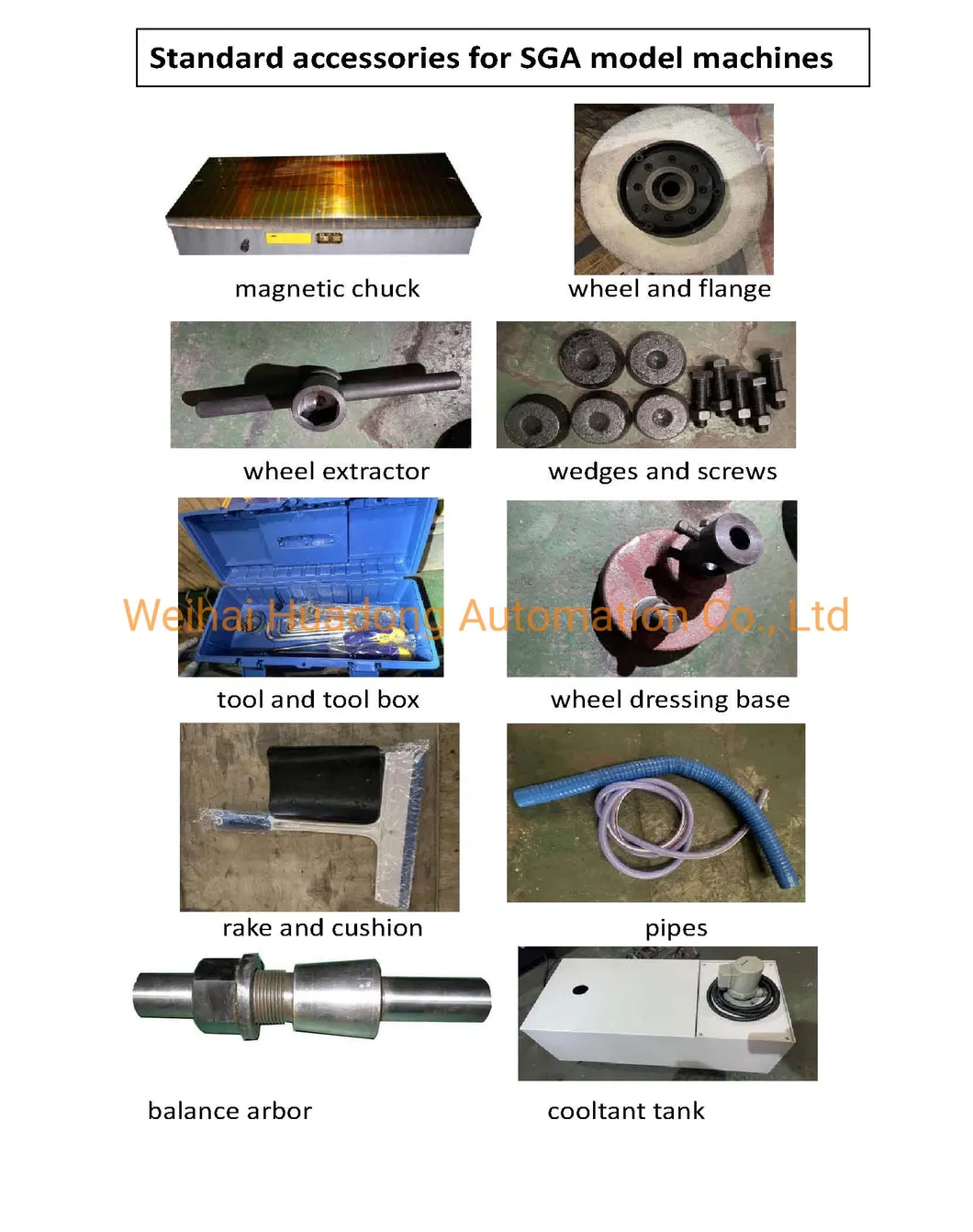

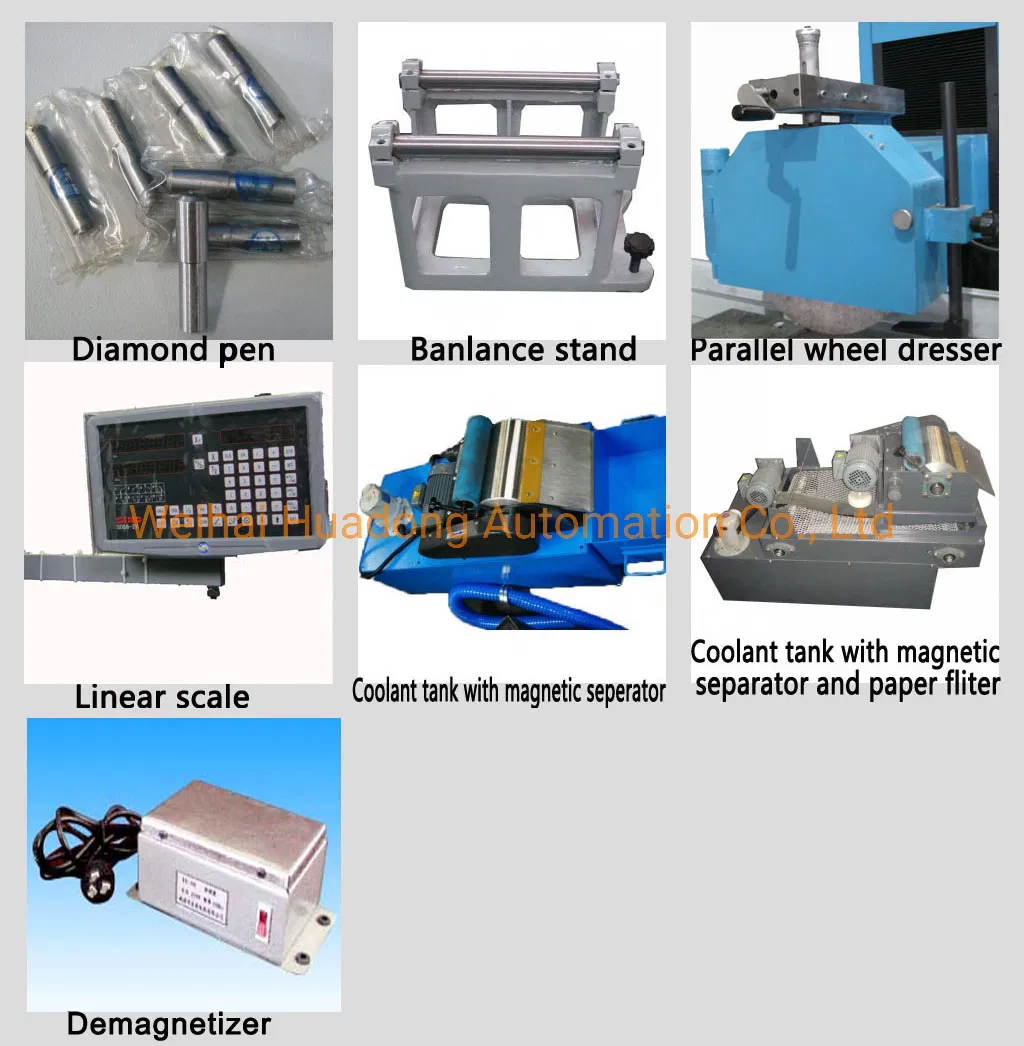

Standard & Optional Accessories

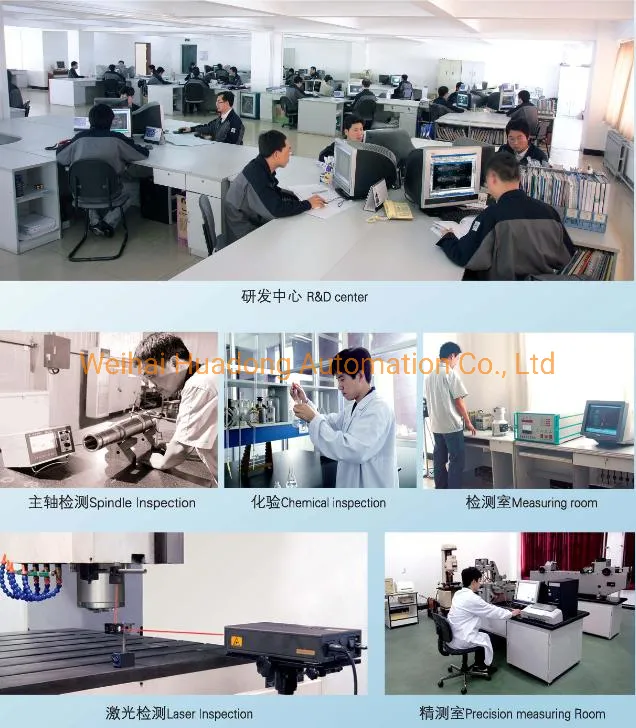

Manufacturing & Workshop

Key Advantages

Direct manufacturing ensures product quality and effective after-sales support.
Over 50 years of manufacturing experience and 30 years in international trade.
Strong reputation for machine quality among global industry leaders.
Equipped with high-end components like Siemens PLC and NSK P4 bearings.

After-Sales Services

I. During the warranty period, faults due to design or manufacturing quality will be treated with free replacement of parts.

II. Post-warranty period, lifelong paid maintenance and technical support are provided indefinitely.

III. Long-term provision of spare parts at preferential prices.

IV. Standard one-year warranty after the machine leaves the facility.

Global Exhibitions

Frequently Asked Questions

Q1: What materials can the surface grinding machine process? A: The SGA series is designed to process various materials, including metals, ceramics, and other hard workpieces requiring high precision.

Q2: What is the precision level of these machines? A: Our machines offer normal to high precision with an automatic downfeed rate as fine as 0.005mm.

Q3: Which key components are used in the machine? A: We use world-class components, including Siemens PLC systems and NSK P4 grade spindle bearings to ensure reliability.

Q4: How is the machine shipped safely? A: Machines are securely packed in either wooden pallets or reinforced wooden cases to prevent damage during international transport.

Q5: What kind of after-sales support do you offer? A: We provide a one-year warranty, lifelong technical support, and continuous availability of spare parts at preferential pricing.
