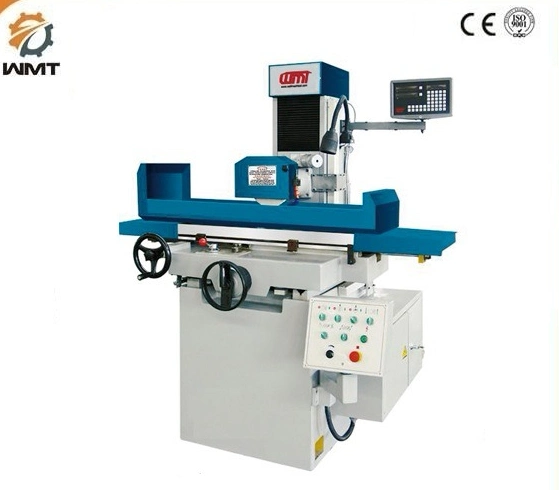

M7125A Automatic Surface Grinding Machine with CE Standard
M7125A Automatic Surface Grinding Machine with CE Standard
M7125A Automatic Surface Grinding Machine with CE Standard
M7125A Automatic Surface Grinding Machine with CE Standard
1 / 4
M7125A Automatic Surface Grinding Machine with CE Standard
M7125A Automatic Surface Grinding Machine with CE Standard
M7125A Automatic Surface Grinding Machine with CE Standard
M7125A Automatic Surface Grinding Machine with CE Standard

M7125A Automatic Surface Grinding Machine with CE Standard

Customization: Available
Type: Surface Grinding Machine
Processing Object: Gear
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
M7125A
Abrasives
Grinding Wheel
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Grinding Capacity
500X250X330mm
Spindle Speed
2850r/Min
HS Code
8460190000
📝 Product Description
Main Features:
M7125A: Hydraulic longitudinal travel and cross travel with hand adjustment, rapid up and down movement motorised with fine adjustment.
M7125A-1: Full automatic model with hydraulic longitudinal travel and motorised cross travel.
Equipped with rapid up and down movement motorised systems.
High precision fine adjustment capabilities for vertical movement.
Model Specification M7125A (Semi-auto) M7125A-1 (Full-auto)
Grinding Capacity (LXBXH) 500X250X330mm
Longitudinal Table Travel 550mm (21-5/8") 520mm (20-1/2")
Cross Table Travel 275mm (21-5/8")
Spindle Centerline to Table 410mm (16-1/8")
Table Size 500X250mm
Bench Speed 3-23m/min
Wheel Size (OD x B x ID) 200x16x31.75mm
Spindle Motor 1.1kw
Vertical Fine Adjustment Graduation 0.002mm
🖼️ Machine Details

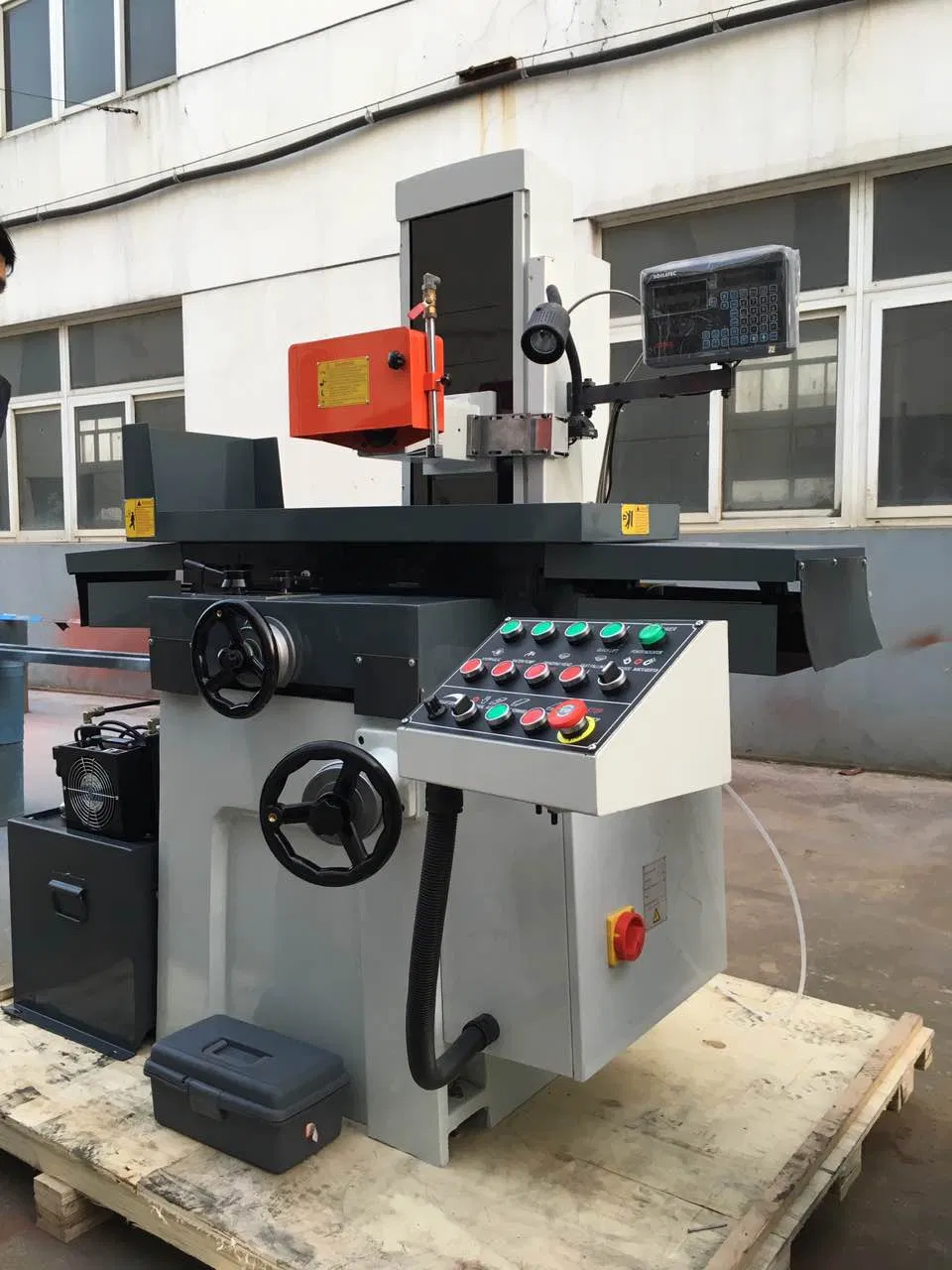

Surface Grinding Machine Detail 1

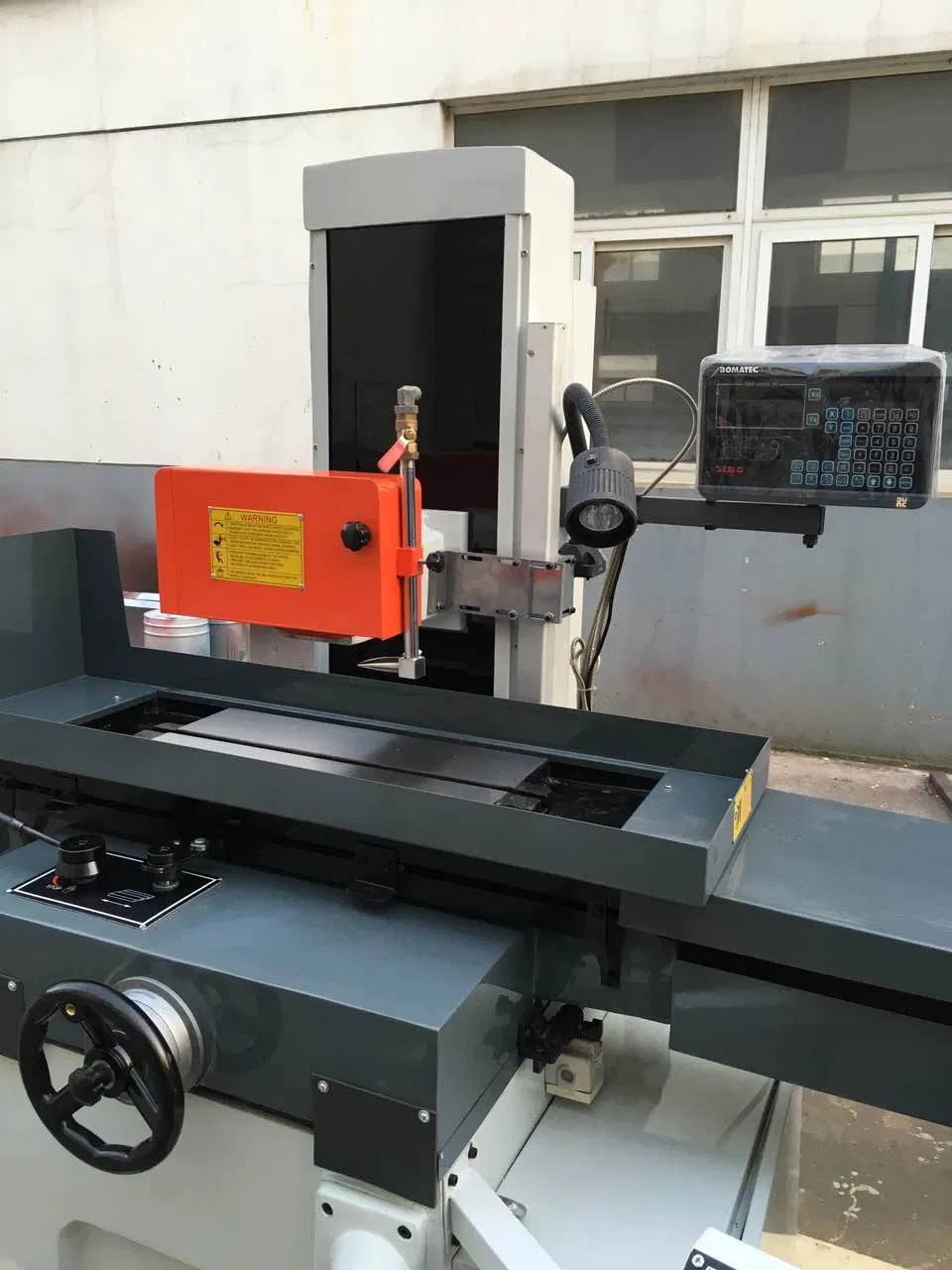

Surface Grinding Machine Detail 2

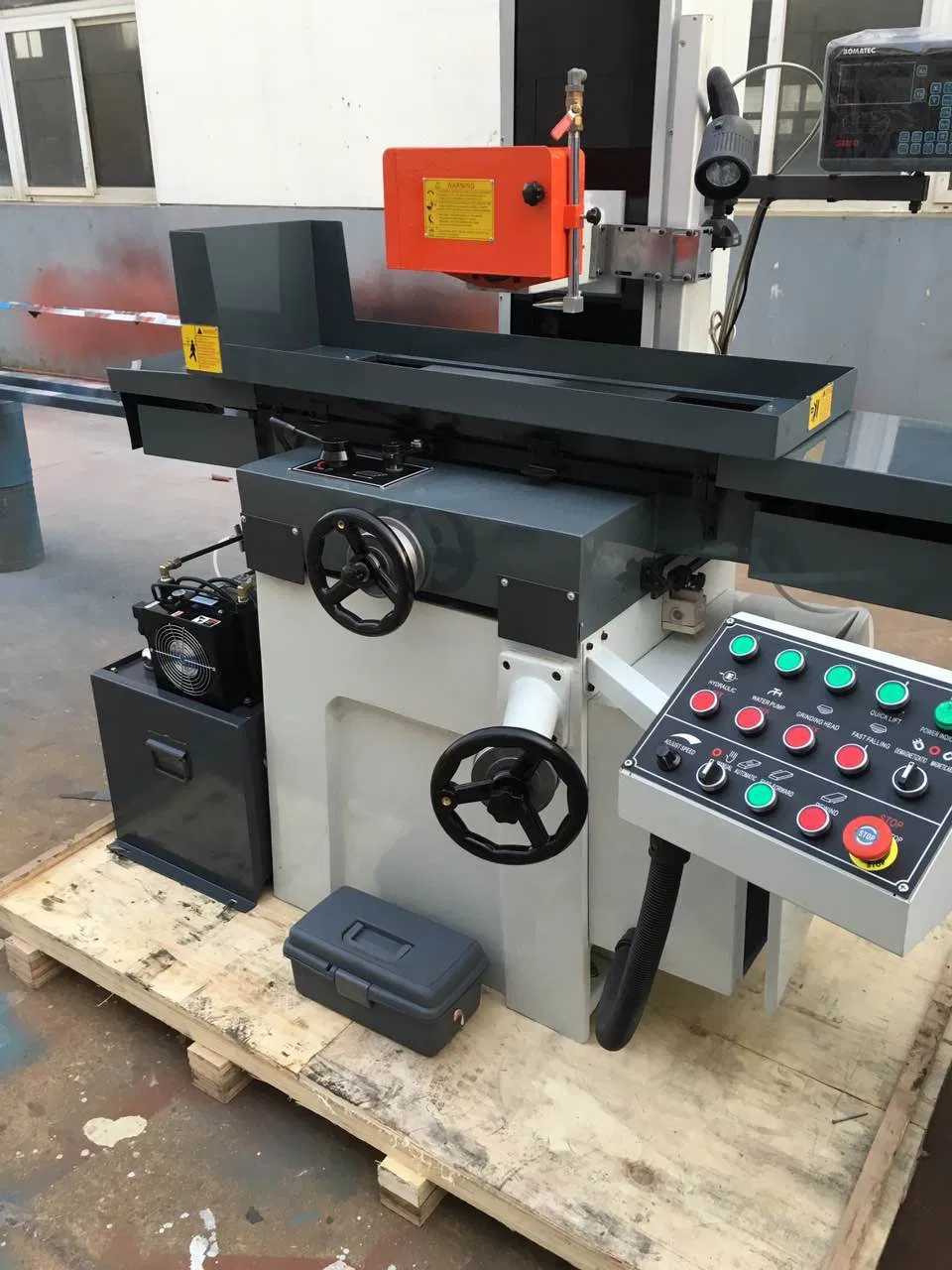

Surface Grinding Machine Detail 3

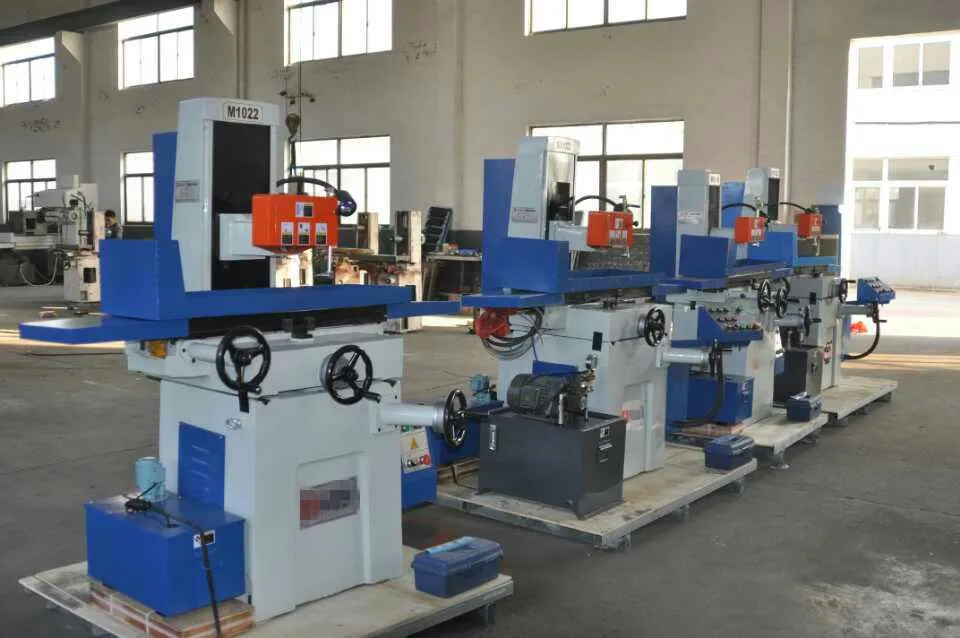

Surface Grinding Machine Detail 4
❓ Frequently Asked Questions
QHow is the warranty for this grinding machine?
The warranty period is 13 months starting from the BL date.
QAre the machines available in stock?
Most machines are produced according to specific orders. However, during exhibition periods, limited samples may be available.
QWhat is the Minimum Order Quantity (MOQ)?
The MOQ is just one set.
QWhat quality certifications do your products hold?
Our processes follow ISO9001:2008 standards. Most products are approved by European and American safety standards, including CE, GS, and UL, ensuring high reliability for global markets.
QDo you provide professional engineering support?
Yes, we have professional engineers and designers ready to assist, and we can provide OEM services as needed.
QCan the machines be customized?
Yes, we can design and manufacture equipment according to your specific industrial requirements.
