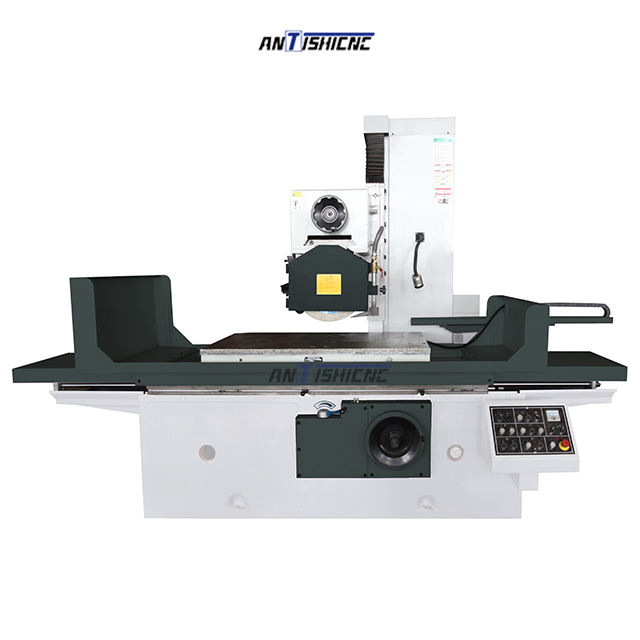

Antishicnc M7130A Wheel Head Moving Metal Surface Grinder M71 Series Factory Surface Grinding Machine

1 / 5

Antishicnc M7130A Wheel Head Moving Metal Surface Grinder M71 Series Factory Surface Grinding Machine

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

ℹ️

Basic Info

Model NO.

M7130A

Type

Surface Grinding Machine

Processing Object

Metal Tools Surface

Abrasives

Grinding Wheel

Controlling Mode

PLC

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Table Size(mm)

1000*300

Weight (Kg)

3500

Surface Roughness

Ra0.63um

Voltage

220V/380V 50Hz

⚙️

Product Description

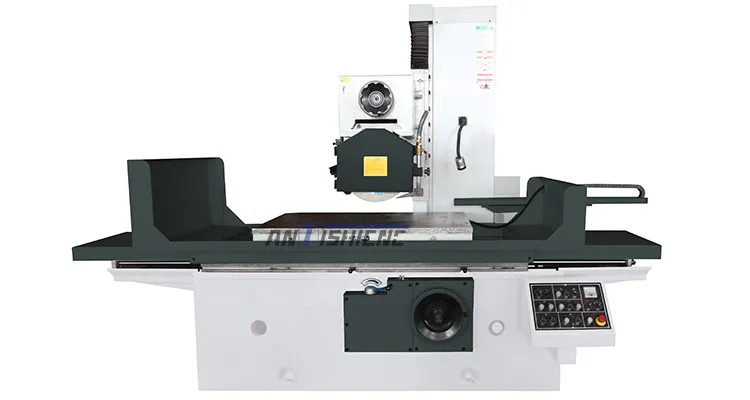

The M7130A Wheel Head Moving Metal Surface Grinder is a heavy-duty factory grinding machine equipped with a magnetic chuck. It is designed for high-efficiency grinding of metal tool surfaces with exceptional precision.

Description	Unit	M7130A Specifications
Table size(L*W)	mm	1000*300
Max. grinding size of work piece	mm	1000300400
Longitudinal travel	mm	200-1100
Table longitudinal speed	mm/min	3-27
Distance from spindle center to table surface	mm	600
Magnetic chuck size	mm	300*1000
Wheel size (ODWidthID)	mm	40040127
Spindle speed	r/min	1440
Total rated power	KW	11
Surface roughness	μm	Ra0.63
Gross weight	kg	3500

💎

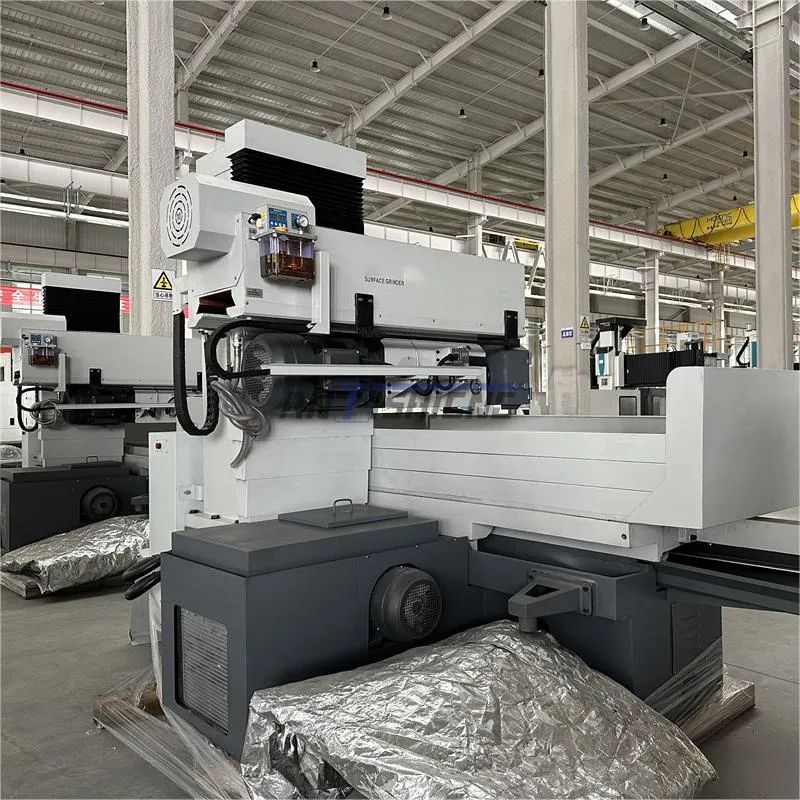

Key Features & Details

High strength cast iron foundation for maximum stability.
Machine transverse moves hydraulically or manually.
Longitudinal moves hydraulically with variable speed control.
Vertical moves via manual or motor drive.
Suitable for heavy-duty grinding with high efficiency.
Forced lubrication guideway to prolong machine service life.

📦

Equipment List

Standard Equipment

Coolant system, Working light, Leveling wedges, Foundation screw, Wheel flange, Wheel balance arbor, Magnetic chuck, Standard wheel, Operation manual, Wheel dressing base.

Optional Equipment

Diamond pen, Magnetic separator, Wheel balance stand.

🚛

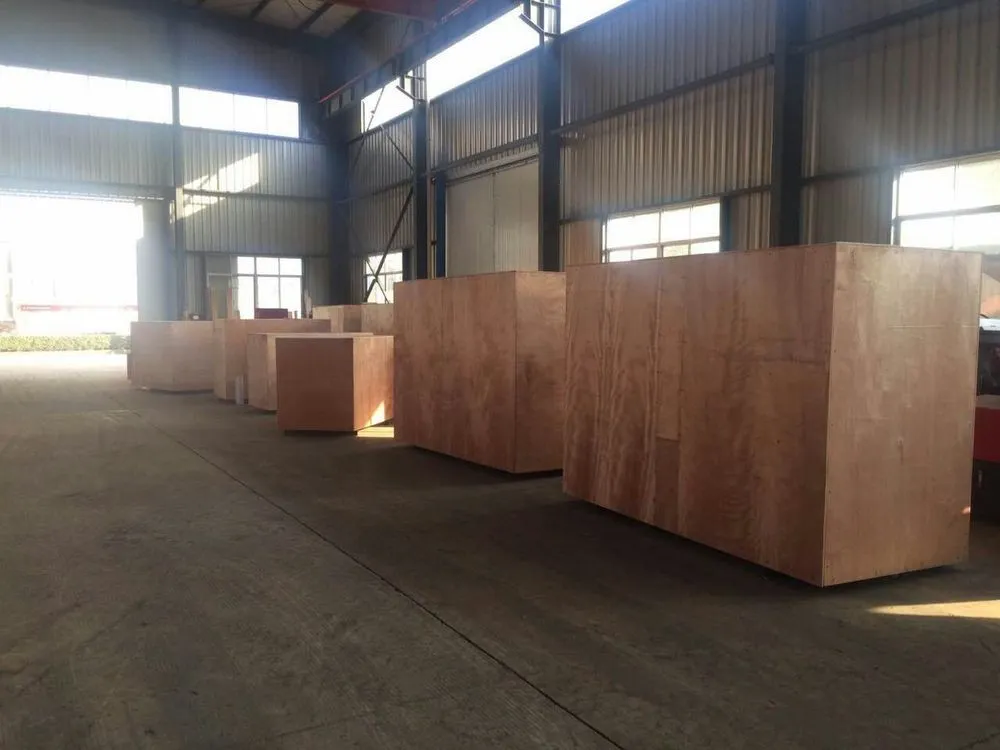

Packing & Delivery

Notice: Factory ordinary packaging is provided for standard shipments.

❓

Frequently Asked Questions

What materials can the M7130A grind?

The machine is specifically designed for metal tools and surfaces, utilizing a high-performance grinding wheel for precise results.

Is the table movement automatic?

The longitudinal movement is hydraulic with variable speeds, while transverse and vertical movements can be operated manually or via motor/hydraulics depending on the configuration.

What is the precision level of this surface grinder?

The M7130A is a high-precision machine capable of achieving a surface roughness of Ra0.63μm.

What certifications does this machine hold?

The machine is fully compliant with CE and ISO 9001 standards, ensuring international quality and safety requirements are met.

What is included in the standard cooling system?

The standard equipment includes a complete coolant system and a working light to ensure optimal operating conditions and visibility.

Can the machine handle heavy-duty workloads?

Yes, the foundation is made of high-strength cast iron and features a forced lubrication guideway, making it ideal for heavy-duty industrial grinding.
