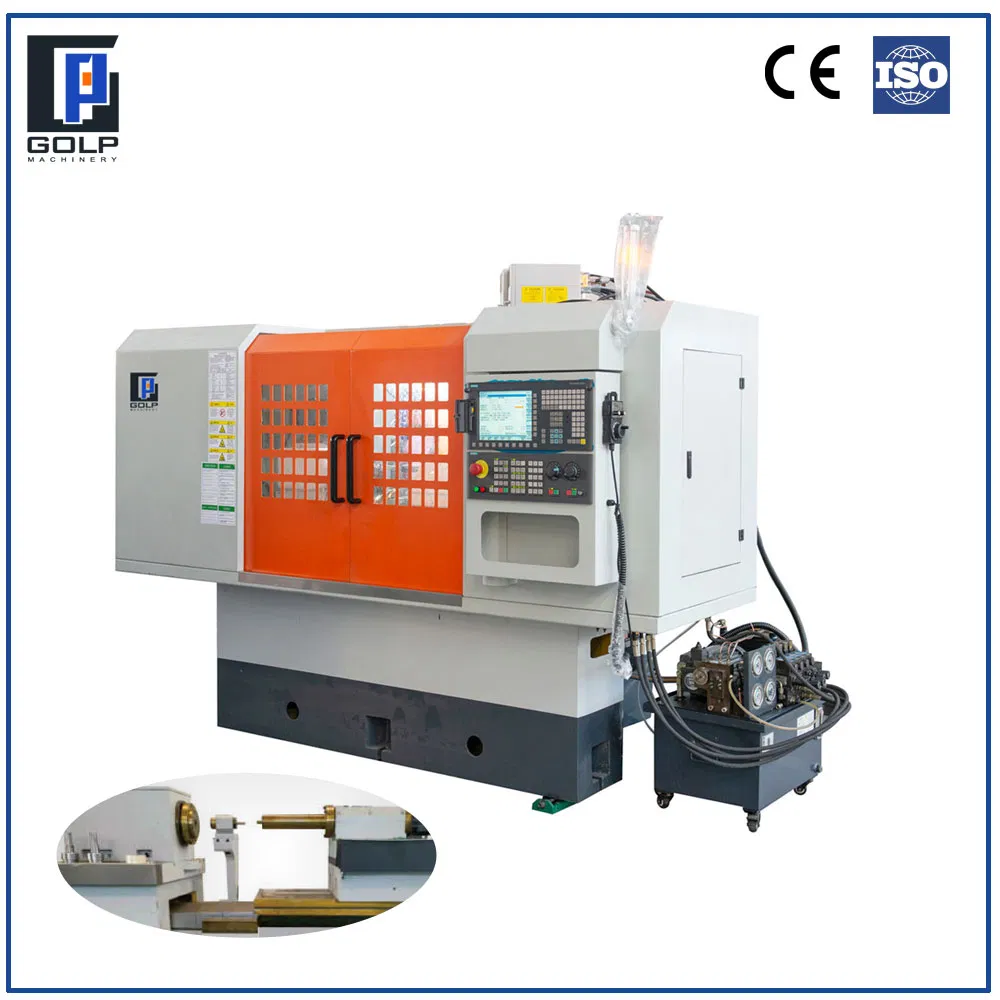

High Speed Precision CNC Internal Surface Grinder for Grinding Dia. 500mm Mould Mold Parts

Customization:	Available
After-sales Service:	Available
Warranty:	2 Years

⚙️

Basic Specifications

Model NO.

GK250

Type

Internal Grinding Machine

Processing Object

Gear

Abrasives

Grinding Wheel

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Rated Power

10-20kw

Weight

4800 kg

📘

Product Description

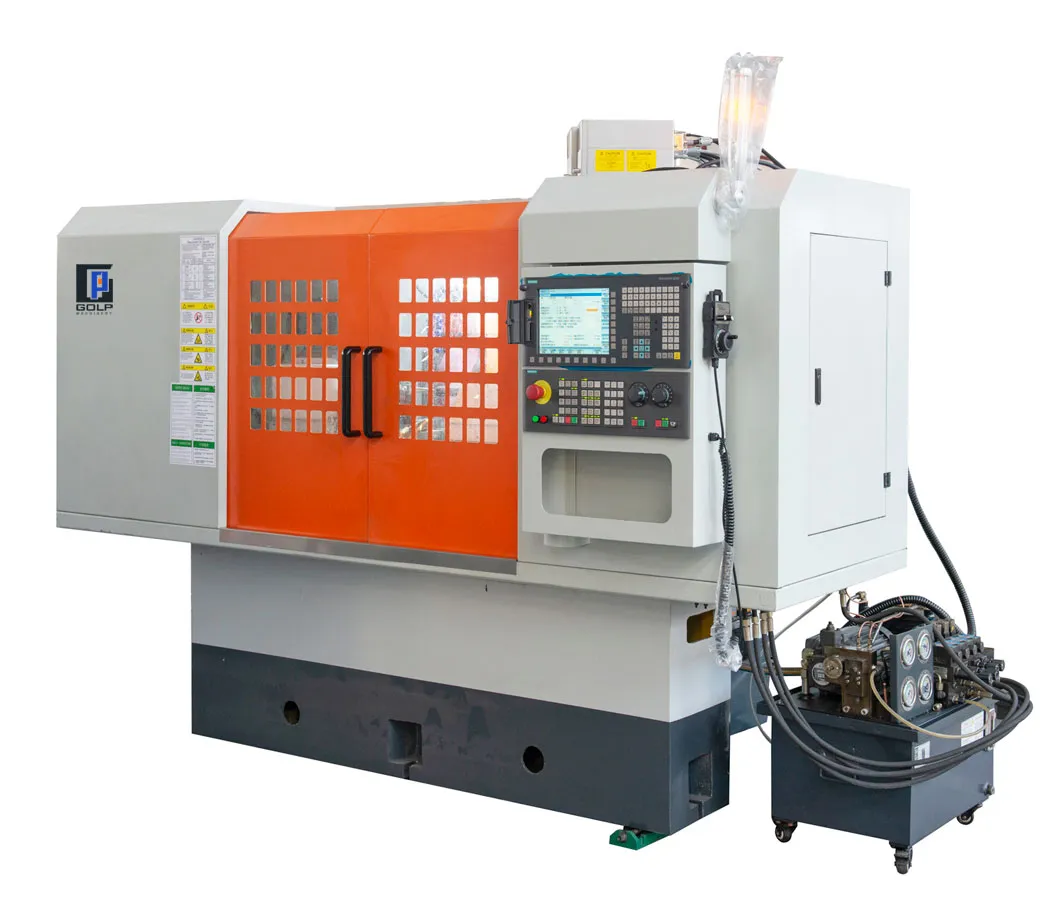

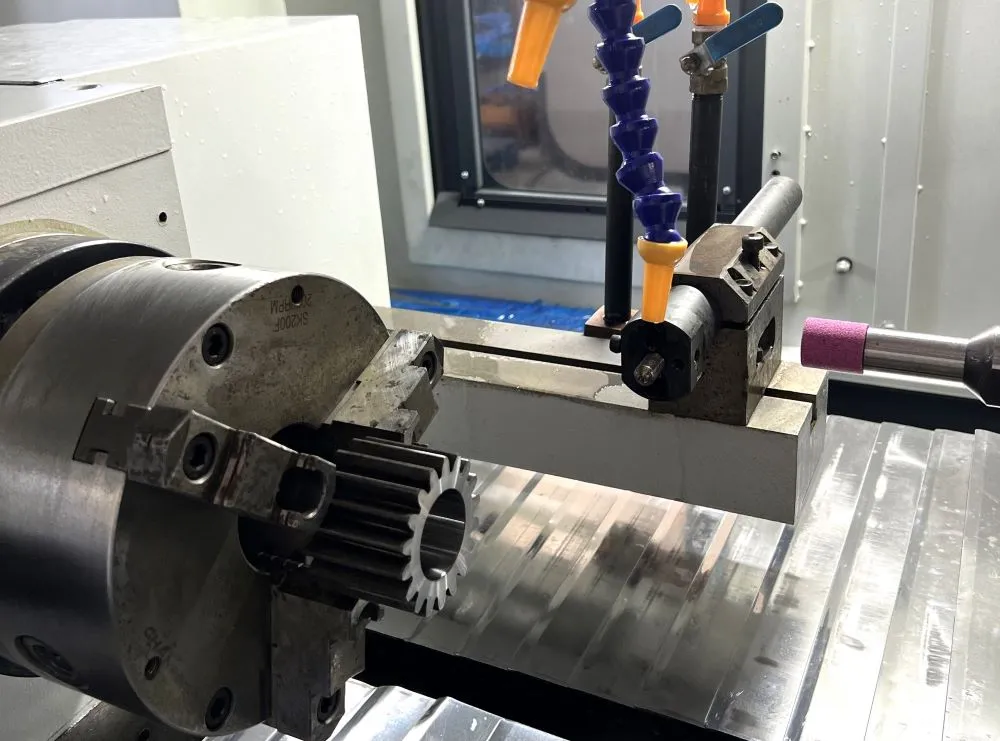

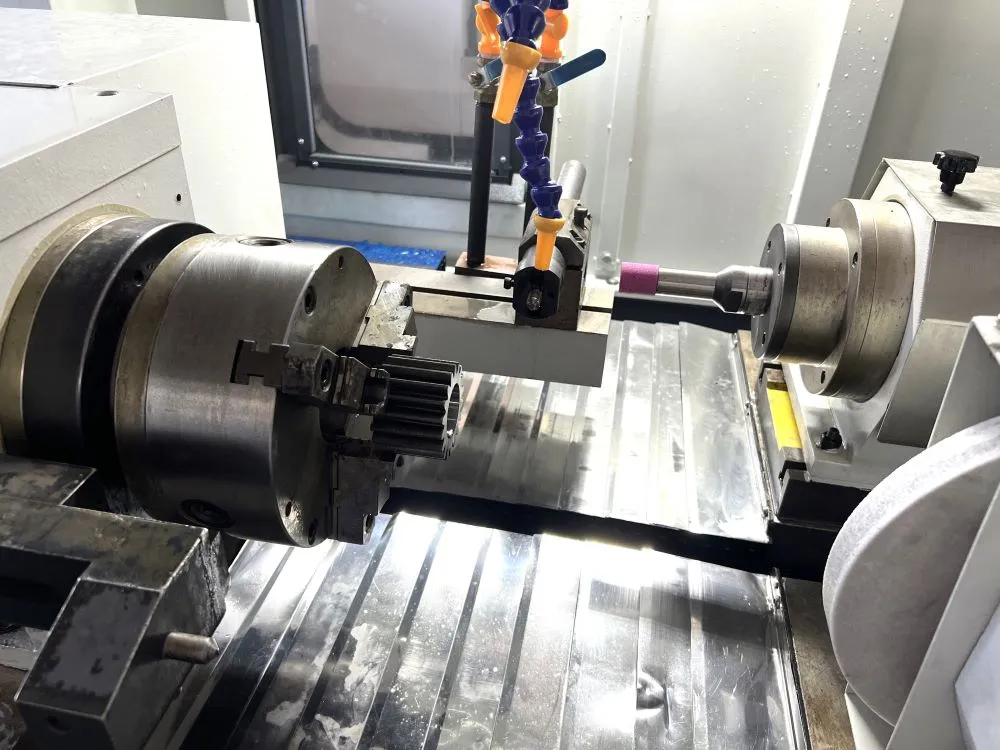

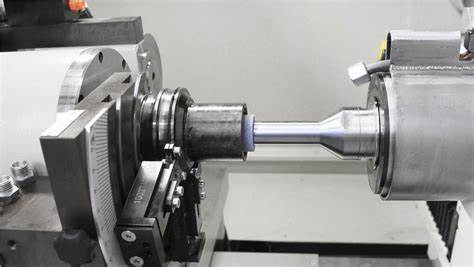

🔷 This machine is a two axis (X-axis, Z-axis) CNC Internal Grinder, mainly used to grind inner holes, step holes, inner end faces, and outer end faces. The grinding cycle is completed automatically including feed, withdrawal, rough grinding, and fine grinding.

🔷 Features automatic dressing of the grinding wheel and automatic compensation. The worktable moves left and right while the grinding wheel frame performs back and forth feeding movements driven by servo motors through ball screws.

🔷 Spindle rotation speeds are controlled by frequency converters for stepless speed regulation.

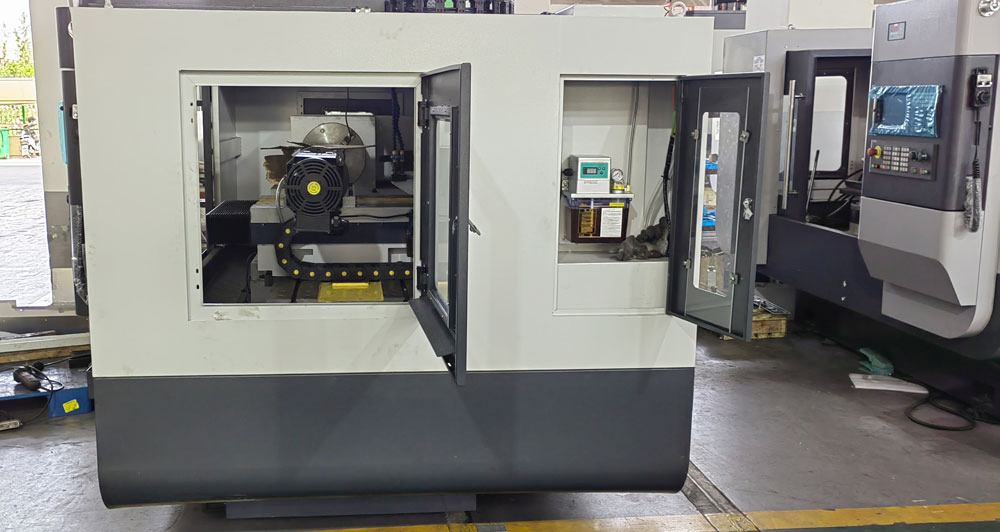

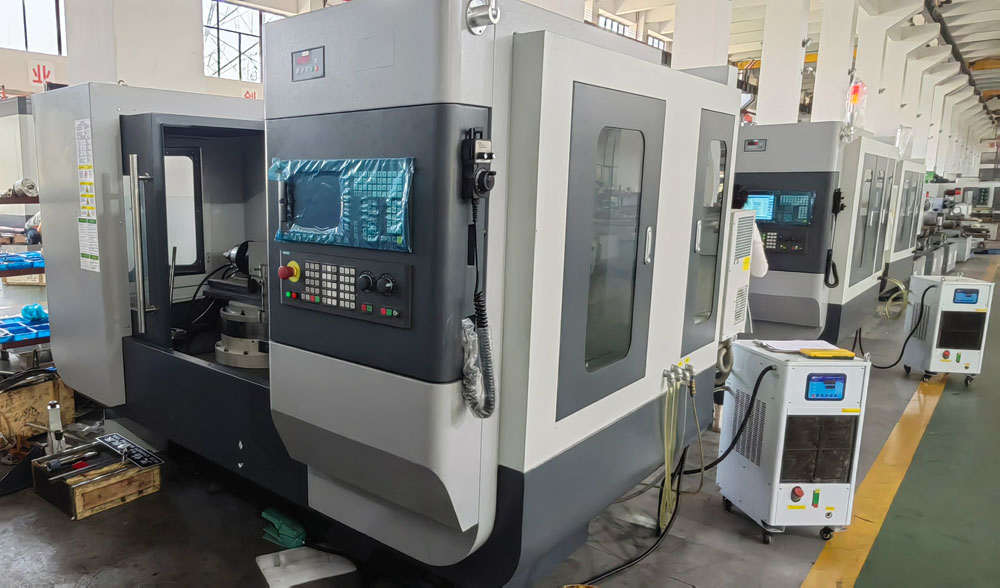

🔷 Adopts a front movable operation box and an independent electrical cabinet. Protective covers are available in semi-closed or fully-closed styles.

Model of machine tools		GK250
Range of grinding diameter of hole (mm)		100-500
Maximum grinding depth (mm)		500
Swing diameter of work piece (mm)	Inside the shell (mm)	510
	Outside the shell (mm)	720
Maximum stroke of workbench (mm)		730
Rotating speed of work piece (r/min)		30-500 (stepless)
Rotating speed of grinding wheel (r/min)		2000-10000 (stepless)
X-axis/Z-axis minimum resolution (mm)		0.001
Maximum load capacity (kg)		300
Machine overall dimension (mm)		4000× 1900×2000
Roundness of internal hole (um)		3
