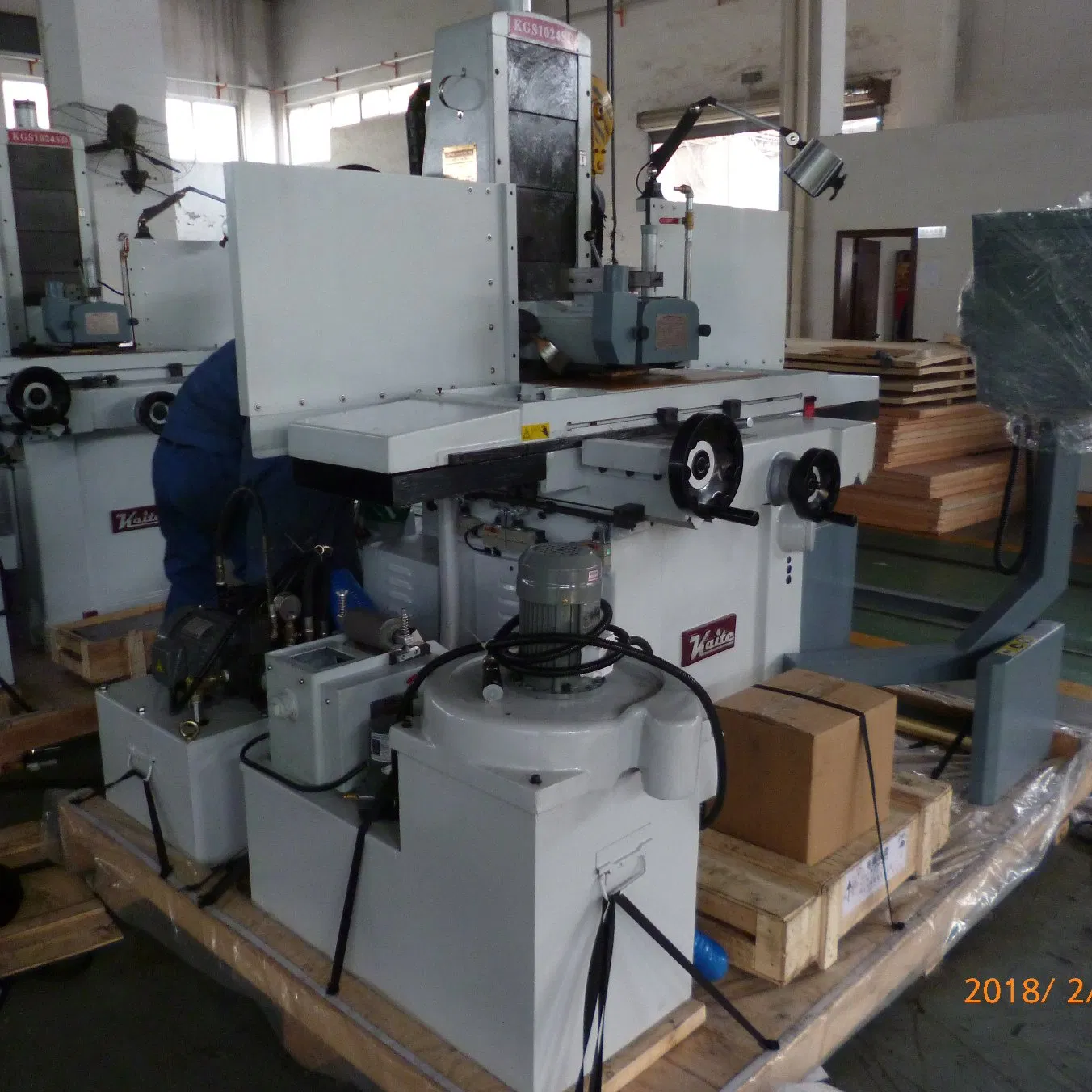

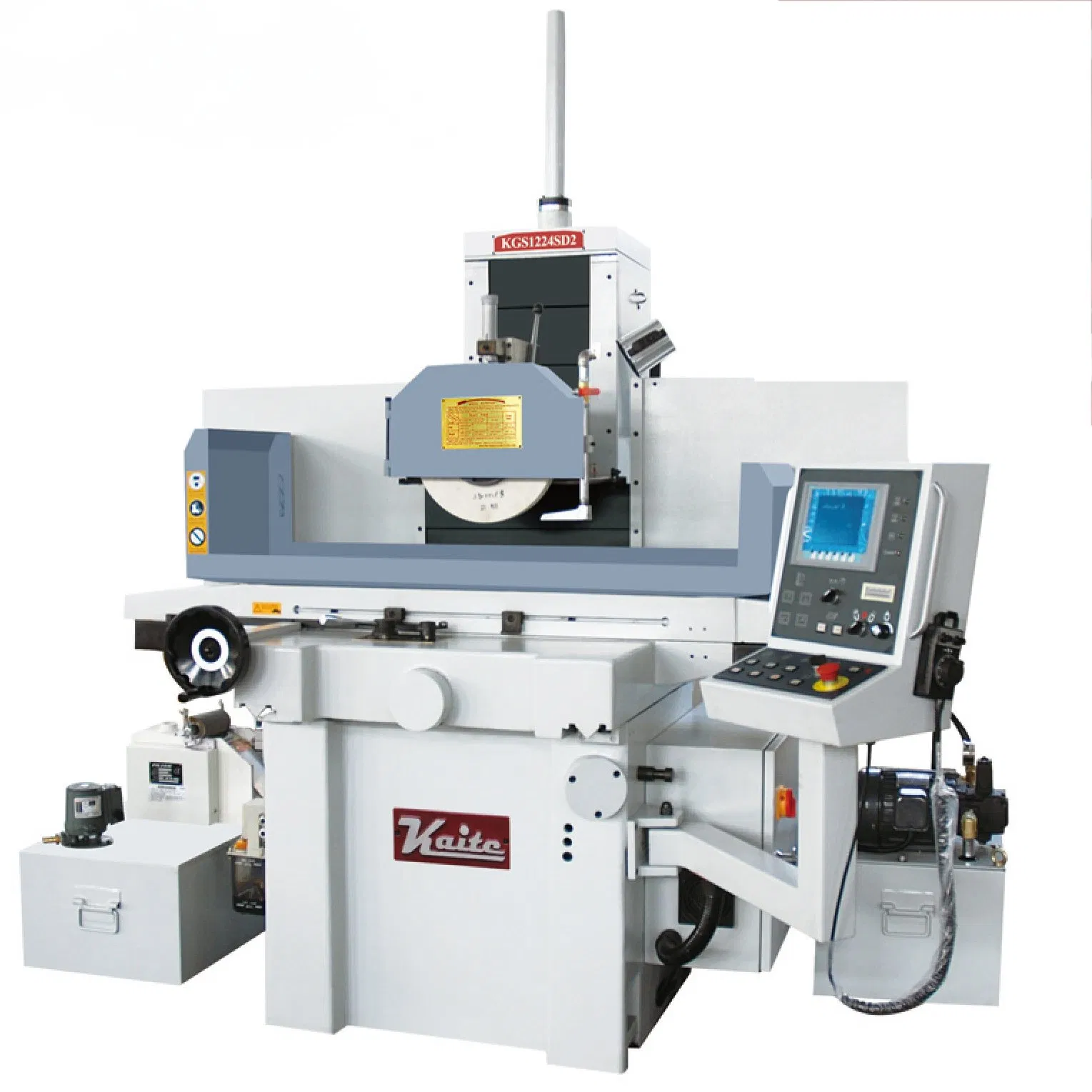

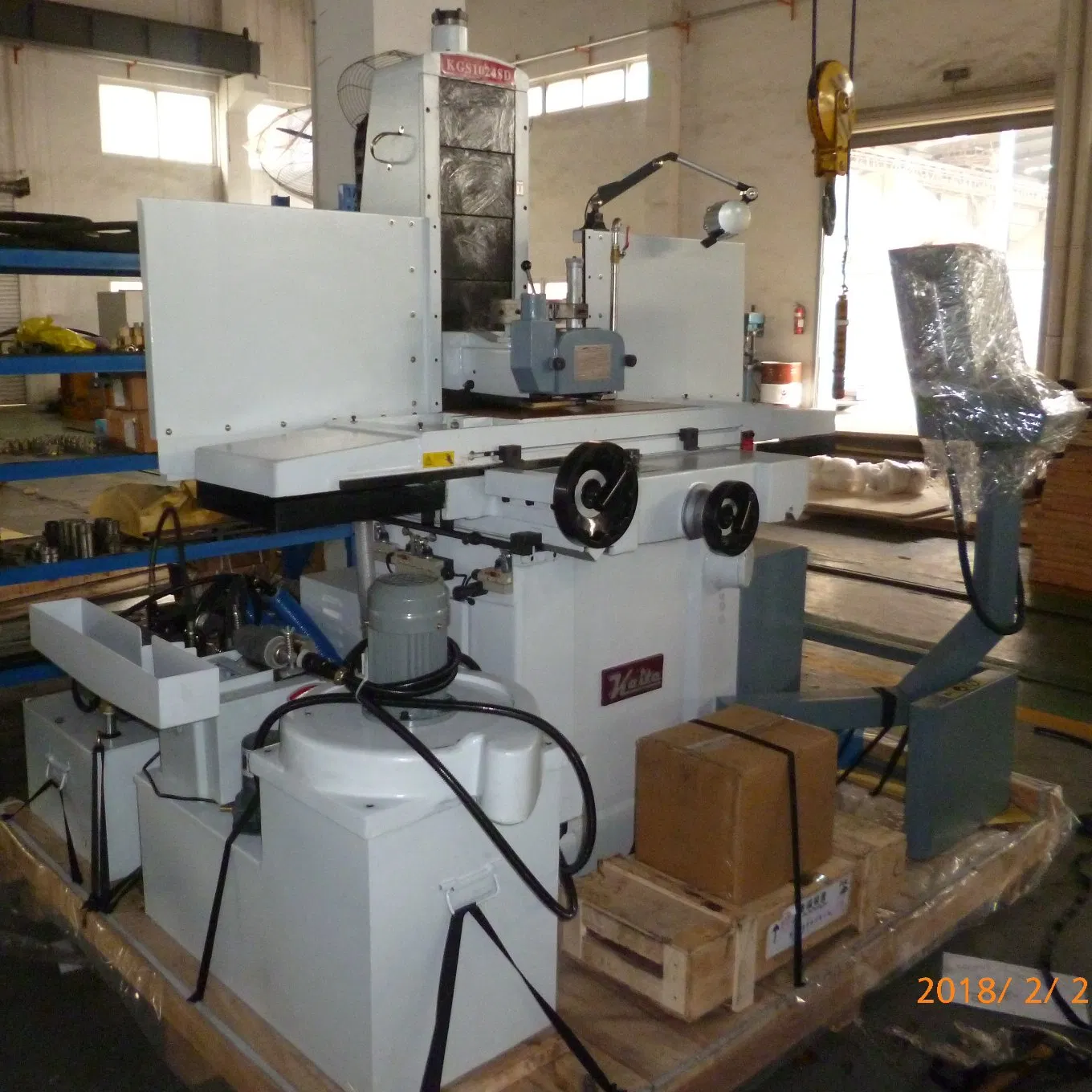

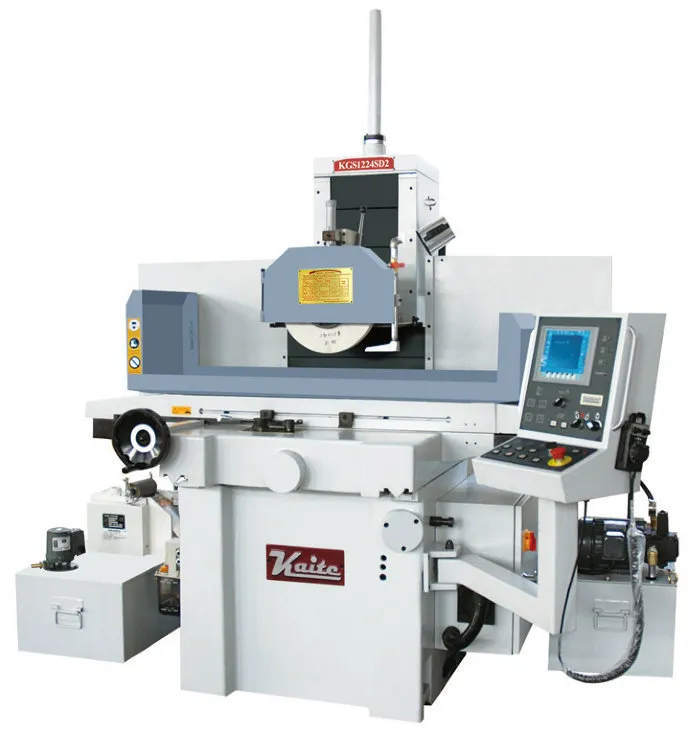

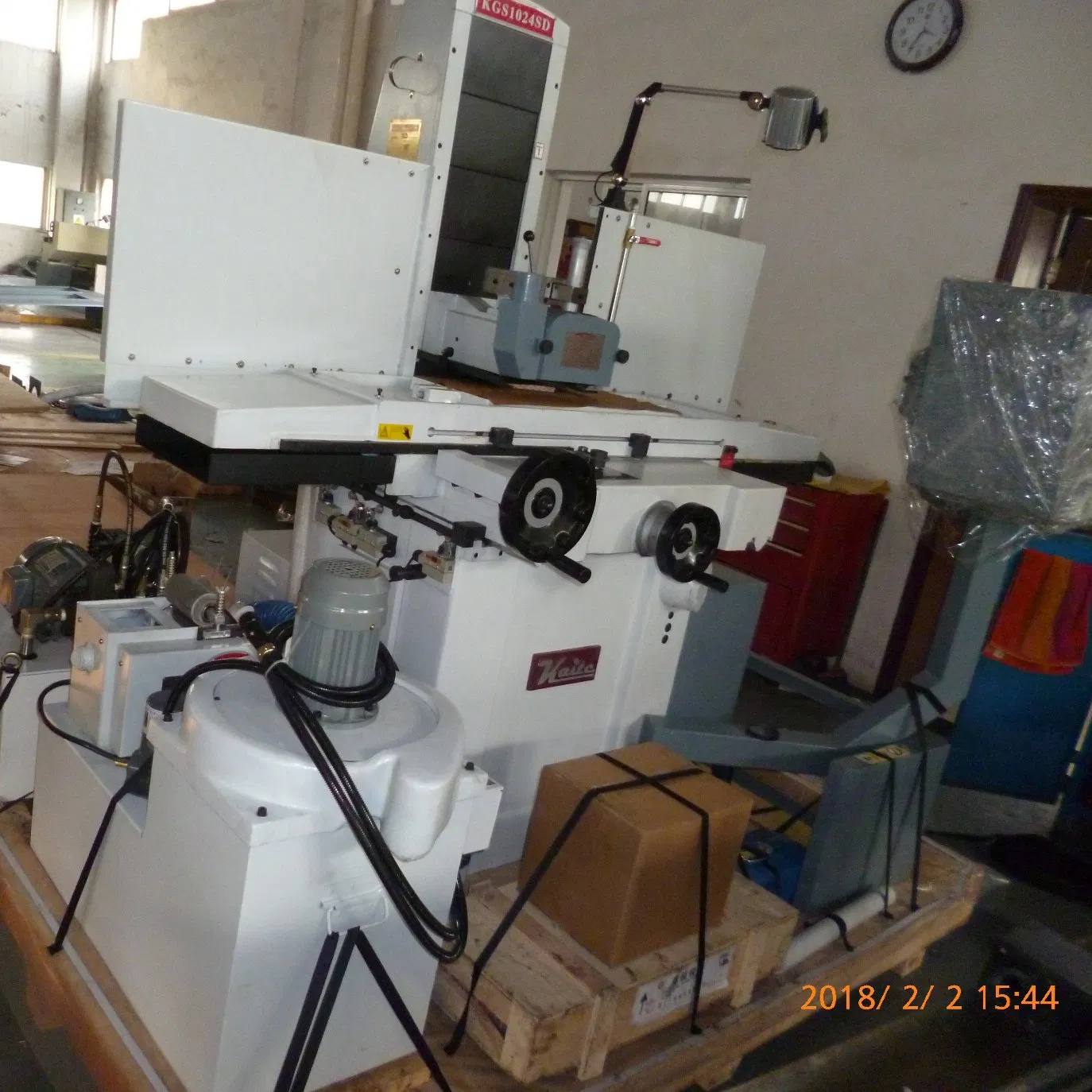

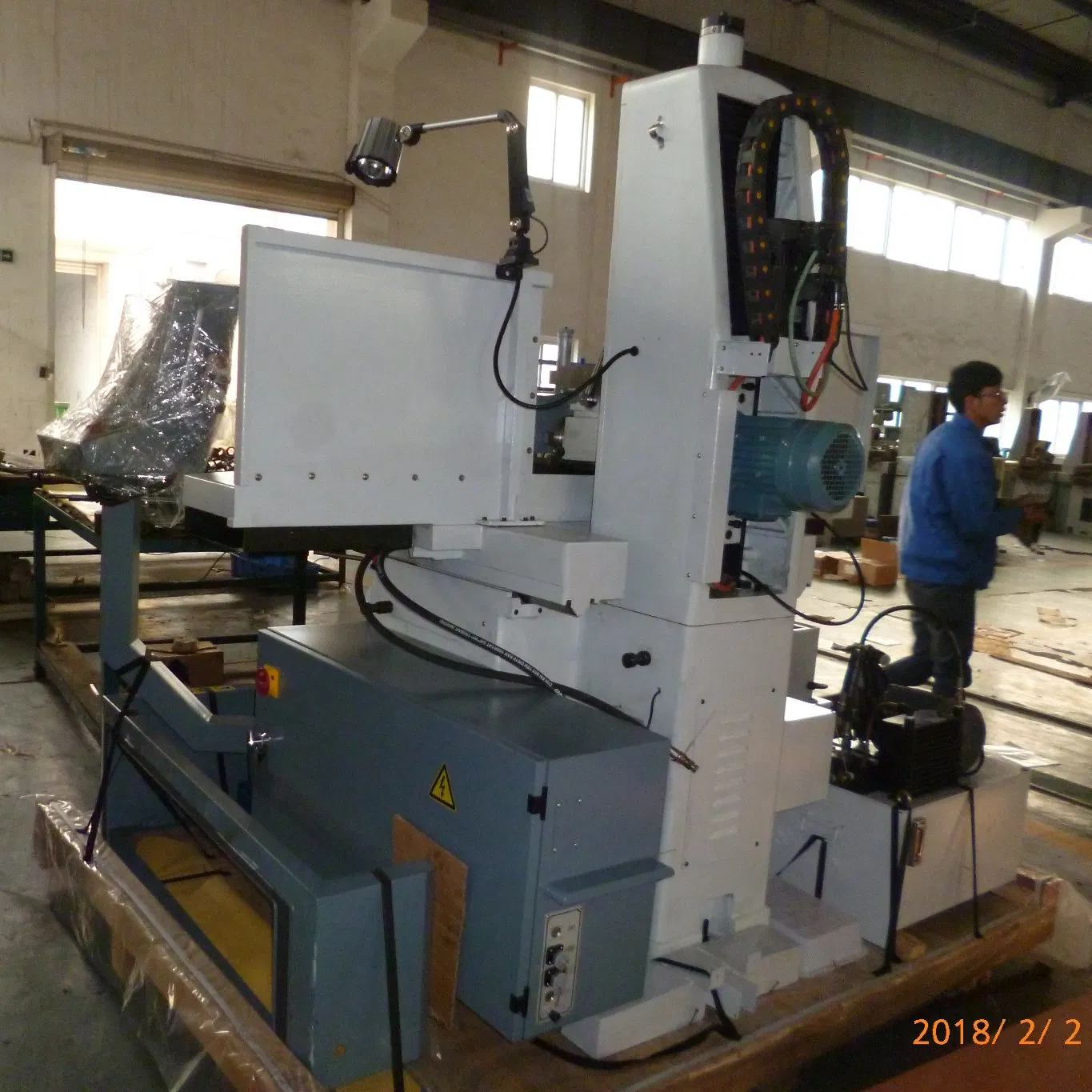

Kgs1024SD-255X610mm PLC Hot Selling Metal Surface Grinding Machine

1 / 5

Kgs1024SD-255X610mm PLC Hot Selling Metal Surface Grinding Machine

Customization:	Available
Type:	Surface Grinding Machine
Processing Object:	Metal, Ceramics and So on

Send Inquiry

Product Description

Basic Specifications

Model NO.

KGS1024SD

Abrasives

Grinding Wheel

Controlling Mode

Hydraulic+PLC

Automatic Grade

Automatic

Type

Surface Grinding Machine

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Working Surface

255X610mm (10X24 Inch)

Max. Table Load

300 Kg

Table Speed

5~25 M/Min

Spindle Motor

ABB Brand

Spindle Bearing

NSK Brand P4 Grade

Electrical Components

Siemens Brand

Product Overview

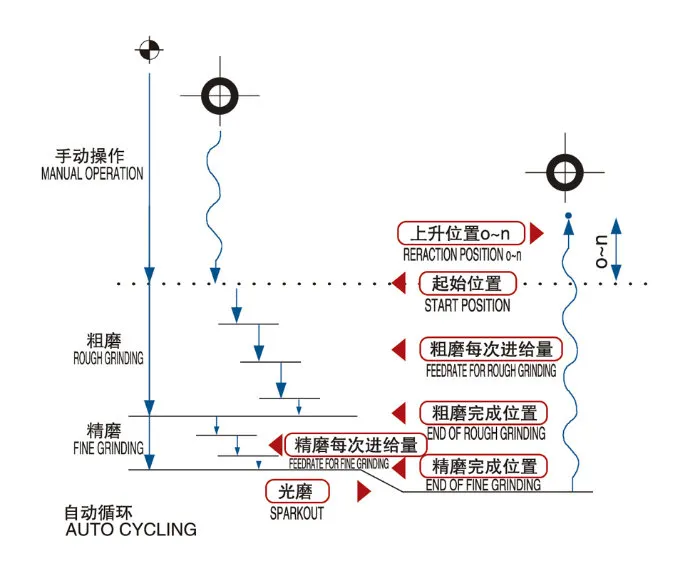

The KGS SD series features a PLC control system with a touchscreen and servo drive for vertical spindle feed. It allows for programming full grinding operations including rough grinding, fine grinding, and spark out. With a minimal automatic vertical feed of 0.001mm, this machine is ideal for extremely precise grinding tasks.

Technical Parameters

Parameters	Unit	KGS1024SD
Working Surface of Table	mm	255×610 (10"×24")
Max. Table Travel	mm	660
Max. Cross Travel	mm	280
Distance Table Surface to Spindle Center	mm	535
Max. Table Load	kgs	300
Table Speed	m/min	5~25
Automatic Crossfeed of Saddle	mm	0.5~12
Grinding Wheel Dimensions	mm	200×25×32/31.75
Automatic Down Feed Rate	mm	0.001~1
Spindle Motor	kw	2.2
Net Weight	kgs	1730
Gross Weight	kgs	1980

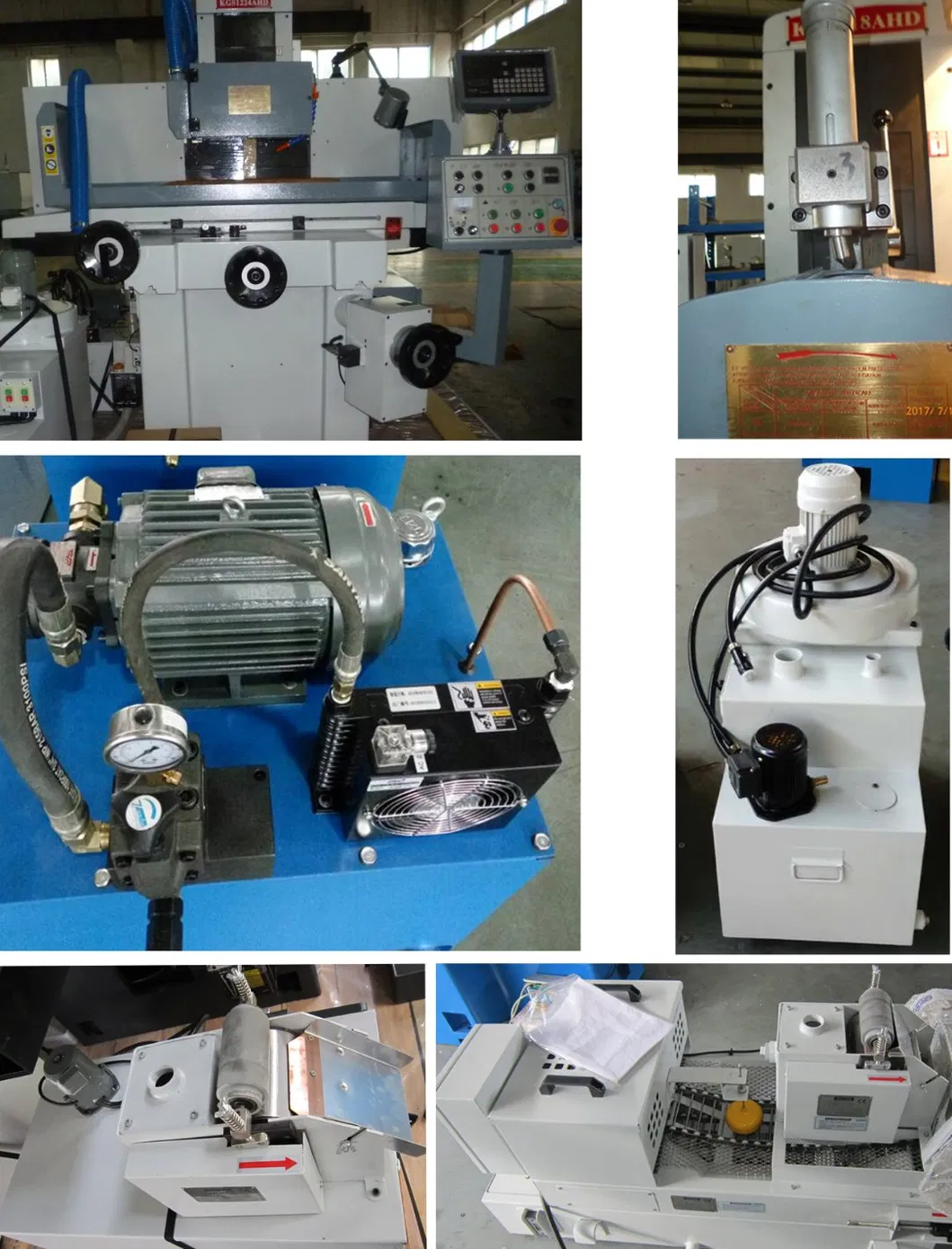

Main Configuration

Spindle motor: ABB brand.
Spindle bearing: NSK brand P4 grade precision ball bearing (Japan).
Cross screw: P5 grade precision ball screw.
Main electrical & Touch screen: SIEMENS brand.
PLC control & Servo motor/drive: SIEMENS brand.
Main hydraulic components: Professional Taiwan Brand.

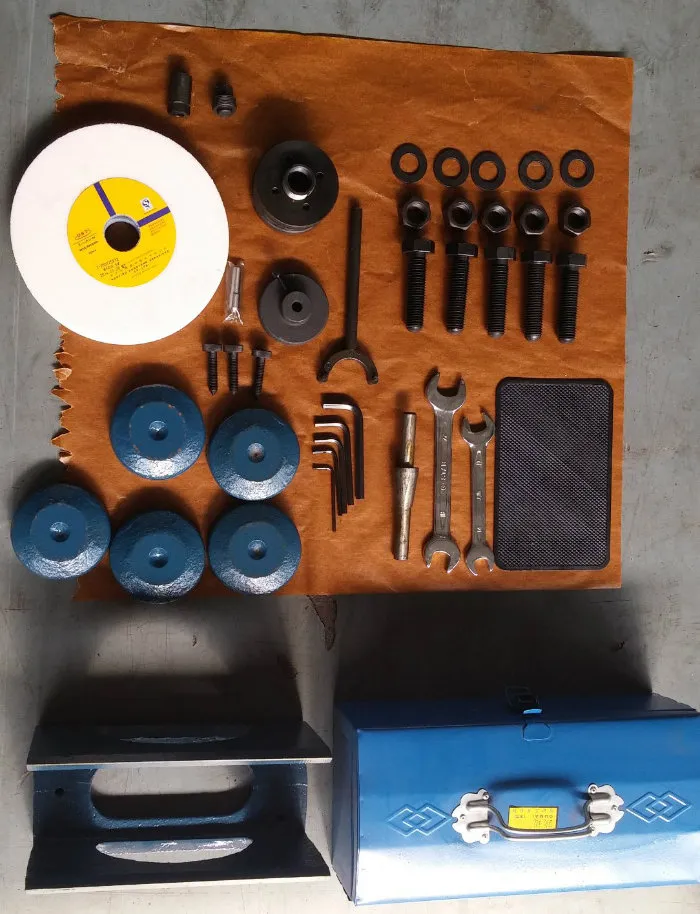

Standard & Optional Accessories

Standard Items	Grinding wheel, Wheel flange, Balancing base/arbor, Diamond dresser, Leveling pad, Tool box, Magnetic chuck, Cooling system.
Optional Items	Rear splash guard, Overhead parallel dresser, Hydraulic tank oil cooling, Magnetic separator, Paper filter.

Key Features

Well-designed cast iron structure provides excellent dampening and stability.
Flange mount spindle cartridge for superior side grinding rigidity.
"V" and flat type guide ways with precision hand-scraped Turcite for smooth performance.
Centralized automatic lubrication system ensures critical components are oiled at all times.
Separate hydraulic tank prevents heat and vibration transfer to the machine.
Safety 24V control circuit power for operator protection.
