3-axis manual operation; High rigidity H-frame column with spindle center to table; Enhanced ribbed full cast iron base; Enlarged spindle housing for heavier grinding; Cartridge w / 4 preloaded class 7 (P4) bearing; Roller steel balls on linear table ways for easy and smooth longitudinal movements; Double-V saddle ways for rigidity.
| Model | Units | MY820 | MY1022 | MY1224 | MY1230 |
|---|---|---|---|---|---|
| Table Size (L×W) | mm | 480*220 | 540*250 | 600*300 | 750×300 |
| Table Travel | mm | 530x220 | 560x260 | 630x320 | 780x320 |
| Speed of Table | m/min | 3-20 | |||
| Dist. Spindle to Table | mm | 450 | 450 | 530 | 530 |
| Table Slide Way | / | V-type with Steel-ball | Double V-type rail | ||
| Wheel Size | mm | 200*20*31.75 | 250*25*76.2 | ||
| Wheel Speed | rpm | 2850 | 2450 | ||
| Spindle Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 |

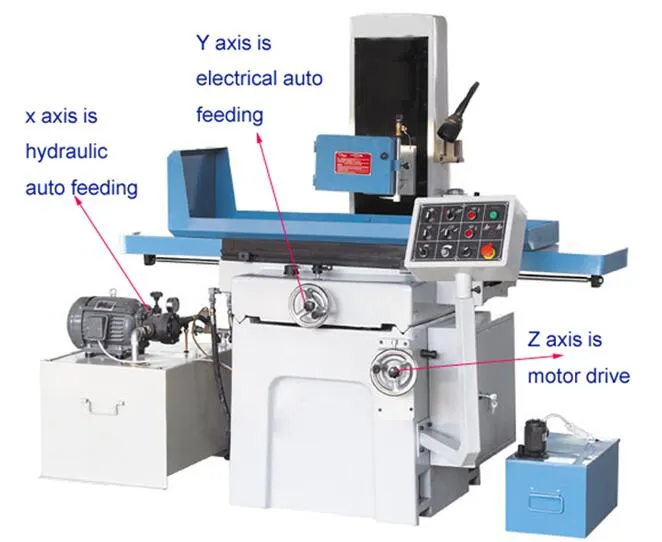

A1: The MY820 model features a high-performance spindle speed of 2850 rpm (at 50HZ).

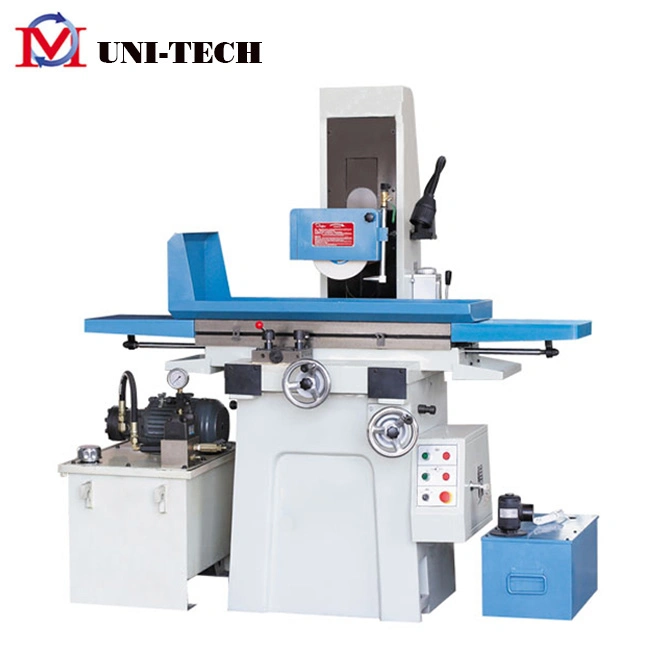

A2: Yes, the MY820 is equipped with a hydraulic longitudinal table travel system for smooth and efficient operation.
A3: This model uses a cartridge-type spindle with 4 preloaded class 7 (P4) high-precision bearings for superior grinding accuracy.
A4: Yes, it features a manual one-shot lubrication pump to ensure all moving parts are maintained properly during operation.
A5: The table size is 480 x 220 mm, with a maximum travel distance of 530 x 220 mm.
A6: The machine is fully certified with GS, CE, RoHS, and ISO 9001 standards, ensuring high safety and quality levels.
