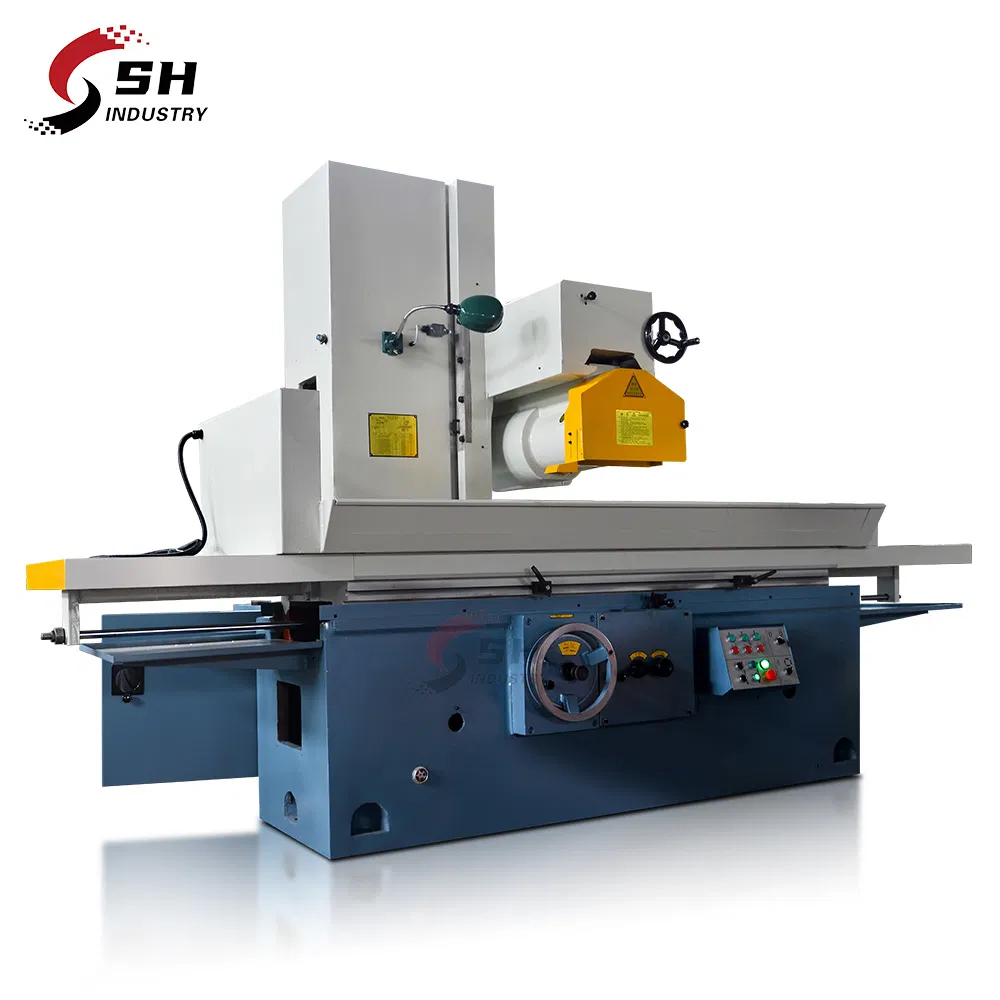

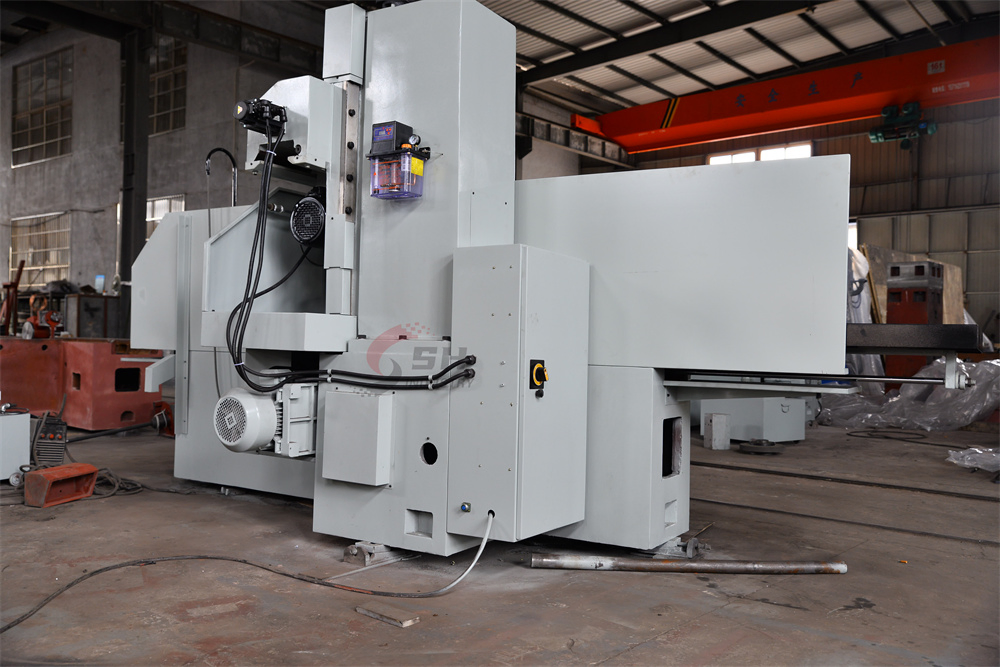

M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
1 / 5
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine
M7140 Horizontal High Precision Hydraulic Surface Grinding Machine

M7140 Horizontal High Precision Hydraulic Surface Grinding Machine

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
M7140
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Work Table Size
1000*400 mm
Max. Longitudinal
1100 mm
Origin
China
HS Code
8460199000
📦 Packaging & Delivery
Package Size
280.00cm * 175.00cm * 235.00cm
Gross Weight
4000.000kg
⚙️ Product Description
M7140 Surface Grinding Machine
Main Performance Characteristics
✓ The screw rod is made of special alloy steel through strict processing and heat treatment technology.
✓ Vertical rapid lifting of the grinding head to improve production efficiency.
✓ Lateral movement driven by hydraulic motor or manual control.
✓ Eccentric design for lifting mechanism and triangle bracket for easy adjustment and longer service life.
Application Fields

Applicable to processing machinery, auto parts, fixtures, magnetic steel, and mold parts processing industries. Suitable for grinding steel, iron, ceramics, and non-ferrous metal parts.

📊 Technical Specifications
Description Units M7140x1000 M7140x1600 M7140x2000
Size of work table (L x W) mm 1000x400 1600x400 2000x400
Max. Longitudinal movement mm 1100 1700 2100
Max. Distance spindle to table mm 570 570 570
Max. Cross movement mm 450 450 450
Grinding wheel dimension mm 350x127x40 350x127x40 350x127x40
Spindle motor power KW 5.5 5.5 5.5
Processing accuracy mm 0.015/1000 0.015/1000 0.015/1000
Surface roughness um Ra:0.63 Ra:0.63 Ra:0.63
🖼️ Detailed Photos

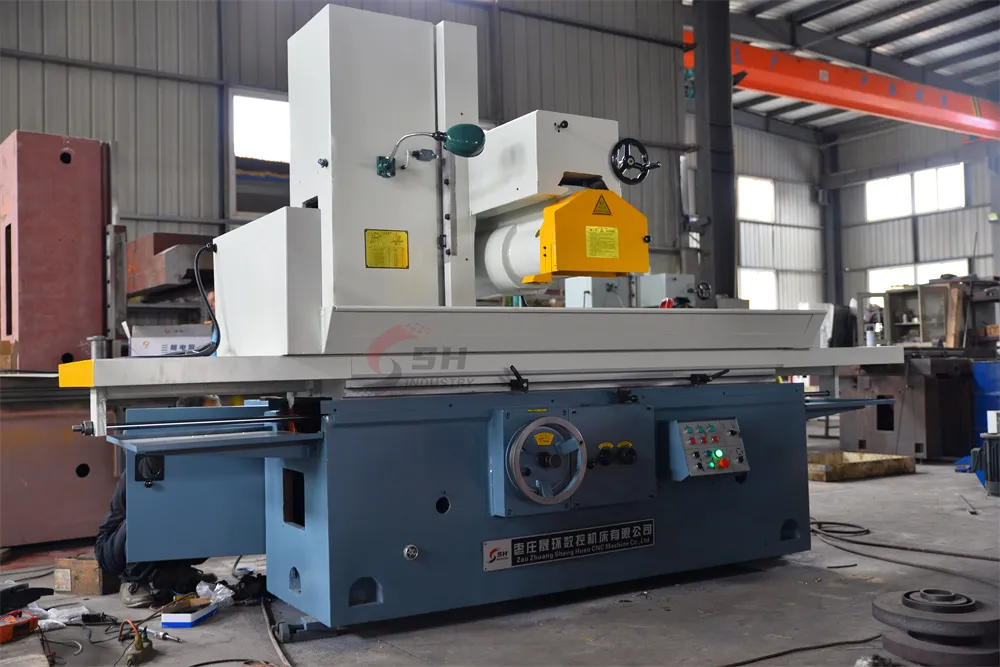

Detailed View 1

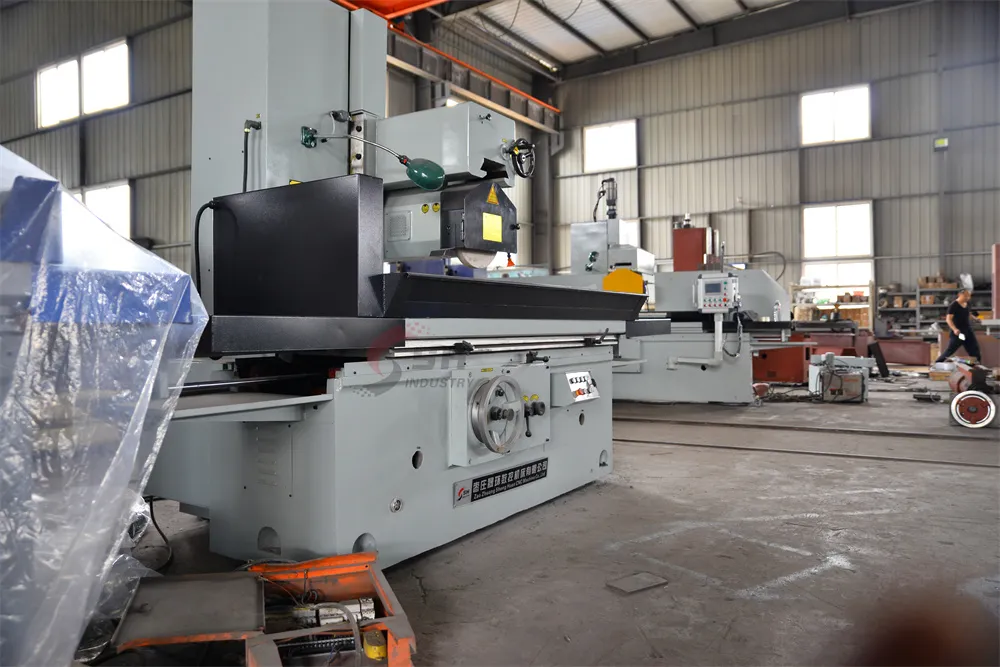

Detailed View 2
Detailed View 3

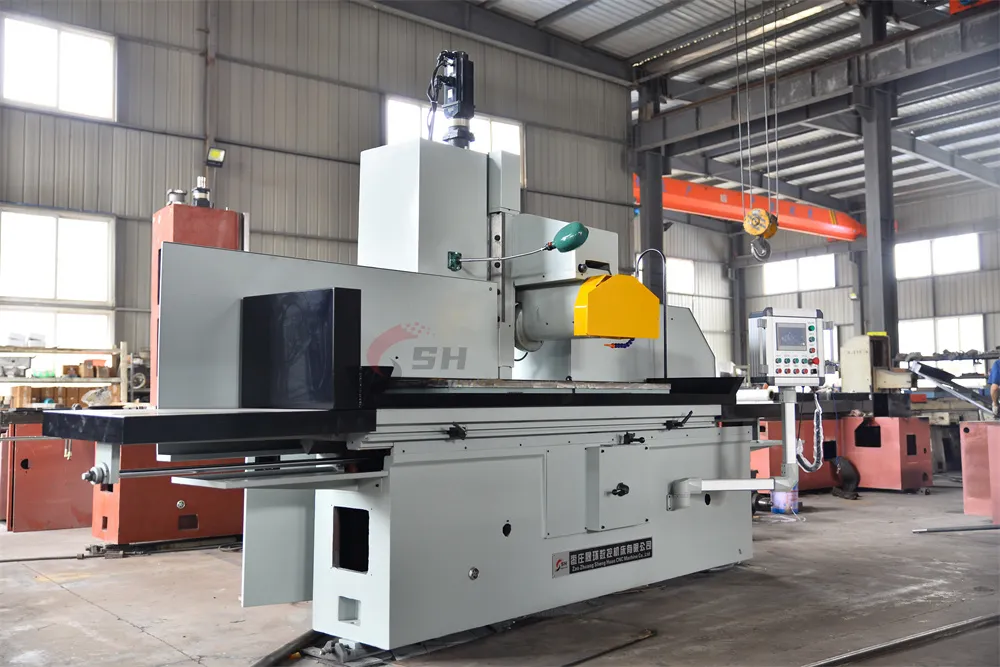

Detailed View 4
Detailed View 5

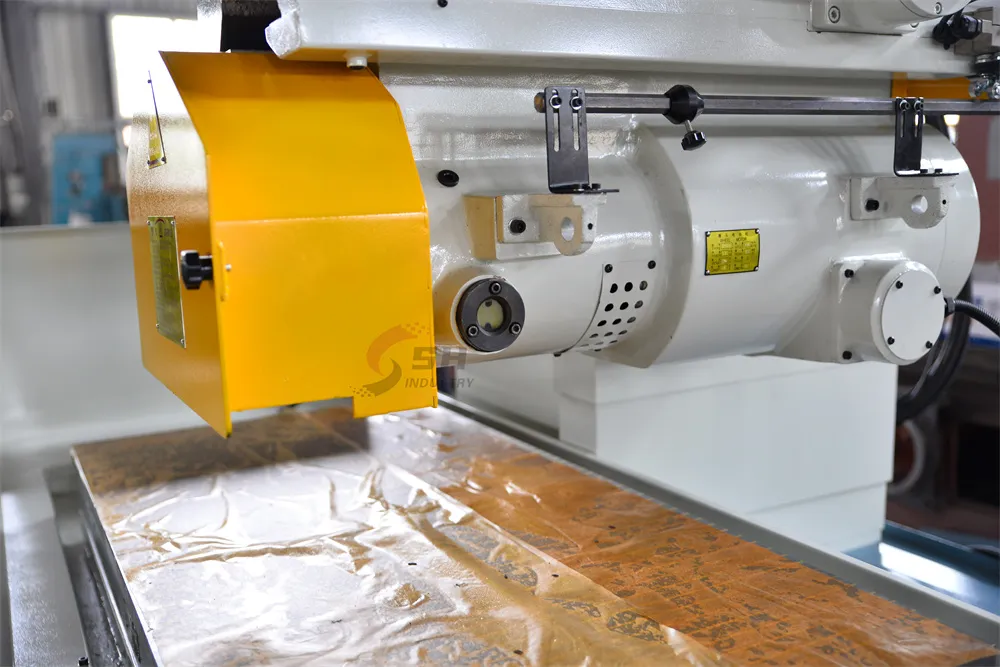

Detailed View 6
🏭 Production & Quality
Factory View

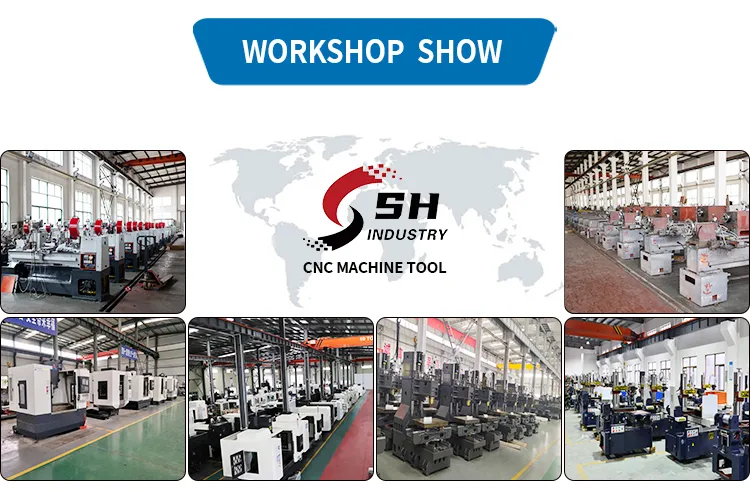

Workshop
Assembly
Certifications
❓ Frequently Asked Questions
What is the warranty period for this grinding machine?
The warranty is one year. During this time, if parts are damaged due to non-human factors, we provide new replacement parts free of charge.
How is after-sales technical support provided?
We offer technical support online. Customers can describe issues and provide videos or pictures, and our technicians will assist in solving the problems.
What type of packaging is used for international shipping?
Our standard package is an export-grade plywood case with a pallet for secure transportation.
What are the standard payment terms?
We typically require a 30% initial payment upon ordering, with the remaining 70% balance paid before shipment via T/T.
What is the Minimum Order Quantity (MOQ)?
The Minimum Order Quantity is 1 set.
Which materials can be processed by this machine?
It is suitable for grinding steel, iron, ceramics, and various non-ferrous metal parts.
