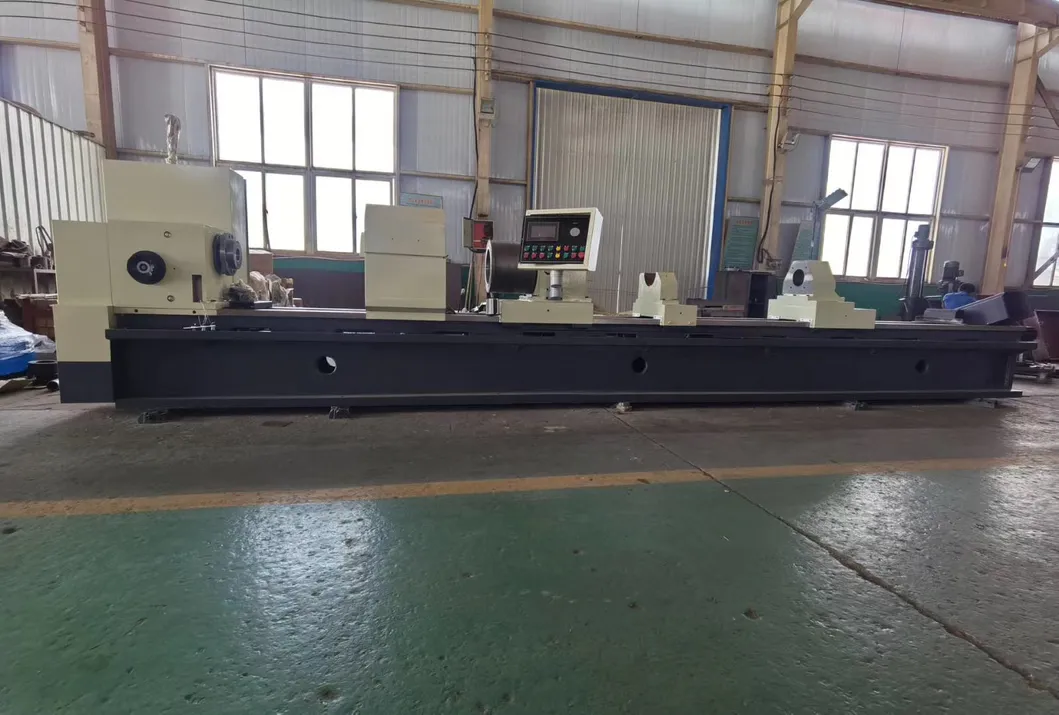

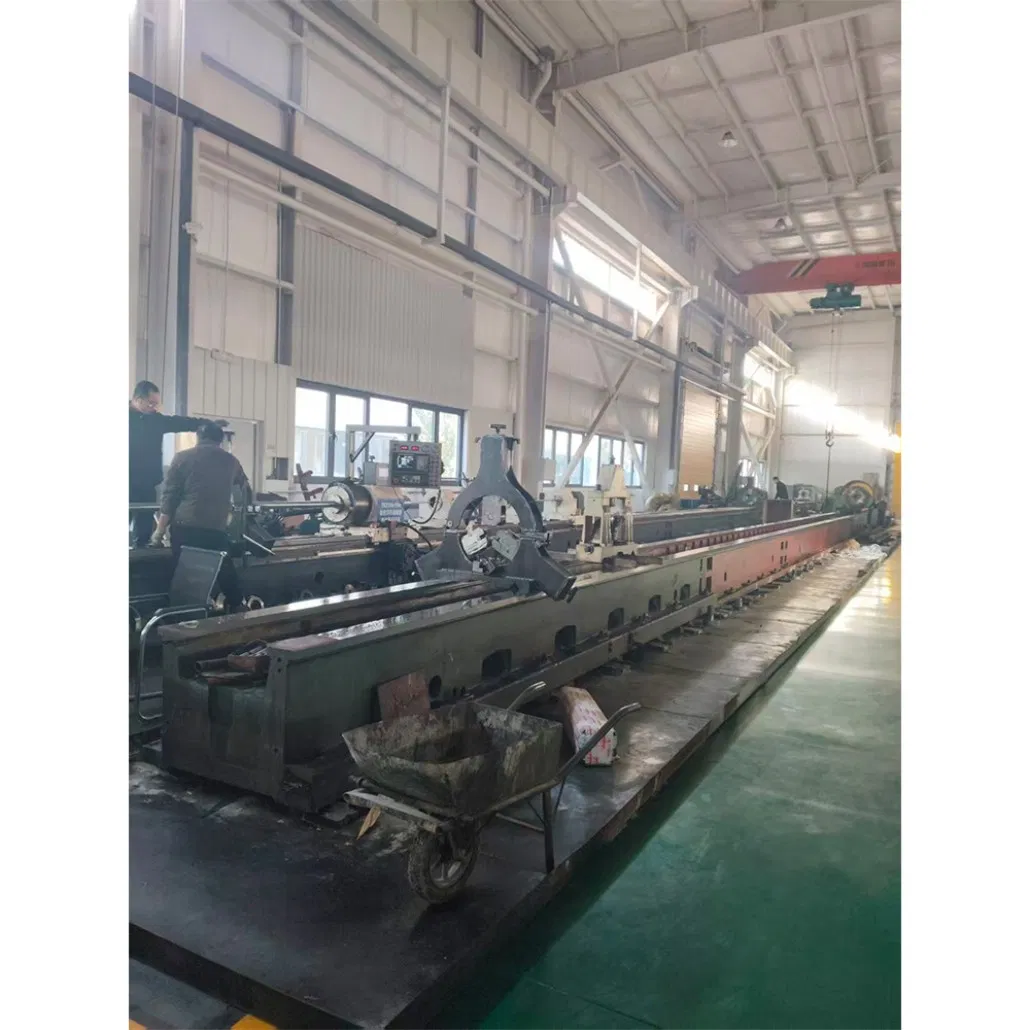

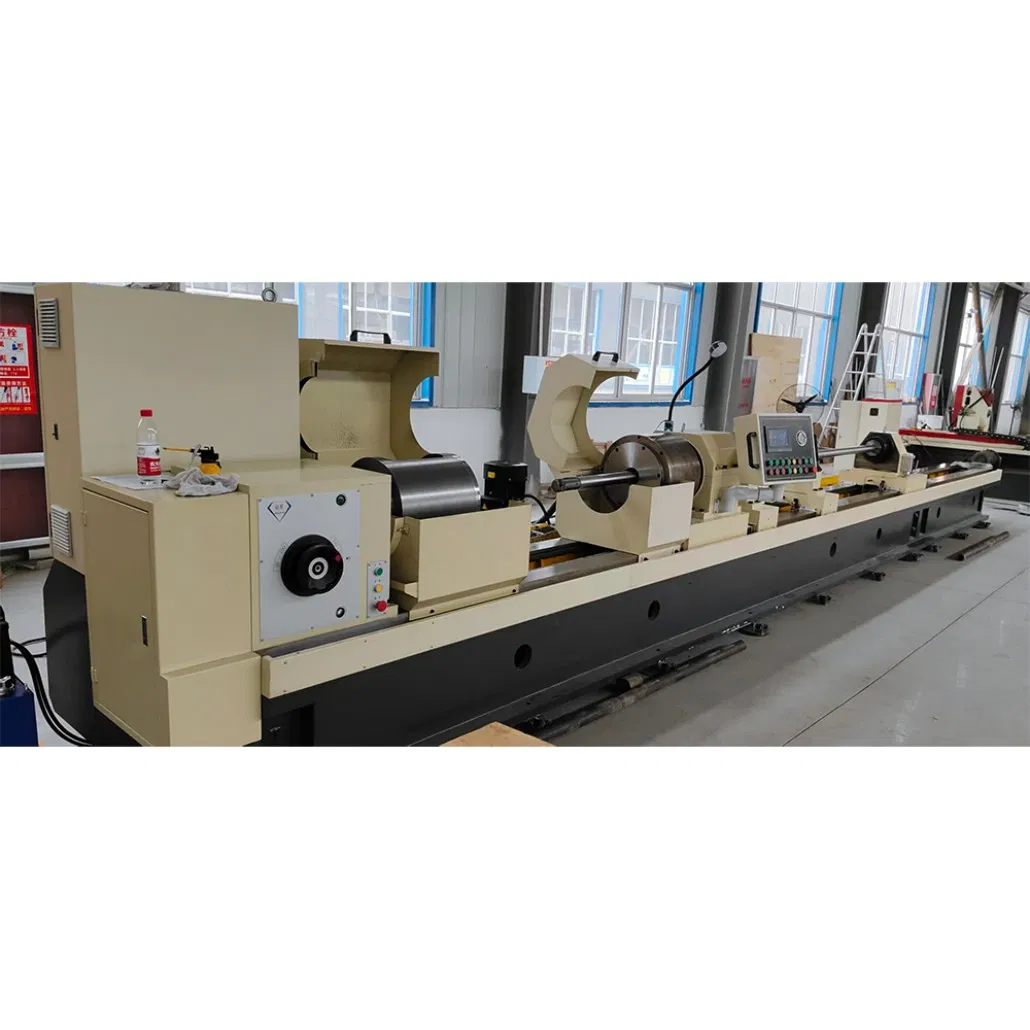

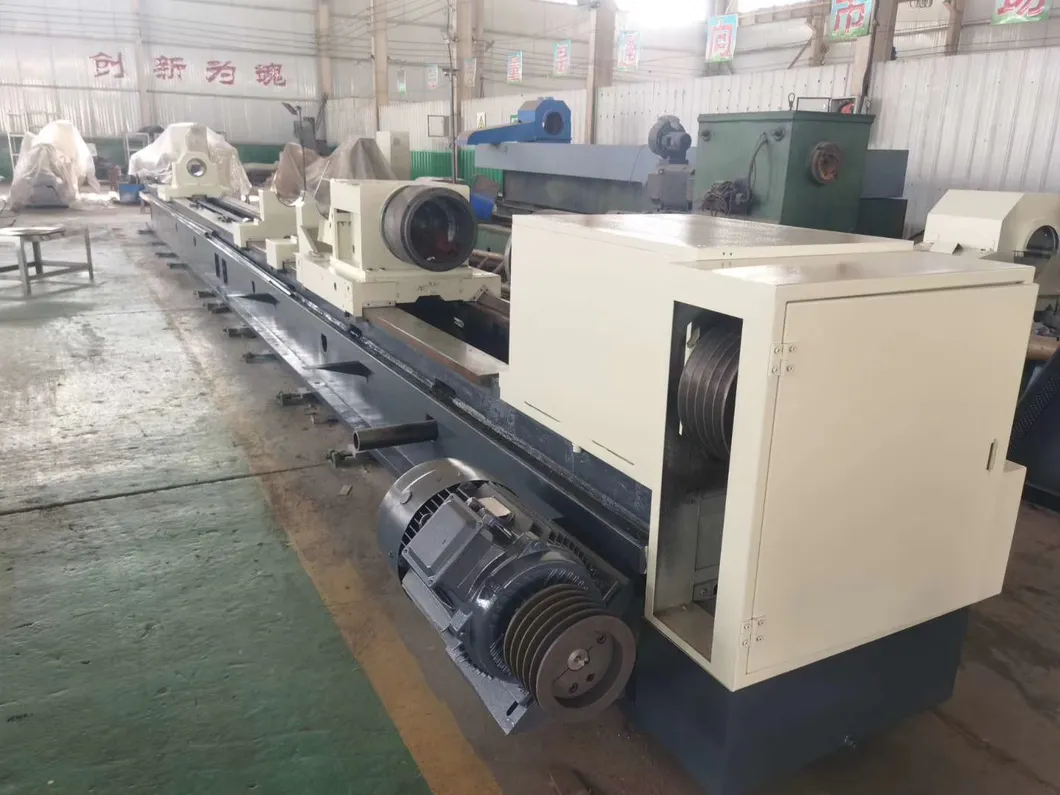

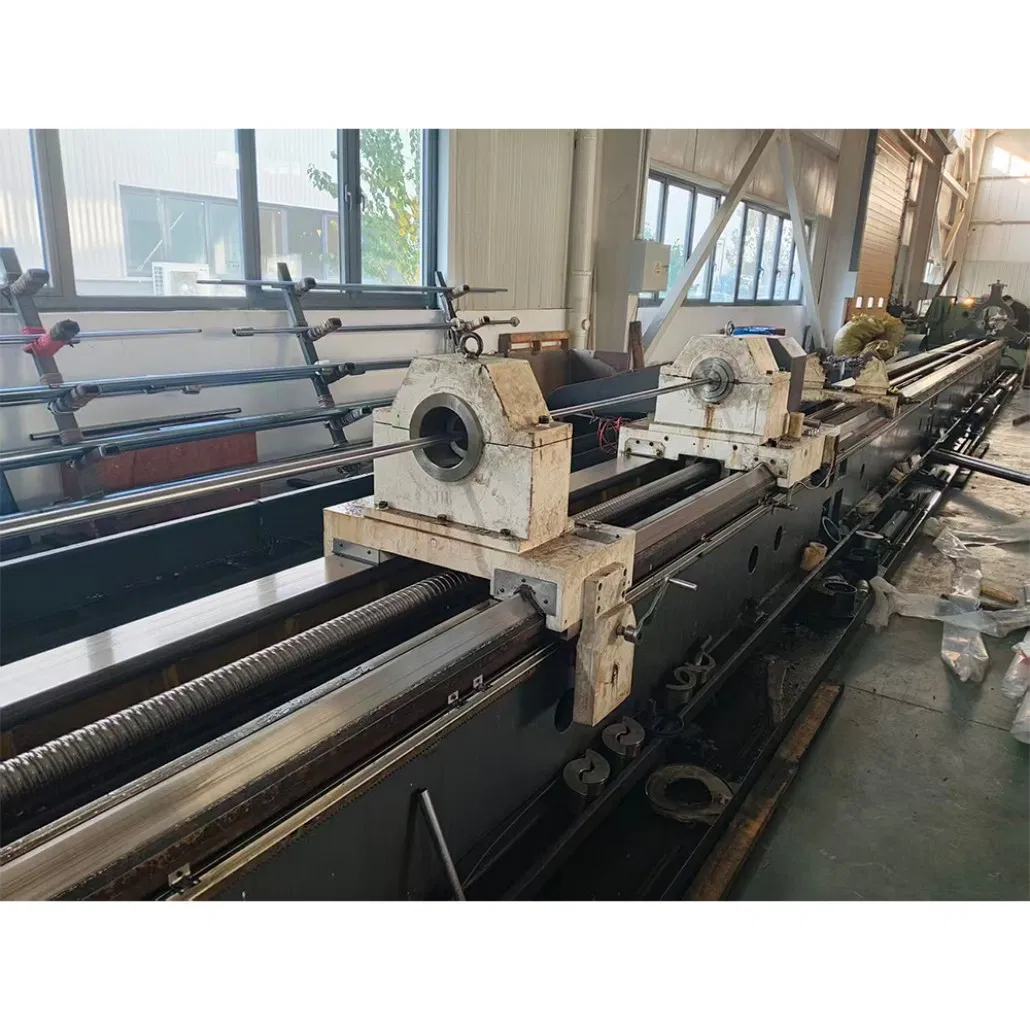

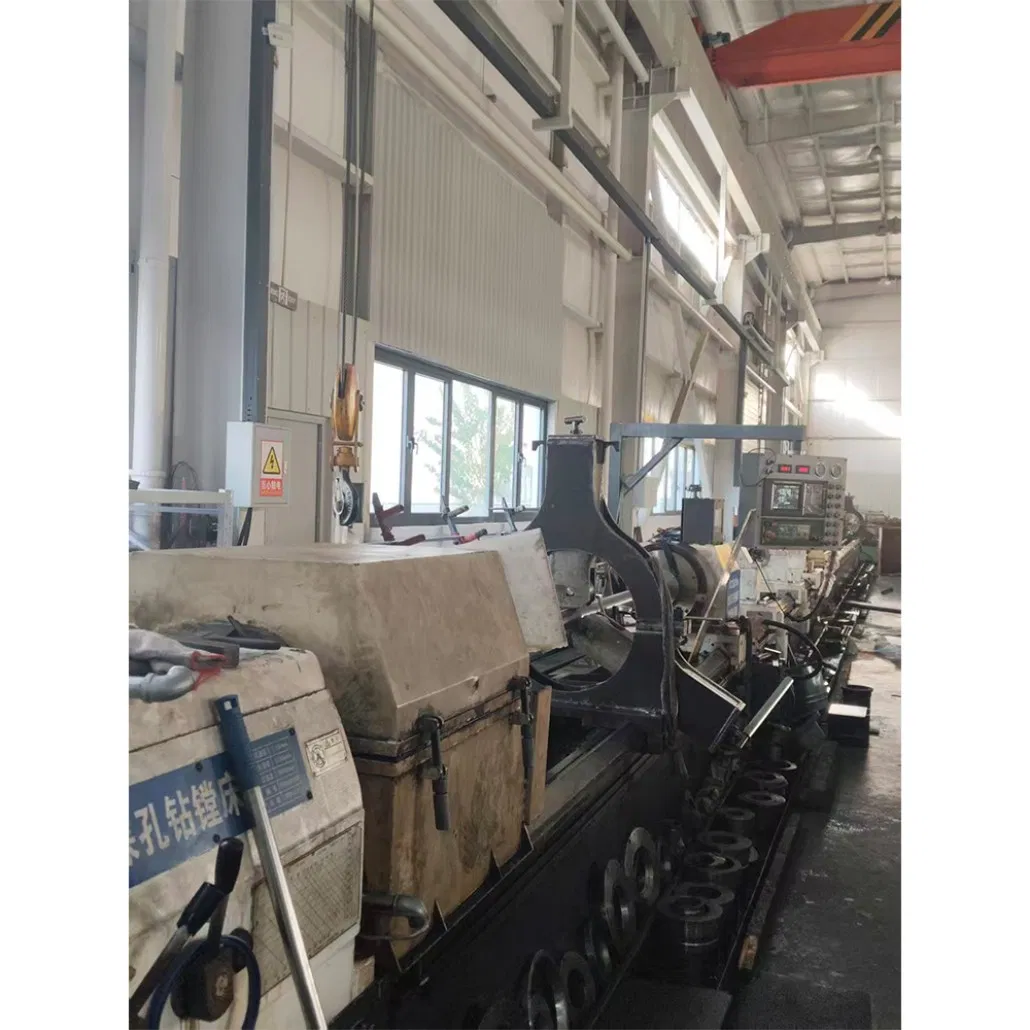

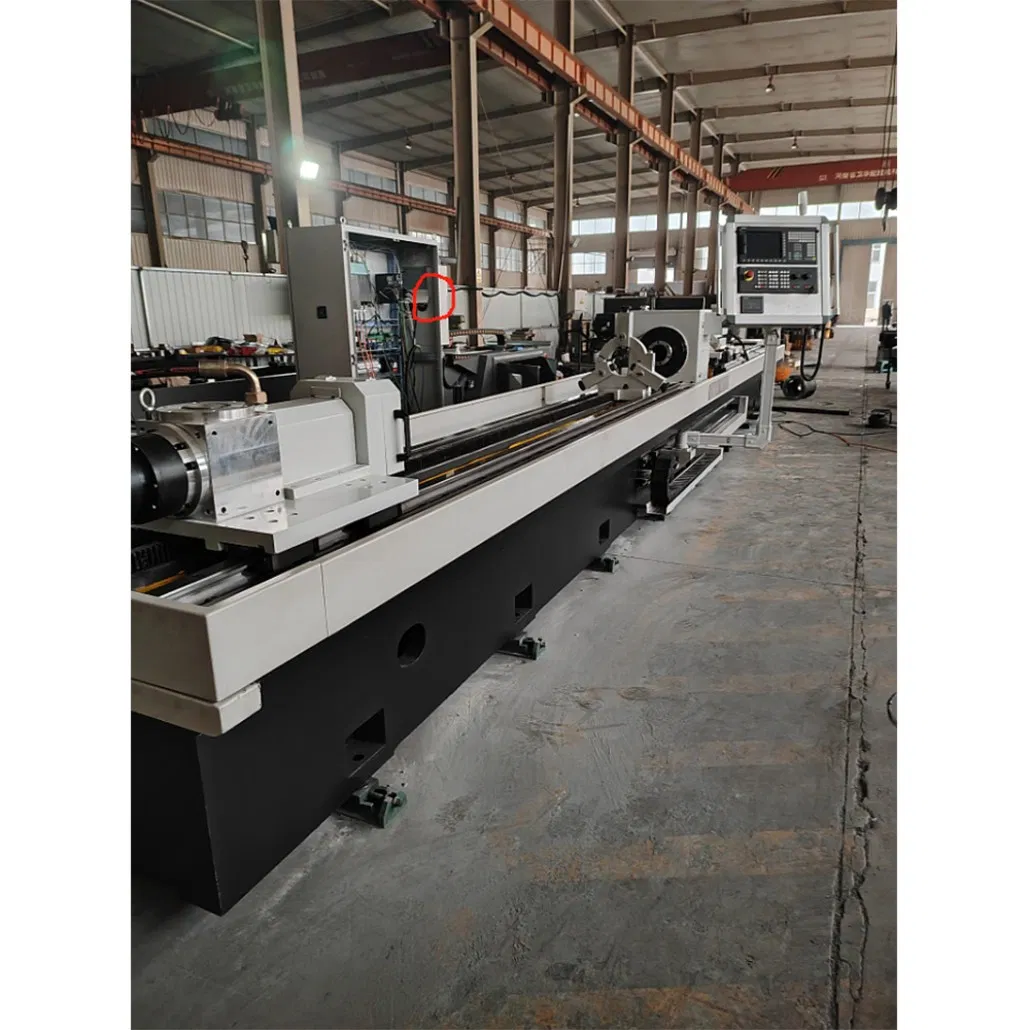

Deep hole drilling and boring machine T2150
The machine is specialized in machining cylindrical deep-hole workpieces, such as spindle holes for machine tools, various mechanical hydraulic cylinders, cylindrical through-holes for cylinders, blind holes and stepped holes. The processing accuracy can reach IT7~IT8 or above, and the surface roughness can reach Ra0.4μm.
The machine tool can not only undertake drilling and boring, but also can perform burnishing processing, and the internal chip removal method is used for drilling. The machine bed is rigid and has excellent precision. The spindle has a wide range of speeds, and the feed system is driven by an AC servo motor, which can adapt to the needs of various deep hole machining processes. The pressure head is fastened and the workpiece is tightly clamped with hydraulic device. The instrument display is safe, stable and reliable.
| SPECIFICATION | TECHNICAL DATA (T2150) | |
|---|---|---|
| Capacity | Max Boring diameter | φ500mm |
| Max drilling diameter | φ150mm | |
| Max. boring depth | 1000-15000mm | |
| Workpiece clamped dia. range | φ100-φ650mm | |
| Spindle | Height from spindle center to bed | 630mm |
| Spindle bored diameter | φ75mm | |
| Taper of spindle bore | 85mm 1:20 | |
| Range of spindle speed | 3.15-315r/min (21 steps) | |
| Feeds | Feed speed range (infinite) | 5-600mm/min |
| Carriage rapid-moving speed | 2m/min | |
| Motors | Main motor power | 37KW |
| Hydraulic pump motor power | 1.5KW | |
| Carriage rapid motor power | 3KW | |
| Feed motor power | 7.5KW AC servo | |
| Cooling pump motor power | 5.5KW | |
