Advanced CNC Machine for Efficient Deep Hole Boring

1 / 5

Advanced CNC Machine for Efficient Deep Hole Boring

Customization:	Available
After-sales Service:	for Life
Warranty:	5

Send Inquiry

Product Description

📊

Basic Information

Model NO.

TK2216/TK2220/TK2225/TK2235/TK2240

Structure

Horizontal Boring Machine

Controlling Mode

CNC (High Precision)

Tool Type

Fine Knife

Automatic Grade

Automatic

Certification

ISO 9001

Condition

New

Key Selling Points

High Productivity

Max. Drilling Dia

120 mm

Power

30 Kw / 380V / 220V

⚙️

Product Description

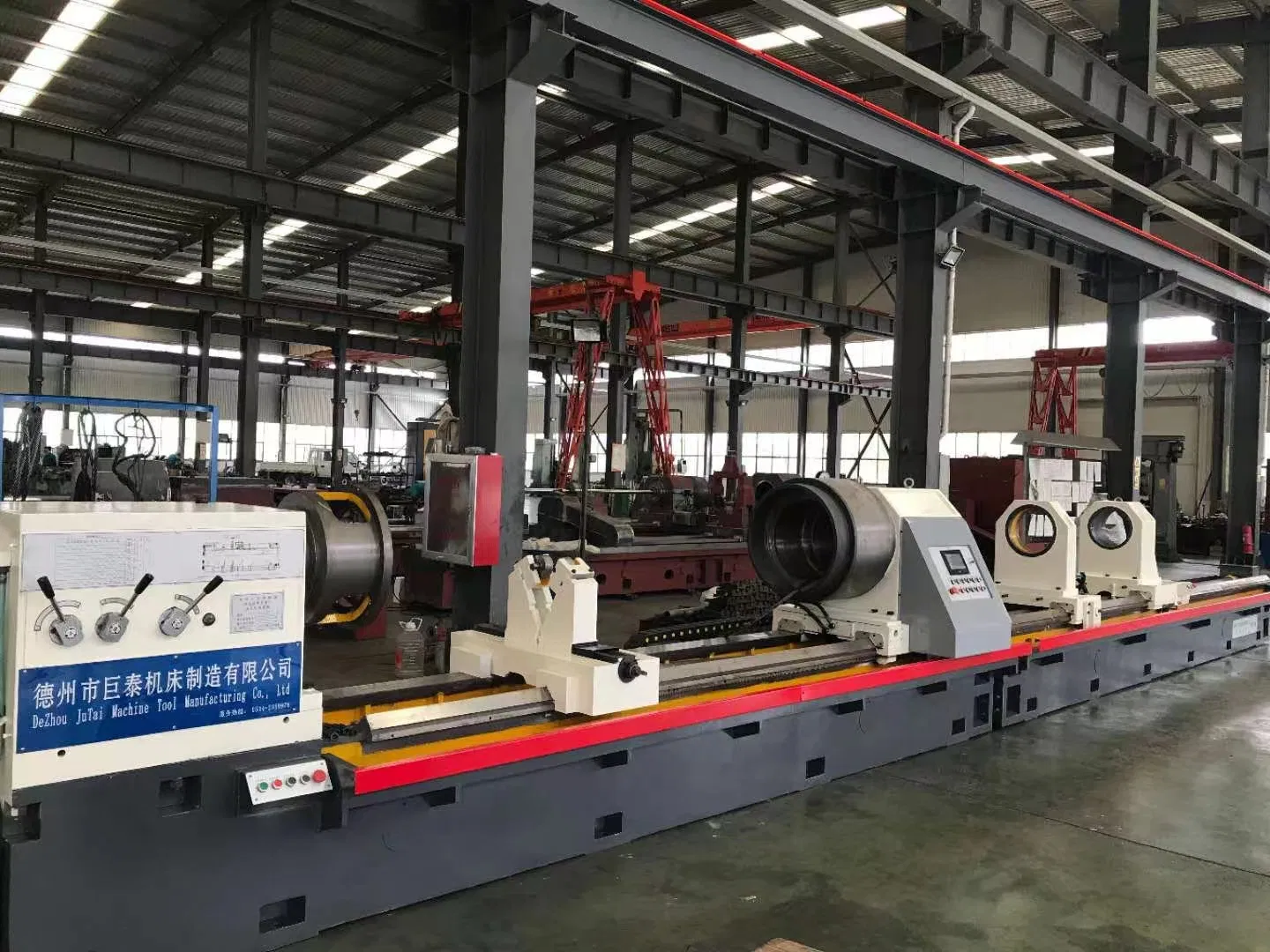

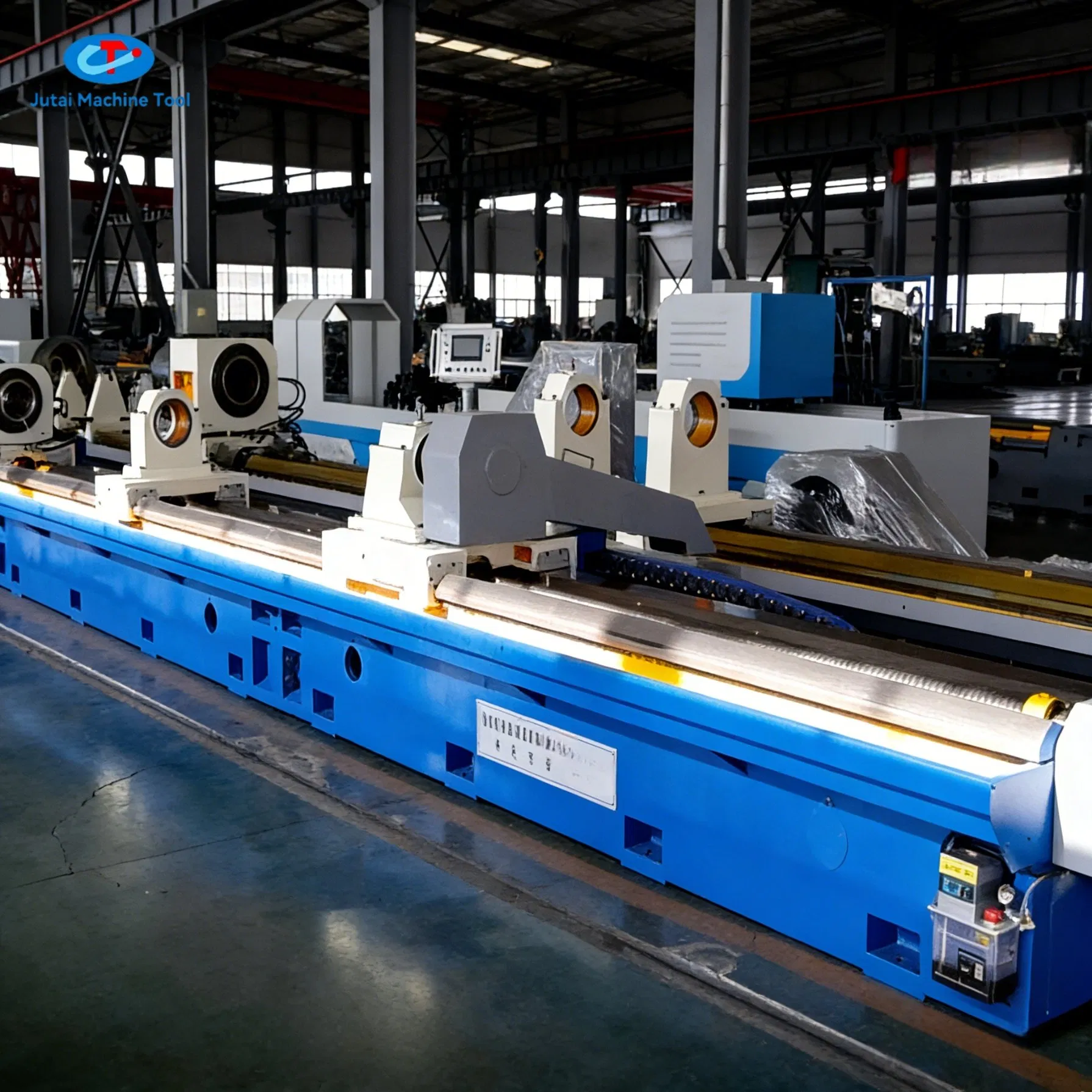

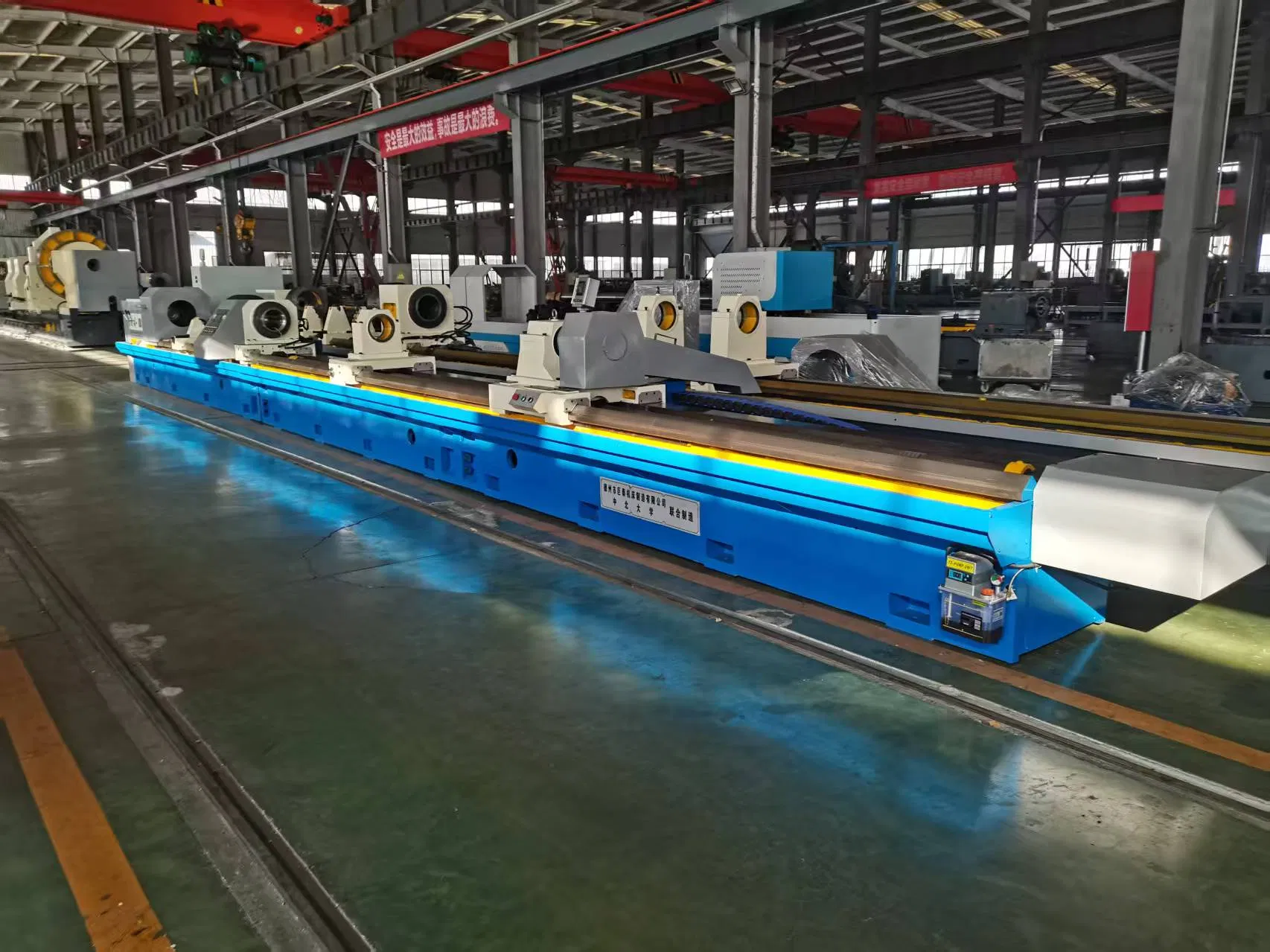

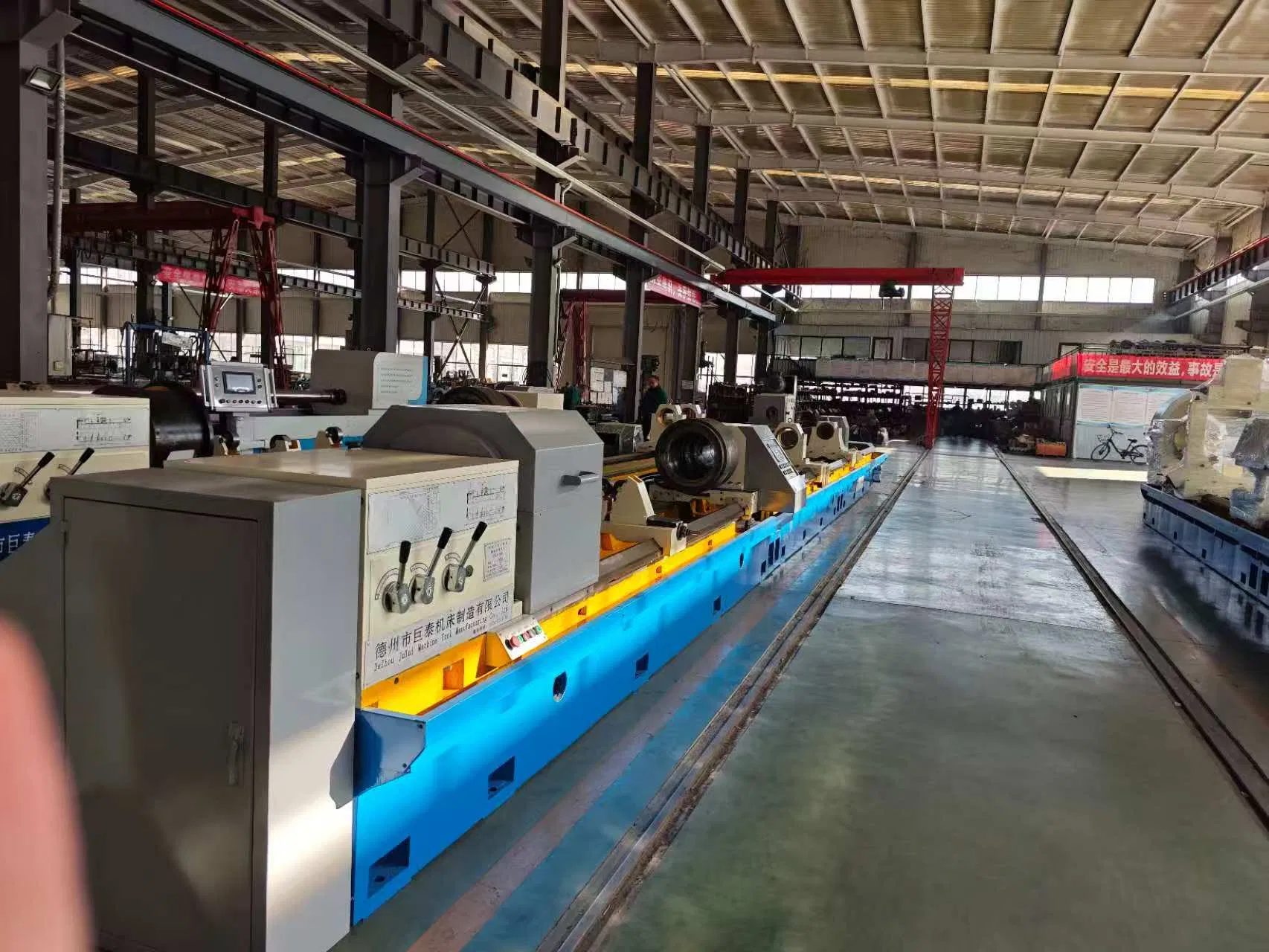

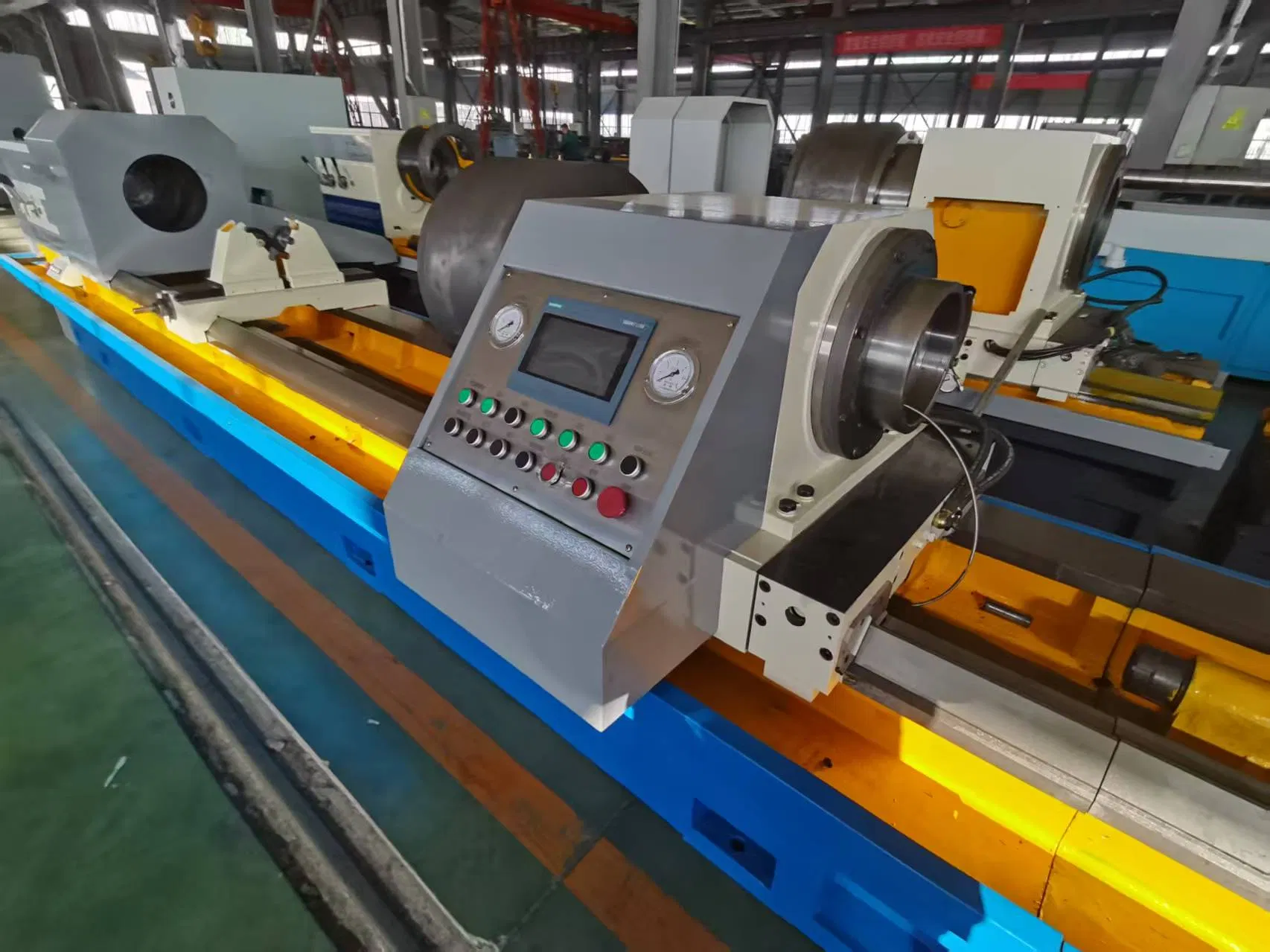

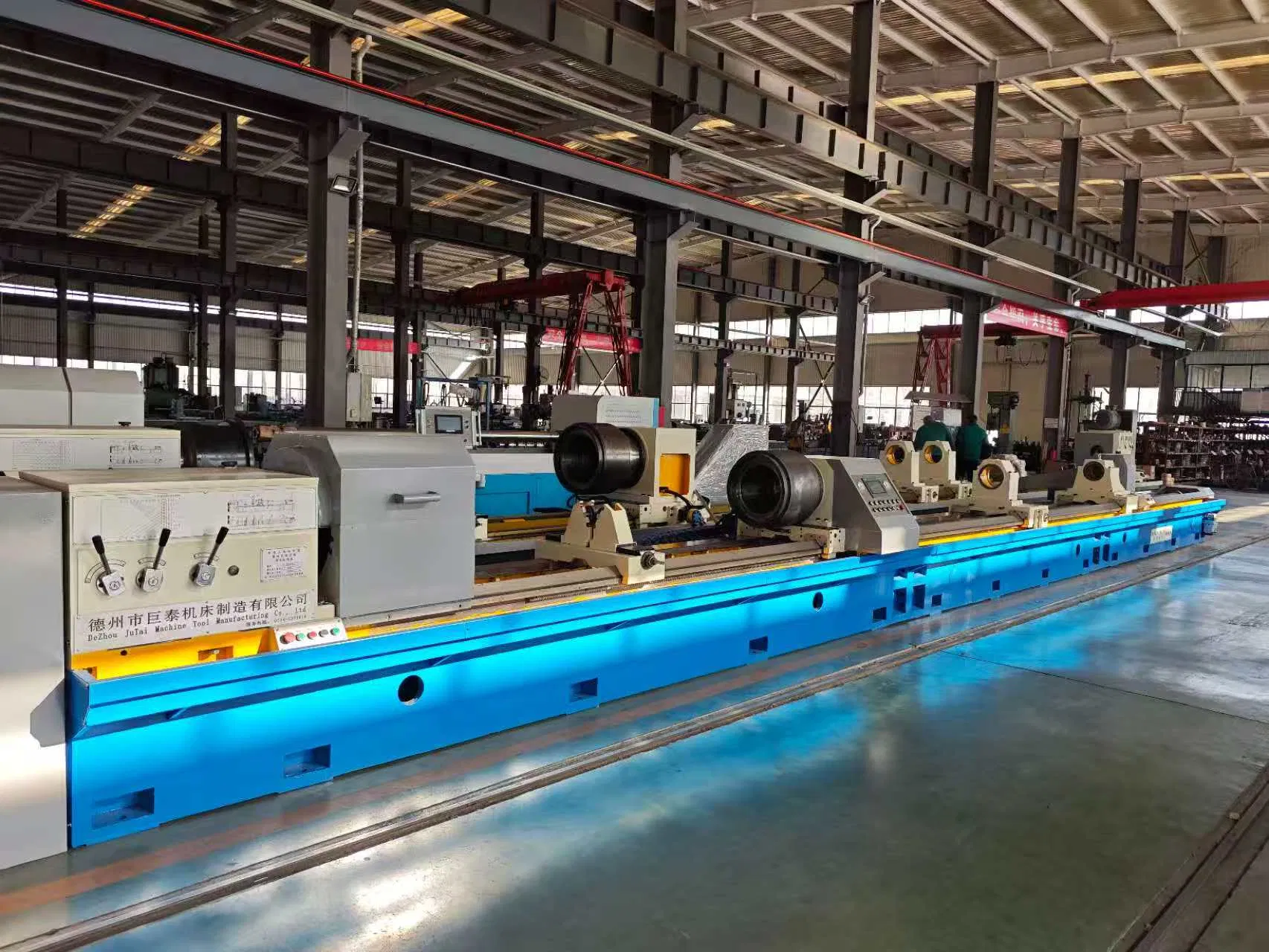

CNC Deep Hole Drilling and Boring Machine

The CNC deep hole drilling and boring machine is a versatile industrial solution designed for high-efficiency operations including drilling, expanding, nesting, and boring. It supports various combination tools for rough boring, fine boring, and rolling processes.

📝

Technical Specifications

Model	TK2216	TK2220	TK2225	TK2235	TK2240
Max Boring Diameter (mm)	160	200	250	350	400
Boring Diameter Range (mm)	30-80	30-120	30-120	30-120	30-120
Max Machining Depth (mm)	1500-3000	1000-1200	1000-12000	1000-12000	1000-12000
Spindle Speed Range (r/min)	7.5-120	6.1-1000	6.1-1000	6.5-523	6.5-523
Main Motor Power (kW)	15	30	30	30	37
Feed Speed Range (mm/min)	5-260	5-260	5-260	5-260	5-260

🚀

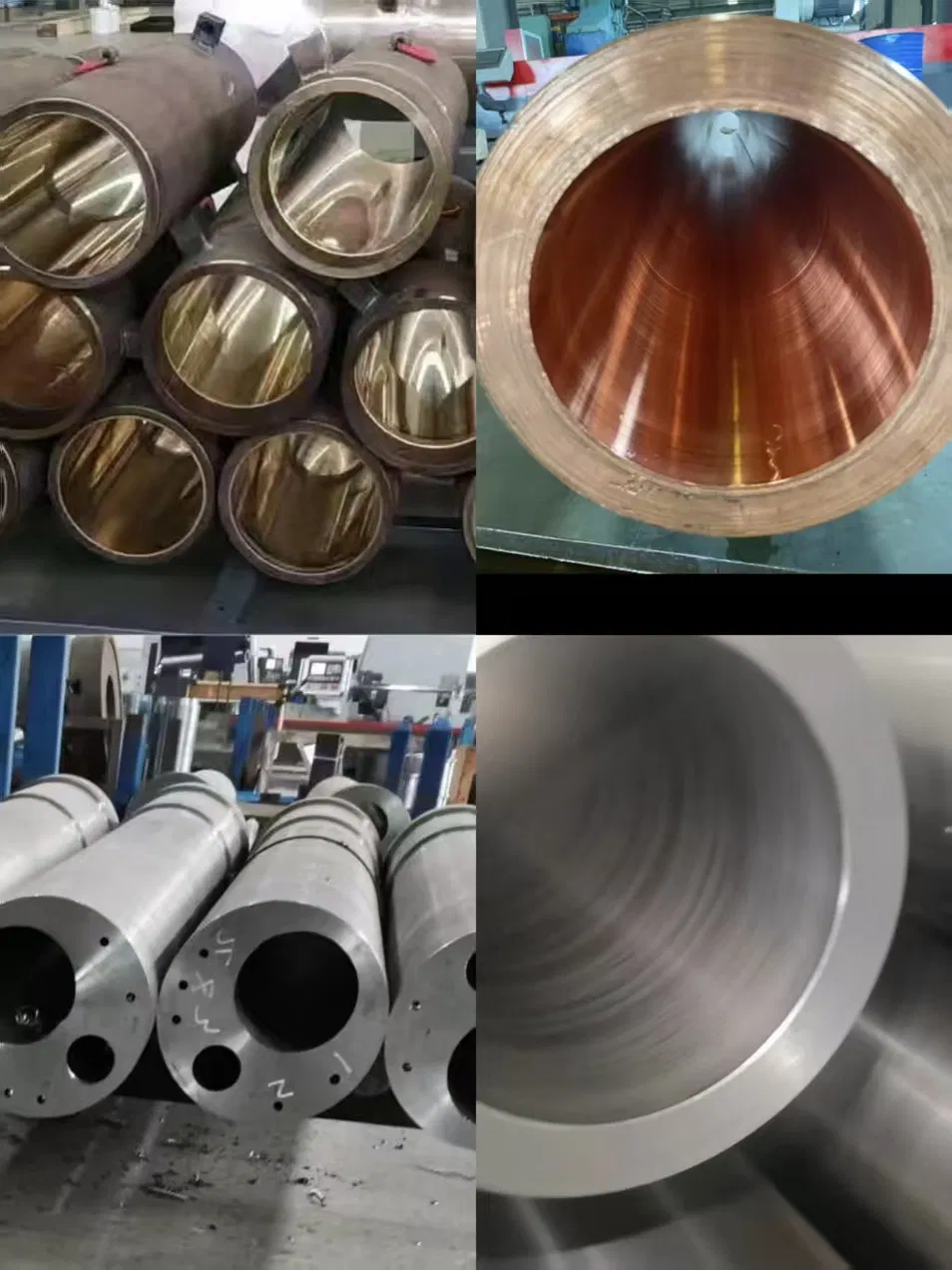

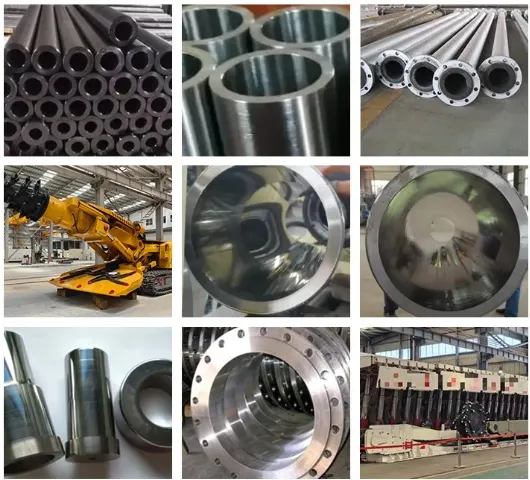

Key Applications

Hydraulic Cylinders: Precision boring and finishing for construction machinery.
Oil & Gas: Finishing drill pipes, well casings, and high-pressure valve bodies.
Aerospace & Defense: High-precision component machining.
Energy Sector: Processing turbine shafts and nuclear reactor components.
Heavy Machinery: Refining piston rods and mining equipment bores.

🏭

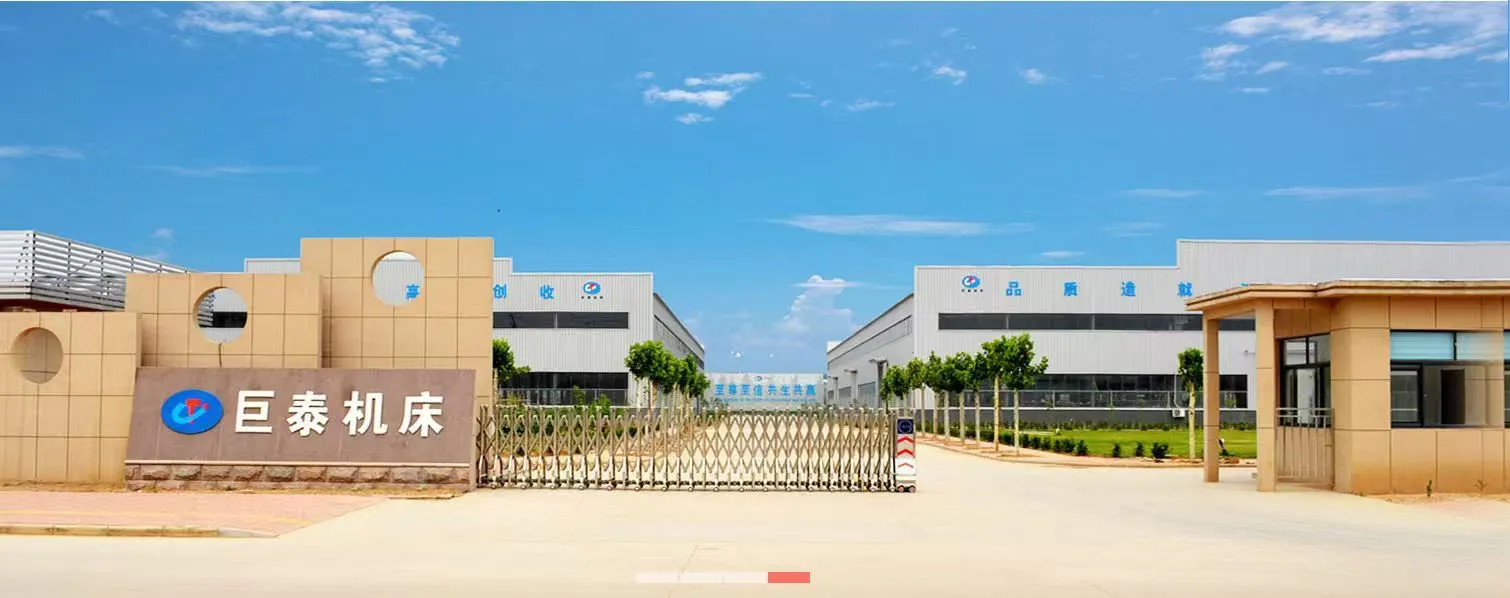

Manufacturing Capabilities

Our production facility is equipped with over 80 types of advanced machinery, including gantry planers (up to 9000mm), large lathes (1140x8000mm), and digital machining centers. We specialize in:

📦

Packing & Delivery

Package Size

6.06m * 2.44m * 2.26m

Gross Weight

10,000.00 kg

Transport Package

Steel Frame / Wooden Box

❓

Frequently Asked Questions

Q1: What kind of after-sales service do you provide? We provide free professional training at our facility. For international clients, our engineers are available to provide machinery services overseas if required.

Q2: What is the warranty period for this CNC machine? The complete machine comes with a one-year warranty and lifetime technical maintenance support.

Q3: How do you ensure the quality of the equipment? Every machine undergoes rigorous testing before packing. We use internationally recognized brand components and conduct layer-by-layer inspections from R&D to production.

Q4: What is the typical lead time for an order? It depends on the quantity. Generally, small orders are shipped within 7-15 days, while larger or customized orders take approximately 30 days.

Q5: Can the machine be customized for specific drilling needs? Yes, we undertake the design and manufacturing of non-standard deep hole tools and special hole machining systems ranging from 30mm to 1000mm.

Q6: Why should we choose your CNC machines? We offer quality assurance through premium parts, strong R&D capabilities, and intimate 24/7 online after-sales support to ensure your production never stops.
