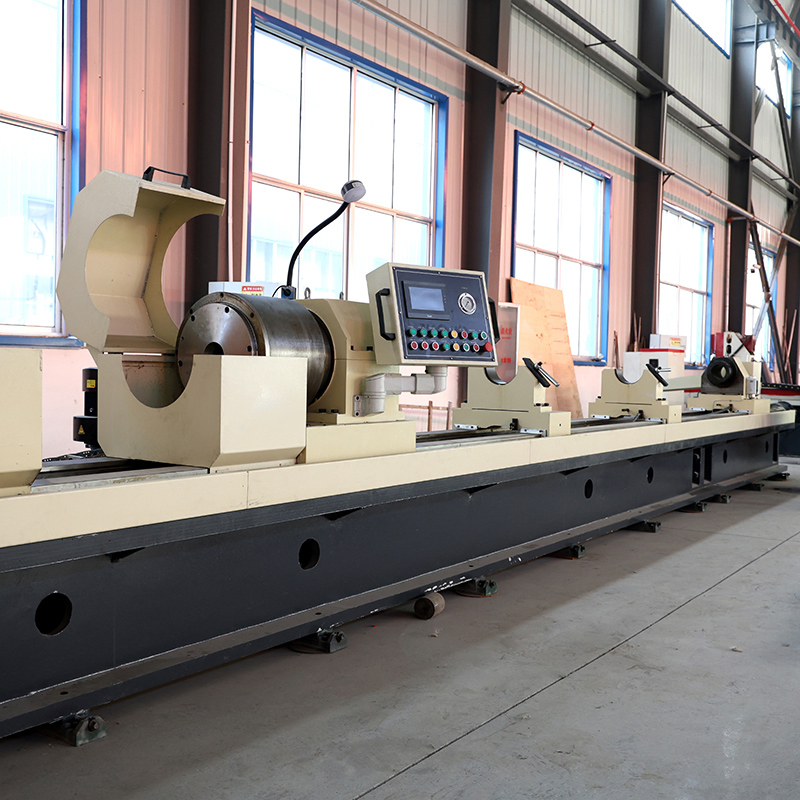

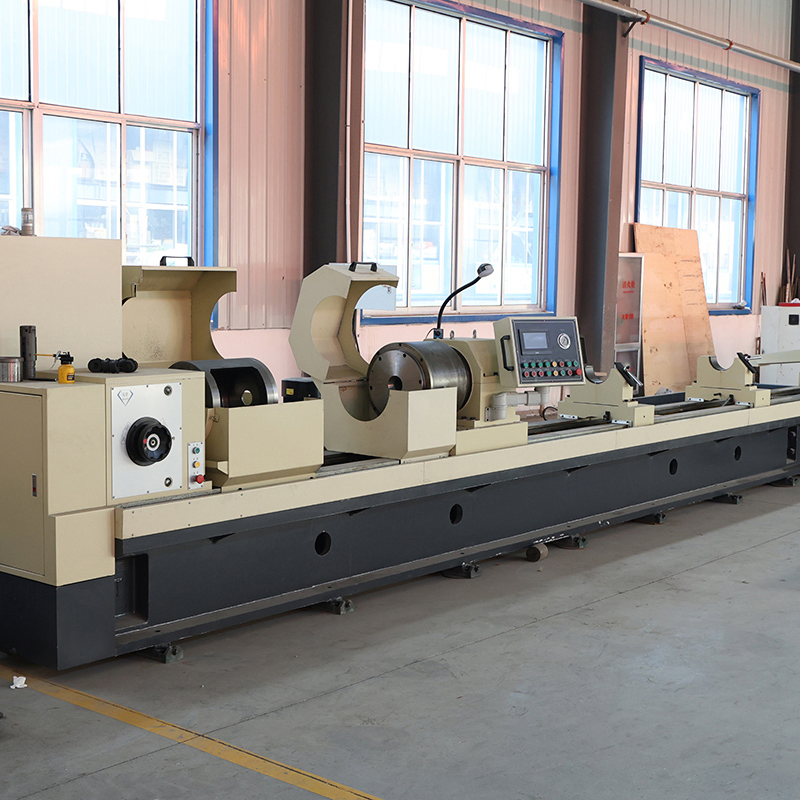

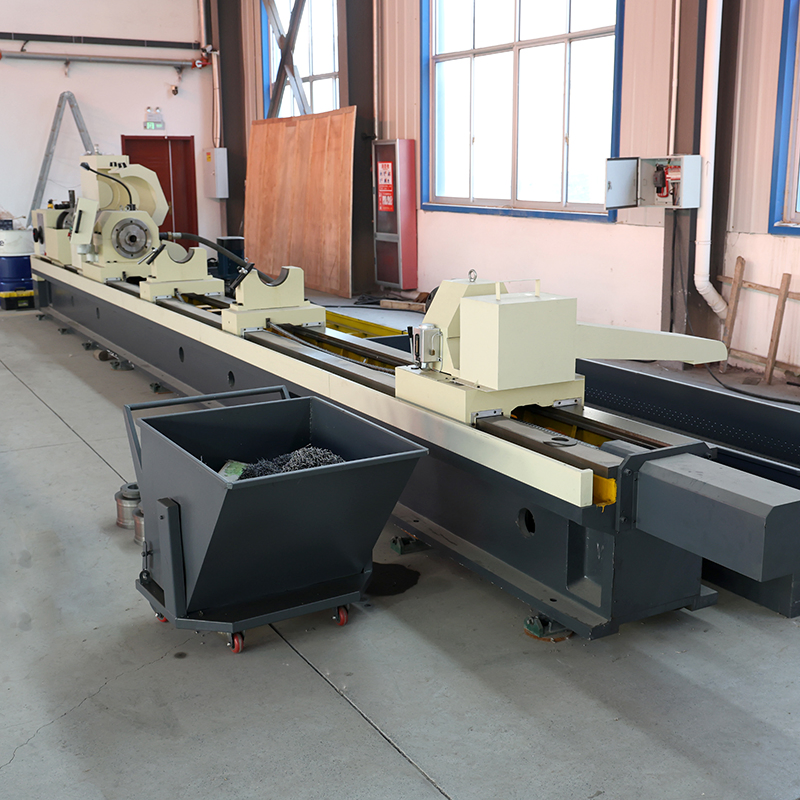

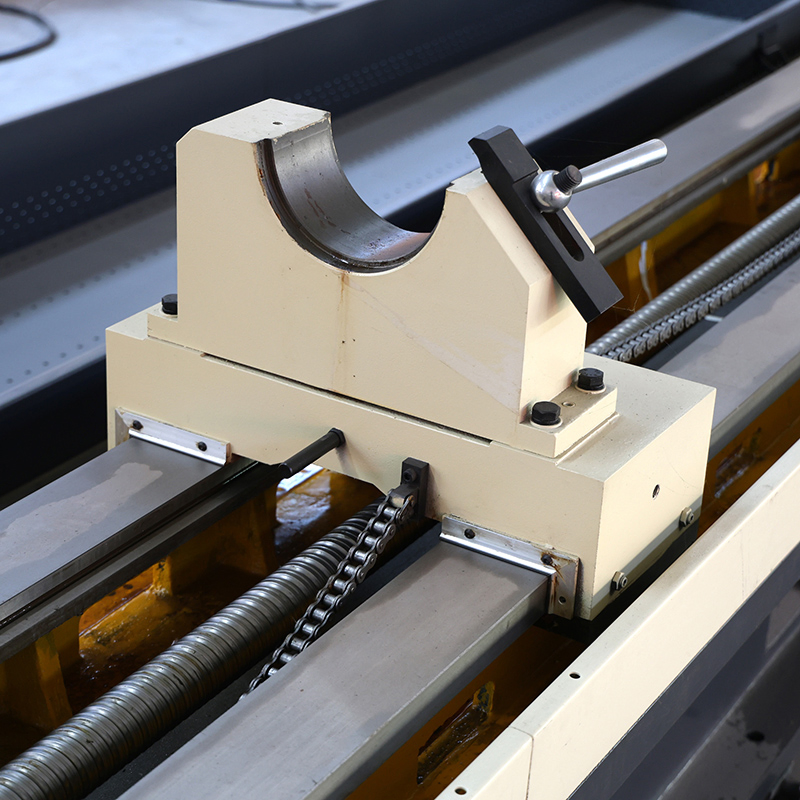

Tk2225 Deep Hole Drilling and Boring Machine for Piston Rods

1 / 5

Tk2225 Deep Hole Drilling and Boring Machine for Piston Rods

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1-Year Warranty and Lifetime Maintenance

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

TK2225

Structure

Deep Hole Drilling

Layout

Horizontal

Controlling Mode

CNC

Number of Shaft

Hole Diameter

101-150mm

Automatic Grade

Automatic

Precision

High Precision

Condition

Used

Max Boring Diameter

φ100mm

Max.Boring Depth

1000-15000mm

Spindle Speed

61-1000r/Min

📝 Product Description

Deep hole drilling and boring machine TK2125 & TK2225

The machine is specialized in machining cylindrical deep-hole workpieces, such as spindle holes for machine tools, various mechanical hydraulic cylinders, cylindrical through-holes for cylinders, blind holes and stepped holes. The processing aperture accuracy can be up to IT7~IT8 or above, and the surface roughness can reach Ra0.4μm.

The machine tool can not only undertake drilling and boring, but also can perform rolling processing. The machine bed is rigid and has excellent precision. The feed system is driven by an AC servo motor, adapting to various deep hole machining processes.

📊 Technical Specifications

SPECIFICATION		TECHNICAL DATA (TK2125/2225)
CAPACITY	Boring Diameter	φ250mm
CAPACITY	Max Drilling Diameter	φ100mm
CAPACITY	Max Boring Depth	1000-15000mm
SPINDLE	Center Height to Bed	350mm
SPINDLE	Spindle Bore Diameter	φ75mm
SPINDLE	Speed Range	61-1000r/min (12 steps)
FEEDS	Feed Speed Range	5-600mm/min
MOTORS	Main Motor Power	30KW
MOTORS	Feed Motor Power	3.7KW AC Servo

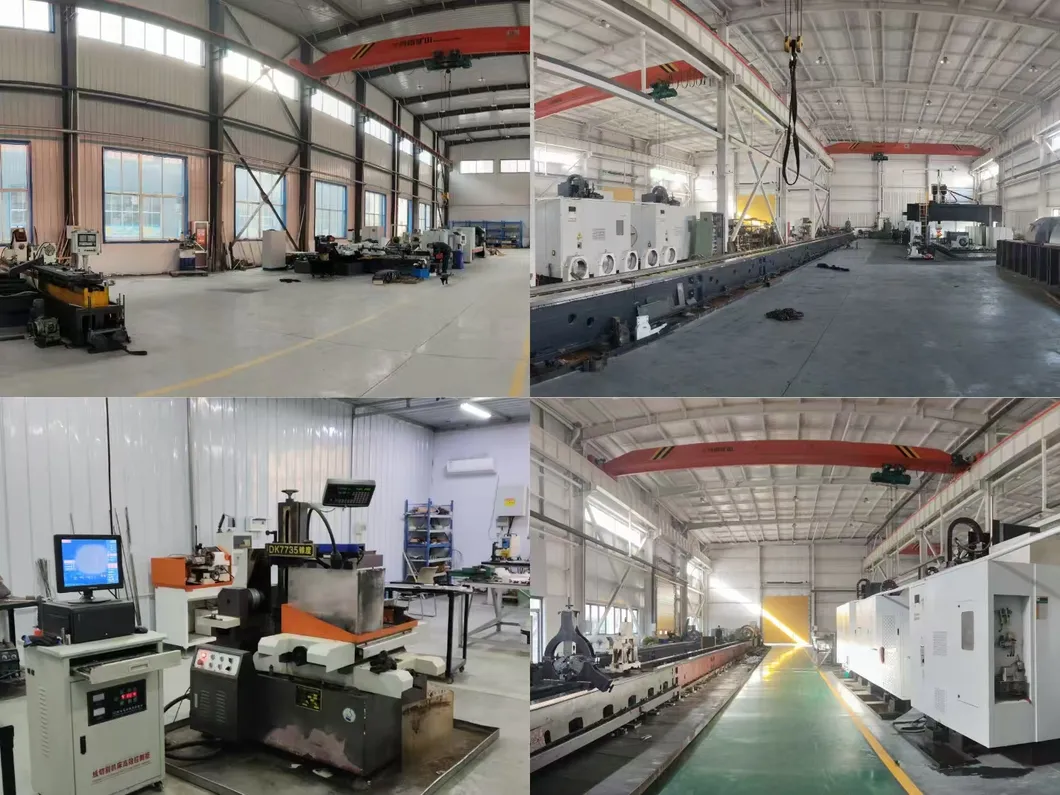

🏢 Production & Packaging

❓ Frequently Asked Questions

What is the Warranty for the products?

We own high precision grading machines to control geometry dimensions and apply ultra-fine grain size substrates coated with high-performance coatings to guarantee the lifetime of our products, which can satisfy every working condition. If any quality problems occur, we will take on the shipping cost and replacement.

Do you provide free samples?

Yes, usually we provide free samples for testing under the condition of freight paid by the customer.

What is your minimum order requirement?

We will indicate the MOQ for each item in the quotation sheet. We accept sample and trial orders. If the quantity of a single item cannot reach the MOQ, the price will be the sample price.

What is the delivery time of your products?

It depends on inventory availability. If items are in stock, delivery is within 8 work days; if not, it is around 20 work days.

Can you manufacture special-shaped products?

Yes, we can. We produce both standard tools and special tools according to your drawings and samples.

May I have my order working schedule?

Yes, we will send a working schedule of your order each week. We inspect and test all merchandise before shipment. Detailed inspection pictures will be sent for confirmation before delivery.
