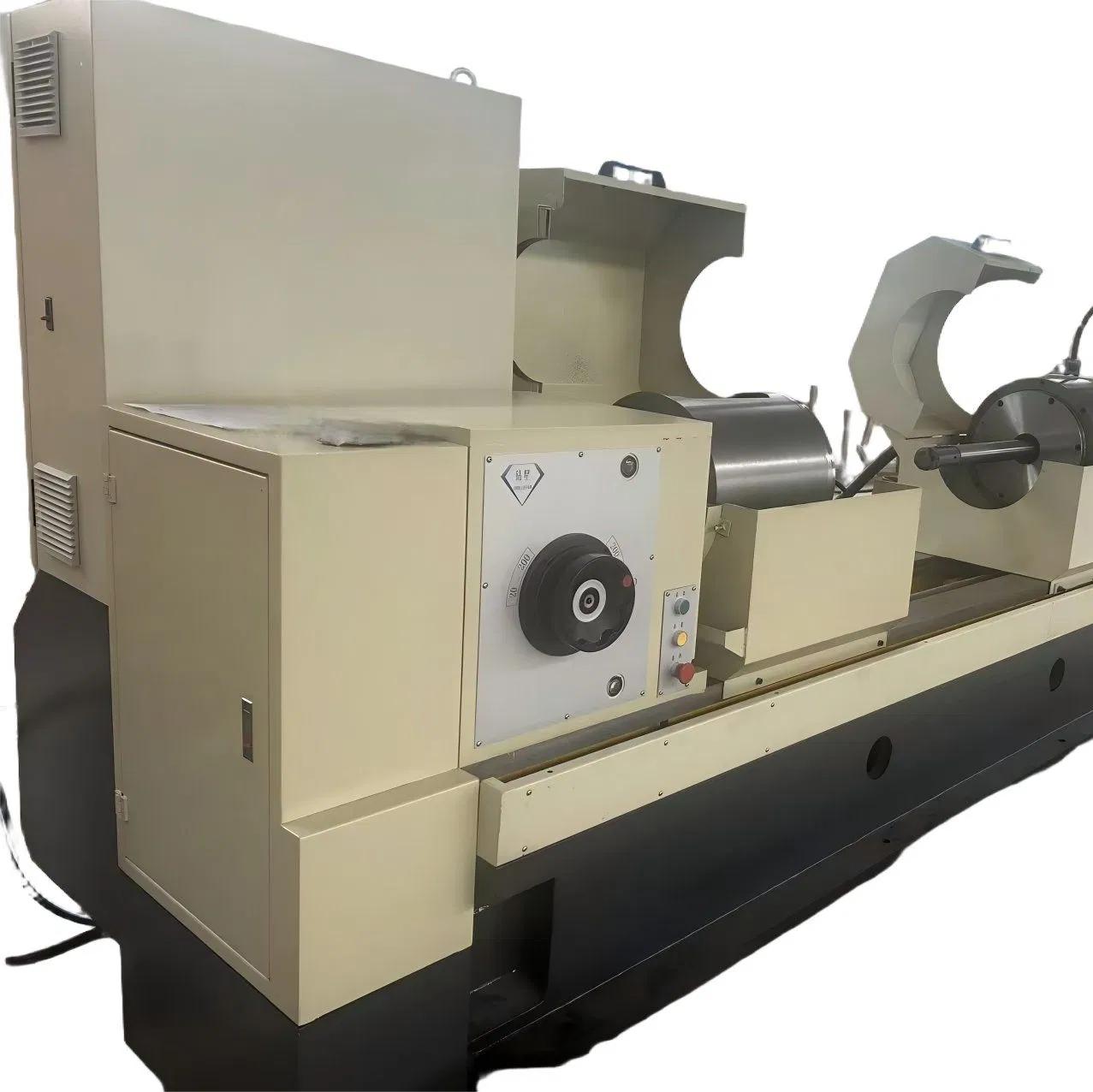

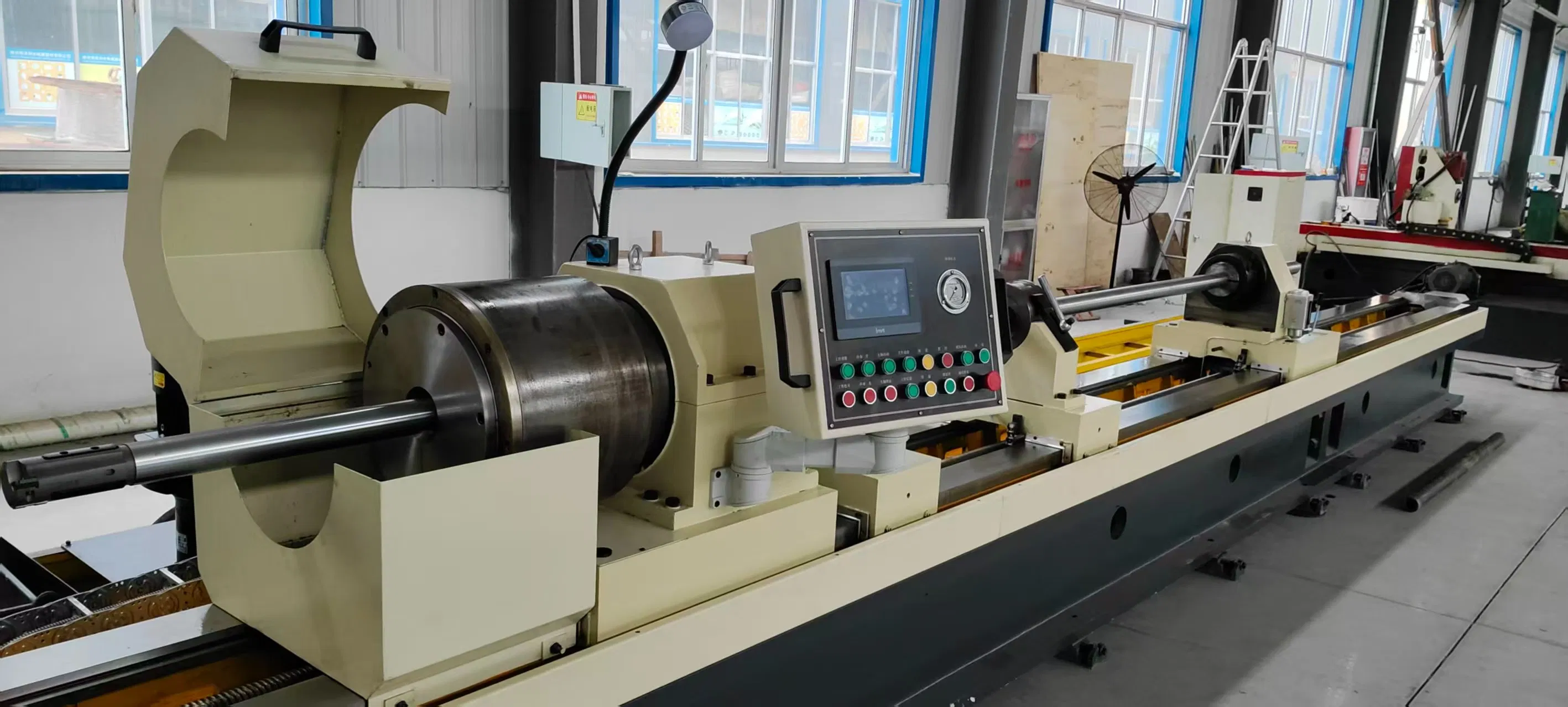

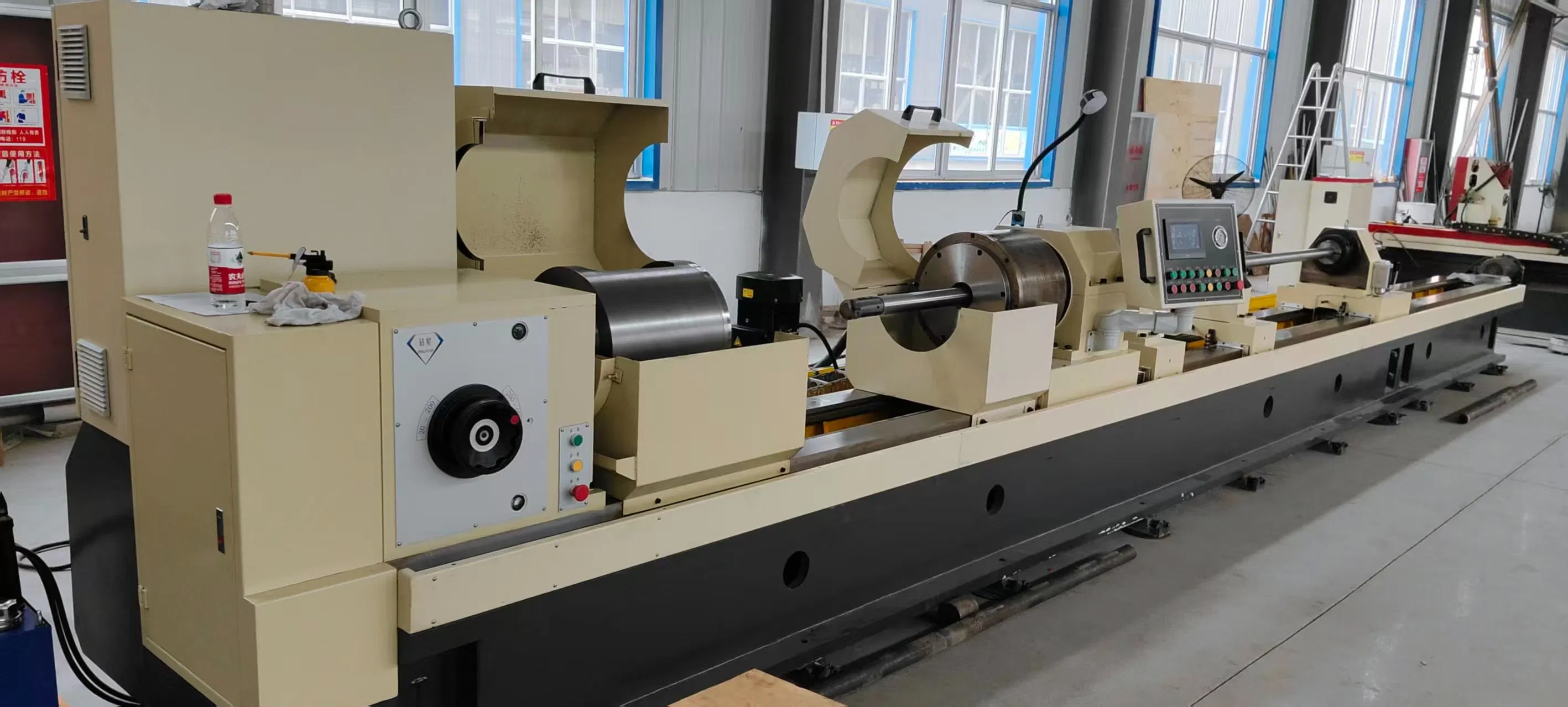

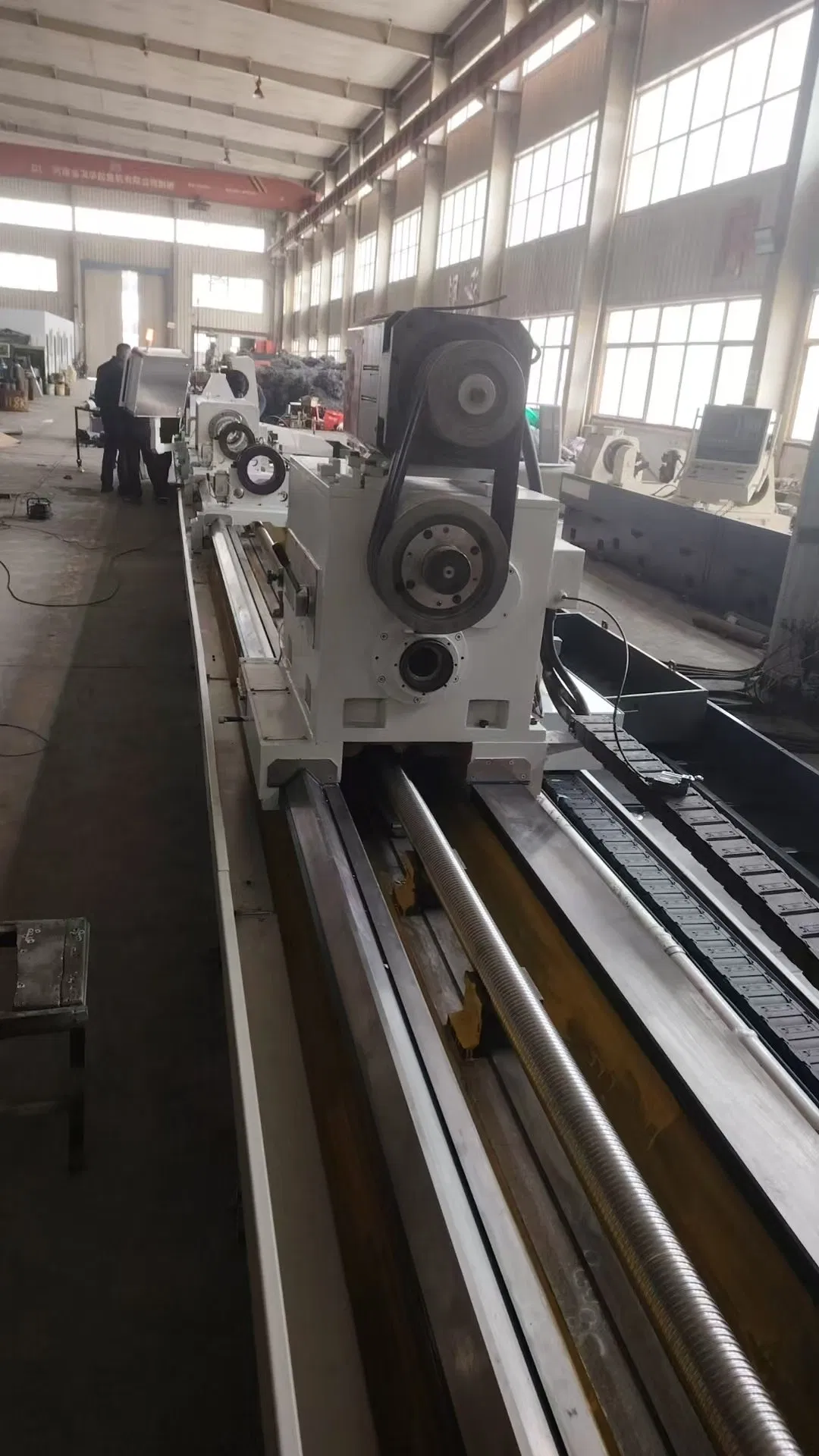

T2120 Deep Hole Drilling and Boring Machine for Mold Parts Processing

1 / 5

T2120 Deep Hole Drilling and Boring Machine for Mold Parts Processing

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1-Year Warranty and Lifetime Maintenance

Send Inquiry

Product Description

Basic Information

Model NO.

T2120

Structure

Deep Hole Drilling

Layout

Horizontal

Controlling Mode

CNC

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Feed Motor

N=4kw

Max Depth of Boring

1m to 8m

📦

Packaging & Delivery

Package Size

1200.00cm * 350.00cm * 200.00cm

Package Gross Weight

68000.000kg

Lead Time

30 days (1 - 1 Pieces)

⚙

Product Description

1. Usage

T2120 deep hole drilling and boring machine is used for machining cylindrical deep-hole workpiece, for drilling, for boring, for step hole and blind hole, for grinding and rolling. For the method of boring, it can be pushing boring and pulling boring. For the method of scraps removing, while drilling, it adopts BTA; while boring, it adopts BTA or removing ahead.

2. Main Specifications

Max.dia.of boring	200mm
Max.depth of boring	1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m
Center height	350mm
Spindle bore	75mm
Taper bore of spindle	φ85mm 1:20
Range, steps of spindle speed	61-1000r/min (12 steps)
Range of feed speed	5-1000mm/min (stepless)
Main motor	N=30kW
Feed motor	N=4KW AC Servo
Cooling system rated pressure	2.5Mpa

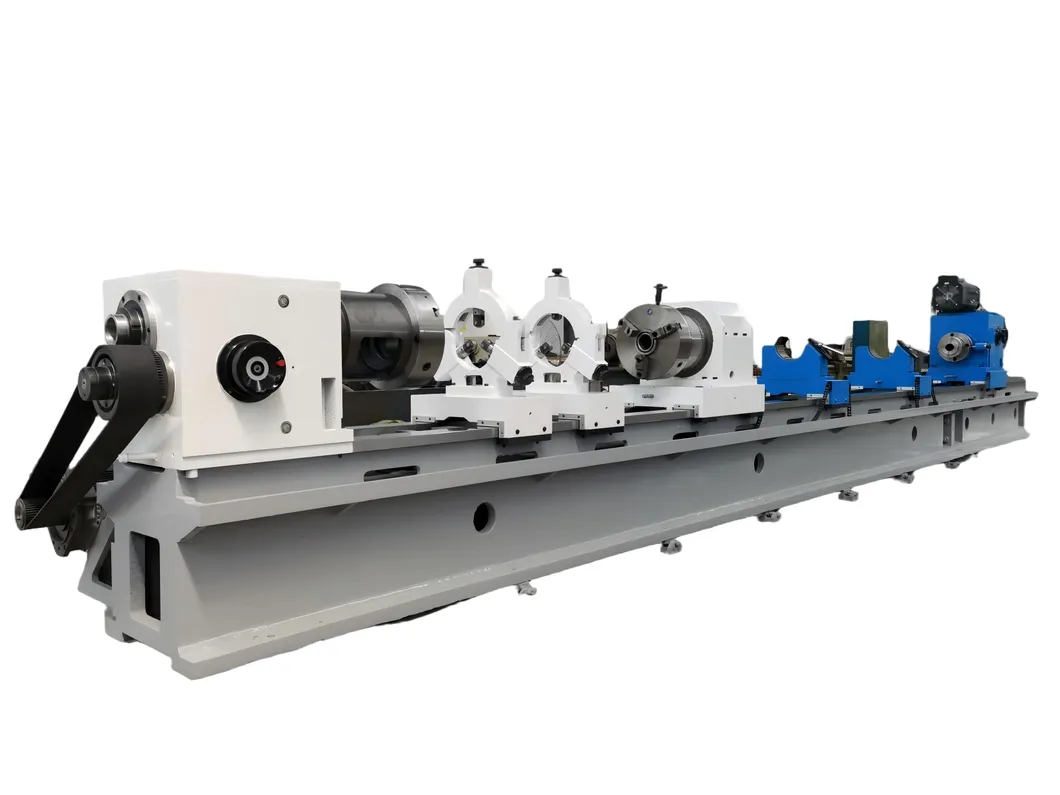

3. Function and Structure

Bed: Consists of several sub-beds. The guideway is quenched for long endurance, providing large carrying capacity and high accuracy.

Headstock: Transmission system uses rolling bearings. Spindle speed accuracy is maintained by double cylindrical roller bearings.

Carriage: Fixtures for drilling and boring bars are fixed to the carriage. Supports both automatic and manual operation modes.

Oil Feeder: Functions as the operating center. It fills coolant to the workpiece, seals it, and guides the drilling/boring heads.

✔
