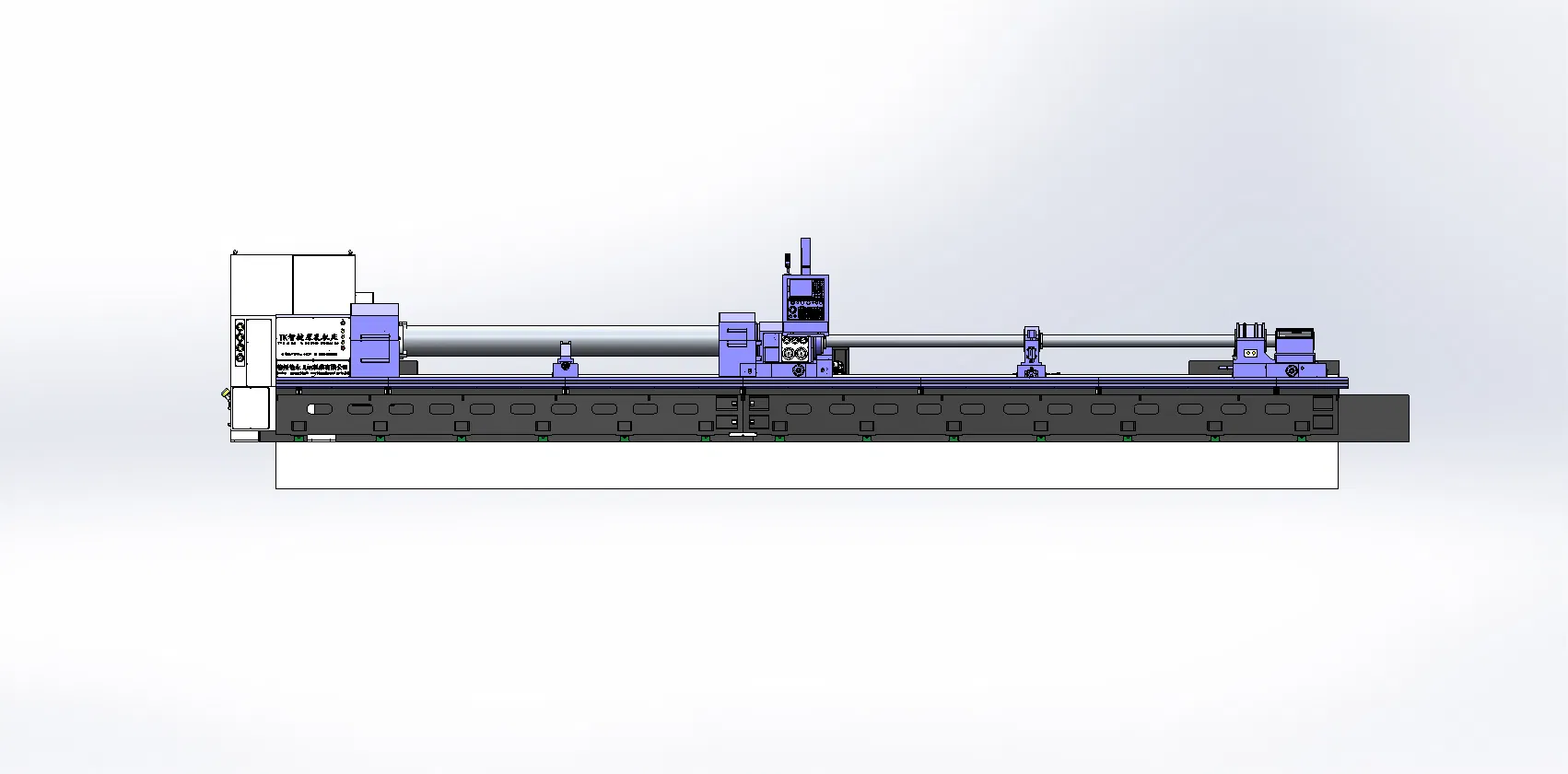

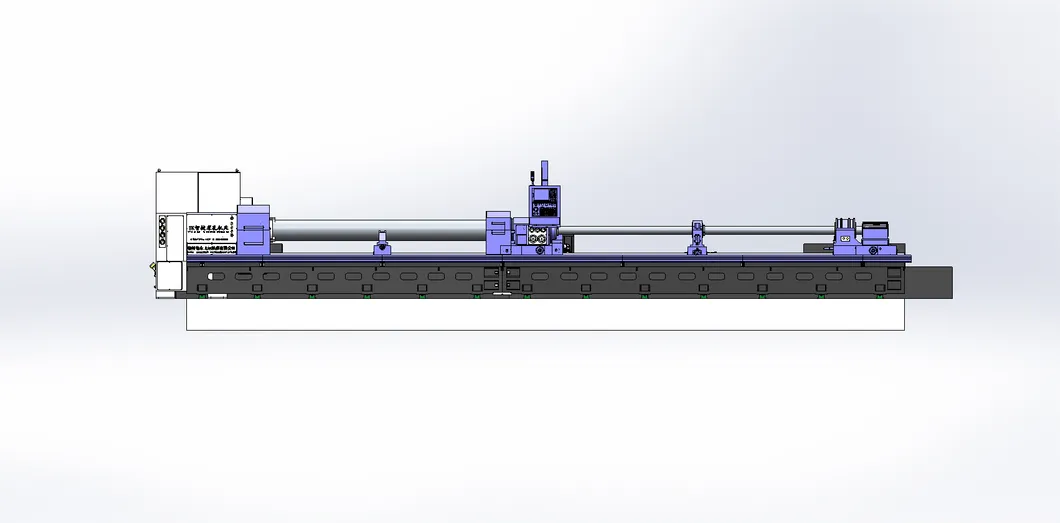

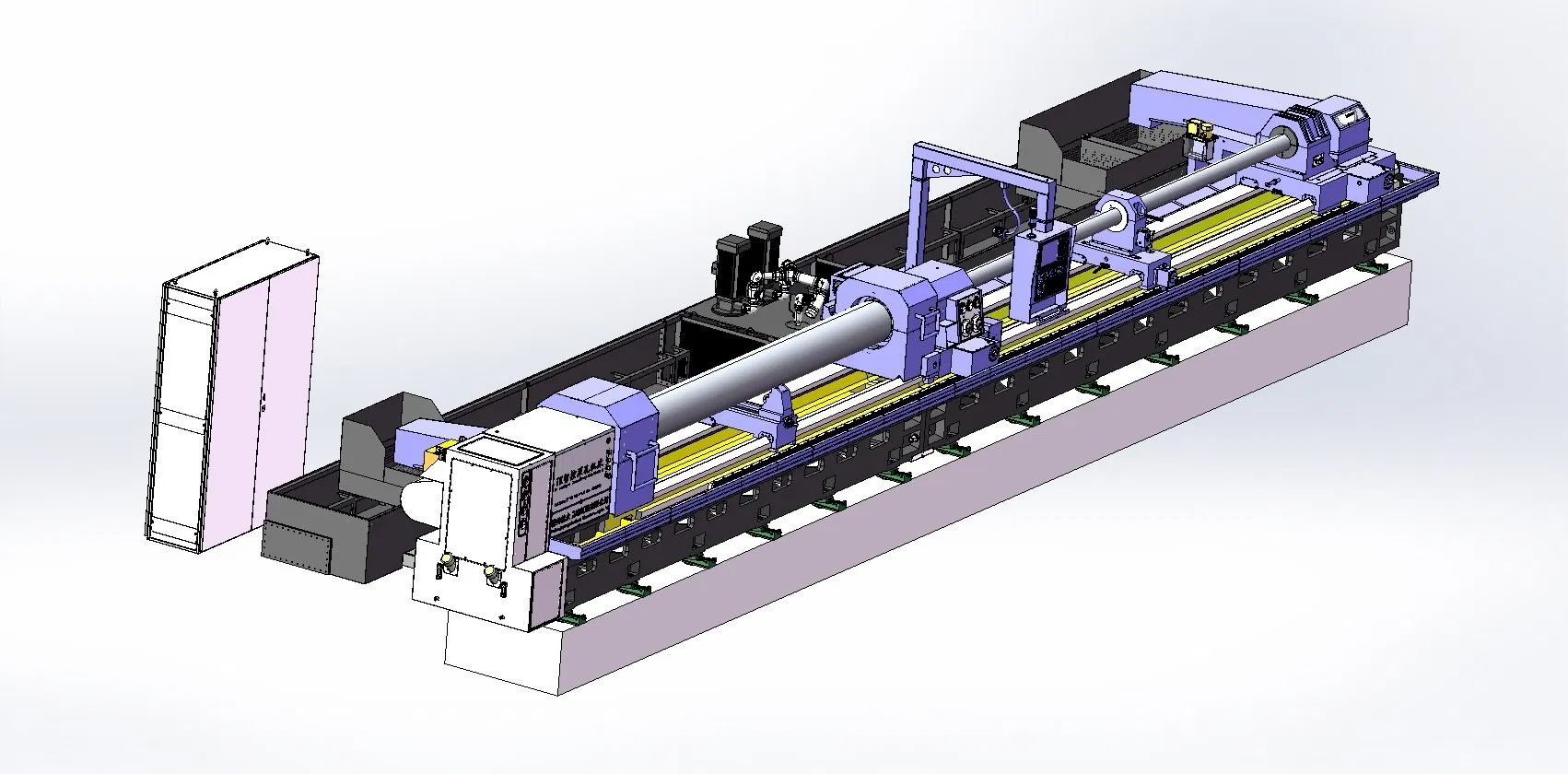

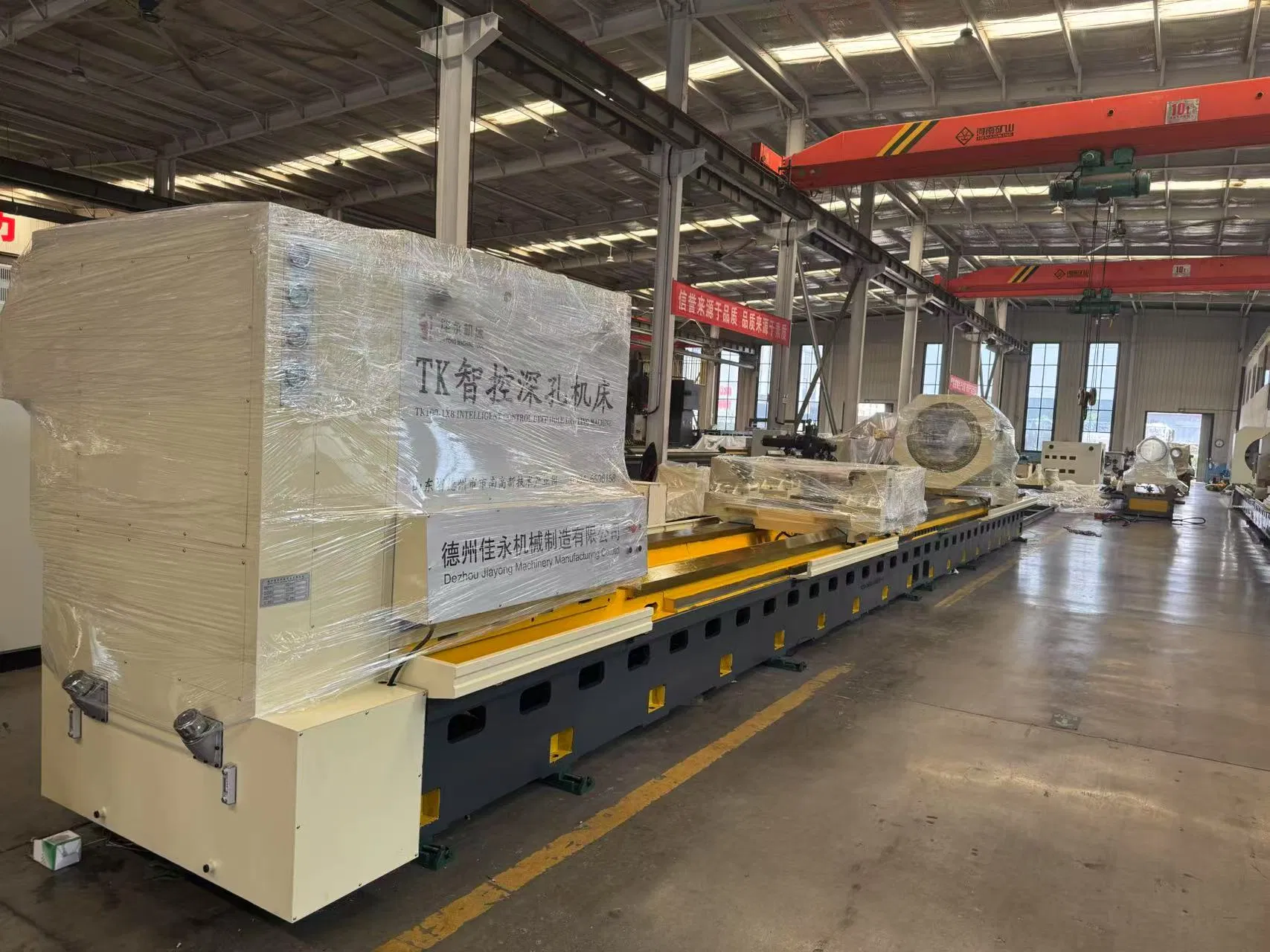

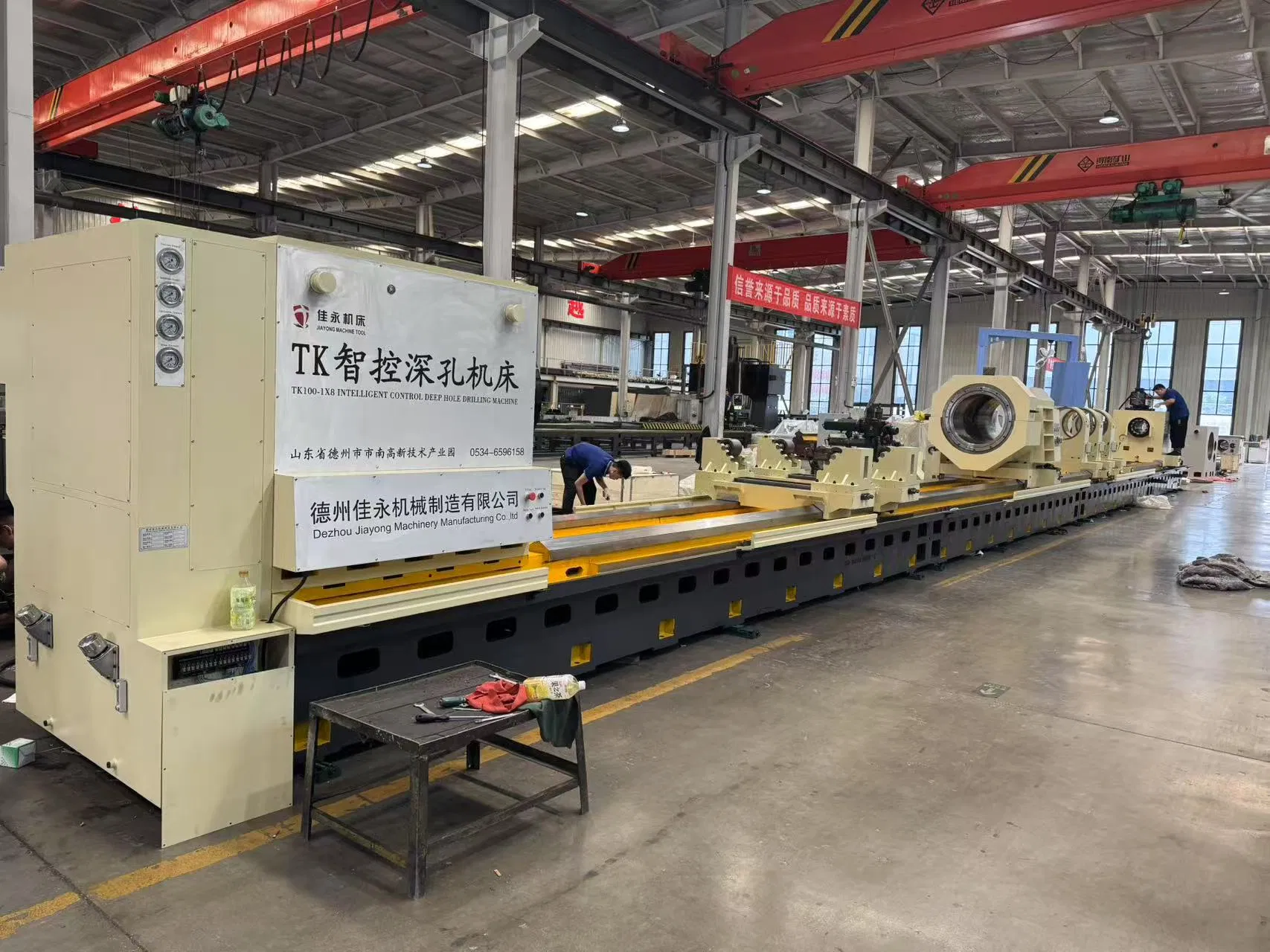

Tk25X4m CNC Deep Hole Boring Machine Tool

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	1

📋 Basic Specifications

Model NO.

TK25X4M

Structure

Horizontal Drilling Machine

Layout

Horizontal

Controlling Mode

CNC

Hole Diameter

>200mm

Automatic Grade

Automatic

Precision

High Precision

Certification

ISO 9001

Condition

New

HS Code

8459210000

Capacity

220 Units

⚙️ Product Description

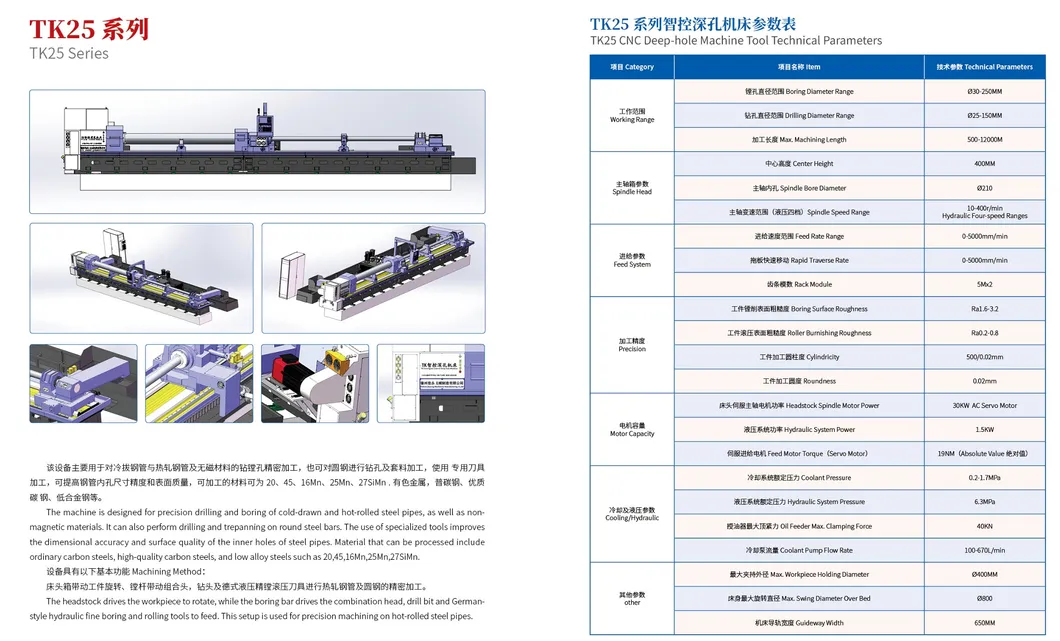

The machine is designed for precision drilling and boring of cold-drawn and hot-rolled steel pipes, as well as non-magnetic materials. It can also perform drilling and trepanning on round steel bars. The use of specialized tools improves the dimensional accuracy and surface quality of the inner holes of steel pipes.

Processed Materials: Ordinary carbon steels, high-quality carbon steels, and low alloy steels such as 20, 45, 16Mn, 25Mn, 27SiMn.

🔄 Three Basic Machining Methods

1. Workpiece Rotation (Drill Head Brake)

The headstock drives the workpiece to rotate, while the boring bar drives the combination head, drill bit, and German-style hydraulic fine boring and rolling tools to feed. Used for precision machining on hot-rolled steel pipes.

2. Tool Rotation (Headstock Brake)

The headstock is braked to keep the workpiece stationary. The boring bar head drives the boring bar to rotate. Ideal for correcting drilling deviations and machining drill collars and petroleum components.

3. Dual Rotation of Workpiece and Drill Bar

The headstock drives the workpiece to rotate, while the boring bar head drives the boring bar to rotate and feed simultaneously. This method improves straightness and efficiency.

🚀 Key Technical Advantages

Processing accuracy ≤0.03, high finish (≤Ra0.2-0.8).
Stable processing, more than 3 times the efficiency of traditional machine tools.
Easy and accurate adjustment of dimensional accuracy via fine boring tool control.
Boring head automatically controlled by NC program, suitable for mass production.
Inner hole working extra side 0.5mm.

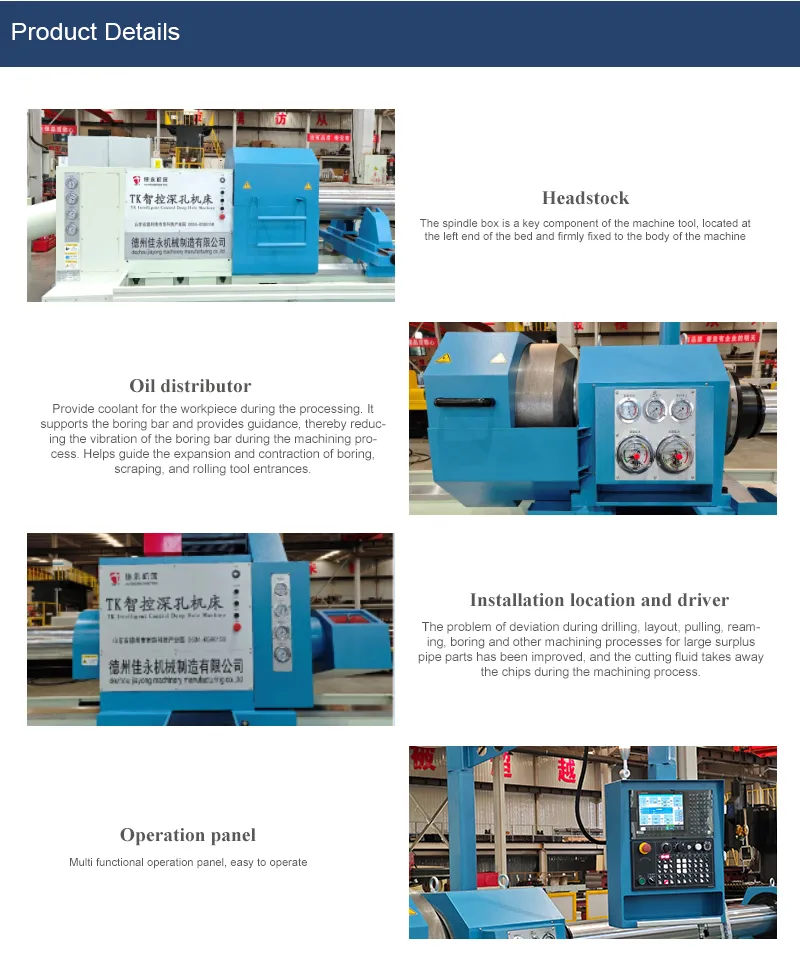

Unique structure with oil dispenser for stable rotation and feeding.
Automatic recognition of workpiece length, eliminating repeated programming.
Capable of processing center holes, eccentric holes, through holes, blind holes, and step holes.
