T2125g MDF Panel CNC Automatic Side Deep Hole Drilling Machine Woodworking 3 Spindle Milling Boring Machine for Cabinet

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

📋

Basic Information

Model NO.

T2125G

Structure

Deep Hole Honing Machine

Layout

Vertical

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE

Condition

New

Voltage

220V/380V

Production Capacity

5000/Month

⚙️

Product Description

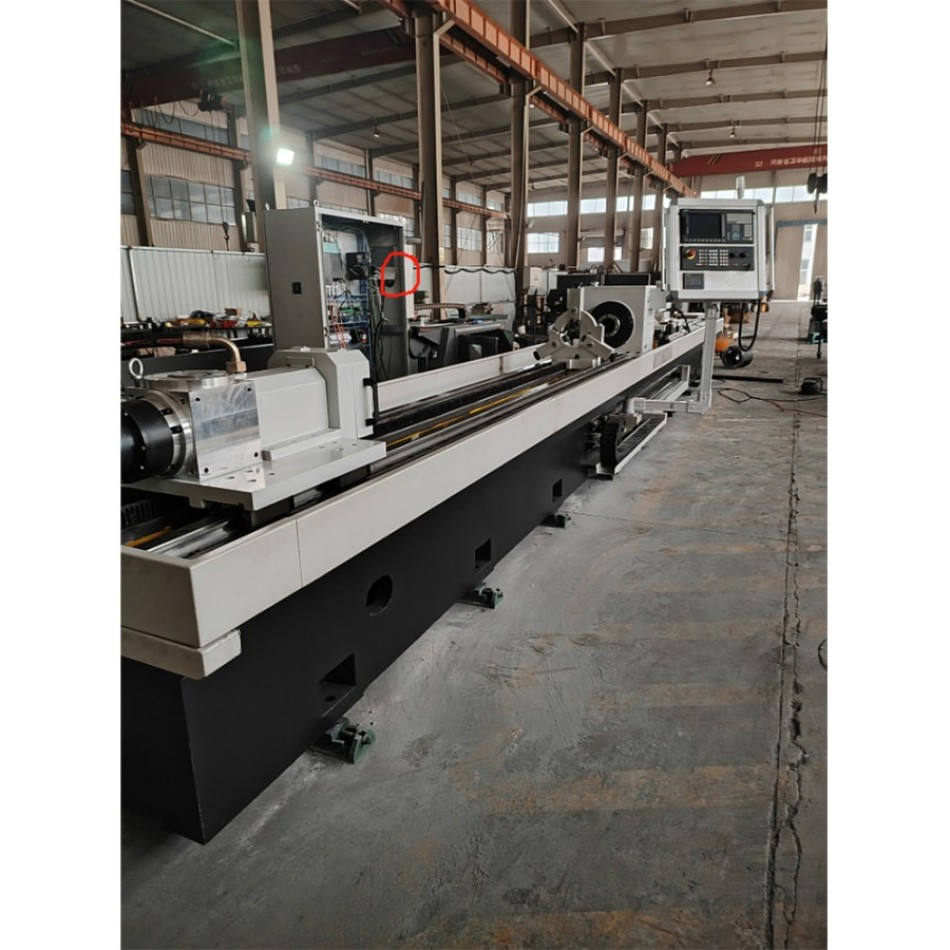

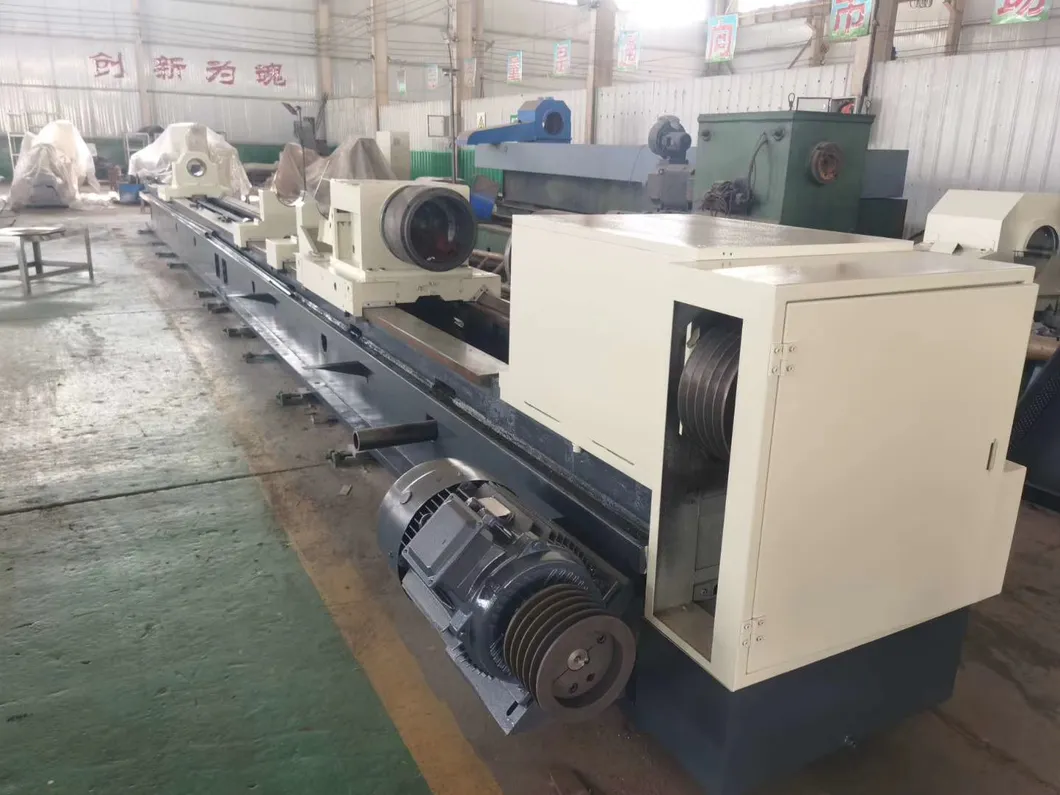

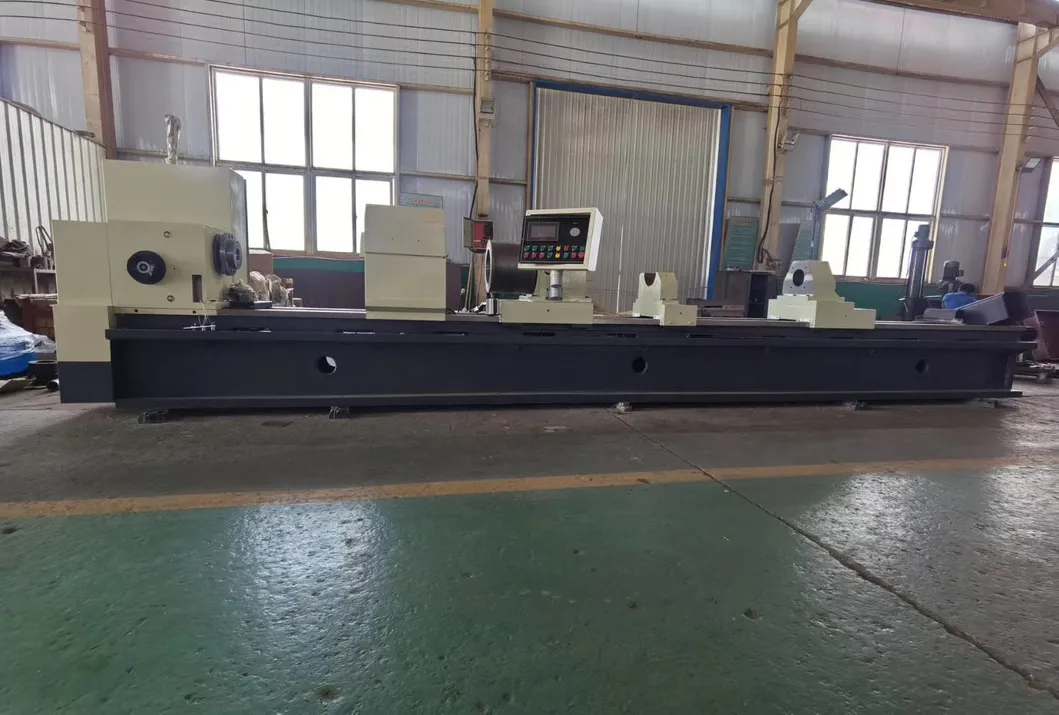

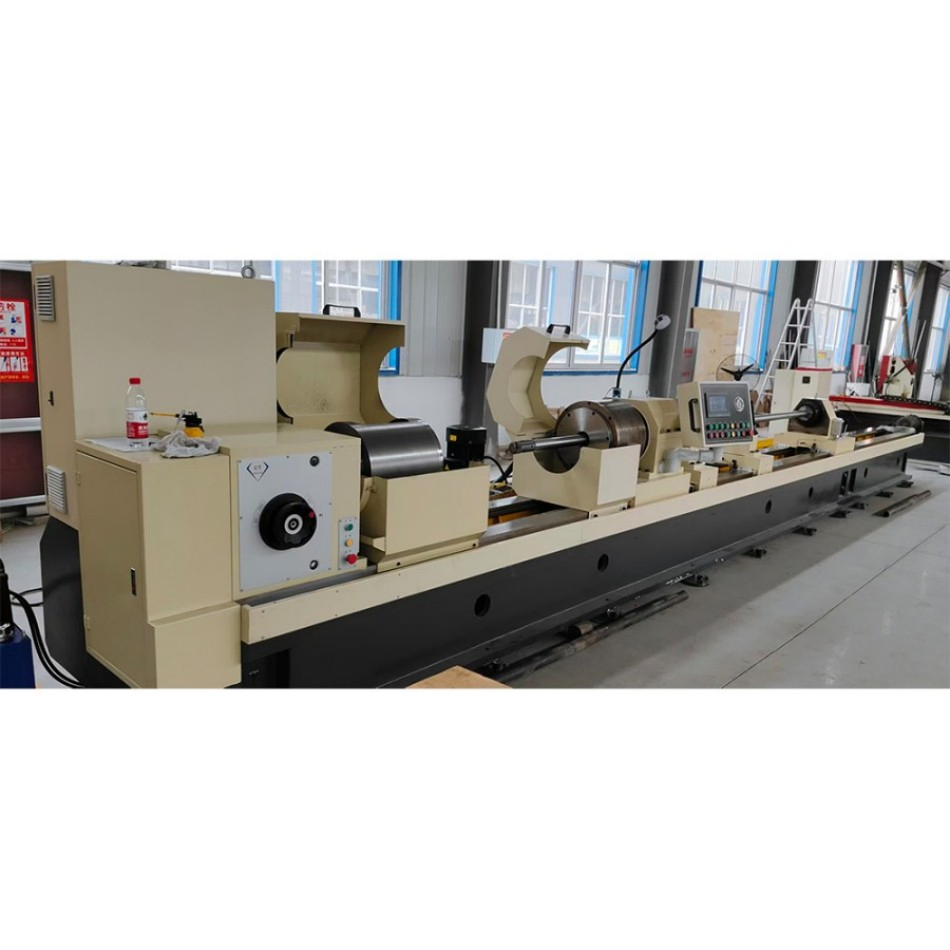

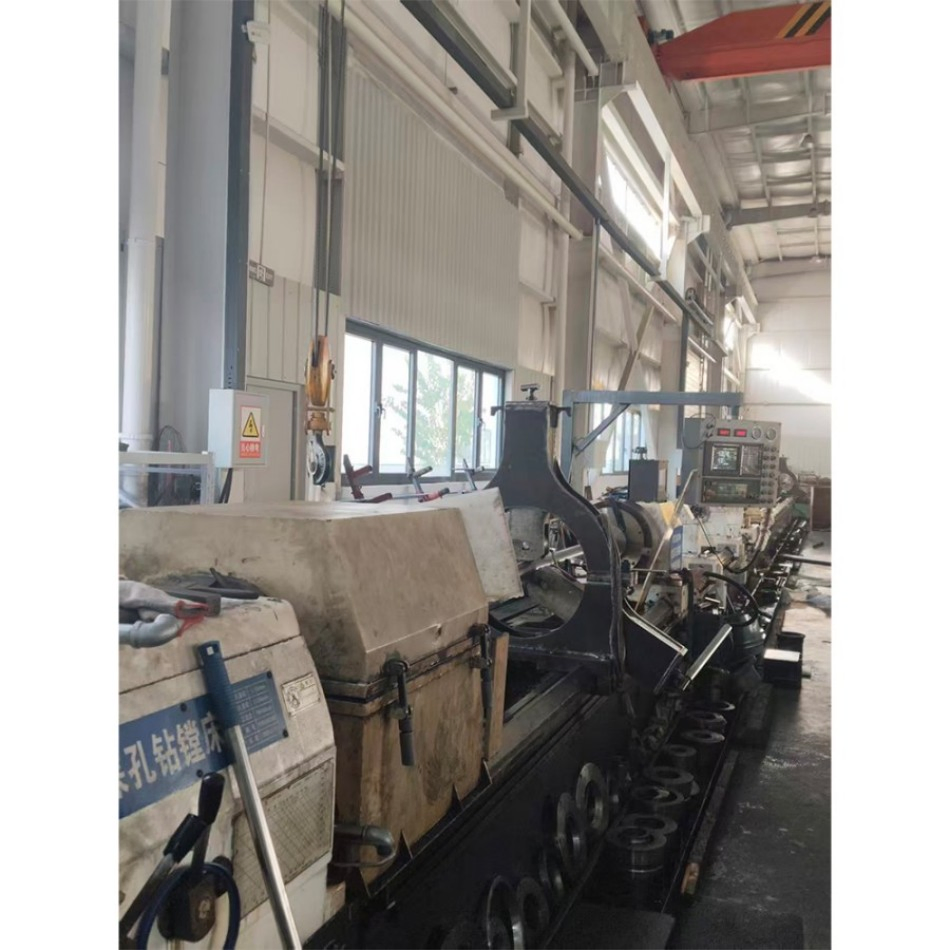

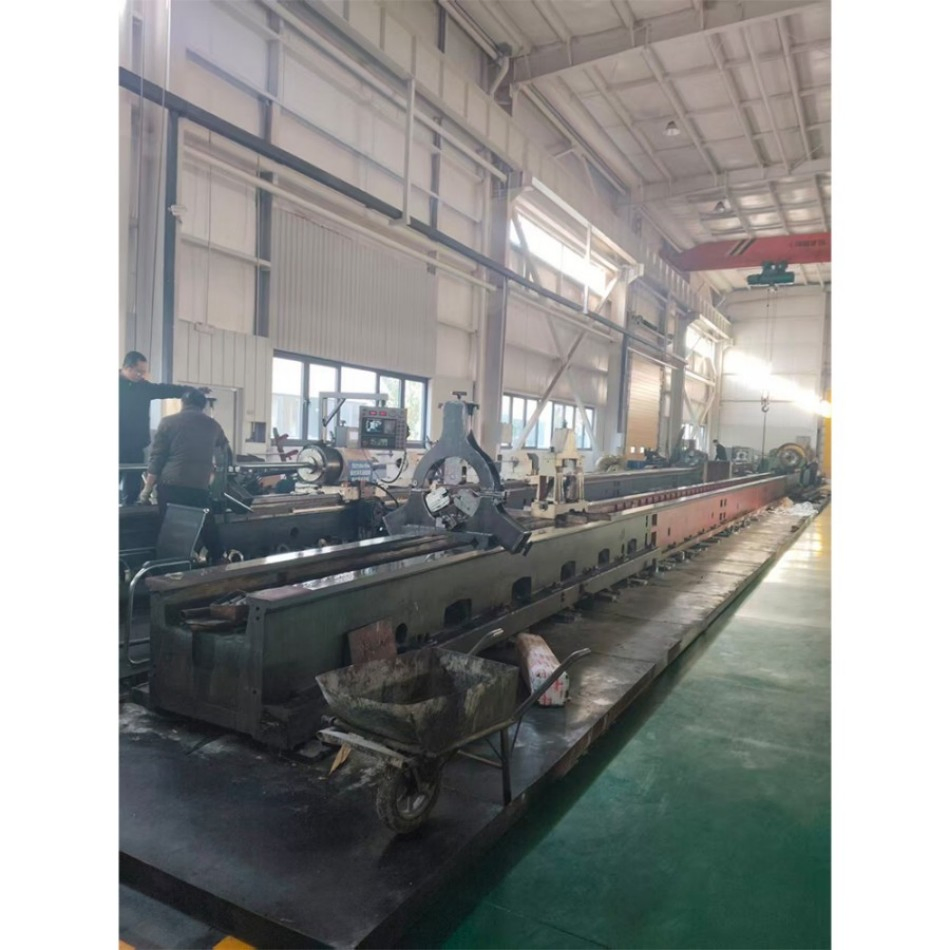

T2125G Deep Hole Drilling and Boring Machine

The machine is special equipment for machining deep cylindrical hole of workpieces. It is suitable for boring cylindrical workpieces. During the boring process, the oil is supplied from the guide carriage, carrying chips from the cutting area to the chip conveying equipment on the headstock. The drilling method utilizes the internal removal chip (BTA method).

This machine is controlled by PLC, with reciprocating movements of the guide carriage and feeding carriage managed by a servo motor. The drive utilizes racks in the two to ensure long movement feeding transmission accuracy and rigidity. Protection systems on both sides of the bed and a ground oil tank structure significantly improve the machine tool environment. It can be equipped with two automatic or manual expansion efficient tools, greatly enhancing machining efficiency.

Item	Specifications (T2125G, T2125G/1)
Range of Drilling Diameter	φ40~80mm
Range of Boring Diameter	φ40~250mm
Height of Center	400mm
Range of Boring Depth	1000-10000mm
Diameter of Chucks	φ400mm
Workpiece Clamped Dia. Range	φ50~φ400mm
Range and Kinds of Spindle Speed	70~1200r/min (3 grades, 12 kinds)
Power of Main Motor	30kW
Range of Feeding Speed	5~2000mm/min (Stepless)
Feeding Motor	4.5kW Servo Motor
Guide Carriage Motor	6.7kW Servo Motor
Cool Pump Motor Power	5.5kW (Four groups)
Rated Pressure of Cooling System	2.5MPa
Flow of Cooling System	100, 200, 300, 400L/min

🏷️

Key Features & Applications

Three Coordination CNC Gun Drilling Deep Hole Cutting Tool T2120G Series T21100 Series BTA Drilling Method High Precision Boring

📦

Packaging & Shipping

❓

Frequently Asked Questions

What is the warranty for your precision products?

We use high-precision grading machines and ultra-fine grain substrates with high-performance coatings to guarantee product life. If any quality problems occur during the warranty period, we take responsibility for shipping costs and replacements.

Do you provide samples for testing?

Yes, we typically provide samples for testing purposes. Usually, the samples are provided under the condition that the freight cost is covered by the customer.

What is your minimum order requirement (MOQ)?

MOQ is indicated for each item in the quotation sheet. We accept sample and trial orders. If a single item does not reach the MOQ, sample pricing will apply.

What is the typical delivery time?

Delivery depends on inventory. In-stock items are typically delivered within 8 working days. If out of stock, the lead time is approximately 20 working days.

Can you manufacture special-shaped or custom tools?

Yes, we can produce both standard and special-shaped tools. We manufacture custom components based on your specific drawings and samples.

Do you provide updates on the order schedule?

Yes, we provide weekly working schedules for your orders. All merchandise is inspected and tested before shipment, and detailed inspection photos are sent for your confirmation.
