6 Axis CNC Deep Hole Boring Machine with CE Certificate

1 / 5

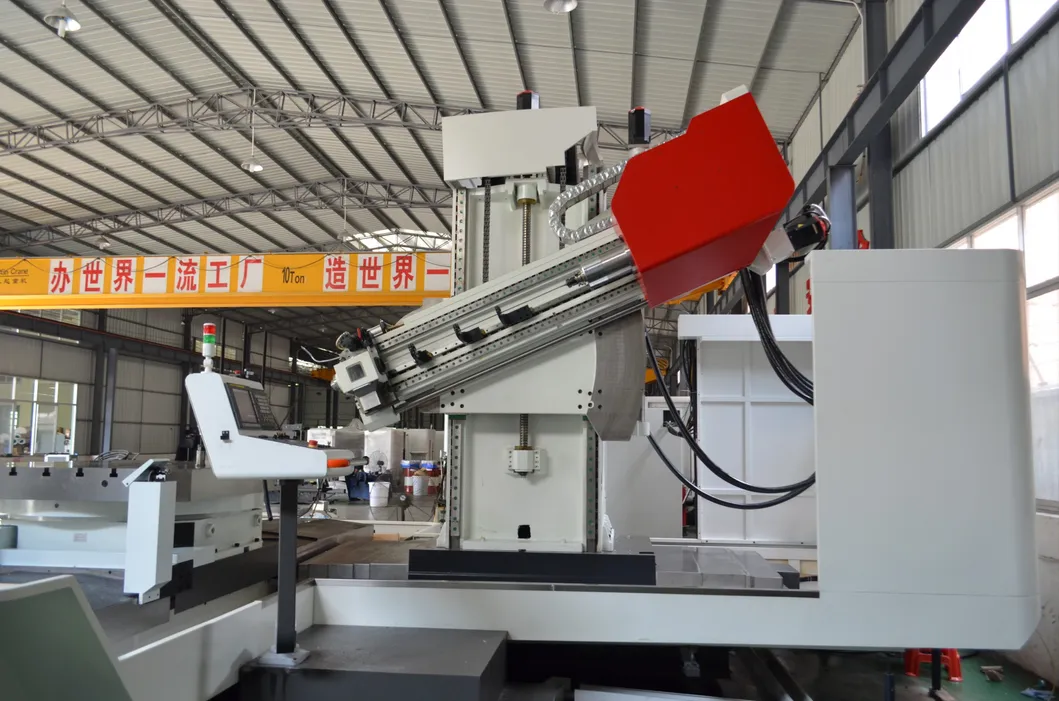

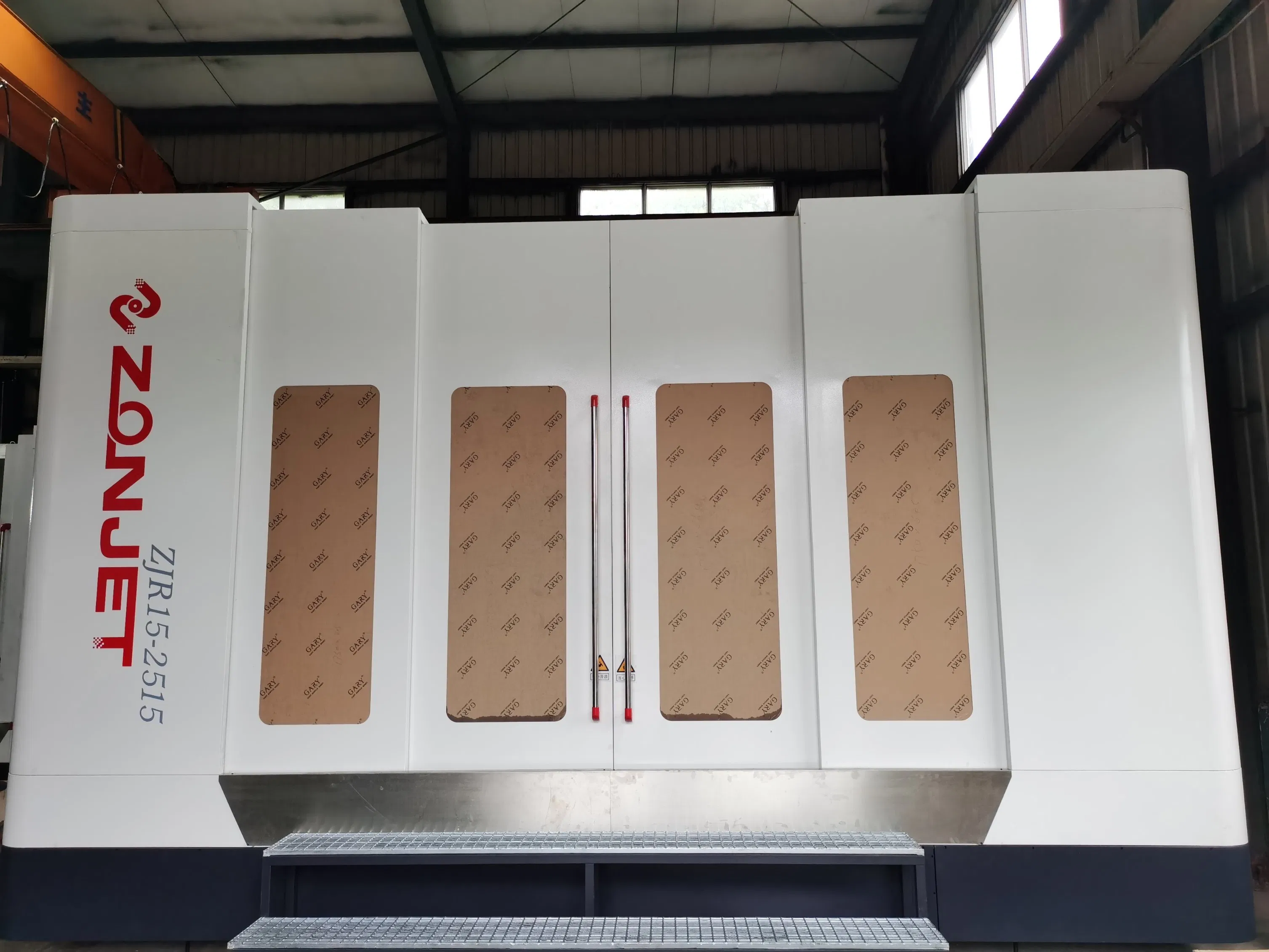

6 Axis CNC Deep Hole Boring Machine with CE Certificate

Customization:	Available
Warranty:	1 Year
Structure:	Horizontal Drilling Machine

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZJR10-1210

Layout

Horizontal

Controlling Mode

CNC

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Max. Loading Capacity

5 Ton

Depth

1000mm

Diameter

3mm-30mm

HS Code

8459210000

Production Capacity

60PCS/Year

★

Product Description

ZJR series CNC deep-hole drilling machine is an automatic and multifunctional solution, majoring in deep-hole drilling and cutting, while also offering professional milling functions. Developed with advanced industrial technology, it achieves international levels of performance, accuracy, and efficiency.

FANUC 0i-MD CNC System: Delivers stable performance, convenient operation programming, and reliable control.
Six-Axis Control: Equipped with FANUC servo motors for all six coordinate axes and the main axis, ensuring excellent low-speed performance.
High-Precision Components: Utilizes high-precision ball screw bars and rolling linear guides for accurate positioning.
Advanced Cooling System: Features a remote-controlled cooling system where flow rate and pressure can be adjusted based on hole size and material to optimize results.

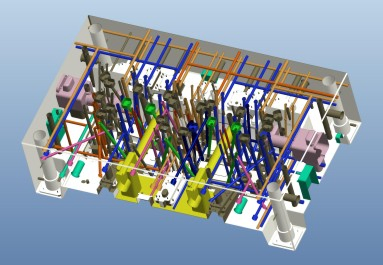

Specialized Application: Primarily designed for extremely difficult deep-hole processes in the mold industry, recognized for high efficiency and humanized technological flow.

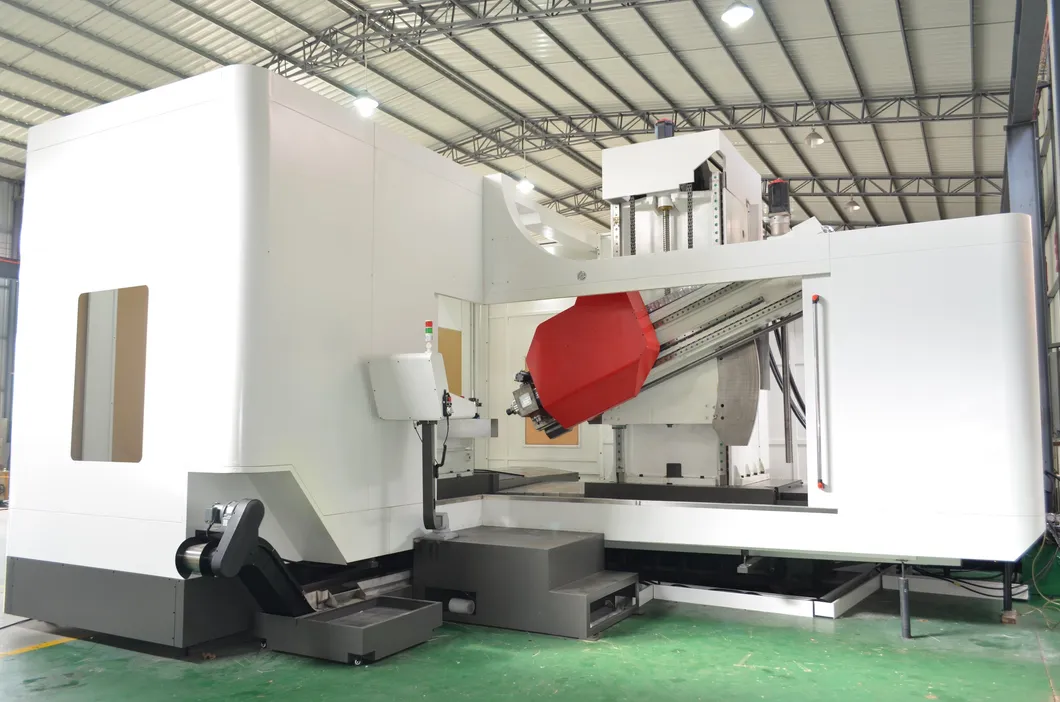

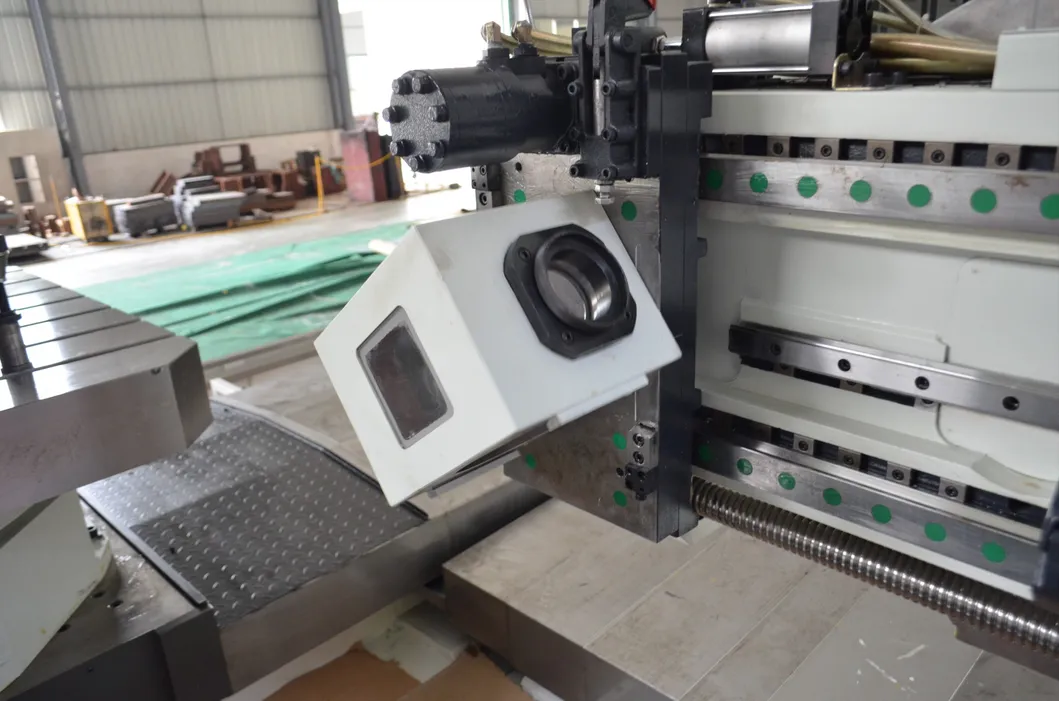

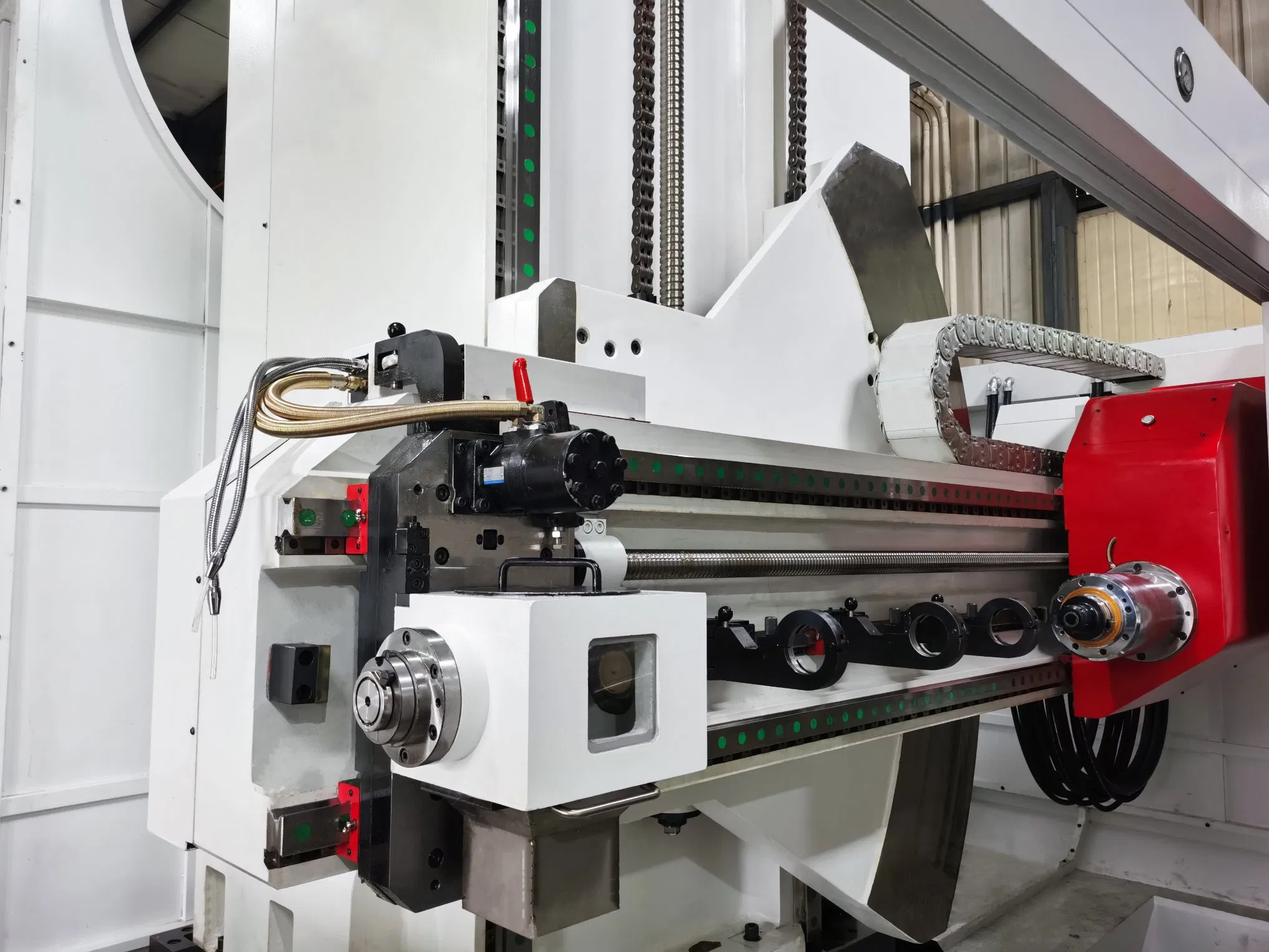

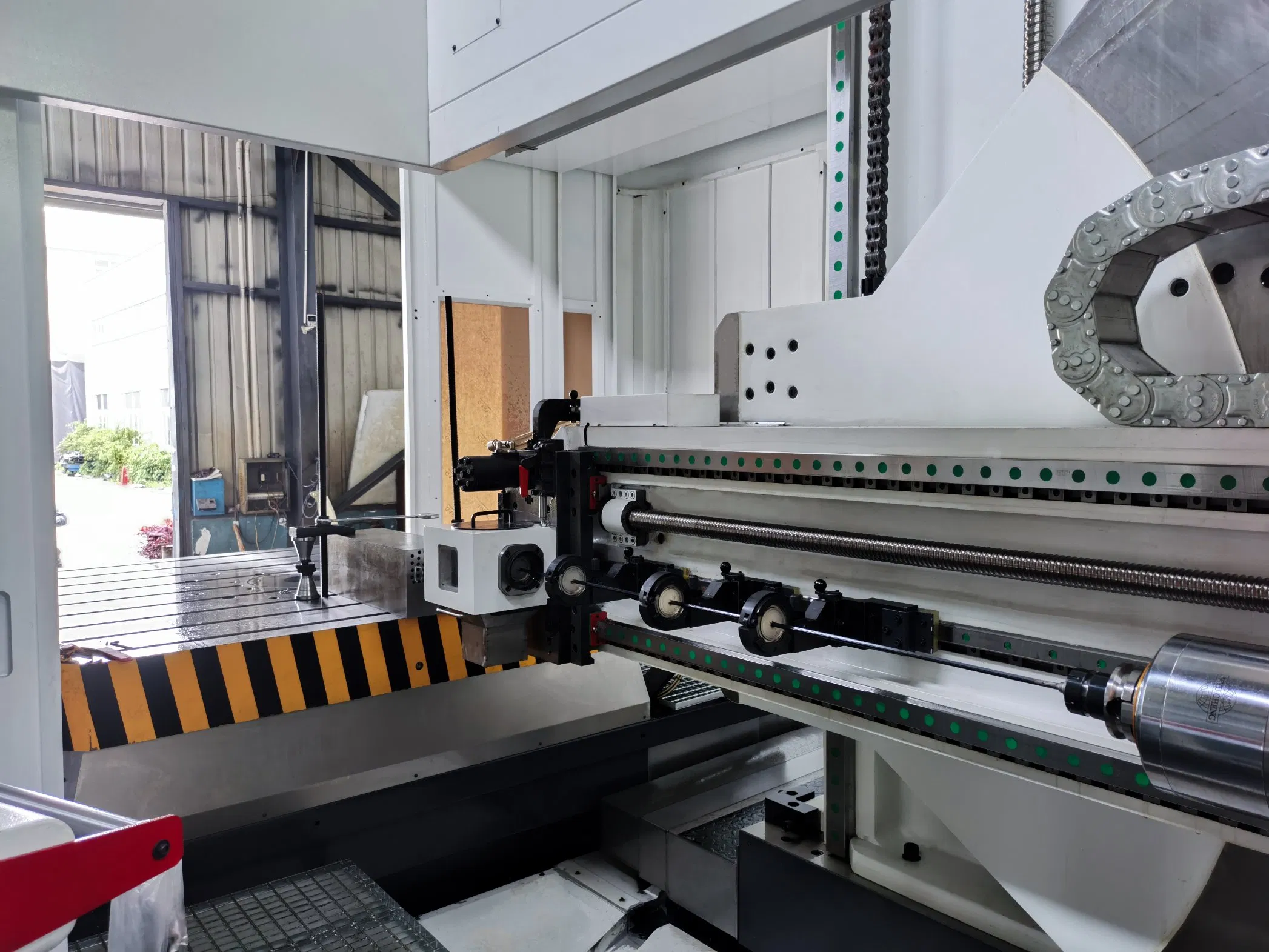

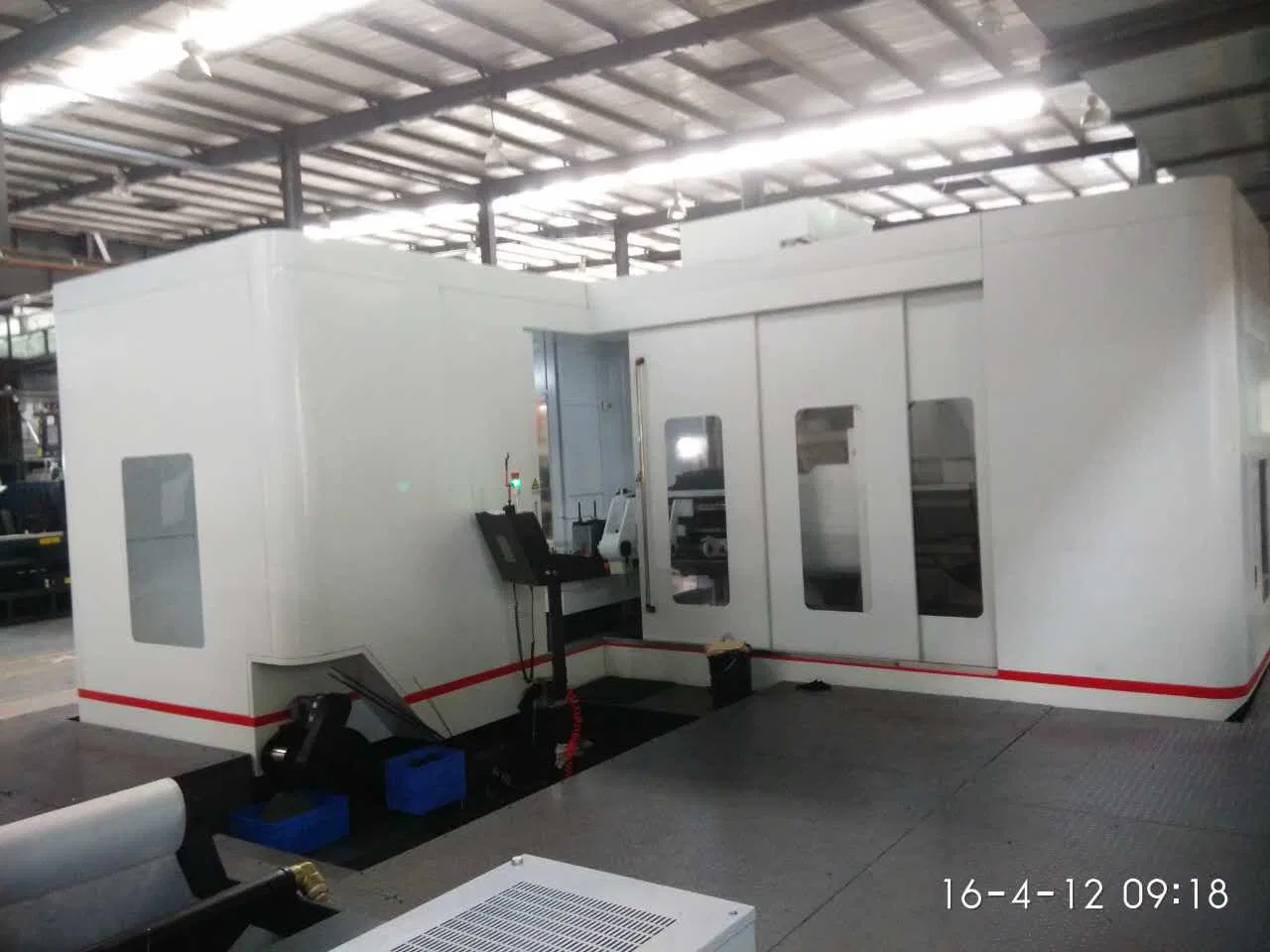

6 Axis CNC Deep Hole Boring Machine Detail

⚙

Technical Specifications

Category	Items	ZJR10-1210 Data
Processing Capacity	Hole Diameter (Gun Drill)	φ3 ~ φ30 mm
Processing Capacity	Maximum Hole Depth	1000 mm
Processing Travel	X Axis (Table Left/Right)	1200 mm
	Y Axis (Sliding Table)	1000 mm
	Z Axis (Column)	500 mm
	A Axis (Ram Tilt)	Up 15°, Down 25°
	B Axis (Rotation)	360° (Accuracy: 15s)
Spindle	Spindle Taper	BT40
Spindle	Maximum Speed	4500 rpm
Loading	Maximum Loading Capacity	5 Ton
Total Power	System Power	40 KW

Frequently Asked Questions

What is the drilling range of the ZJR10-1210 machine?

The machine supports a hole diameter range from 3mm to 30mm with a maximum drilling depth of 1000mm.

Which control system does this deep-hole drilling machine use?

It is equipped with the FANUC 0i-MD CNC system, which is known for its stability and user-friendly operation.

What are the movement capabilities of the axes?

The machine features a 6-axis configuration, including X (1200mm), Y (1000mm), Z (500mm), a tilting A-axis (+15°/-25°), and a 360° rotating B-axis.

What is the maximum workpiece weight the table can handle?

The high-precision CNC index table is designed to support a maximum loading capacity of up to 5 tons.

Is the machine suitable for milling tasks?

Yes, while it specializes in deep-hole drilling, the ZJR series is multifunctional and offers professional milling capabilities.

How does the cooling system work for deep-hole drilling?

It uses a remote-controlled cooling system that allows operators to adjust flow rates and pressure based on chip removal needs and required precision.
