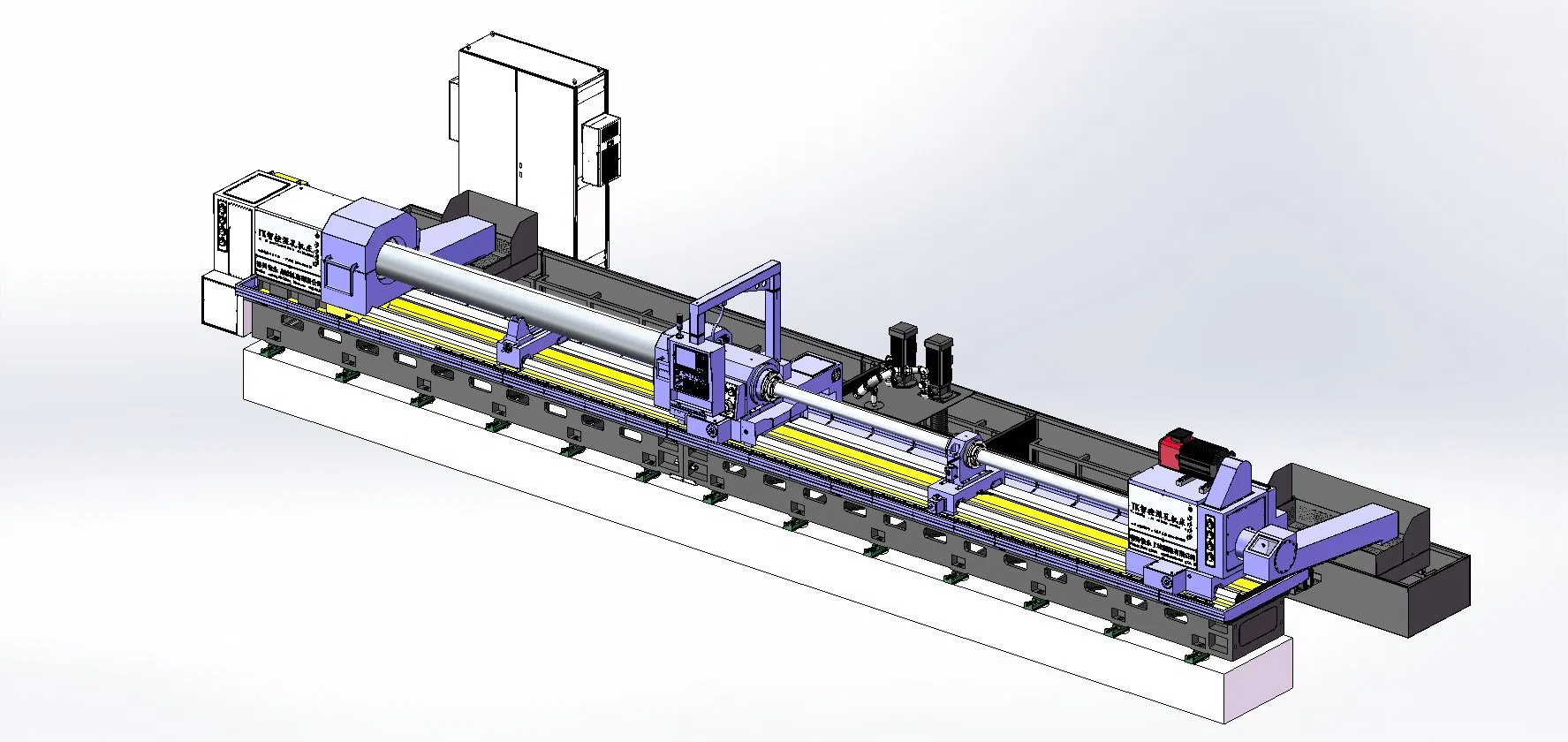

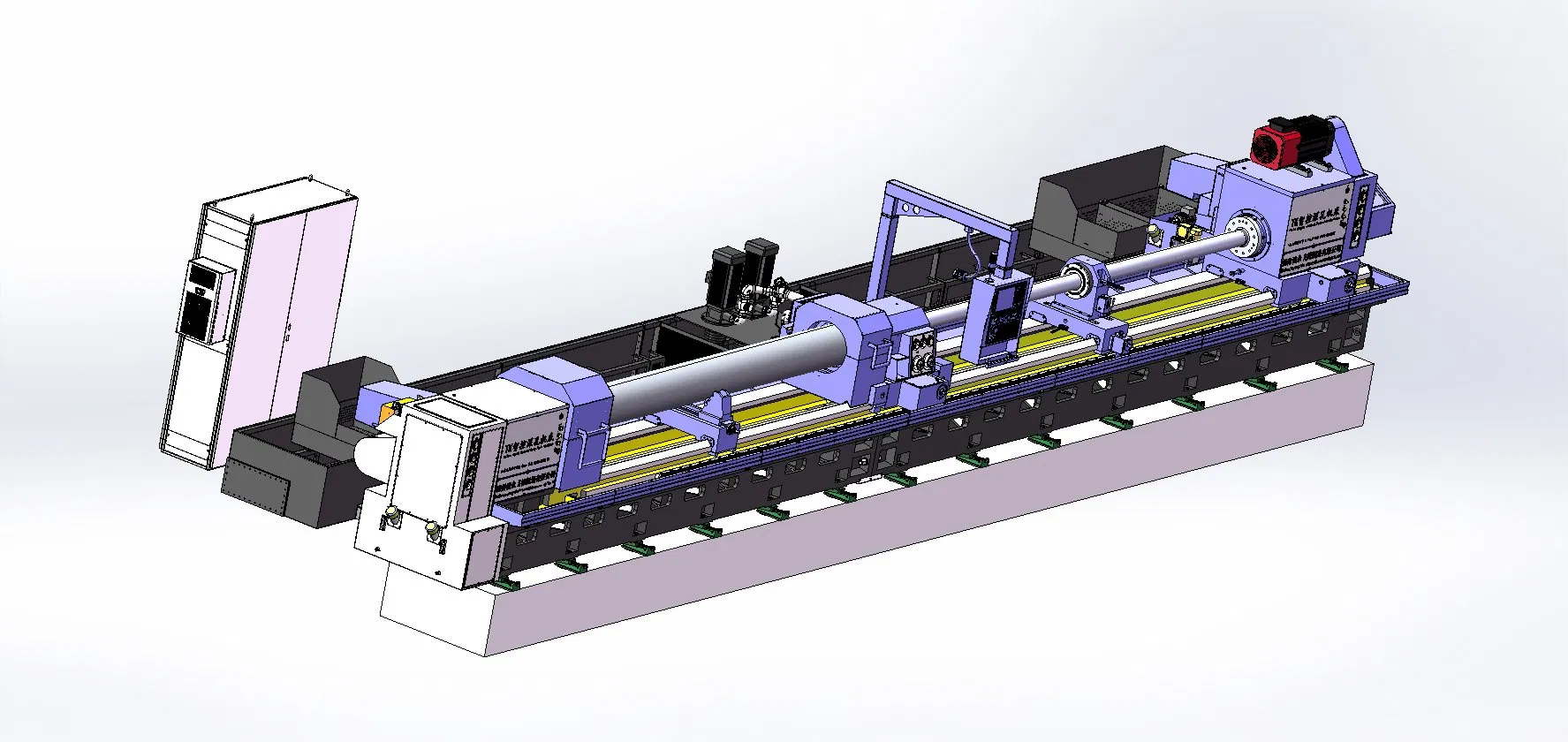

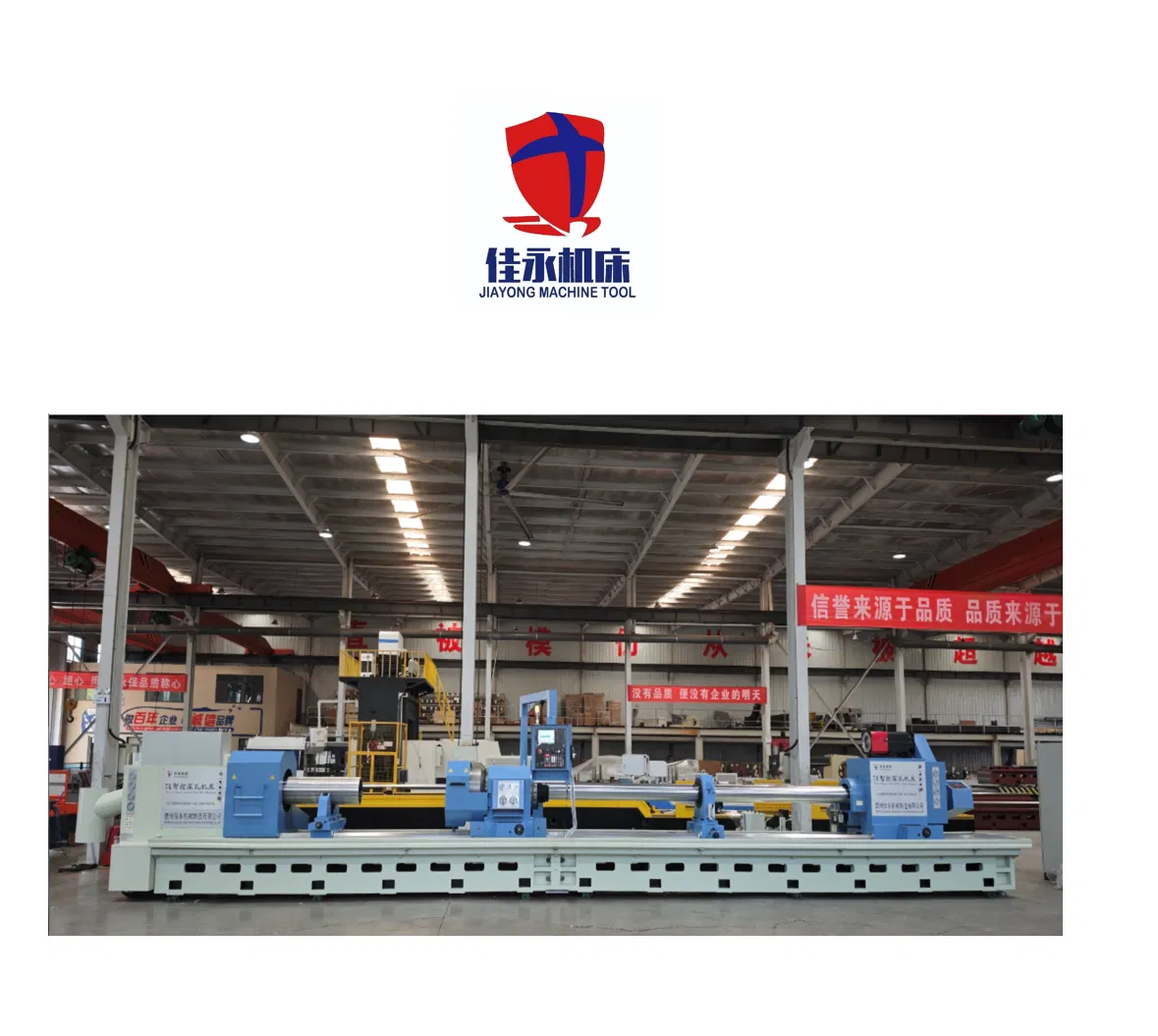

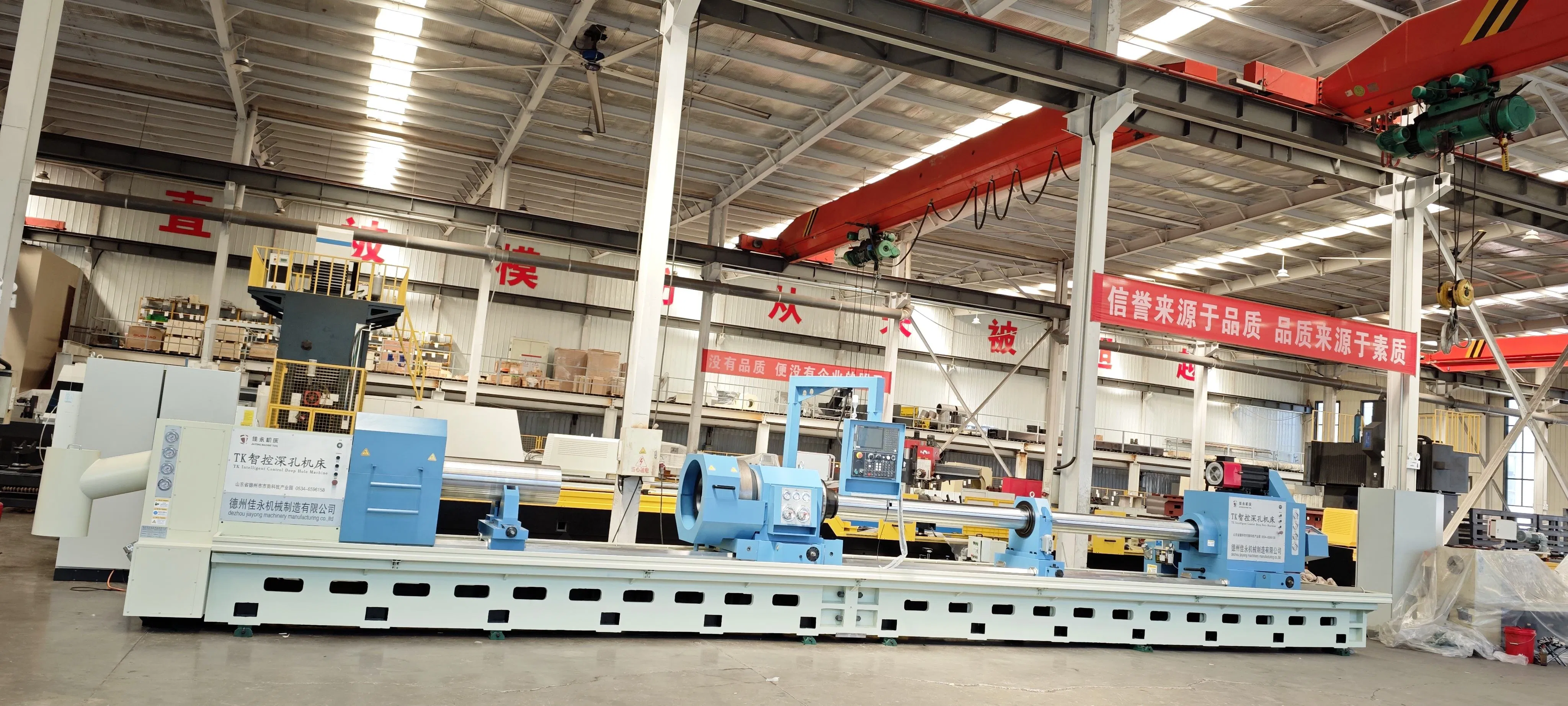

Tk25-1X9m Dezhou Jiayong CNC Deep-Hole Drilling and Boring Machine Tool for Tube, Pipe, Cylinder

1 / 5

Tk25-1X9m Dezhou Jiayong CNC Deep-Hole Drilling and Boring Machine Tool for Tube, Pipe, Cylinder

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

📊 Basic Information

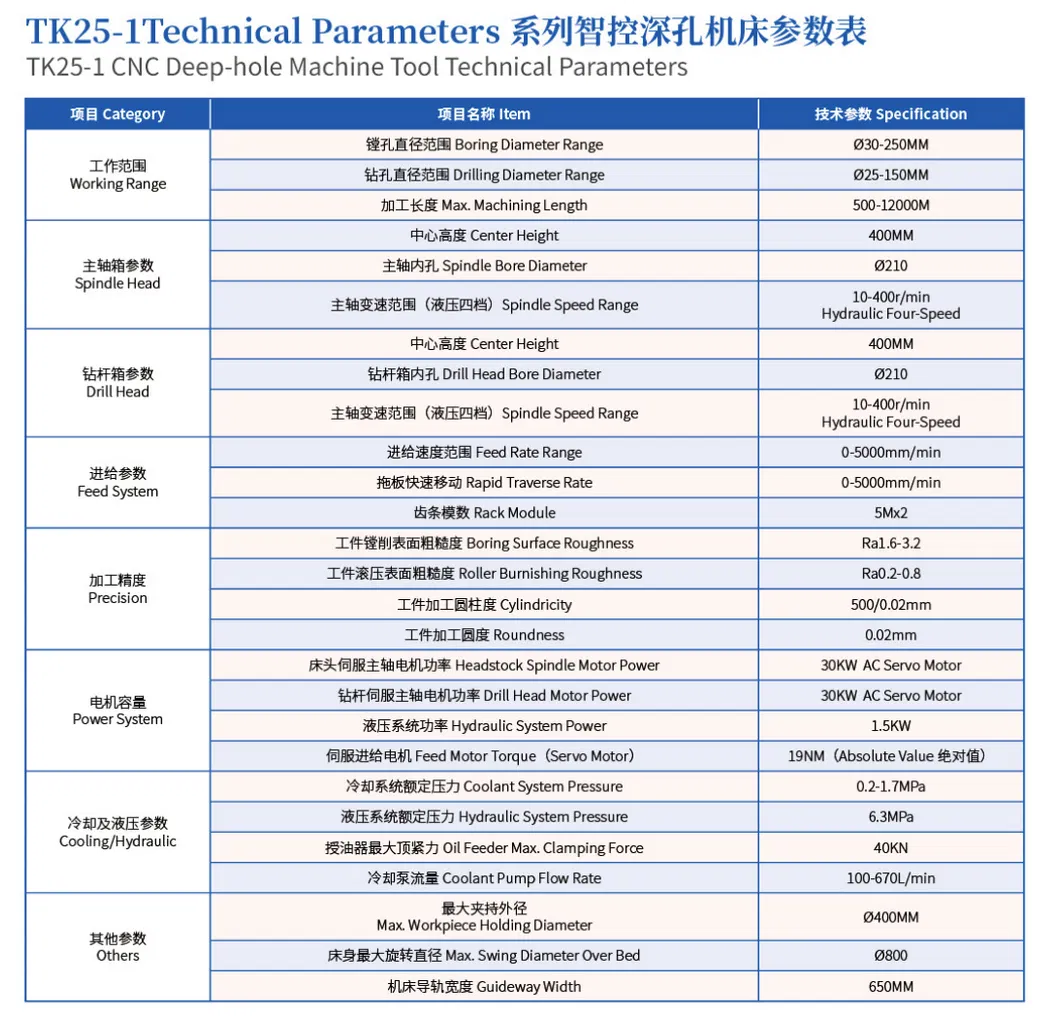

Model NO.	TK25-1X9M
Structure	Horizontal Drilling Machine
Layout	Horizontal
Controlling Mode	CNC
Hole Diameter	>200mm
Automatic Grade	Automatic
Precision	High Precision
Certification	CE, ISO 9001
Condition	New
HS Code	8459210000
Production Capacity	220

⚙ Product Description

The machine is designed for precision drilling and boring of cold-drawn and hot-rolled steel pipes, as well as non-magnetic materials. It can also perform drilling and trepanning on round steel bars. The use of specialized tools improves the dimensional accuracy and surface quality of the inner holes of steel pipes. Materials that can be processed include ordinary carbon steels, high-quality carbon steels, and low alloy steels such as 20, 45, 16Mn, 25Mn, 27SiMn.

1. Workpiece Rotation (Drill Head brake)

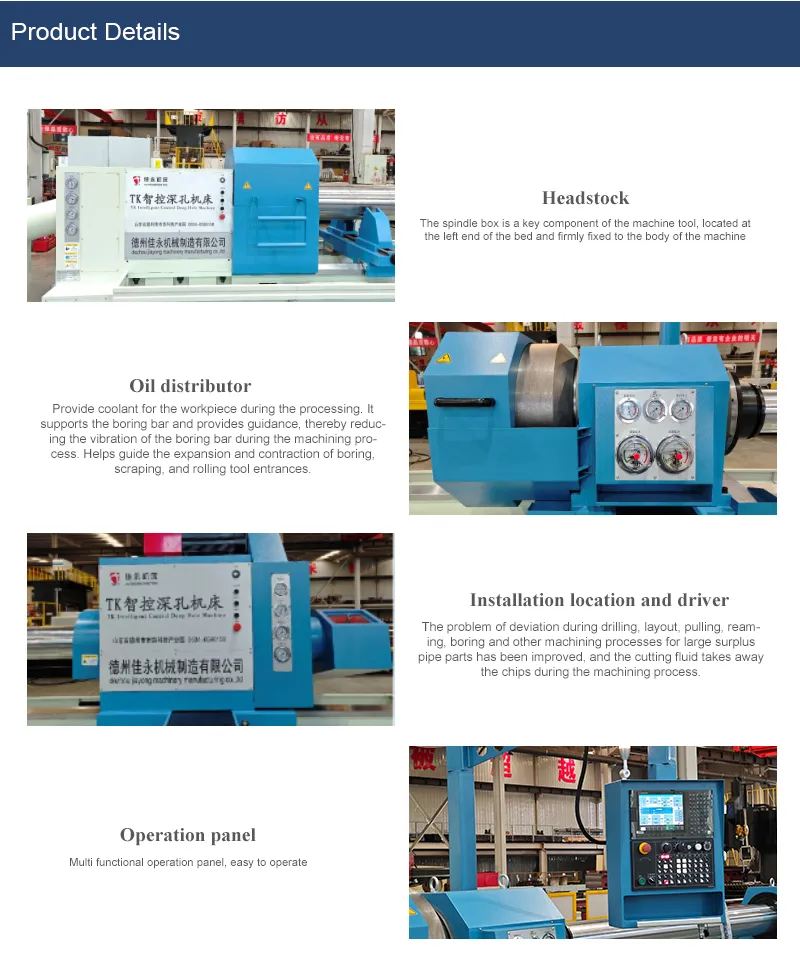

The headstock drives the workpiece to rotate, while the boring bar drives the combination head, drill bit and German-style hydraulic fine boring and rolling tools to feed. This setup is used for precision machining on hot-rolled steel pipes.

2. Tool Rotation (Headstock brake)

The headstock is braked to keep the workpiece stationary. The boring bar head drives the boring bar to rotate. Using combination head, drill bit, and German-style hydraulic fine boring and rolling tools, this function performs fine boring and rolling on hot-rolled or cold-drawn steel pipes with the pre-bored inner holes. This function can correct drilling deviations and is particularly suitable for machining drill collars and petroleum components.

3. Dual Rotation of Workpiece and Drill Bar

The headstock drives the workpiece to rotate, while the boring bar head drives the boring bar to rotate and feed simultaneously. This machining method improves the straightness and efficiency of the machined parts.

⭐ Key Features & Advantages

Processing accuracy ≤0.03, high finish (≤Ra0.2-0.8).
Stable processing, multiple times (more than 3 times) the efficiency of traditional machine tools.
Easy and accurate adjustment of dimensional accuracy; Fine boring tool finely adjusts diameter via internal mandrel taper.

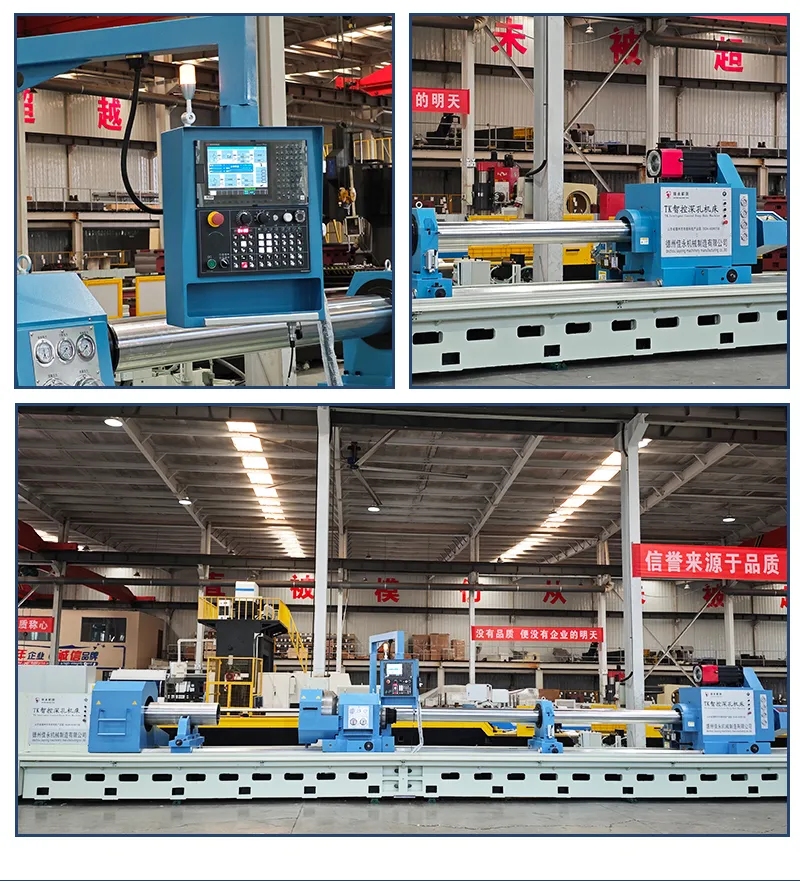

Boring head is automatically controlled by NC program, suitable for mass production.
Inner hole working extra side 0.5mm.
Unique structure with oil dispenser to fix tool rotation and feed for maximum stability.
Automatic recognition of workpiece length, eliminating repeated programming.
Capable of processing center holes, eccentric holes, through holes, blind holes, and step holes.
