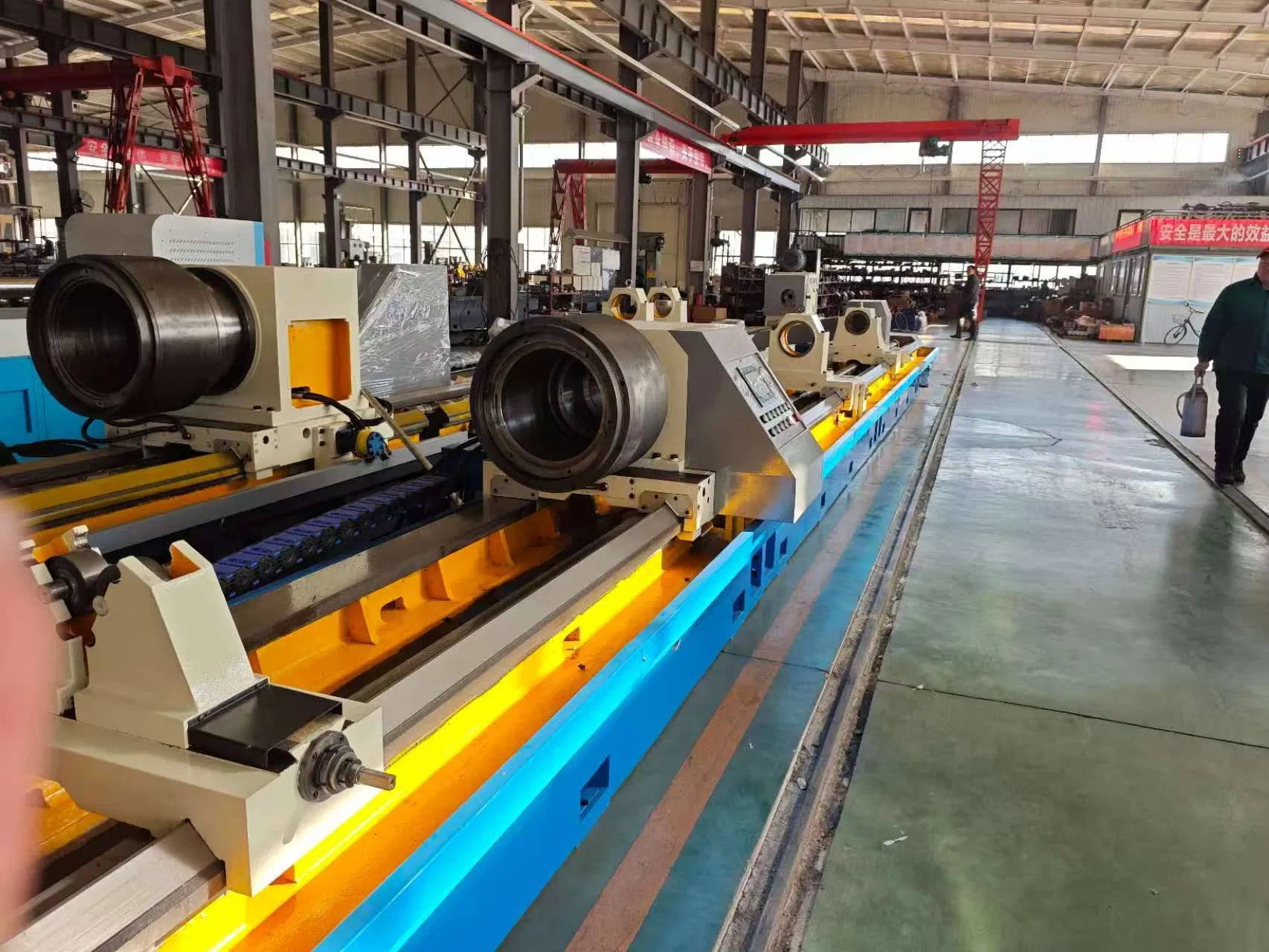

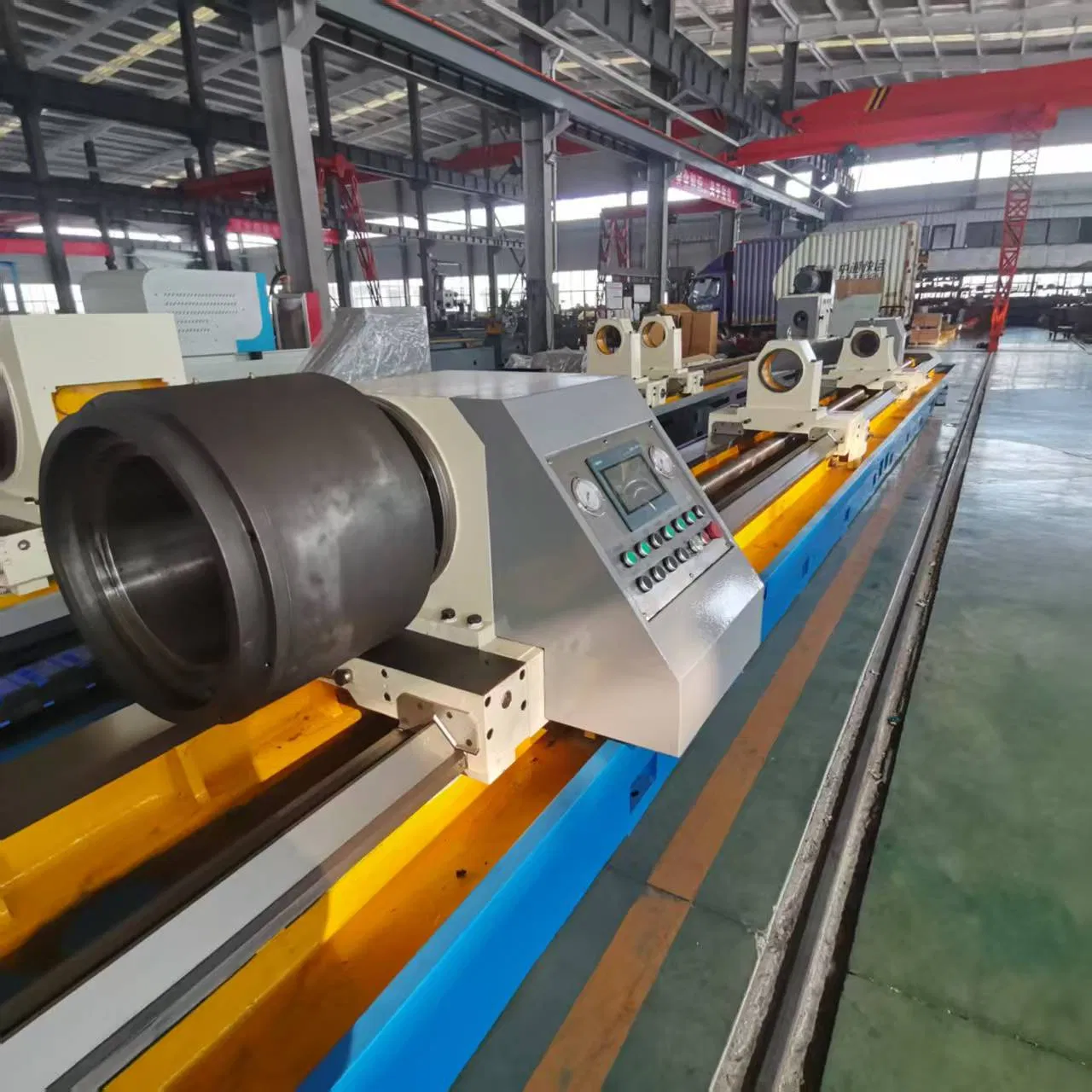

CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
1 / 5
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe
CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe

CNC Deep Hole Drilling and Boring Machine Horizontal Heavy Duty High Precision Deep Hole Processing Equipment for Cylinder Tube Steel Pipe

Customization: Available
After-sales Service: for Life
Warranty: 5
Send Inquiry

Product Description

CNC Deep Hole Drilling Machine Banner

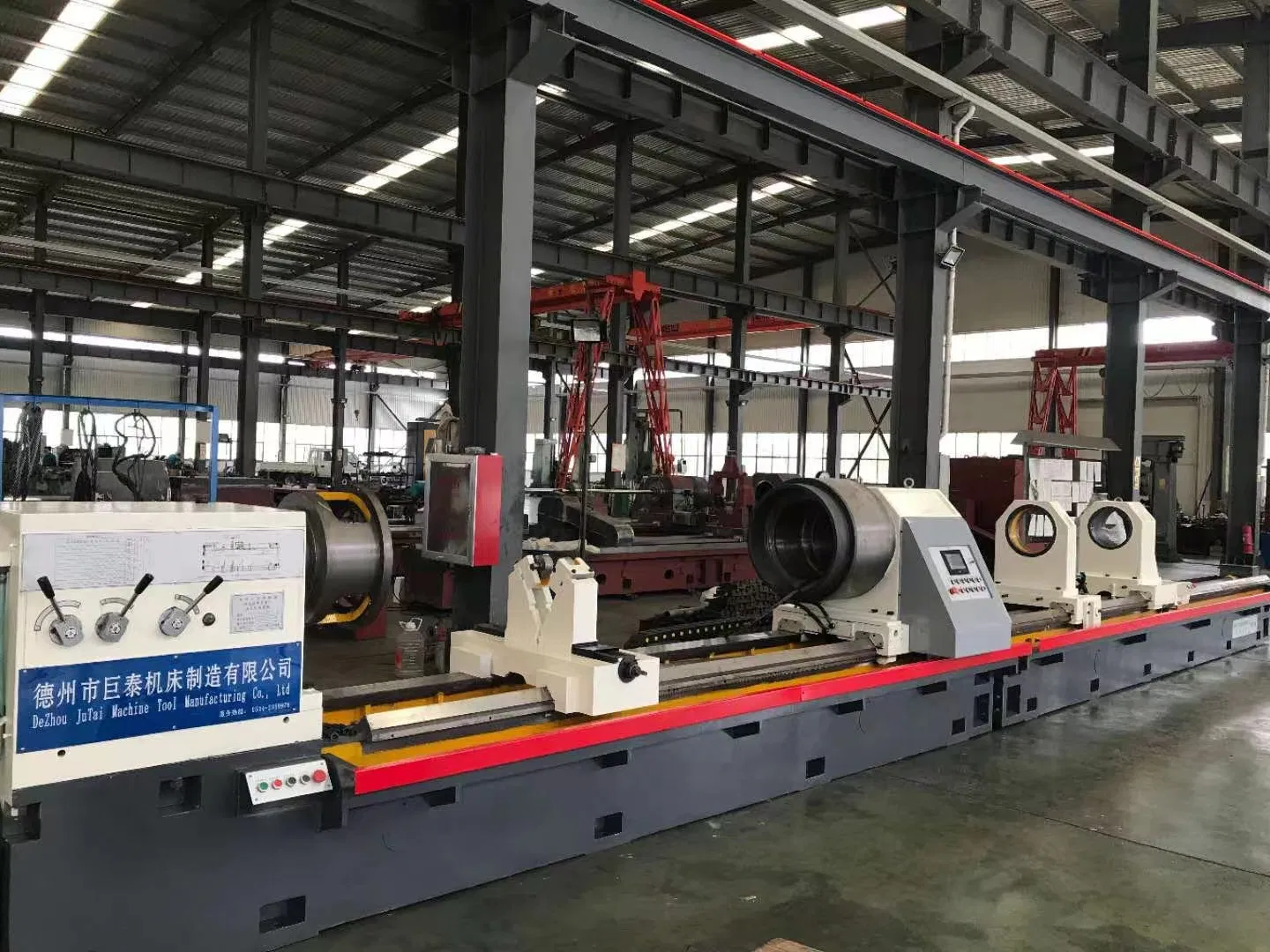

Equipment Overview
■ Basic Info.
Model NO.
TK2216 / TK2220 / TK2225 / TK2235 / TK2240
Structure
Horizontal Boring Machine
Controlling Mode
CNC
Precision
High Precision
Automatic Grade
Automatic
Key Selling Points
High Productivity
Max.Drilling Dia
120 mm
Power (Kw)
30
Certification
ISO 9001
HS Code
8459310000

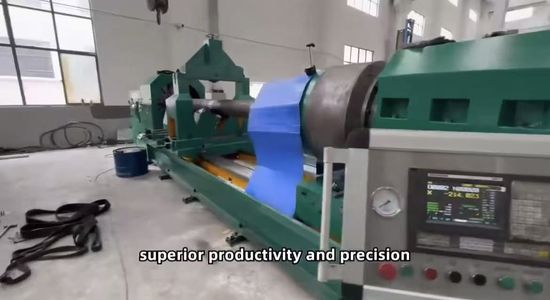

Video Placeholder
■ Product Description

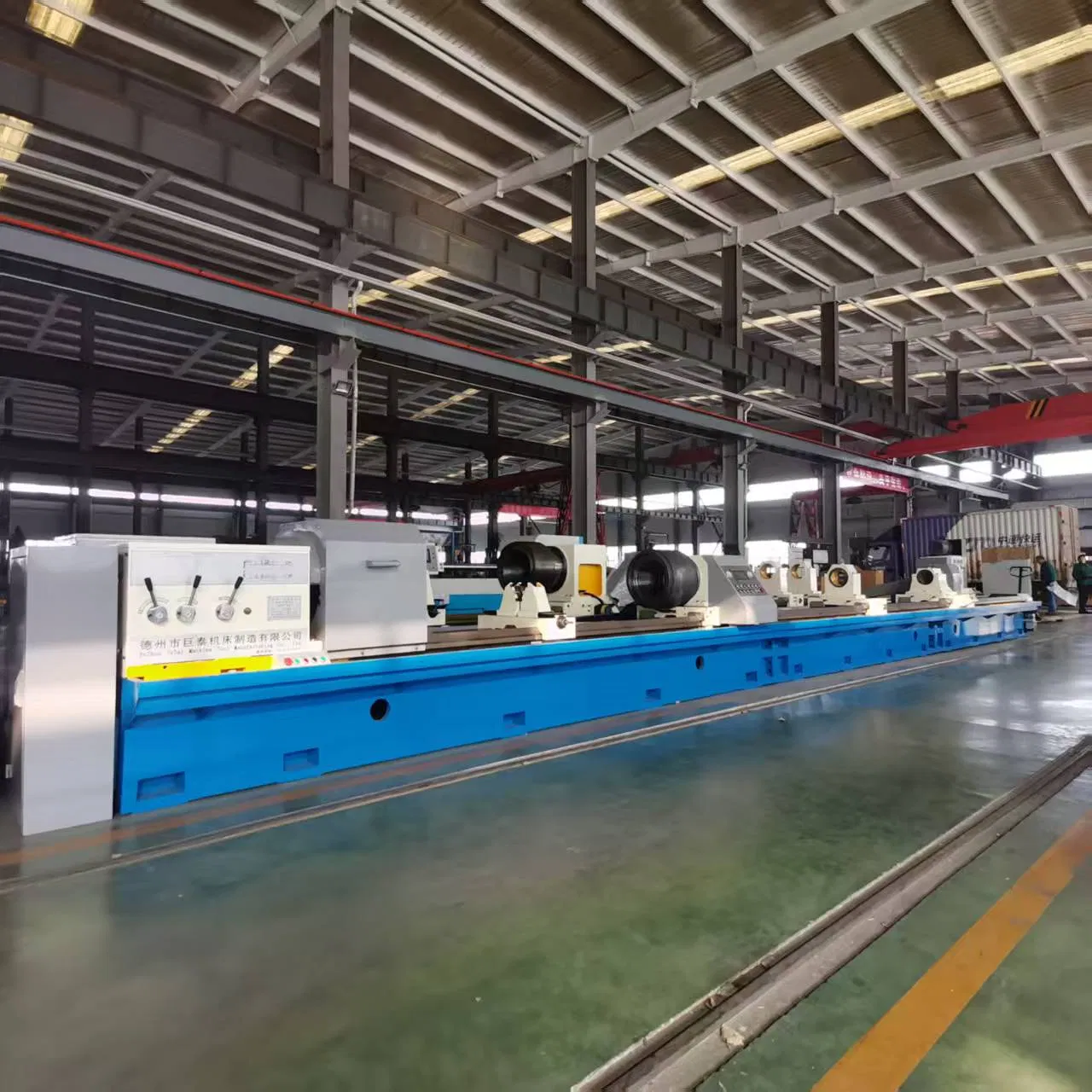

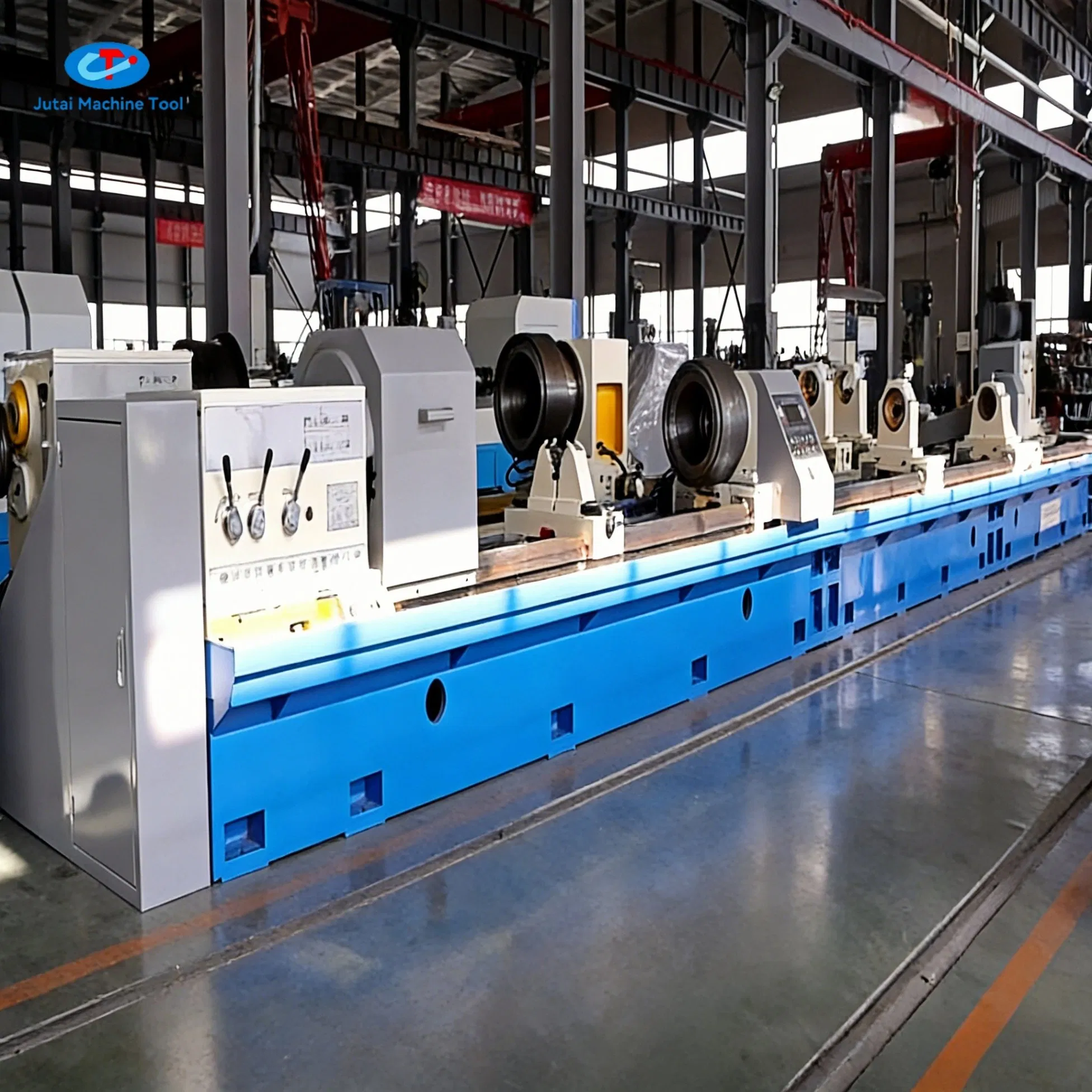

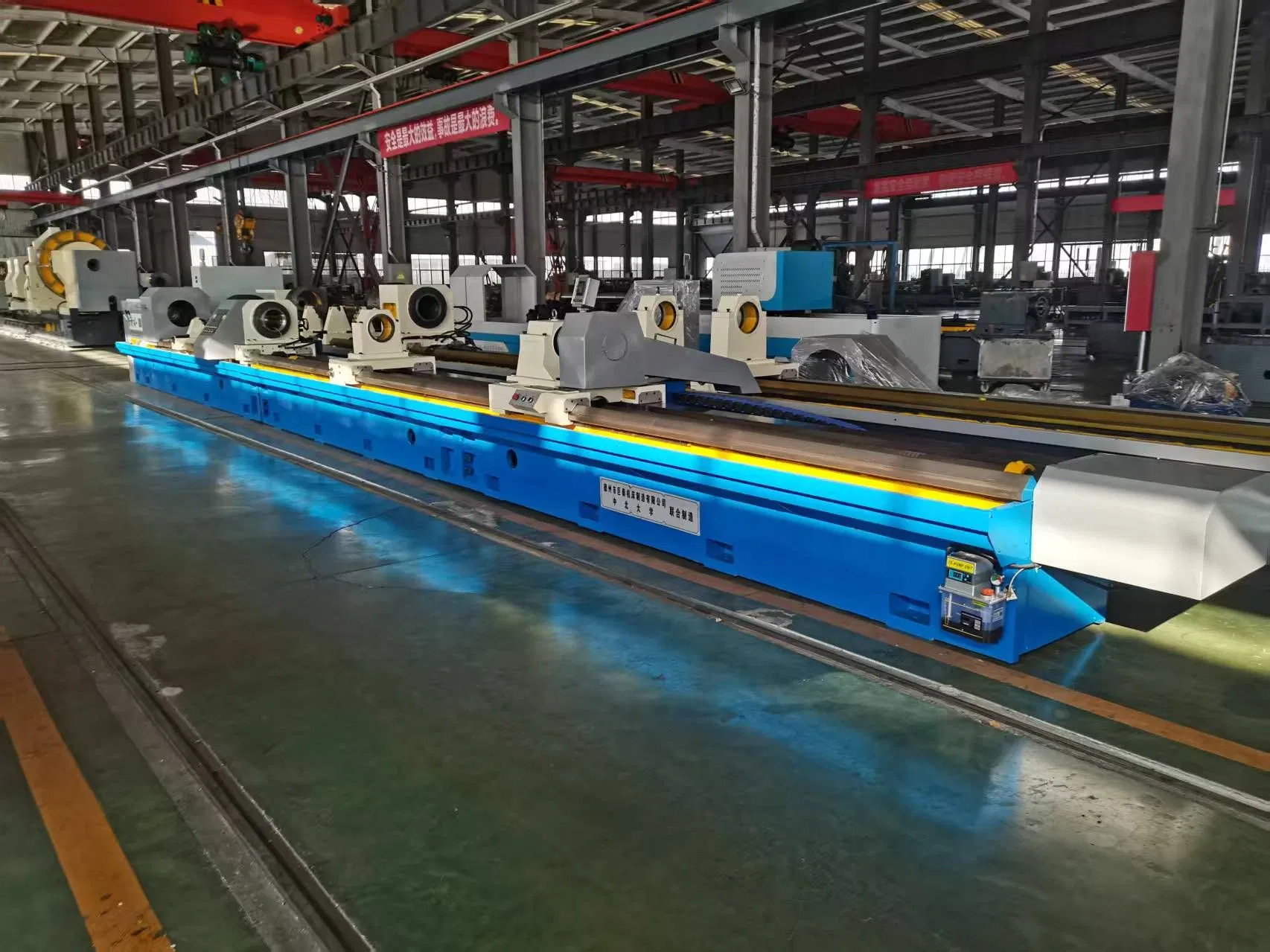

CNC Deep Hole Drilling and Boring Machine

This series is a specialized machine tool developed for industrial precision. It offers a wide range of applications, including drilling, expanding, nesting, and boring. During the boring process, it supports combination tools and single-process tools such as rough boring, fine boring, and rolling.

Machining Detail
■ Specifications
Model TK2216 TK2220 TK2225 TK2235 TK2240
Max Boring Diameter (mm)160200250350400
Boring Diameter Range (mm)30-8030-12030-12030-12030-120
Max Machining Depth (mm)1500-30001000-12001000-120001000-120001000-12000
Spindle Speed Range (r/min)7.5-1206.1-10006.1-10006.5-5236.5-523
Main Motor Power (kW)1530303037
Feed Speed (mm/min)5-2605-2605-2605-2605-260

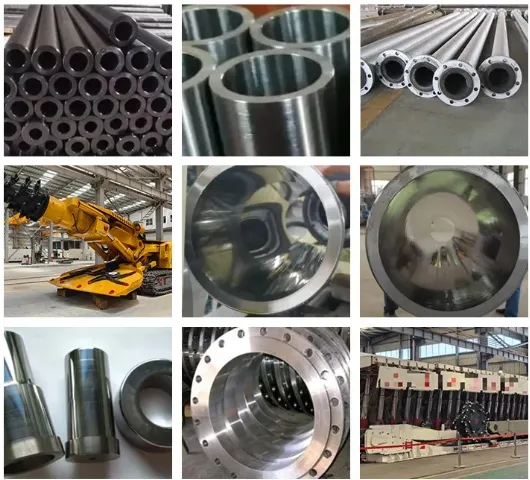

■ Key Applications
⚙️
Hydraulic Cylinder Manufacturing: Precision boring and surface finishing for construction and industrial machinery.
🛢️
Oil & Gas Industry: Finishing drill pipes, well casings, and high-pressure valve bodies.
🚀
Aerospace & Defense: High-precision deep hole processing for critical aerospace components.
⚡
Energy Sector: Processing turbine shafts, geothermal piping, and energy components.
🏗️
Heavy Machinery: Refining piston rods, mining equipment bores, and hydraulic press cylinders.
Technical Drawing

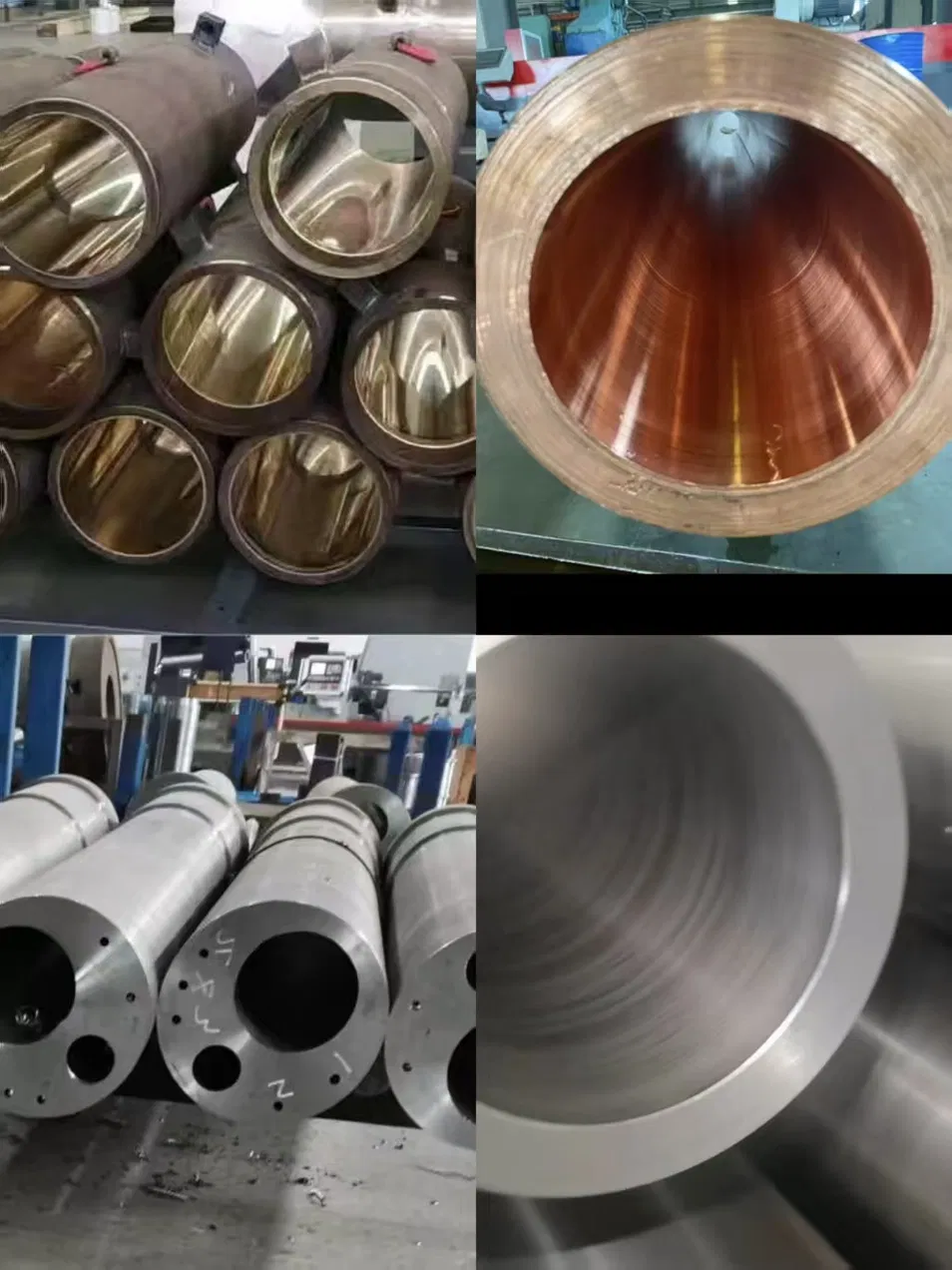

Processing Example
■ Packing & Delivery
Package Size:
6.06cm * 2.44cm * 2.26cm
Gross Weight:
10000.000kg
Transport Package:
Frame, Wooden Box
Safe Packing
Loading Delivery
■ FAQ
How about the after-sales service?
We provide free training within our facilities. Additionally, if required, our engineers are available to service machinery overseas.
What is the warranty period?
The complete machine comes with a one-year warranty and lifetime maintenance support.
How is the quality of the machines ensured?
Every machine undergoes rigorous testing before packing. We use international well-known brand spare parts to ensure reliability and performance.
What is the typical lead time?
Lead time depends on order quantity. Small quantities usually ship within 7-15 days, while larger orders take approximately 30 days.
Can I request samples or custom orders?
Yes, samples can be discussed before placing orders. We also specialize in the design and manufacturing of non-standard tools and special hole machining equipment.
Why choose this equipment?
We offer quality assurance through layer-by-layer testing from R&D to production, backed by a strong professional technical team and 24/7 online support.
