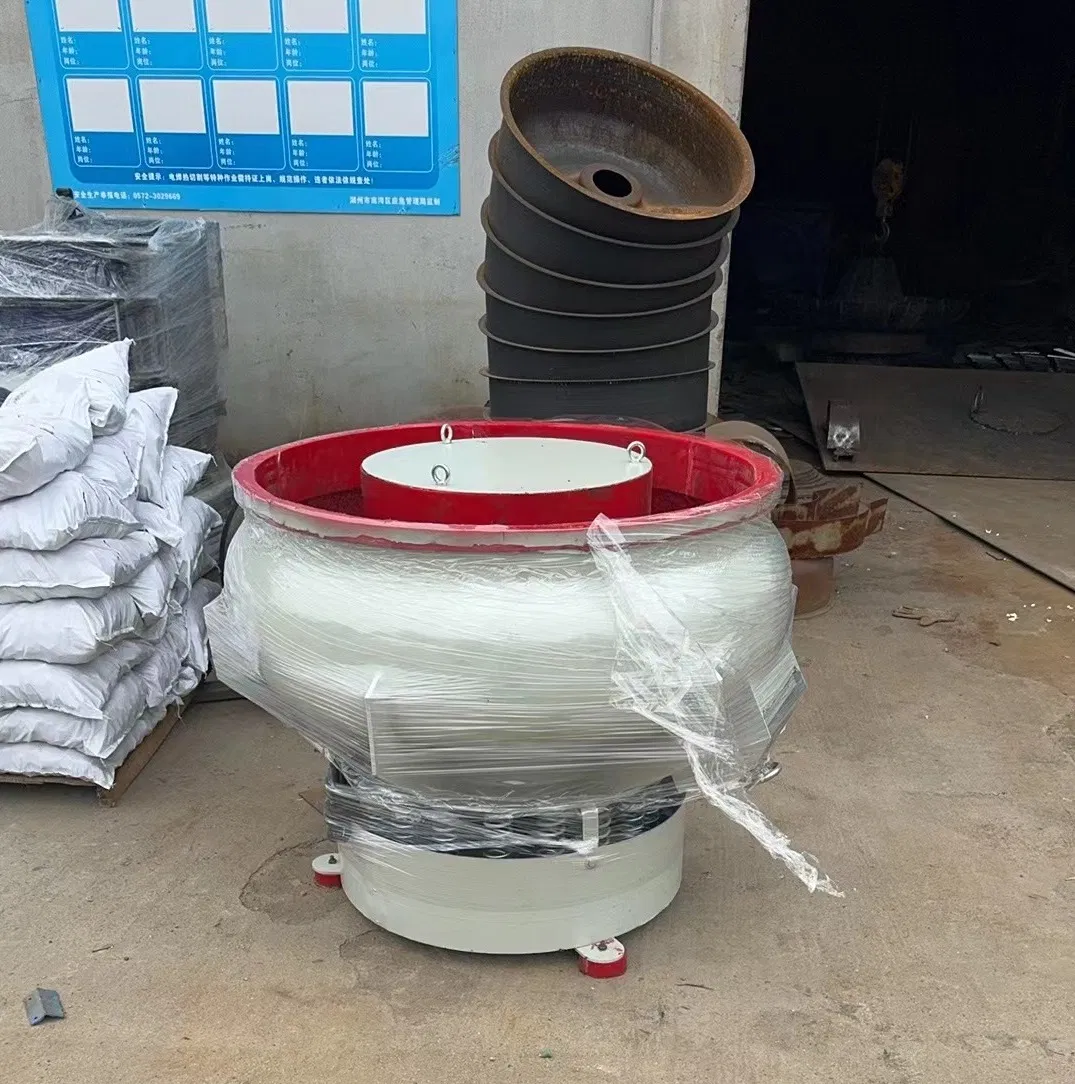

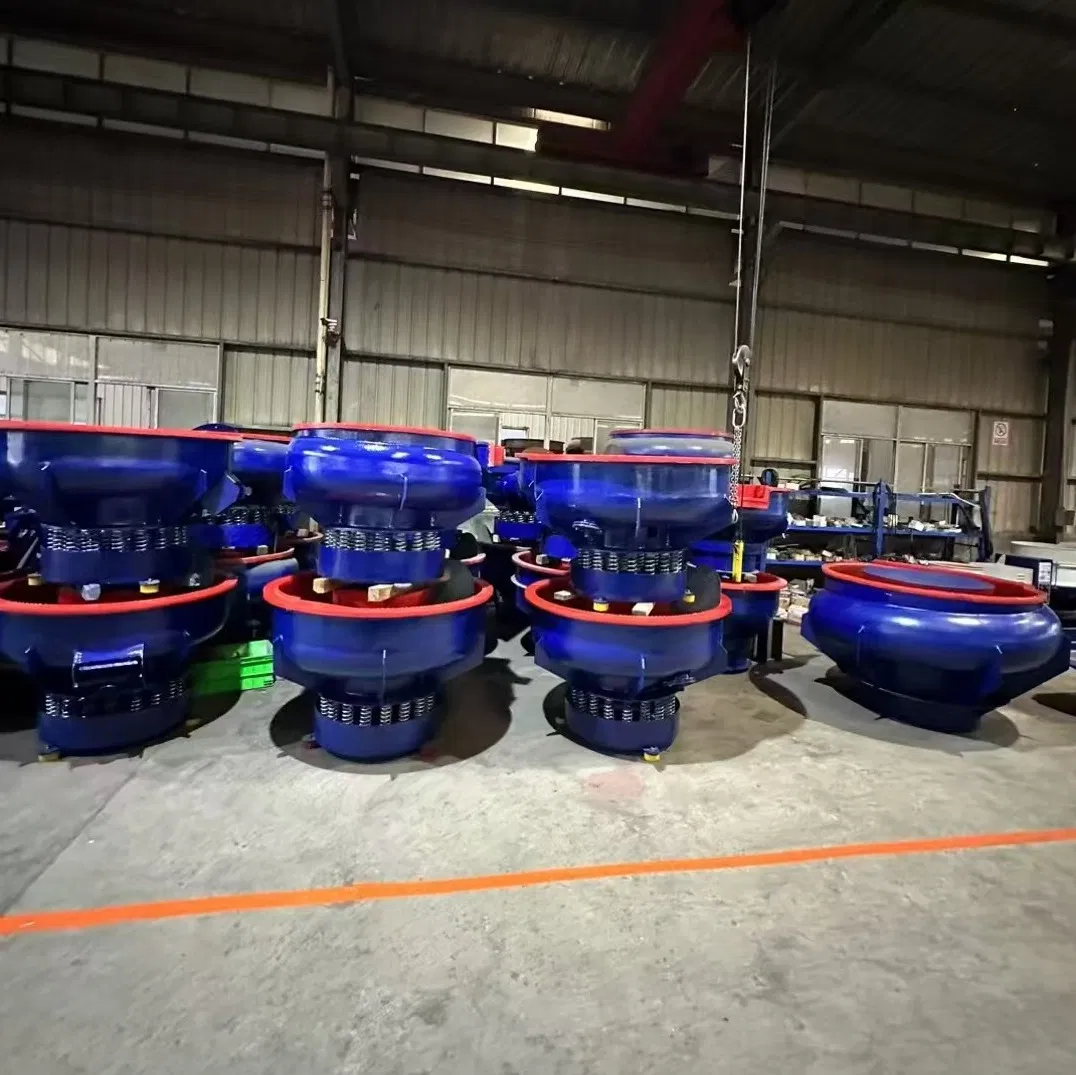

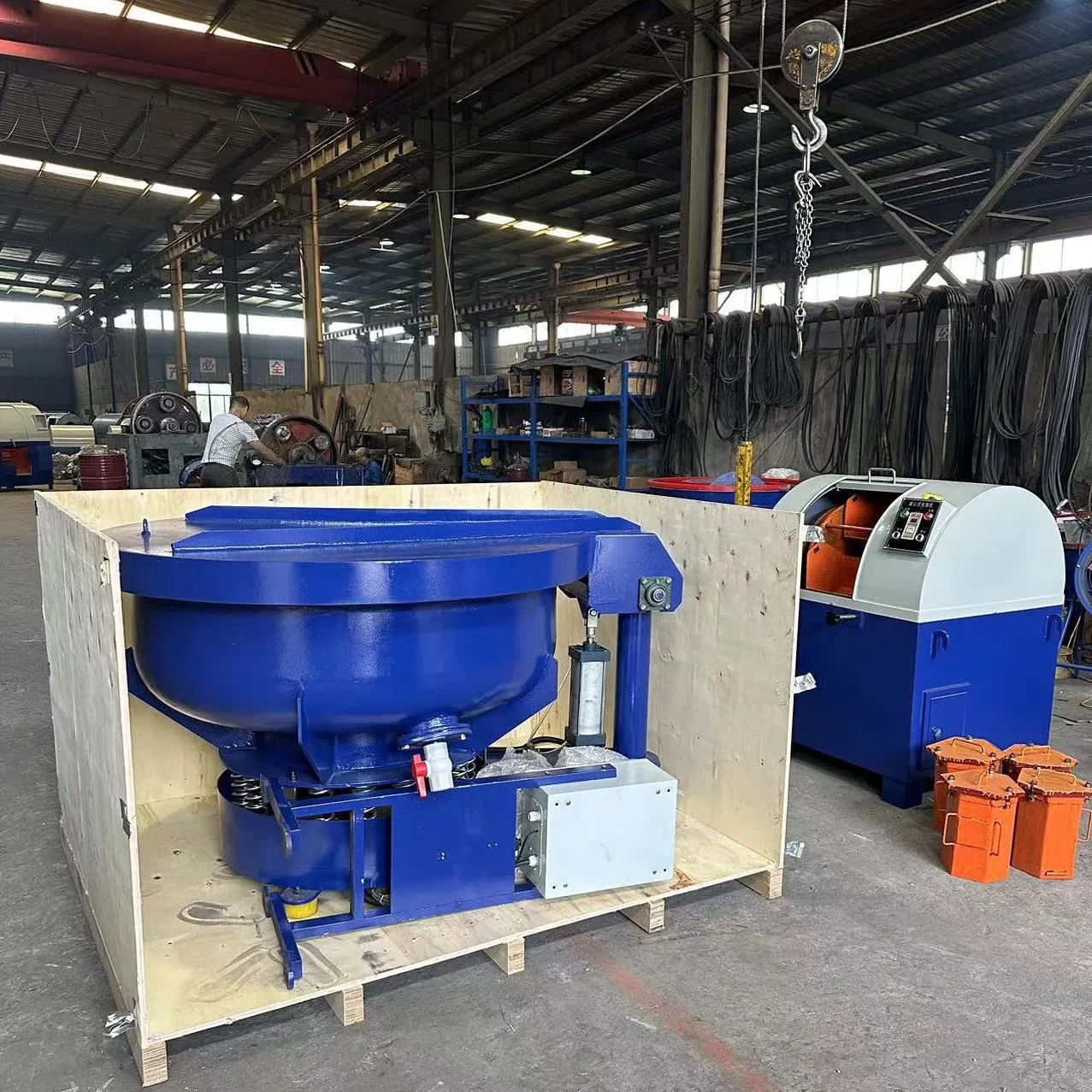

Vibratory Surface Grinding Machine for Metal Parts Deburring Small Parts Aluminium Iron Bowl Shape

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Basic Info.

Certification:CE

Condition:New

Voltage:380V

Application:Metal Tube

Production Capacity:2000/Months

Delivery Time:2 Weeks

HS Code:84798997

Specification:1430x1430x1200mm

Product Description

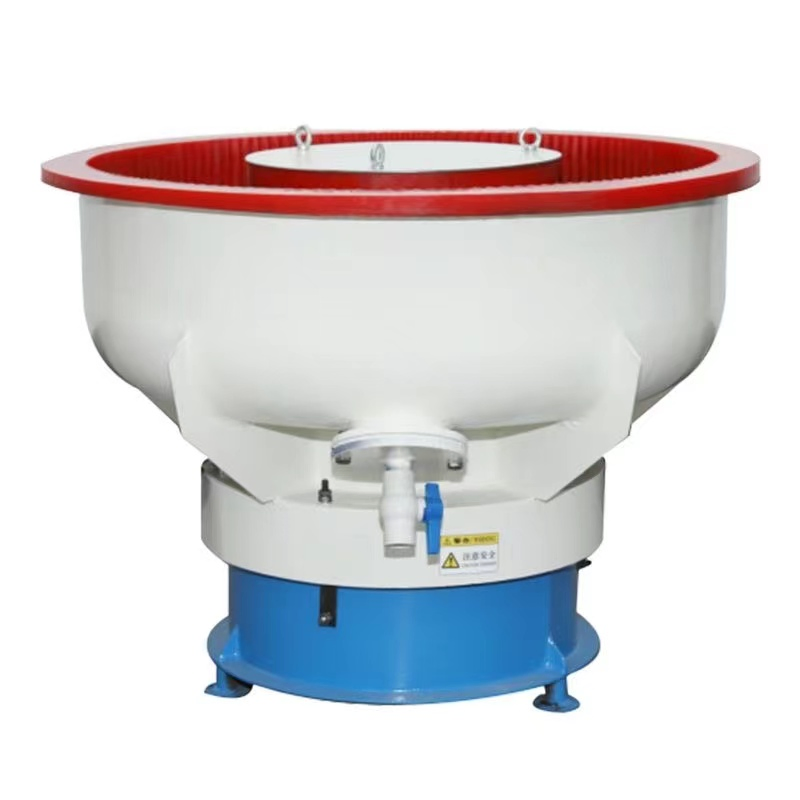

Vibratory Finishing & Polishing Machine

Quickly remove burrs around the workpiece, including small inner holes, pipe holes, and dead angles.
Does not affect original accuracy; shape and size remain unchanged. Surface roughness can reach Ra0.1-Ra0.01.
High efficiency with short processing time, typically 5-20 minutes per batch.
Convenient operation, low cost, and non-polluting using stainless steel needles as long-lasting abrasive materials.
Ideal for irregular parts, holes, pipes, and gaps that are difficult to reach with traditional methods.
Finished products are free from deformation, preserving surface integrity and precision.
Environmentally friendly: non-toxic and fully compliant with environmental protection standards.

Model	Volume (L)	Weight (KG)	Motor (HP)	Watt (KW)	Machine Size (mm)	Capacity (KG)
A50	50	260	1	0.75	Φ696x850H	150
A100	100	360	3	2.2	Φ906x990H	300
A150	150	460	3	2.2	Φ1045x1035H	380
A250	250	640	5	4.0	Φ1200x1260H	650
A350	350	750	7.5	5.5	Φ1340x1330H	950
A500	500	1070	10	7.5	Φ1560x1560H	1200
A700	700	1660	12	9.0	Φ1730x1730H	2000
A1000	1000	2000	15	11	Φ1850x2000H	2500
A1200	1200	2300	17	15	Φ2050x2200H	2750

Features & Key Applications

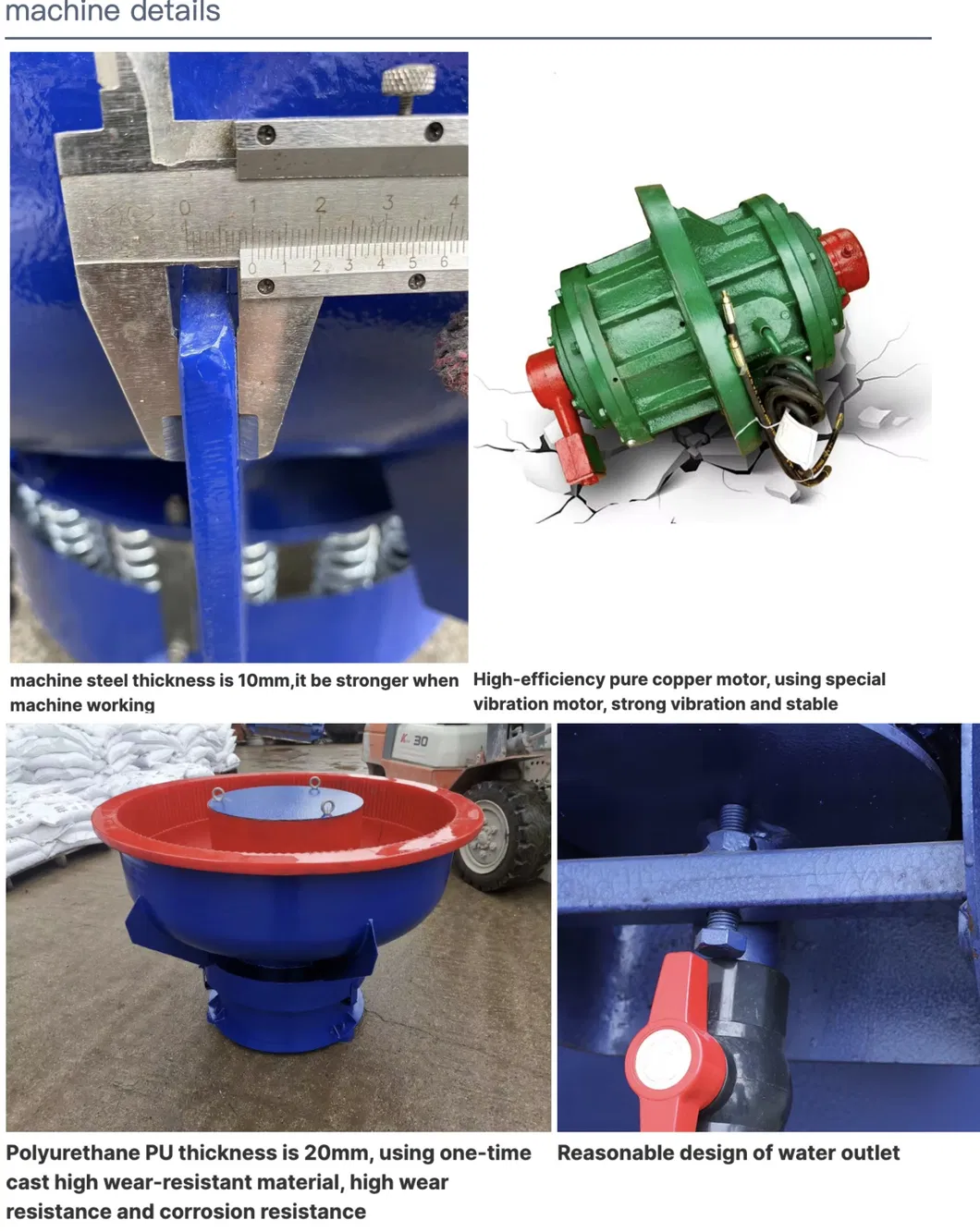

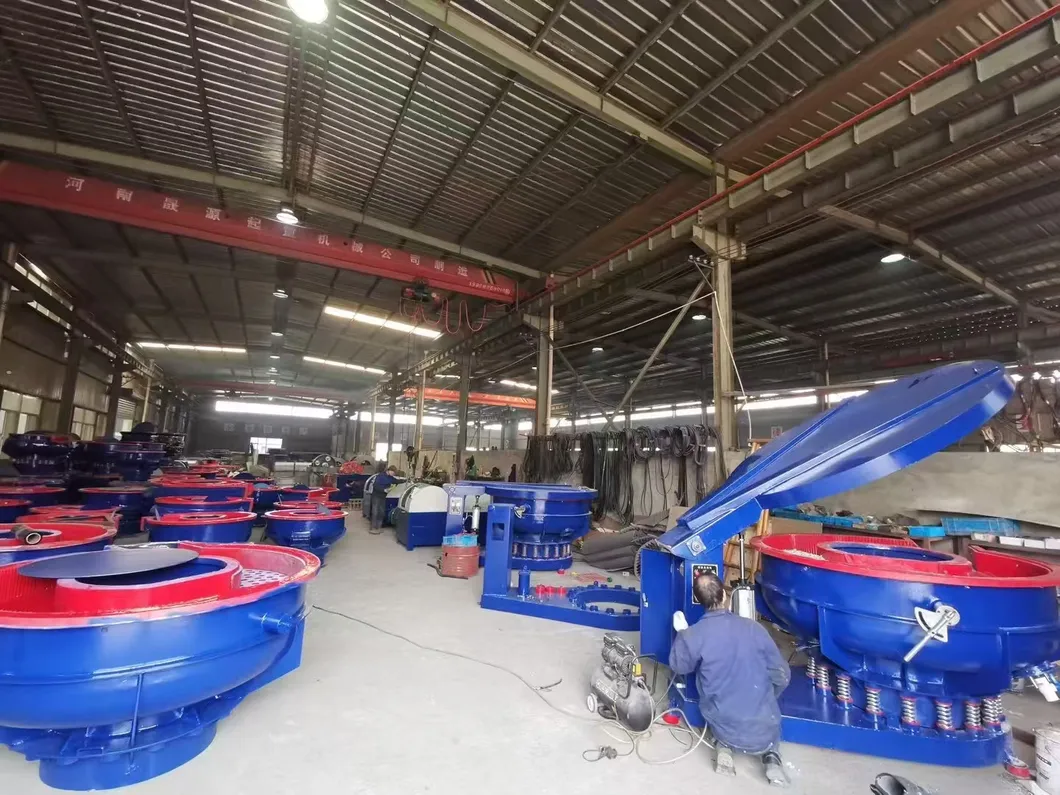

Machine Highlights

Available with or without separator based on needs.
CE certified for safety and quality assurance.
High-quality motor sourced from Taiwan.
Strong steel body construction (25mm thickness).
Optional Taiwan brand inverter for speed control.
Lined with high-quality, wear-resistant PU (Dupont adhesive).

Key Applications

Perfect for processing metals, non-ferrous metals, and non-metals. Widely used for burr/rust removal, edge rounding, and mirror polishing, especially for parts with complicated geometry and concave surfaces.

Core Advantages

√ Shallow incline processing channel.
√ Manual or pneumatic separation gate options.

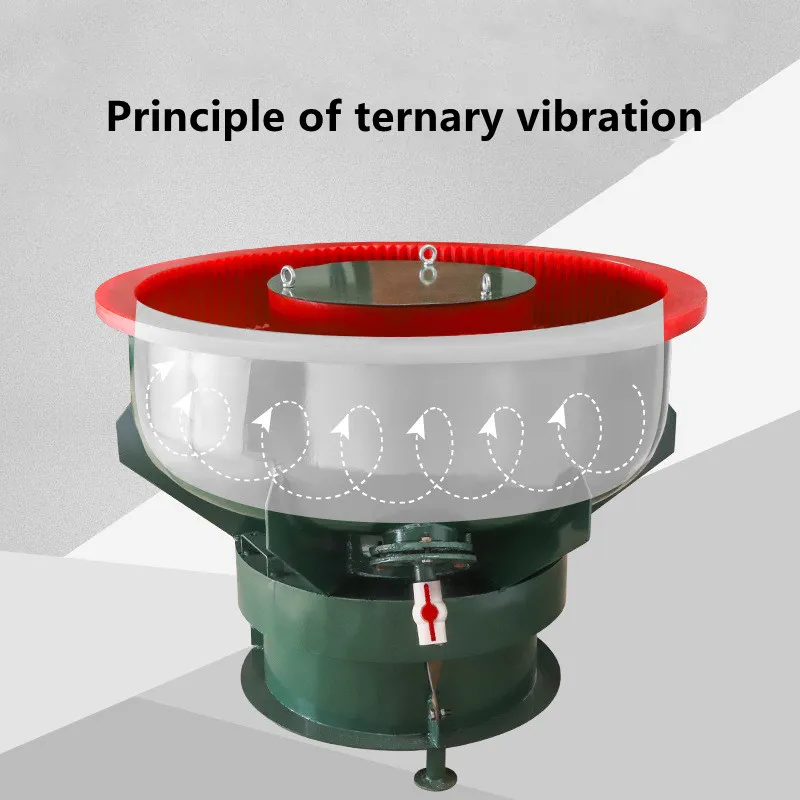

√ Adjustable imbalance weights for different intensities.

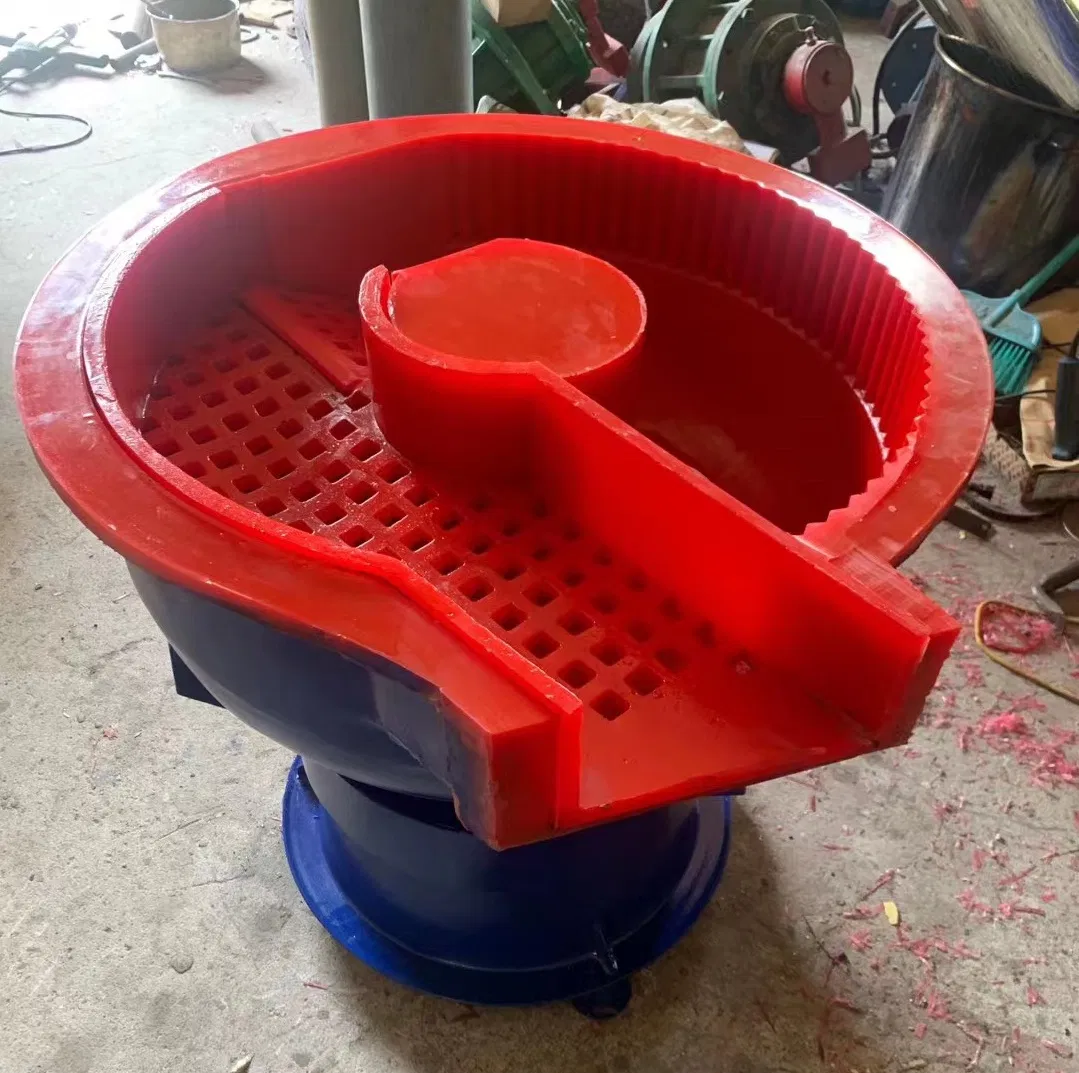

√ Wear-resistant PU lining for longevity.

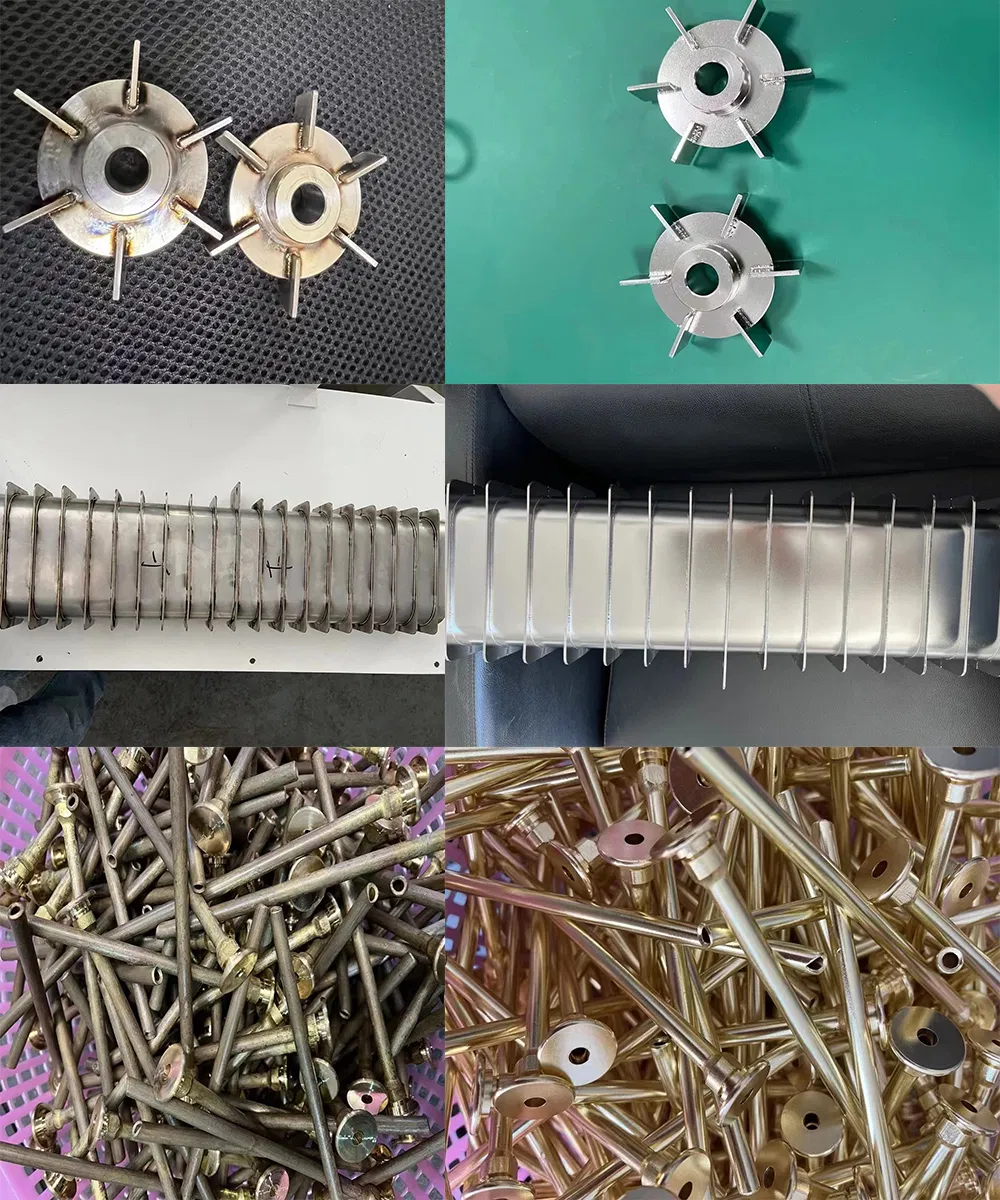

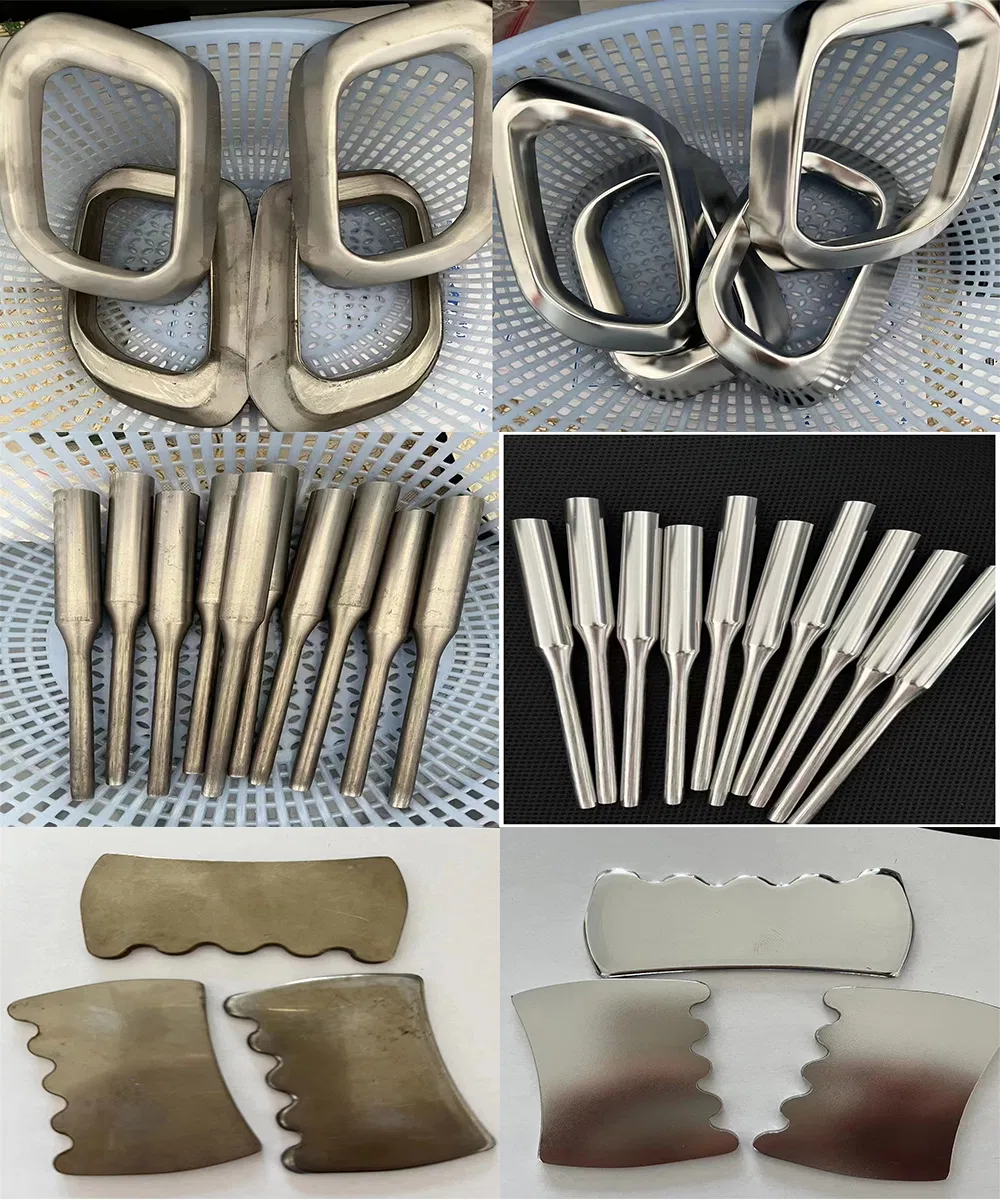

Before & After Polishing

Service & Support

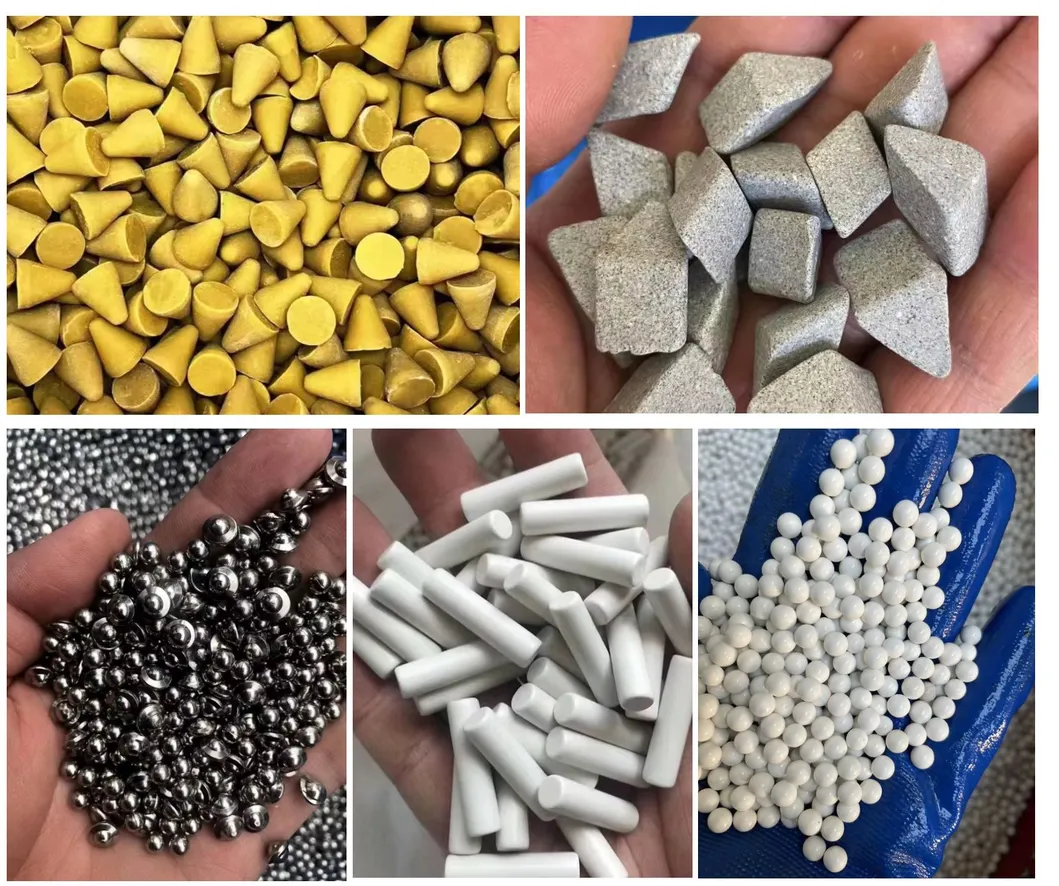

Providing complete solutions for surface treatment problems. We select the most suitable finishing machine, media, and compounds based on your material, shape, and surface requirements.
