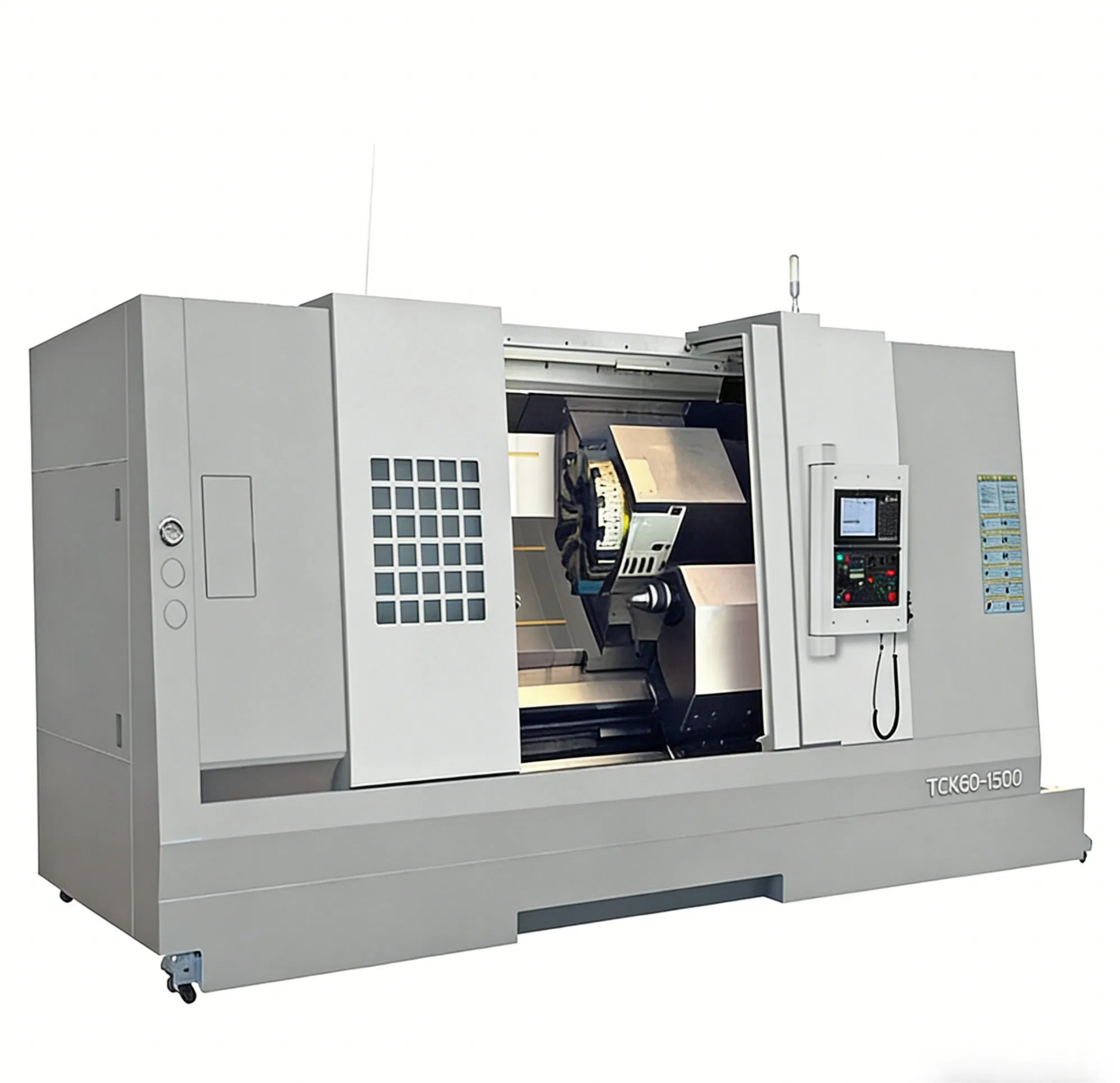

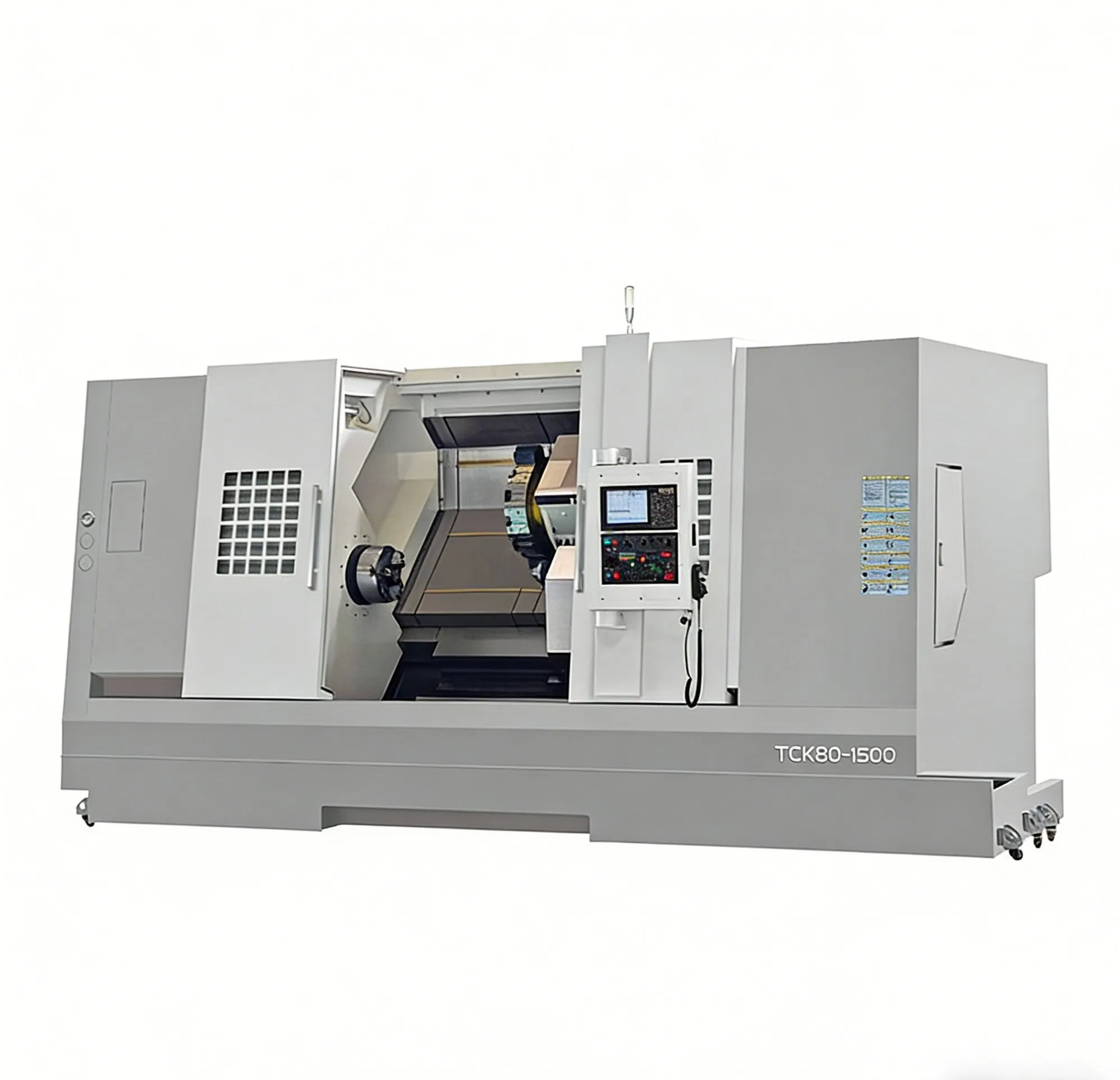

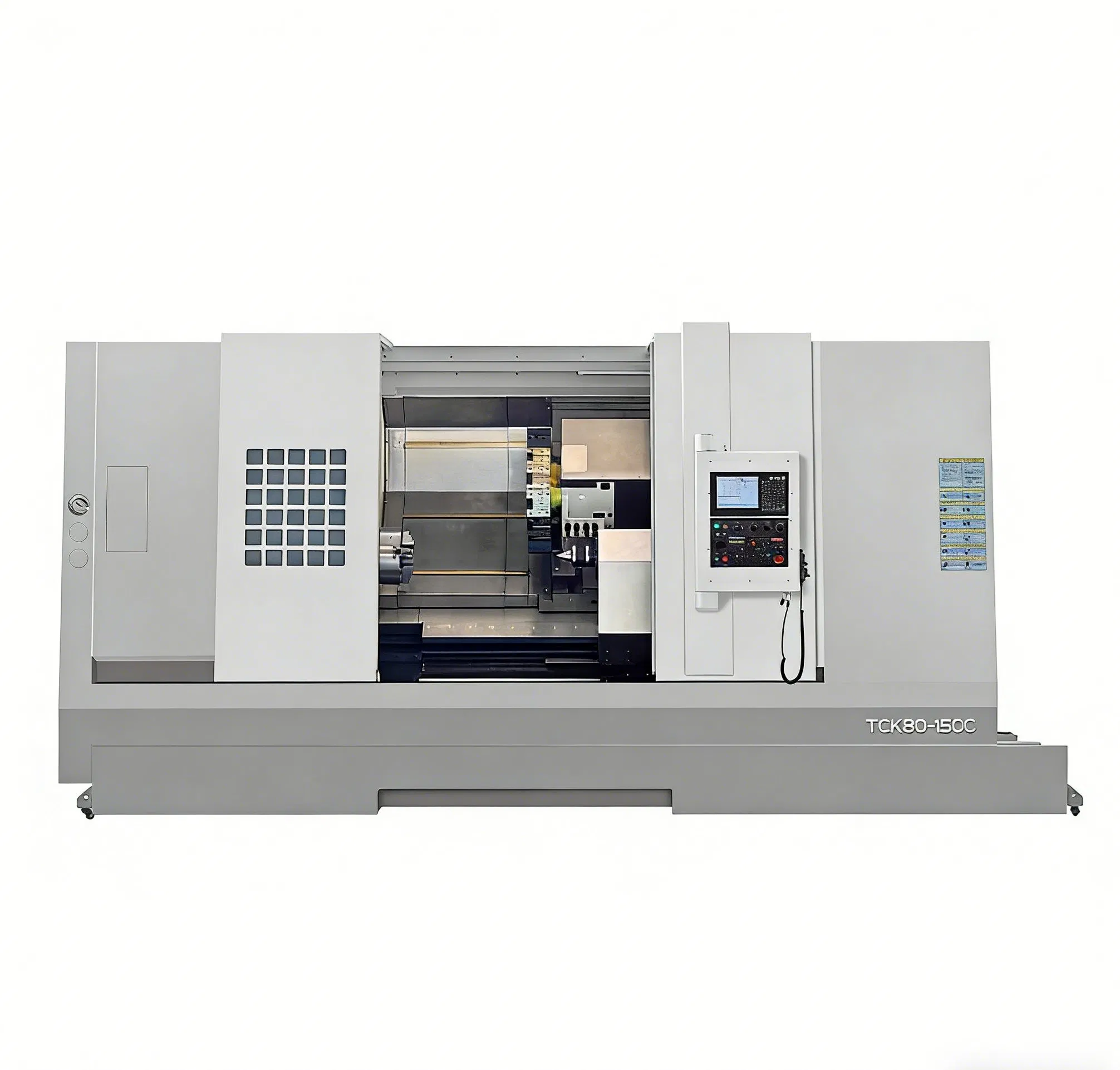

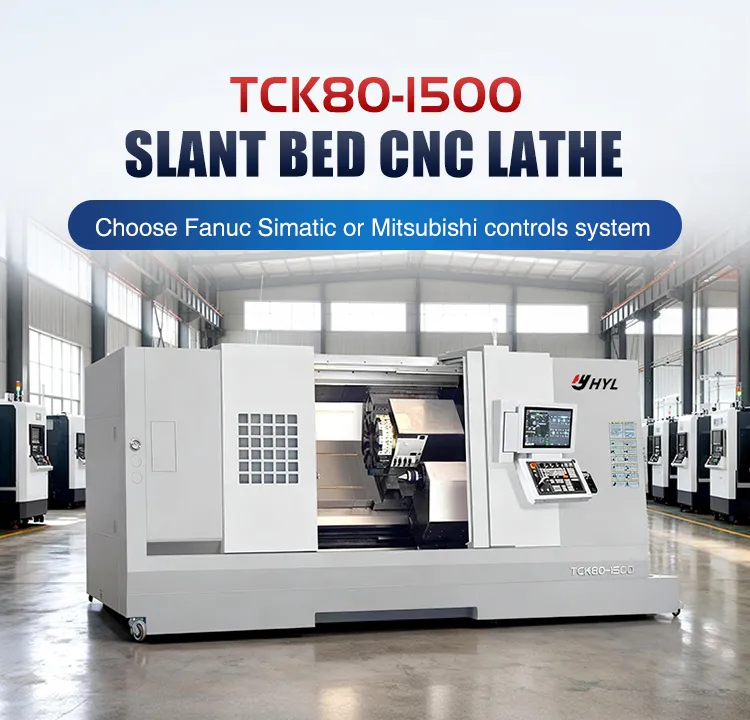

The overall layout adopts a compact 45-degree inclined bed structure. Made of high-density cast iron for superior strength and shock absorption.
The hard rail structure provides enhanced rigidity, ensuring long-term accuracy by eliminating gaps between the track and slider.
Equipped with a 125 center height and a 440 opposite side large cutterhead turret to prevent tool interference.
Bed rotation reaches 630mm, with a maximum shaft cutting length of 1500mm.
A2-8 spindle design supports large feed, heavy cutting, and high-speed processing requirements.
Technical Specifications
Item
Unit
Specification
Notes
Slant Bed Degree
°
45°
-
Swing Over Bed
mm
850
-
Maximum Cutting Length
mm
1500
-
Maximum Cutting Diameter
mm
750
-
Spindle Nose
-
A2-11
-
Diameter of Spindle Hole
mm
120
-
Spindle Speed Range
r/min
50-1300
Max Torque 573Nm
Main Motor Power
kw
15/18.5
Continuity
Standard Chuck Diameter
inch
12"
-
X/Z Axis Travel
mm
385 / 1600
-
Machine Weight
kg
5000
Approx.
Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your detailed specifications or product drawings. Our technical team will analyze your requirements and recommend the best model for your specific needs.
2. What are your standard trade terms?
We accept standard international trade terms including FOB, CFR, and CIF.
3. What are the payment terms for an order?
We typically require a 30% initial payment at the time of order, with the remaining 70% balance due before shipment. Irrevocable LC at sight is also acceptable.
4. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our CNC machines.
5. What is the warranty period for the machine?
We offer a comprehensive five-year warranty. If parts are damaged due to non-human factors during this period, we provide new replacement parts free of charge.
6. How do you provide after-sales support?
We offer technical support online. Customers can describe issues and provide photos or videos, and our technicians will guide you through the solution promptly.
