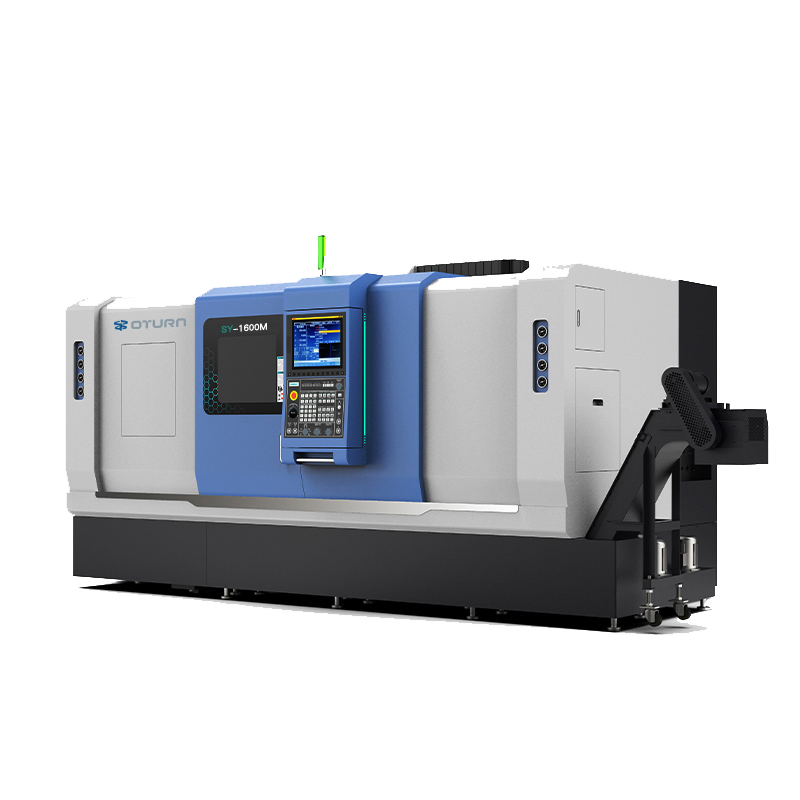

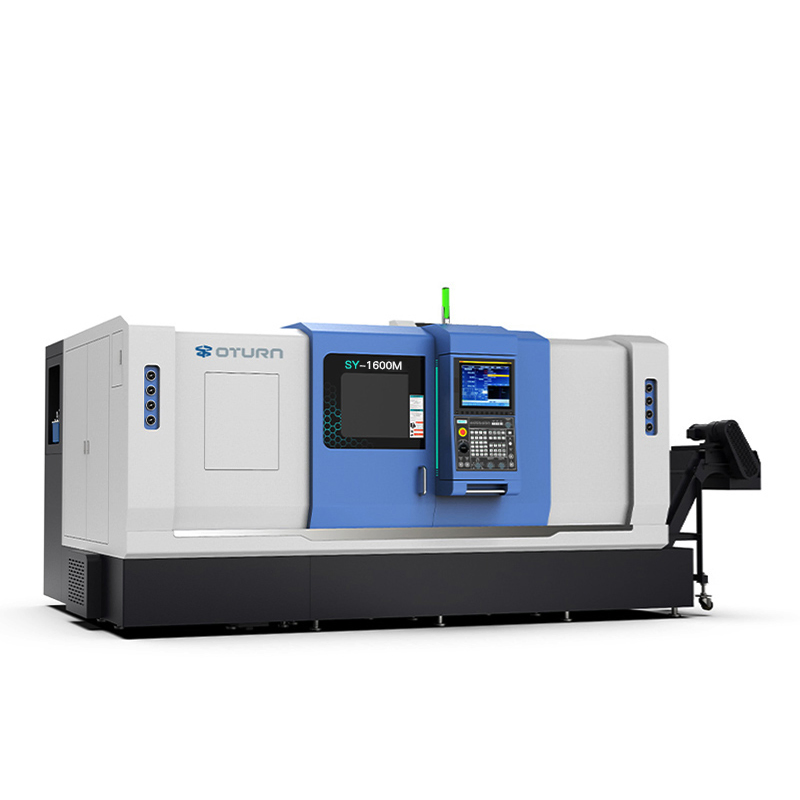

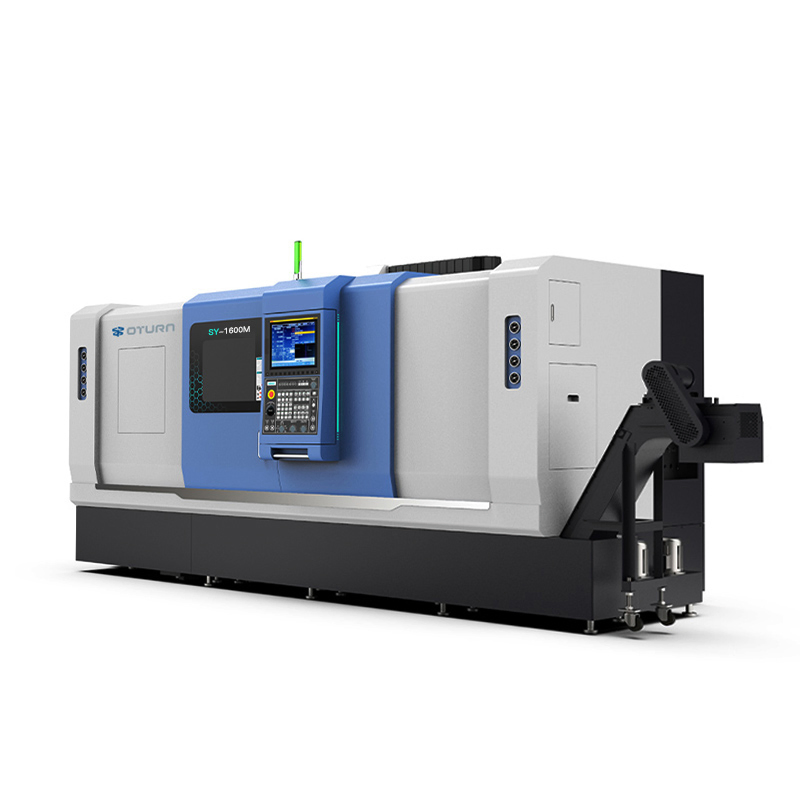

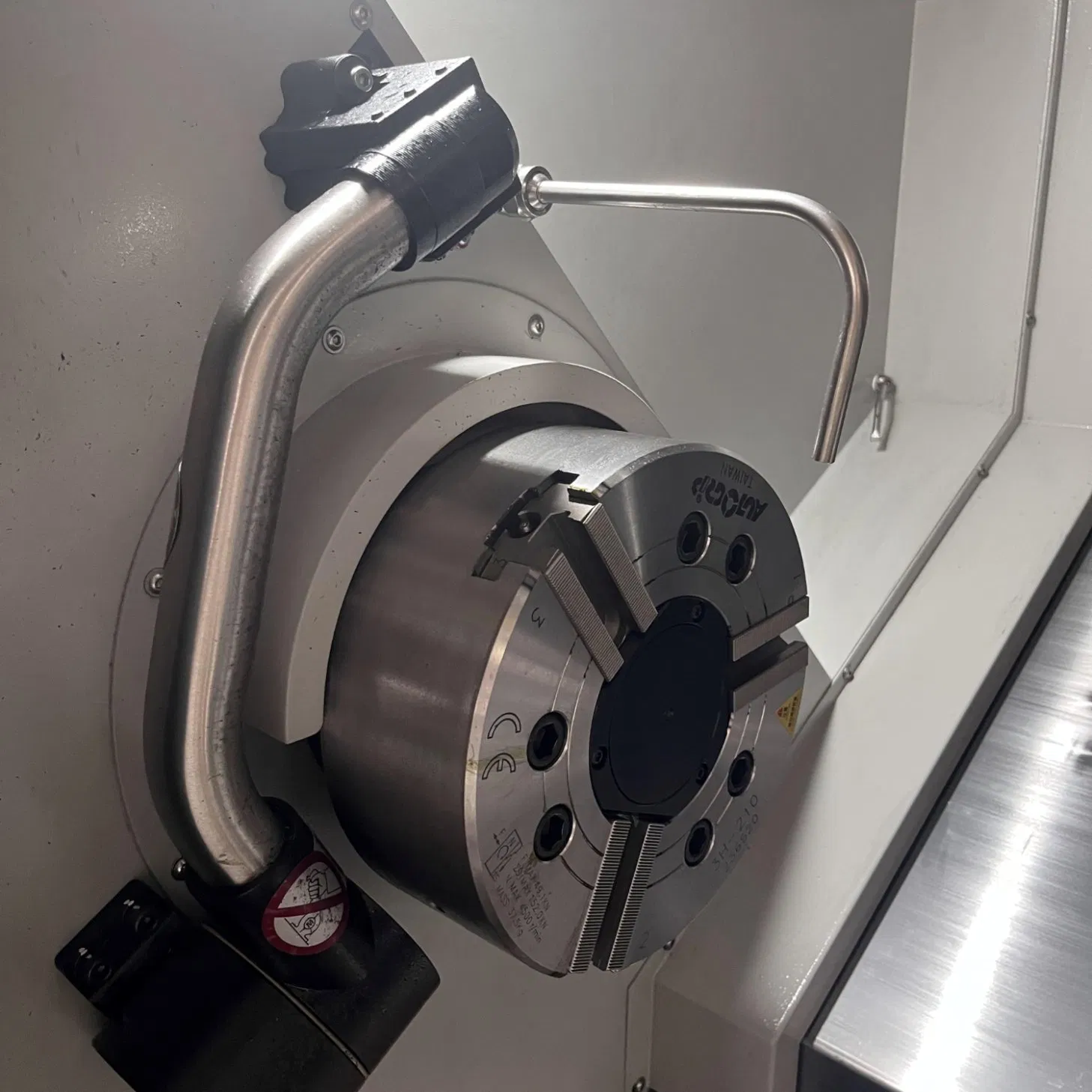

CNC Single Spindle Turning Center Sy1600m with Angular Contact Bearing Spindle

Customization: Available
After-sales Service: Support
Warranty: One Year

Product Description

📋 Basic Information
Model NO.:SY1600M
Type:Turret Lathe
Processing Accessory:Chuck CNC Lathe
Guide Rail:Inclined Guide Rail
Tool Holder:Single-tool Holder CNC Lathe
Power Source:Electric
Controlling Mode:CNC
Automatic Grade:Automatic
Setting Mode:Floor-type
Precision:High Precision
Certification:GS, CE, ISO 9001
Condition:New
Control System:Fanuc, Siemens, Mitsubishi
Spindle:A2-6, A2-8, A2-11
Chuck:6, 8, 10, 12 inch
Tool Turret:VDI or BMT
Origin:China
Production Capacity:1000/Year
🛠️ Product Description

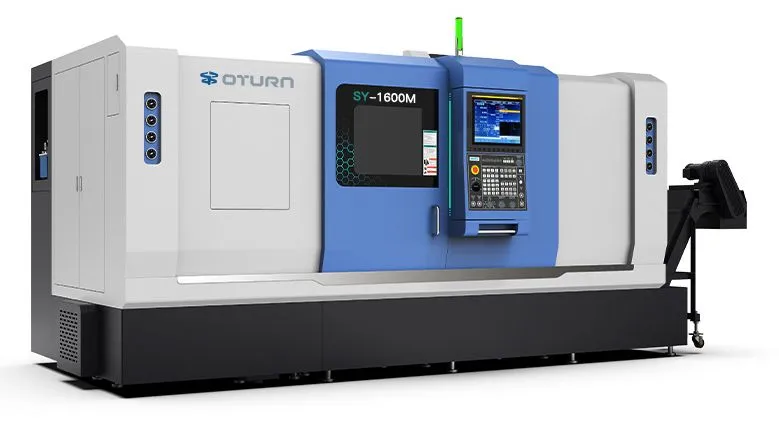

CNC Turning Center Sy1600m Turning Center Detail

The two-axis lathe can process both ends of the workpiece at the same time in one clamping, which greatly simplifies manual operations, increases output and reduces processes. The second spindle enables full turning and expressly transfers workpieces during machining, thereby reducing cycle times. The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability.

Direct Drive Spindle Adopt direct drive synchronous electric spindle device with magnetic ring incremental encoder. Effectively eliminate spindle vibration; nose deflection accuracy within 0.002MM.

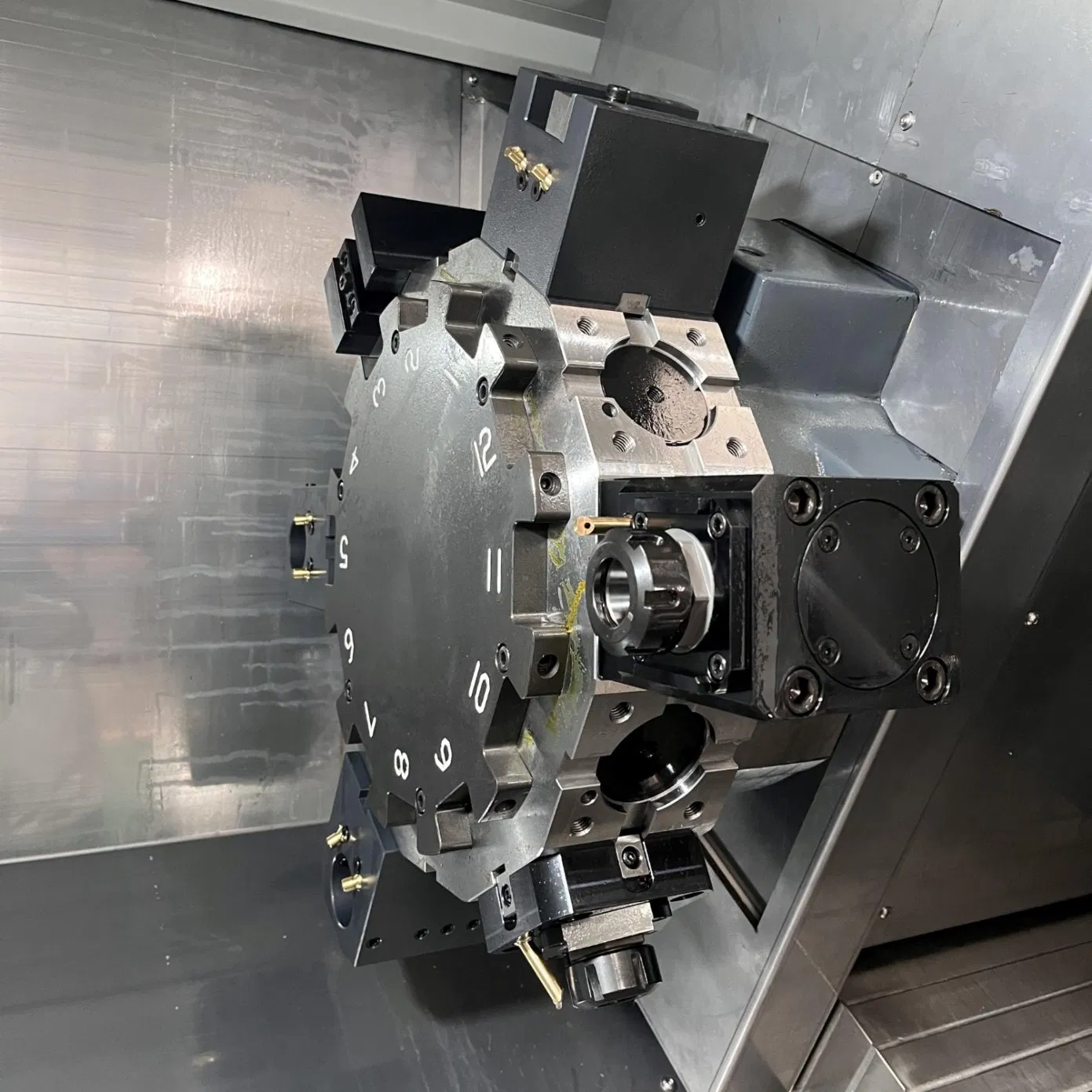

Servo Power Turret High rigidity integrated design. Rapid and accurate tool changing coupled with high-speed power milling axis for excellent turning and milling combined capabilities.
Precision Transmission Equipped with roller linear guides and precision-ground ball screws. Direct transfer axis structure ensures minimum thermal displacement and high processing accuracy.
Hydraulic & Lubrication Complete system using high-quality hydraulic pumps and valves. Simple, reliable design reduces failure rates and ensures long-term stable operation.
📊 Technical Parameters
Item Unit SY1600M
Max. swing diameter over bedmmΦ680
Max. processing diametermmΦ400
Max. processing lengthmm1400
Spindle typetypeA2-8
Max. spindle speedrpm2100
Spindle bore diametermmΦ86
Direct drive spindle motor powerkw24
X/Z axis travelmm320/1540
Positioning accuracymm±0.005
Repeatabilitymm±0.003
X/Z axis rapid speedm/min20/20
Power turret typepcsBMT65-12T
Machine sizemm4300x2110x2100
Machine weightkg7500
⚙️ Product Configurations & QC

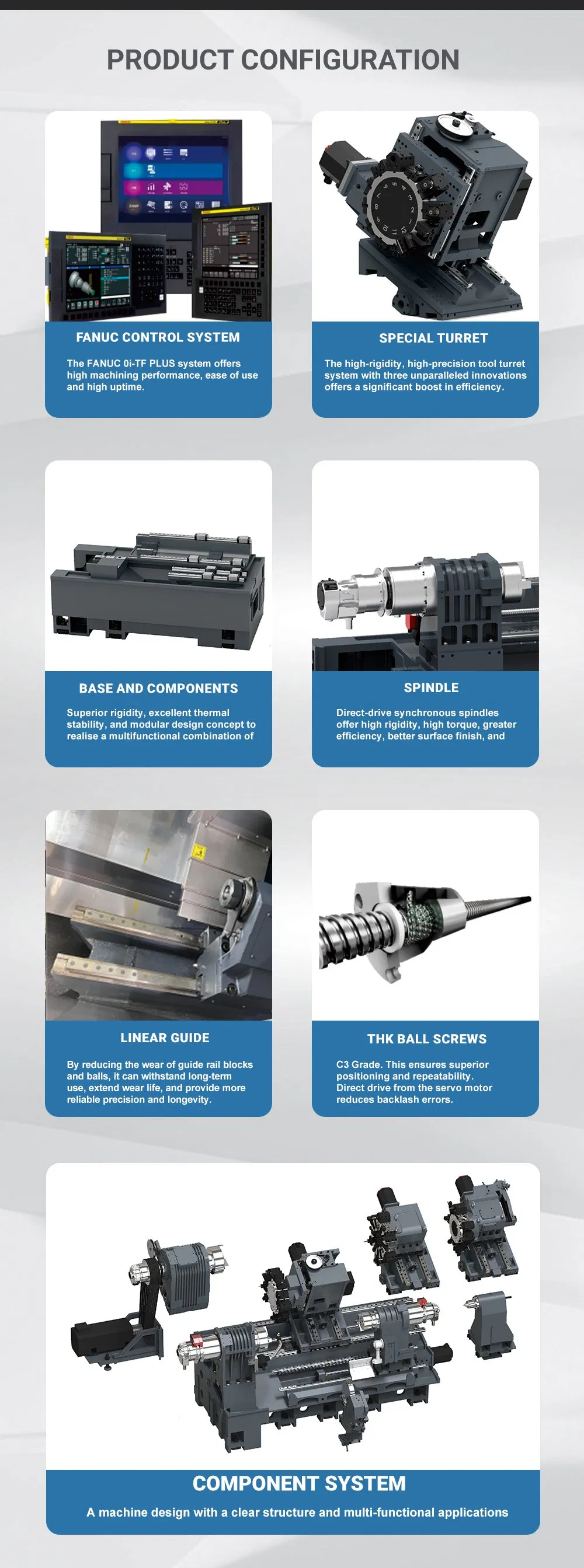

Configurations
Company Showcase
Quality Control
Advantages
Frequently Asked Questions
How can I choose the most suitable machine?
Please provide your specifications or product drawings. We will evaluate your requirements and recommend the best model or provide a customized solution for your needs.
What are the main products available?
We specialize in a wide range of CNC machinery, including CNC Lathes, Milling Machines, Turning Centers, Vertical and Horizontal Machining Centers, and composite processing equipment.
What are the payment terms for orders?
Standard terms are T/T with a 30% initial payment upon ordering and the remaining 70% balance payment before shipment.
What is the Minimum Order Quantity (MOQ)?
The MOQ is typically 1 set. For some specific low-cost accessory machines, the MOQ might be higher.
How is the equipment transported?
We provide various transportation solutions including DDP, CIF, FOB, and FCA to ensure the machinery reaches your location safely and efficiently.
Can you provide price quotes for specific destinations?
Yes, if you require a CIF price, please kindly inform us of your destination port and we will provide a comprehensive quote.
