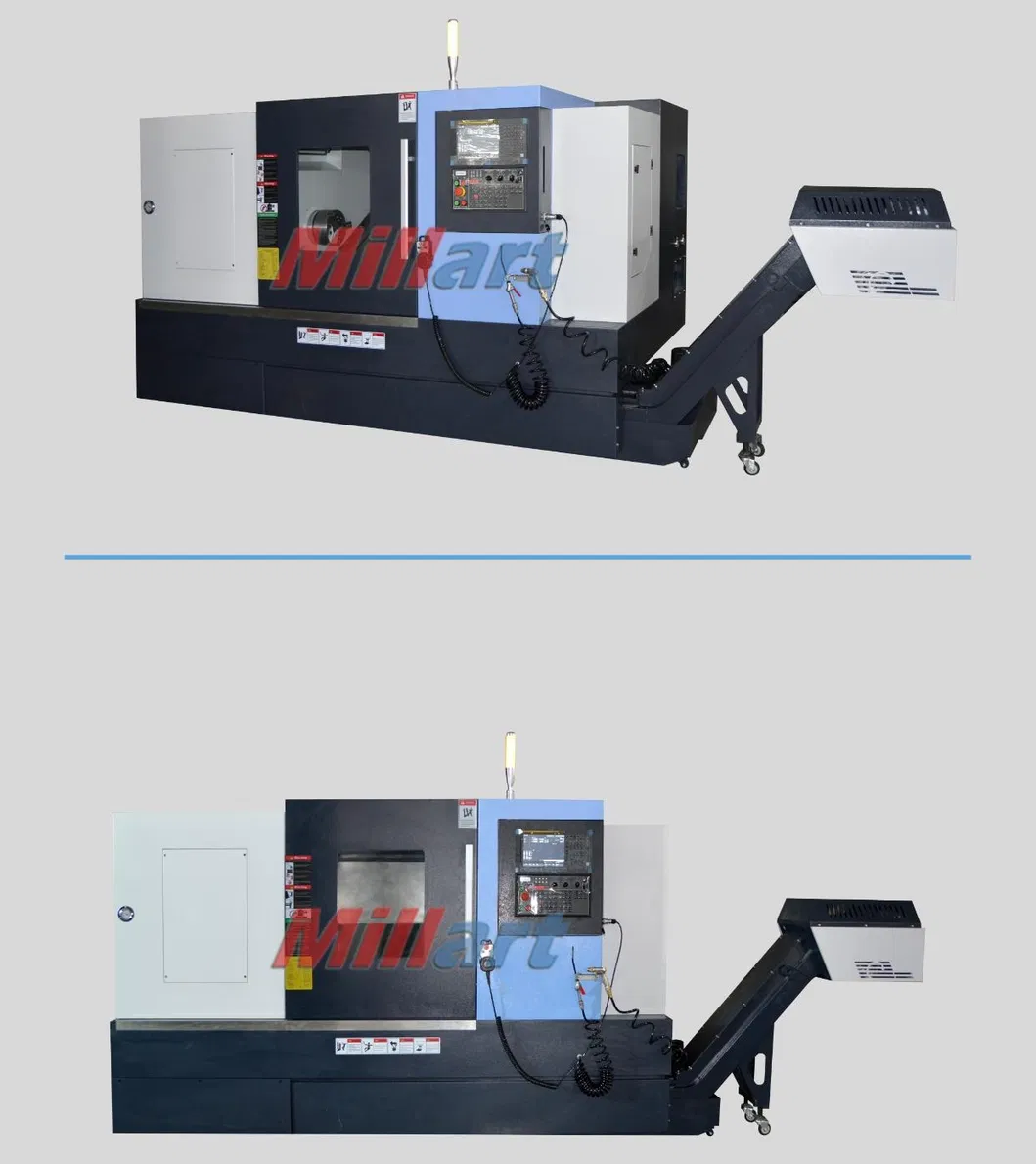

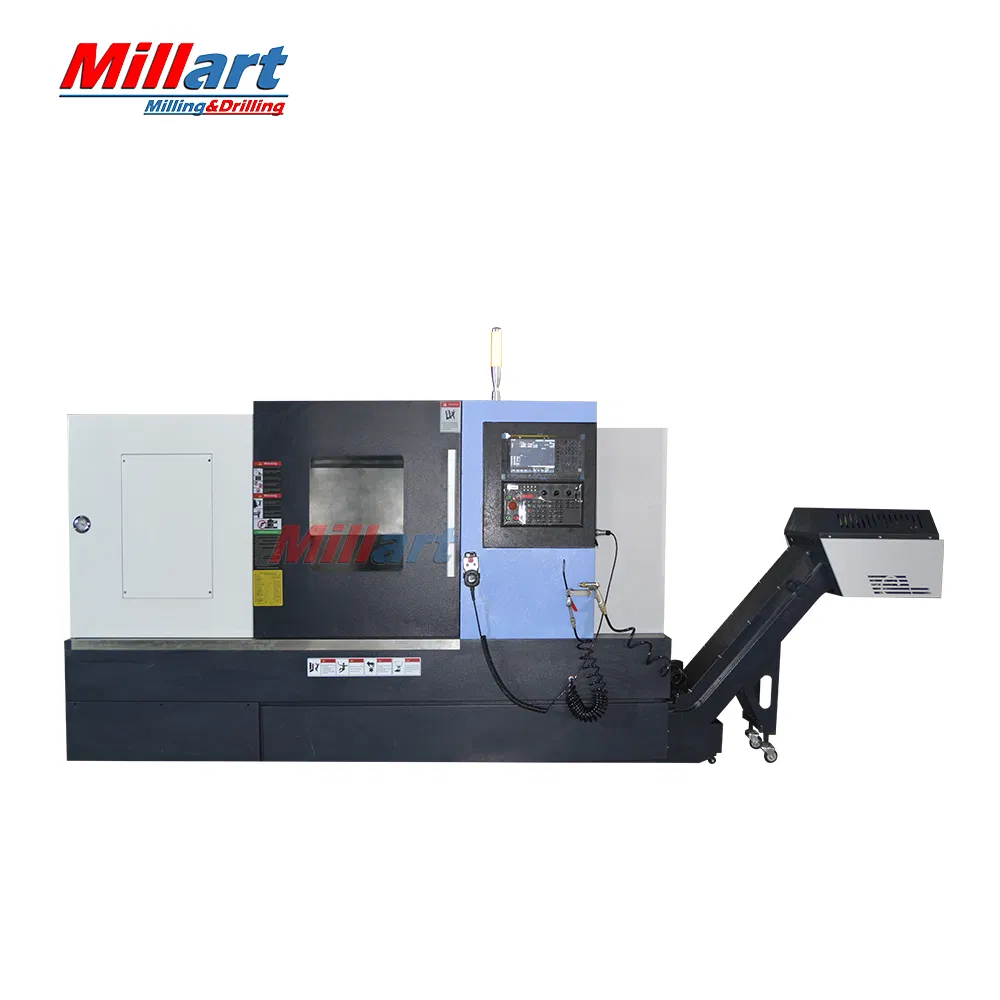

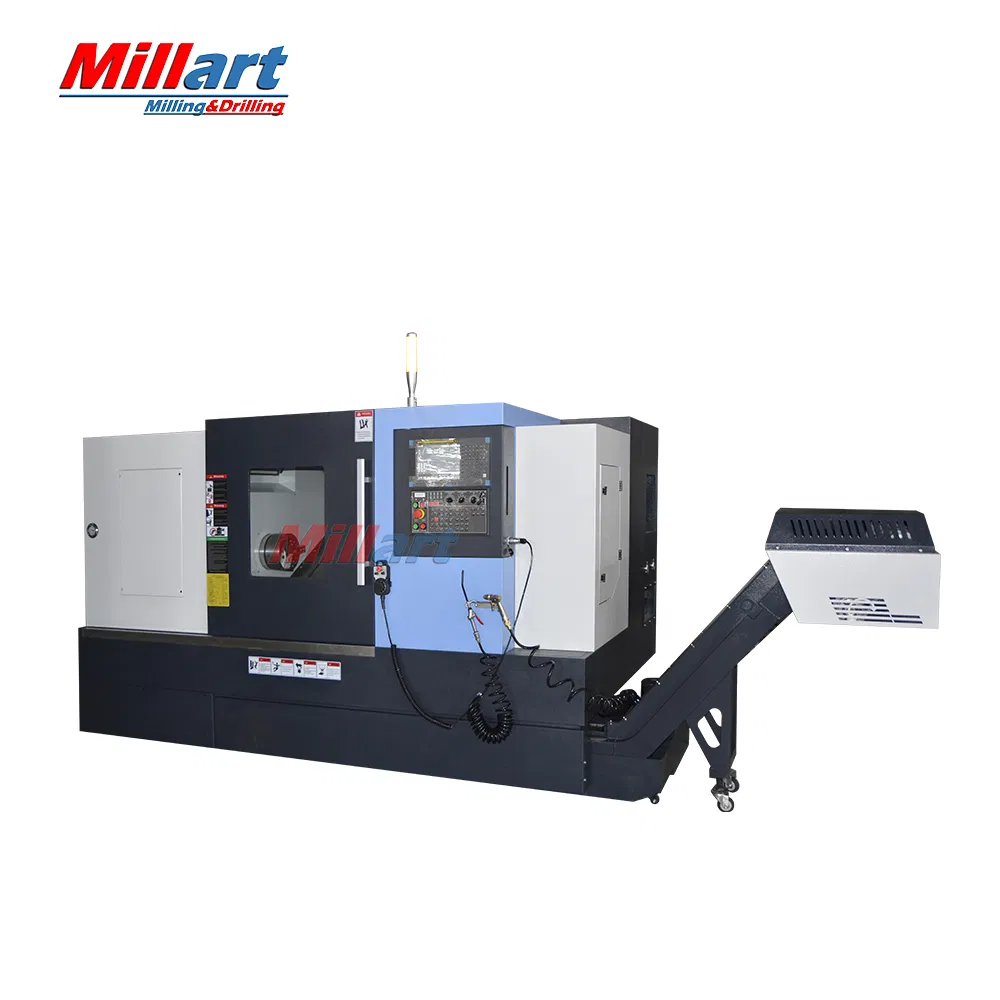

Slant Bed CNC Turning Machine Tck5052 Turning Lathe Center for Sale

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	12 Months After B/L Date

Basic Specifications

Model NO.TCK5052

ApplicationMetal

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

Max. Swing Diameter500mm

Max. Turning Length520mm

Max. Spindle Speed4200rpm

Slant Bed Angle30 Degree

Main Motor Power11/15kw

CertificationCE, RoHS, ISO 9001

Key Features

Suitable for small and middle-sized shaft and plate work pieces.

Supports various threads, circle arcs, and circular cones turning.

High accuracy Taiwan Linear guideways for precision.

High speed spindle unit for efficient processing.

Higher rigidity cast iron construction.

30 degree One-piece casting slant bed design.

Integrated automatic lubrication system.

Technical Parameters

Specifications	TCK5052 Data
Max. swing over bed (mm)	Φ500
Max. turning diameter (mm)	Φ500
Max. turning length (mm)	520
Spindle nose	A2-6
Chuck size	6"
Spindle motor power (kw)	11-15
Max. spindle speed (rpm)	4200
Spindle bore (mm)	Φ66
Slant bed angle	30°
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Machine dimension (mm)	4200×2000×2450
Weight (kg)	4000/4200

Standard & Optional Accessories

Standard:

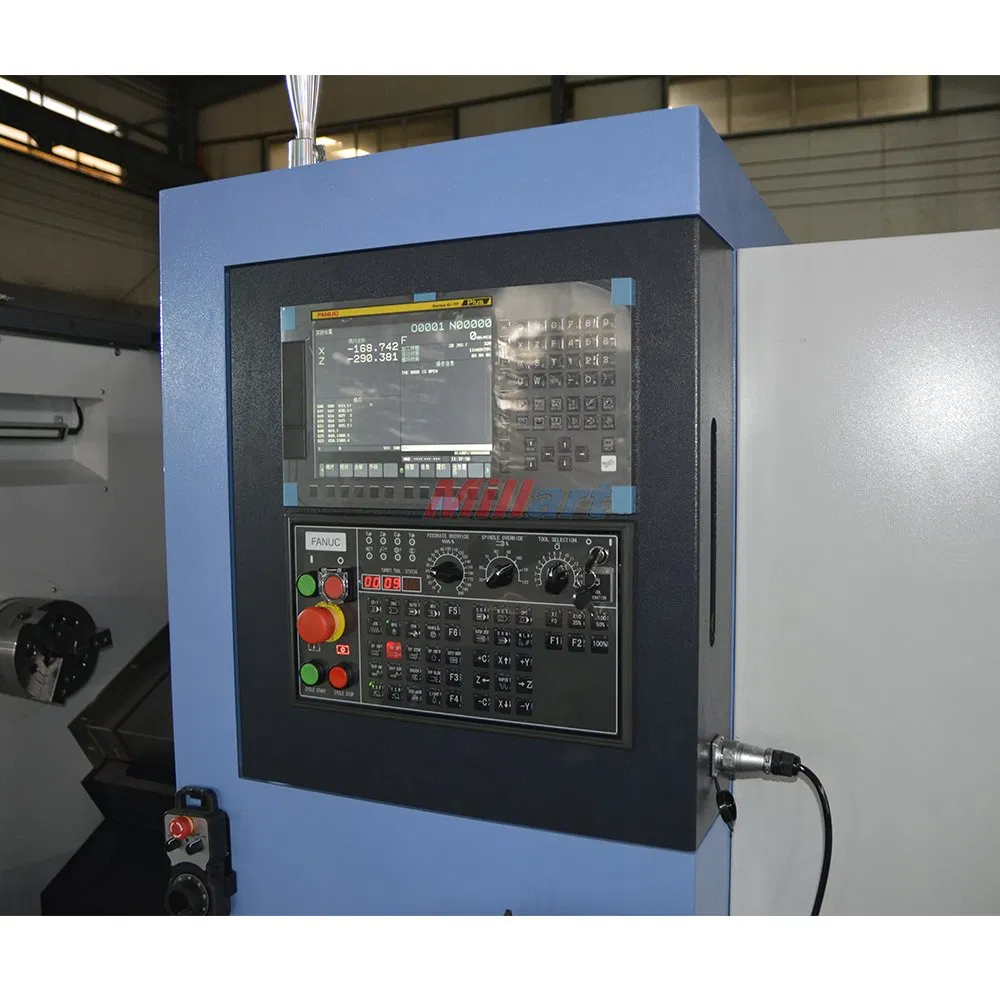

Fanuc 0i TF Control system

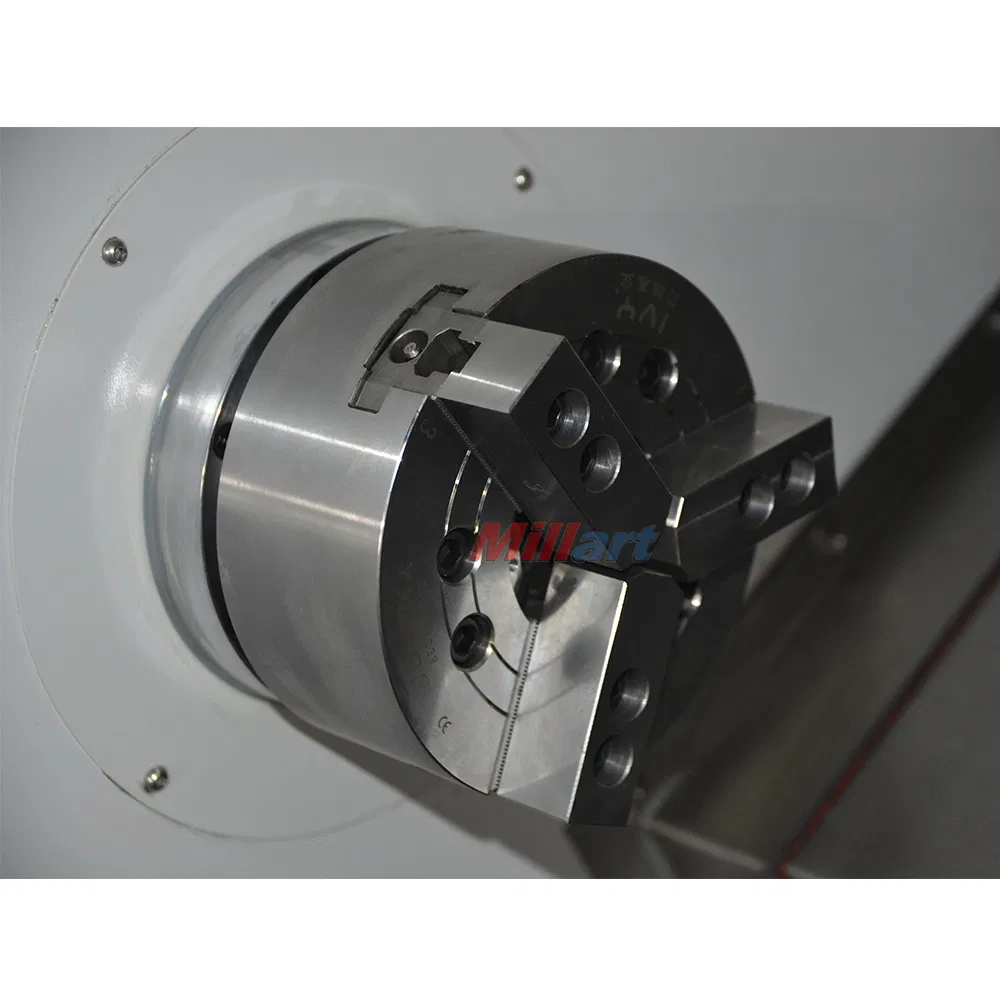

6'' Hollow hydraulic chuck

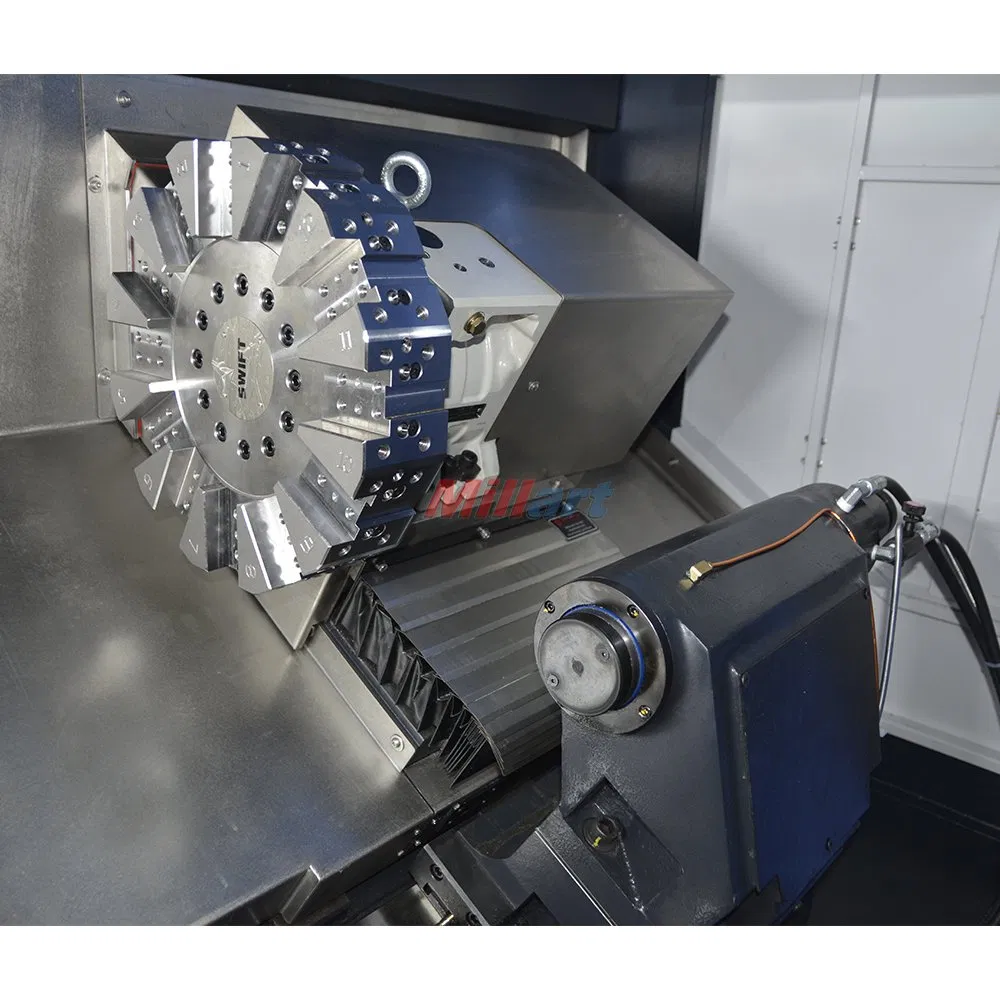

12 stations hydraulic servo turret
Hydraulic tailstock
X,Z axis Linear guide way
Chain type chip conveyor
Schneider electrical components
Cutting Cooling system
Central auto-lubricating system
Full closed cover

Optional:

12 stations BMT power turret
Power head + Radial power head
Hydraulic steady rest
C axis

Frequently Asked Questions (FAQ)

What is the maximum turning diameter for the TCK5052?

The TCK5052 offers a maximum turning diameter of Φ500mm and a maximum swing over bed of 500mm, making it suitable for a wide range of workpiece sizes.

What are the advantages of the 30-degree slant bed design?

The 30-degree one-piece casting slant bed provides higher rigidity, better stability during high-speed cutting, and more efficient chip removal compared to flat-bed lathes.

What level of precision can this CNC turning machine achieve?

The TCK5052 is designed for high-end processing with a precision range of 0.01~0.02mm, and a repeat accuracy of 0.005mm on the X/Z axes.

Which control system is installed on this machine?

The standard configuration includes the Fanuc 0i TF control system, known for its reliability and ease of use in metal-cutting CNC applications.

What types of materials and industries is this lathe suitable for?

It is primarily designed for metal processing and is widely used in industries such as sanitary ware, valves, electrical appliances, automotive, motorcycle, and bearing manufacturing.

What is the spindle speed and motor capacity?

The machine features a high-speed spindle unit reaching up to 4200 rpm, powered by a robust 11/15kw main motor.
