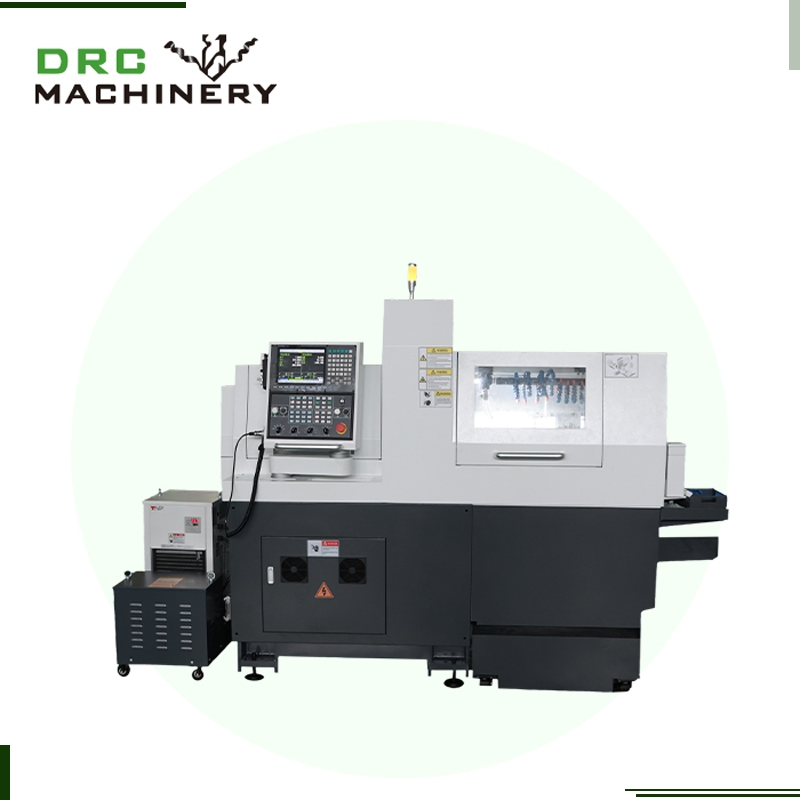

High-Precision CNC Turning Center with Smart Bar Feeder

1 / 5

High-Precision CNC Turning Center with Smart Bar Feeder

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

RC265

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Tool Holder

Single-tool Holder

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

Max Bar Diameter

26mm

Spindle Max Speed

8000r/Min

Spindle Motor Power

4.2kw

Back Axis

C-Axis Function

Product Description

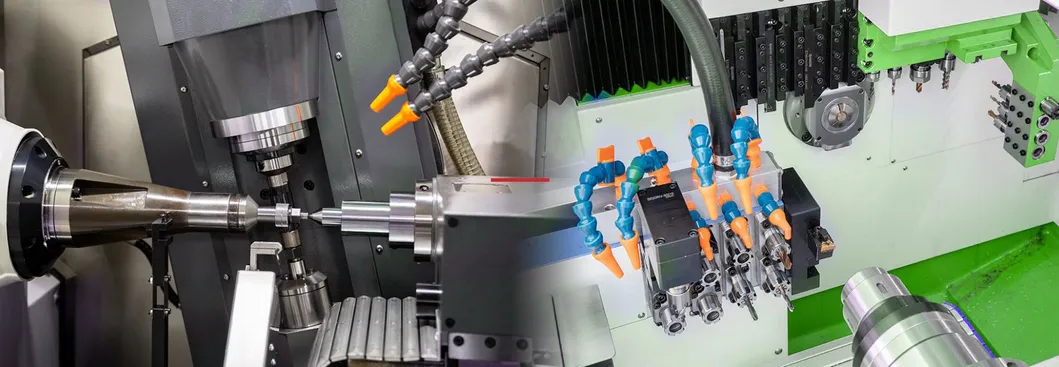

CNC Turning Center Turning and Milling Lathe Machines - Swiss Type With Automatic Bar Feeder

Key Structural Features

High-Speed Spindle: 10,000rpm maximum rotation speed for optimal slender material processing.

Long Clamping: 250mm single clamping length reduces processing time for long workpieces.

Large Capacity: Ø26mm spindle through-hole equipped for large material processing.

Dual Channel: Significantly improves production efficiency via independent front/back processing.

Application: Widely used in communication, electronics, automotive, medical, instrumentation, and aviation industries for complex, small, and precise slender shaft parts.

✓

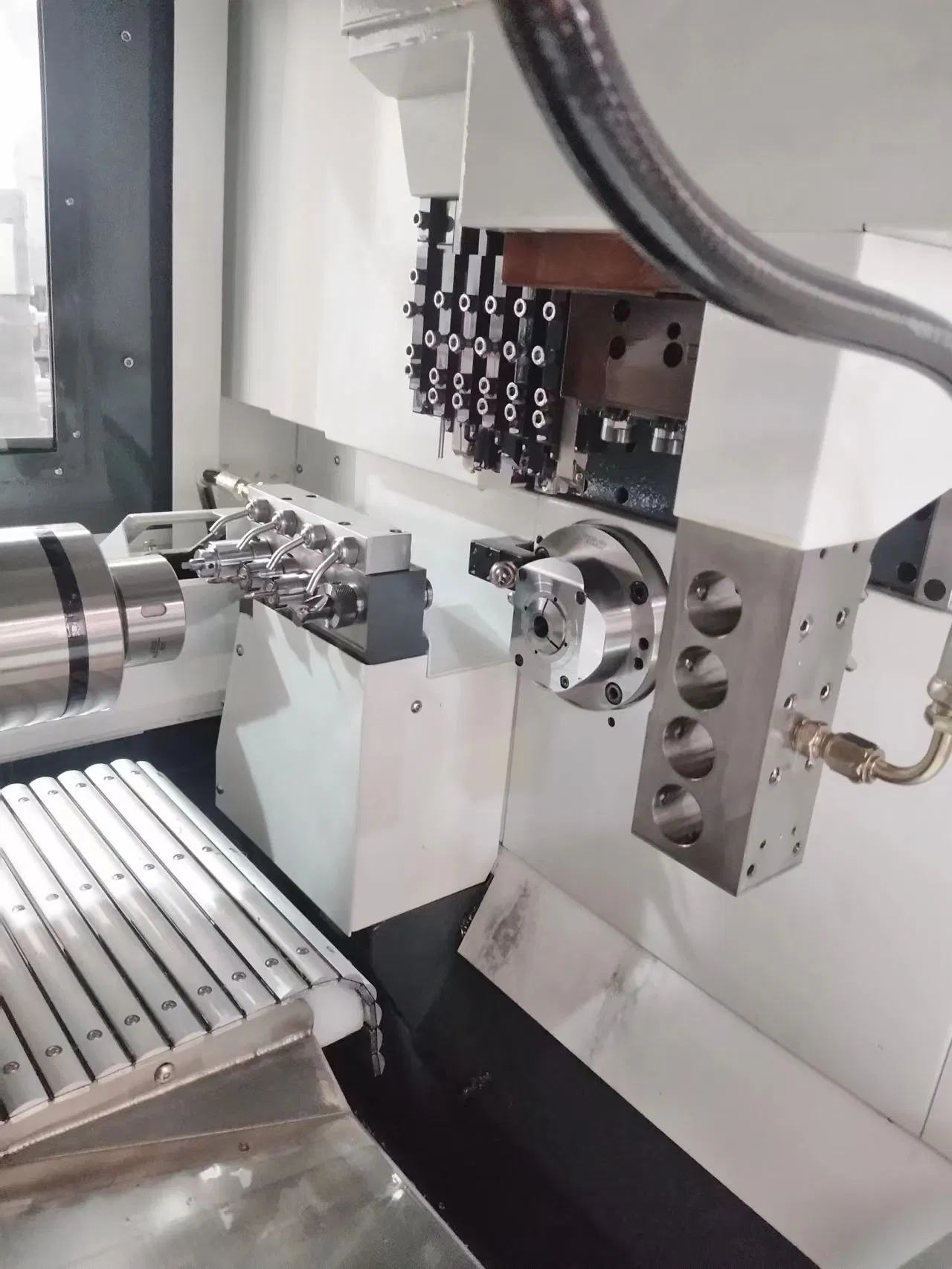

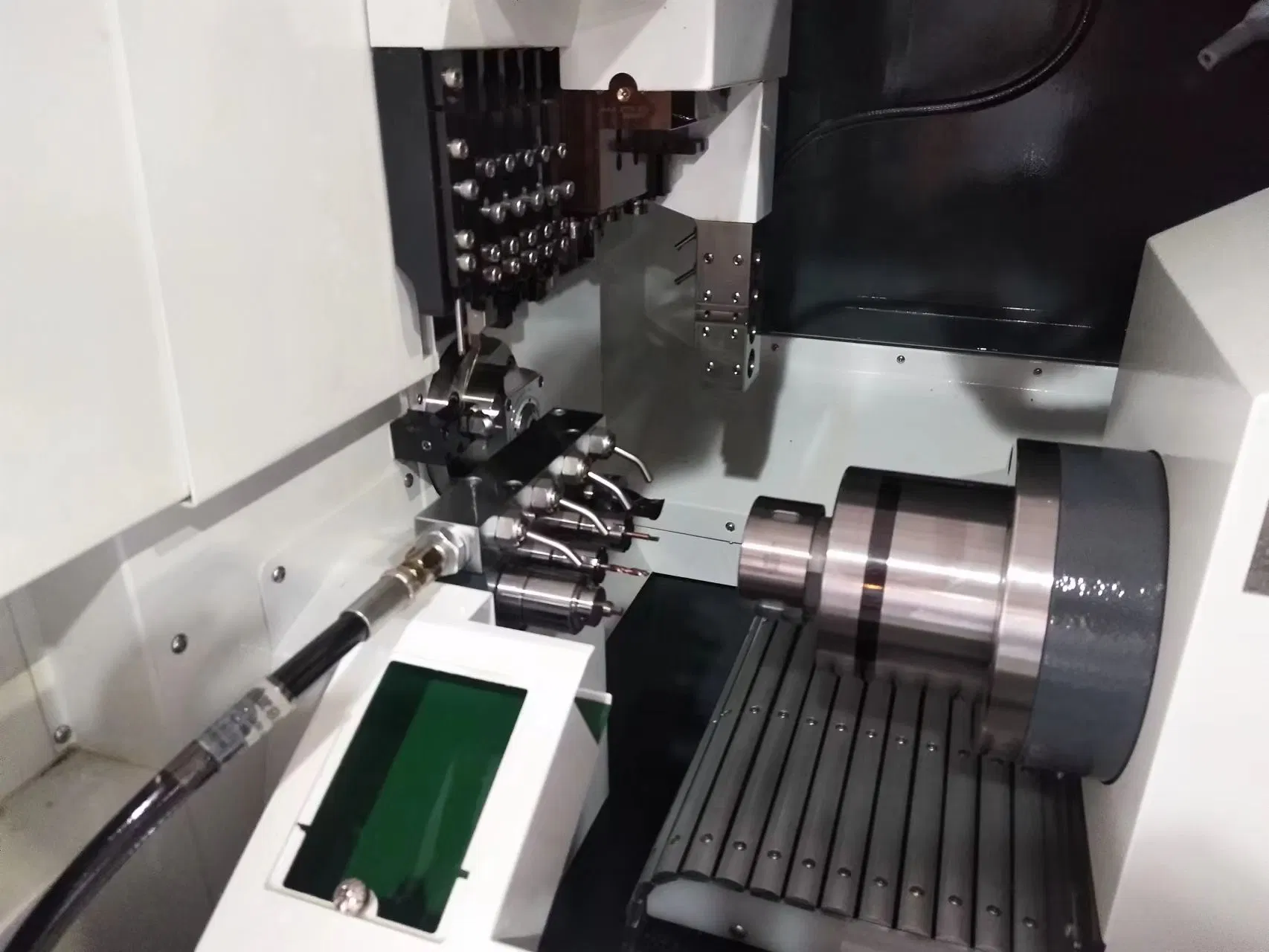

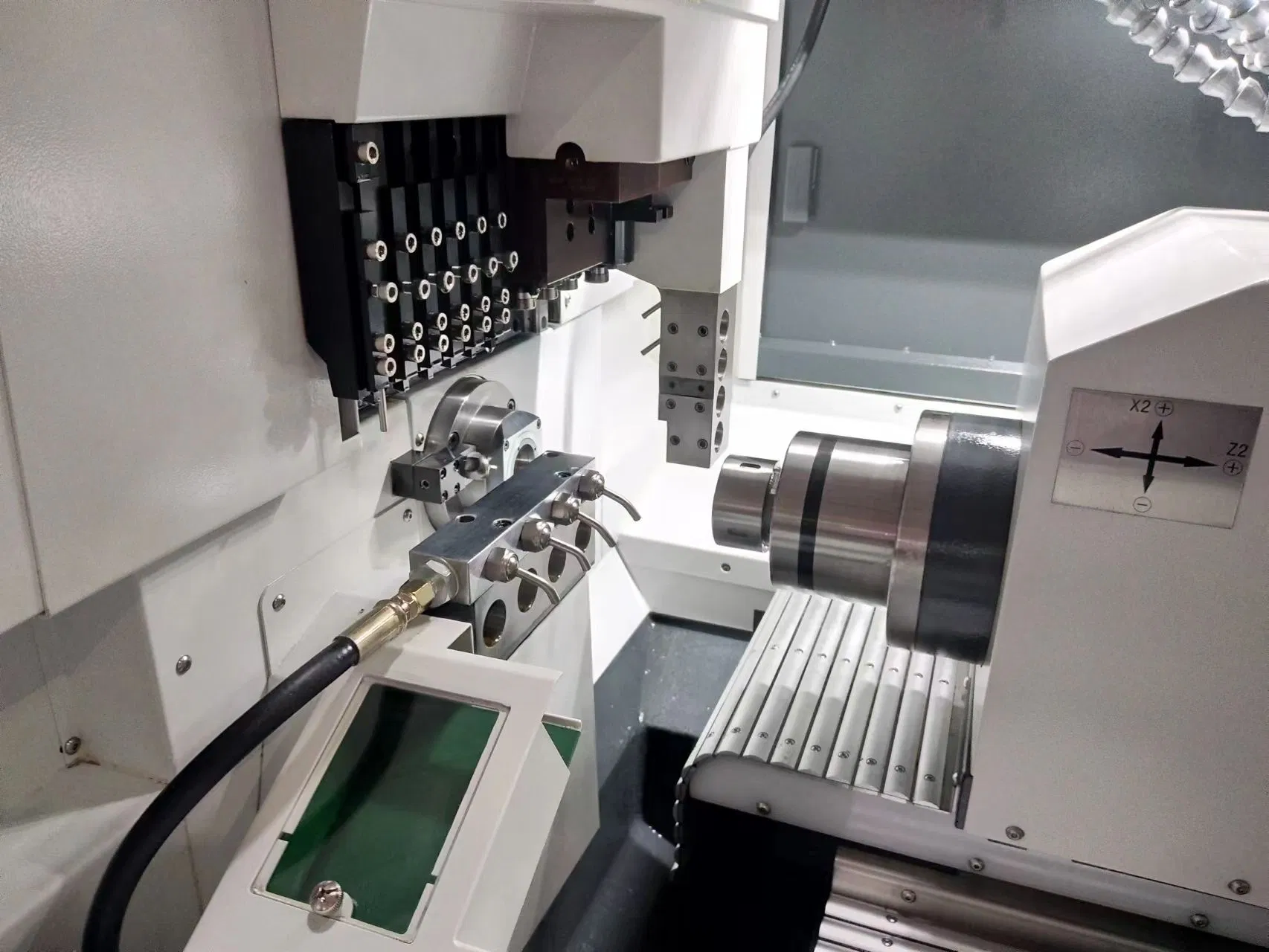

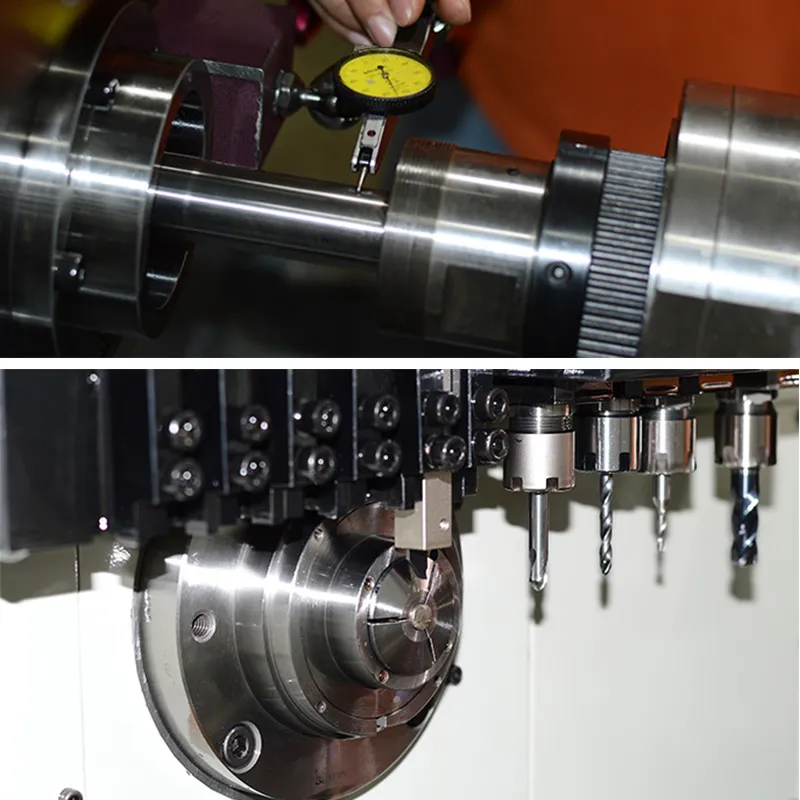

Spindle Tool System: 5 stations for OD tools, 4 for ID tools, and 4 for spindle power tools.

✓

Auxiliary System: 4-station fixed tool holder, capable of 2 fixed powerheads.

Technical Specifications

Item	Specifications	Unit	Remarks
Maximum processing bar diameter	26	mm
Spindle through hole diameter	30	mm
Maximum processing part length	2.5D/MA50	mm	Without guide bush
Rotary guide bush length	180	mm	Enter once
Spindle maximum speed	8000	r/min
Spindle motor power	4.2	kW
Back shaft maximum speed	8000	r/min
Back shaft motor power	3.1	kW
Minimum resolution	0.001	mm
Machine tool net weight	2400	kg

Frequently Asked Questions

What is the maximum bar diameter the RC265 can handle?

The RC265 CNC lathe supports a maximum processing bar diameter of 26mm, with a spindle through-hole diameter of 30mm.

What industries benefit most from this Swiss-type lathe?

It is ideal for high-precision industries such as medical, aviation, electronics, automotive, and communication, specifically for processing slender shaft parts.

What is the maximum spindle speed?

The spindle and back spindle can reach up to 8000 r/min (with options reaching up to 10,000rpm), providing excellent conditions for small diameter tools.

Does this machine support 5-axis movements?

Yes, the RC265 is a five-axis walking machine featuring a dual-channel control system for complex machining operations.

What kind of tool holder system is used?

It features a horizontal linear tool layout with 5 OD tool stations, 4 ID tool stations, and 4 radial power tool stations for the main spindle.

Is the control system user-friendly?

The machine uses a high-performance control system with a movable and rotatable control panel, making it easy for operators to learn and manage.
