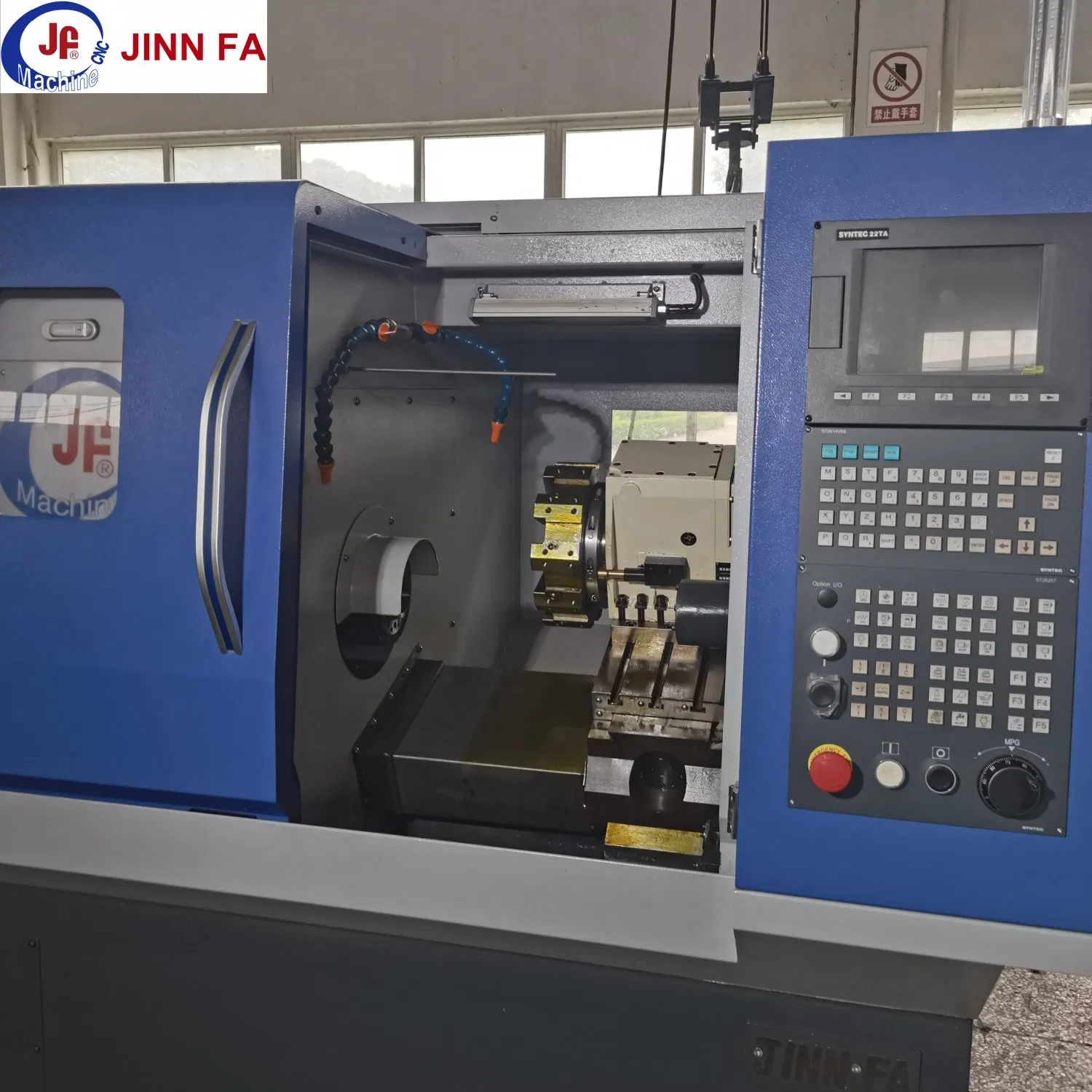

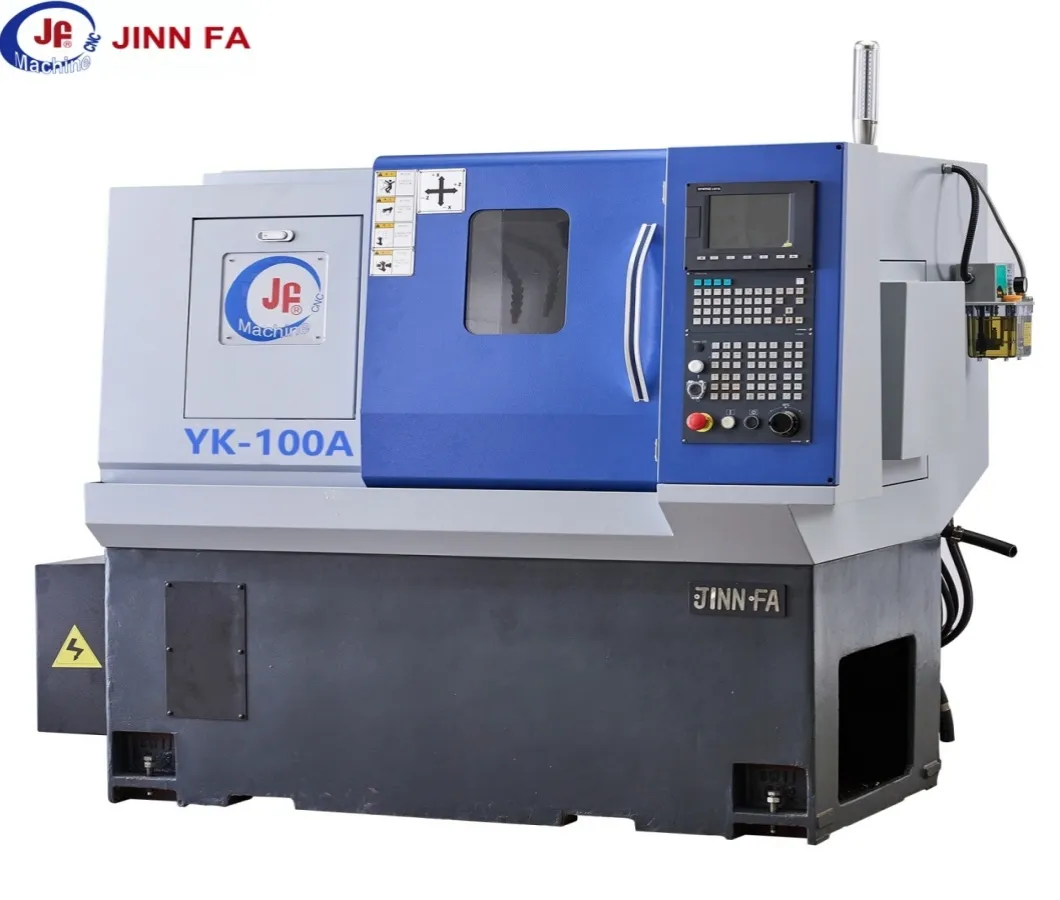

YK-100E / YK-100 / YK-100A
The machine tool adopts an inclined bed and hard rail design with high-strength turning function. High accuracy and good stability. Widely used in precision parts for automotive, electronic, instrumentation, aerospace, and air hydraulic components.
| ITEM | UNIT | YK100E | YK100 / YK100A |
|---|---|---|---|
| Max. swing overbed | mm | 320 | 320 |
| Max. turning diameter | mm | Ø180 | Ø180 |
| Max. turning length | mm | 220 | 220 |
| Max. bar capacity | mm | Ø42 | Ø42 |
| Spindle bore diameter | mm | Ø55.5 | Ø55.5 |
| Spindle nose | - | A2-5 | A2-5 |
| Spindle speed range | rpm | 45~4000 | 45~4000 |
| Spindle motor | kw | Standard: 5.5 / 7.5 | |

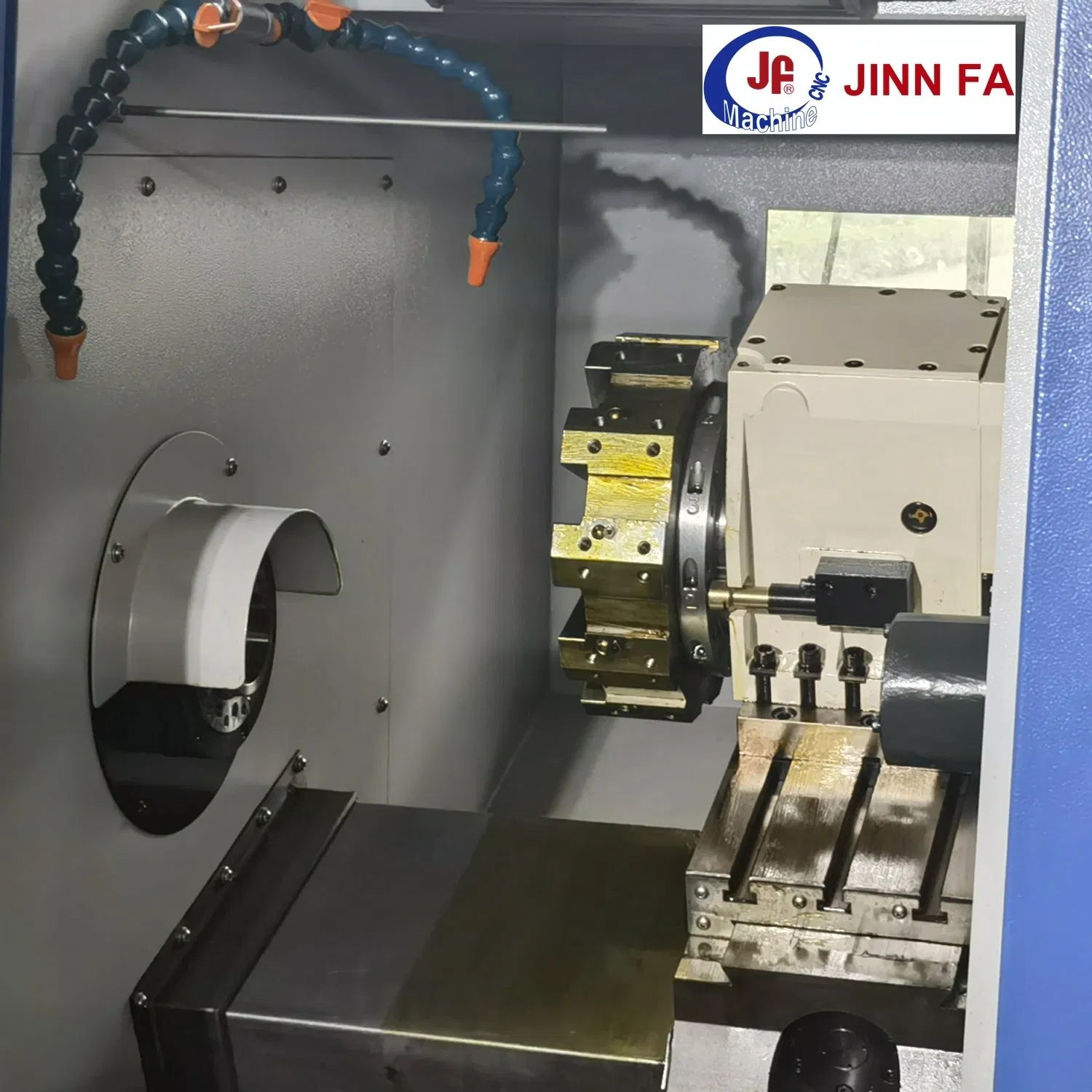

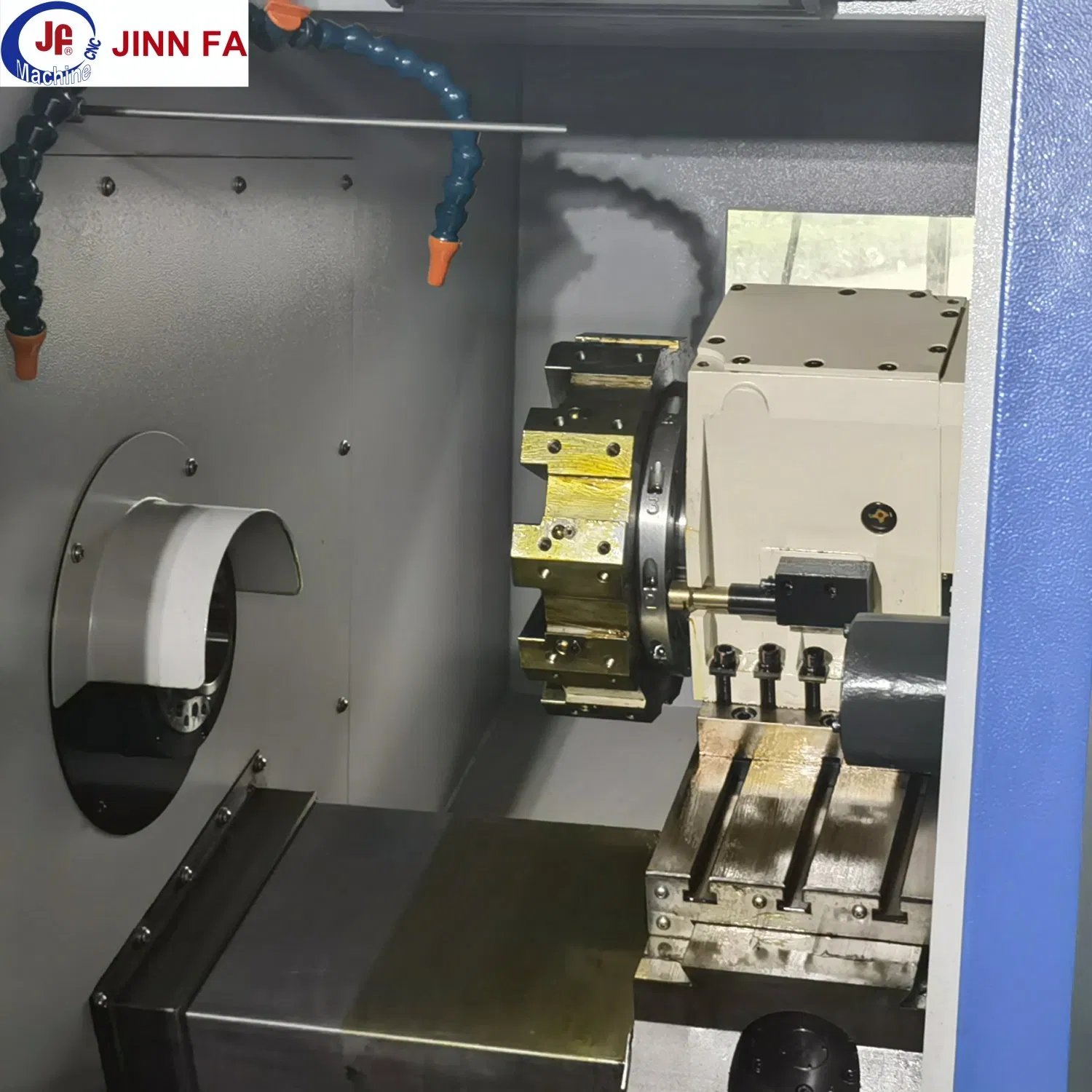

| Number of tool stations | - | Gang type | Hydraulic turret-10T |
| Max. stroke X/Z axis | mm | 110 / 230 | 110 / 230 |
| Rapid traverse X/Z axis | m/min | 20 / 20 | 20 / 20 |

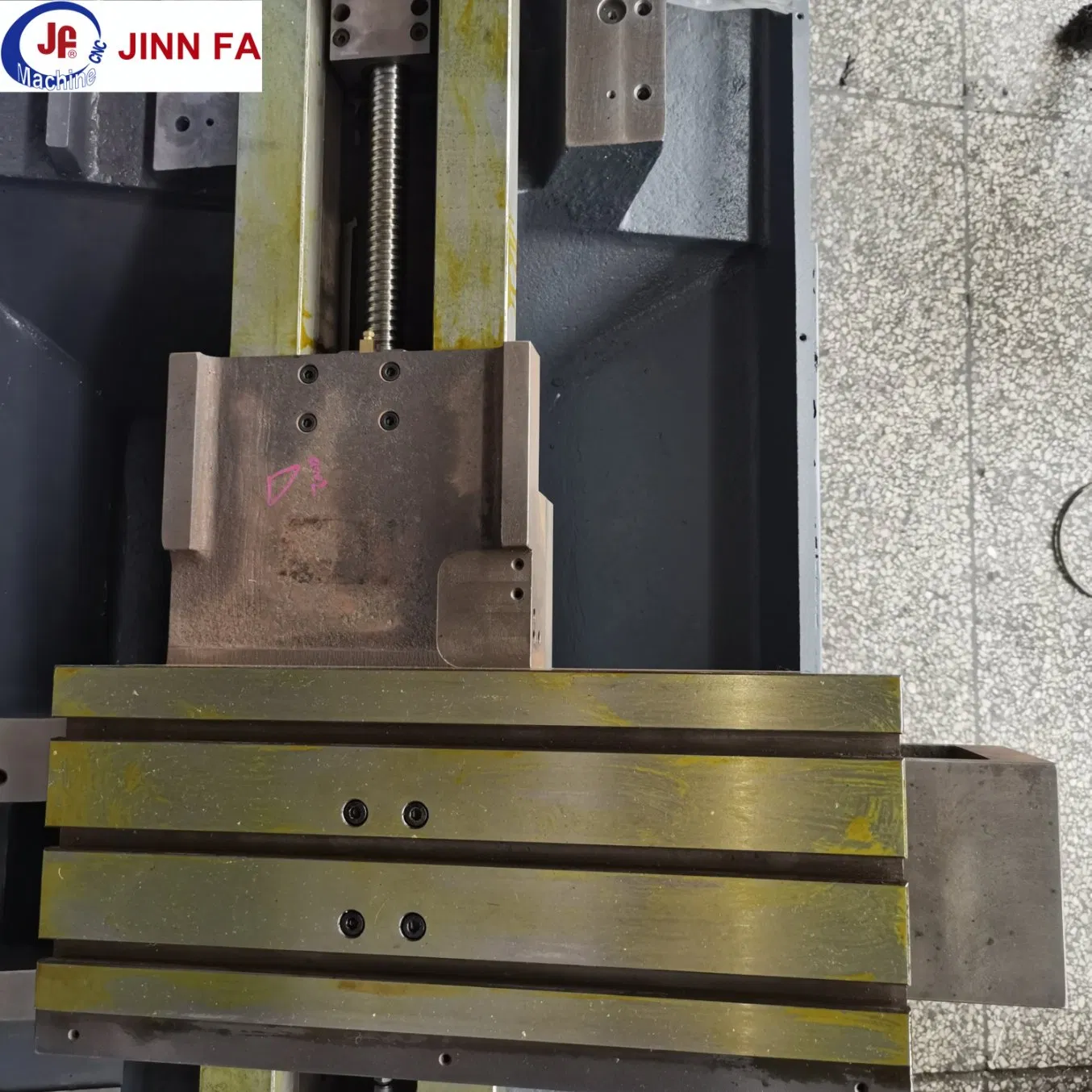

| Slide way type | - | Square guide way | |
| Machine dimensions (LxWxH) | mm | 1800×1550×1780 | 1800×1550×1780 |
| Weight | kg | 2200 | 2350 |

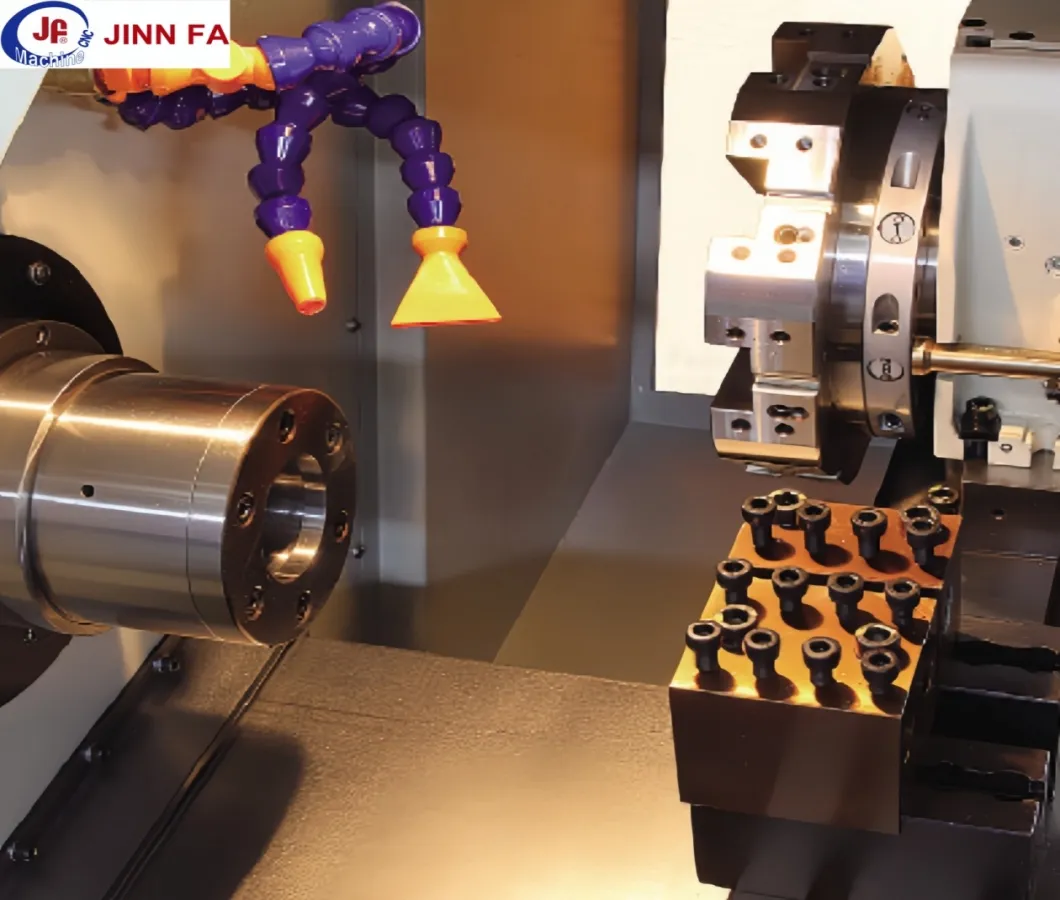

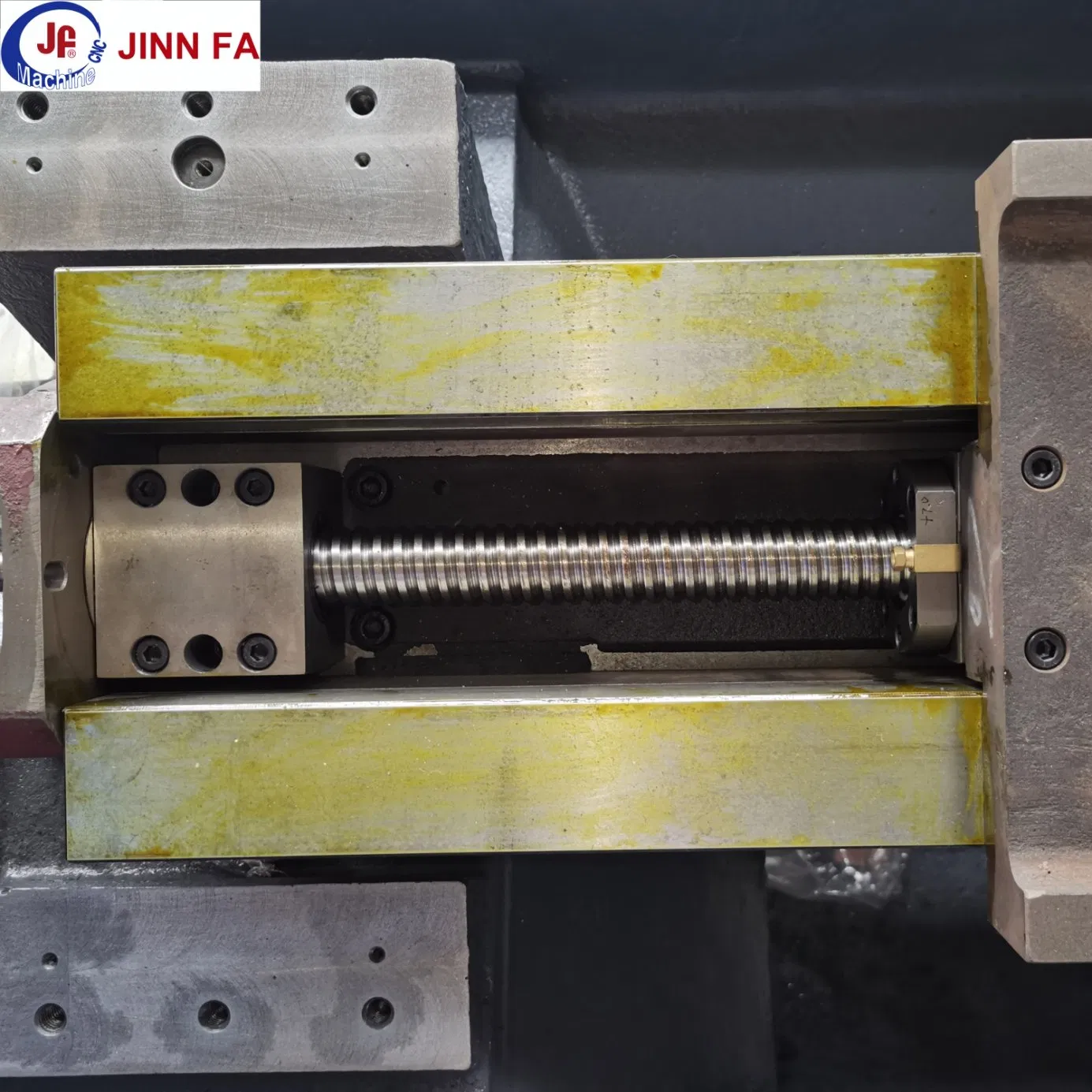

Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. Standard axis servos and leadscrews handle all the work.
Simpler moving parts reduce tolerance stack up and slop. The design is better suited for moving parts across shorter distances accurately.
The tool change process is incredibly speedy as it utilizes slide motion, eliminating the need for turret indexing.
Fast setup times with simple tool sets and the ability to switch out blocks for specific sizes easily.
Fewer moving parts make these machines less prone to errors and malfunctions, ensuring long-term robustness.

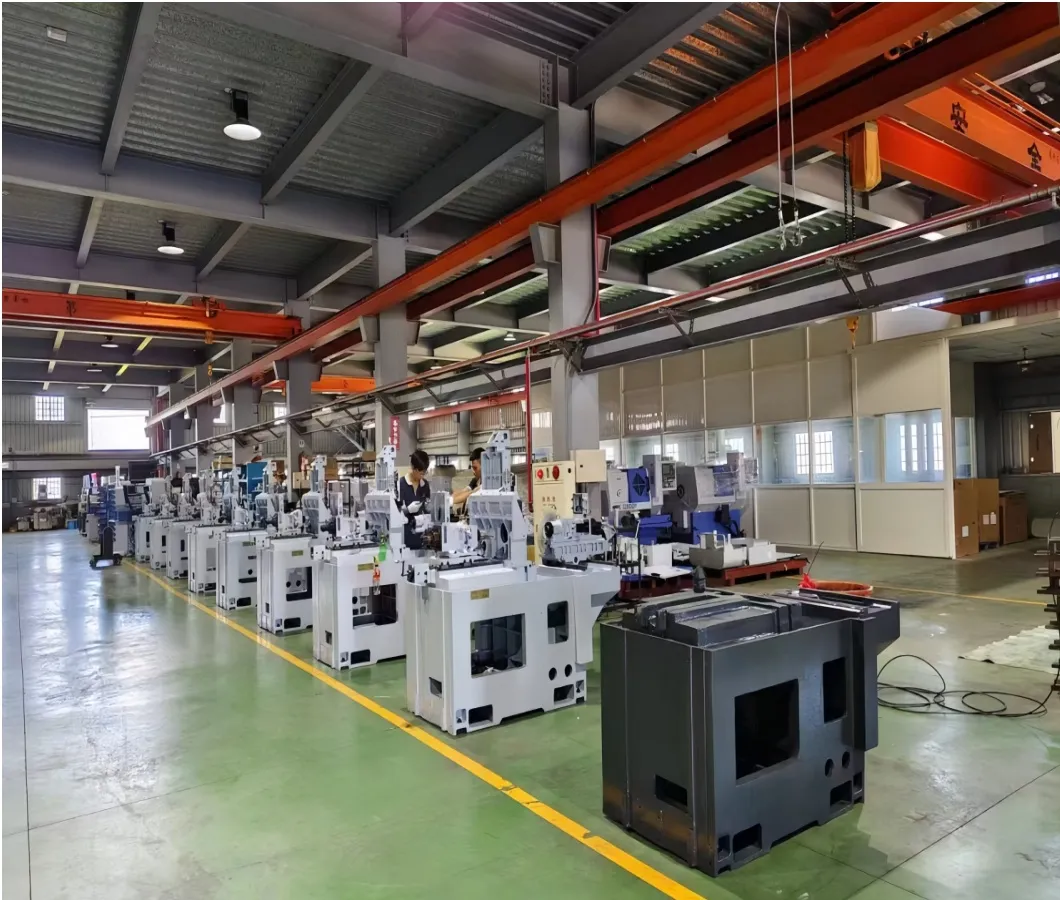

We ensure the quality of our machines meets international standards through rigorous inspection procedures conducted during all phases of manufacturing. This commitment to expert workmanship enables the delivery of machines that meet strict requirements for performance and reliability.
High Accuracy | High Quality | High Efficiency
