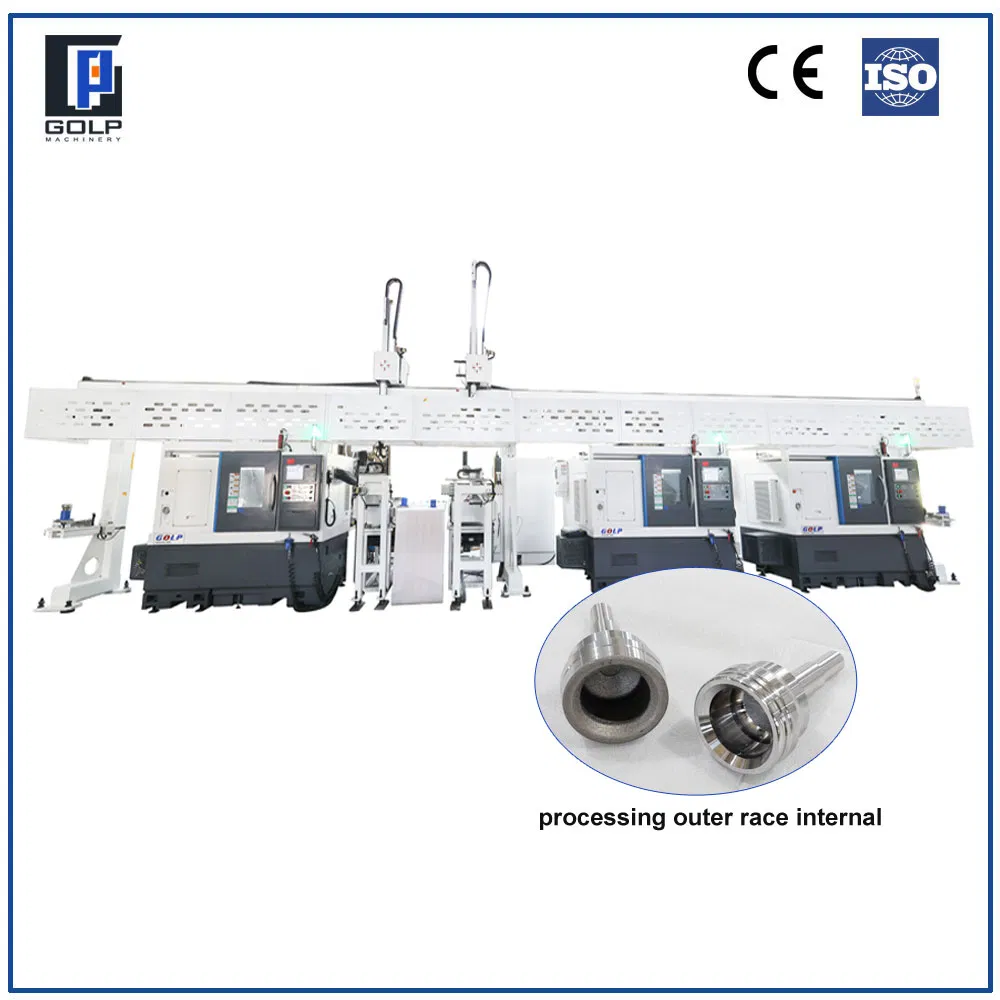

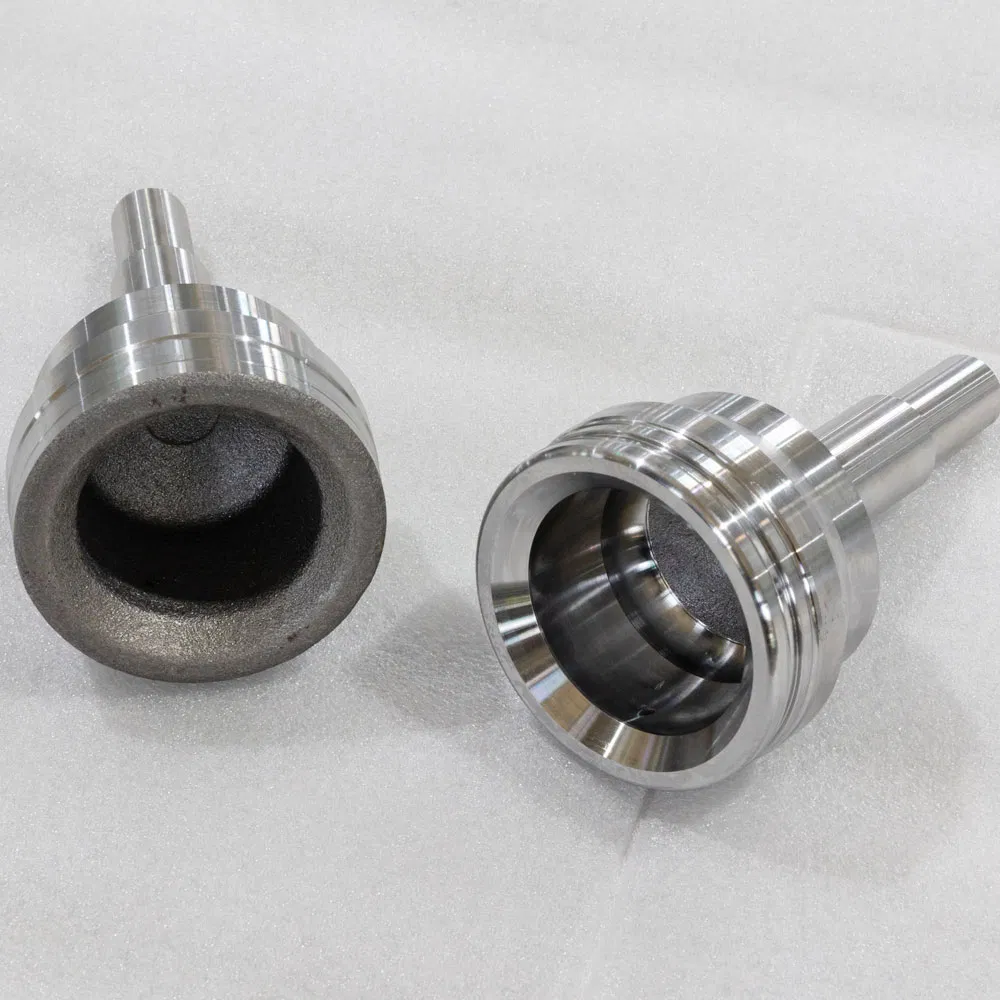

Automation CNC Lathe Turning Center with Automatic Truss Manipulator

1 / 5

Automation CNC Lathe Turning Center with Automatic Truss Manipulator

Customization:	Available
After-sales Service:	Available
Type:	Horizontal Lathe

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

Customized

Processing

Chuck CNC Lathe

Guide Rail

Horizontal

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Feature

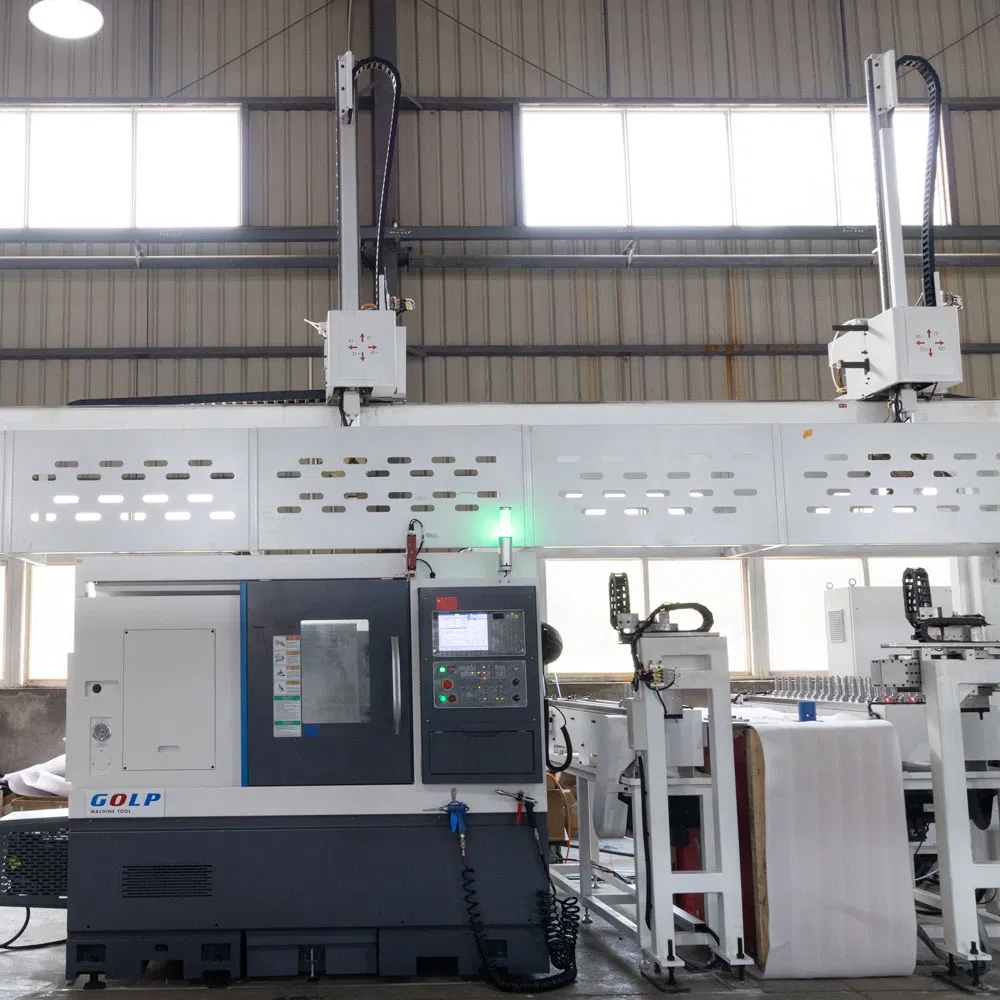

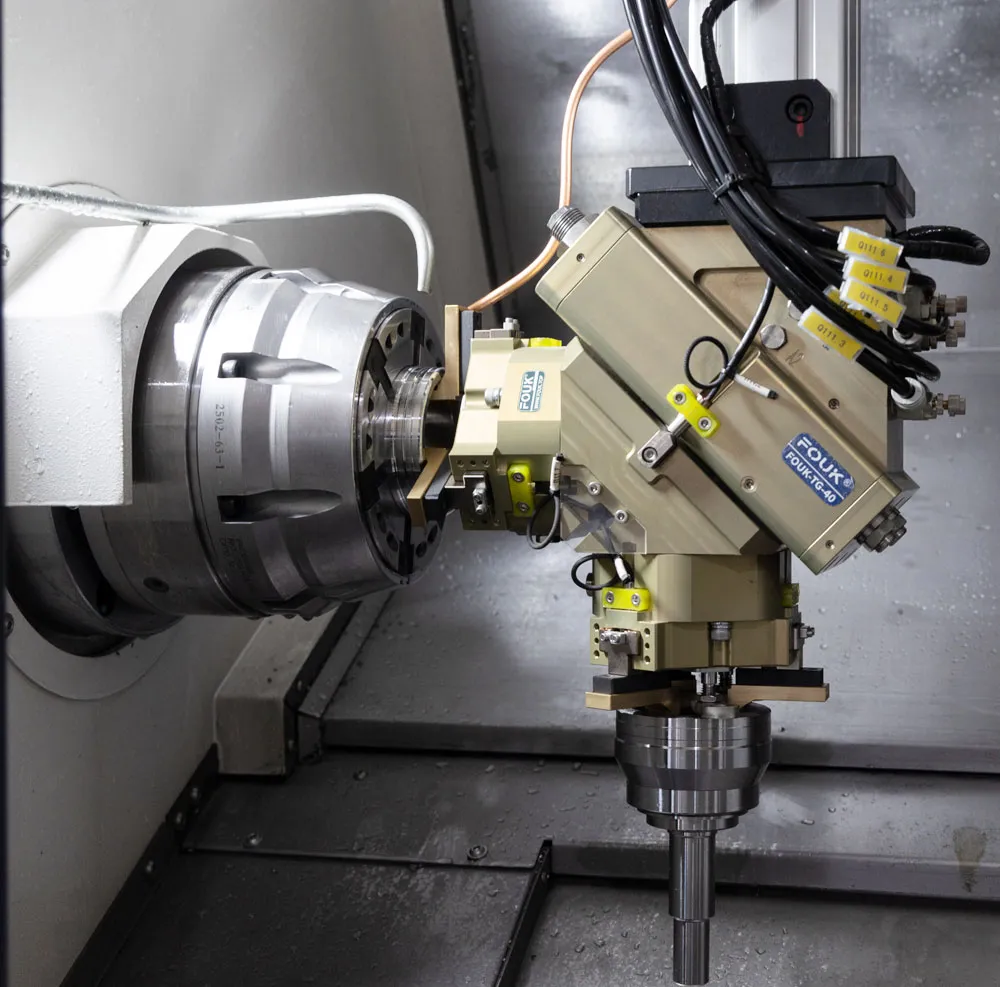

Inner Clamping Manipulators

Capacity

100 sets/Year

⚙️

Product Description

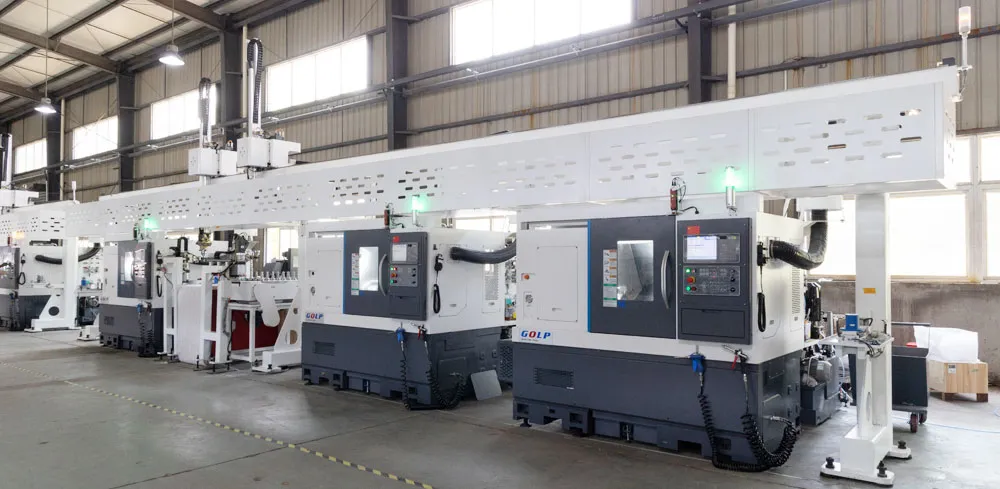

Our automated lathe machine, equipped with a truss manipulator, is specifically designed for high-efficiency turning of bell-shaped housings and long shafts. It features automatic material exchange, internal support loading manipulators, external clamping and flipping mechanisms, and a fully integrated robotic system.

🚀 High-Efficiency Machining

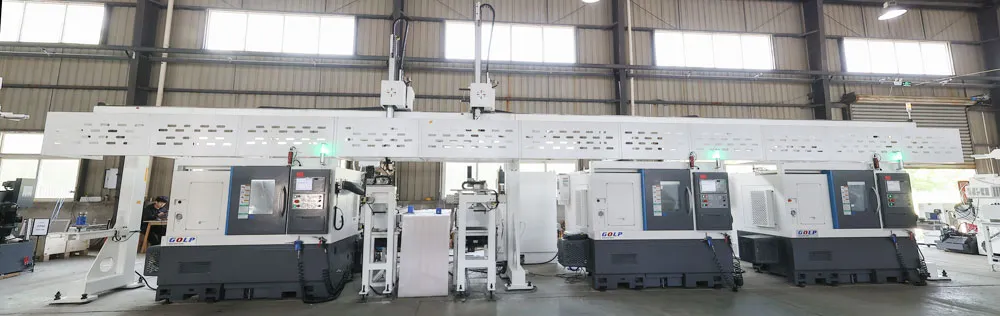

A single main unit drives three lathes to work simultaneously, significantly increasing production capacity. Ideal for batch processing of bell-shaped housings.

🎯 Precision Multi-Station

Equipped with an 8-station rotary turret, enabling rapid completion of roughing, finishing, and chamfering of the inner cavity.

🛡️ Enhanced Safety

Features safety door locks and intelligent protection systems. The machine stops automatically when the door is opened.

🛠️

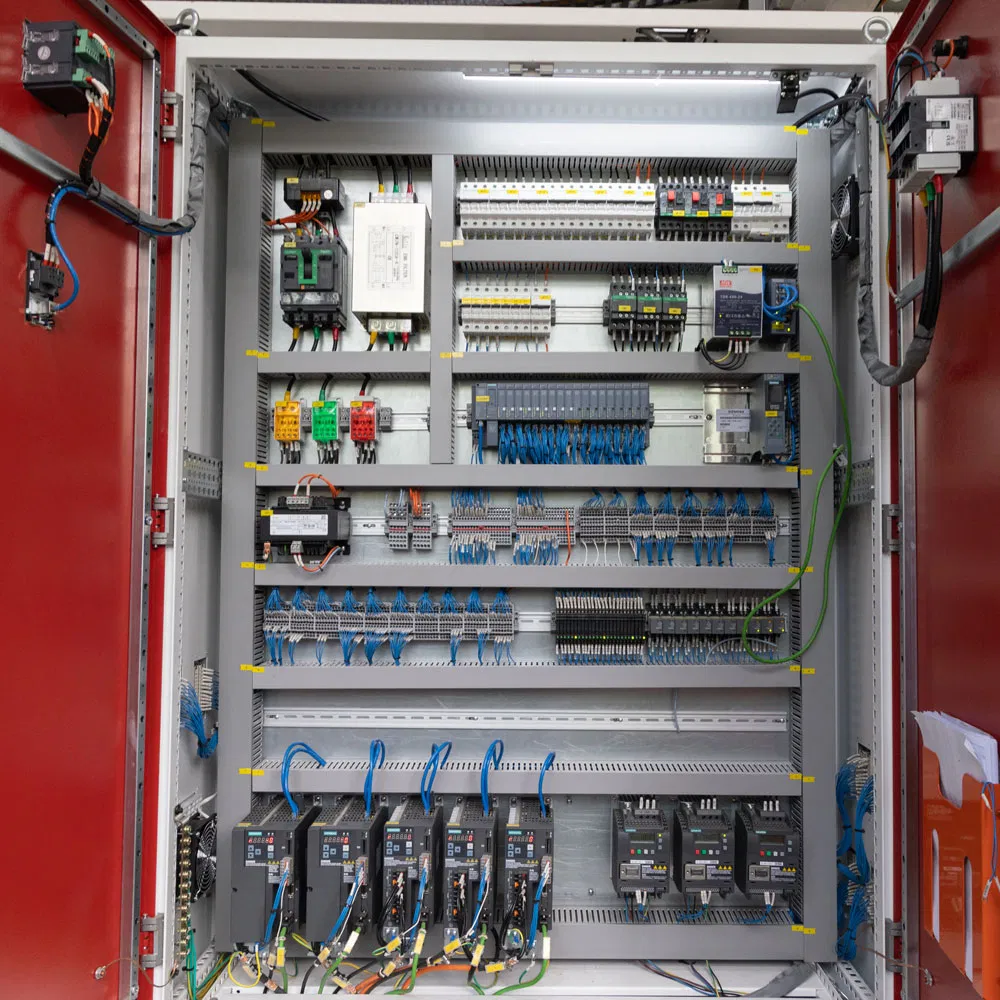

Key Construction & Modules

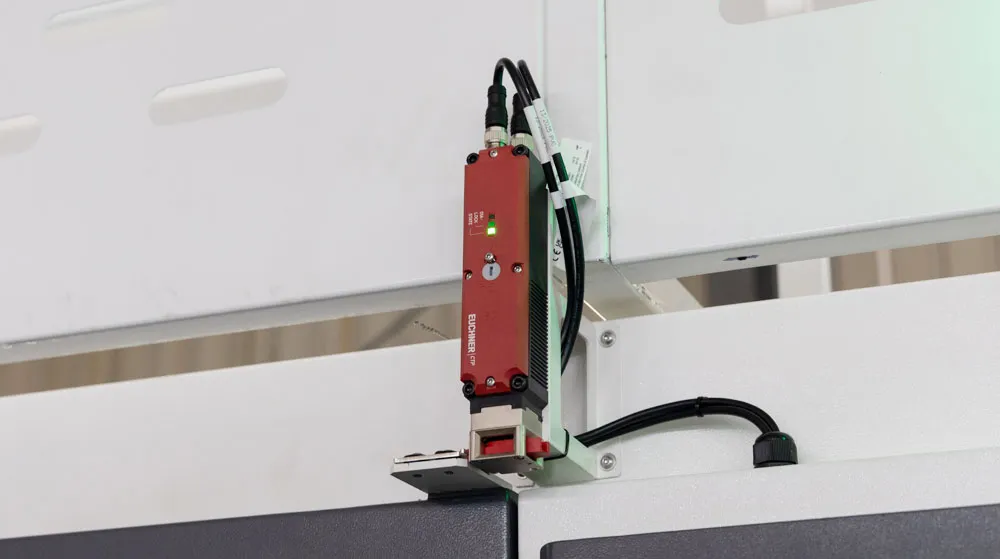

Safety Door Lock

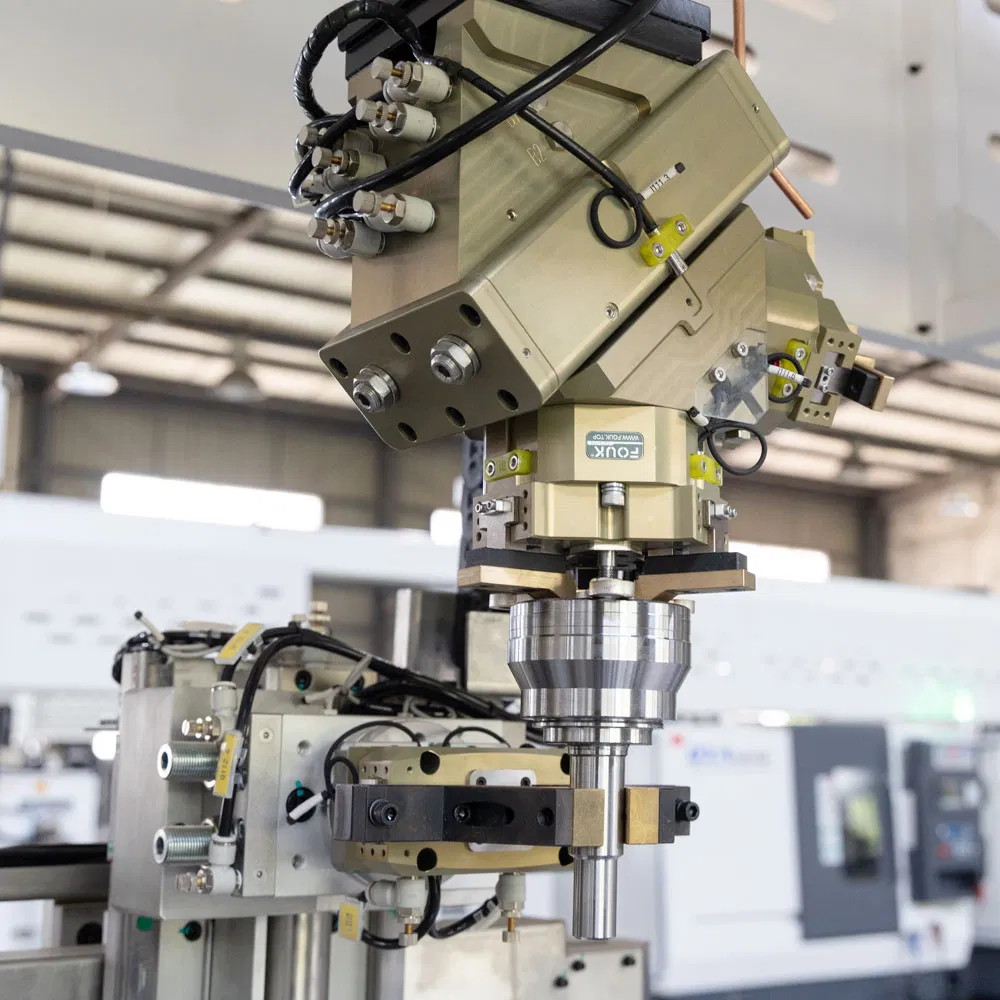

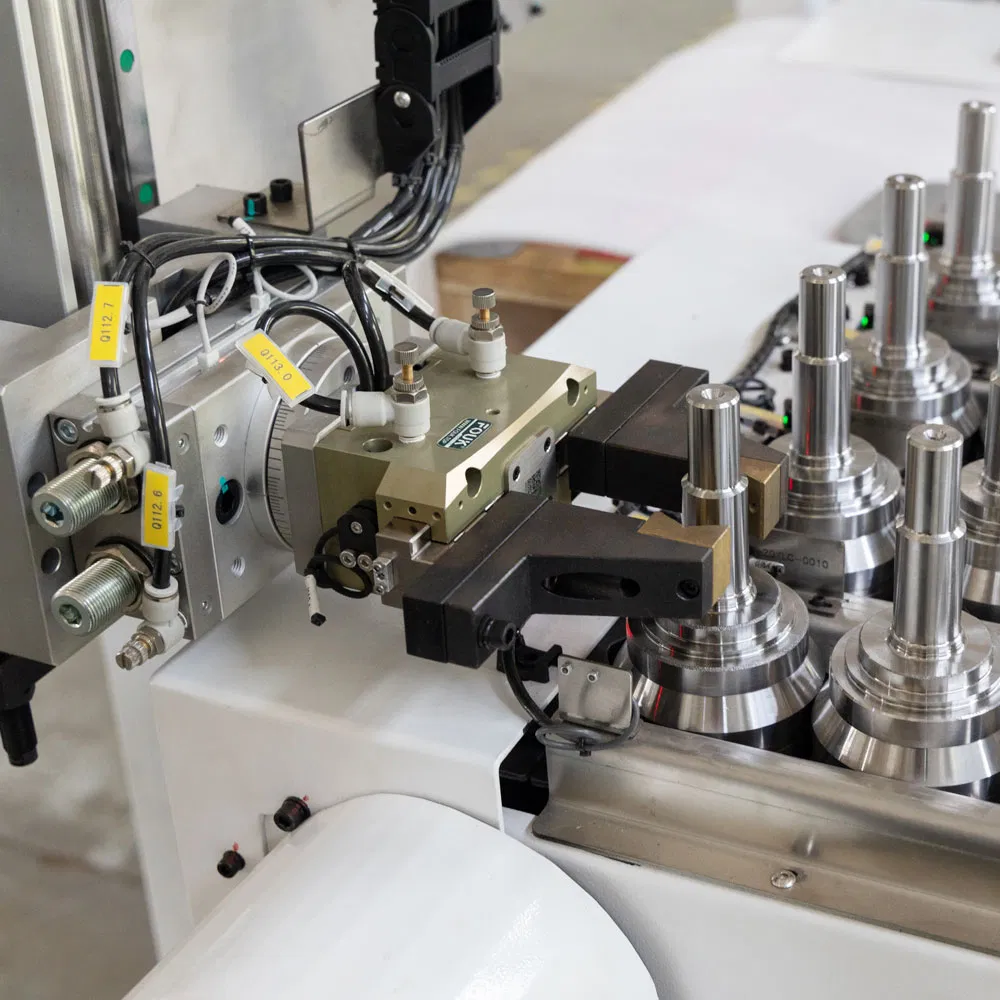

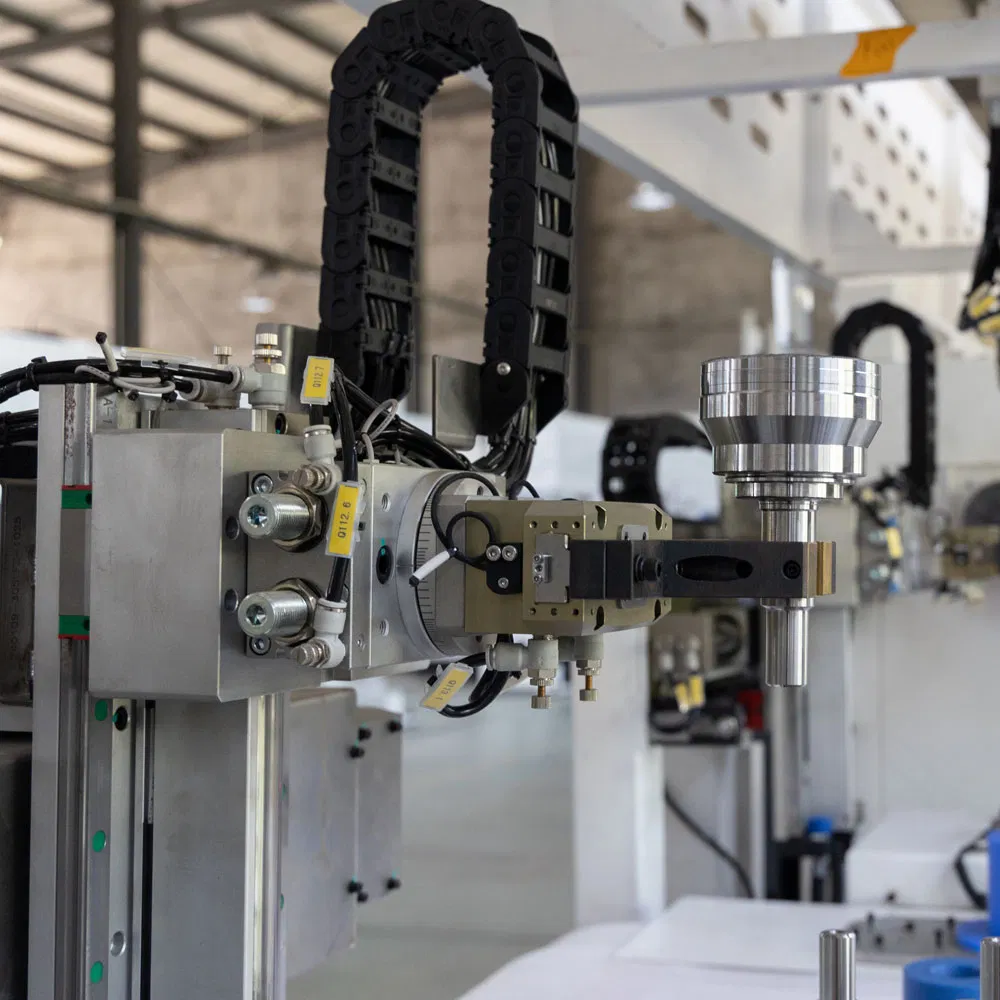

Flipping Construction

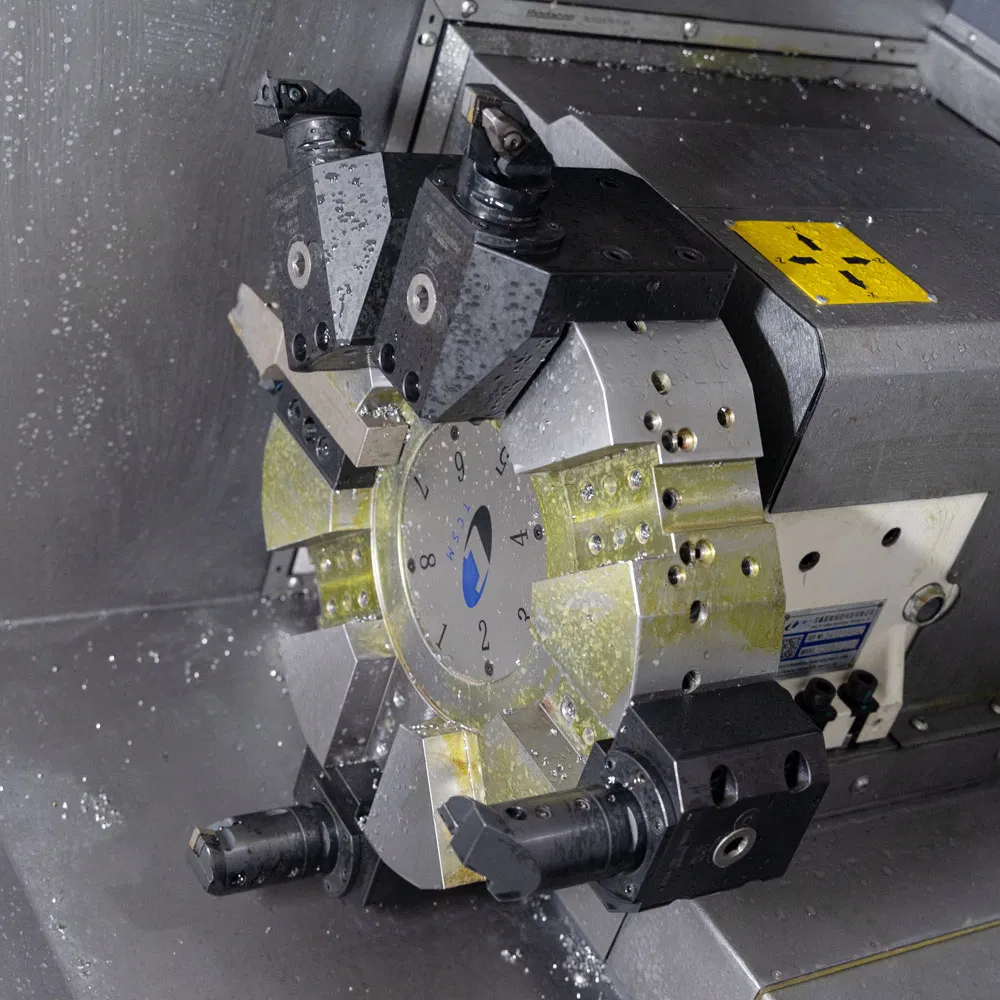

8-Station Turret

🏗️ Loading & Cooling Systems

The four-station loading system enables continuous feeding, reducing idle time. Equipped with a quick-release coolant filtration device for tool-free maintenance and minimized downtime.

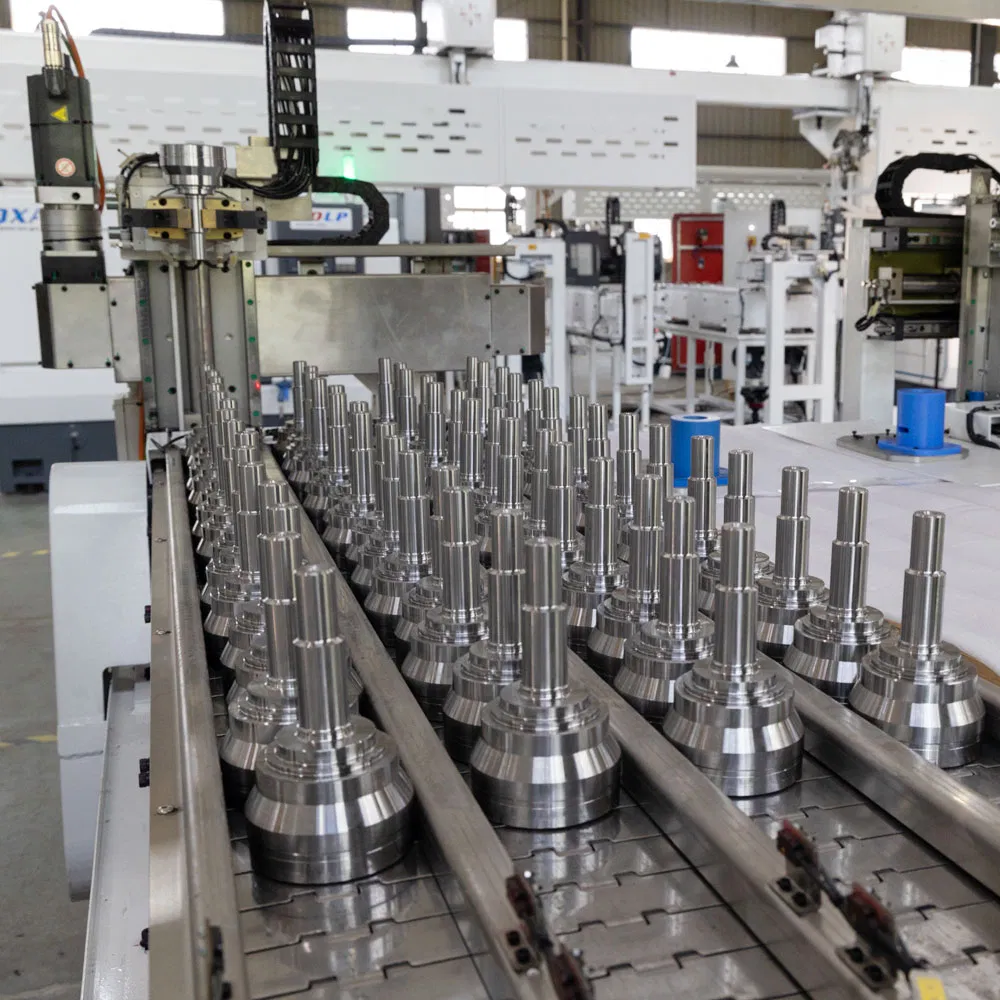

Loading Conveyor

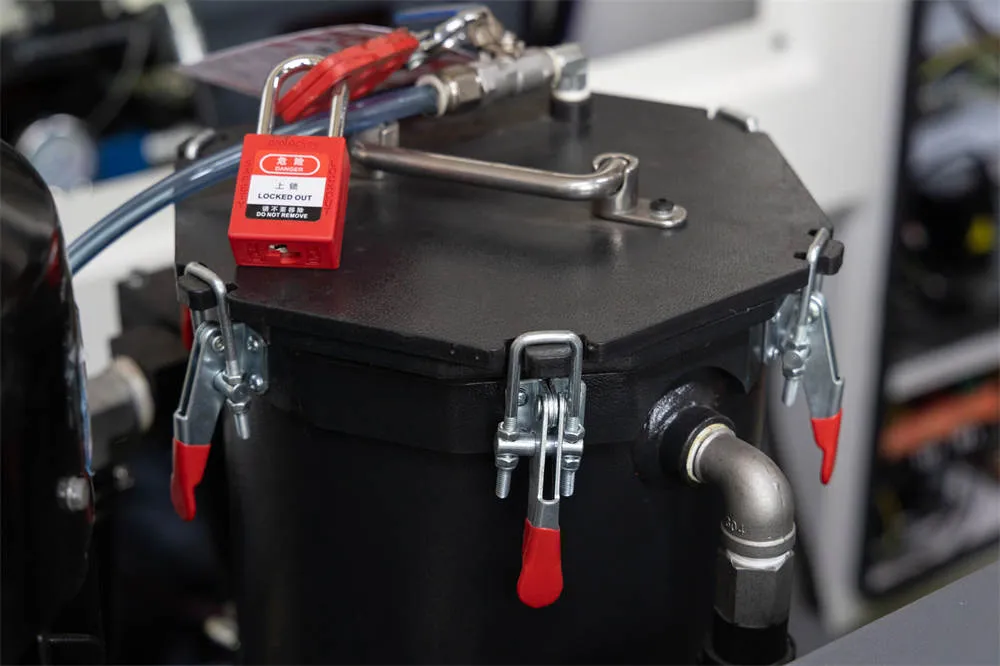

Coolant Filtration

📊

Technical Parameters

Category	Item	Specifications
Processing Scope	Max Bed Rotary Diameter	Φ500 mm
	Max Turning Diameter	Φ360 mm
	Max Turning Length	500 mm
Spindle	Spindle Head Type	A2-6
	Spindle Bore Diameter	Φ55 mm
	Max Spindle Speed	3000 rpm
	Motor Power	11 kw
Feeding	X/Z Axis Rapid Speed	18/24 m/min
Feeding	X/Z Axis Travel	195/500 mm
Turret	Tool Number	8

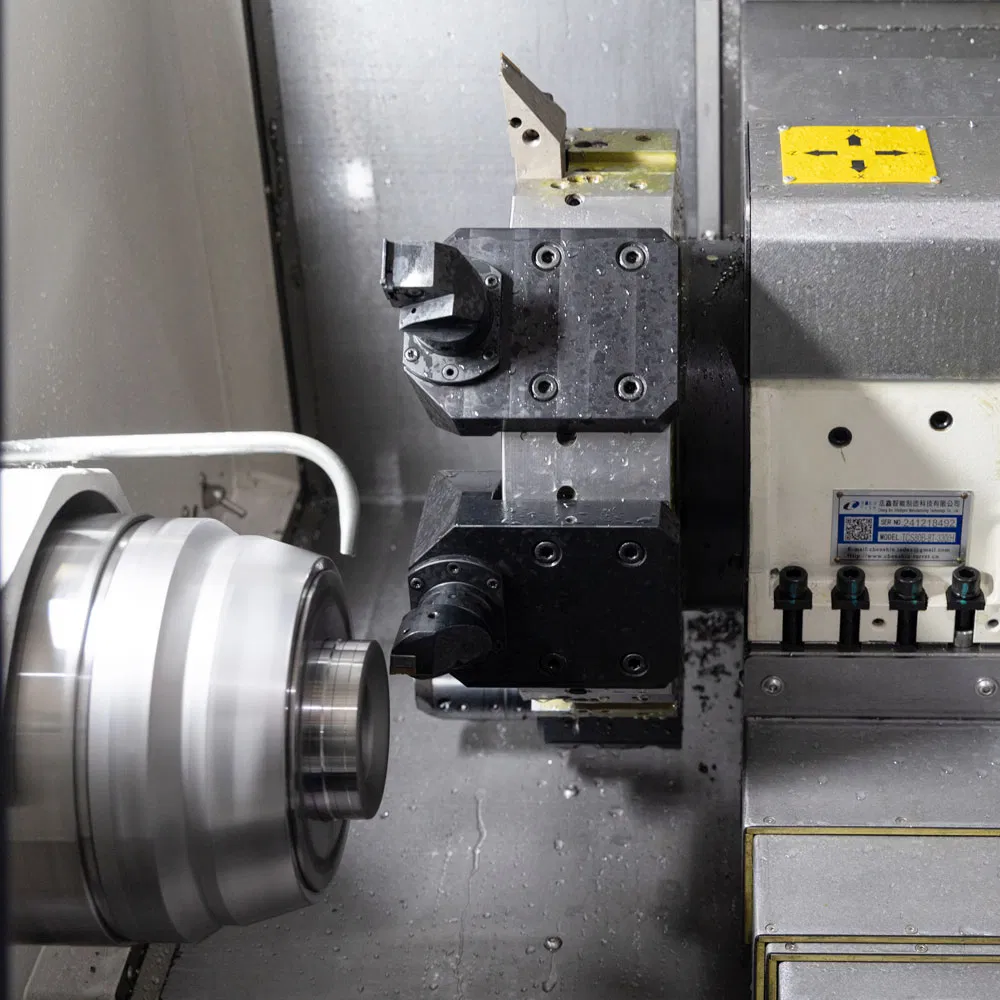

Turret	Tool Size	CAPTO C4

📸

Production Showcase

❓

Frequently Asked Questions

Q: What is the warranty period for the CNC lathe?

A: We offer a comprehensive warranty service for all purchased products ranging from 12 to 24 months, ensuring long-term reliability for your production line.

Q: What is the typical delivery timeframe?

A: For in-stock items, delivery is completed within 1-2 months. Custom-manufactured automated solutions typically require 5-6 months to ensure precise engineering.

Q: Do you provide on-site technical after-sales service?

A: Yes, we provide full support including spare parts supply, online technical assistance, on-site installation, commissioning, and specialized operational training.

Q: Can you provide "Turnkey" production solutions?

A: Absolutely. We offer turnkey engineering services, customizing automated production lines to integrate seamlessly with your existing manufacturing processes.

Q: Is the equipment compatible with complex inner structure workpieces?

A: Yes, our internal clamping loading manipulators and 8-station turrets are specifically optimized for bell-shaped housings and components with complex inner cavities.

Q: How does the safety door lock system work?

A: It features a mechanical and electrical interlocking mechanism; the machine will not start unless the door is locked and will immediately trigger an emergency stop if opened during operation.
