| Model NO. | jx36p | Certification | GS, CE, RoHS, ISO 9001 |
|---|---|---|---|
| Condition | New | Controller | GSK 980tb3I English Controller |
| Linear Guide | Hiwin/PMI | Max. Rotary Diam | φ420mm |
| Max. Swing Diam | φ140mm | X/Z Axis Stroke | 700/320mm |
| Spindle Nose Type | A2-5 | Spindle Hole Diam | φ49mm |
| Max Bar Diameter | φ38mm | Main Motor Power | 5.5kw |
| Max Spindle Speed | 3500rpm | Voltage | 380/3/50 V/pH/Hz |
| Net Dimension | 1920*1500*1700mm | Net Weight | 1800kg |

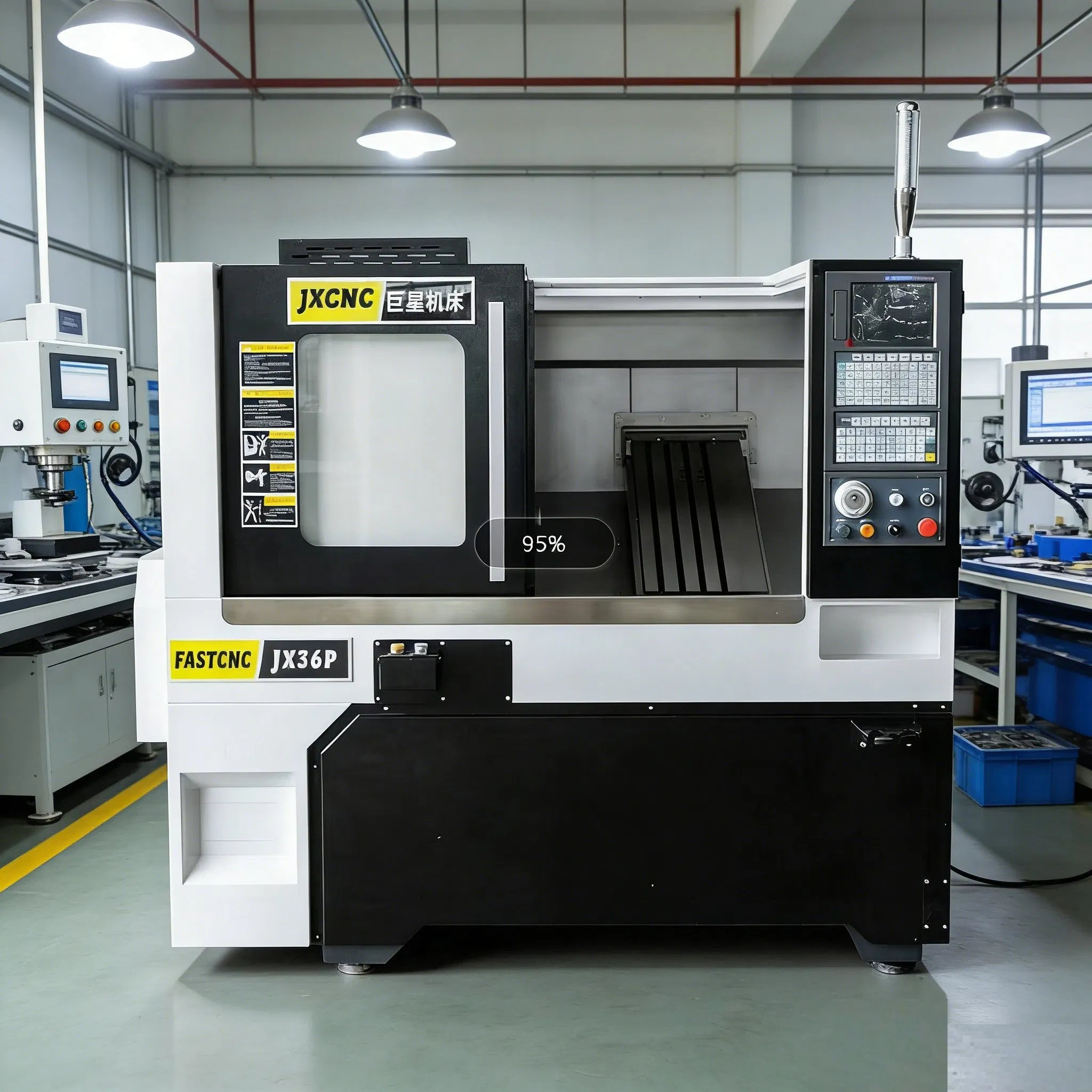

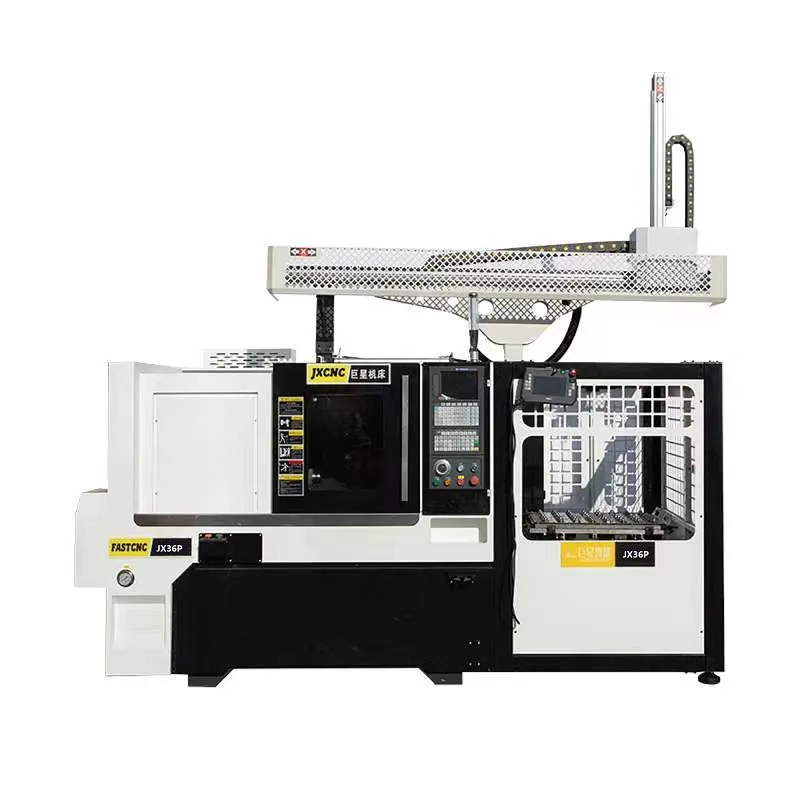

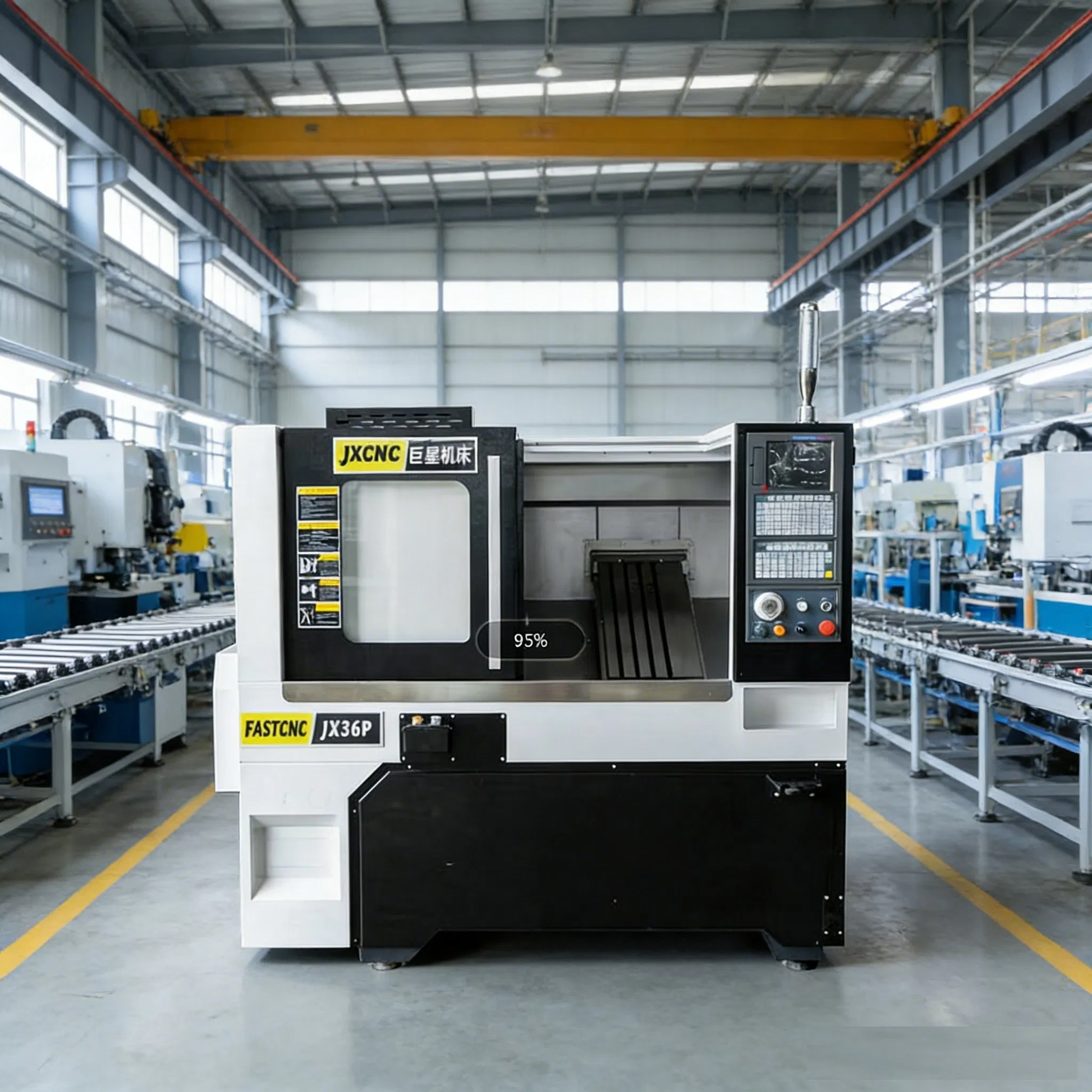

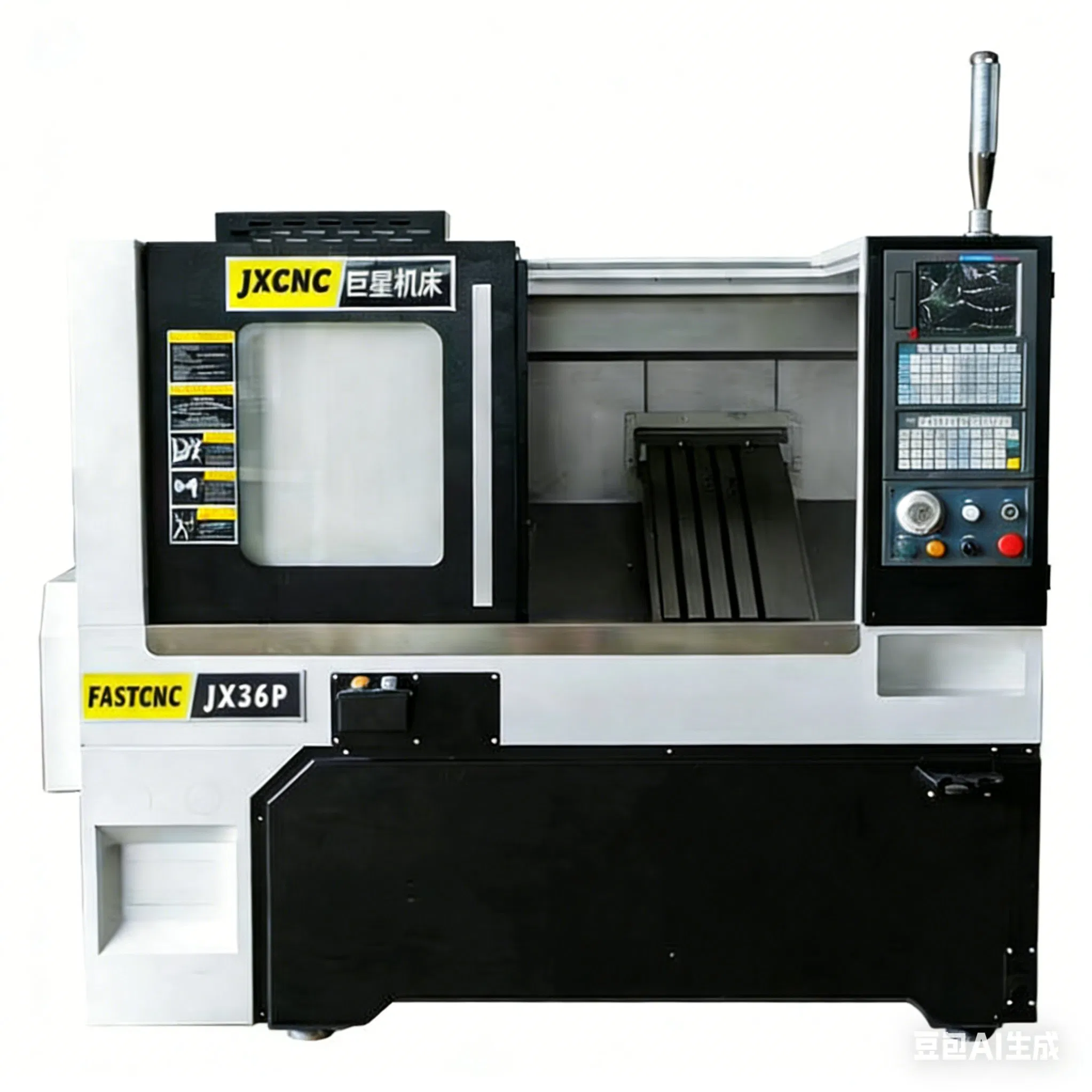

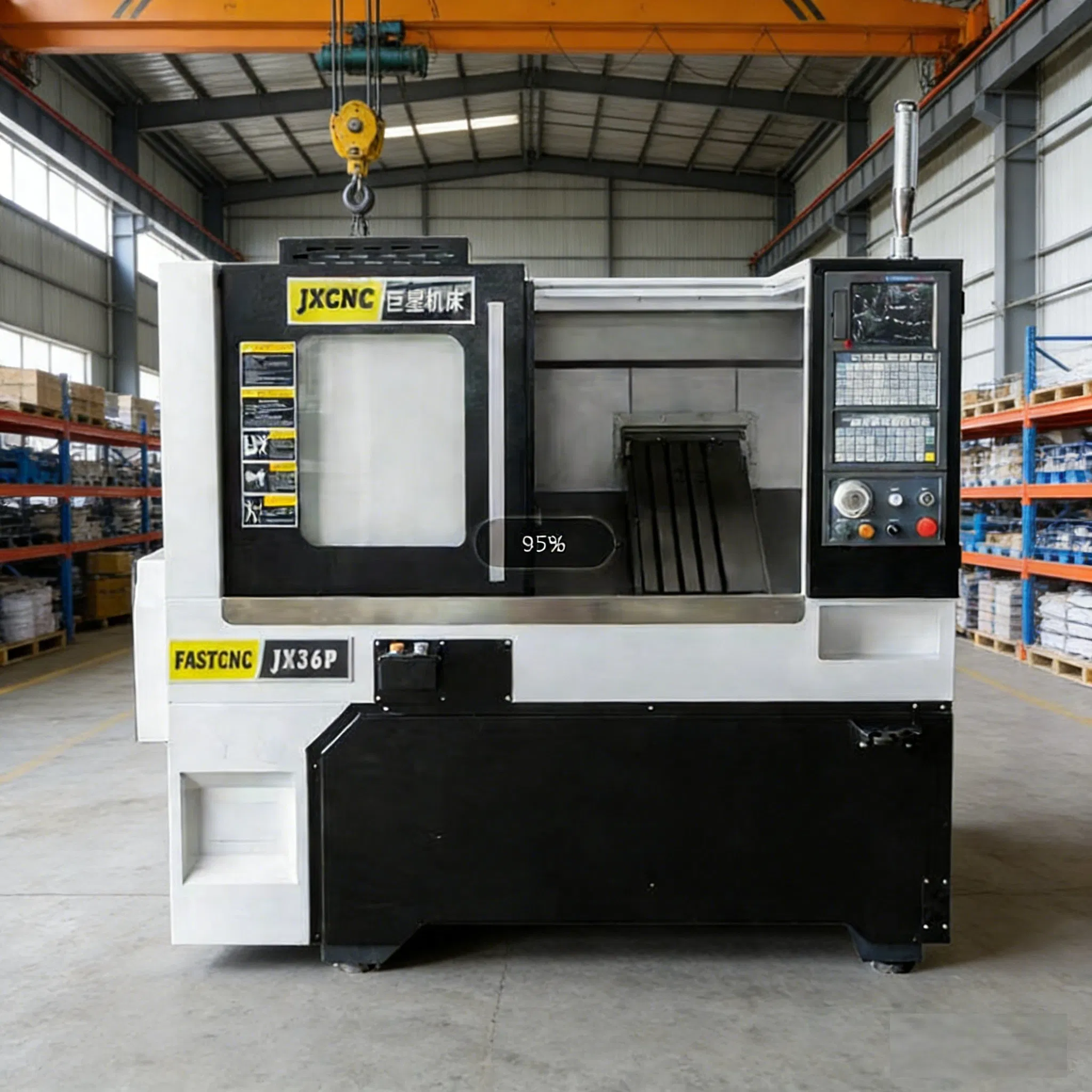

Multifunctional CNC Inclined Bed Heavy-Duty Lathe. Specially designed for small to medium-sized high-precision parts, featuring an advanced CNC system and dedicated polygon turning structure to achieve efficient multi-face milling.
Provides high-precision motion control and powerful features to ensure superior performance and precision during machining.
Simple, rigid structure ensures durable and stable tooling. Supports various programming methods and parameter adjustments.
Equipped with emergency stop buttons, overload protection, and error detection mechanisms to ensure operator safety.
| Item | Original Configuration | Brand/Origin |
|---|---|---|
| Structure | One-piece inalienable casting substructure | Industrial Standard |
| Electrical Part | GSK 980TB3i English controller | GSK / Guangzhou |
| Servo System | X/Z-axis servo motor and drive | GSK |
| Guide Screw | Linear guide (Hiwin/PMI) | Taiwan |
| Spindle Unit | A2-5 high speed unit | Self-manufactured |
| Main Motor | Servo main motor 5.5kw | GSK |

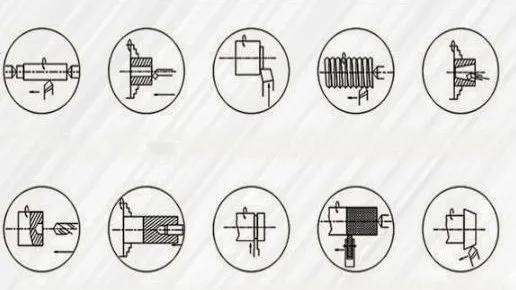

This high-efficiency linear guide CNC lathe can perform external surface boring, internal hole cutting, end surface turning, threading, drilling, and groove cutting.

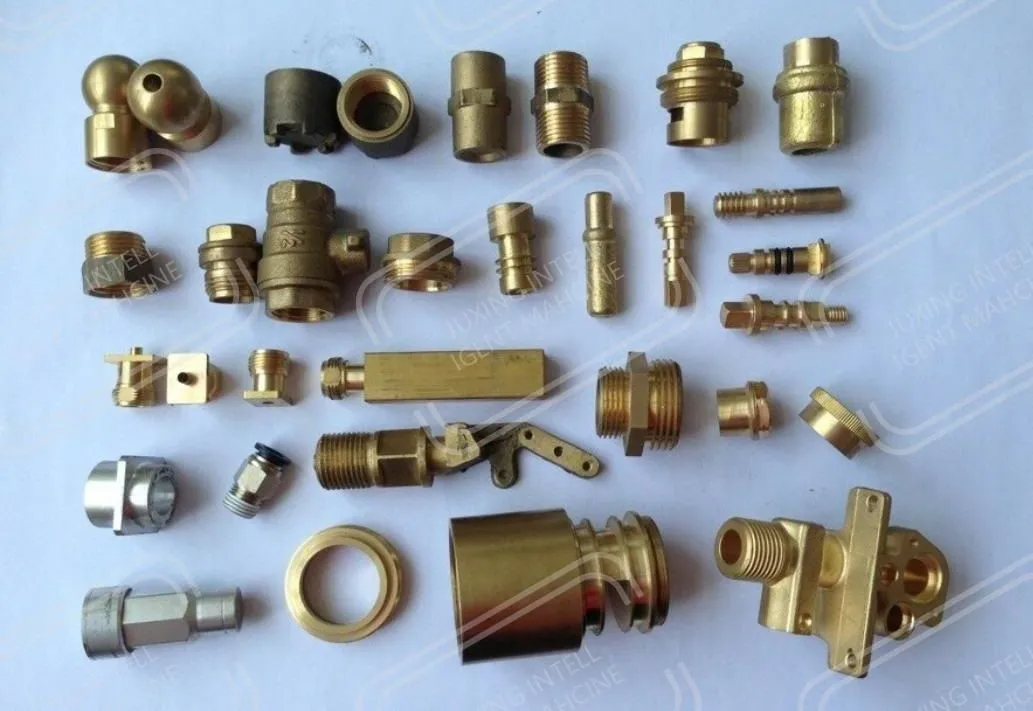

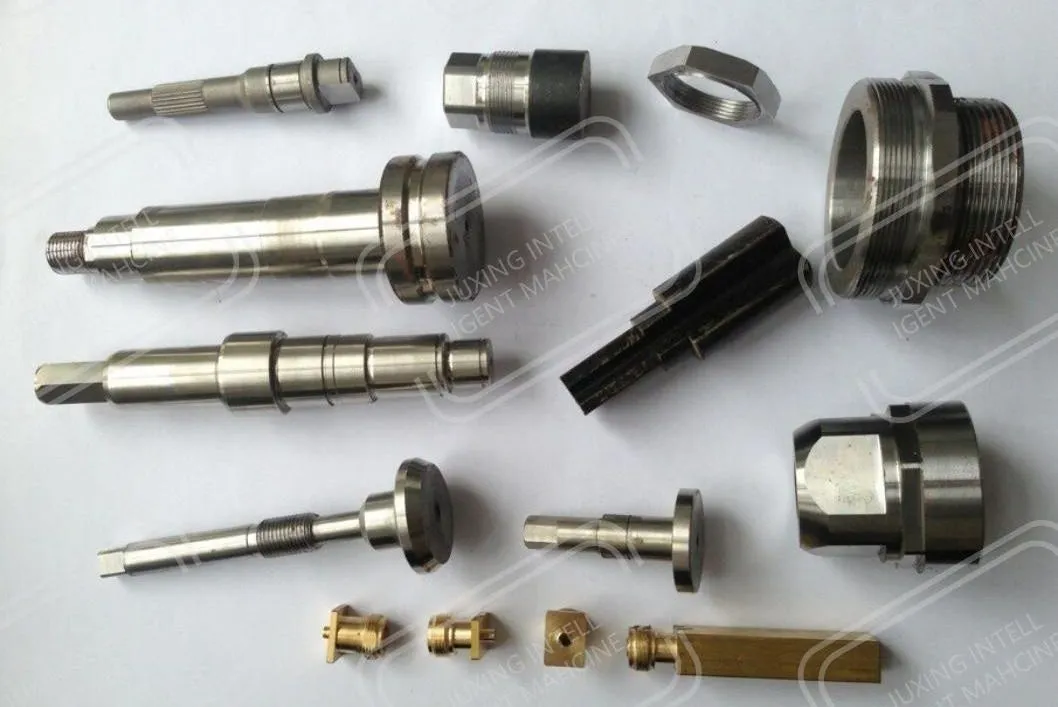

| Carbon Steel | Titanium Alloy | Copper/Brass | Wood Material | Nylon/Plastic |
