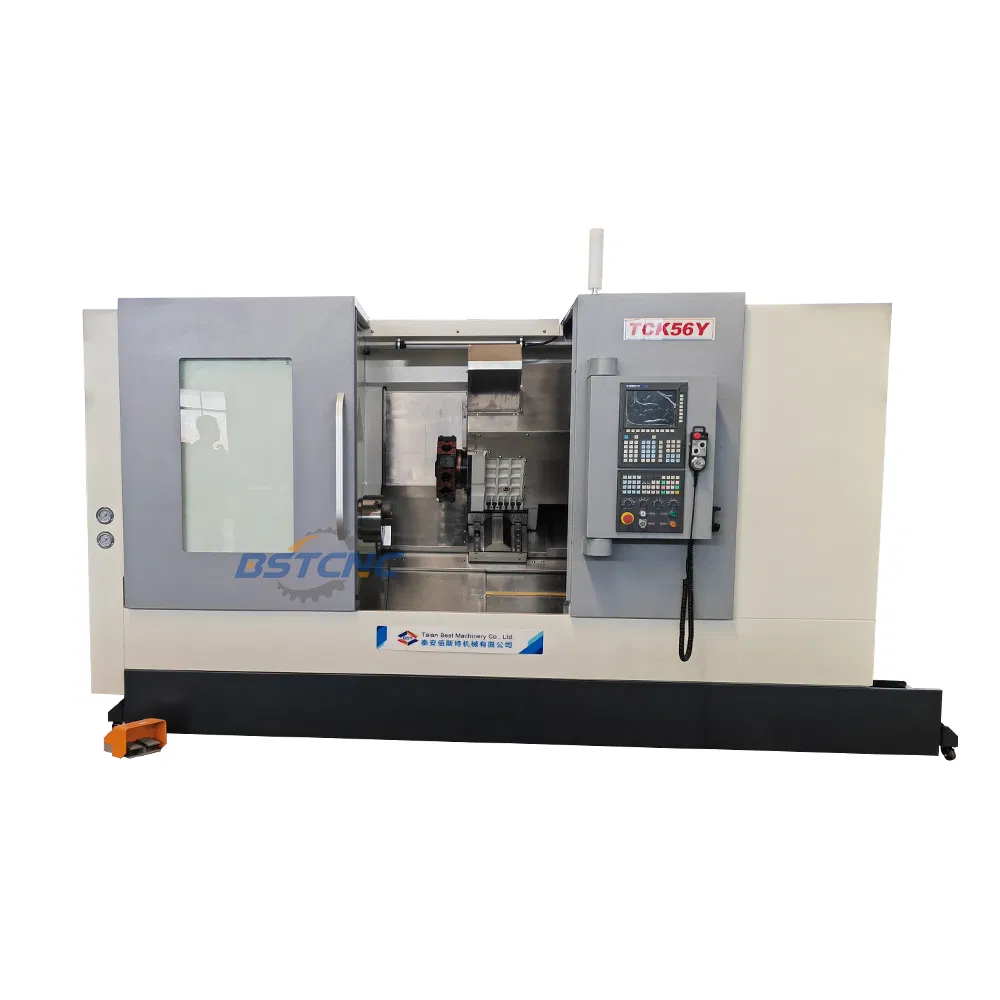

Tck56y Cutting Turning Drilling Milling Metal Slant Bed CNC Machine Center

1 / 5

Tck56y Cutting Turning Drilling Milling Metal Slant Bed CNC Machine Center

After-sales Service:	24 Hours Online
Warranty:	One Year
Application:	Metal

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TCK56y

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Linear Control

Control Method

System

Numerical Control

CNC

Processing Precision

0.008

Performance

High-End CNC Machine Tools

Certification

GS, CE, ISO 9001

Condition

New

Spindle Bore

65mm

Motor

22/30kw

Spindle Head Form

Electric Spindle

Spindle Speed

50-4500rpm

Chuck Size

8'' Hydraulic

Turret

12 Station Power Turret

Max.Swing Over Bed

560mm

Origin

China

Production Capacity

2000/Year

⚙️ Product Description

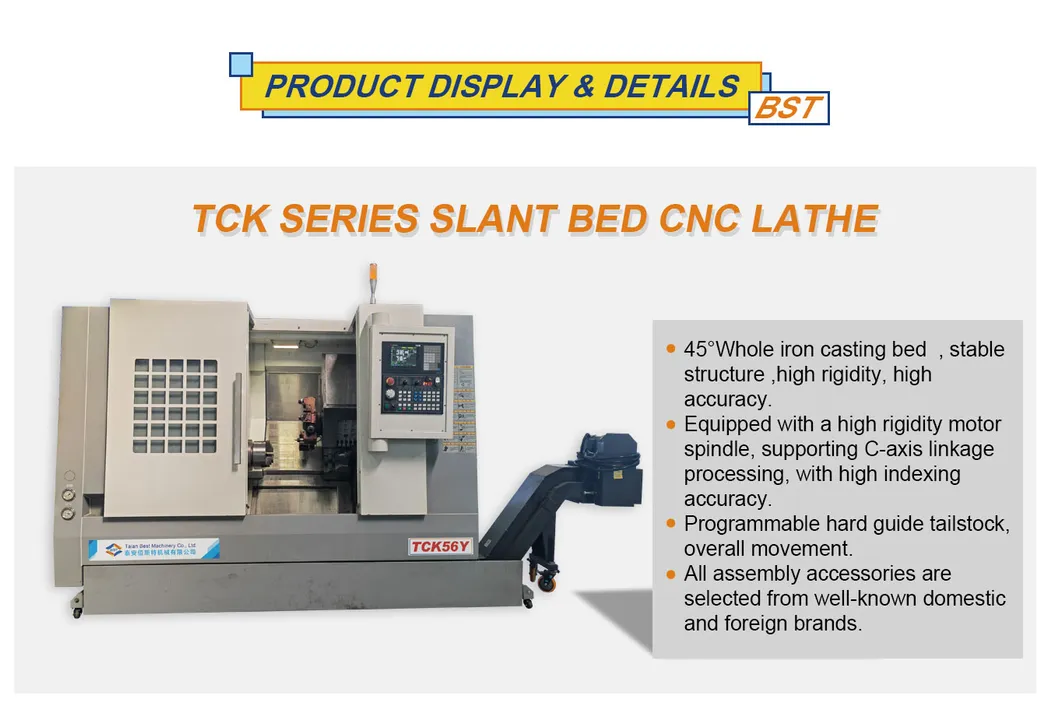

The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinds processes. This machine is suitable to process small work piece in a high efficient.

Item	Unit	Specification	Remark
Max.swing diameter over bed	mm	560
Max.processing length	mm	400
Max. processing diameter	mm	300	12-station power turret
Spindle head form		A2-6	Motor spindle
Spindle bore	mm	65
Spindle speed range	r/min	50~4500
Main motor power	KW	22/30KW
Max. travel of X/Z/Y/C	mm	200/550/±35/360°
Rapid speed of X/Z/Y/C		30/30/12/200m/min
Turret Type		12 station power turret	BMT40-ER20
Weight	kg	3800
Machine size(LxWxH)	mm	2800×1900×2300

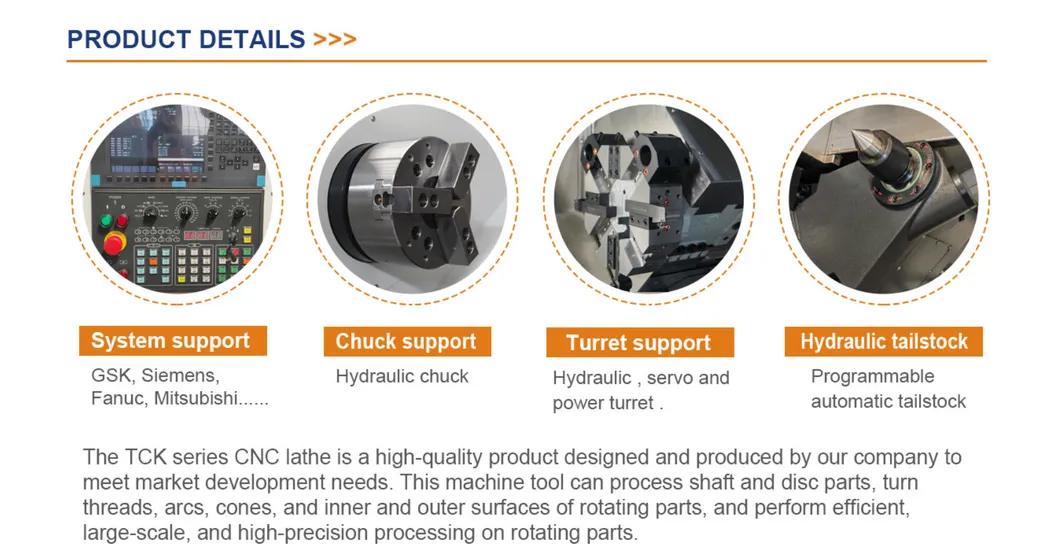

Standard Configuration:

GSK988TA control system
3 jaws 8'' hydraulic chuck with hydraulic station
12 station power turret BMT40
Hydraulic tailstock

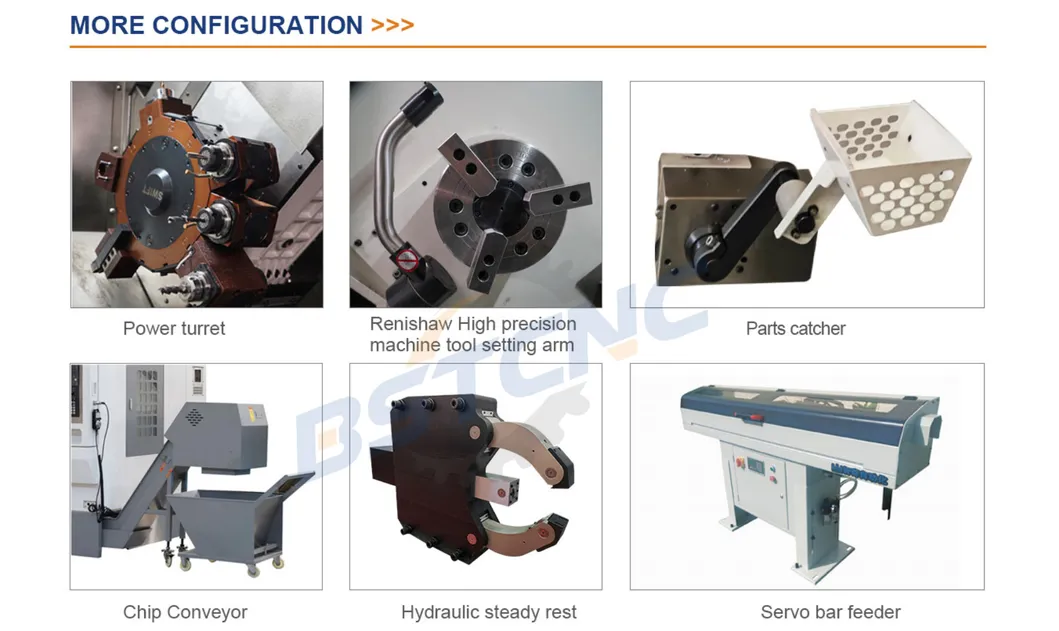

Optional Configuration:

Siemens 808D, Fanuc 0i-TF, Syntec 22TA
3-jaws 10'' hydraulic chuck
Chip conveyor
Auto servo bar feeder and parts catcher

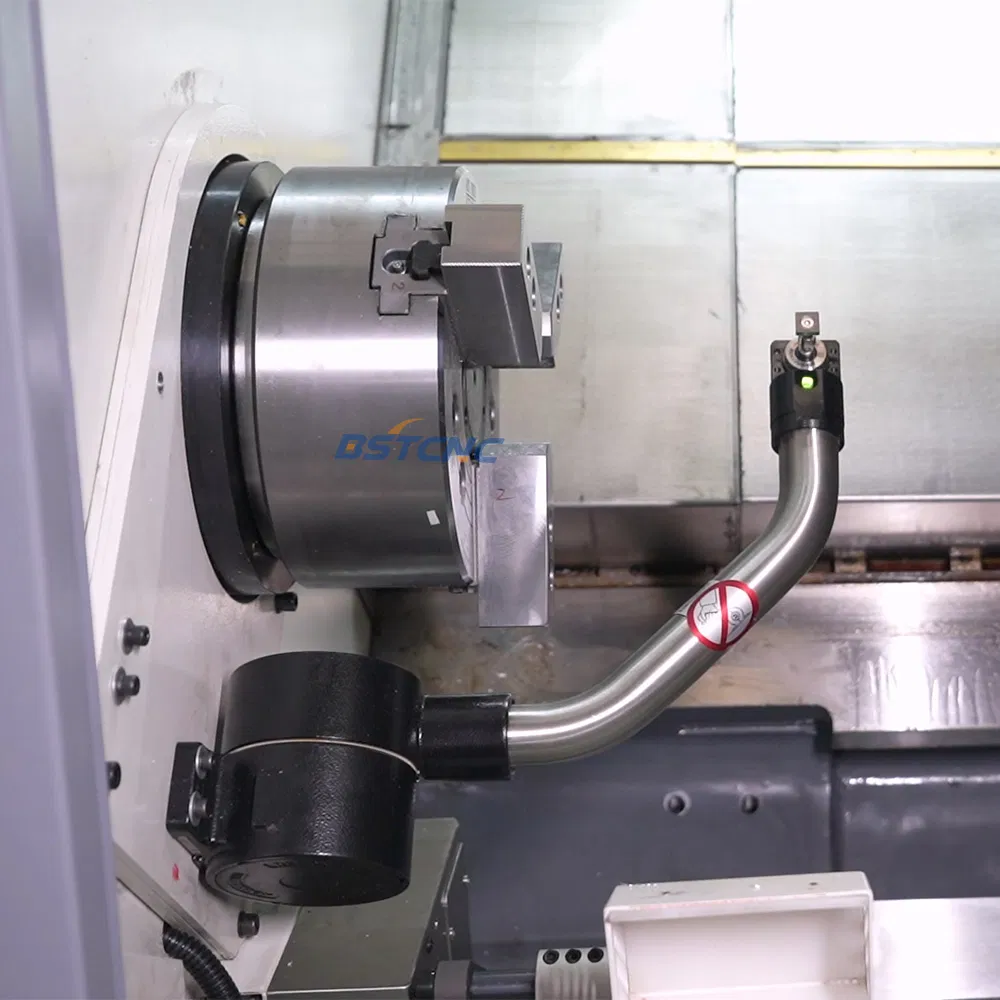

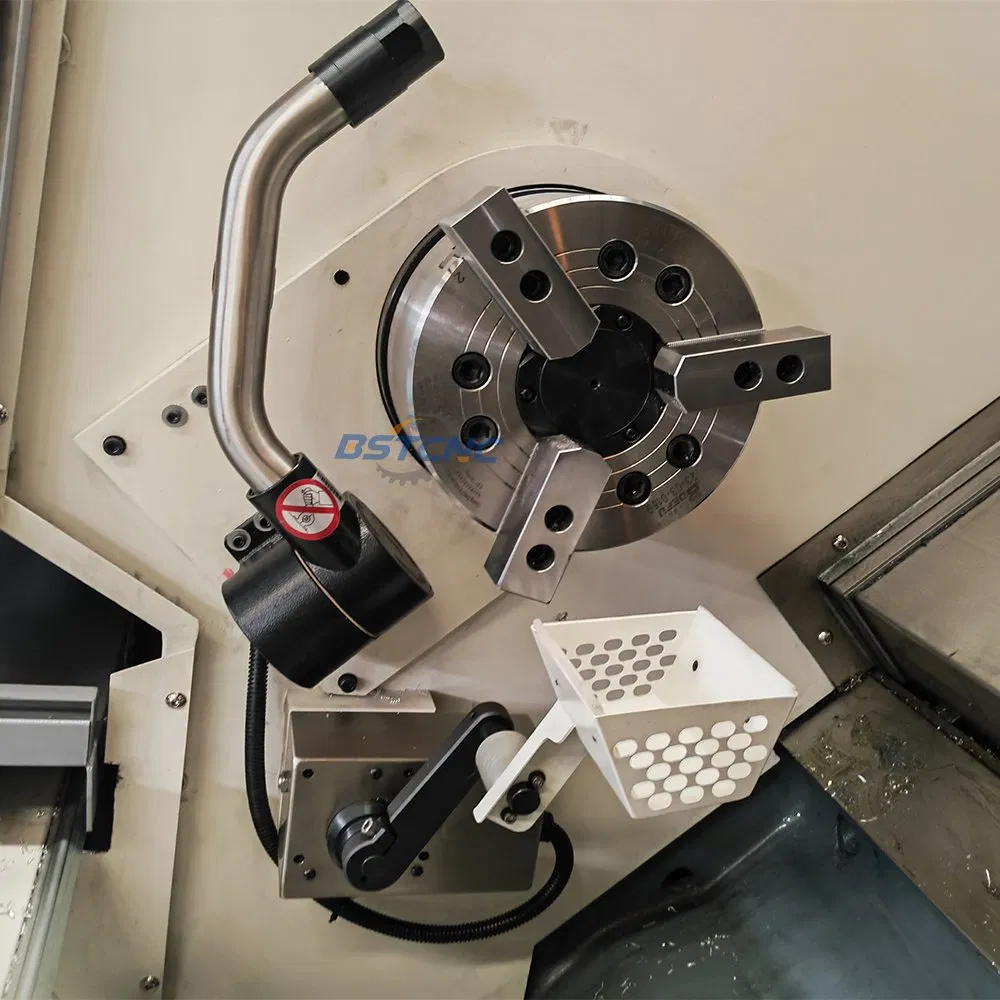

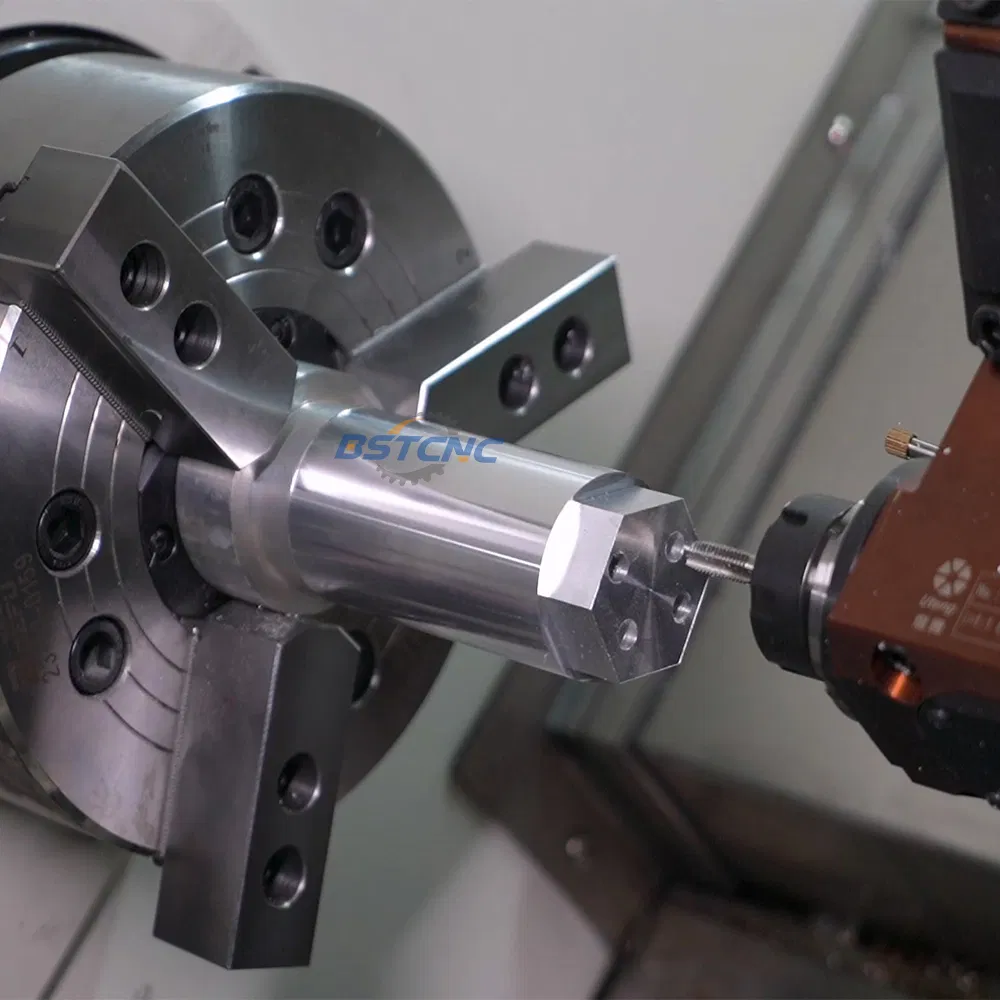

🖼️ Detailed Photos

🏭 Production & Partnership

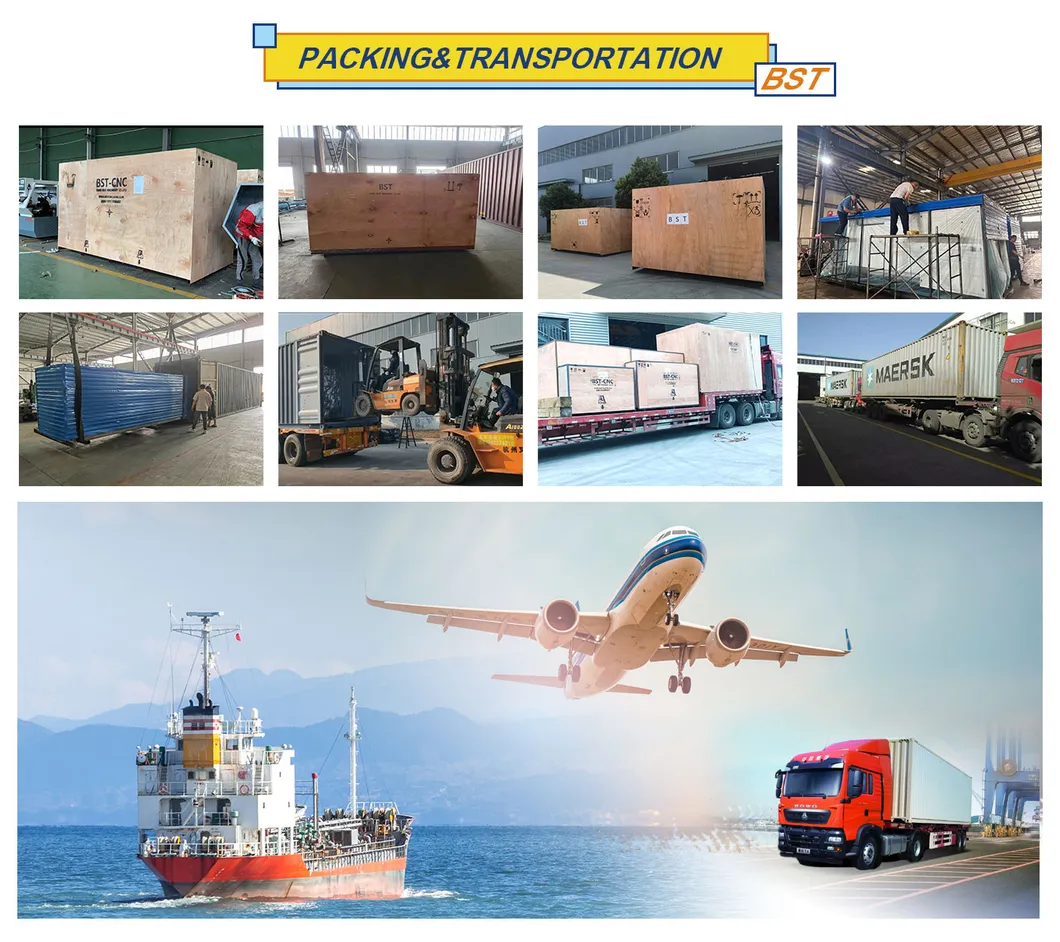

📦 Packaging & Shipping

Package Size

510.00cm * 223.00cm * 250.00cm

Package Gross Weight

5500.000kg

Transport Package

Wooden Case

❓ Frequently Asked Questions

What are the primary machining capabilities of the TCK56y?

The TCK56y is a slant bed turn-milling machine center capable of high-efficiency turning, milling, drilling, and processing radial/axial hook faces using its 4-axis (X, Y, Z, C) control system.

What is the spindle performance of this machine?

The machine features a high-performance electric spindle with a speed range of 50 to 4500 rpm and a 22/30kw motor, providing high torque for precision metal cutting.

Which control systems can be used with this CNC machine?

Standard configuration includes the GSK988TA system. Optional systems like Siemens 808D, Fanuc 0i-TF, Syntec 22TA, and Mitsubishi are also available to meet different user requirements.

What type of turret is equipped for milling operations?

It is equipped with a 12-station power turret (BMT40-ER20) which allows for seamless transition between turning and milling processes.

What quality certifications does the TCK56y hold?

This CNC machine center is fully certified with GS, CE, and ISO 9001 standards, ensuring it meets international safety and quality requirements.

Is the machine suitable for automated production?

Yes, it supports optional configurations such as an auto servo bar feeder, parts catcher, and chip conveyor, making it ideal for high-volume, automated production environments.
