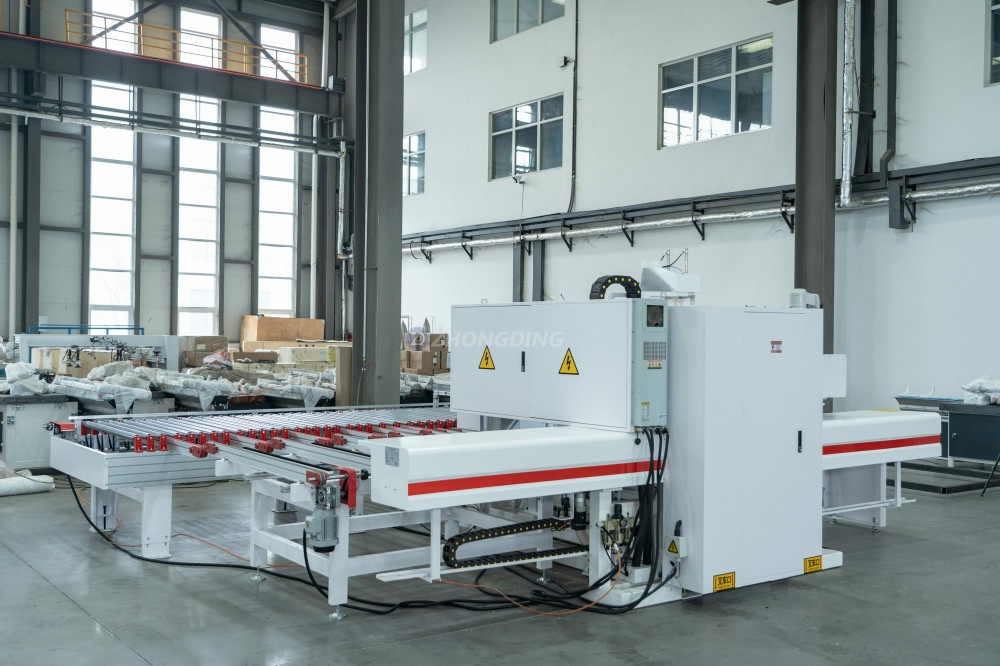

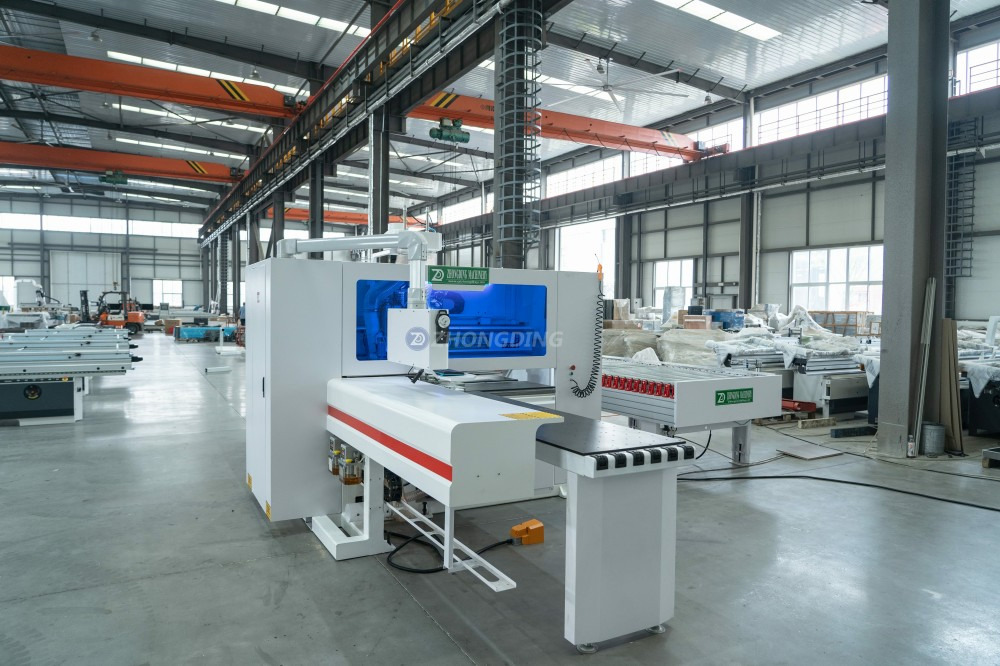

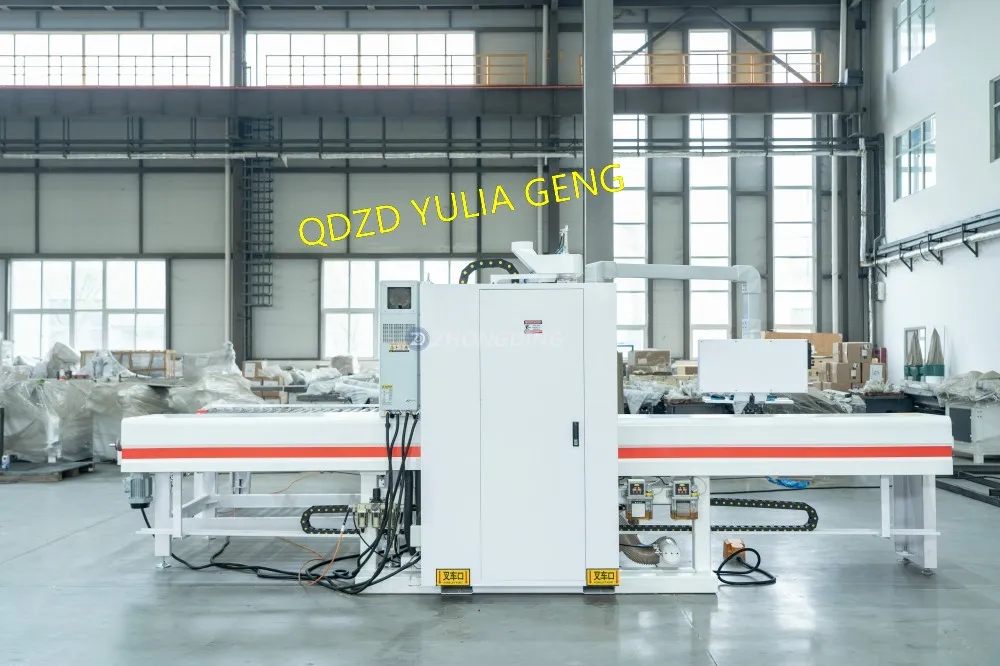

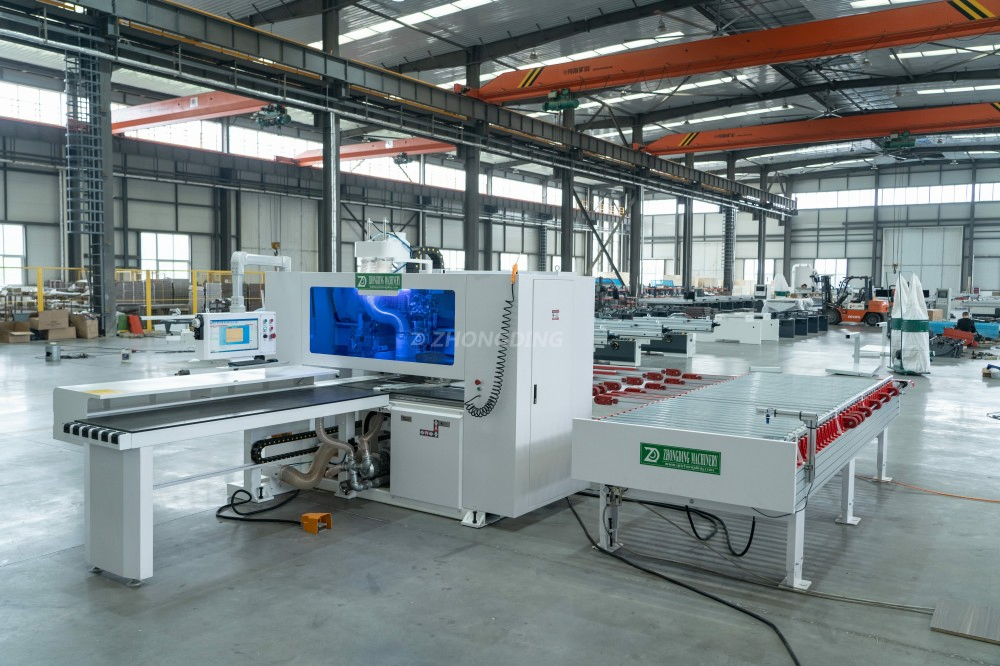

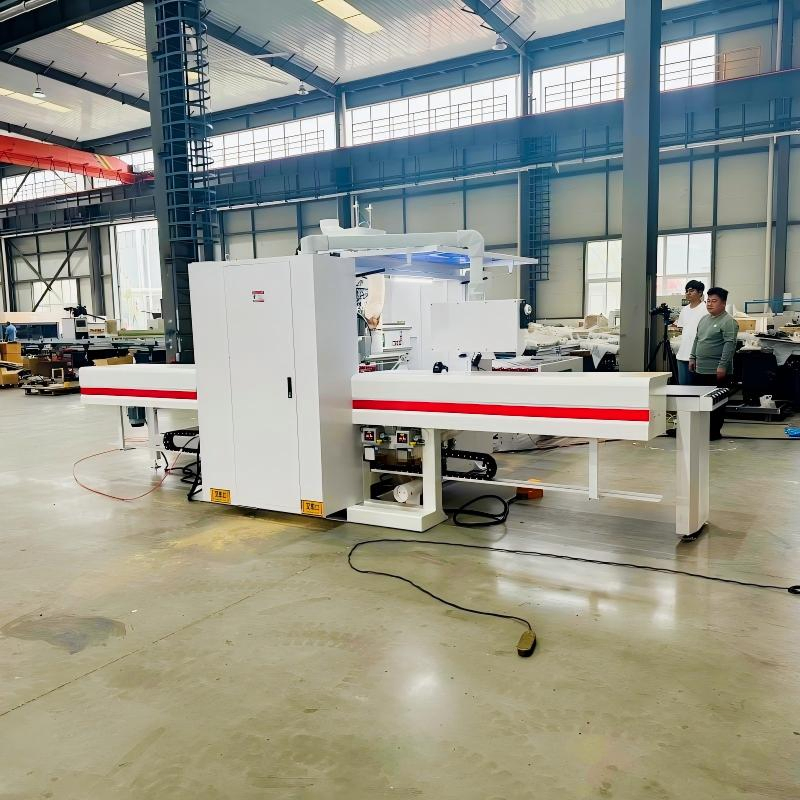

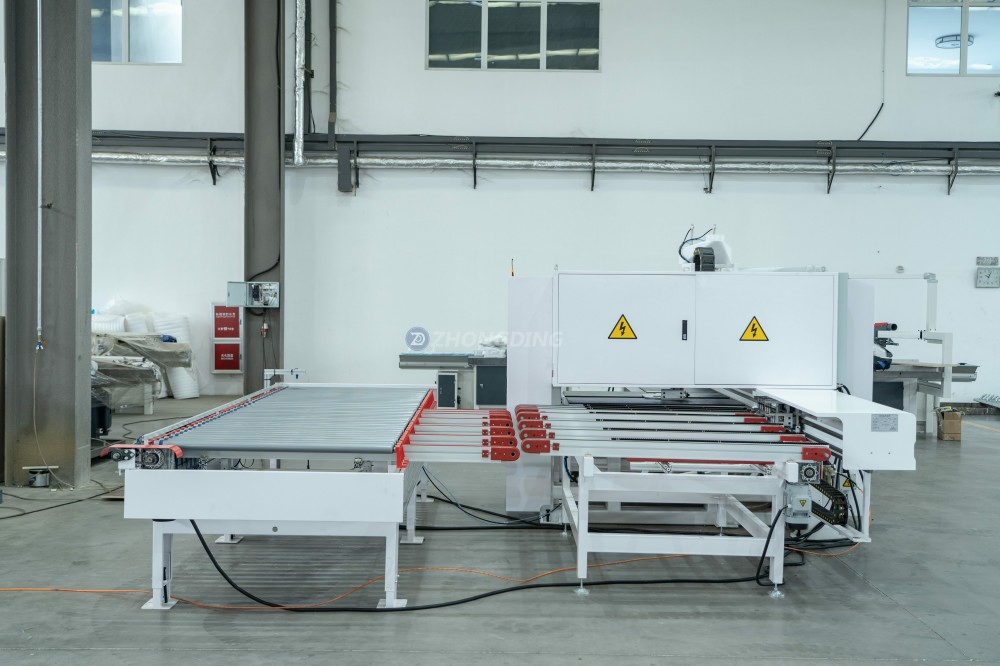

Smart 6-Face Boring Center Higerman CNC System No Homing Required for Furniture Factories

Customization:	Available
Structure:	Vertical Drilling Machine
Layout:	Vertical

Send Inquiry

Product Description

Basic Info.

Model NO.

ZD2812S

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO

Warranty

1 Year

Condition

New

Working Thickness

10-60mm

Working Width

50-1200mm

Working Length

150-2800mm

Product Description

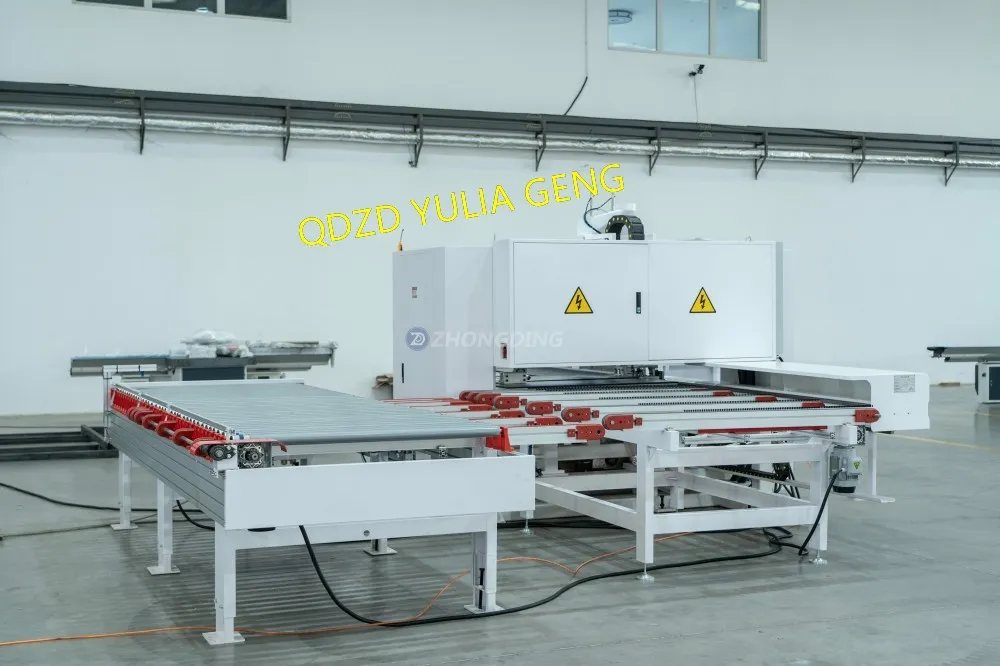

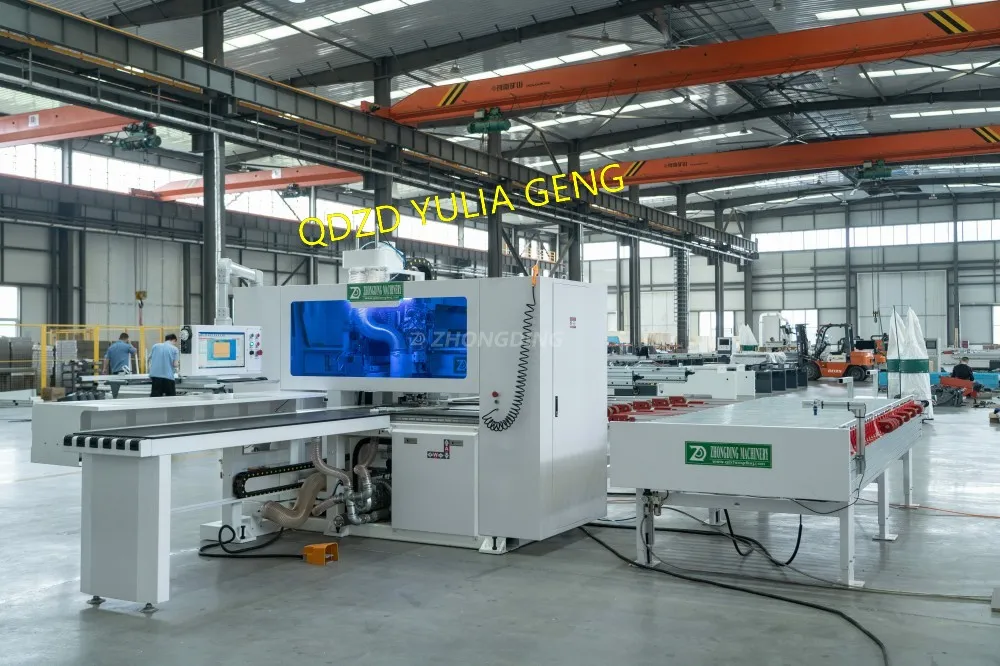

CNC SIX-SIDED DRILLING (ONE/TWO units spindles)

High-efficiency solution for smart furniture factories requiring precision boring and milling from all six sides in a single pass.

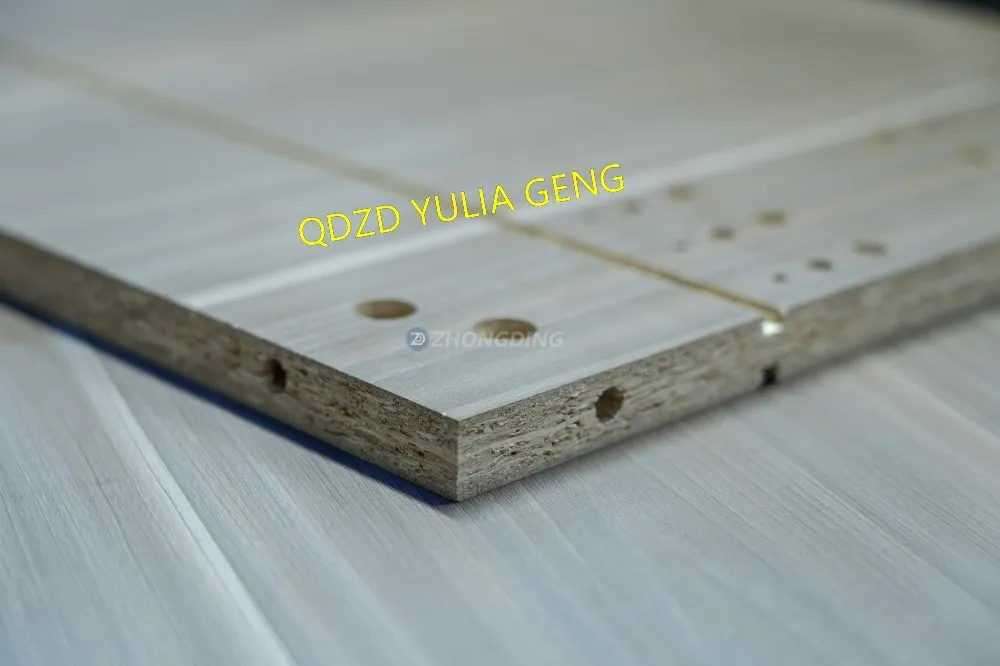

Drilling on Six Sides
Completion at one time without reducing flaps. Positioned twice to improve drilling progress.

High-end Design
Air-floating platform avoids board scratches. Double clamps adjust automatically to plate length.

Slotted Front & Back
Process front and back slots/holes simultaneously to maximize production efficiency.

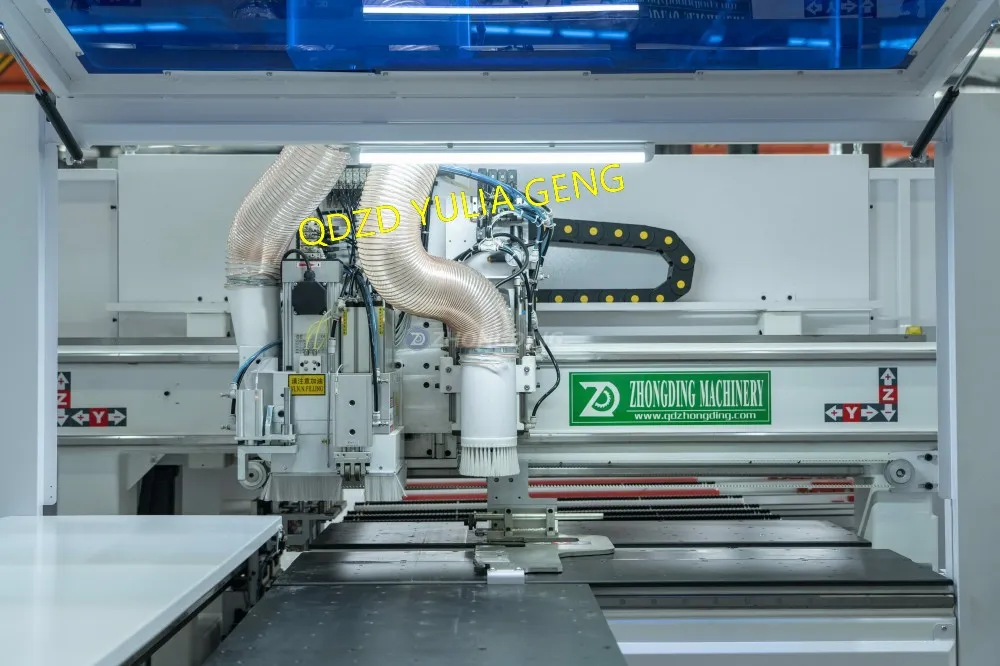

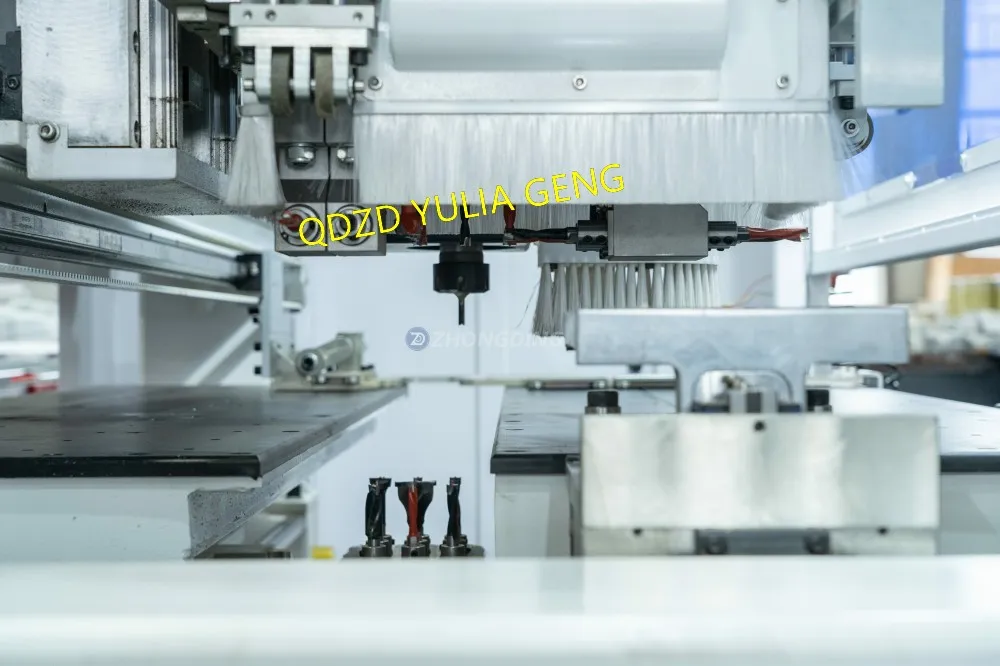

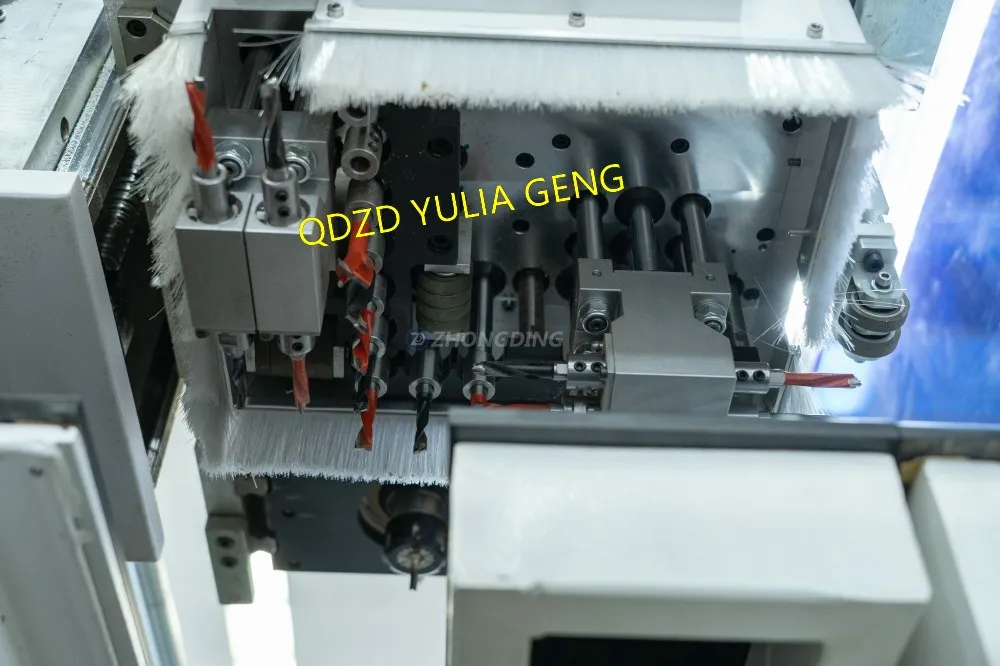

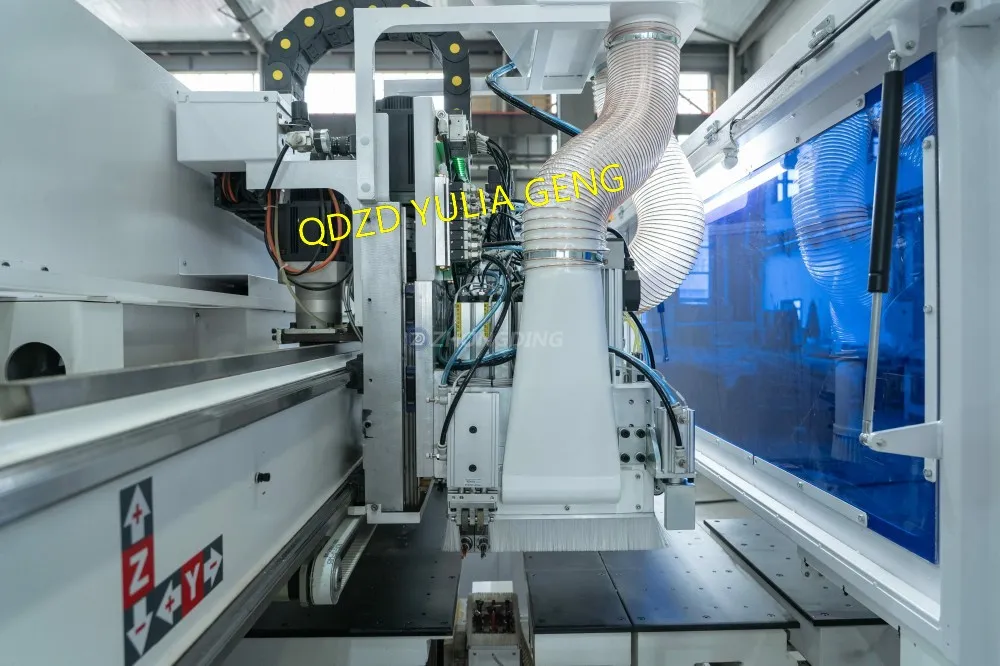

Double Head Drilling
Synchronous processing of side and vertical holes with optimized algorithmic paths.

ZD2812S Technical Parameters

Item		Specification	Item	Specification
Working Stroke	X Axis	5300mm	Total Power	22kw
	Y Axis	1200mm	Spindle Power	3.5kw x 2
	Z Axis	140mm	Drill Bank Power	2.2kw
Moving Speed	X,U Axis	120m/min	Upper Vertical Drills	12
	Y,W Axis	80m/min	Upper Horizontal Drills	8
	Z,A Axis	30m/min	Lower Vertical Drills	9

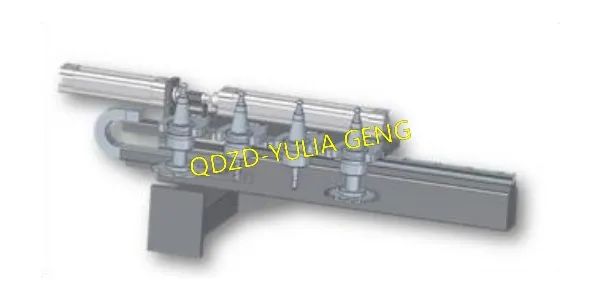

Four-position Linear Tool Magazine

Optional magazine for various tool installations. Supports invisible parts processing and multi-slot requirements.

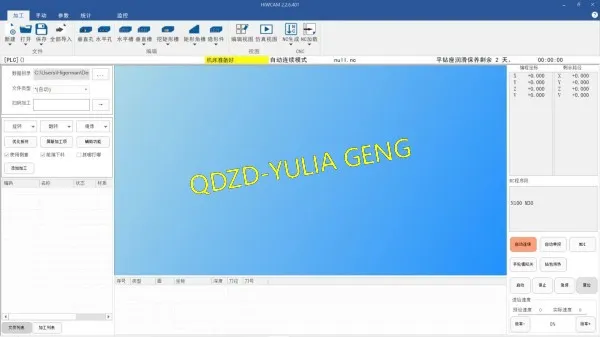

Higerman CNC System

Windows-based man-machine interface with Smart CAM software. Supports CAD data import and barcode scanning for seamless operation.

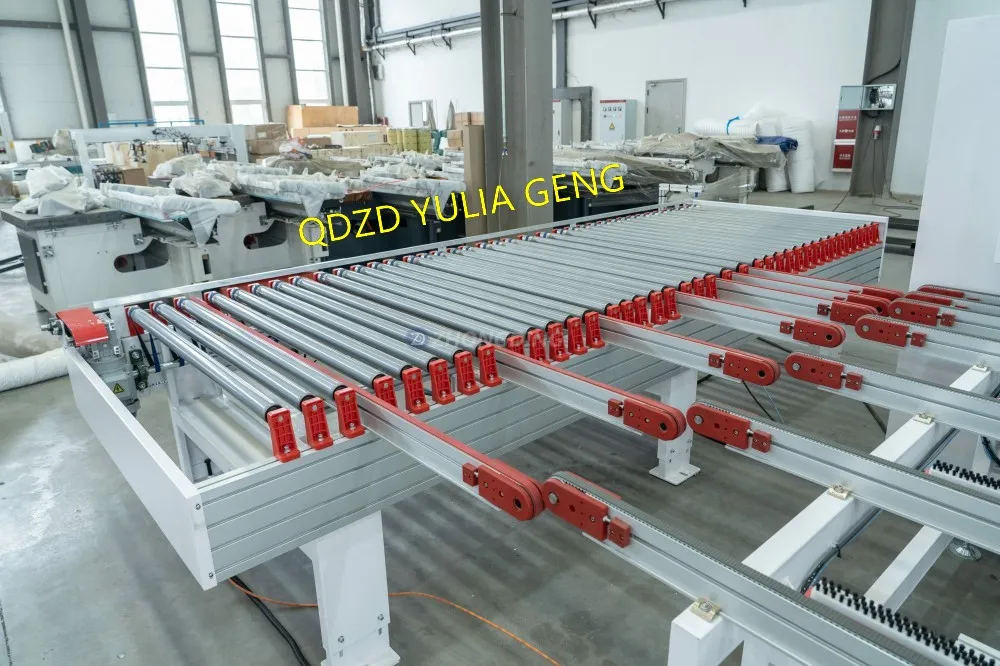

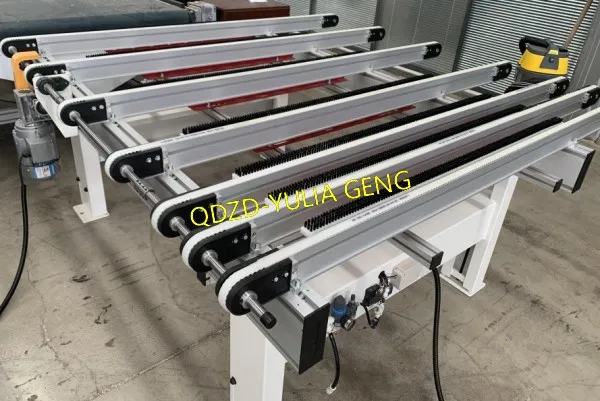

Flexible Discharge

Optional front, rear, or side discharge with automatic lifting table. Facilitates easy connection to existing production lines.

Why Choose Our Smart Woodworking Solutions?

Uncompromising Quality: Built with premium steel frames and globally trusted components like German-style guides and Japanese servo systems.

Ready to Run: Professional installation and commissioning ensure your equipment is accurate and productive from day one.

Advanced Technology: Features including parameter memory, self-diagnosis, and remote assistance solve real production challenges.

Frequently Asked Questions

What are the primary advantages of a six-sided drilling machine?

The primary advantage is processing all six sides of a panel in a single pass. This eliminates the need for manual flipping, significantly increasing precision and reducing labor costs.

Does the machine support automated data input?

Yes, the Higerman CNC system supports barcode and QR code scanning. It can automatically load processing graphics files and generate programs without manual programming.

What materials can be processed with the ZD2812S?

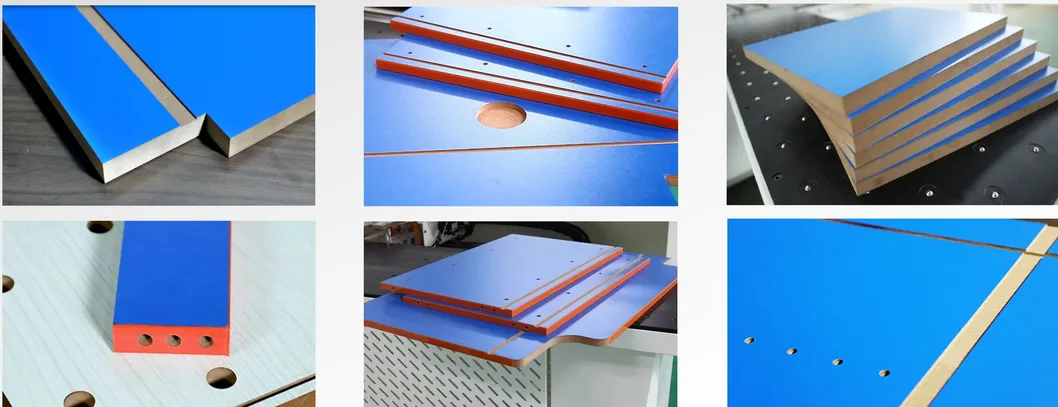

It is designed for panel furniture, including materials like MDF, particle board, plywood, and solid wood panels within the 10-60mm thickness range.

Is the machine compatible with standard design software?

The system is highly compatible and can seamlessly dock with most major cabinet and furniture design software that exports XML or MPR formats.

How does the "No Homing Required" feature work?

The machine utilizes absolute value servo motors that remember the position even after power-off, saving significant setup time every morning.

What kind of after-sales support is provided?

We provide comprehensive support including video technical assistance, online troubleshooting, and availability of high-flexible spare parts to ensure minimal downtime.
