I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
1 / 5
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship
I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship

I4500 Mems High Precision Integrated Navigation System Gnss/Ins Fusion for Unmanned Vehicle and Ship

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
I4500
Type
Motor
Application
Tunnel Boring Machine
Certification
CE
Condition
New
Package
Box and Sponge
Specification
33*27*8mm
Trademark
ML
Production
1000/Month
Packaging & Delivery
Package Size
50.00cm * 20.00cm * 20.00cm
Gross Weight
30.000kg
Product Specification

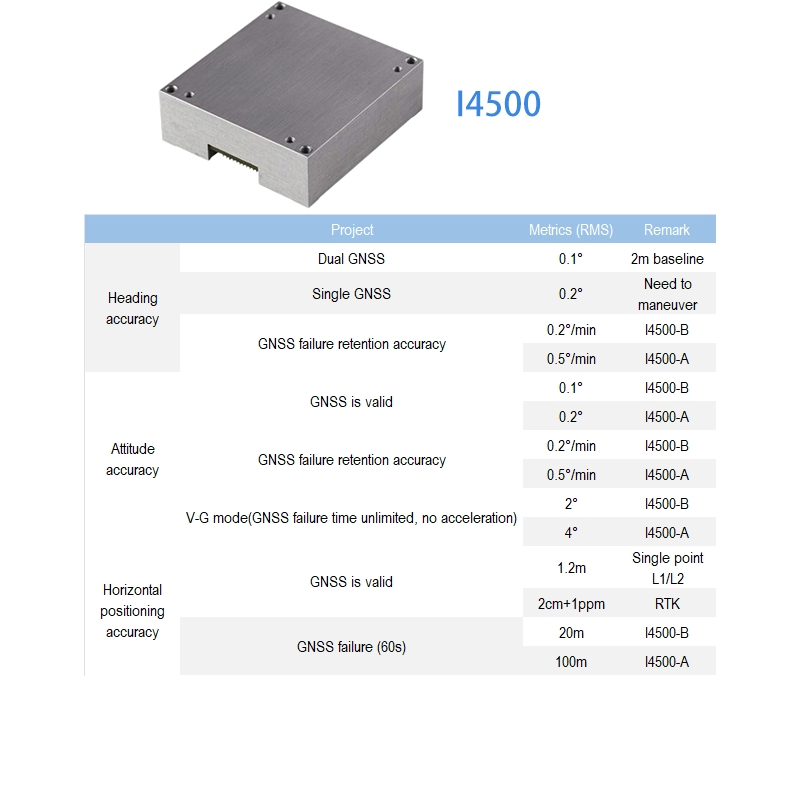

Category Project Metrics (RMS) Remark
Heading AccuracyDual GNSS0.1°2m baseline
Single GNSS0.2°Need to maneuver
GNSS failure retention0.2°/minI4500-B
GNSS failure retention0.5°/minI4500-A
Attitude AccuracyGNSS is valid0.1°I4500-B
GNSS is valid0.2°I4500-A

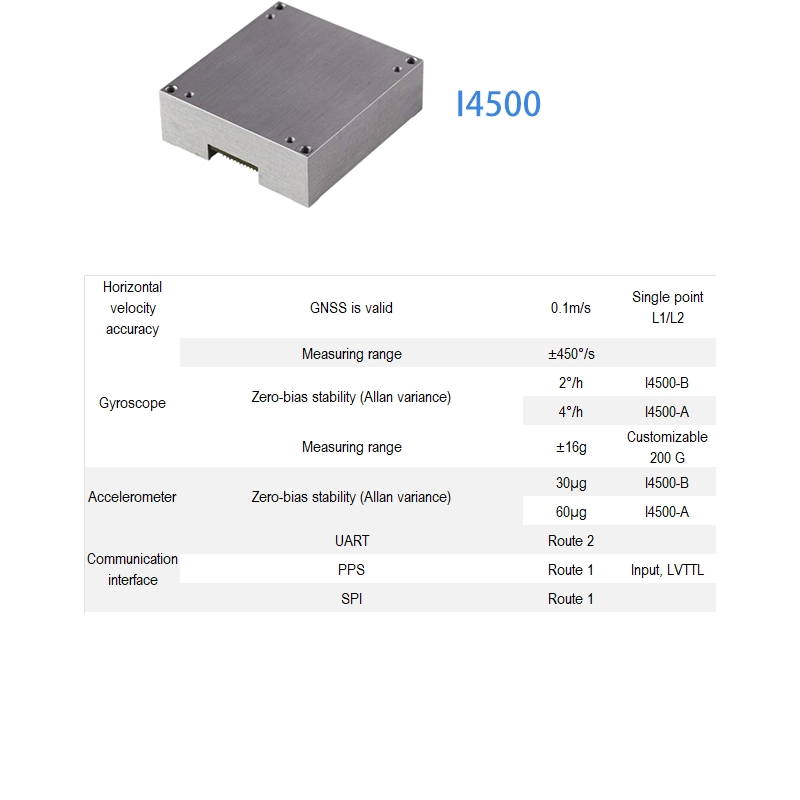

GyroscopeZero-bias stability2°/hI4500-B
Zero-bias stability4°/hI4500-A
AccelerometerZero-bias stability30µgI4500-B
Zero-bias stability60µgI4500-A
PhysicalSize47 mm×44 mm×14mm-
Weight≤50g-
Product Features & Overview
Our inertial sensors are known for their high precision, long life and reliability, and are widely used in a variety of industries such as aerospace, automobiles, robotics, and consumer electronics. Strict production and factory inspection processes ensure that each sensor can meet the high requirements of the industry. We provide customized solutions to meet customer-specific needs and help technological innovation in various industries.

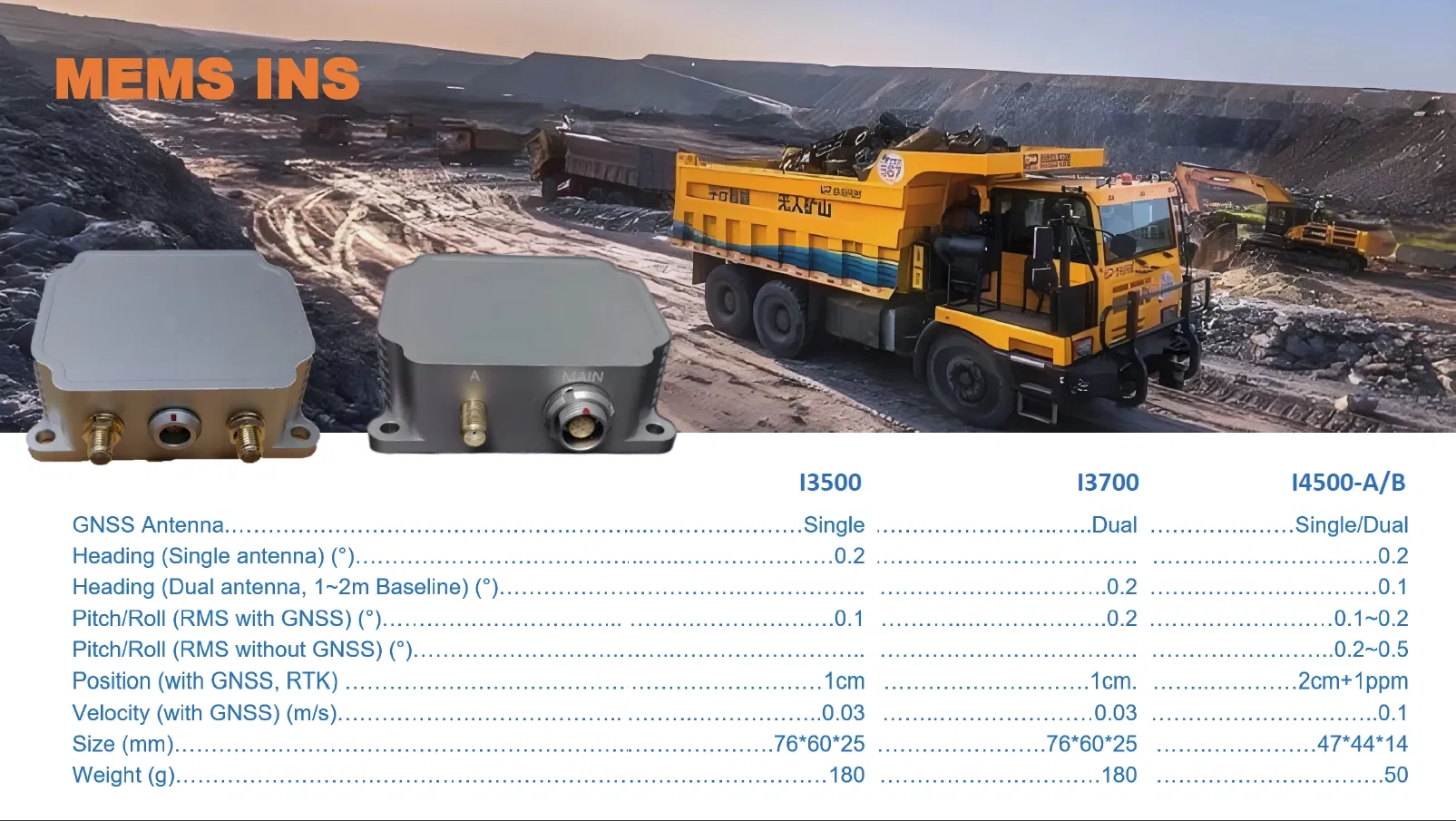

I4500 High Precision Navigation
Application View 1

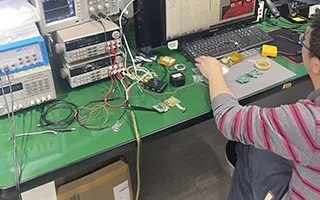

Application View 2

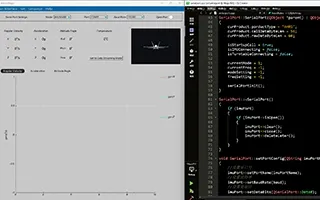

Application View 3
Frequently Asked Questions
Q1: What are the main versions of the I4500 system?
A: The system comes in two main versions: I4500-A (a lower-cost version with slightly reduced accuracy) and I4500-B (a high-performance version with superior precision).
Q2: What are the typical applications for this navigation system?
A: It is widely used in Unmanned Aerial Vehicles (UAVs), Unmanned Ground Vehicles (UGVs), Unmanned Surface Vessels (USVs), guided munitions, mobile mapping, and stabilization platforms.
Q3: What is the positioning accuracy of the I4500?
A: It offers a horizontal positioning accuracy of 1.2m for single point L1/L2 and reaches 2cm+1ppm when using RTK.
Q4: How durable is the I4500 system?
A: The system is designed for high reliability with a life span of over 15 years and an MTBF (Mean Time Between Failures) of 20,000 hours.

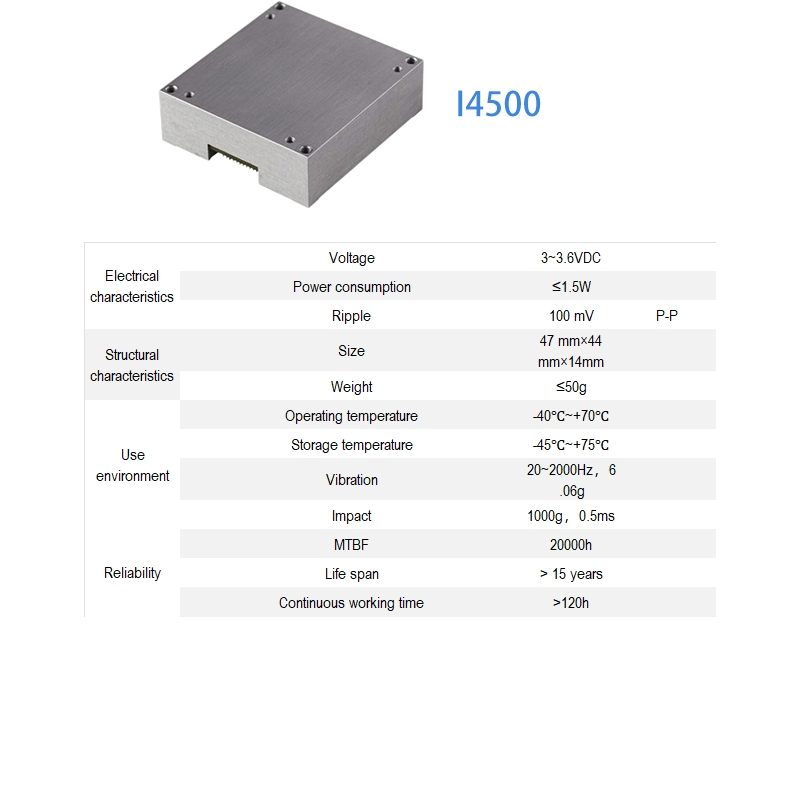

Q5: What are the power and environmental requirements?
A: It operates on 3~3.6VDC with power consumption ≤1.5W. The operating temperature range is from -40°C to +70°C.
Q6: What communication interfaces are supported?
A: The I4500 supports multiple interfaces including 2 routes for UART, 1 route for PPS (LVTTL input), and 1 route for SPI.
