High Precision Fiber Optic Ins Integrated Navigation System for Fixed Wing Uav Anti Shock Anti Vibration Chinese OEM

Customization:	Available
After-sales Service:	3 Year
Warranty:	3 Year

Basic Info

Model NO.	IF3000
Type	Bearing
Application	Tunnel Boring Machine
Certification	CE, ISO9001: 2000
Weight	0.8kg
Supply Voltage	12~36V
Power Consumption	≤ 12W
Specification	33278mm
Production Capacity	1000/Month

Product Introduction

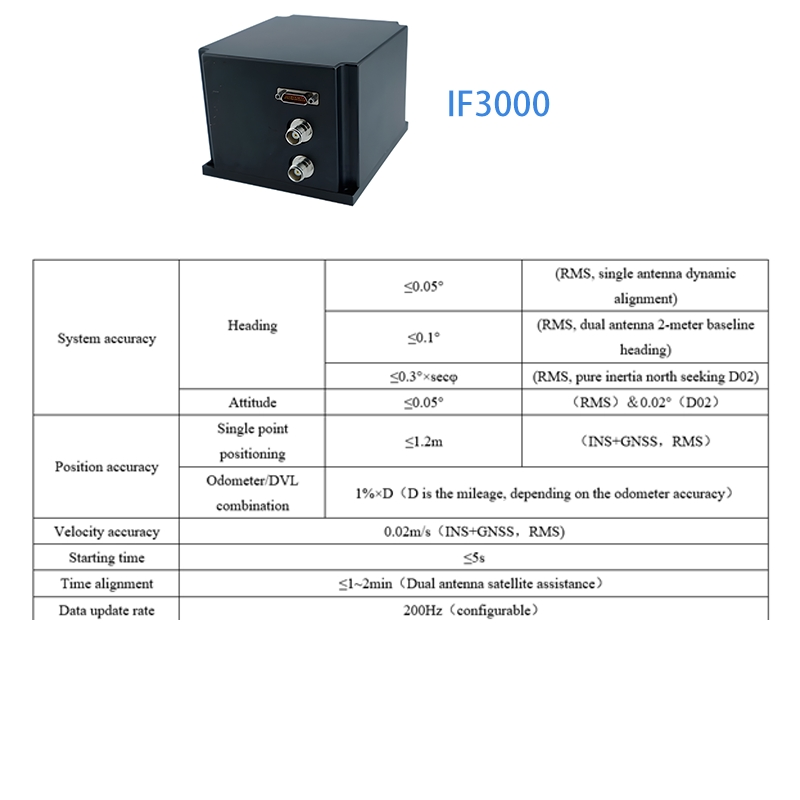

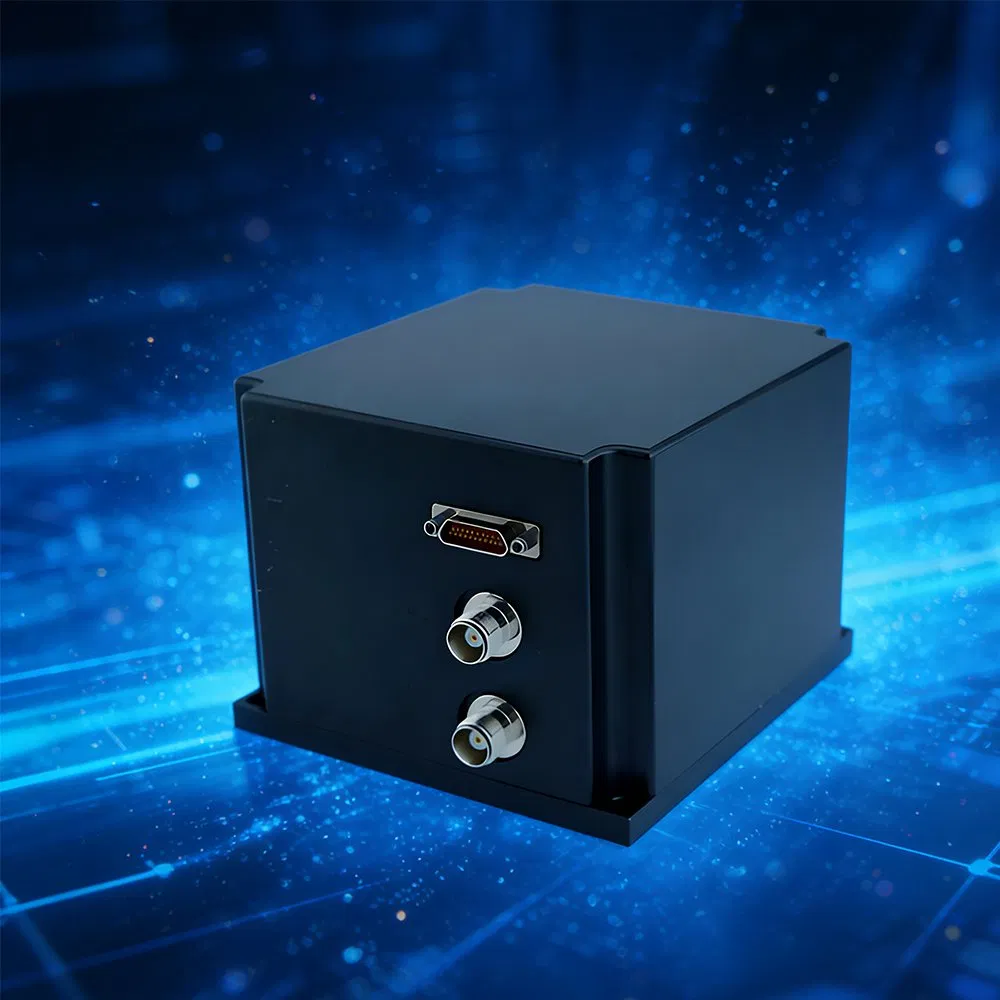

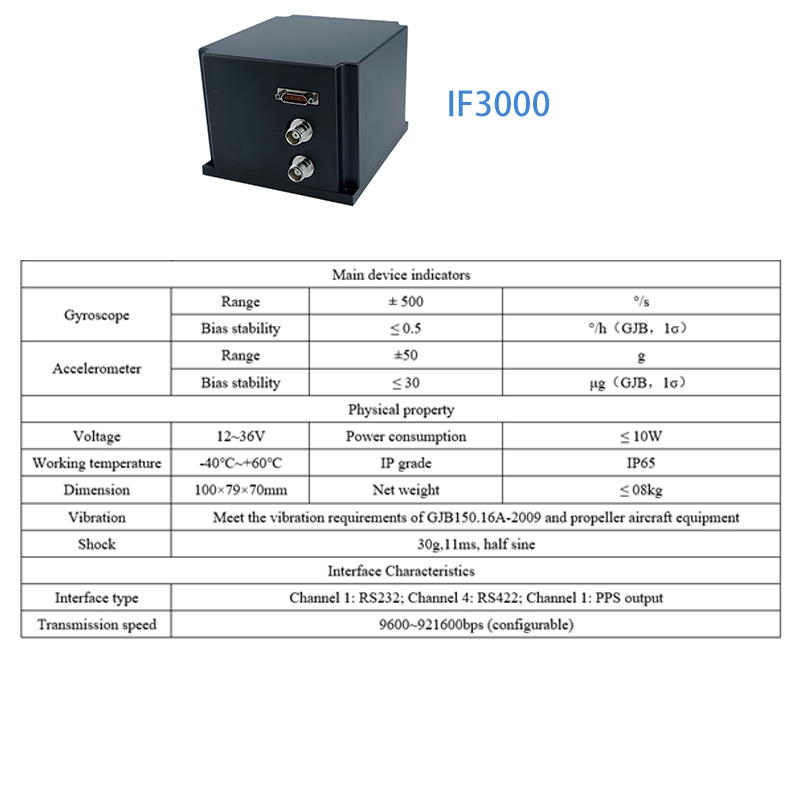

Fiber Optic Inertial Navigation System: IF3000
IF3000 is a miniaturized fiber optic inertial navigation system with a volume of only 80*80*84mm and a weight of only 0.8kg. The system consists of a three-axis integrated fiber optic gyroscope, quartz accelerometer, and a multi frequency satellite module for the entire system.

This product is equipped with a new navigation fusion algorithm, which can continuously output stable and reliable navigation information even in the event of satellite loss of lock. The product undergoes temperature compensation and calibration to ensure system accuracy throughout the entire temperature range.

With rich interfaces, it can be connected to an external odometer, DVL, and other sensors. It has excellent scalability and customizable statement protocols. Its small size and high precision make it particularly suitable for navigation and control of unmanned equipment such as drones, AUVs, and ROVs.

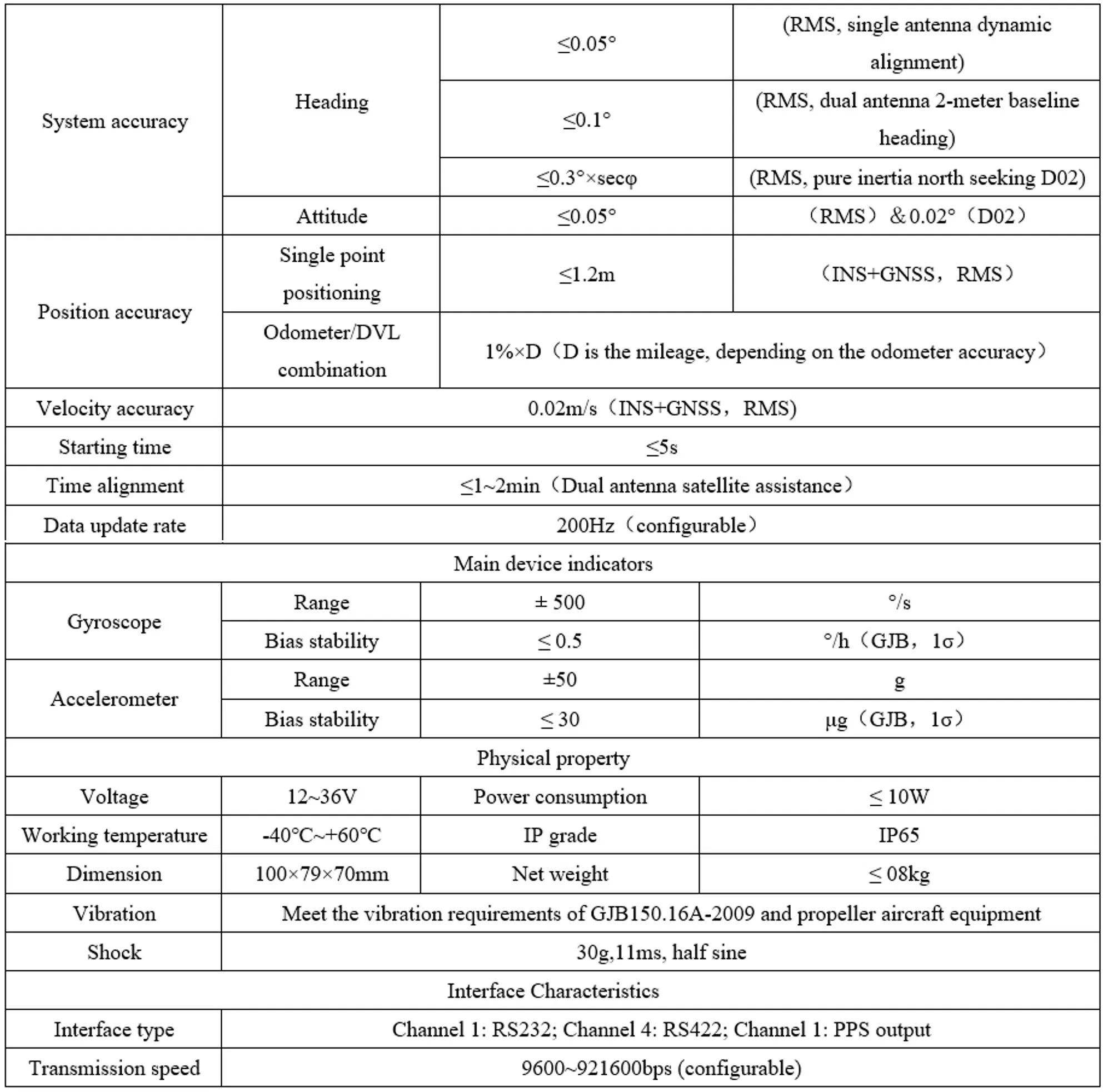

Specification

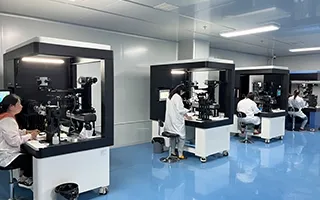

Expertise & Quality

Our inertial sensors are known for their high precision, long life and reliability, and are widely used in a variety of industries such as aerospace, automobiles, robotics, and consumer electronics. Strict production and factory inspection processes ensure that each sensor can meet the high requirements of the industry. We provide customized solutions to meet customer-specific needs and help technological innovation in various industries.

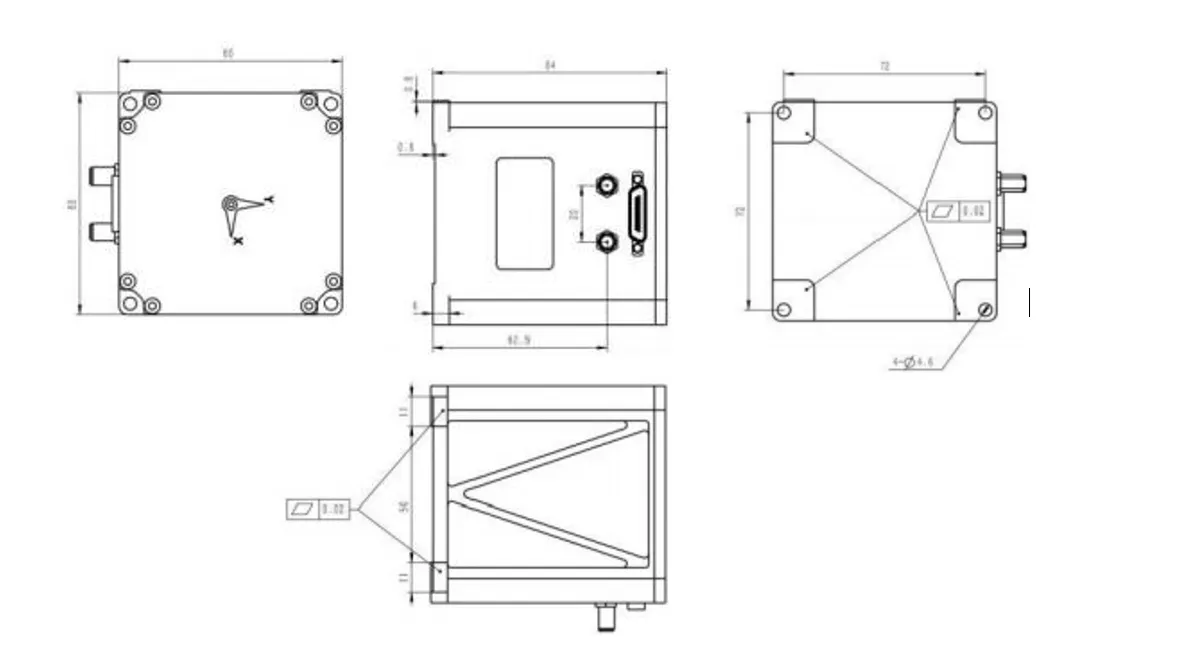

Dimensions & Definitions

Application Area

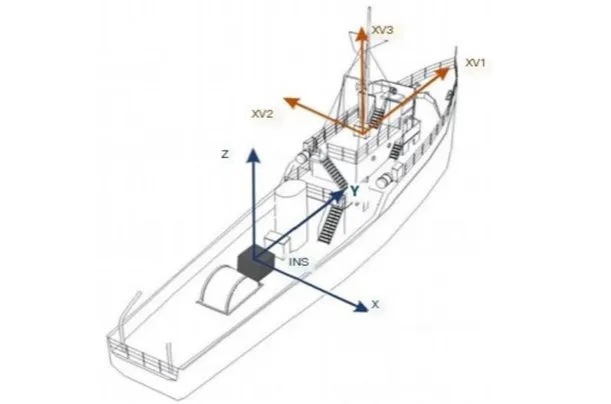

Marine Navigation

Should be installed as close to the center of the ship as possible. Firmly connected to the ship to avoid errors caused by GNSS antennas swaying.

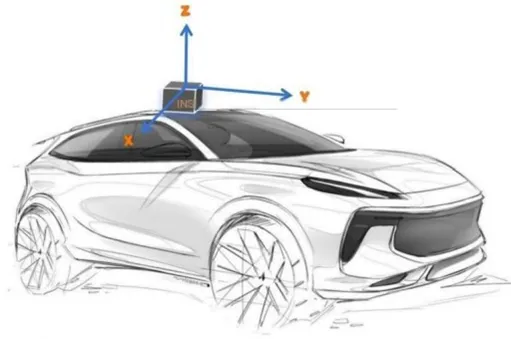

Land Vehicles

Fixed on the carrier with XYZ coordinate system aligned. Positive Y-axis matches the forward direction of the carrier.

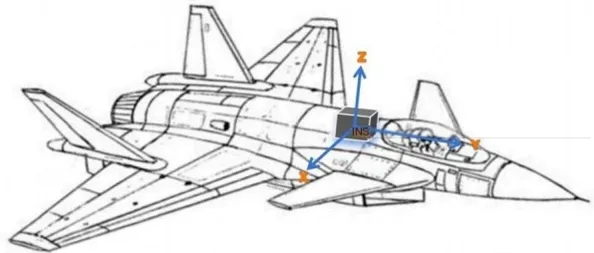

Airborne Systems

Installed at the center of the aircraft. Ensures accurate pitch, roll, and azimuth angle sensitivity for drones and fixed-wing UAVs.

Frequently Asked Questions

What is the IF3000 Inertial Navigation System?

The IF3000 is a miniaturized high-performance fiber optic inertial navigation system (FOG INS). It integrates fiber optic gyroscopes, quartz accelerometers, and a multi-frequency GNSS module, providing continuous data even in GNSS-denied environments.

What is the positioning accuracy of this system?

The system offers high precision with RTK positioning accuracy ≤ 2 cm and velocity accuracy ≤ 0.02 m/s. Attitude accuracy (Pitch/Roll) is ≤ 0.02°.

What applications is IF3000 suitable for?

It is ideal for UAVs/drones, aircraft, AUVs/ROVs, marine navigation, driverless vehicles, surveying, mapping, and robotics.

How does the system handle satellite signal loss?

The IF3000 uses a proprietary navigation fusion algorithm that ensures the system continues to output stable and reliable navigation information even when satellite signals are lost.

Is the system resistant to environmental vibrations?

Yes, the IF3000 is designed with anti-shock and anti-vibration features. It also undergoes comprehensive temperature compensation to maintain accuracy across various operating environments.

Can I connect external sensors to the IF3000?

Yes, the unit features rich interfaces that allow for the connection of external odometers, DVLs, and other peripheral sensors for enhanced scalability.
